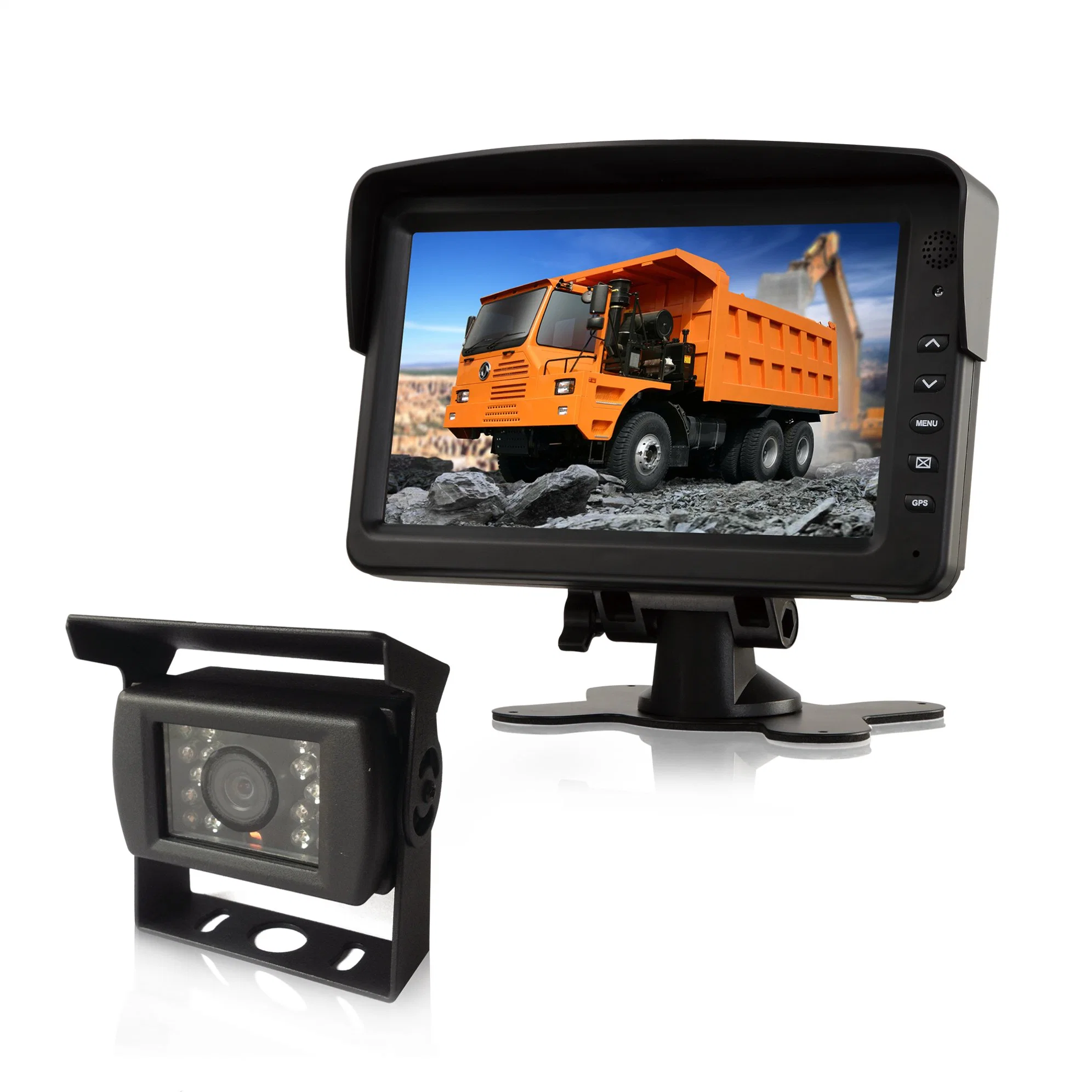

7inch Digital Monitor Rear View Camera System for Car, Buses, Trucks, Vehicles

7inch Digital Monitor Rear View Camera System for Car, Buses, Trucks, Vehicles

7inch Digital Monitor Rear View Camera System for Car, Buses, Trucks, Vehicles

7inch Digital Monitor Rear View Camera System for Car, Buses, Trucks, Vehicles

7inch Digital Monitor Rear View Camera System for Car, Buses, Trucks, Vehicles

1 / 5

7inch Digital Monitor Rear View Camera System for Car, Buses, Trucks, Vehicles

7inch Digital Monitor Rear View Camera System for Car, Buses, Trucks, Vehicles

7inch Digital Monitor Rear View Camera System for Car, Buses, Trucks, Vehicles

7inch Digital Monitor Rear View Camera System for Car, Buses, Trucks, Vehicles

7inch Digital Monitor Rear View Camera System for Car, Buses, Trucks, Vehicles

7inch Digital Monitor Rear View Camera System for Car, Buses, Trucks, Vehicles

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

MS-706RSC

Waterproof Grade

IP69

Certification

CE, ISO, E-MARK

Warranty

24 Months

Material

ABS / Zinc-alloy

View Angle

120 Degree

HS Code

85122090

Production Capacity

5000PCS/Month

MS-706RSC Car Safety System

High-performance vehicle safety solution featuring industrial-grade components designed for demanding environments.

Wide Voltage Range: Input voltage available from 10-36V DC, suitable for various vehicle types.
Advanced Display Control: Mirroring can be set separately in each channel with dimming function.
Multi-Channel Support: 2 Channels for video and audio with 2 independent triggers.
Customizable Grids: Parking lines can be adjusted up, down, left, or right for precise guidance.
Industrial Durability: Built to withstand significant shock and vibration.
Waterproof Integrity: Full dust and waterproof design with specialized waterproof connectors.

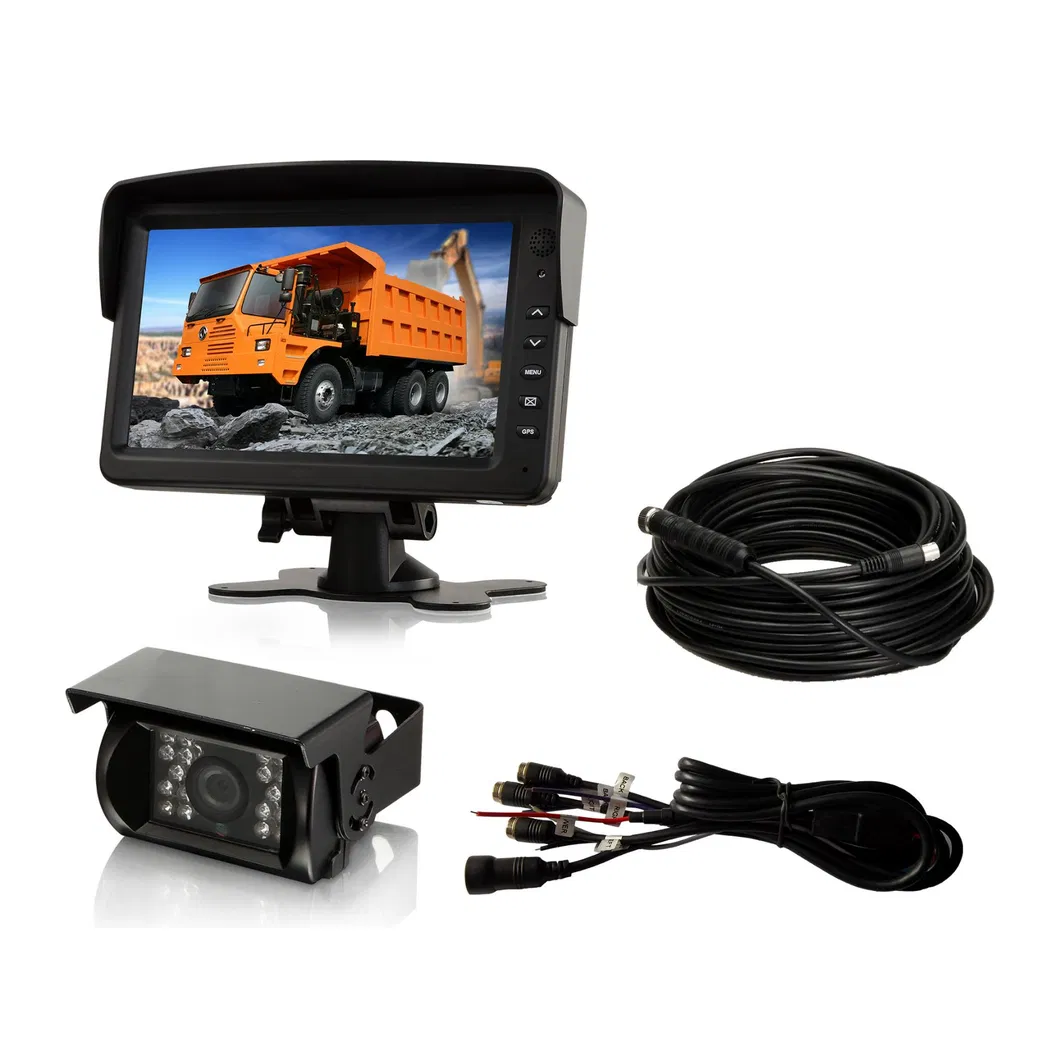

7inch Digital Monitor Rear View Camera System 1

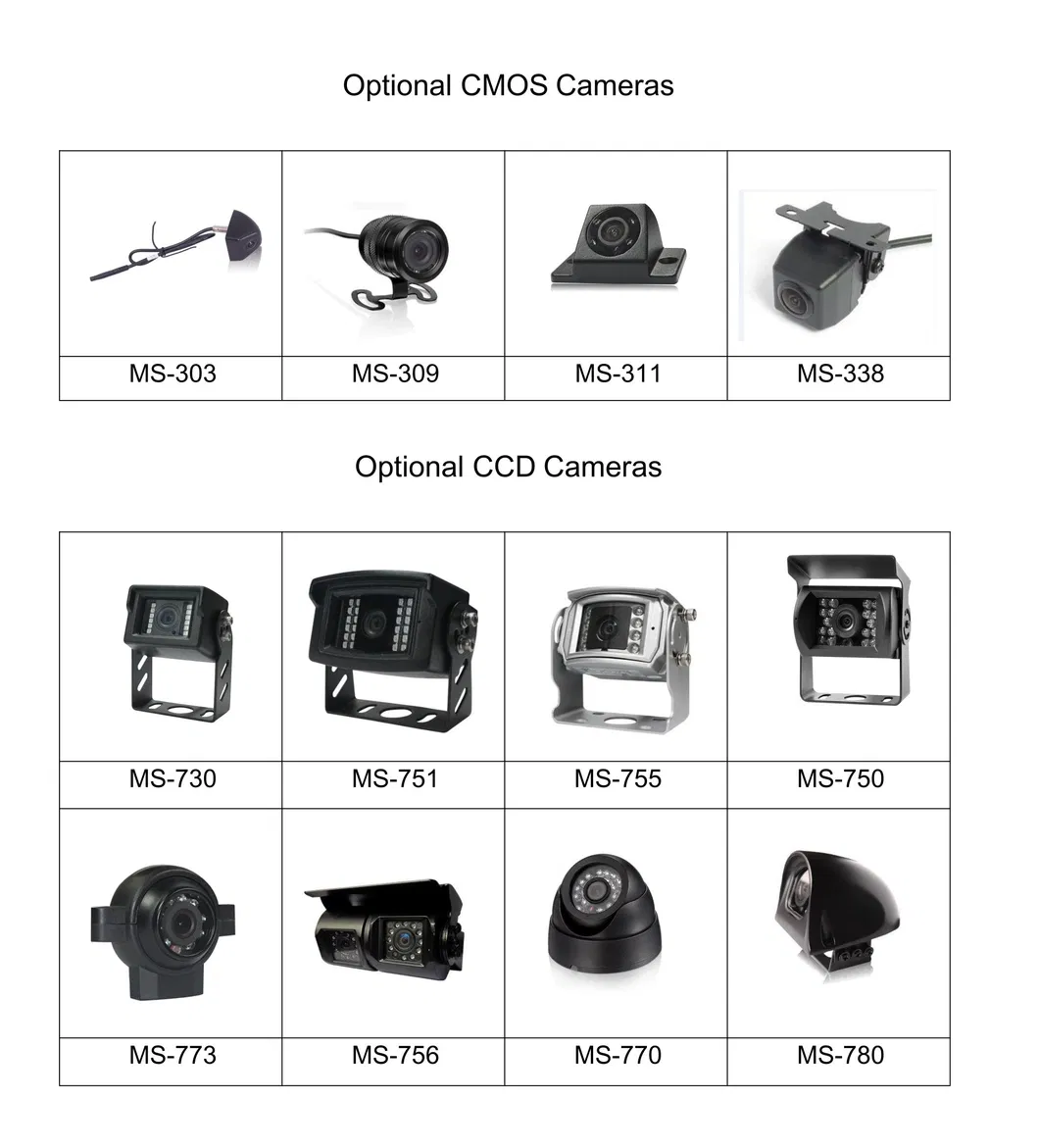

7inch Digital Monitor Rear View Camera System 2

Technical Specifications

7'' TFT LCD Monitor (MS-706)
Picture Format	16:9 Wide Screen
Resolution	800 * 3 (RGB) * 480p
Video System	PAL/NTSC Automatic Switch
Brightness & Contrast	400cd/m² \| 500:1
Visible Angle	U: 40 / D: 40 \| L/R: 70
Operating Temp	-20°C to 70°C

CCD IR Camera (MS-750)
Sensor Type	1/3 CCD Sharp Sensor
Waterproof Rating	IP69 Industrial Grade
Resolution	600 TV Lines
Night Vision	18-piece IR LED (0.01lux min light)
Viewing Angle	120 Degrees
Housing Material	Durable Zinc-alloy

Rear View Camera System Connectivity

Rear View Camera System Installation

Rear View Camera System Night Vision

Our Core Advantages

⚙️ Expert Engineering

Over 40 engineers providing professional technical support.

🏆 OEM Expertise

More than 14 years of dedicated OEM manufacturing experience.

🛡️ Quality Control

Strict OQC and IQC testing protocols for every product.

📦 Global Warranty

Long-term 18-24 month guarantee on all safety items.

Frequently Asked Questions

What is the waterproof rating of the camera?

The MS-750 camera features an IP69 waterproof rating, which is the highest protection level against dust and high-pressure water jets.

Can this system be installed on large trucks or buses?

Yes, the system supports a wide input voltage range from 10V to 36V DC, making it compatible with cars, trucks, buses, and industrial vehicles.

Does the camera support clear vision at night?

Absolutely. The camera is equipped with 18 high-intensity IR LEDs, allowing for excellent night vision even in total darkness (0.01 lux).

Are the parking grid lines adjustable?

Yes, the grid lines can be adjusted up/down or left/right through the OSD menu to fit your specific vehicle dimensions.

What is the resolution of the 7-inch monitor?

The monitor provides a crisp digital resolution of 800 x 480 pixels with a 16:9 widescreen display format.

How many camera channels does the monitor support?

The system supports 2 independent video channels, both with audio capability and individual trigger wires.
