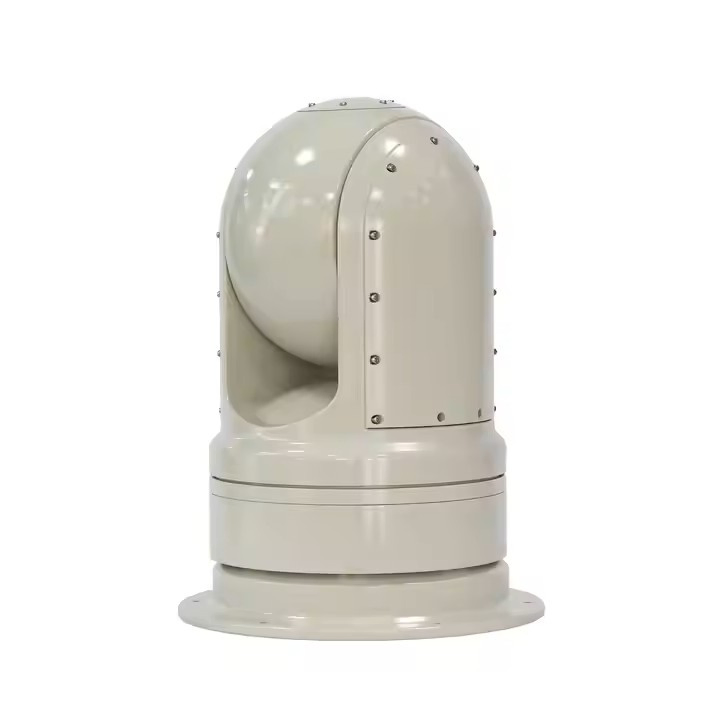

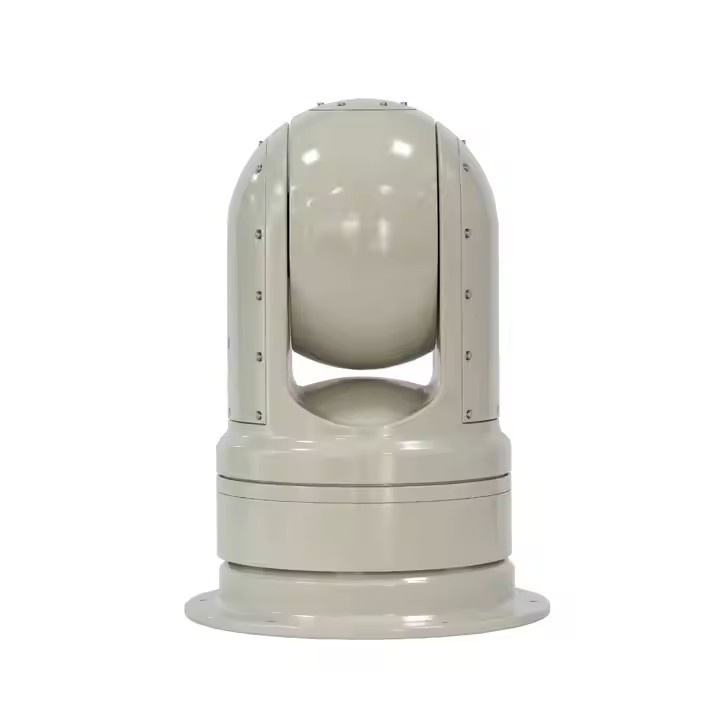

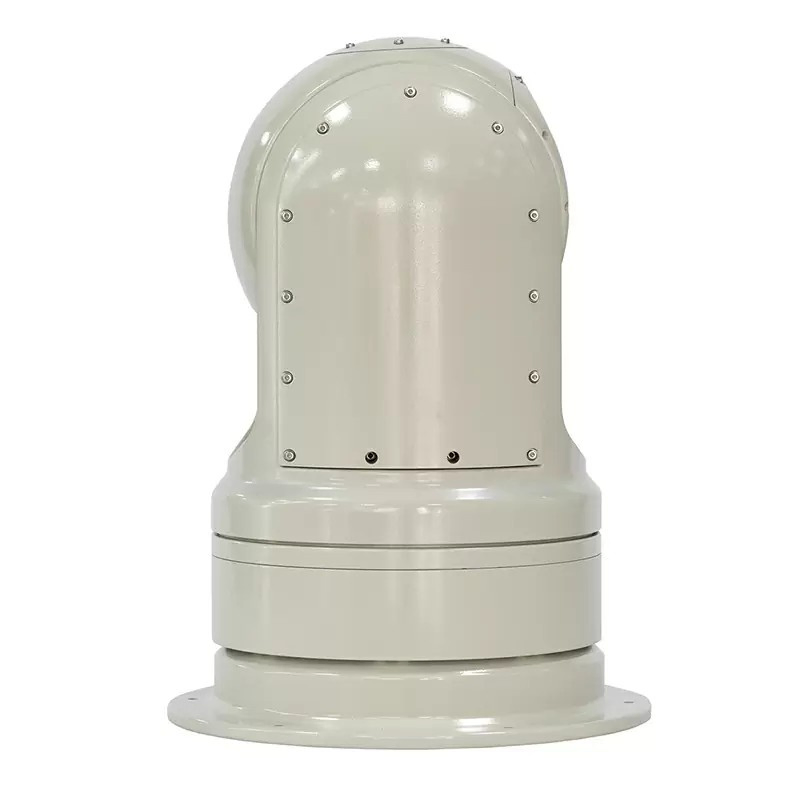

5-Kilometer Intelligent Tracking IP PTZ Day/Night CCTV Vehicle-Mounted Camera

Customization:	Available
Technology:	Infrared
Style:	Pan/Tilt

Basic Information

Model NO.

SHR-Shipborne Stabilization

Type

IP Camera

Sensor

CMOS

HDMI Format

1080P

Horizontal Resolution

640X512 Resolution

Kind

Autofocus Lens

Certification

CE, FCC, ISO9001: 2000

Effective Distance

19km

Detection Distance

Human: 13km, Vehicle: 19km

Spectral Range

3-5um

Protection Grade

IP66

Rotation Angle

0-360 Degree in Horizontal

Product Description

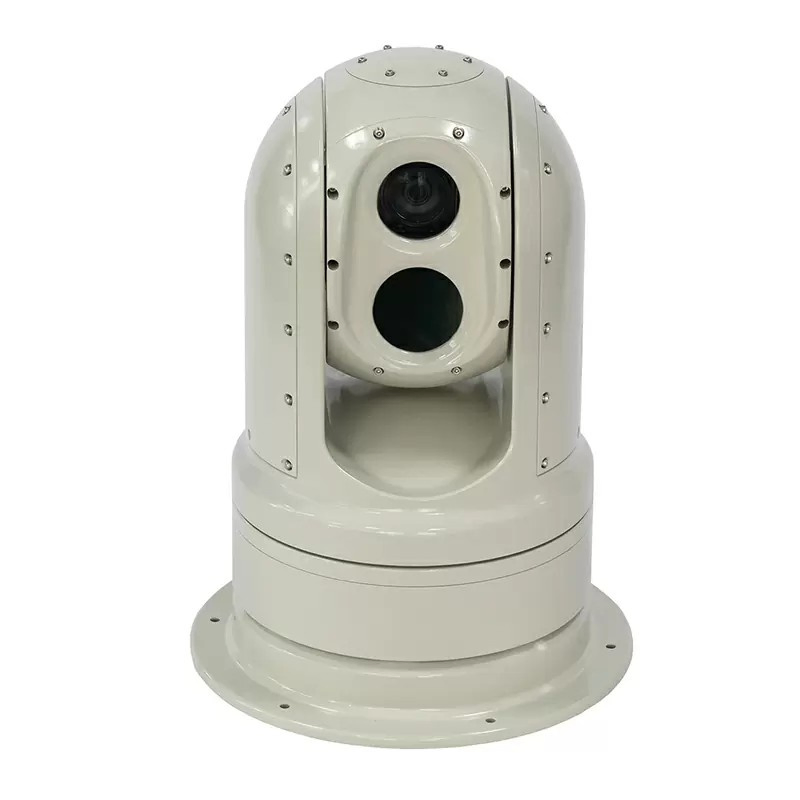

Long Range Day/Night IR PTZ Cooled Thermal Zoom Imaging Security Camera with LRF

Integrated infrared detection system, camera system, high-precision transmission system and 2-axis gyro stabilization system
High precision two-axis gyro stabilization, accuracy ≤1mrad(RMS)
Visible light camera wavelength extension infrared enhancement technology
Modular, parallel real-time embedded system
Real-time video OSD for coordinates, speed, and azimuth pitch angle
High-strength, high-precision, ultra-low resistance turret structure design

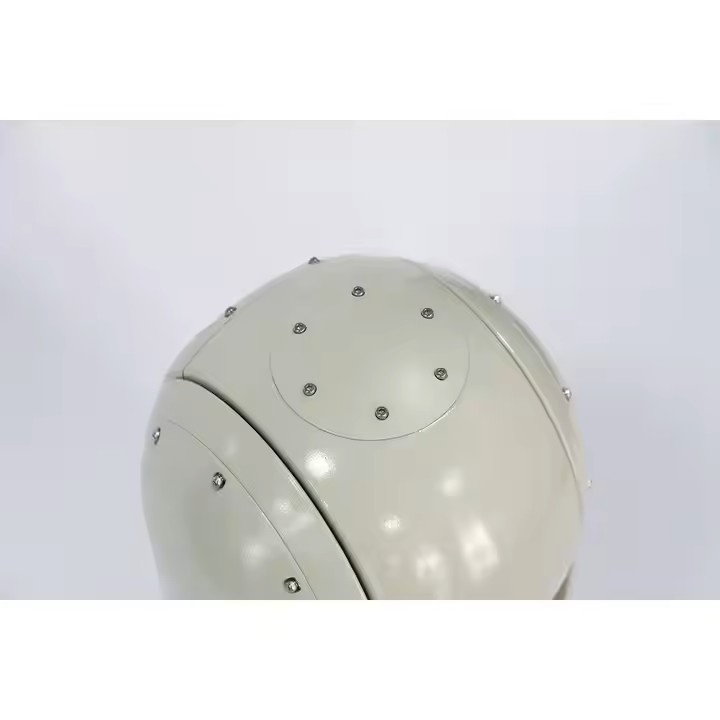

Spherical design enhances wind resistance, featuring a full metal casing
Special reinforcement design, suitable for drones, helicopters, vehicles, and ships
Low power consumption with stable working performance

Feature		Target	Human (1.8x0.5m)	Vehicle (2.3x2.3m)
Thermal Camera	Detection	-	1400m	4000m
	Recognize	-	350m	1000m
	Identification	-	170m	500m
Day Camera	Monitoring	-	1000m

Technical Specifications

Platform Type	Two-axis Photoelectric pod	Stable Precision	≤1mrad(RMS)
Horizontal Scope	360° Continuous	Vertical Scope	+90° ~ -90°
Day Camera Sensor	1/4″ EXview HAD CCD	Optical Zoom	36x (3.4~122.4 mm)
Thermal Detector	Uncooled FPA microbolometer, VOx	Thermal Resolution	640×512
Operation Temp	-25ºC ~ +55ºC	Protection	IP66, Salt fog proof (48h)
Weight	≤15kg	Power Consumption	Peak ≤ 70w; Continuous ≤ 55w

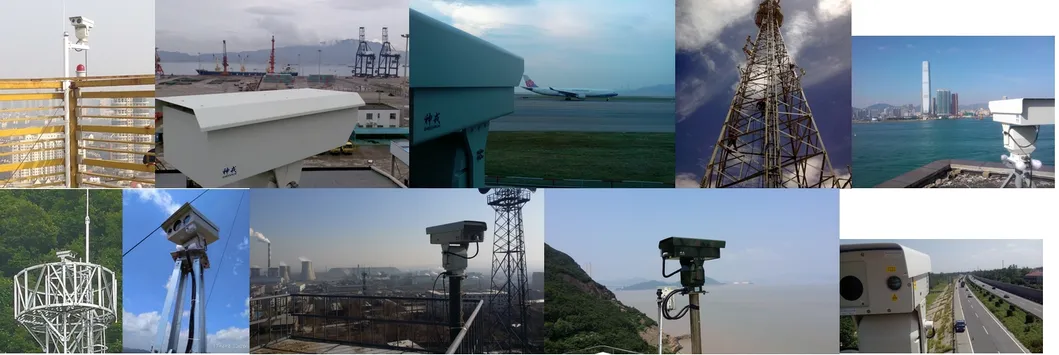

Application Areas

Ideal for: UAV detection and tracking, border defense, safe city monitoring, forest fire-proof monitoring, high altitude monitoring, railway monitoring, harbor monitoring, oilfield monitoring, freeway monitoring etc.

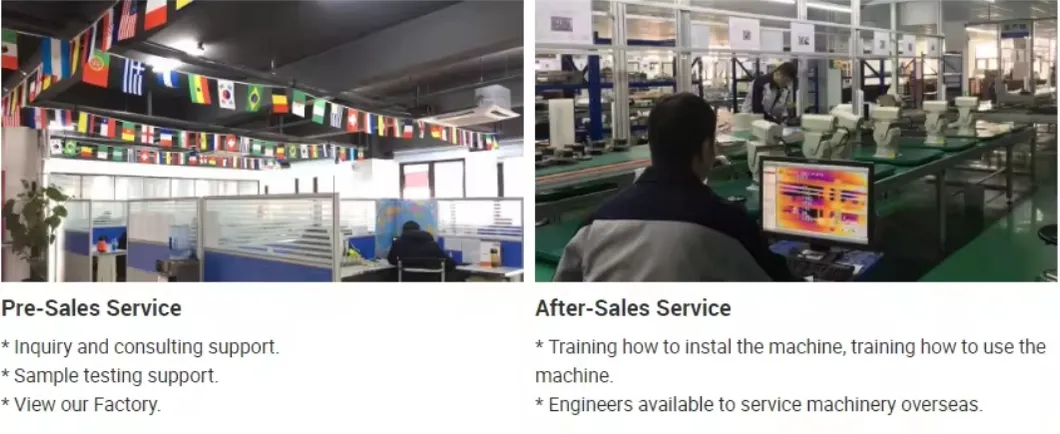

Manufacturing & Services

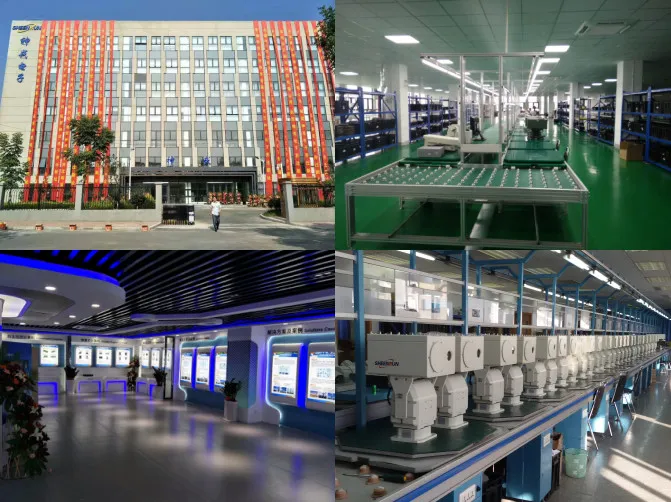

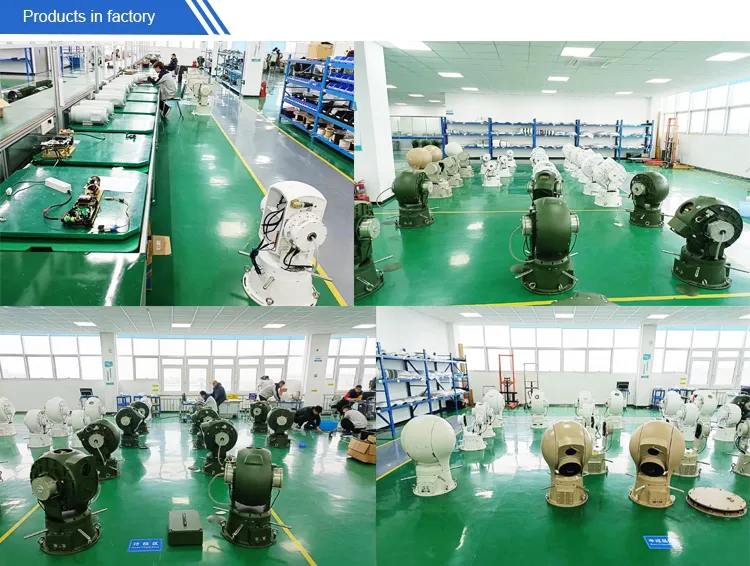

Workshop & Production:

Exhibition & Global Presence:

Certifications:

Frequently Asked Questions

What is the effective detection distance of this system?

The system can detect humans up to 13km and vehicles up to 19km, depending on the specific configuration and environmental conditions.

Does the camera support image stabilization for mobile use?

Yes, it features a high-precision two-axis gyro stabilization system with an accuracy of ≤1mrad(RMS), making it suitable for drones, ships, and vehicles.

Is this equipment suitable for harsh marine environments?

Absolutely. The device is IP66 rated and has passed salt fog proof testing (PH6.5~7.2) for 48 hours of continuous spraying.

What are the main components of this multisensor system?

The system integrates an infrared thermal imaging system, a visible light day camera, a high-precision transmission system, and a 2-axis gyro stabilizer.

What is the Minimum Order Quantity (MOQ)?

The MOQ for this professional security system is 1 piece.

Can the video output be customized?

Yes, while standard output is 2x BNC, we offer IP and HD-SDI options as optional customizations.
