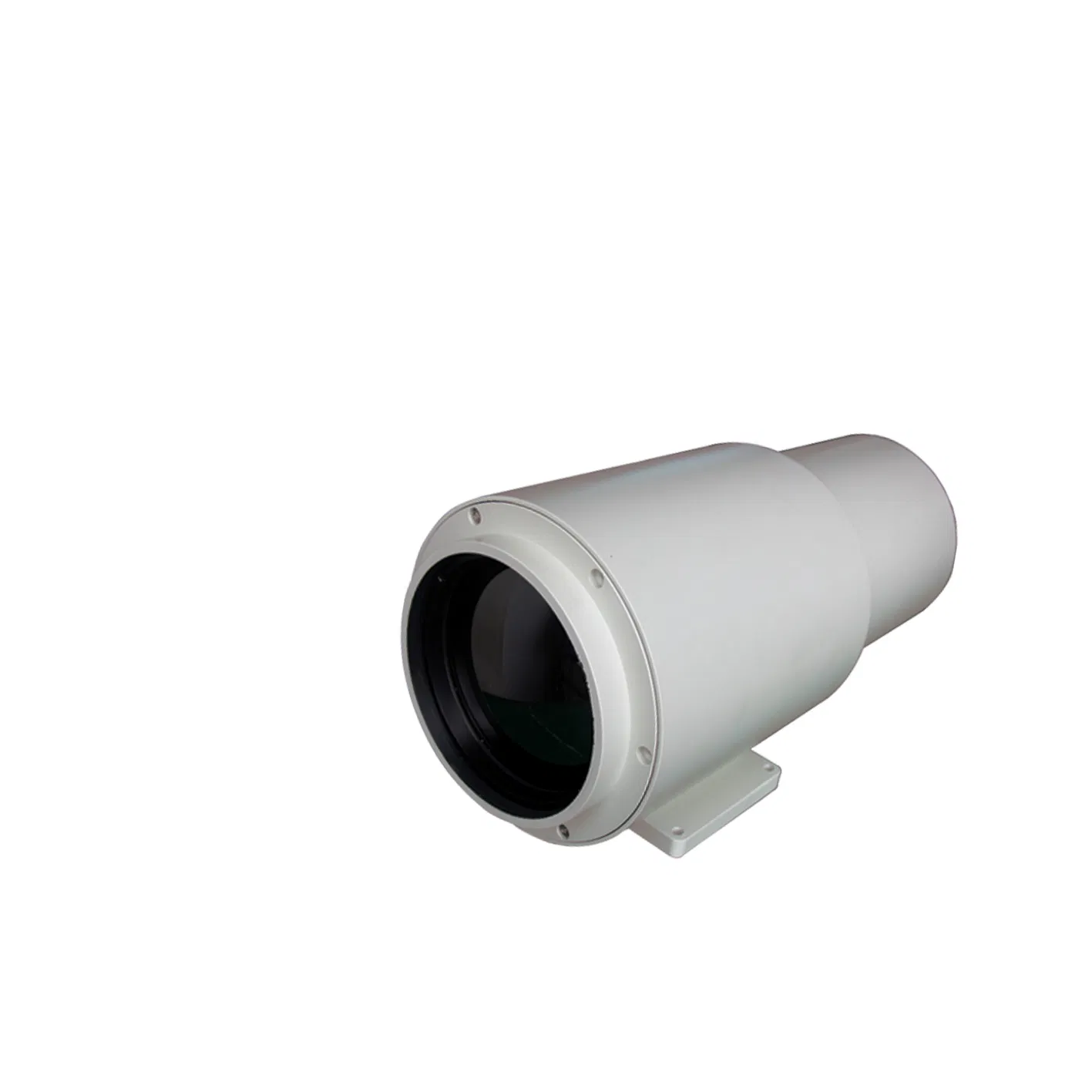

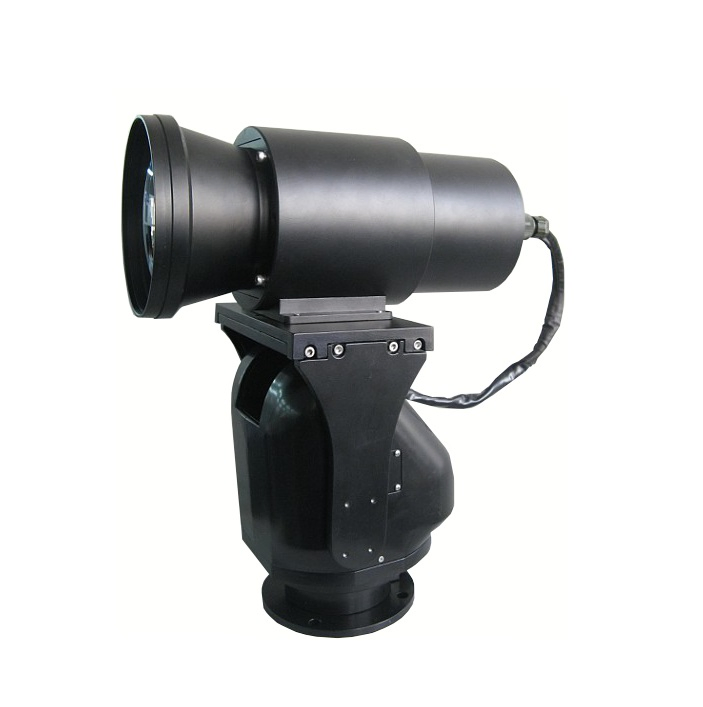

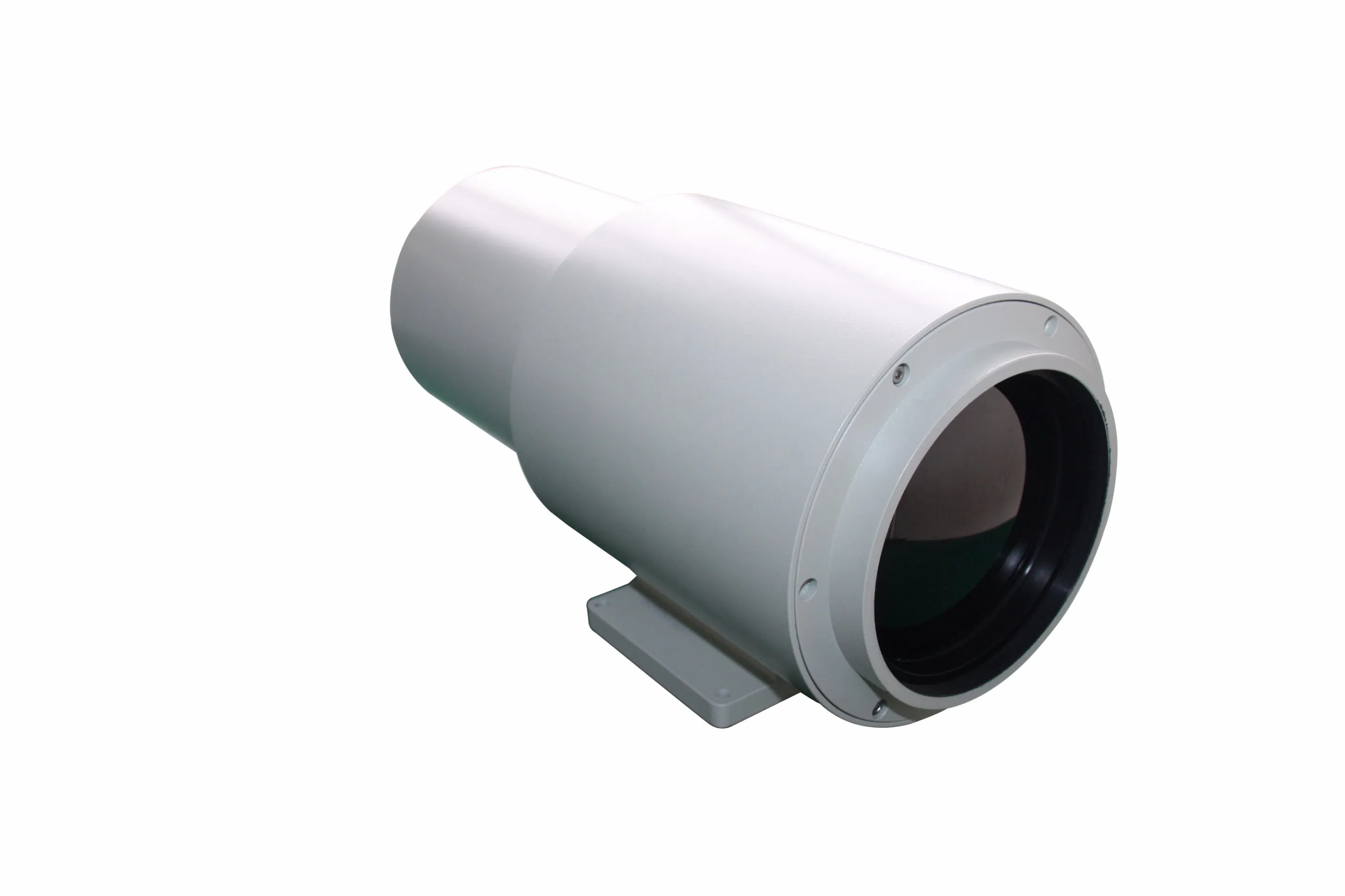

Long Range Vehicle Mounted PTZ Anti-Salt Fog Uncooled Infrared Thermal Imaging Camera
Long Range Vehicle Mounted PTZ Anti-Salt Fog Uncooled Infrared Thermal Imaging Camera
Long Range Vehicle Mounted PTZ Anti-Salt Fog Uncooled Infrared Thermal Imaging Camera
Long Range Vehicle Mounted PTZ Anti-Salt Fog Uncooled Infrared Thermal Imaging Camera
Long Range Vehicle Mounted PTZ Anti-Salt Fog Uncooled Infrared Thermal Imaging Camera
1 / 5
Long Range Vehicle Mounted PTZ Anti-Salt Fog Uncooled Infrared Thermal Imaging Camera
Long Range Vehicle Mounted PTZ Anti-Salt Fog Uncooled Infrared Thermal Imaging Camera
Long Range Vehicle Mounted PTZ Anti-Salt Fog Uncooled Infrared Thermal Imaging Camera
Long Range Vehicle Mounted PTZ Anti-Salt Fog Uncooled Infrared Thermal Imaging Camera
Long Range Vehicle Mounted PTZ Anti-Salt Fog Uncooled Infrared Thermal Imaging Camera

Long Range Vehicle Mounted PTZ Anti-Salt Fog Uncooled Infrared Thermal Imaging Camera

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt
Send Inquiry

Product Description

■ Basic Information
Model NO.
TIR104R
Type
CCTV Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
520tvl
Kind
Autofocus Lens
Certification
CE, FCC, CCC, ISO9001: 2000
Feature
Waterproof, High Definition, Vandal-proof, Auto BLC
Effective Distance
10000m
Sensor Size
1/3 inch
Remote Control
With Remote Control
Weight
4 Kg
Transport Package
Wooden Case/Carton
Specification
IP66
■ Product Features
✔324×256 High resolution uncooled microbolometer infrared focal plane arrays, vox
✔25µm super small pixel, image quality fine, observe small target more clearly
✔High sensitivity, NETD can reach 50mk and frame at 25Hz
✔25~100mm continuous zooming for wide range search and far identification
✔Image noise reduction processing with DDE function; output hot white/black/pseudo color
✔Low power consumption, quick start-up, and stable performance
✔RS 485 interface control and analog video signal output
✔Simple operation, easy to use and maintain
✔Precision casting aluminium alloy shell, sealed and waterproof (IP66), nitrogen inside
■ Technical Specifications
Monitoring Distance Object People (1.8m×0.5m) Vehicle (2.3m×2.3m)
Detect distance 2400m 6600m
Recognize distance 600m 1650m
Identification distance 300m 800m
Thermal Lens Focal length 25~100mm, 4x optical zoom
FOV 4.6°×3.7°~18.2°×14.6°
F 1.0
Lens control Electronic zoom/focus (auto focus optional)
Detector Detector type Uncooled FPA detector (vox)
Pixel / Spectrum 324×256, 25µm / 8~14μm
NETD / Frame ≤50mK / 25Hz
Image process DDE, pseudo color, PAL video output
Environment Protection / Temp IP66 / -25ºC~+55ºC
Anti-impact/vibration GB/T 15412-94 / GB/T 4857.10-2005
Physical Size 390mm×174mm×173mm
Weight / Power ≤4Kg / DC12V, ≤8W
■ Product Display
Infrared Thermal Imaging Camera
■ FAQ
What is the maximum detection range for vehicles?
The camera can detect vehicles (2.3m×2.3m) at a distance of up to 6600 meters and recognize them at approximately 1650 meters.
Is the camera suitable for extreme weather conditions?
Yes, it features a precision casting aluminium alloy shell with an IP66 waterproof rating and nitrogen-filled sealing, making it resistant to harsh environments.
What type of zoom does the TIR104R support?
The camera supports 25~100mm continuous zooming with 4x optical zoom, allowing for both wide-range searching and long-distance target identification.
Does this camera require a special power supply?
The unit operates on DC12V power and has a low power consumption of ≤8W. An AC220V/DC12V power adapter is typically used.
What image processing technologies are integrated?
The camera includes DDE (Digital Detail Enhancement) for image noise reduction and supports various output modes such as hot white, hot black, and pseudo color.
What is the resolution of the thermal sensor?
It utilizes a 324×256 high-resolution uncooled microbolometer infrared focal plane array with a 25µm pixel size for fine image quality.
