Basic Info.
Model NO.
SHJ-TW10-HD-L5510
Horizontal Resolution
1000tvl
Certification
CE, FCC, RoHS
Feature
Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC
Remote Control
Without Remote Control
Transport Package
Export Package
Production Capacity
500PCS/Month
Product Description

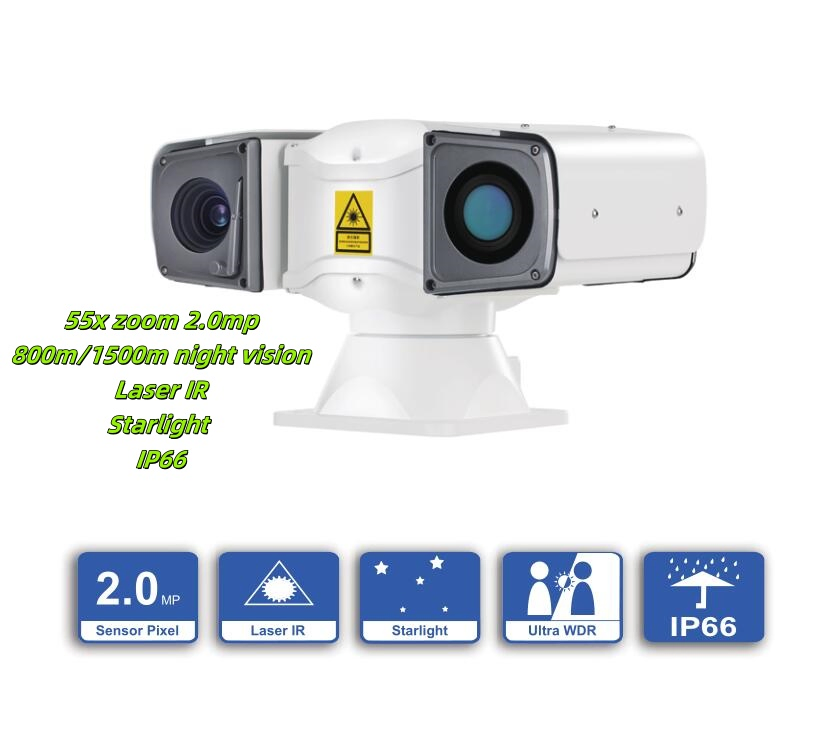

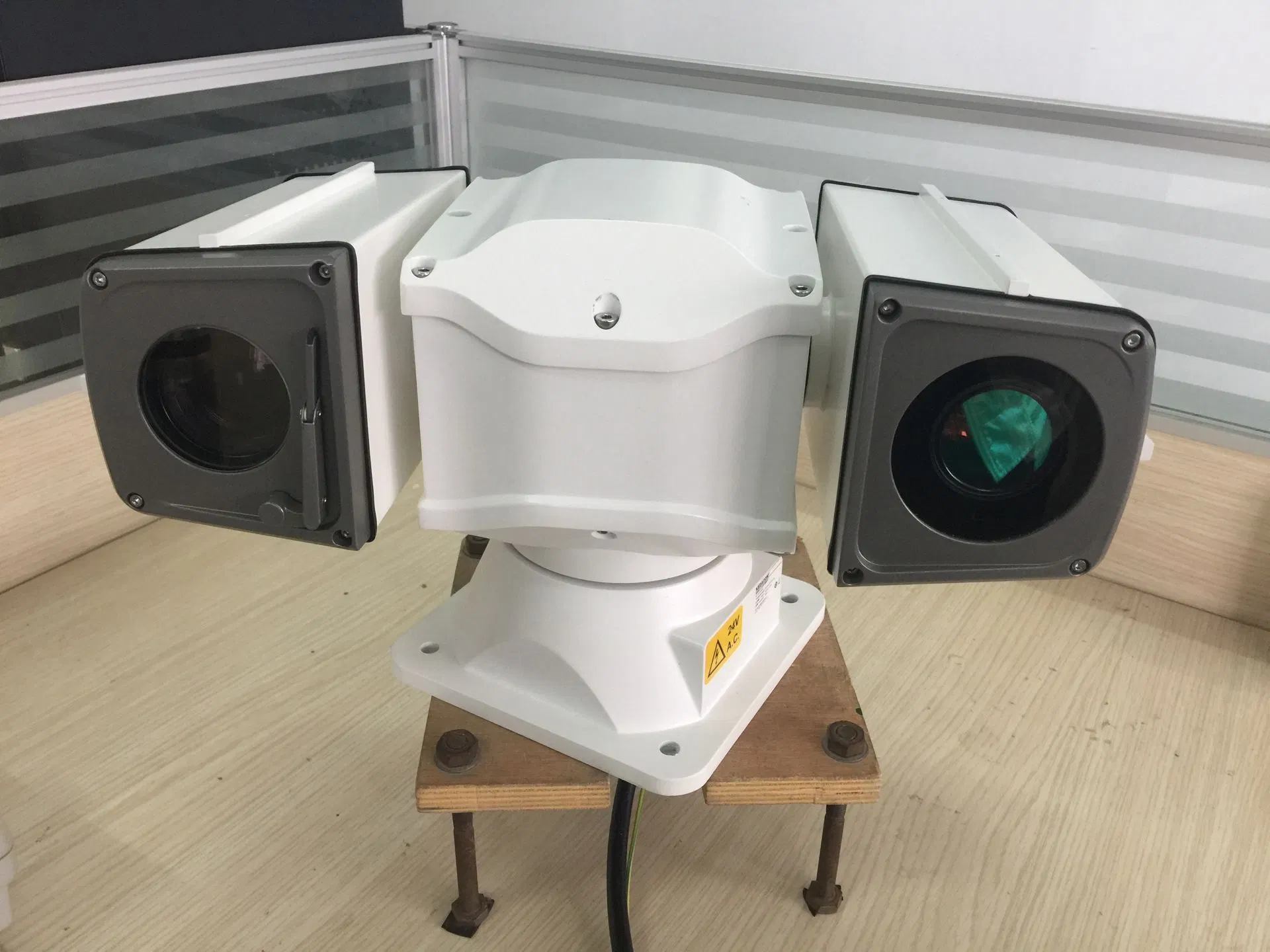

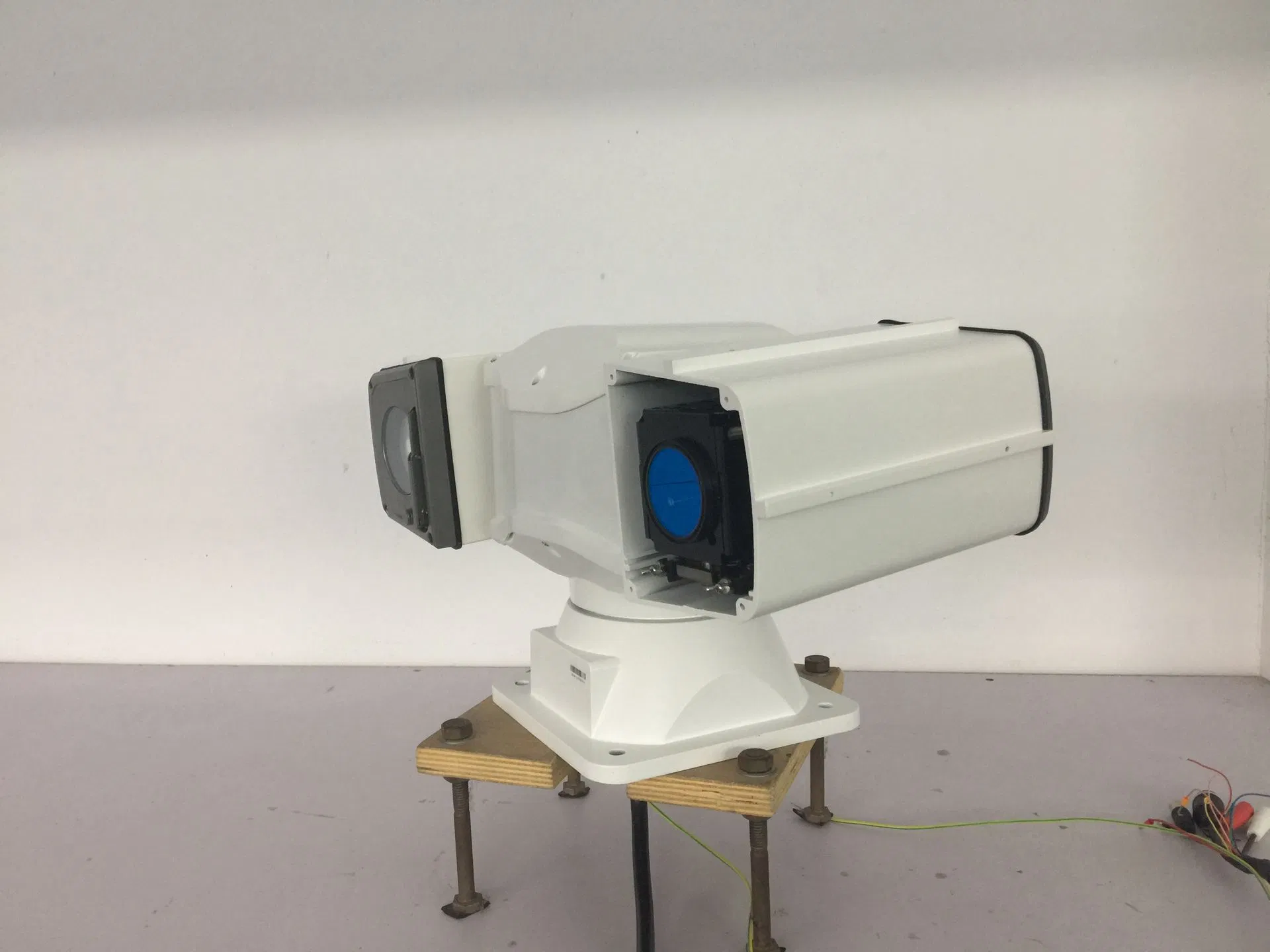

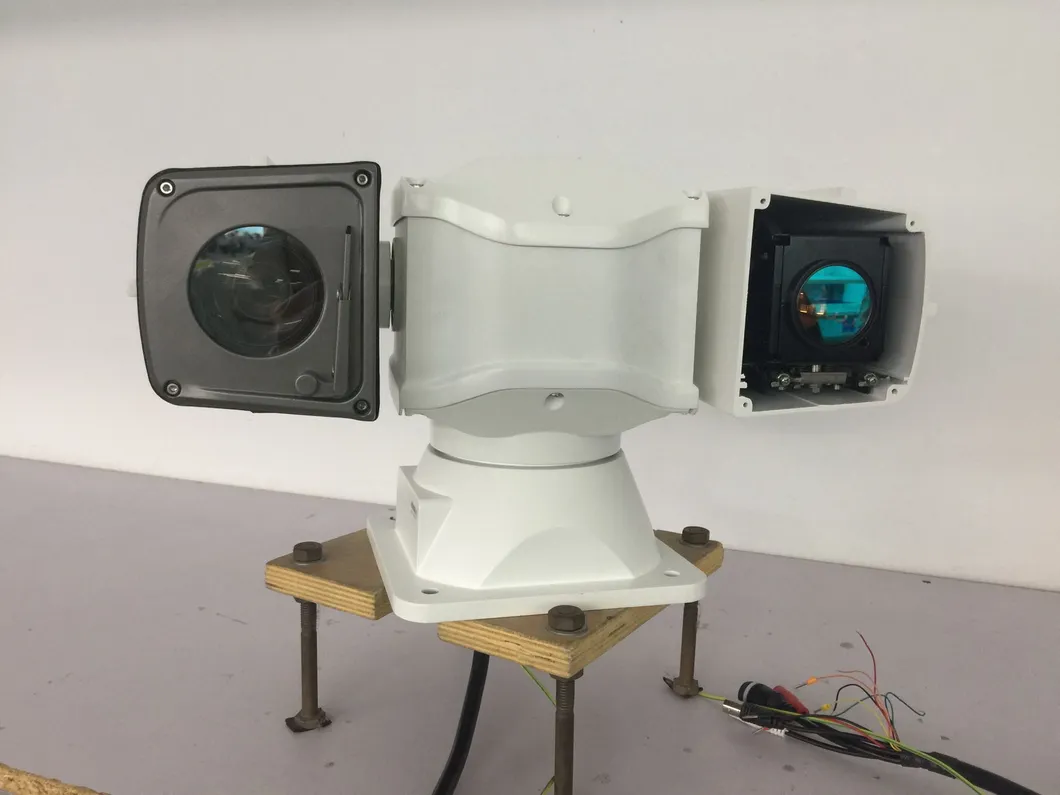

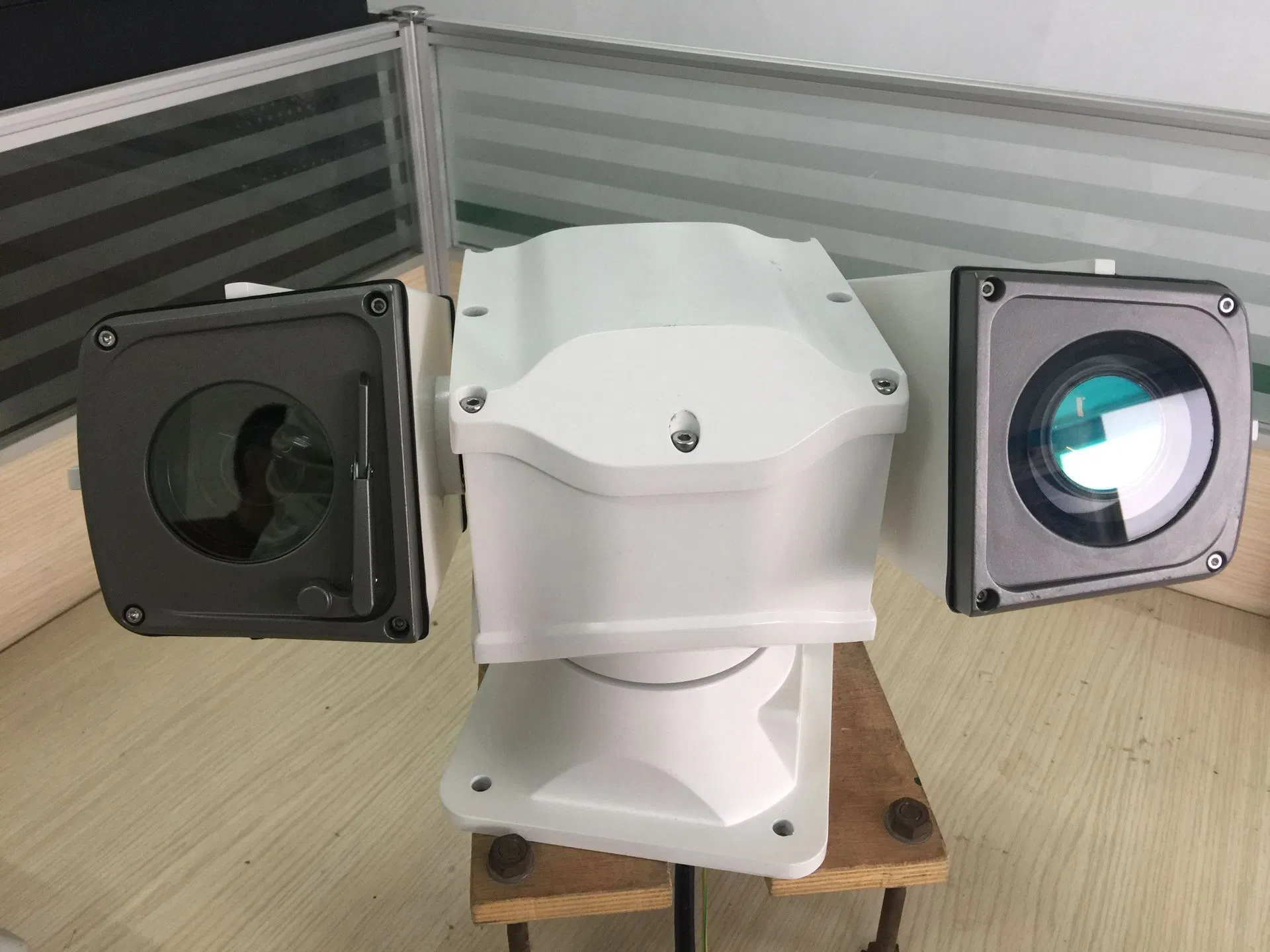

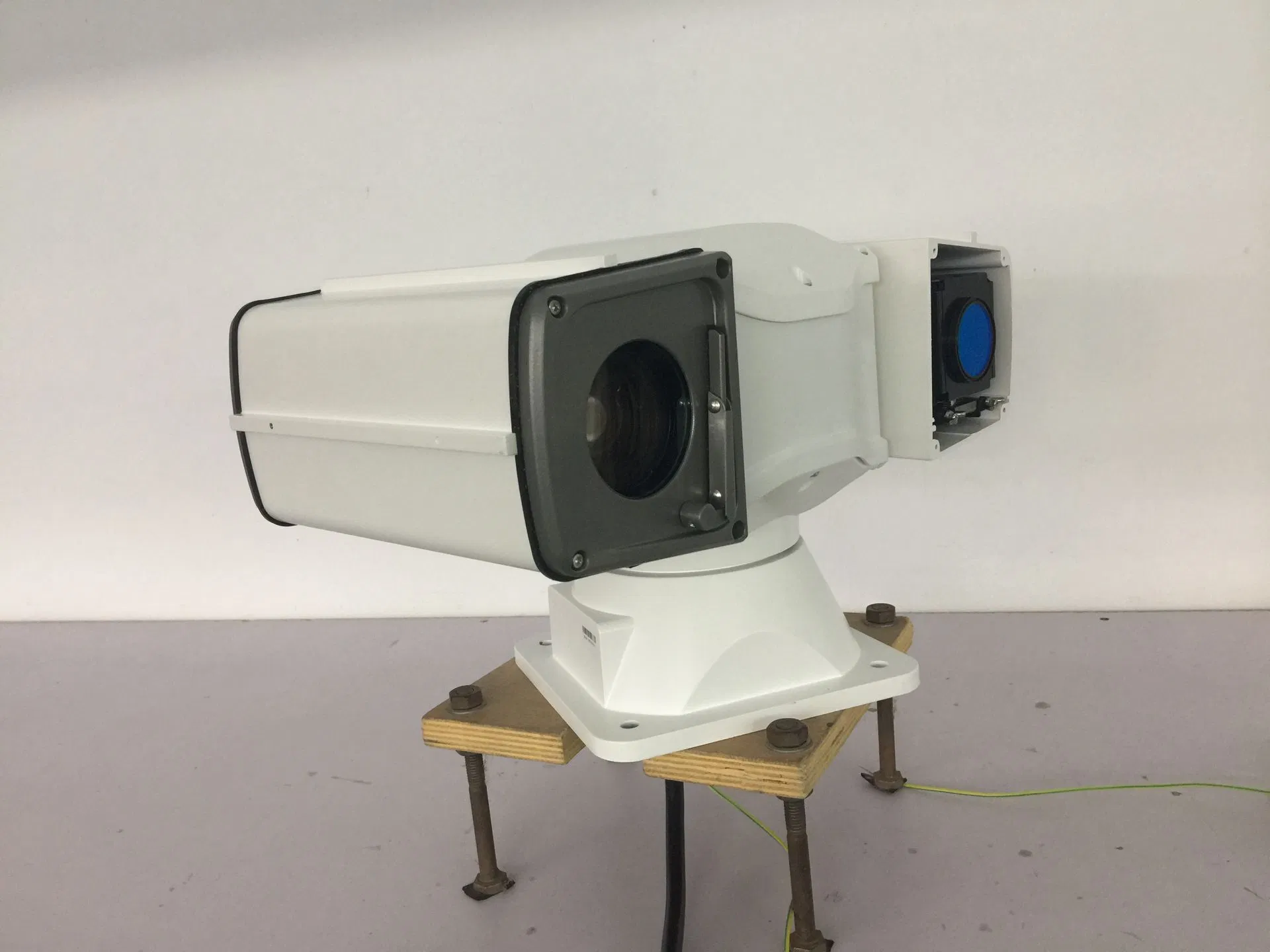

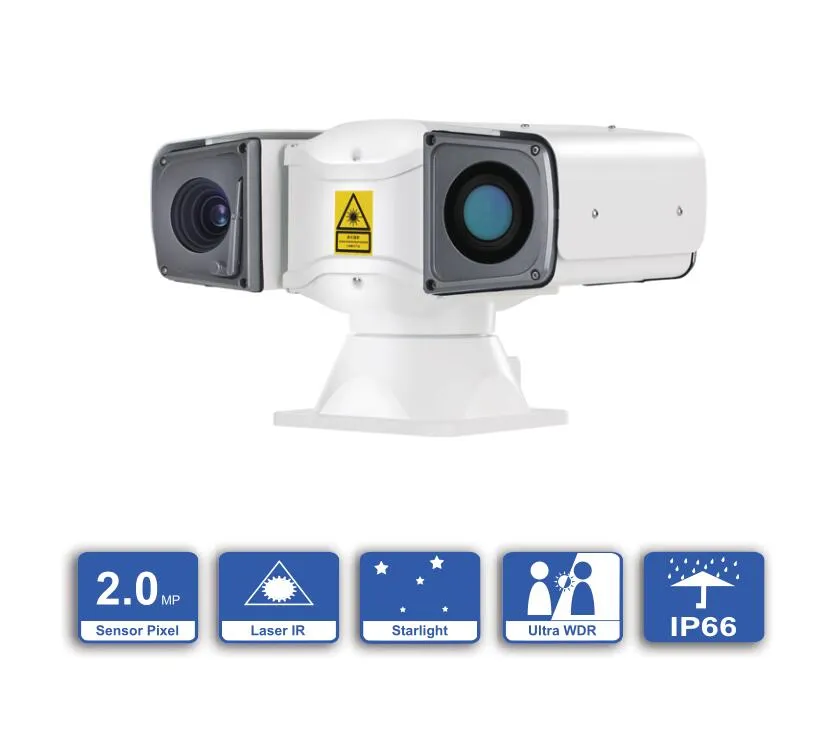

Long Distance 1500m 6.5 ~ 363mm Lens 55x optical 2.0MP HD Network Laser PTZ Camera
Excellent Image Quality
- 2.0 Megapixel 1/2.8'' Progressive Scan CMOS Sensor
- High definition and smooth picture, 1080p@60fps
- H.265 video codec, saves up to 50% bandwidth and storage
- Ultra low illumination, 0.001lux with color picture
- 120dB Ultra WDR
- Laser automatically adjusts
- HLC / 3D noise reduction
Intelligent Functions
- Motion detection / Tampering / Guard line
- Enter guard area / Exit guard area / Object left
- Object removal / Gathering / Audio surge
Long Operation Lifespan
- Industrial components: -40°C ~ 70°C
- IP66, TVS 6000V lightning protection
- Surge and voltage transient protection
Advanced Scale & Features
- 50x optical zoom
- Laser distance up to 1500m
- SD card support (ANR)
- Bi-directional audio & wiper supported
Technical Specifications
| Camera |
| Image Sensor | 1/2.8'' Progressive Scan CMOS |
| Pixels | 2.0 Megapixel |
| Min. Illumination | Color: 0.001Lux; B/W: 0.0001Lux; 0Lux with IR |
| Shutter Speed | 1 ~ 1/30,000S |
| Wide Dynamic Range | Ultra WDR, >=120dB |
| Lens |
| Focal Length | 6.5 ~ 363mm, 55x optical |
| Zoom Speed | Approx 4s (Optical) |
| Angle of View | 43.8°~ 1° (Wide~Tele) |
| Laser |
| Laser Distance | 1500m |
| Intensity | Automatically adjust according to zoom ratio |
| Pan and Tilt |
| Range | 360° Endless / - 85° ~ 85° (Auto Flip) |
| Preset | 256 Presets |
| Patrol / Scan | 8 Patrols, 4 Scan paths |
| Video & Audio |
| Compression | H.265 / H.264 / MJPEG |
| Resolution | Main stream: 1080p @ 60fps |
| Audio | Bi-directional / G.711a / G.711u / AAC-LC |
| Environmental & Electrical |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Protection Level | IP66, TVS 6000V Lightning Protection |
| Power | 24V AC / 3A (Max. 70W with Laser on) |

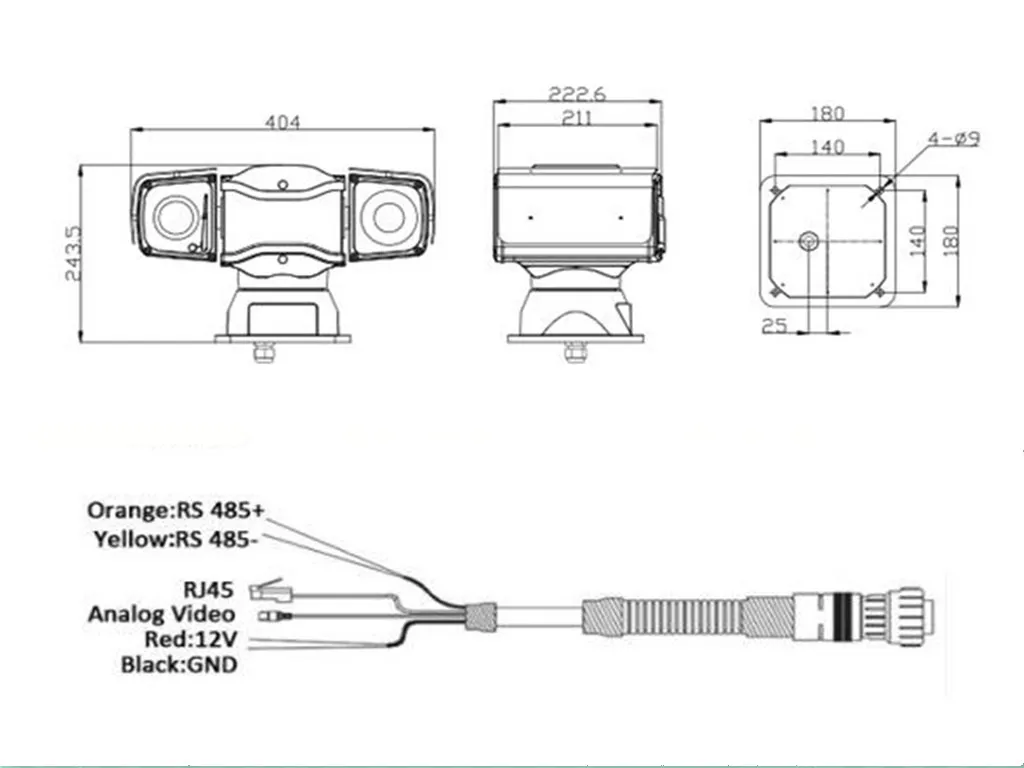

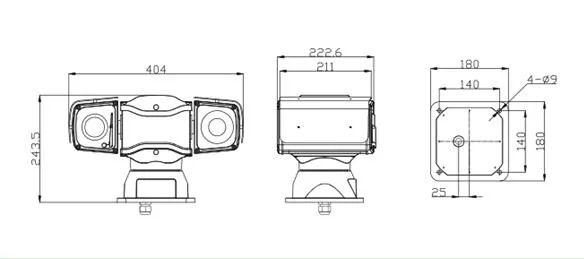

Dimensions (mm)

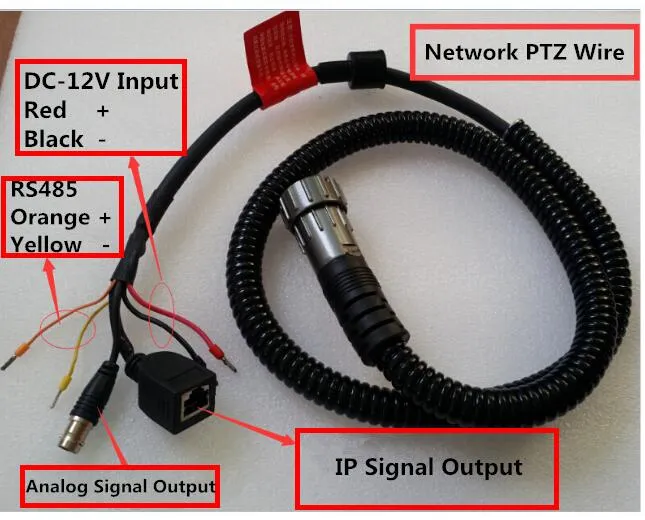

NOTE: Analog, HD IP, AHD, and SDI Output options are available. Customization is supported according to special requirements.
Frequently Asked Questions
What is the maximum distance the laser can cover?
This camera is equipped with a high-performance laser that can reach an effective distance of up to 1500 meters (1.5km), making it ideal for long-range surveillance.
Does the camera support 1080p high-definition recording?
Yes, the camera supports 2.0 Megapixel HD resolution with a frame rate of up to 1080p@60fps for smooth and clear video capture.
Can this PTZ camera operate in extreme weather conditions?
Absolutely. It is designed with industrial-grade components to withstand temperatures from -40°C to 70°C and features an IP66 waterproof rating with TVS 6000V lightning protection.
What level of optical zoom does the lens provide?
The camera features a powerful 55x optical zoom lens (6.5 ~ 363mm), allowing for detailed observation of distant objects.
Does it support modern video compression to save storage space?
Yes, it utilizes H.265 video codec technology, which can save up to 50% on bandwidth and storage requirements compared to older standards.
Are intelligent detection features included?
The camera includes several smart functions such as motion detection, tampering alarms, guard line crossing, and object removal detection for enhanced security monitoring.
