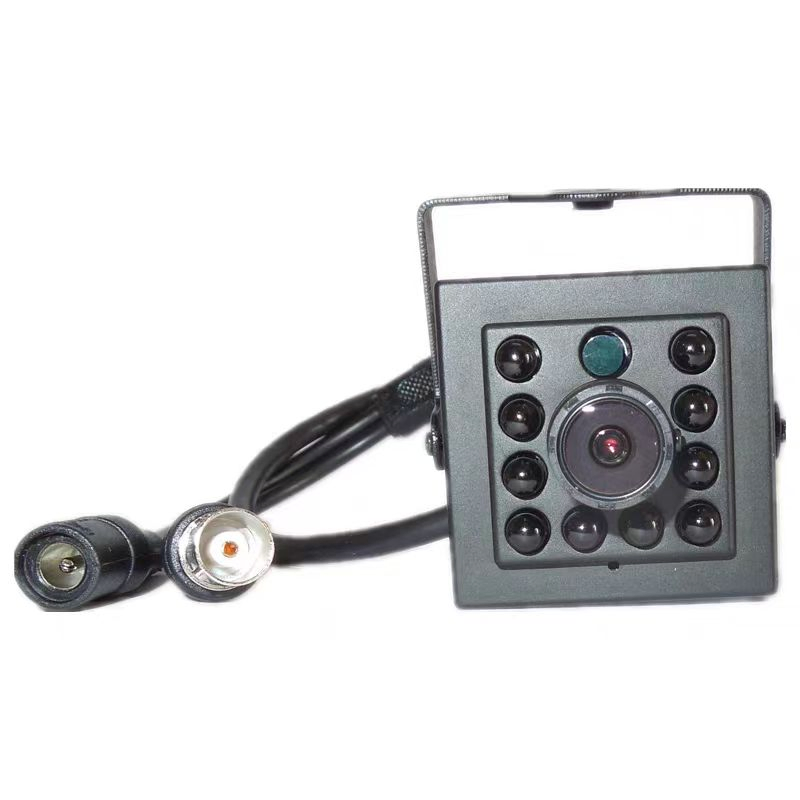

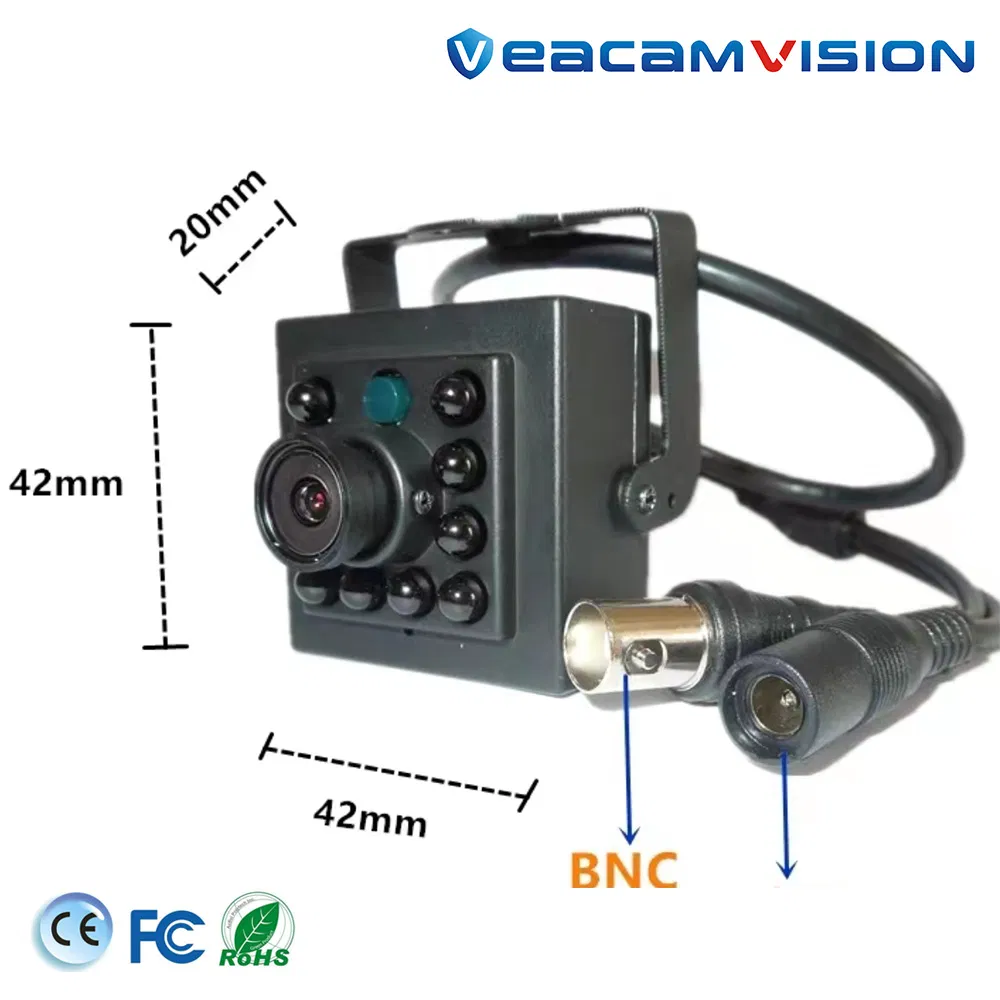

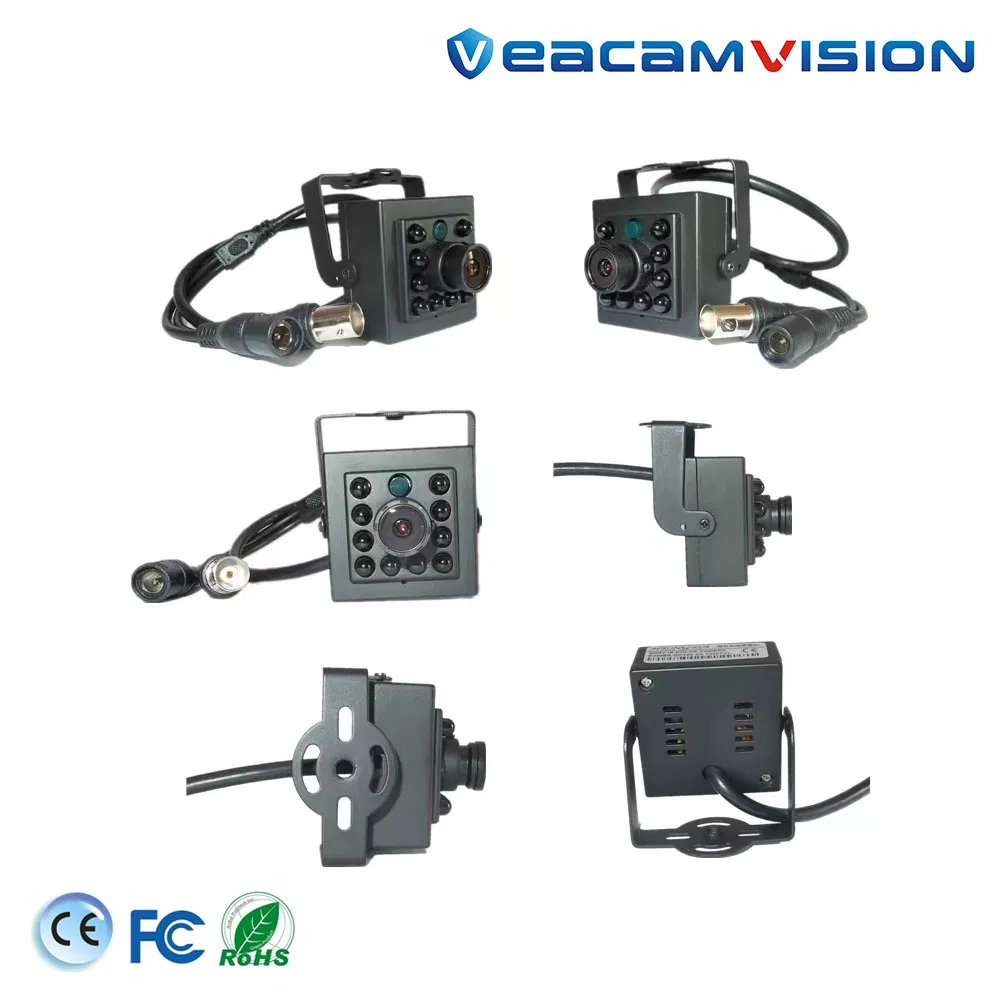

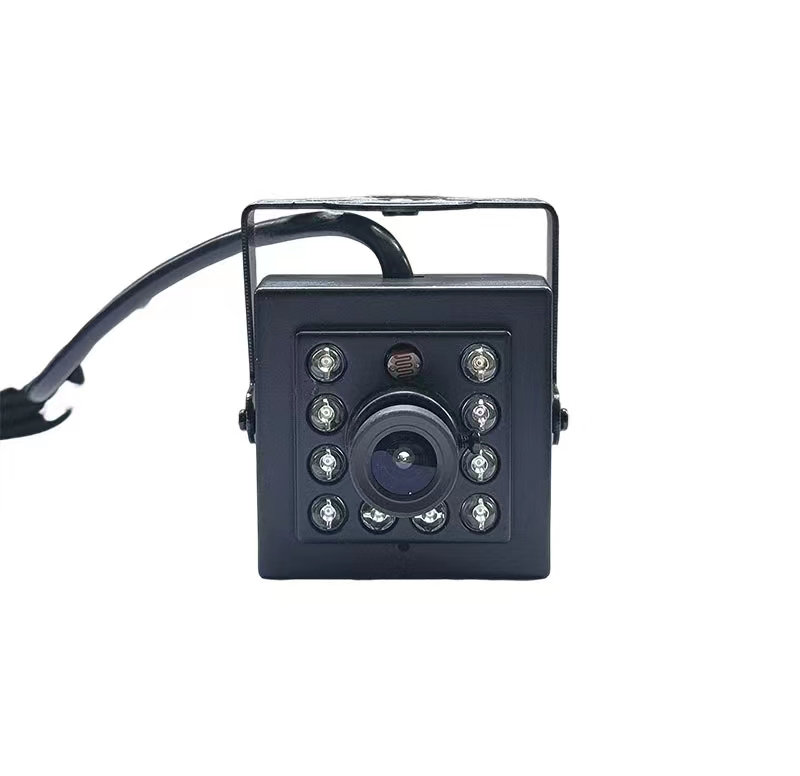

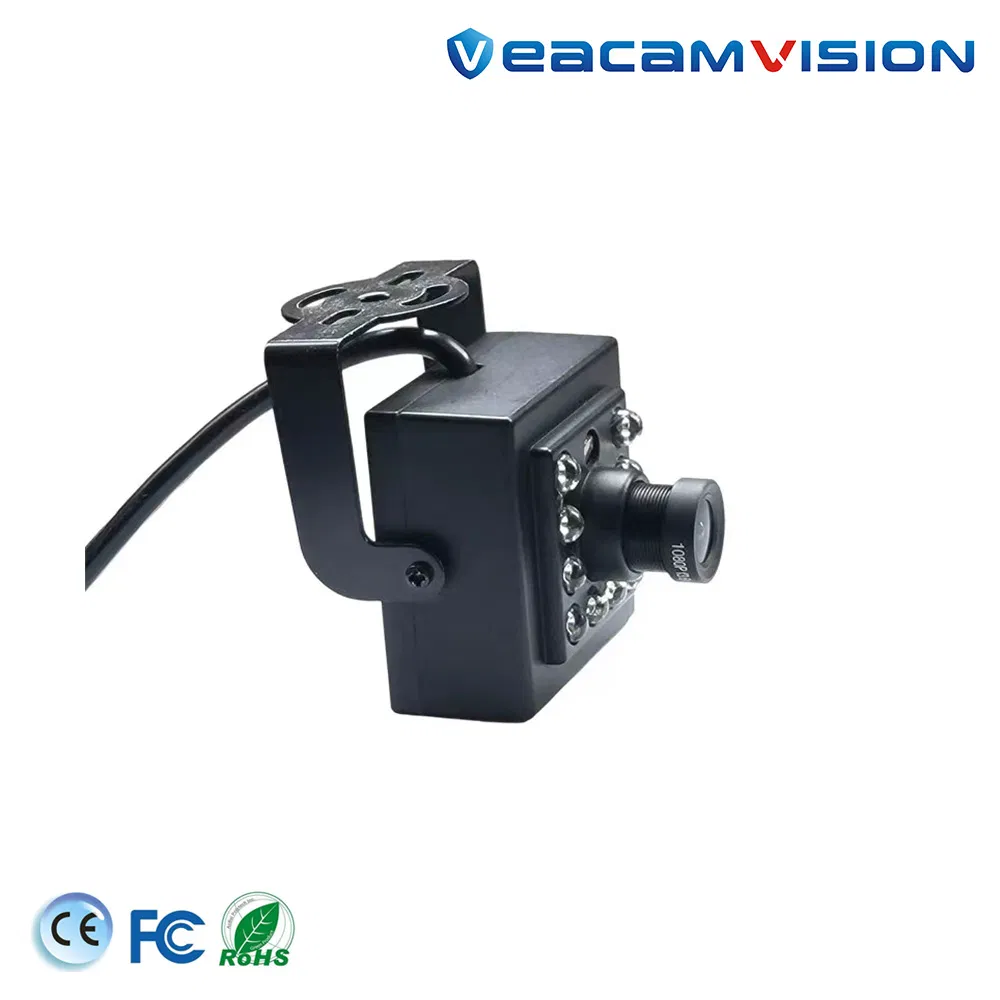

Hidden Home Surveillance Security 5MP HD Analog Mini Camera 940nm Infrared Night Vision Camera for Vehicle Car/Truck/CCTV Camera

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
VCMAIR
Sensor
CMOS
HDMI Format
1080P
Resolution
2MP/5MP/4K
Lens
Fixed 3.6mm
Certification
CE, FCC, RoHS, ISO9001
Feature
High Definition, Mini Size
IR LED
940nm
IR Range
15m
Origin
China
Product Description
Introducing the Covert IR Camera! Experience the ultimate in high-definition surveillance with this 5MP HD Analog CCTV Camera. Featuring a pinhole lens with a 3.6mm focal length, this camera captures every detail with precision. The 10 infrared LED lights provide exceptional night vision, ensuring that you never miss a thing, even in the darkest of environments. With its ultra-low illumination of just 0.01Lux, you can trust that this camera will deliver clear and crisp images, day or night.

This camera offers a 4-in-1 output, giving you the flexibility to choose between HDCVI, HDTVI, AHD, or CVBS options. With a full HD resolution up to 2560(H)×1944 (V), expect stunningly detailed footage. Designed for low-light conditions, it's perfect for both indoor and outdoor use.
Key Features
  • High Definition Clarity: 5MP resolution for crystal-clear images.
  • Day/Night Surveillance: IR night vision for 24/7 monitoring.
  • Weatherproof: IP66 rated for durable outdoor use.
  • Motion Detection: Stay alerted to any movement.
  • Wide Angle View: 3.6mm lens for broader coverage.
  • Easy Installation: User-friendly compact design.
Technical Specifications
Image Sensor1/2.8" 2MP/5MP/4K CMOS
Effective Pixels2560(H)×1944 (V)
Video OutputAHD-TVI-CVI-CVBS 4IN1
Min. Illumination0.01Lux (AGC ON), 0Lux IR on
WDRDigital WDR
IR Distance10 - 15 Meters
Power Supply12V DC ±10%
Operating Temp-20ºC to +60ºC
Package Size10.00cm * 5.00cm * 5.00cm
Detailed Photos

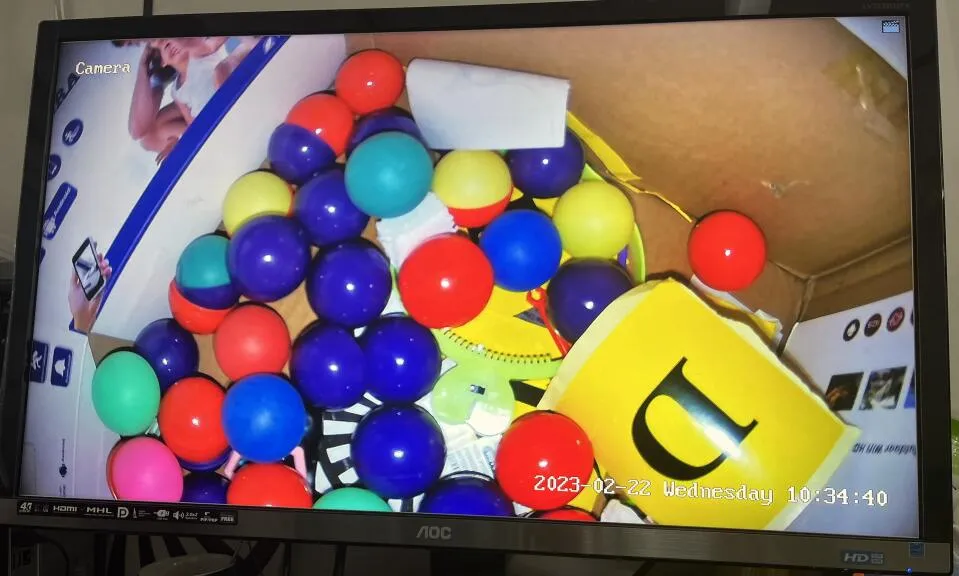

Camera Detail 1

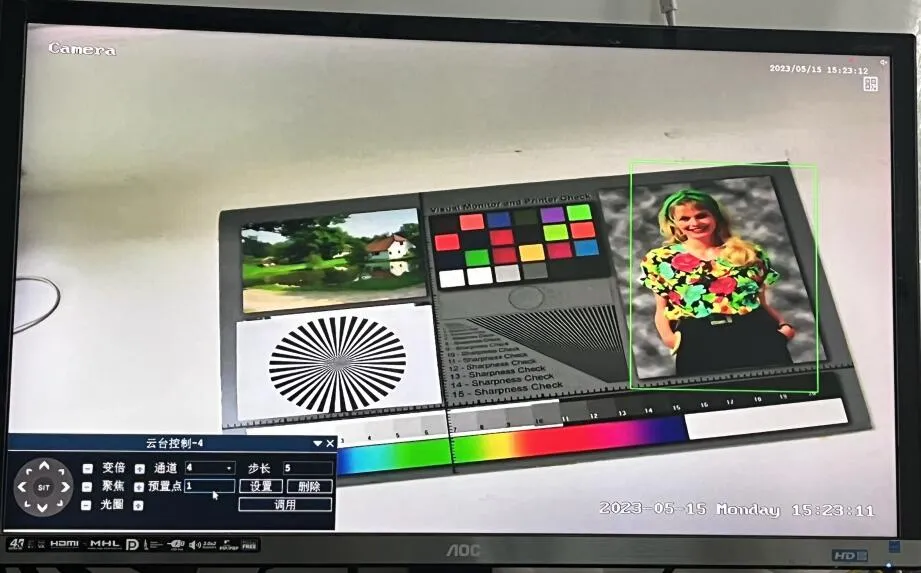

Camera Detail 2

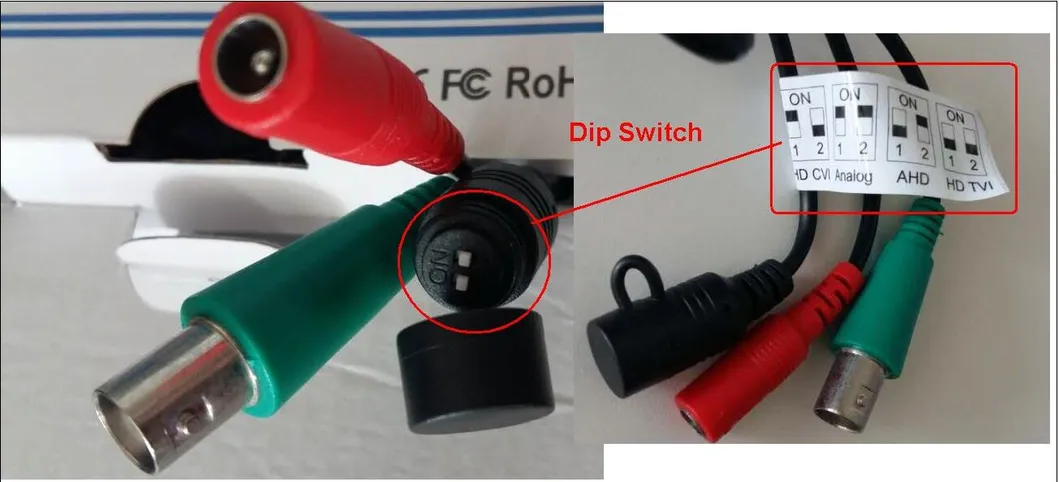

Camera Detail 3

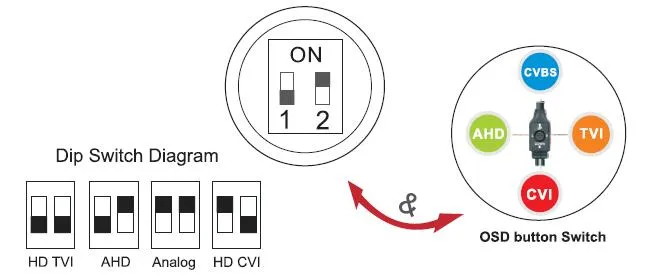

Camera Detail 4
Camera Detail 5
Factory & Production
Production Line 1

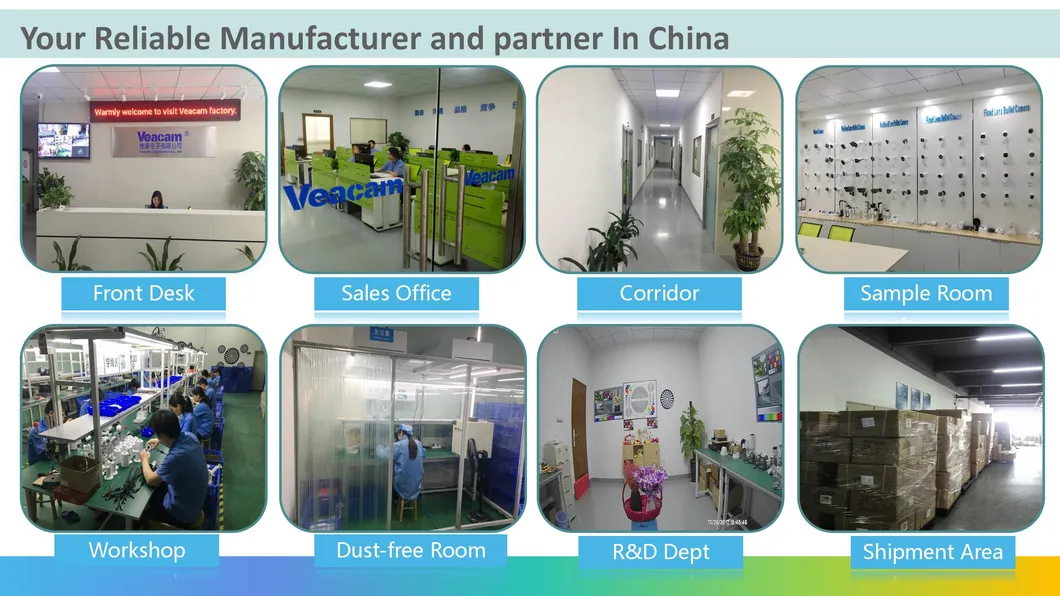

Production Line 2
Production Line 3
Workshop

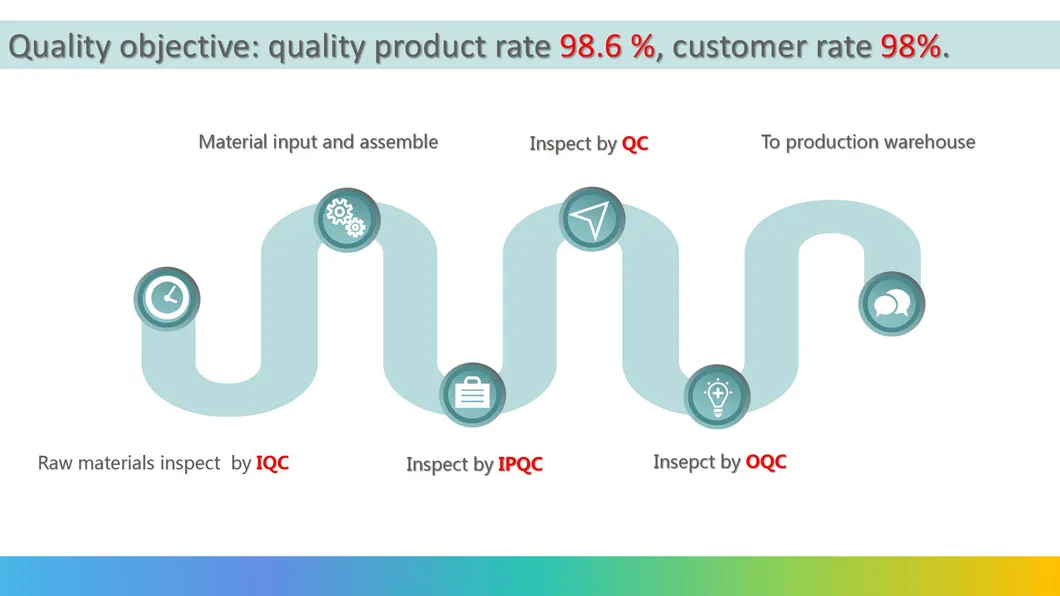

Testing
Certifications
Certificates
Frequently Asked Questions
Q1: What video formats does this camera support?
A: This is a 4-in-1 camera that supports AHD, TVI, CVI, and CVBS (Analog) signals, making it compatible with most DVR systems.
Q2: How far can the night vision reach?
A: The camera is equipped with 940nm invisible IR LEDs, providing a clear night vision range of approximately 10 to 15 meters.
Q3: Can this camera be installed outdoors?
A: Yes, the camera features a weatherproof design (IP66 rated), allowing it to withstand various outdoor weather conditions.
Q4: What is the resolution of the footage?
A: We offer 2MP, 5MP, and 4K options. The 5MP version provides a high-definition resolution of 2560 x 1944 pixels.
Q5: Does it support audio?
A: Audio over coaxial is optional and specifically available in TVI mode for supported systems.
Q6: What power supply is needed?
A: The camera requires a standard 12V DC (±10%) power supply with power consumption under 5W.
