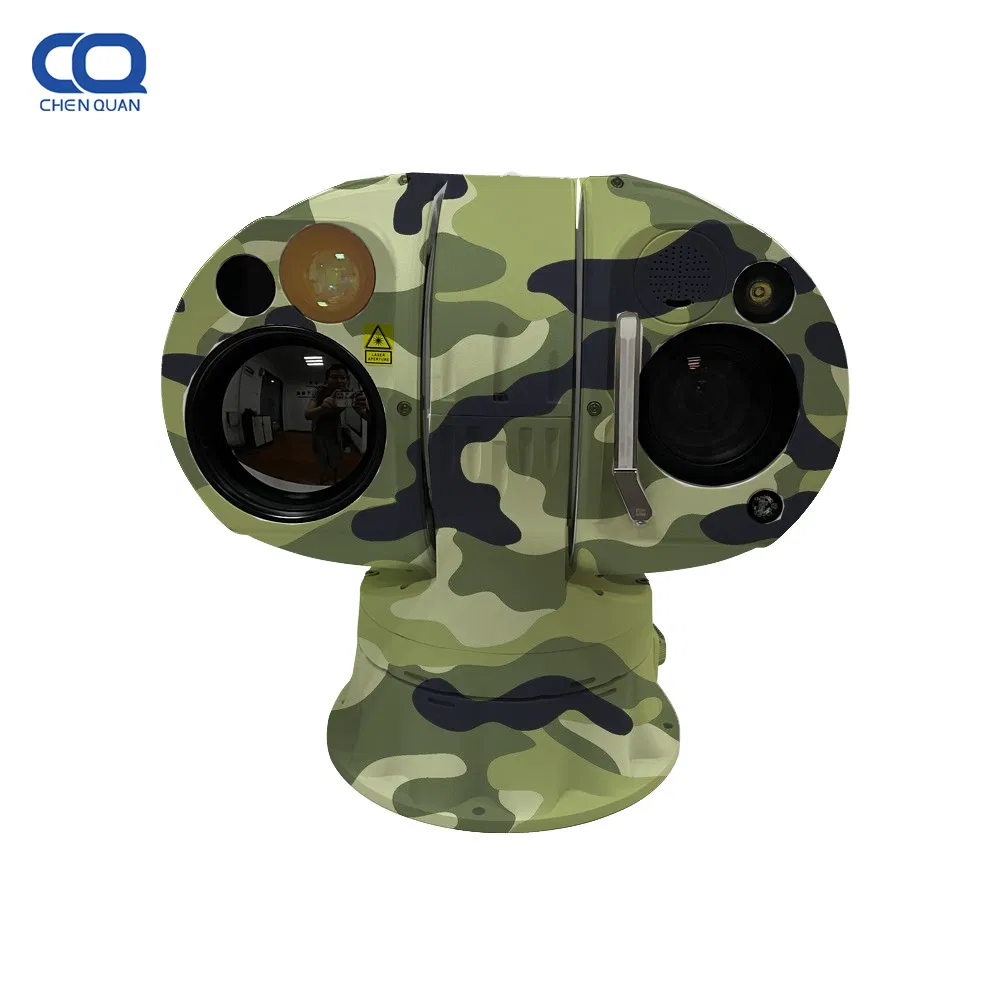

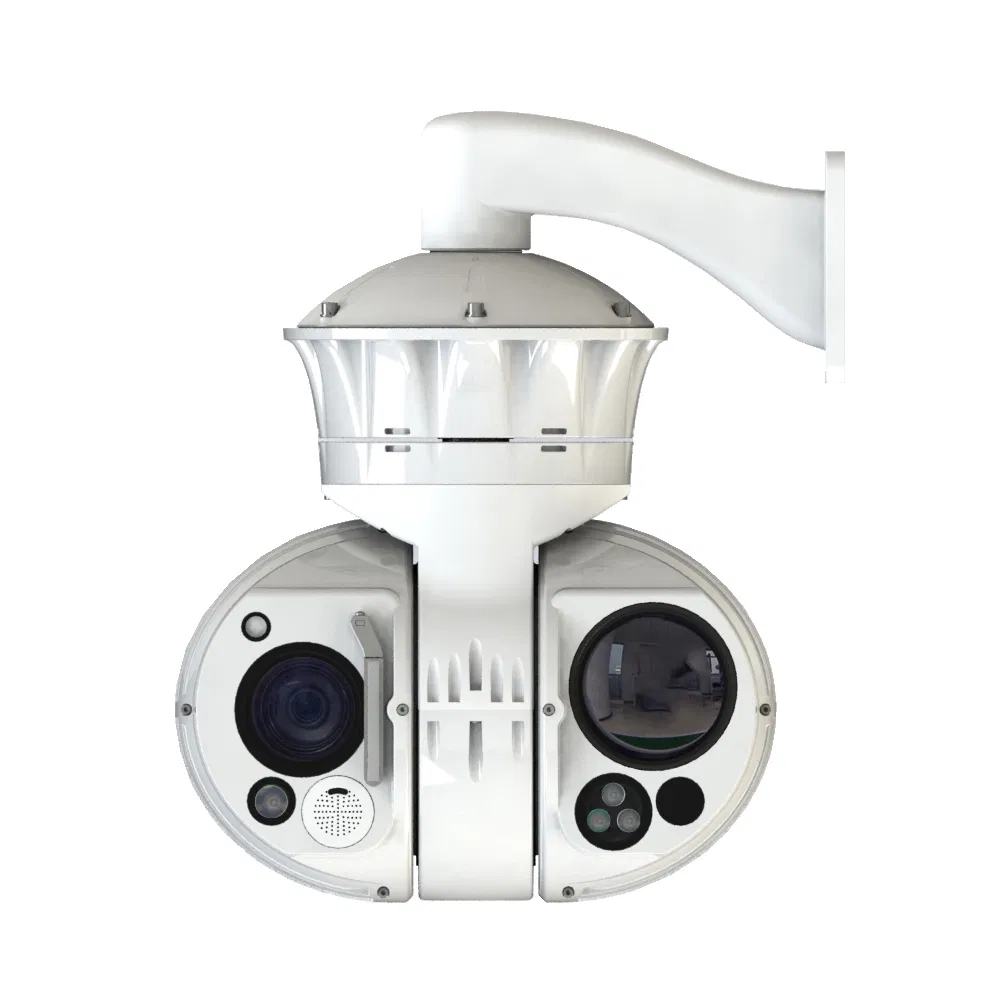

4MP 33X 384X288 50mm IR Target Intrusion Detection Vehicle Mounted Ai Thermal PTZ Camera with Green Flashing Warning Light
4MP 33X 384X288 50mm IR Target Intrusion Detection Vehicle Mounted Ai Thermal PTZ Camera with Green Flashing Warning Light
4MP 33X 384X288 50mm IR Target Intrusion Detection Vehicle Mounted Ai Thermal PTZ Camera with Green Flashing Warning Light
4MP 33X 384X288 50mm IR Target Intrusion Detection Vehicle Mounted Ai Thermal PTZ Camera with Green Flashing Warning Light
4MP 33X 384X288 50mm IR Target Intrusion Detection Vehicle Mounted Ai Thermal PTZ Camera with Green Flashing Warning Light
1 / 5
4MP 33X 384X288 50mm IR Target Intrusion Detection Vehicle Mounted Ai Thermal PTZ Camera with Green Flashing Warning Light
4MP 33X 384X288 50mm IR Target Intrusion Detection Vehicle Mounted Ai Thermal PTZ Camera with Green Flashing Warning Light
4MP 33X 384X288 50mm IR Target Intrusion Detection Vehicle Mounted Ai Thermal PTZ Camera with Green Flashing Warning Light
4MP 33X 384X288 50mm IR Target Intrusion Detection Vehicle Mounted Ai Thermal PTZ Camera with Green Flashing Warning Light
4MP 33X 384X288 50mm IR Target Intrusion Detection Vehicle Mounted Ai Thermal PTZ Camera with Green Flashing Warning Light

4MP 33X 384X288 50mm IR Target Intrusion Detection Vehicle Mounted Ai Thermal PTZ Camera with Green Flashing Warning Light

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.CQ-DMS10-43C00-50-GL5
TypeCCTV Camera
SensorCMOS
HDMI Format1080P
Resolution384X288
Horizontal Res.650tvl
CertificationCE, FCC, ISO9001: 2015
Ingress ProtectIP67
Effective Dist.≧30m
Focal Length50mm Fixed
Optical Lens5.5-180mm 33X
Alert Light500m

Packaging & Delivery

Package Size53.00cm * 44.00cm * 42.00cm
Gross Weight15.000kg
Production Cap.100 Sets / Day

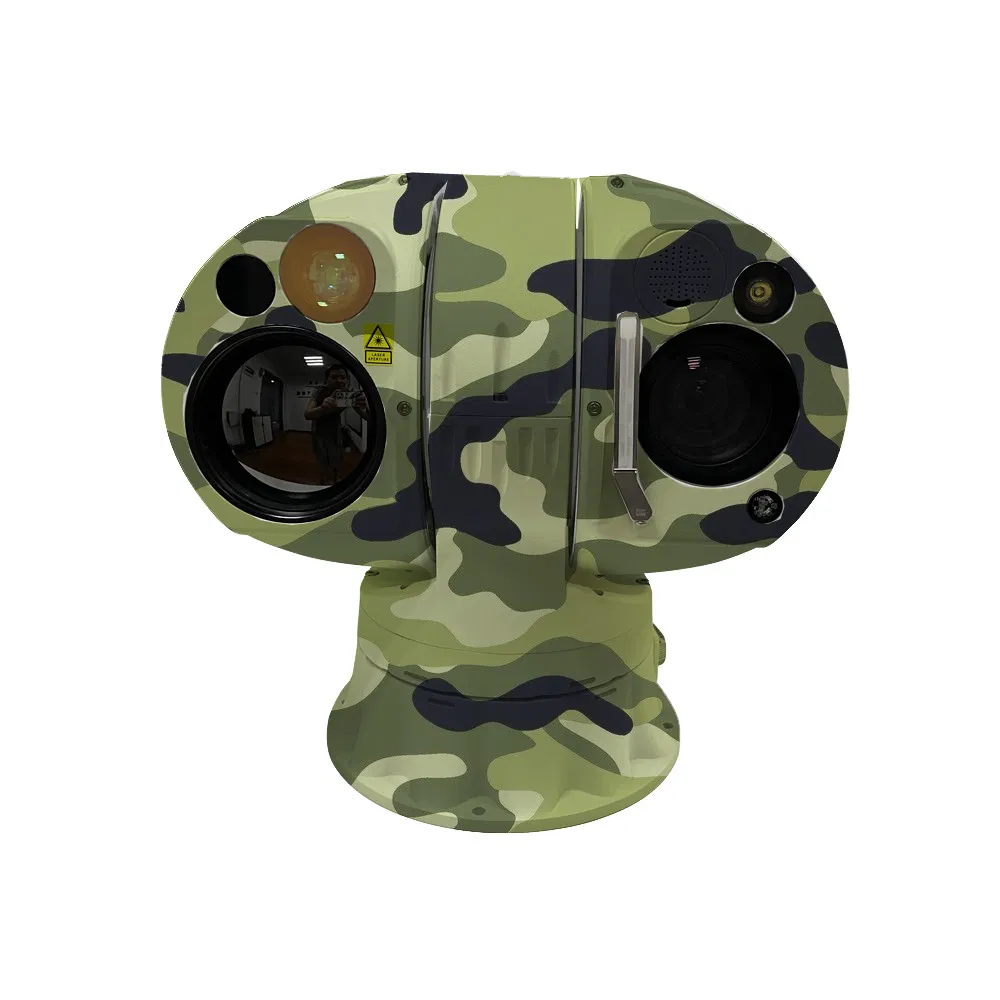

Thermal PTZ Camera View 1

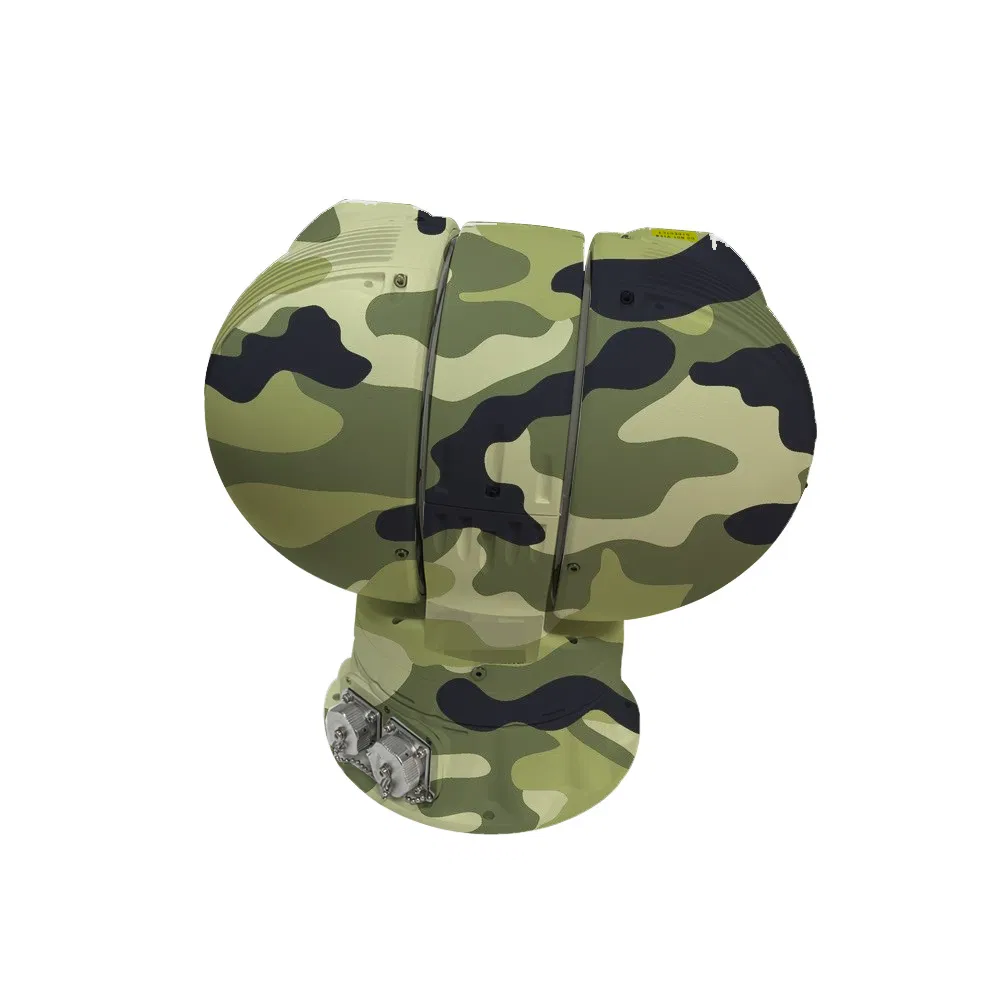

Thermal PTZ Camera View 2

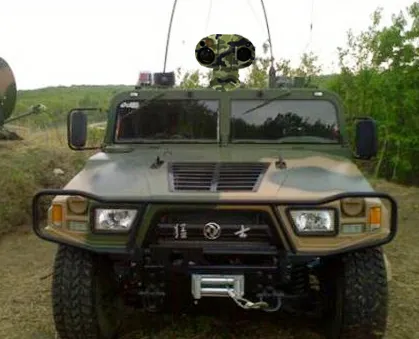

Detail View 1
Detail View 2

Detailed Description

Category Feature Specification
Detection Vehicle 4200m
Human 1640m
Fire point (@2x2m) 2000m
Identification Vehicle 1200m
Human 600m
Thermal Camera Detector Uncooled FPA Vox sensor
Resolution 384x288
Lens 50mm
Zoom 1.0-8.0x continuous electronic zoom
Visible Camera Resolution 2MP or 4MP
Lens 5.5-180mm 33X

🚀 Intelligent Functions

Fire detection alarm: Threshold 255 levels, 1-16 targets can be set with hot spot tracking.

Intelligent analysis: Supports intrusion, boundary crossing, entering/leaving area, motion detection, wandering, face detection, and vehicle filtering.

Automatic tracking: Single/multi-scene tracking, panoramic tracking, and alarm linkage.

Image fusion: 18 kinds of double light fusion modes and picture-in-picture function.

Infographic Overview

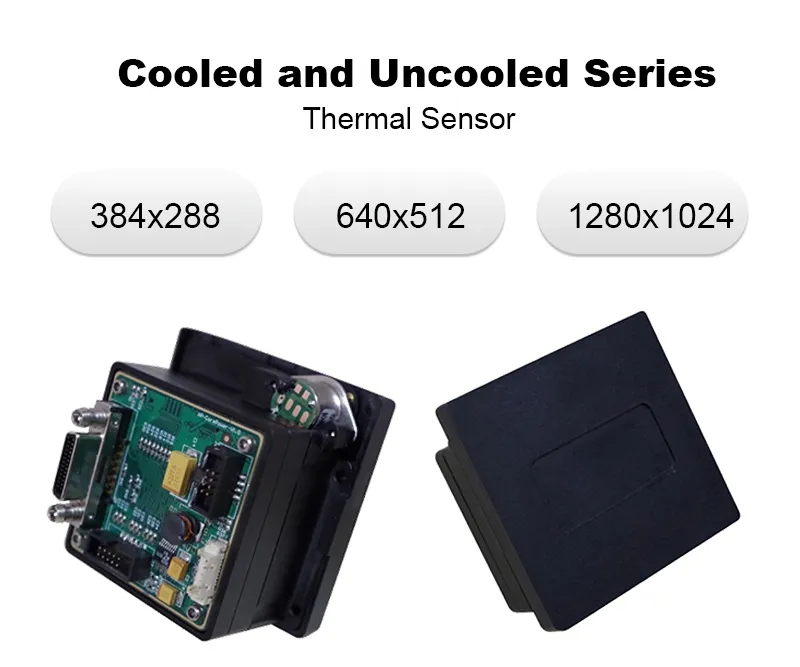

Application 1

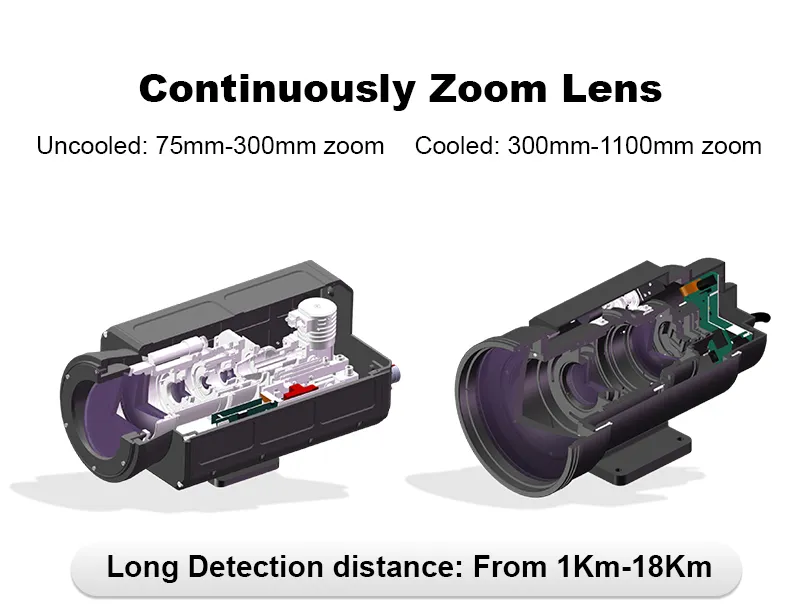

Application 2

Environmental & Physical

Working Temp.-35ºC~+55ºC
Humidity<=95%
Anti-salt spray96 hours continuous (pH 6.5~7.2)
Weight<=10kg
Size312x200x296mm

Frequently Asked Questions

What is the maximum detection distance for this camera?
The camera can detect vehicles at up to 4200m and humans at up to 1640m. It also features fire point detection up to 2000m.
What kind of optical zoom does the visible camera provide?
The visible camera is equipped with a 5.5-180mm lens providing 33X optical zoom.
Is the camera suitable for harsh outdoor environments?
Yes, it features an IP67 ingress protection rating, anti-salt spray resistance (96 hours), and a wide working temperature range of -35ºC to +55ºC.
Does the system support automatic target tracking?
Yes, it supports single-scene, multi-scene, and panoramic tracking, as well as alarm linkage tracking.
What intelligent analysis features are included?
It includes intrusion detection, boundary crossing, face detection, vehicle filtering, and fire detection with 255 levels of sensitivity.
What are the rotation capabilities of the PTZ unit?
The unit offers 360° continuous horizontal rotation and a pitch range of -90° to +90° with focal speed adaptation.
