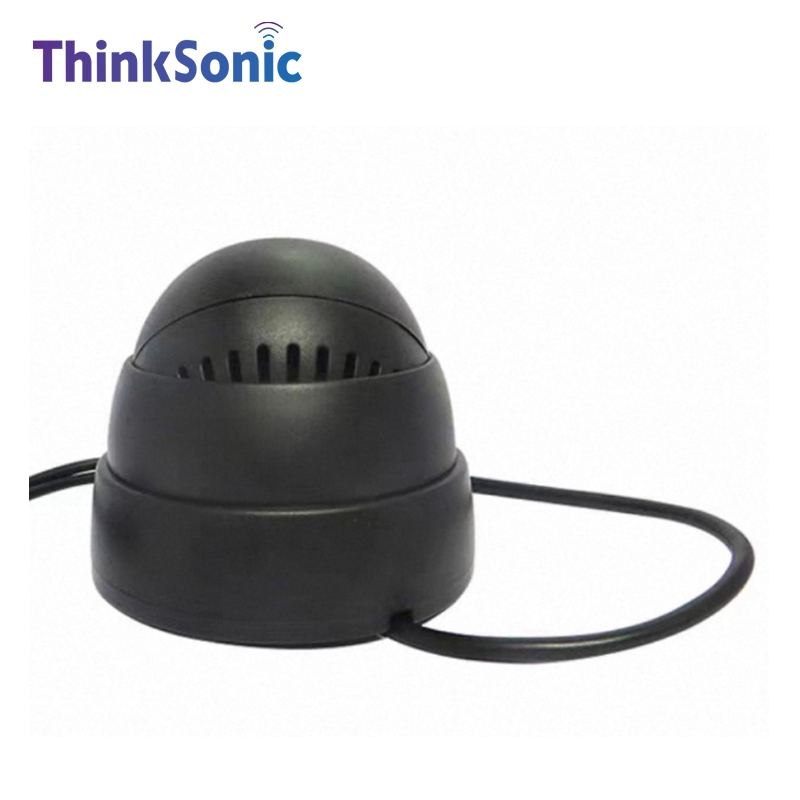

Multi-View Camera for Passenger Vehicle All-Round Monitoring

Basic Info.

Model NO.

XHL720P

Type

Car Camera

HDMI Format

720P

Horizontal Resolution

1280(H)*720(V)

Feature

Waterproof, HD, Vandal-proof

Imaging Device

1/4" CMOS AHD 720p

Video System

PAL

Origin

China

Product Introduction

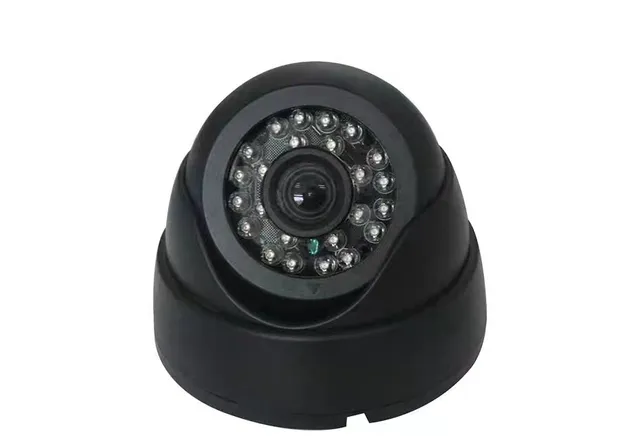

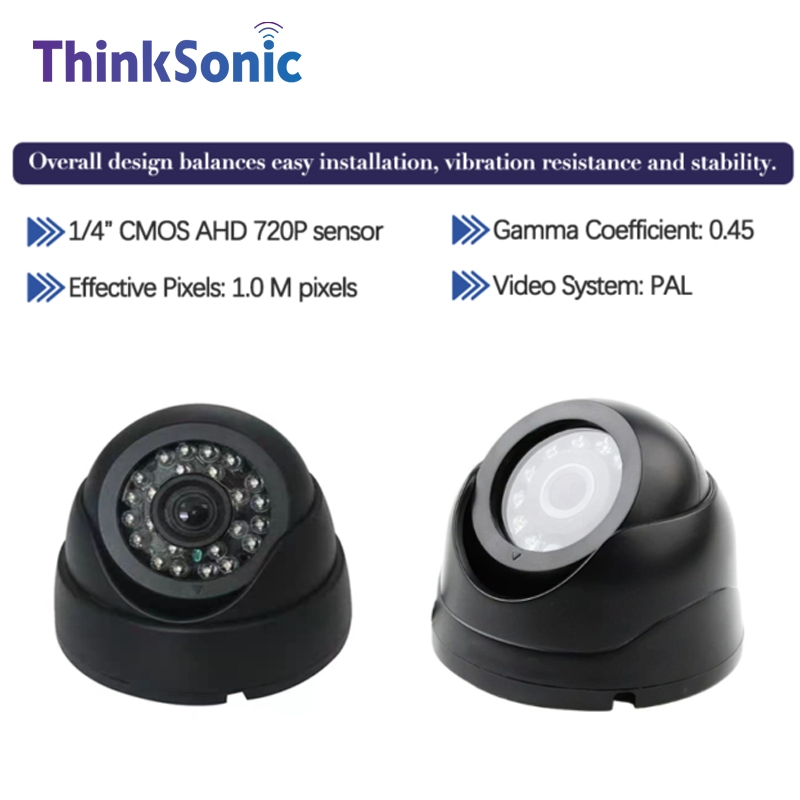

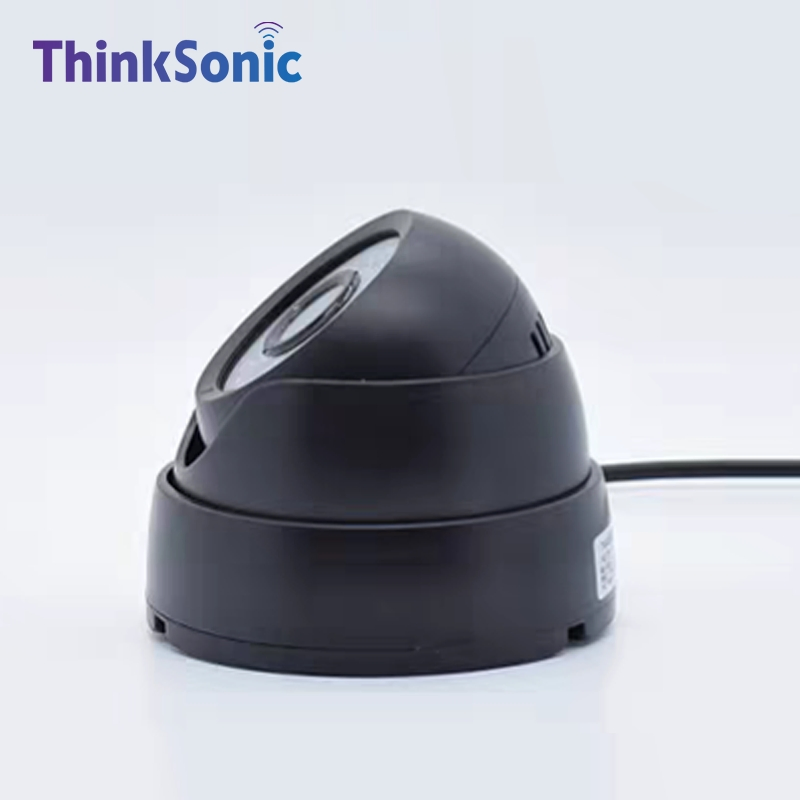

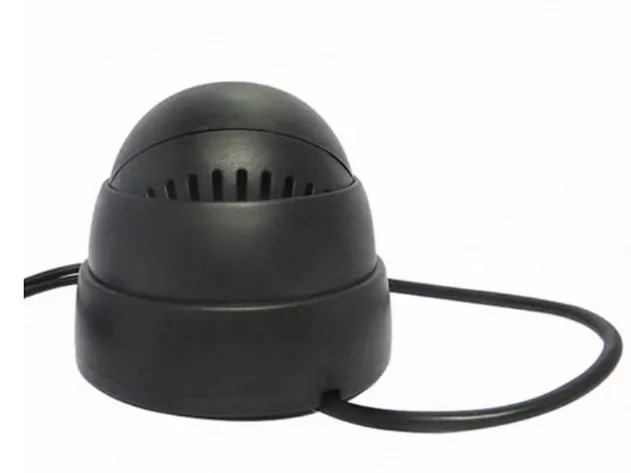

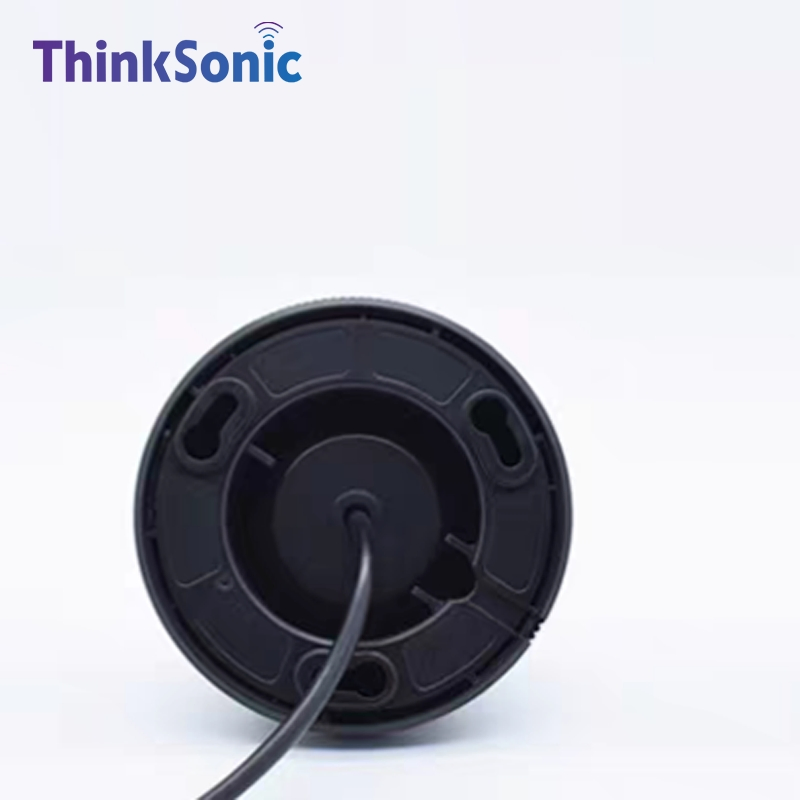

This 720P plastic "small conch" vehicle-mounted camera is designed for in-vehicle monitoring. With a hemispherical plastic shell, it is compact and easy for stealthy in-vehicle installation. The shell has some impact resistance, suitable for complex environments like school buses, public transport and private cars.

Imaging Core: 1/4" CMOS AHD 720P. It enables HD imaging in the day, has infrared fill light at night, resists vehicle vibration, and operates stably. It is mainly used for monitoring of commercial vehicles like school buses, logistics trucks, and passenger cars.

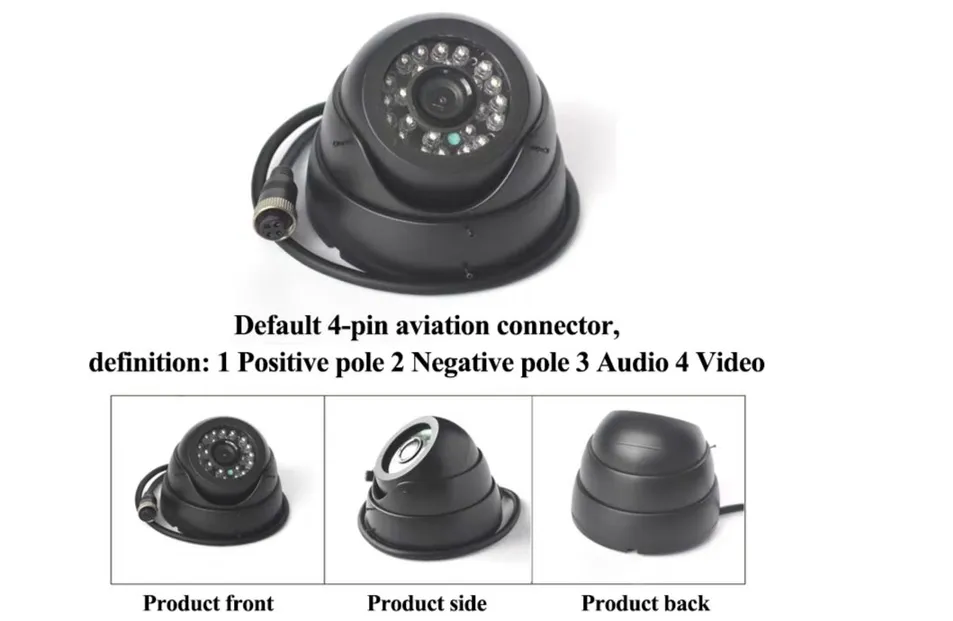

Product Features

Advanced bright color separation and 3D noise reduction for high clarity.
Coaxial HD output with clear 720p resolution images.
Real-time and high fidelity transmission without encoding compression.
Compatible with standard D1/960H and analog peripheral devices.
Imported lens with optimal angle for vehicle mounting.
Wide voltage design with dual lightning protection.
Optional built-in audio support.

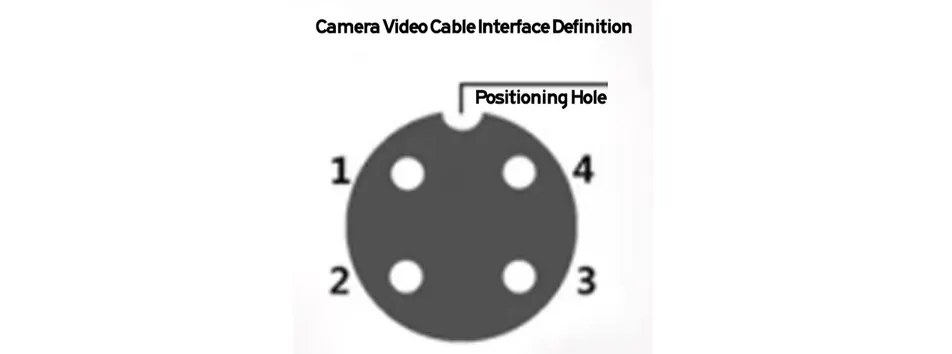

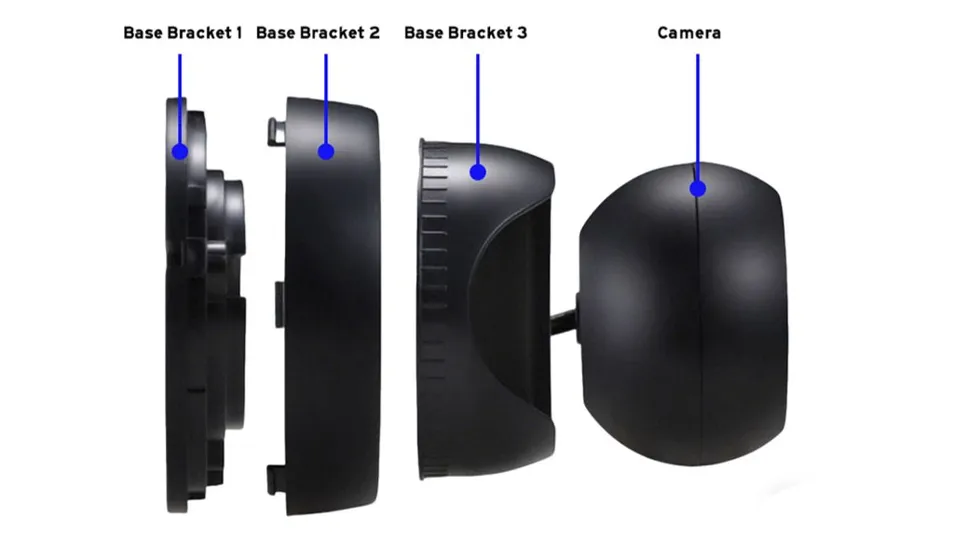

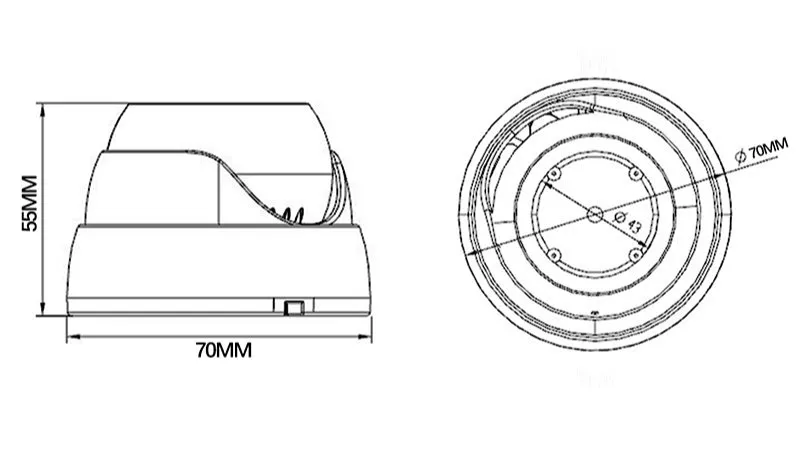

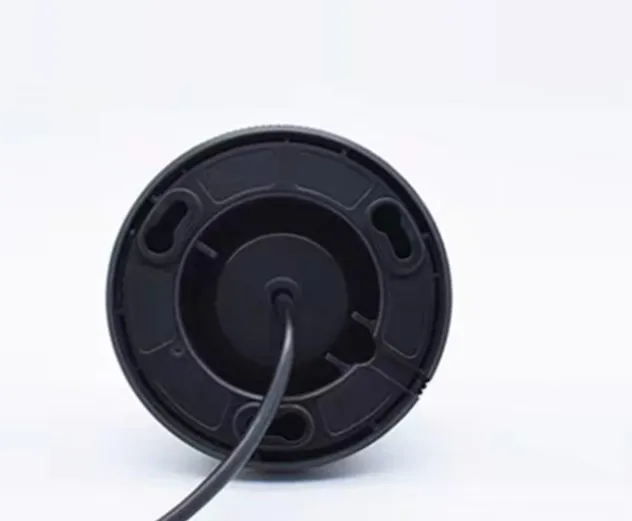

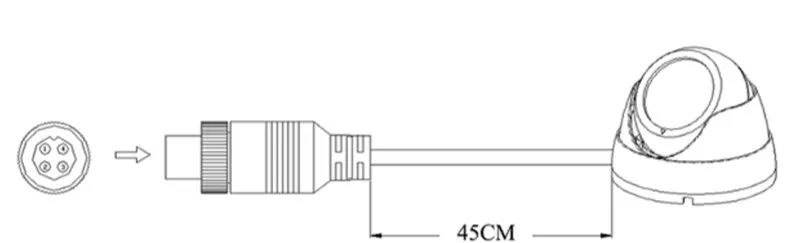

Product Structure

Technical Specification

No.	Item	Description
1	Imaging Device	1/4” CMOS AHD 720P
2	Video System	PAL
3	Effective Resolution	1280(H)* 720(V)
4	Effective Pixels	1.0 M pixels
5	Scanning System	2:1 interlaced scanning
6	Synchronization System	Internal synchronization
7	Vertical Sync Frequency	50Hz / 60Hz
8	Minimum Illumination	1.0vp-p, 75Ω, AHD output
9	Gamma Coefficient	0.45
10	AGC	Auto
11	SNR	Greater than 46dB
12	Lens	2.8mm F = 2.0, effective angle: 100°
13	Voltage	DC 12V±5%, Current: 70mA±5%
14	Operating Temp	-20°C~70°C, RH95%MAX

Application Fields

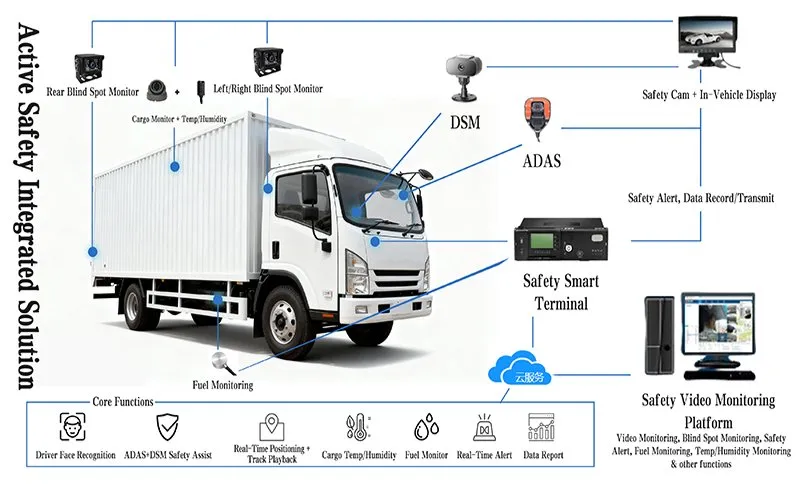

System Topology Diagram

Application Scenarios: Suitable for in-vehicle environments such as trucks, engineering machinery, buses, and school buses. Highly resistant to vibration and designed for security monitoring.

Packing & Delivery

Technical Profile

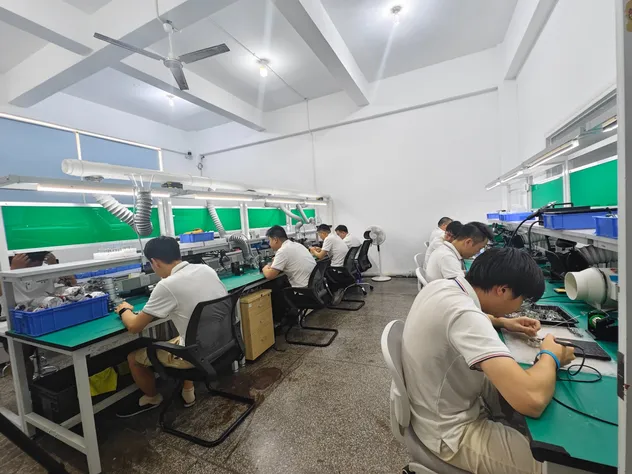

We specialize in applied research of sensing technology. Our self-developed non-contact monitoring products are exported globally. With a high percentage of staff focusing on R&D and core members boasting over a decade of industry experience, we ensure strong innovation and superior product quality.

Frequently Asked Questions

What are the main applications for this camera?

It is primarily used for in-vehicle monitoring in school buses, public transport, logistics trucks, and private cars for safety recording and reverse imaging.

Is this camera waterproof?

Yes, it features a waterproof and weatherproof design, making it durable for various in-vehicle environments and vibration-heavy conditions.

What is the Minimum Order Quantity (MOQ)?

Standard products typically start from 10 units. For customized requirements, MOQ may vary based on project complexity.

Do you support product customization?

Yes, we offer customization services including logo printing, packaging redesign, and adjustments to technical parameters.

How do you handle technical support and after-sales?

We provide comprehensive support via online troubleshooting, technical documentation, and video guides to assist with installation and usage.

What is the typical lead time for orders?

Standard products generally take 15-30 days after order confirmation. Lead times for customized items depend on the specific order details.
