All-Weather Raythink Pd2t PTZ Security Camera: Dual Thermal/Visible Imaging, Ai Human/Vehicle Detection & IP66 Protection for River Monitoring

Customization: Available
Technology: Infrared
Style: Dome Camera

Product Description

Basic Specifications

Model NO.
PD225T
Type
CCTV Camera
Sensor
CMOS
Kind
Autofocus Lens
Certification
CE, FCC, RoHS, EMI/EMC
Feature
Waterproof, High Definition, Auto BLC
Effective Distance
≧30m
IR Distance
50m
Protection
IP66
Pixel Pitch
12μm

Product Overview

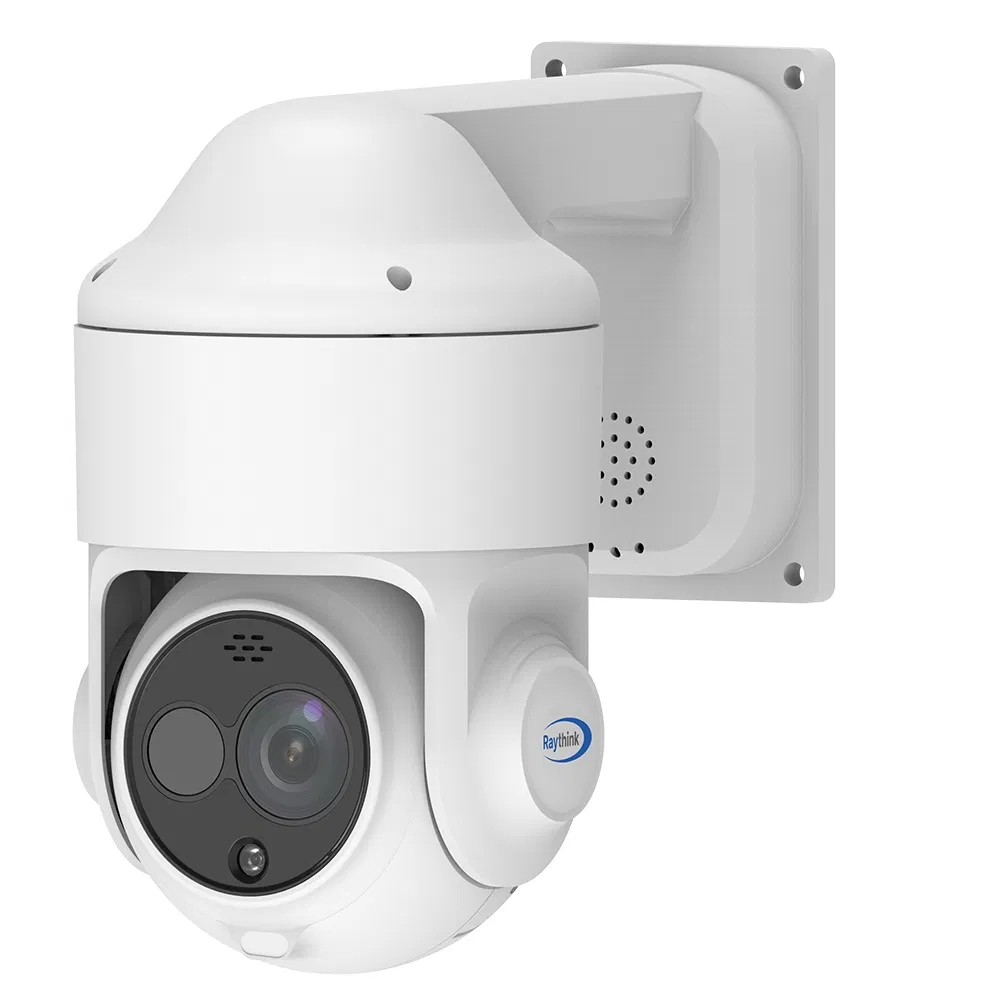

Dual-Spectrum Speed Dome Camera

The PD2 Series Dual-Spectrum Speed Dome Camera integrates 256×192 thermal imaging with 5MP HD visible light. It comes with built-in industrial temperature measurement and analysis tools, supports 360° circular scanning for patrol inspection and temperature measurement (-20°C~+550°C), and allows independent setting of temperature measurement areas for preset points.

Leveraging smoke and fire detection algorithms and intelligent intrusion detection algorithms, it can promptly detect fire hazards and intrusion targets in real time, trigger audible and visual alarms, and enable comprehensive all-weather security monitoring and fire warnings.

Product Highlights

12μm Uncooled Infrared Detector Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
Dual-Spectrum Imaging All-weather, 24/7 security monitoring with dual thermal and visible light imaging capabilities.
Accurate Temperature Measurement Measurement range from -20ºC to 550ºC, with an accuracy of ±2ºC or 2%.
AI Target Recognition Smart video content analysis, human/vehicle recognition on thermal channel for crossline and intrusion detection.
Intelligent Alarm System Provides 360° panoramic monitoring, integrates with visible light cameras for tracking, and supports audible/visual alarm linkage.
Platform Integration Full support for ONVIF, providing SDK & demo for custom development along with NVR and VMS software.

Technical Specifications

Thermal Module
Detector TypeVOx, uncooled FPA detector
Spectral Range8~14μm
Resolution256×192
Focal Length7mm10mm
Optical Module
Sensor5MP 1/2.8" CMOS
Resolution2560×1920
Optical Zoom20× (5.4mm~108mm)
PTZ & Functions
Pan / Tilt RangePan: 360° continuous; Tilt: 0°~+90°
Temperature Range-20ºC~+550ºC (±2ºC Accuracy)
Smart FunctionsFire Detection, AI Human/Vehicle Recognition, Intrusion Detection
General
Protection / PowerIP66 / DC 12V±25% or POE(802.3af)
Weight / Dimension2.48kg / 265*147.5*248.7 mm

Application Scenarios

Park Perimeter | River Monitoring | Electric Temperature Measurement | Warehouse Security

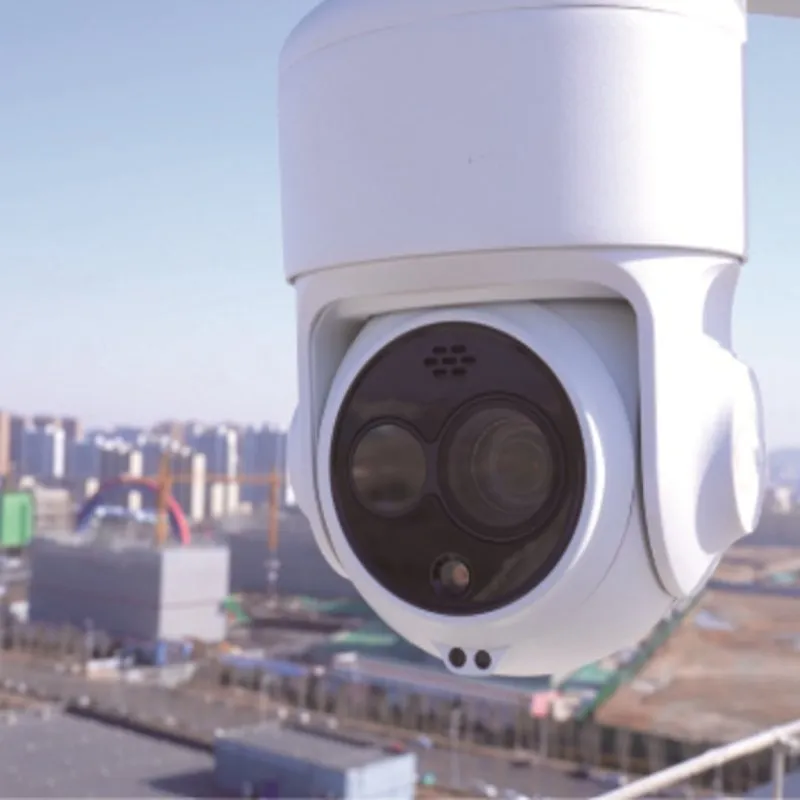

Park Perimeter Monitoring

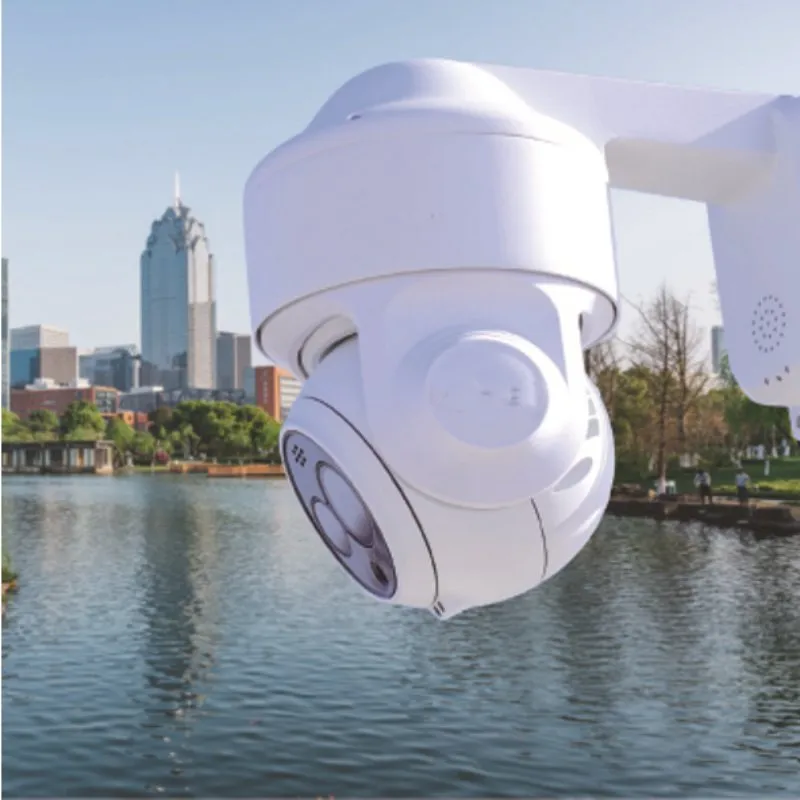

River Monitoring

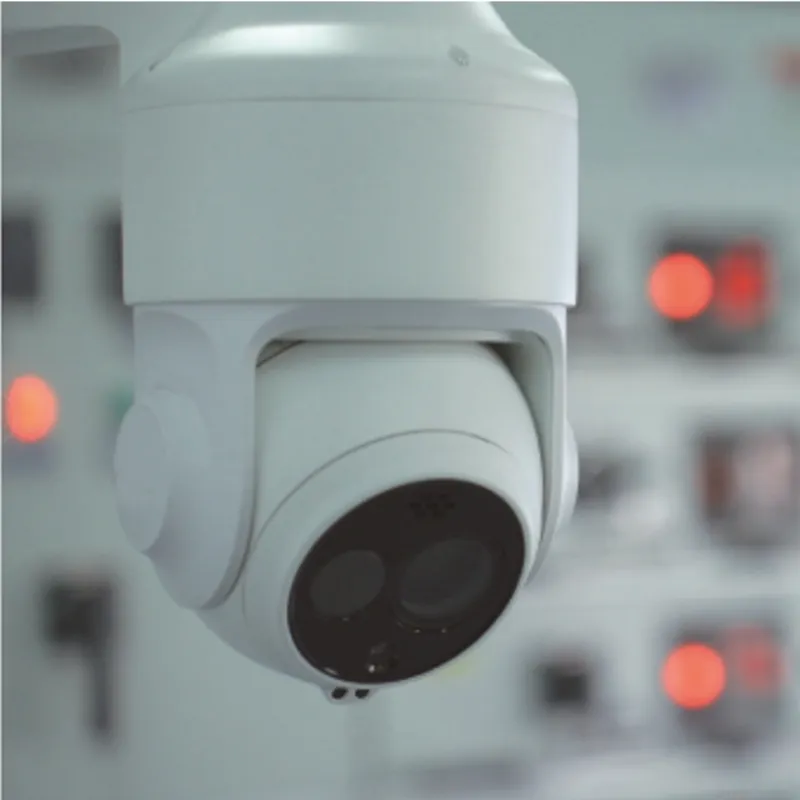

Electric Temperature Measurement

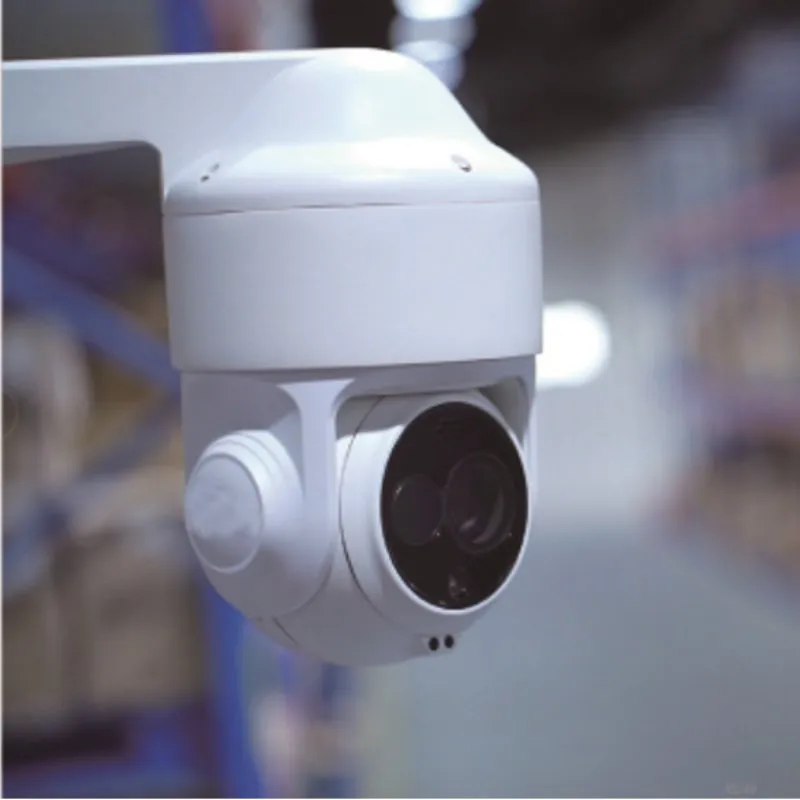

Warehouse Security

Frequently Asked Questions

How can we guarantee product quality?
We employ professional infrared detector chip manufacturing, rigid thermal camera production processes, a perfect quality management system, and a CNAS certification reliability test platform.
How long is the typical delivery time?
For small orders, it usually takes 7 working days. Products requiring customization or those without sufficient inventory will take approximately 2-4 weeks. For OEM orders, please verify the specific timeline with our team.
What is the Minimum Order Quantity (MOQ)?
The MOQ depends on the specific product model and customization requirements.
What are the available payment terms?
Our accepted payment terms include L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
What is the warranty policy for your products?
Thermal vision products come with a 2-year warranty, while individual thermal modules are covered by a 1-year warranty from the date of purchase.
What kind of after-sales support do you provide?
We provide lifetime technical support. Our engineering team typically responds to technical inquiries within 24 hours.
