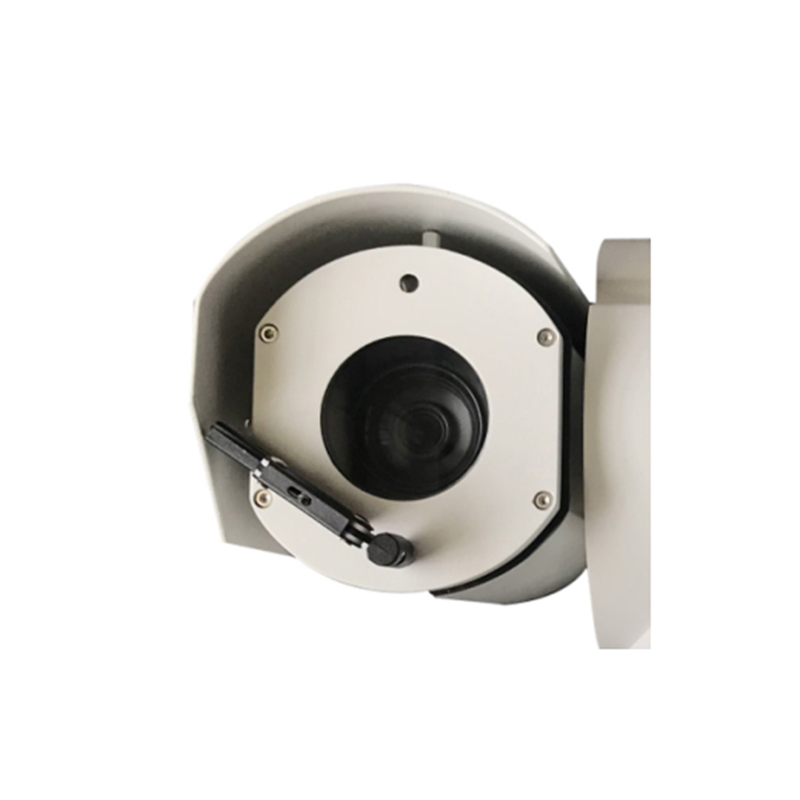

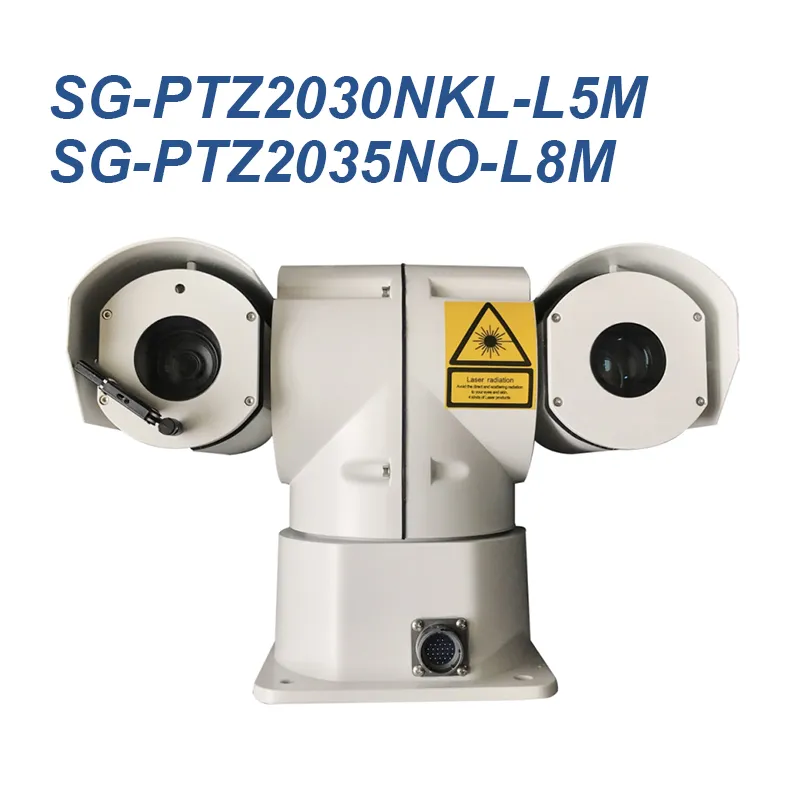

Ultra-Smooth 2MP 30X /35X Zoom Starlight Laser Network Vehicle PTZ Camera

Basic Info.

Model NO.

SG-PTZ2030NKL-L5M / SG-PTZ2035NO-L8M

Type

Zoom Lens

Sensor

CMOS

HDMI Format

1080P

Kind

Autofocus Lens

Certification

CE, CCC

Effective Distance

≧30m

Sensor Size

1/3 inch

Pan/Tilt Range

Pan: 360°, Endless; Tilt: -84°~84°

Power Supply

DC24~36V±15% / AC24V

Product Description

2Mp 30x / 35x Zoom Starlight Laser Network Vehicle PTZ Camera

Features

Sony Exmor Starlight CMOS Sensor

Powerful 30x(4.7~141mm) / 35x(6~210mm) optical zoom

Max. 25/30fps@ 2Mp(1920×1080) Resolution

Support various IVS functions

Up to 500m / 800m Laser IR Distance

Military Connector & IP66 Protection

High performance chip technology

Technical Specification

Model	SG-PTZ2030NKL-L5M	SG-PTZ2035NO-L8M
Image Sensor	1/2.8" Sony Starvis CMOS	1/2" Sony Starvis CMOS
Focal Length	4.7mm~141mm, 30x Zoom	6mm~210mm, 35x Zoom
Resolution	2MP (1920×1080) @ 25/30fps
Compression	H.265/H.264/H.264H/MJPEG
Min. Illumination	Color: 0.005Lux; B/W: 0.0005Lux	Color: 0.001Lux; B/W: 0.0001Lux
IR Distance	Up to 500m	Up to 800m
Pan/Tilt Range	Pan: 360° Endless; Tilt: -84°~84°

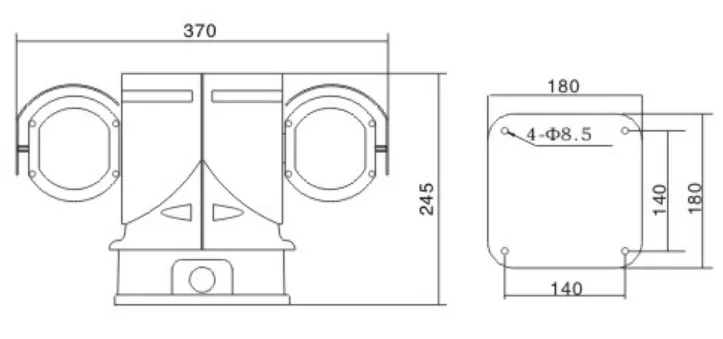

Dimensions	Approx. 240mm370mm245mm

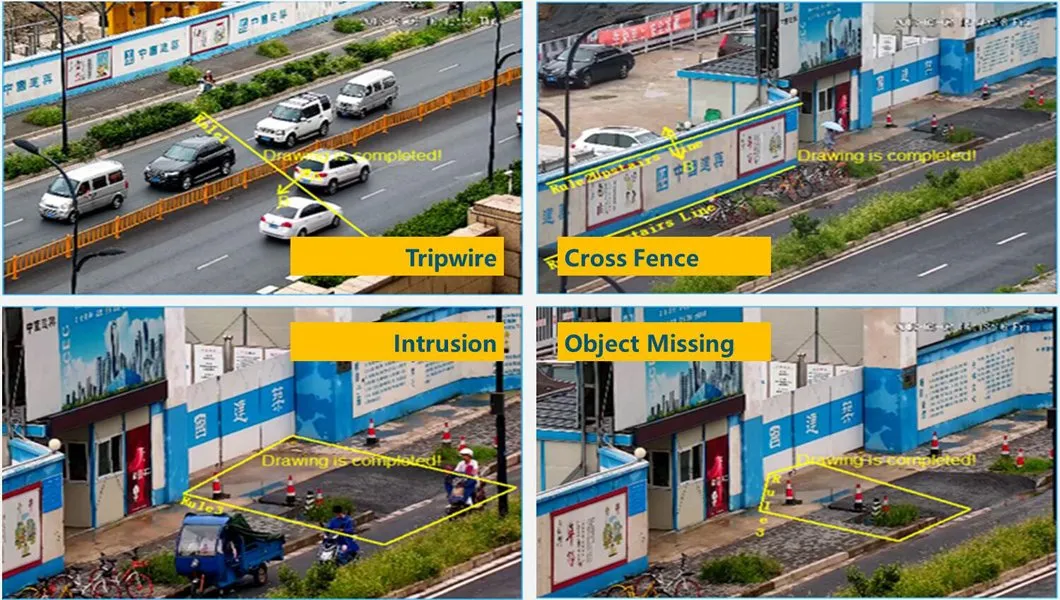

Intelligent Video Surveillance (IVS)

Supports Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Moving, Parking Detection, Crowd Gathering Estimation, Missing Object, and Loitering Detection.

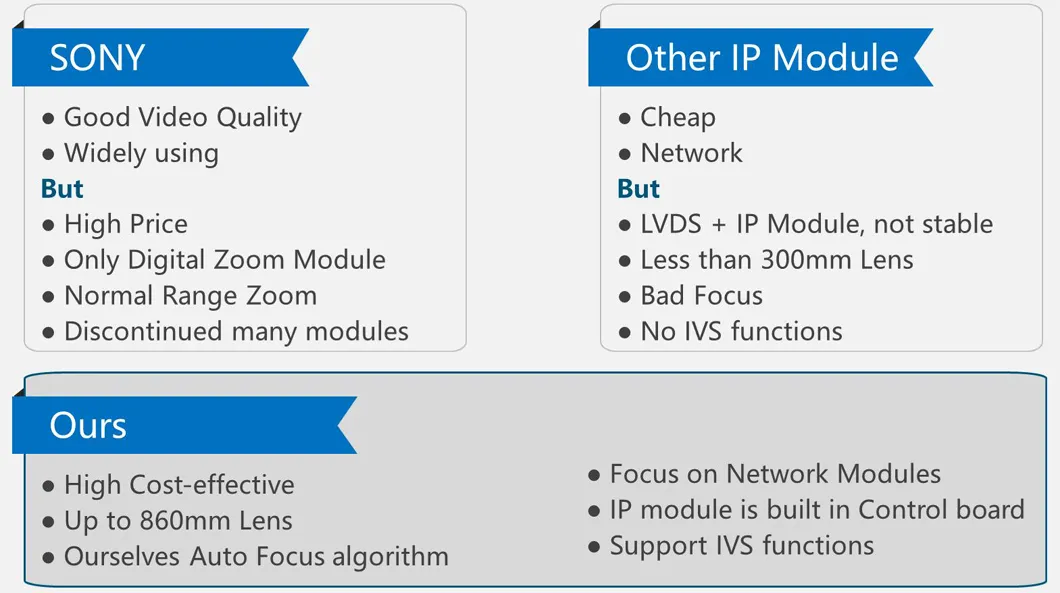

Our Advantages

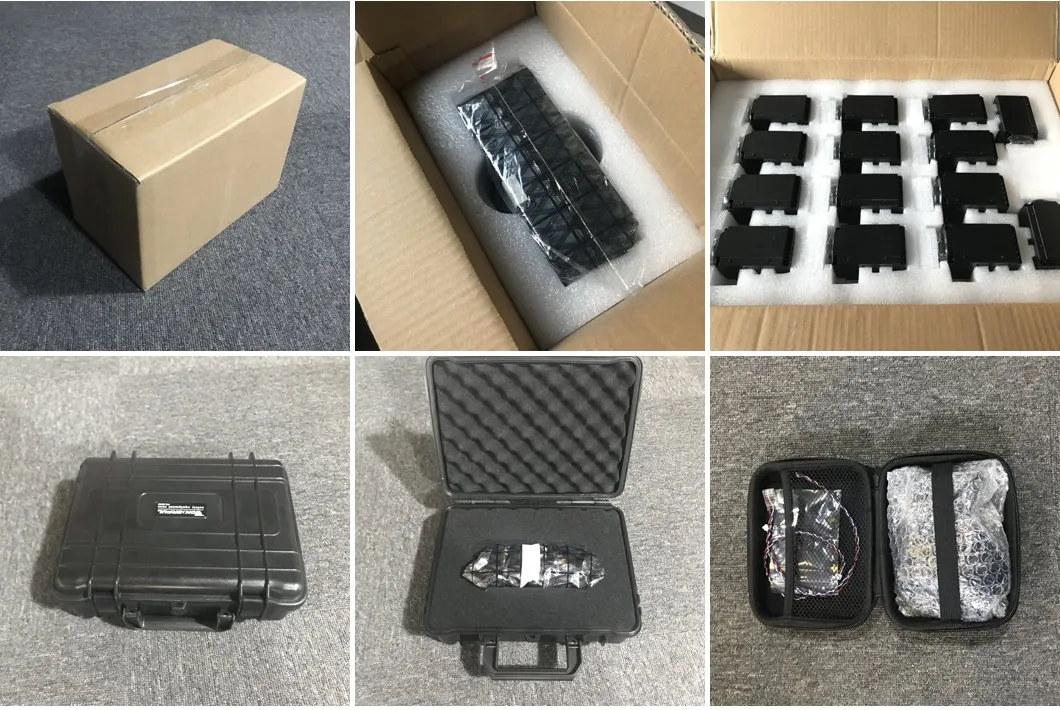

Packaging & Shipping

Shipping Methods: DHL, FedEx, TNT, UPS, EMS, Air, and Sea.

Package Info: 80cm*90cm*80cm | Gross Weight: 20kg.

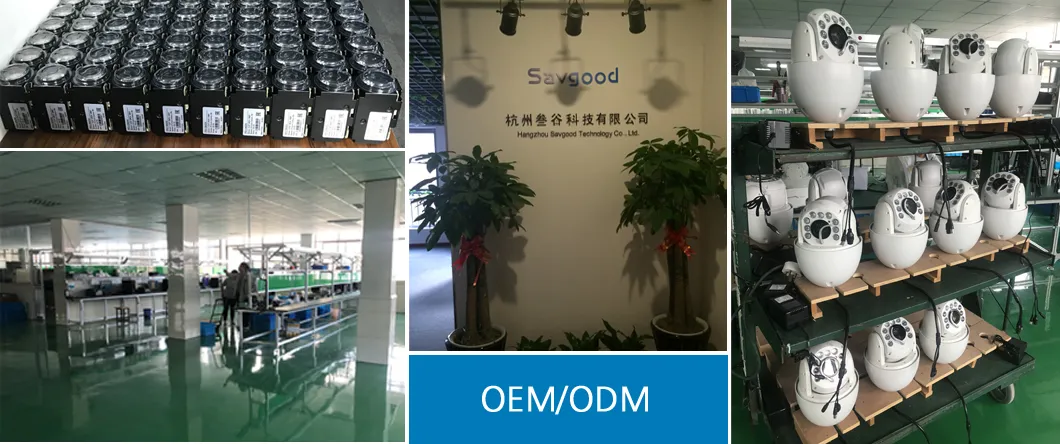

Company Profile

Specializing in Ultra LONG RANGE ZOOM camera modules, we utilize SONY's high image quality Exmor/Exmor R CMOS Sensors. Our focus is on solving the efficiency issues of traditional motorized lens systems with fast, accurate Auto Focus algorithms, Defog, and IVS functions.

Our Service

Payment Way: T/T, Paypal, West Union, MoneyGram.

Delivery Time: 2-5 working days for stock; 7-20 working days for bulk orders.

OEM Service: Custom OEM and ODM services available.

Quality Warranty: 1-year hardware warranty with life-time technical service.

Application

Frequently Asked Questions

What is the maximum IR distance of this PTZ camera?

Depending on the model, the laser IR distance reaches up to 500 meters (30x model) or up to 800 meters (35x model).

Does this camera support night vision in low light?

Yes, it features a Sony Starvis Starlight CMOS sensor, allowing it to capture high-quality color images in extremely low-light conditions.

Is the camera suitable for harsh outdoor environments?

Absolutely. The camera is IP66 waterproof and features TVS 4000V lightning protection and surge prevention.

What intelligent functions are included?

The camera supports various IVS (Intelligent Video Surveillance) functions, including tripwire detection, intrusion alerts, and abandoned object detection.

What are the power requirements?

The unit operates on a power supply of DC 24~36V ±15% or AC 24V.

Can I record locally on the device?

Yes, it supports Micro SD/SDHC/SDXC edge storage with capacities up to 1TB.
