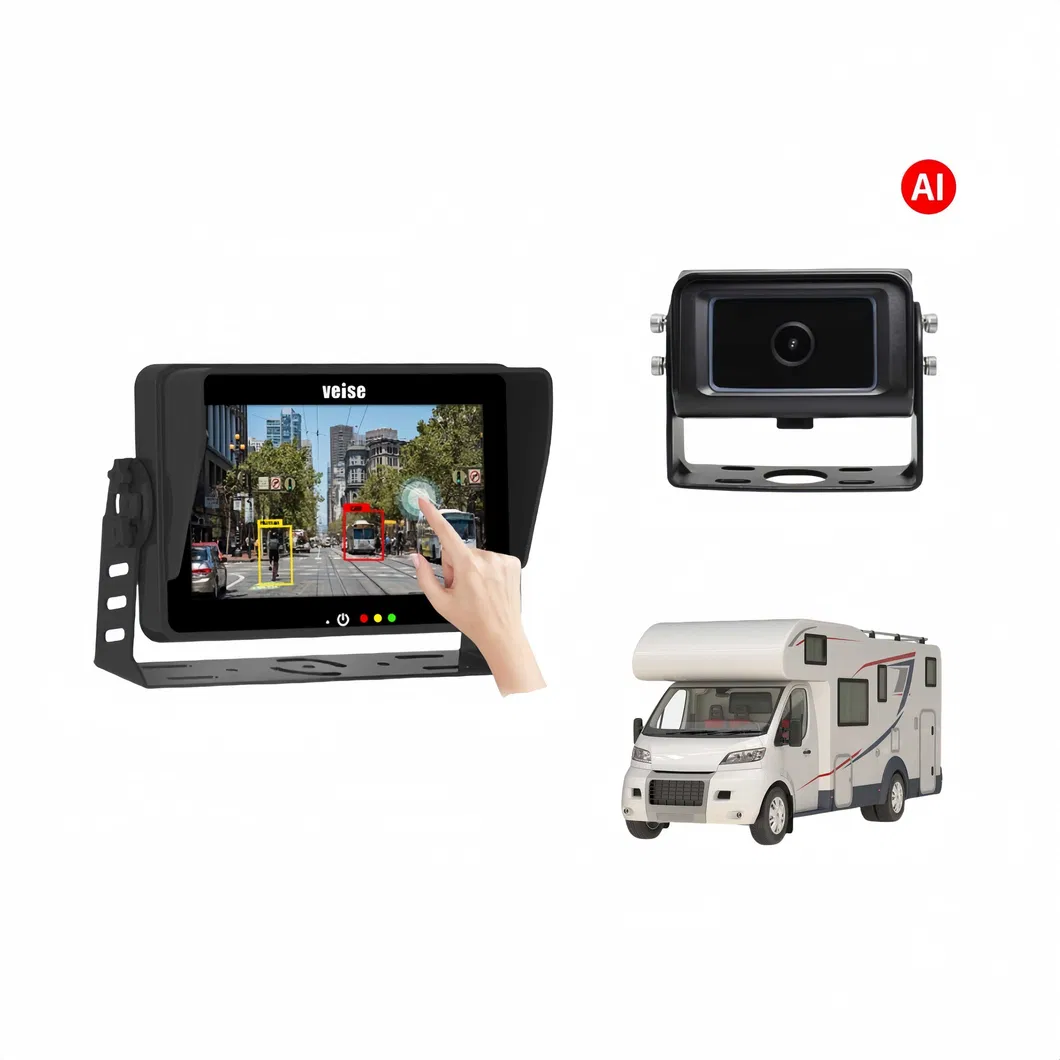

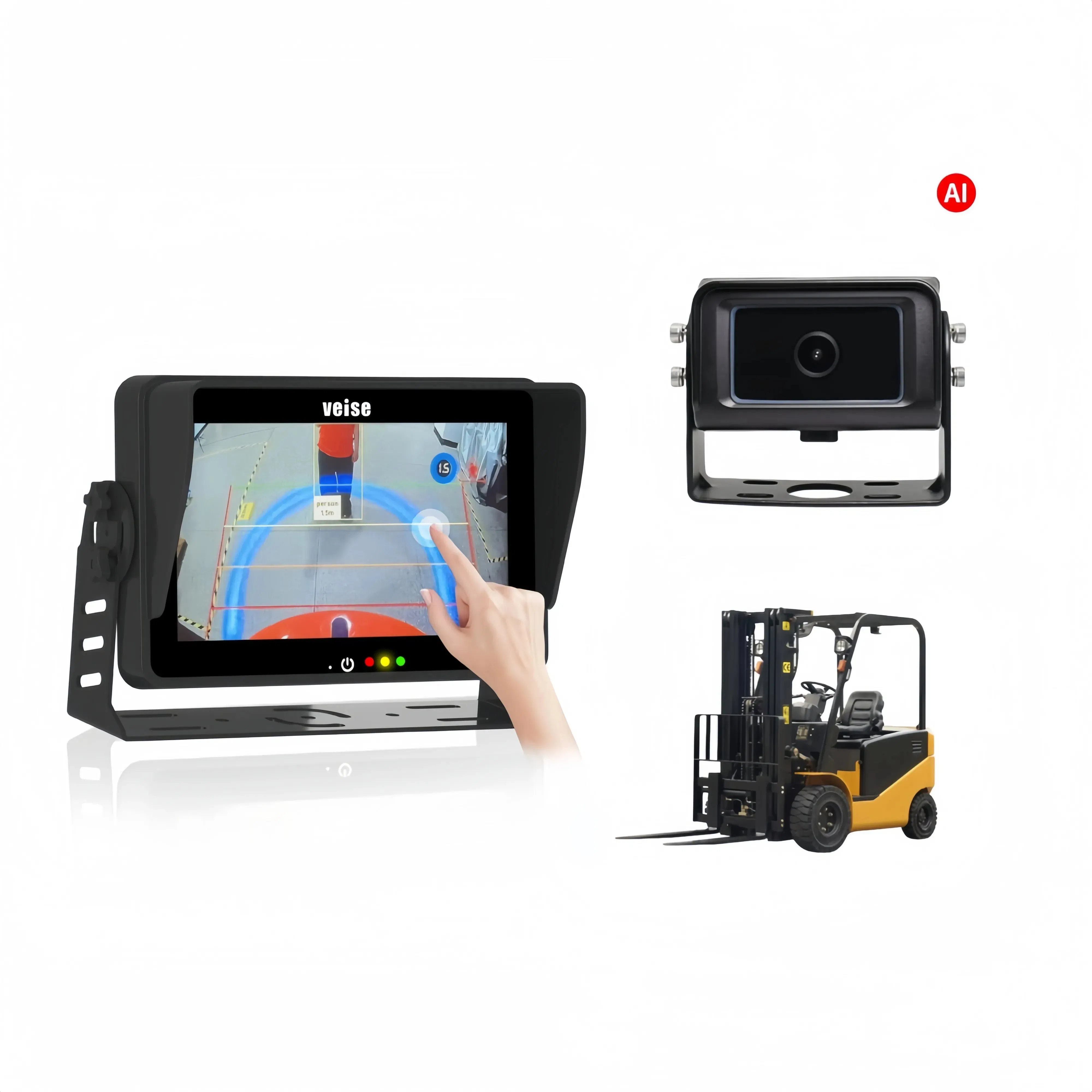

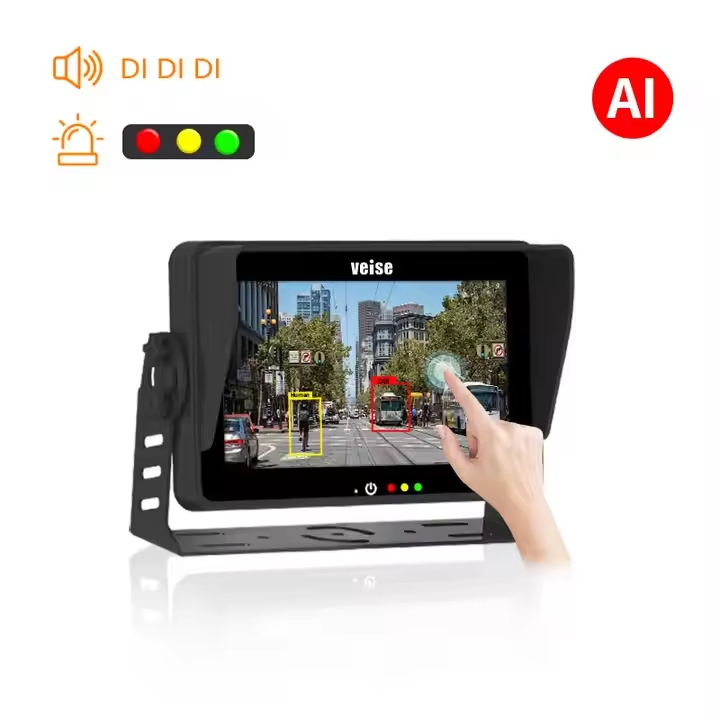

Built-in Sound and Light Reminder | System model: HDWS-7154MDJ122MAI-FC

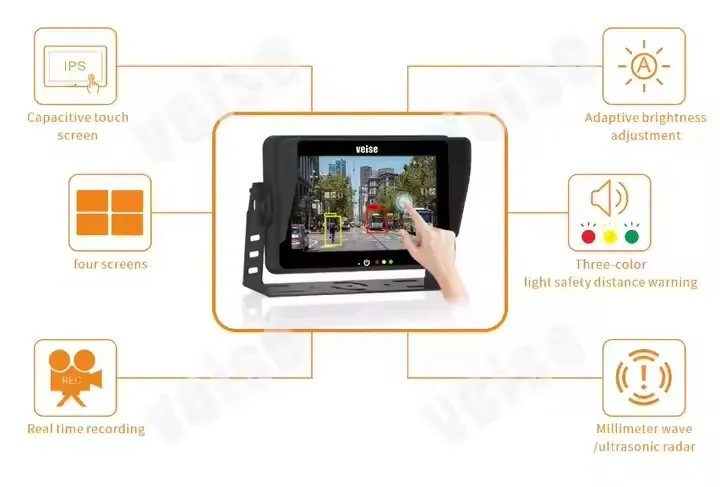

| HD Touchscreen Monitor Specifications (MHD-7154MDJ) | |
|---|---|
| Display Size | 7-inch IPS color display |
| Resolution | 1024 x 600 pixels (RGB) |
| Video Inputs | 4 channels (CVBS/AHD720P/1080P) |
| Display Modes | 1/2/3/4-screen split |
| Brightness | 600 cd/m2 (Auto-adjusts) |
| Contrast Ratio | 800:1 |
| Recording | Real-time (AVI format), supports 16-512GB TF cards |
| Operating Voltage | DC 11-32V |
| Operating Temp | -20°C to +70°C |

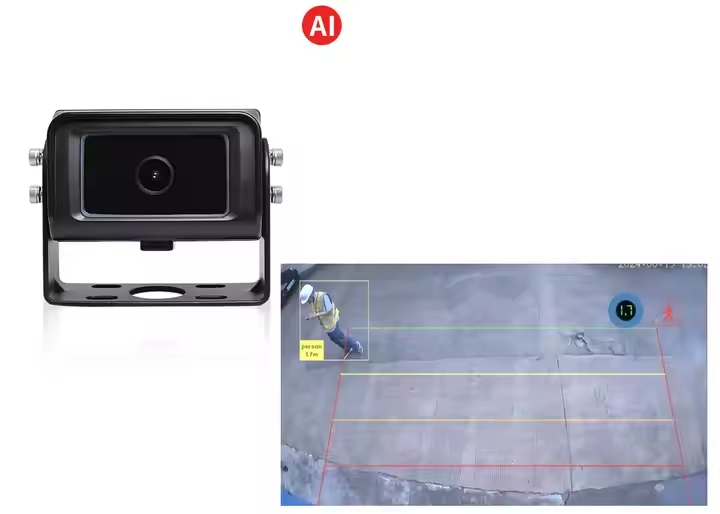

Intelligent Recognition: Based on advanced algorithms to recognize specific human movements in complex environments.
Distance Measurement: Standard 2 meters, customizable within 0-5 meters.
Hardware Specs: 100° wide-angle, 2 million pixels, IP69K waterproof rating, aluminum alloy housing.

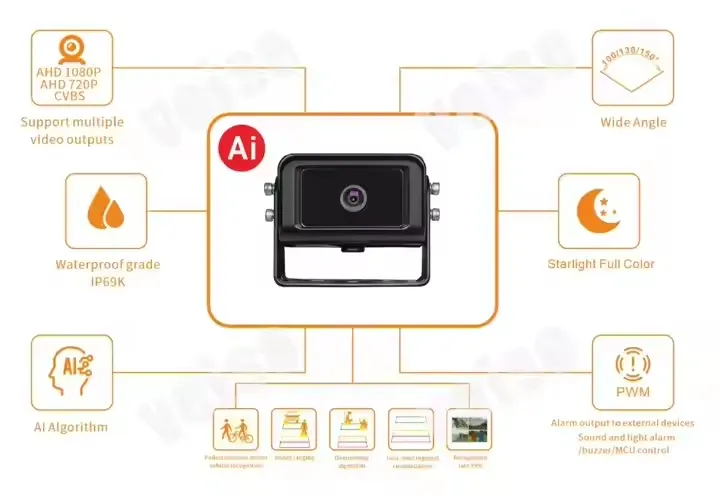

| AI Camera Specifications (CHD-122MAI-FC) | |
|---|---|
| Image Sensor | 1/2.9 Color CMOS (1080P) |
| Field of View | 100° |
| Detection Targets | Pedestrians / Non-motorized vehicles |

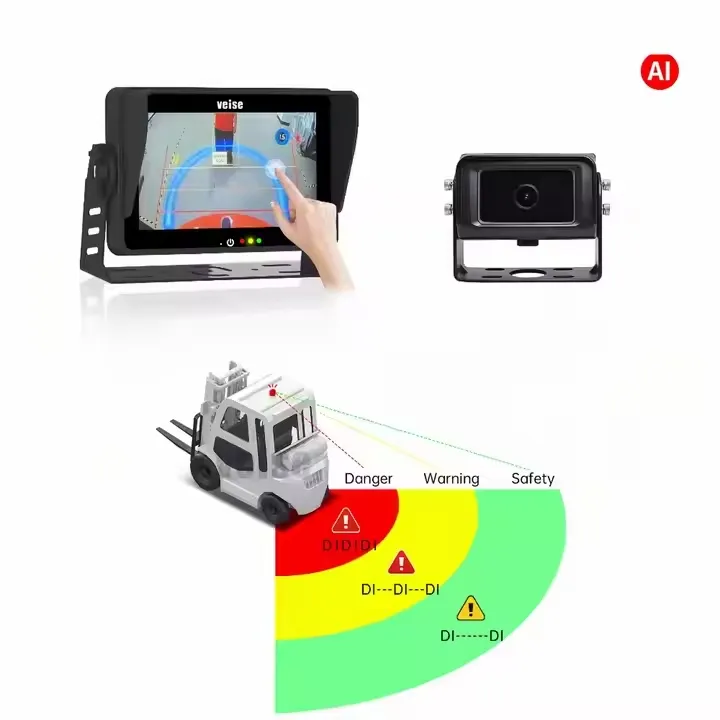

| Alert Zones | 1-4 levels (customizable) |
| Waterproof Rating | IP69K |
| Operating Voltage | DC 12V ±10% |
| Dimensions | 74(W) x 64(H) x 56(D) mm |
1. Material: 4-core phosphor bronze aviation plug with dual-shielded cable for superior anti-interference.
2. Reliability: Double injection-molded tail cable for high tensile and swing resistance; low signal attenuation.
