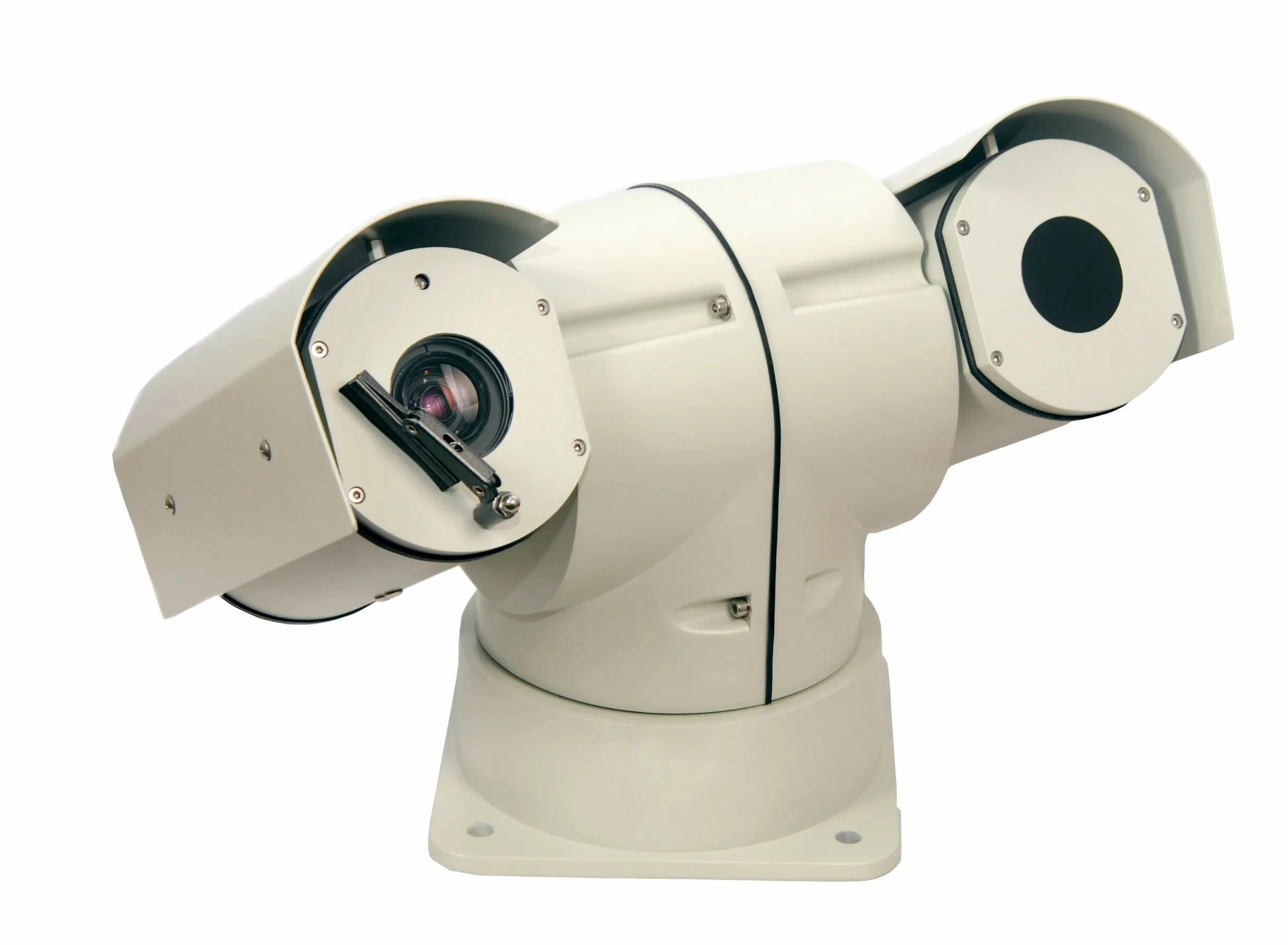

300m Night Vision Infrared Laser PTZ CCTV Camera Complete System
300m Night Vision Infrared Laser PTZ CCTV Camera Complete System
300m Night Vision Infrared Laser PTZ CCTV Camera Complete System
300m Night Vision Infrared Laser PTZ CCTV Camera Complete System
300m Night Vision Infrared Laser PTZ CCTV Camera Complete System
1 / 5
300m Night Vision Infrared Laser PTZ CCTV Camera Complete System
300m Night Vision Infrared Laser PTZ CCTV Camera Complete System
300m Night Vision Infrared Laser PTZ CCTV Camera Complete System
300m Night Vision Infrared Laser PTZ CCTV Camera Complete System
300m Night Vision Infrared Laser PTZ CCTV Camera Complete System

300m Night Vision Infrared Laser PTZ CCTV Camera Complete System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO. SHJ-HD-TC26-L Type IP Camera
Sensor CMOS (1/3 inch) HDMI Format 1080P
Horizontal Resolution >800tvl Lens Autofocus Lens
Certification CE, FCC, CCC, RoHS, EMI/EMC Effective Distance 300m
Feature Waterproof / Weatherproof, High Definition, Mini Size, Auto BLC
PTZ G.W 12kg Transport Package Strong Carton
300m Night Vision 33x Zoom Integration PTZ Camera System

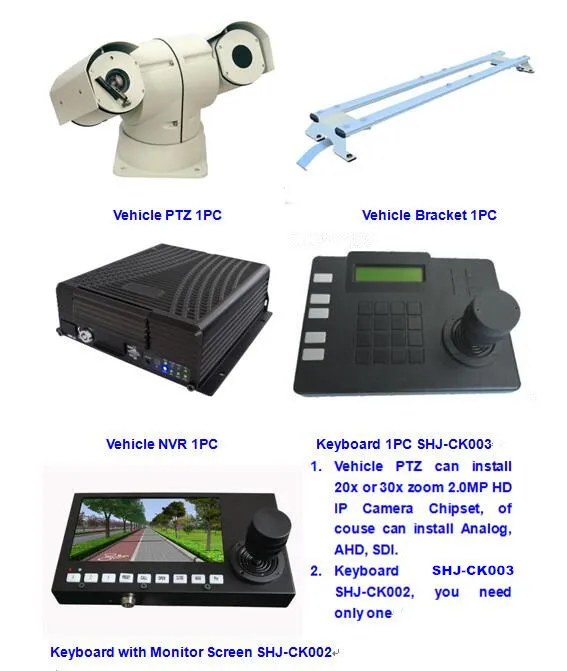

1System Components
  • 1pc Vehicle PTZ Camera
  • 1pc Vehicle PTZ Bracket
  • 1pc MDNVR
  • 1pcs Control Keyboard SHJ-CK003
  • TOTAL SYSTEM VALUE: 2000.00 USD/Unit
300m Night Vision Infrared Laser PTZ CCTV Camera Complete System
1. 500m Laser 33x Zoom 2.0MP HD IP PTZ

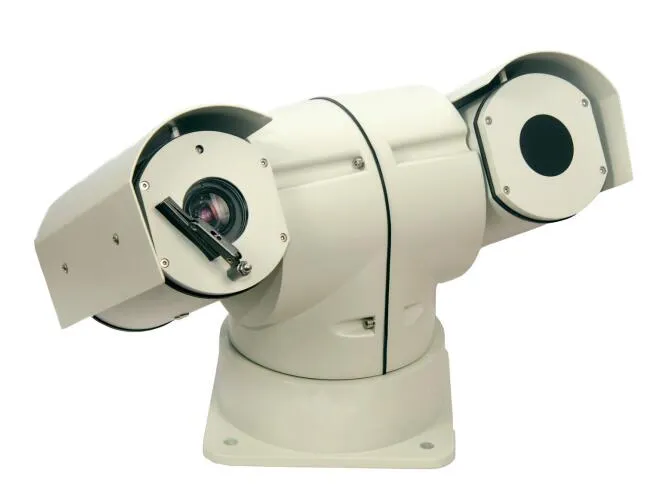

HD IP PTZ Camera
Key Features
  • Weatherproof design, high die-case aluminum casting (IP66).
  • Dust-proof, antifogging, and frost protection functions.
  • Built-in laser with radicalization distance over 500m for superior night vision.
  • 360° continuous rotation with Max pan speed up to 100°/s.
  • 128 preset positions with OSD Menu and self-study functions.
  • Built-in surge and lightning strike protection.
PTZ Technical Specifications
Pan Range360° ContinuouslyTilt Range-90°~+90°
Pan Speed0.1°~100°/sTilt Speed0.1°~60°/s
Image Sensor1/3" Progressive CMOSEffective Pixels1920x1080
Optical Zoom33x, 4.6-152mmMini. IlluminationColor: 0.01Lux, B/W: 0.005Lux
CommunicationRS485, Multi-protocolPower SupplyDC12V/AC24V

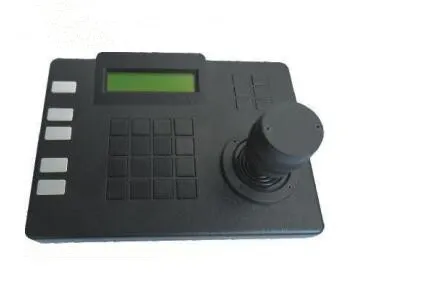

2. Intelligent Control Keyboard (SHJ-CK003)
Control Keyboard
  • 3-D joystick for controlling Pan/Tilt/Zoom and OSD menu operations.
  • 16×1 LCD screen for status display.
  • Supports multiple baud rates: 2400bps to 19200bps.
  • RS485 output for controlling speed domes, decoders, and processors.

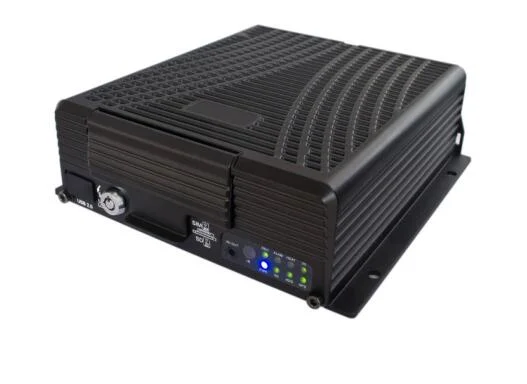

3. Mobile Network Video Recorder (MNVR)
Mobile Network Video Recorder
Product Overview

This Hard Disk Mobile DVR is designed for vehicle video surveillance using H.264 compression, 3G transmission, and GPS positioning. Built on an embedded Linux platform, it supports high-speed processing for reliable automotive monitoring.

Key MNVR Features
Channels4CH 720P or 2CH 1080PStorage2.5" HDD (up to 1TB) + 1 SD Card
Wireless3G (WCDMA/EVDO) & WIFI SupportSensorsBuilt-in GPS & G-sensor
Interfaces8 Alarm In, 2 Alarm Out, 3 RS485, 1 RS232Temp Range-40ºC to +85ºC (with HDD heating)
Power Input8V-36V DCVideo Out1-CH Composite, 1 VGA
Product Applications

Designed for professional video surveillance in various vehicle types including buses, logistics trucks, long-distance coaches, taxis, tankers, school buses, and patrol cars.

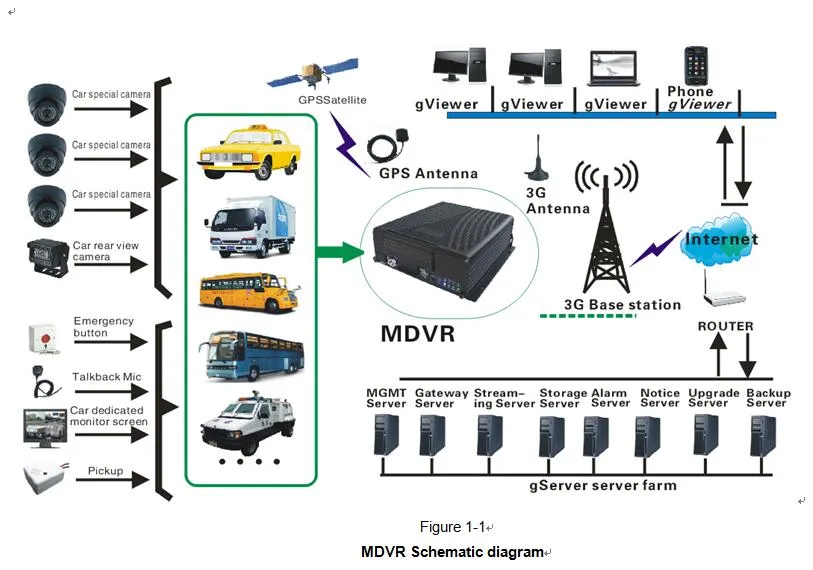

Application Diagram

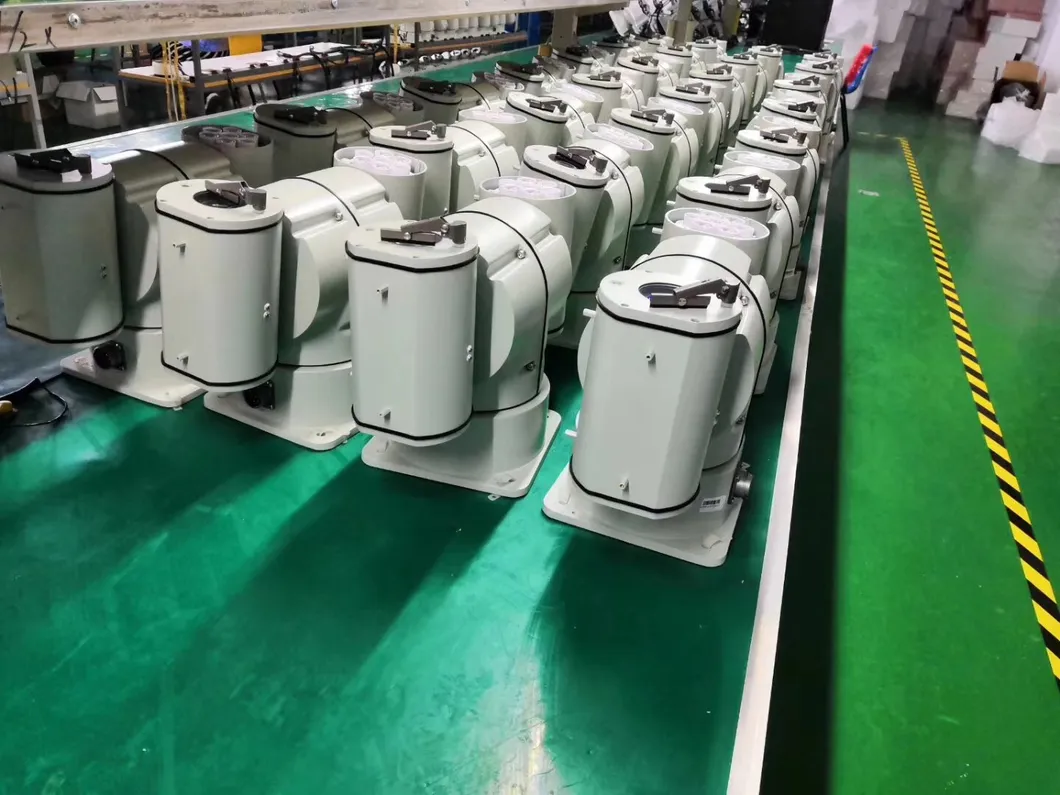

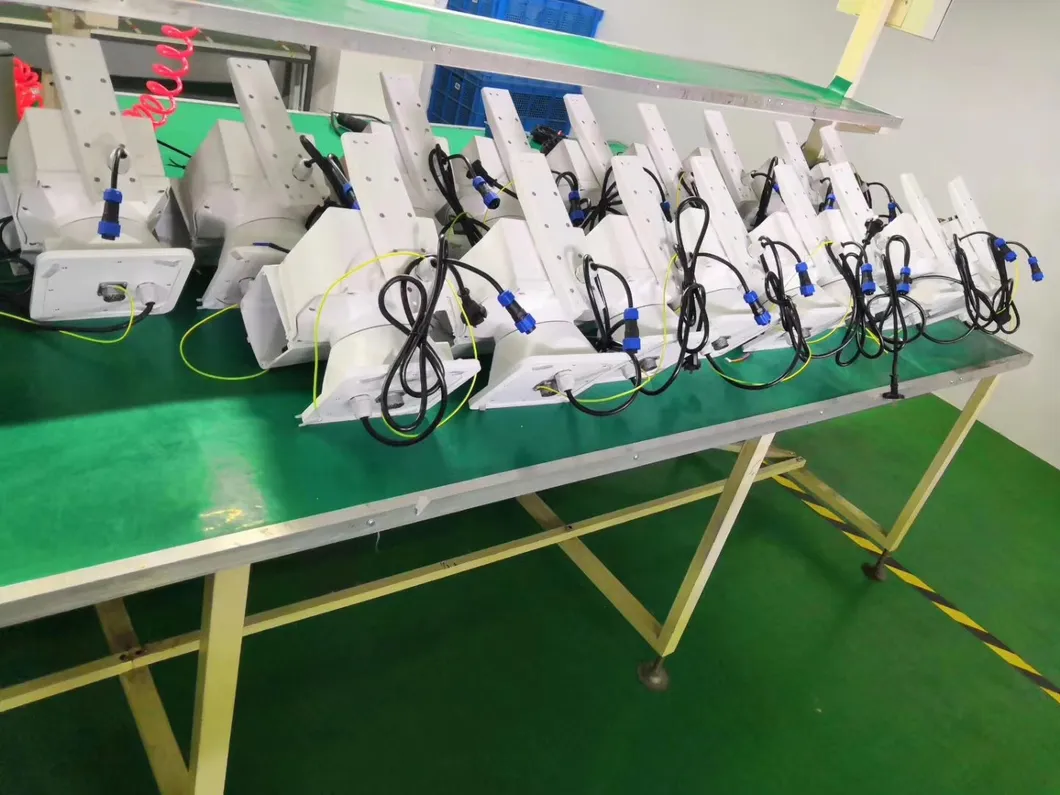

Project Cases

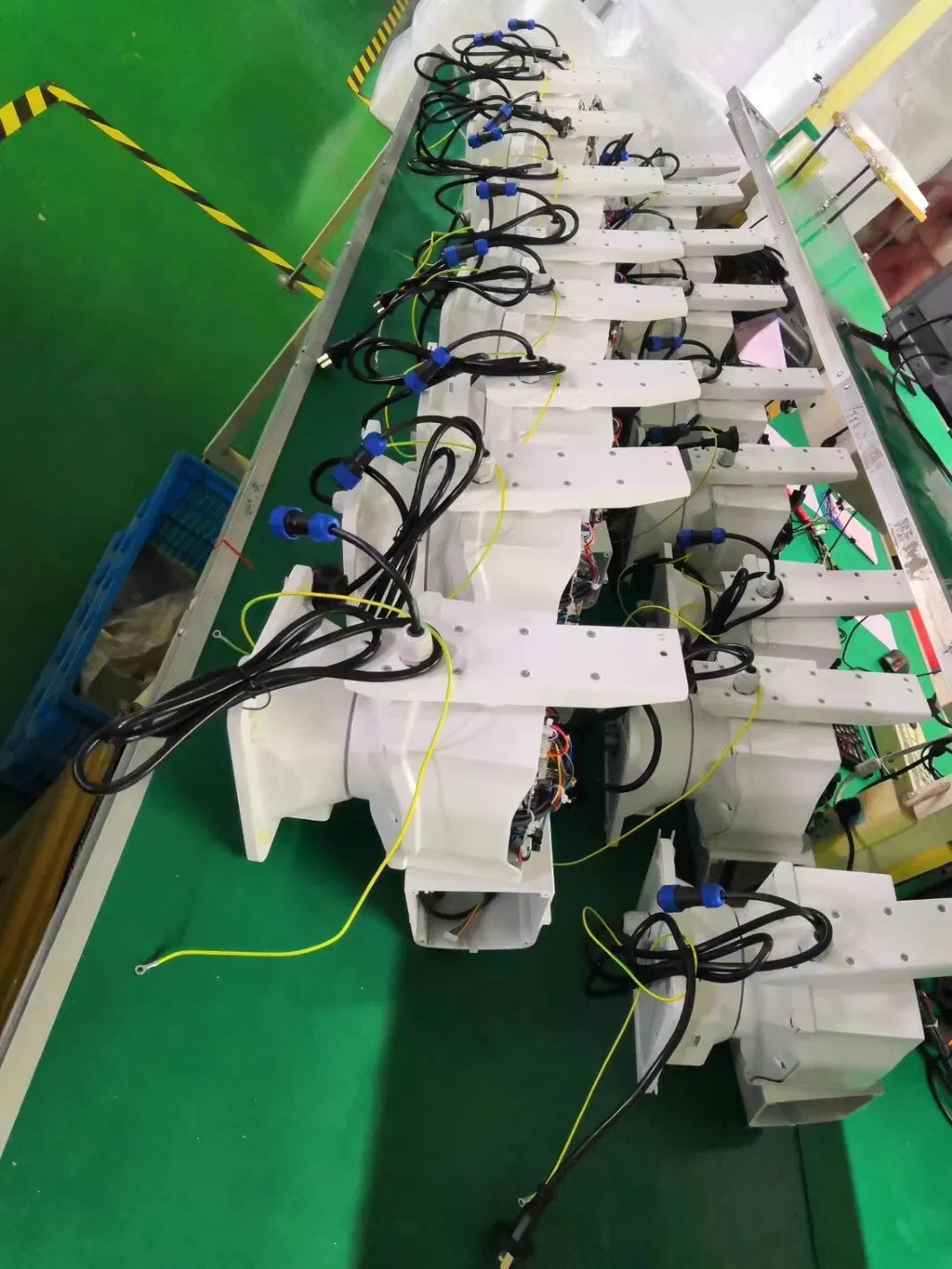

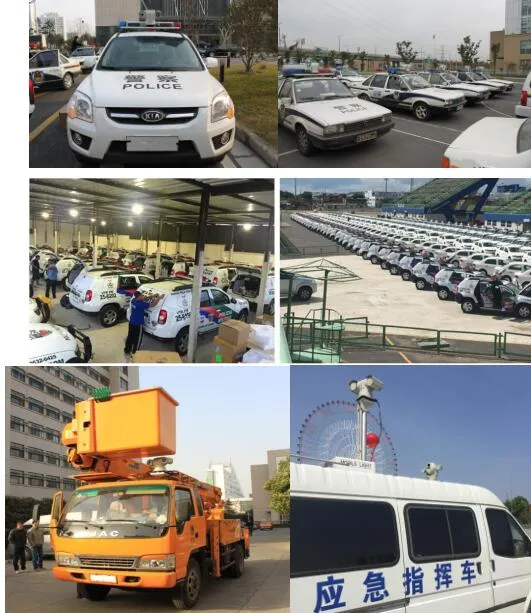

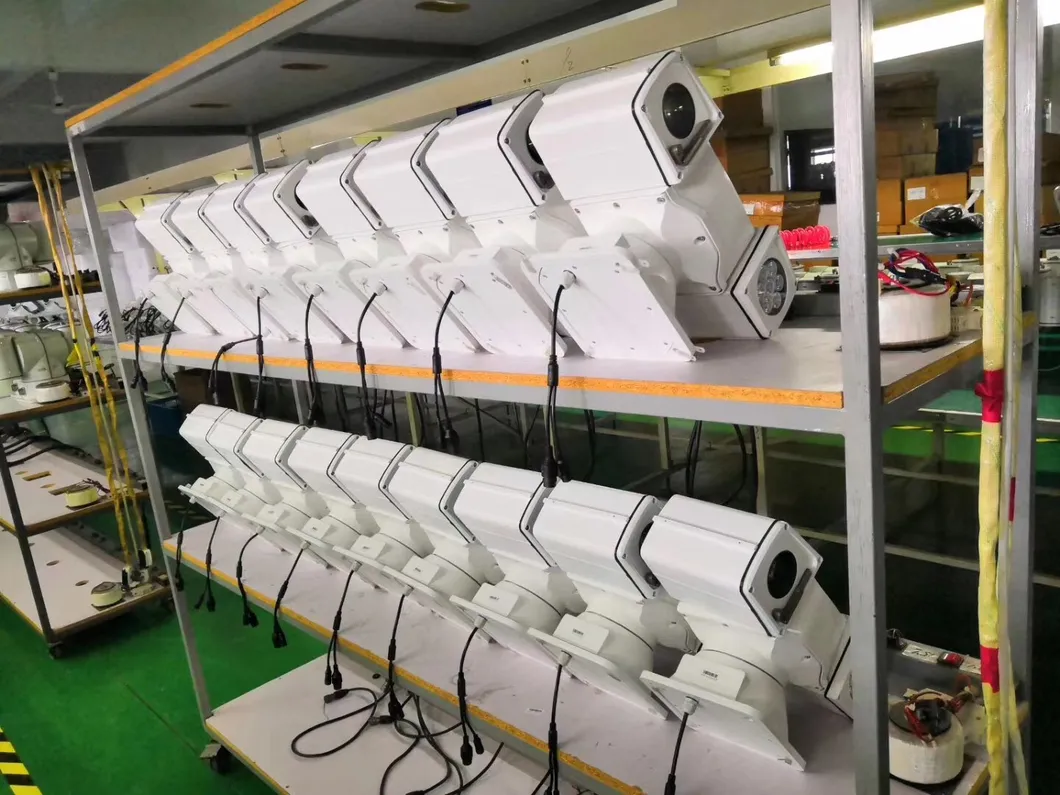

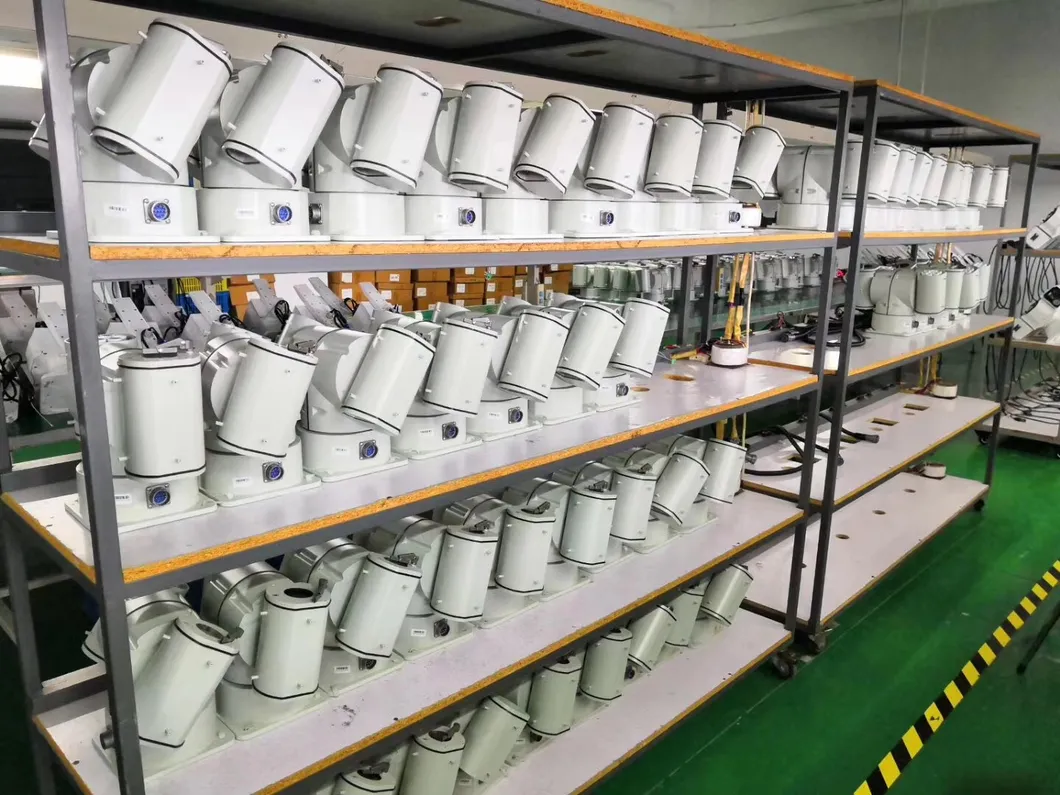

Project Case 1 Project Case 2 Project Case 3 Project Case 4 Project Case 5 Project Case 6
Frequently Asked Questions
Q1: What is the maximum night vision distance for this PTZ camera?
The system features integrated laser technology providing a night vision range of 300m to 500m, ensuring clear images in complete darkness.
Q2: Is the camera suitable for harsh outdoor environments?
Yes, the camera has an IP66 weatherproof rating and is made of high-quality die-cast aluminum, featuring dust-proof, anti-fog, and frost protection capabilities.
Q3: What storage options does the Mobile NVR support?
The MNVR supports one 2.5-inch Hard Disk Drive up to 1TB and an additional SD card for backup recording in case of HDD errors.
Q4: Does the system include GPS tracking functionality?
Yes, the system has a built-in GPS module that records geographic coordinates and speed data directly onto the hard disk.
Q5: Can the camera rotate and zoom automatically?
The camera supports 360° continuous rotation, 33x optical zoom, and includes 128 programmable preset positions for automated surveillance.
Q6: What is the power requirement for the vehicle system?
The system is designed for wide-voltage vehicle environments, supporting an input range of 8V to 36V DC.
