HawkEye Camera
1 / 5

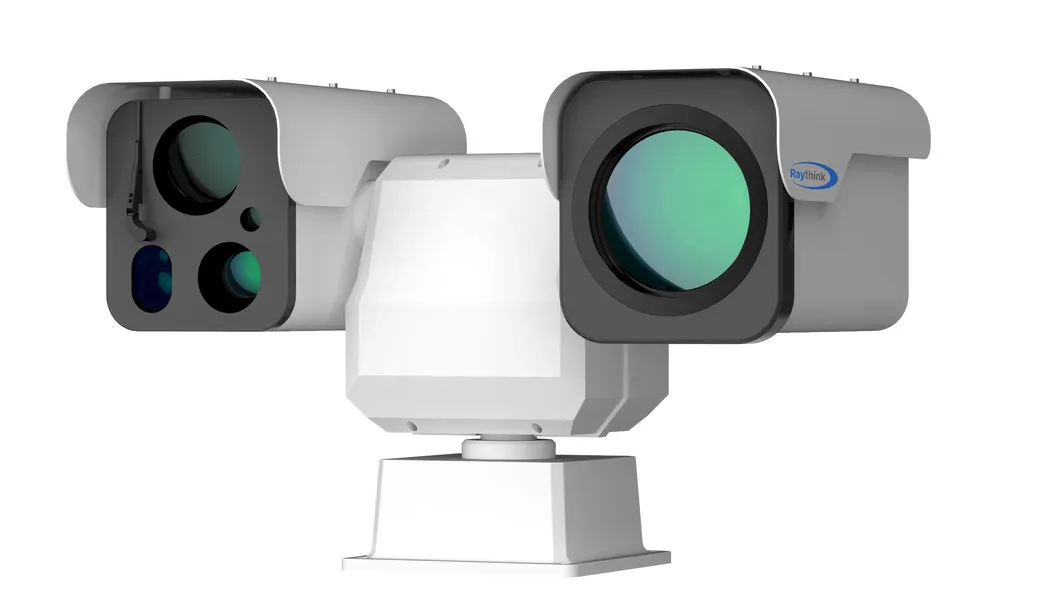

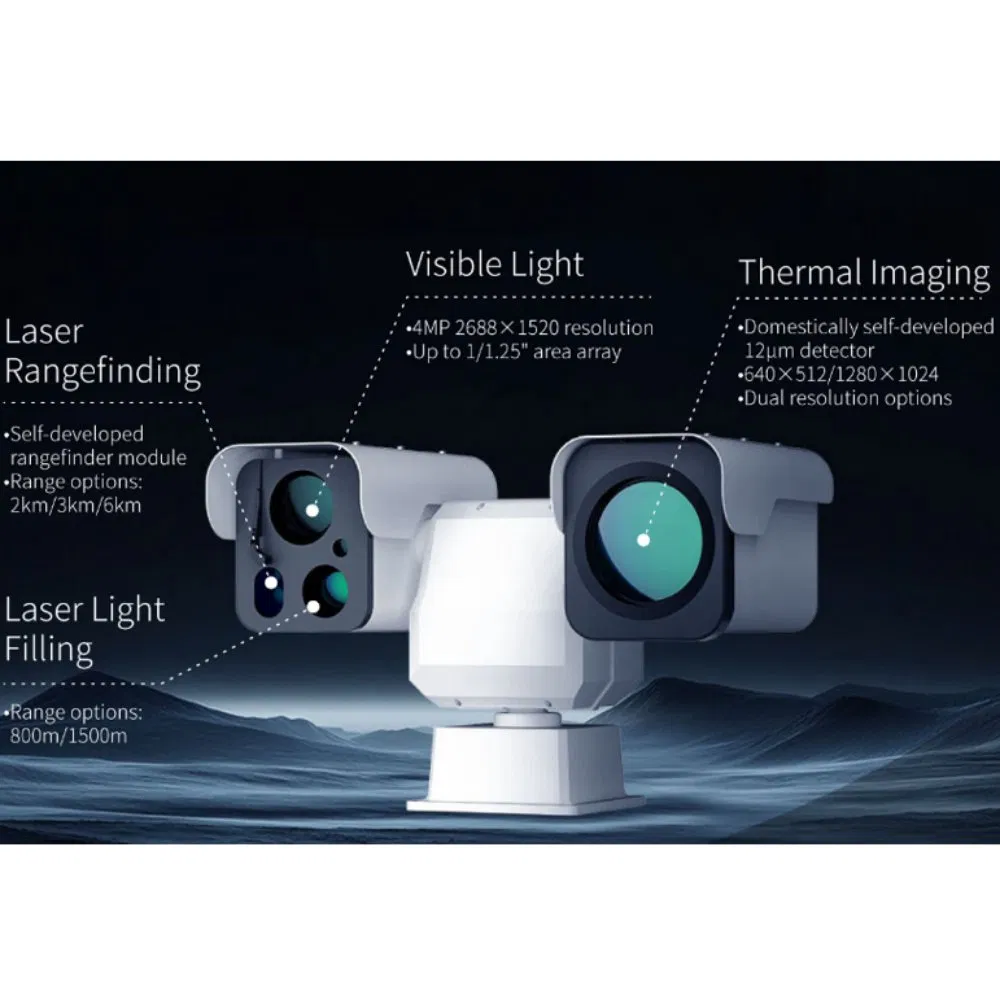

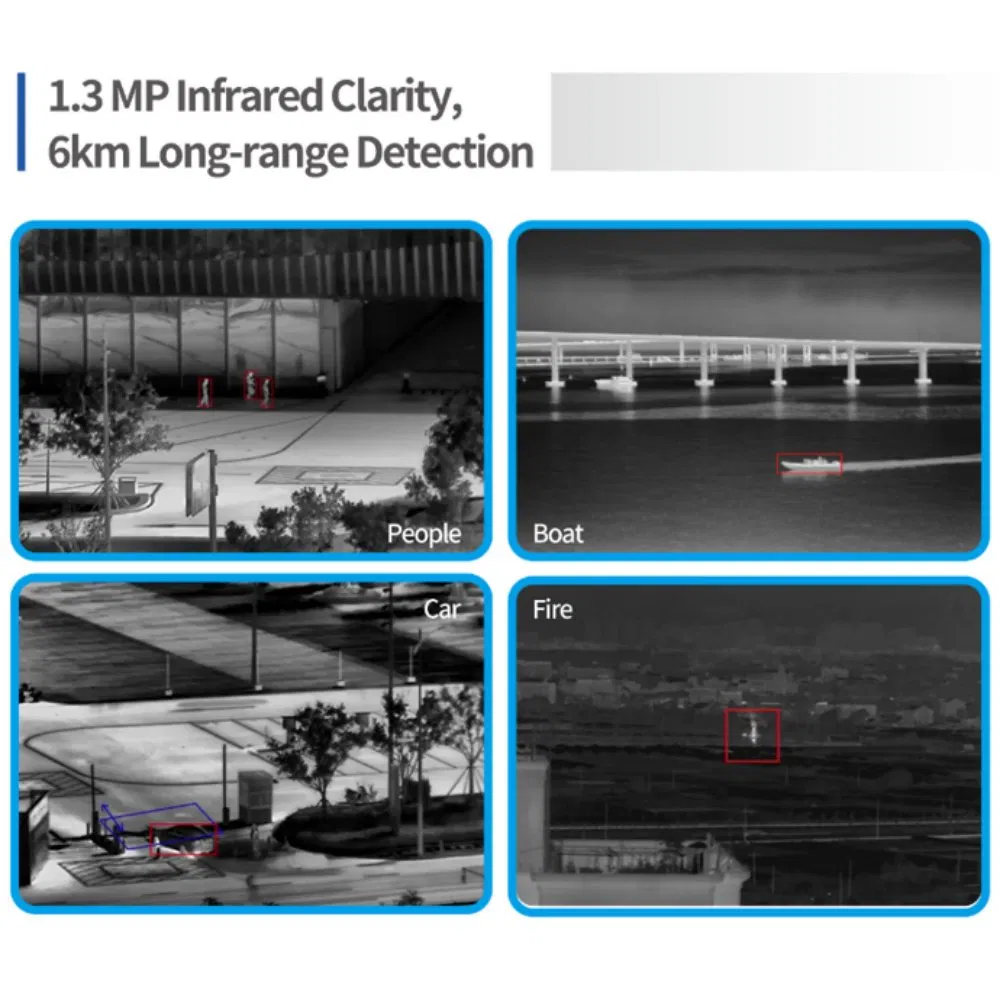

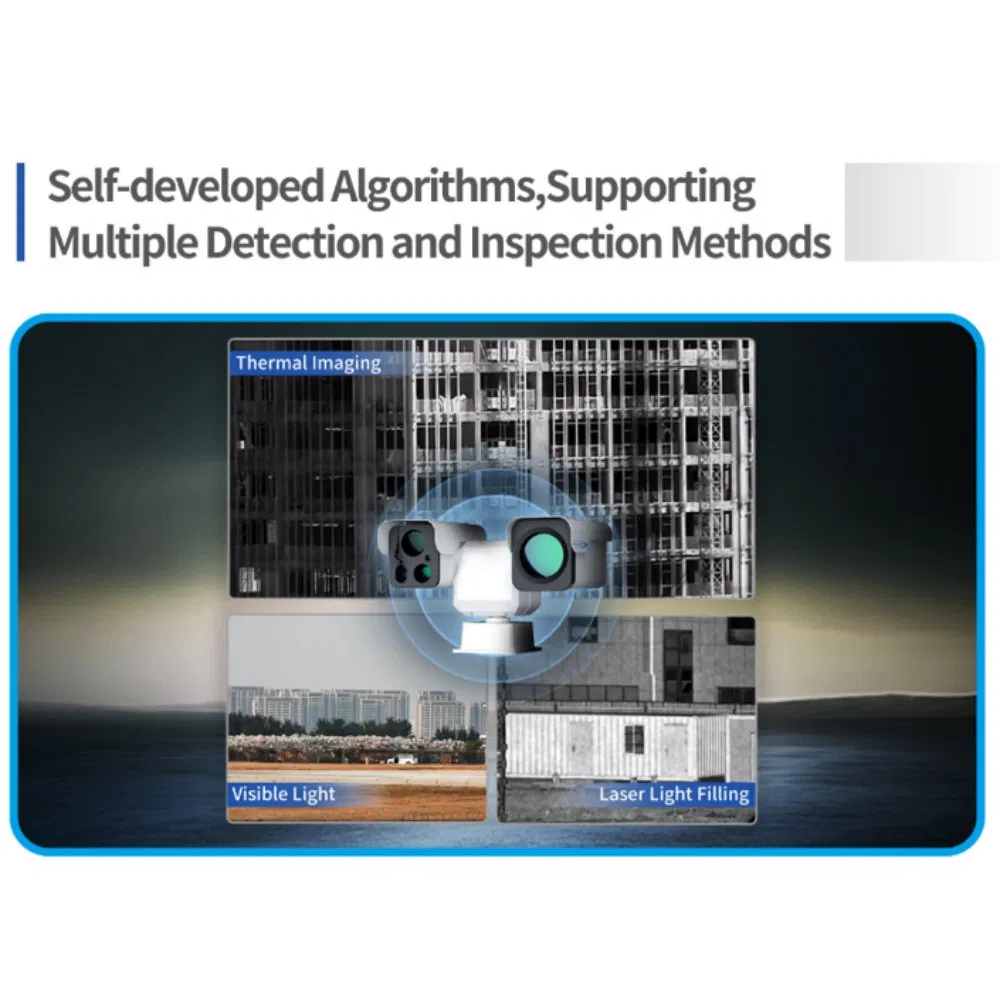

PC5 multi-spectral PTZ network camera is designed for forest fire prevention and perimeter security. PC5 is equipping a dual thermal/visible light imaging system, with maximum 150mm thermal lens. Laser rangefinder and laser illumination are optional. PC5 is powered by NPU for AI-ISP to increase the performance in low light condition, as well as provides the capabilities to recognize the human, vehicle, vessel, smoke, fire point, working with various patrol mode to enable uninterrupted safety monitoring day and night.
| Category | Technical Specifications | Model: PC564 |
|---|---|---|
| Thermal Module | Detector Type | VOx, uncooled FPA detector |
| Resolution | 640×512 | |
| Pixel Pitch | 12μm | |
| NETD | ≤40mK(@25°C,F#1.0,25Hz) | |
| Focal Length | 75/100/150/30~150mm | |
| Optical Module | Sensor | 1/1.8 inch 4MP CMOS / 1/1.25 inch 4MP CMOS |
| Focal Length | 6~336mm / 10~550mm | |
| PTZ | Pan Range | 360° continuous, 0.1°~100°/s |
| Tilt Range | -90°~+90°, 0.1°~60°/s | |

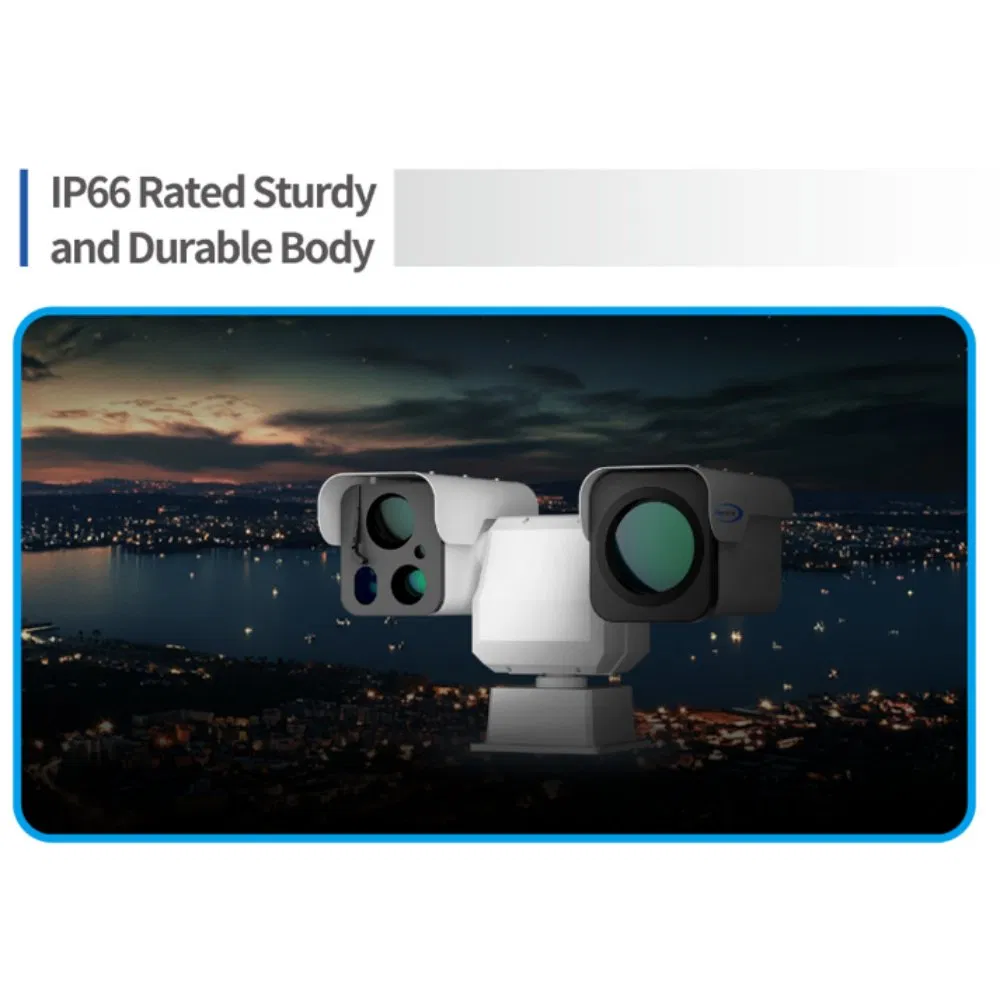

| General | Protection | IP66, TVS 6000V Lightning Protection |
| Environment | -40ºC~+70ºC; <90%RH | |

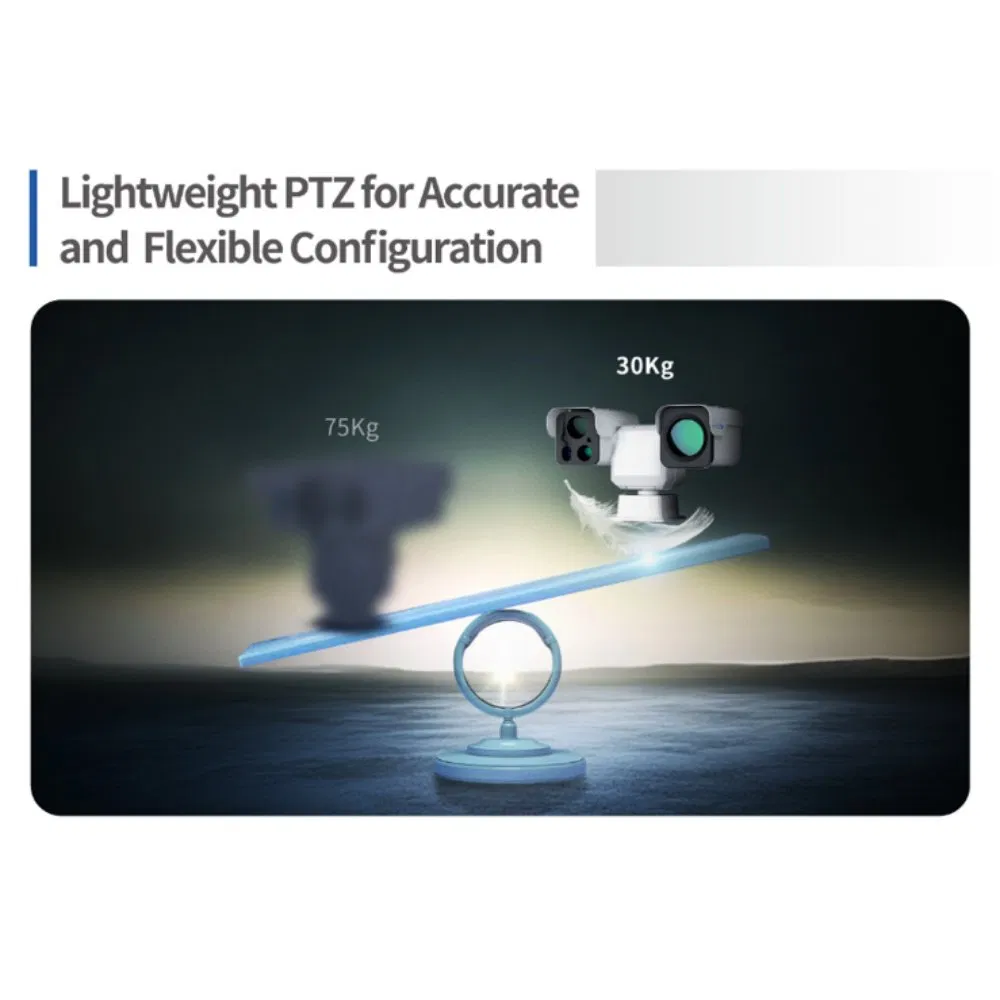

| Weight | 30kg |
Urban High-Altitude Observation
Perimeter Surveillance
Forest Fire Prevention
Critical Infrastructure Protection
