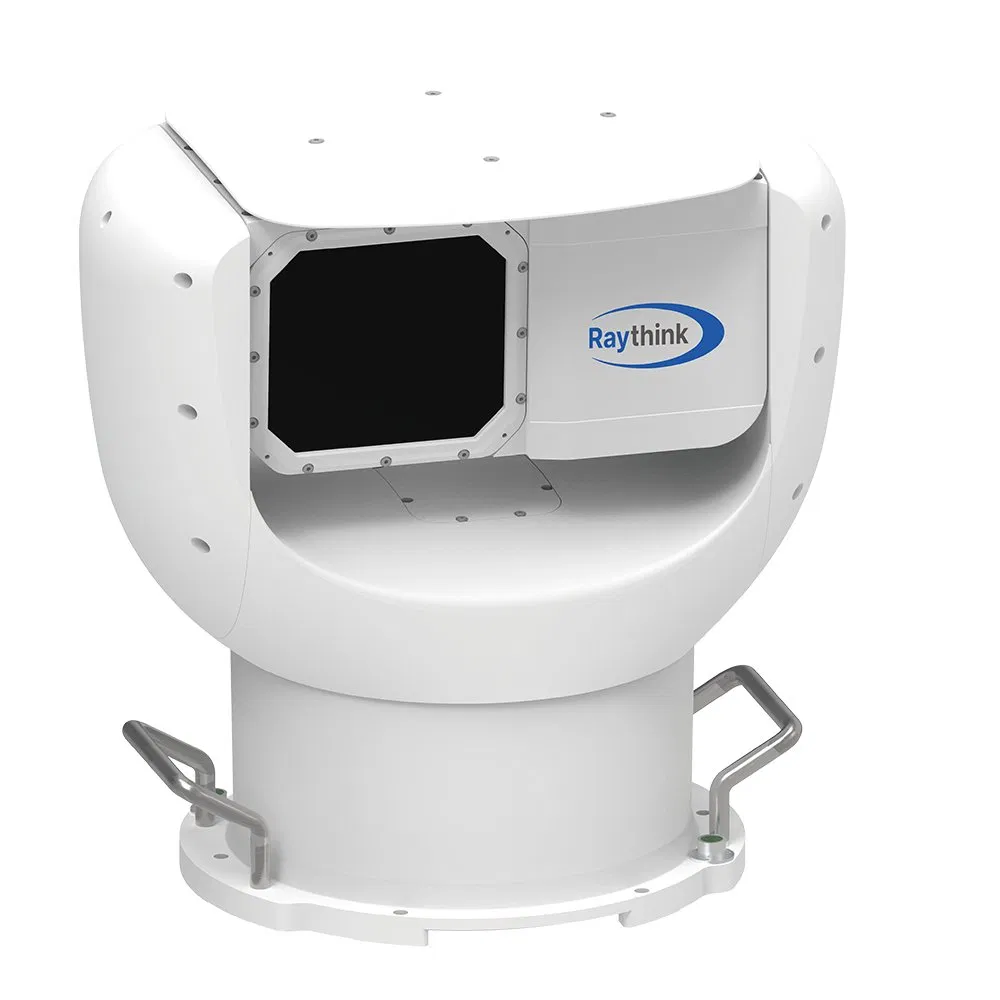

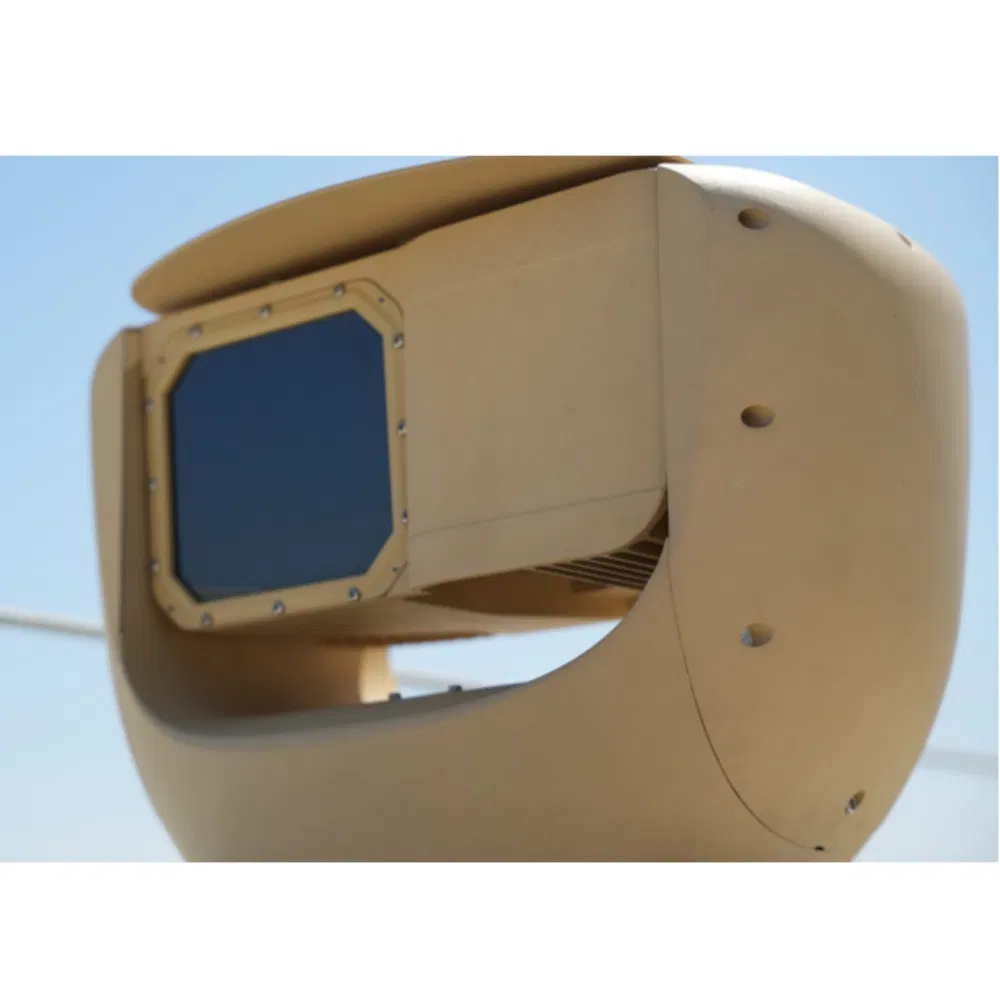

SilentW-U12 is a solution for large area monitoring by using a 12μm 1280×1024 HD thermal detector and capturing 360° panoramic image.

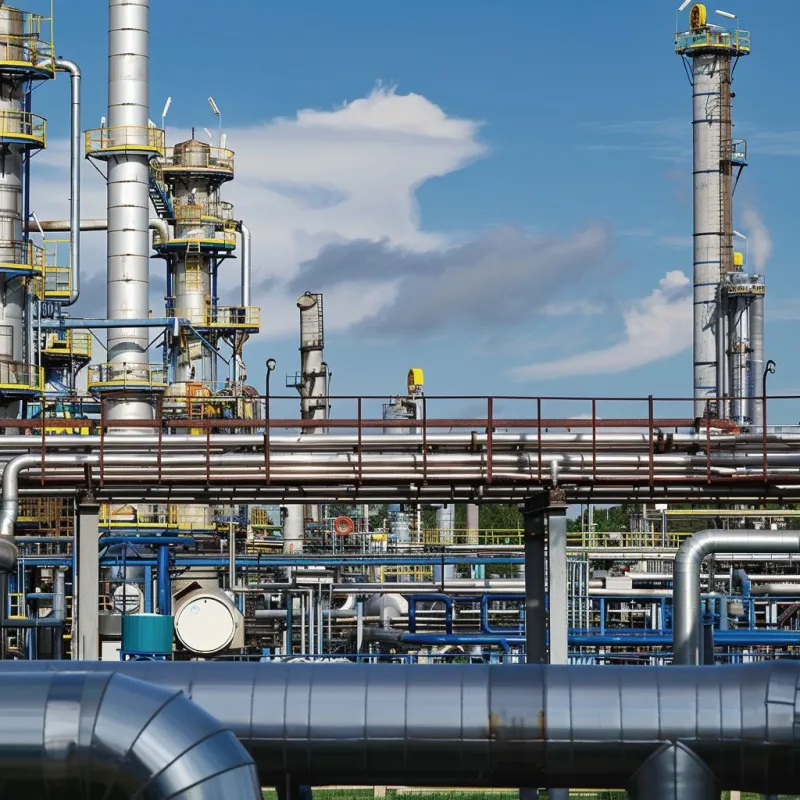

SilentW is able to detect multiple objects at the same time and can be widely used in nature reserve areas, oil/gas fields, and mines to make a comprehensive security solution.
Adopts the latest 12μm uncooled infrared detector and advanced image algorithms to ensure clear imaging at greater distances.
Detects a full circle in approx. 2 seconds and delivers real-time panoramic video images without blind spots.
Capable of simultaneously detecting & tracking up to 128 targets, with a detection range up to 8km.
Deep learning AI algorithm to recognize human, vehicle, ship, and UAV targets accurately.
| Parameter | SilentW-U1275 | |
| Detector Resolution | 1280×1024 | |
| Focal Length | 75mm | |
| Panoramic Resolution | 39200×512 | |
| Frame Rate | 164°/s | |
| Tilt Range | -20°~+35° | |
| Protection Level | IP66 | |
| Power Consumption | < 35W | |
| Detection Distance | UAV (450mm) | 1.5km |
| Human (1.7m) | 2km | |
| Vehicle (4m) | 4km | |
| Ship (8m) | 8km | |
