| Model NO. | SilentW-U1275 |
| Type | Panoramic Camera |
| Certification | CE, FCC, RoHS, EMI/EMC |
| Feature | Waterproof / Weatherproof, High Definition, Auto BLC |
| Detector Resolution | 1280×1024 |
| Horizontal FOV | 360° |
| Protection | IP66 |

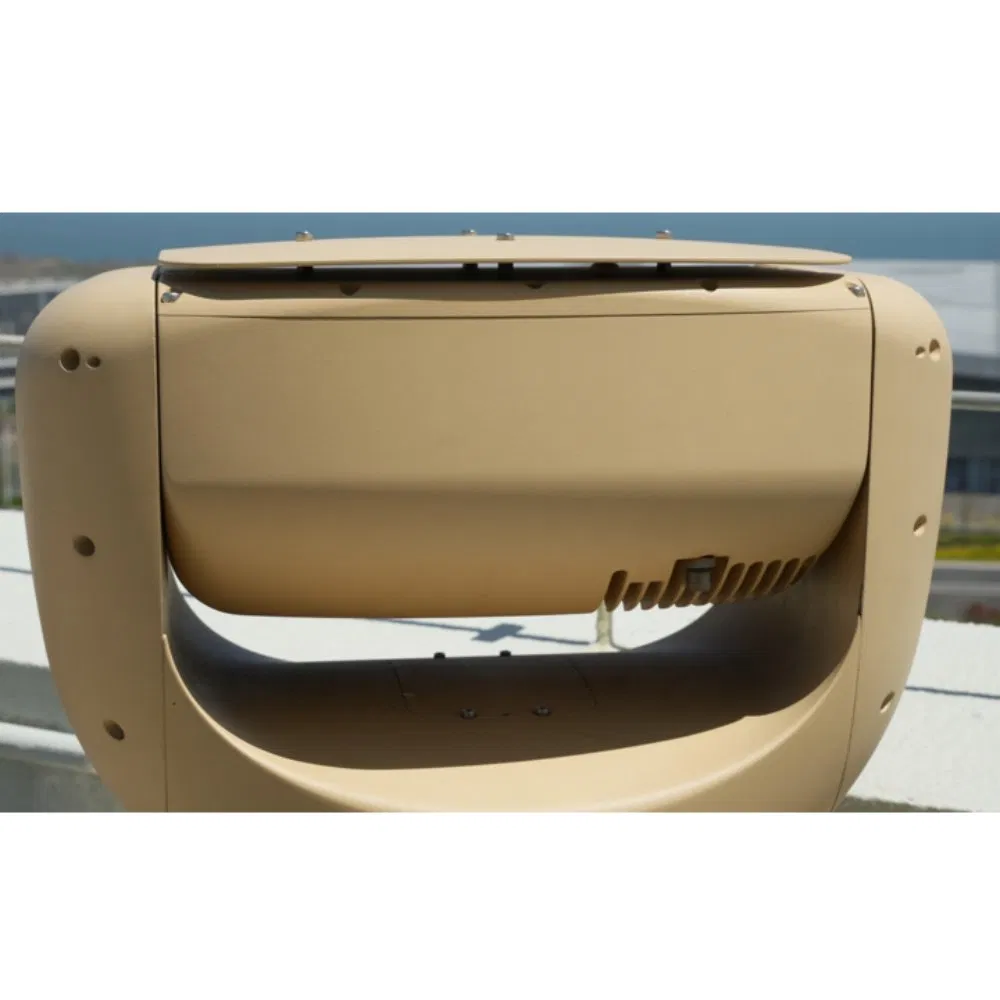

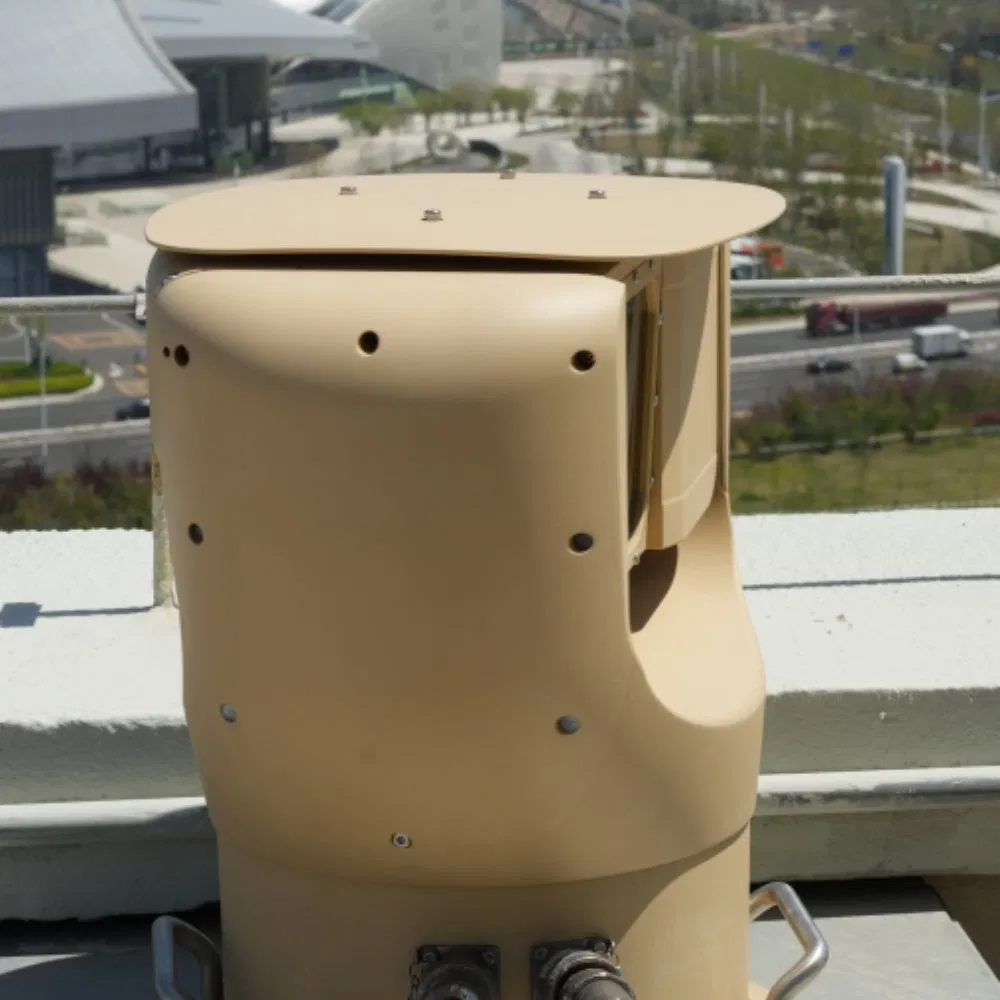

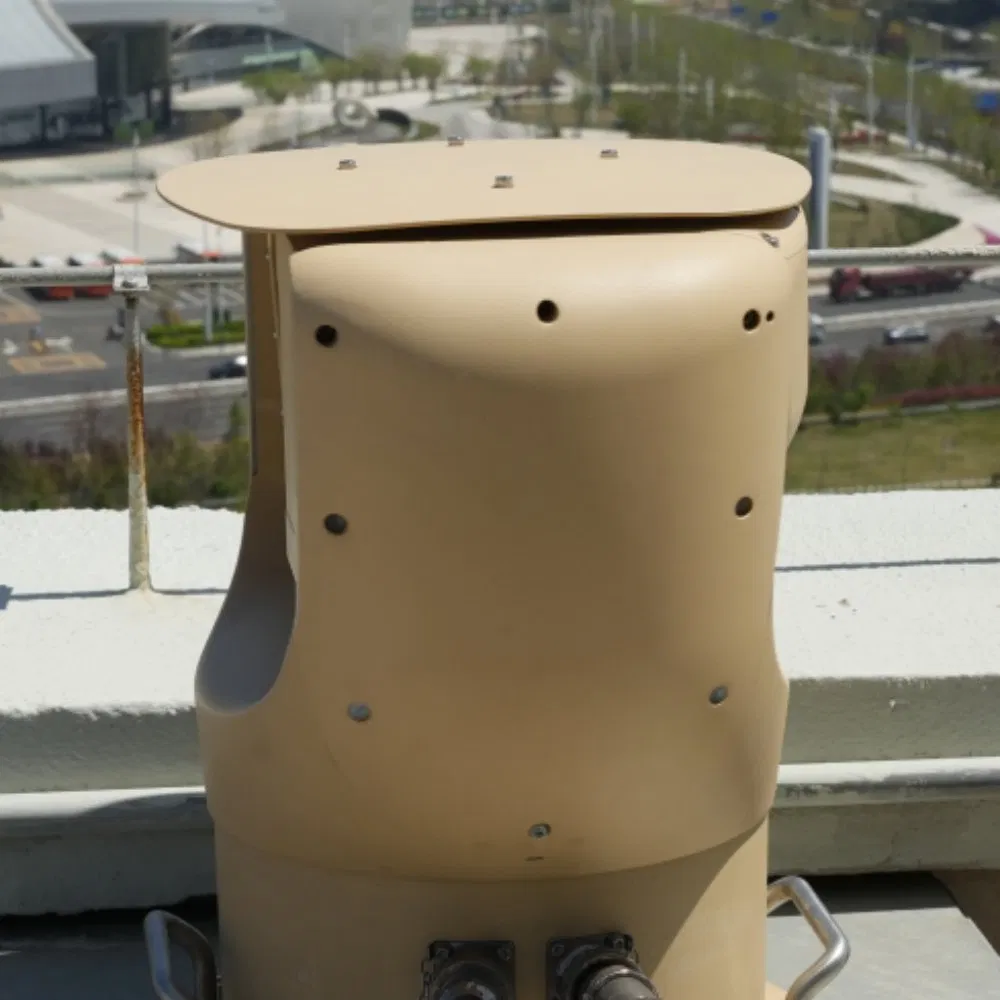

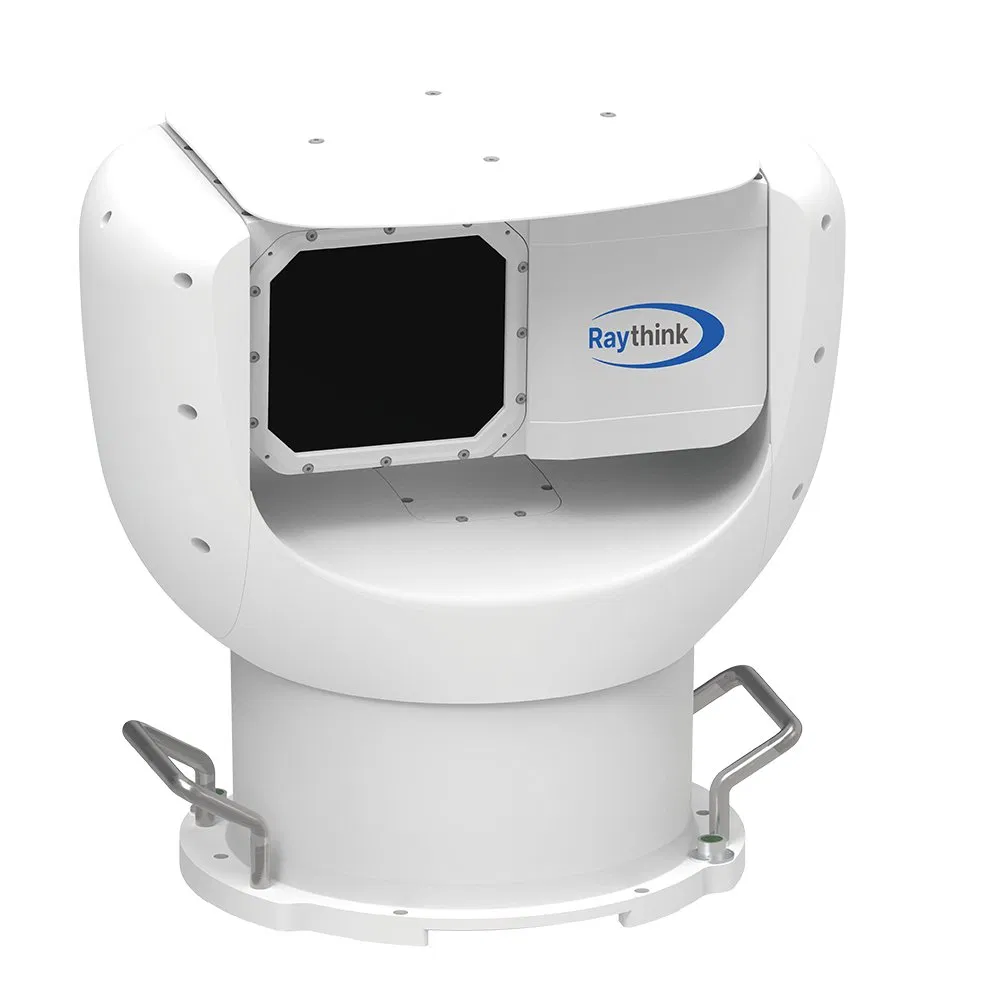

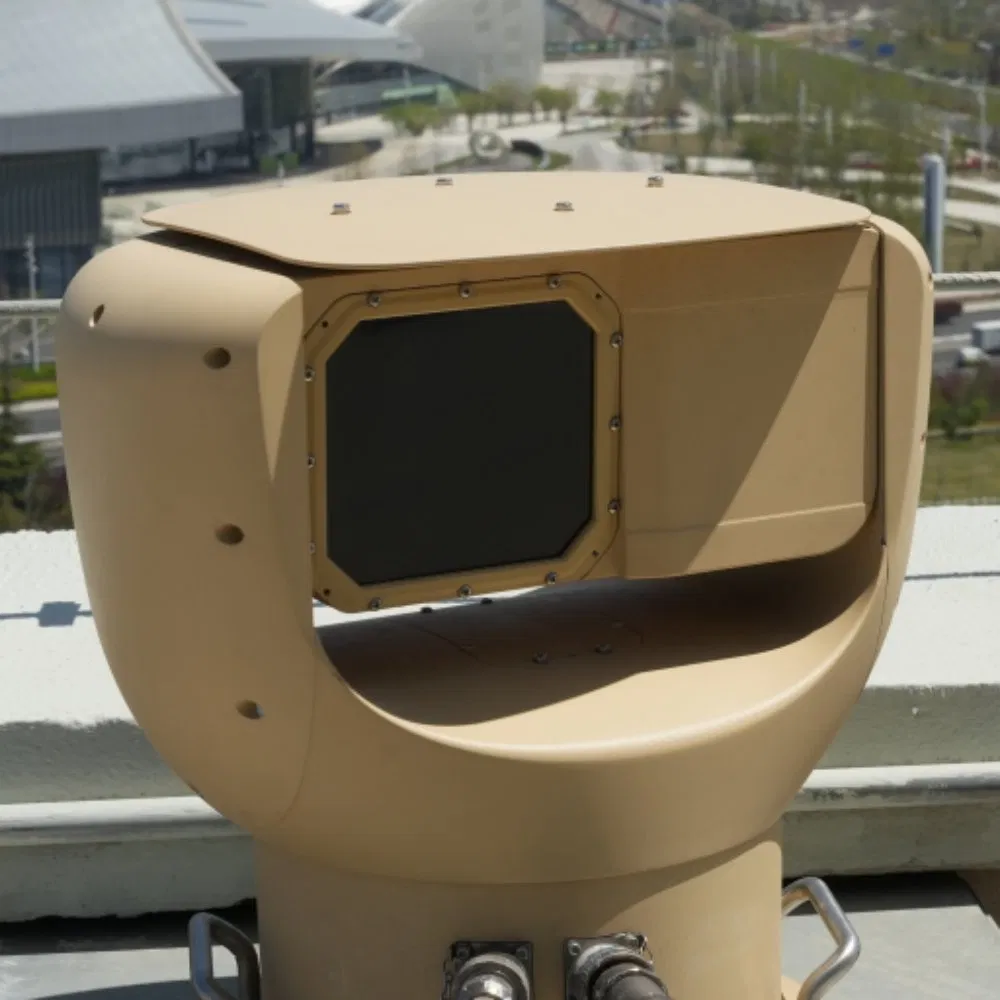

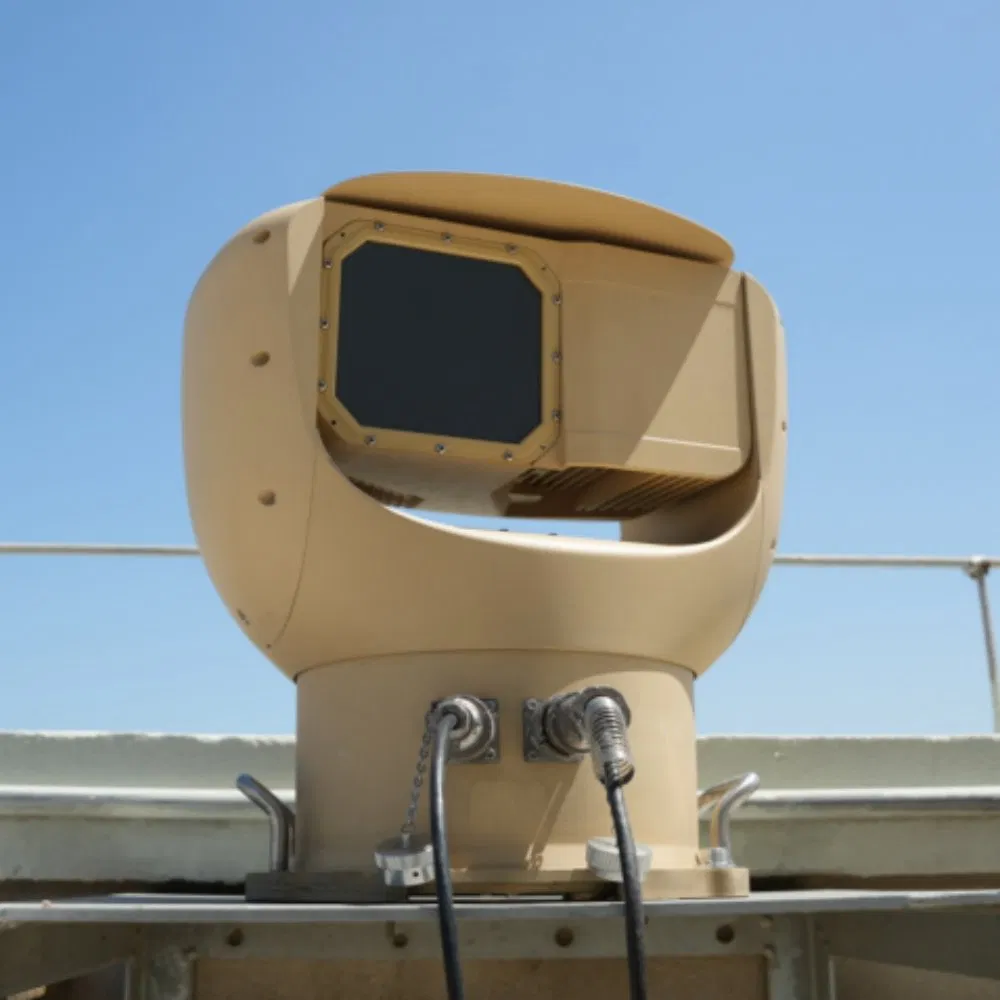

SilentW-U12 is a solution for large area monitoring by using a 12μm 1280×1024 HD thermal detector and capturing 360° panoramic image. SilentW is able to detect multiple objects at same time and can be widely used in nature reserve area, oil/gas fields and mines to make a comprehensive security solution.
Adopts the latest 12μm uncooled infrared detector or high-performance MWIR cooled detector, and advanced infrared image algorithms to ensure clear imaging at greater distances.
Detects a full circle in approximately 2 seconds and delivers real-time panoramic video images, enabling comprehensive visual monitoring without blind spots.
Capable of simultaneously detecting & tracking up to 128 targets, with a detection range of up to 8km.
Deep learning AI algorithm to recognize human, vehicle, ship, and UAV targets effectively.
Optimized for efficiency, it can be powered by solar energy, reducing infrastructure requirements.
| Parameter | SilentW-U1275 Detail | |
|---|---|---|
| Detector Resolution | 1280×1024 | |
| Focal Length | 75mm | |
| Frame Rate | 164°/s | |
| Horizontal FOV Range | 360° | |
| Tilt Range | -20°~+35° | |
| Power Consumption | < 35W | |
| Detection Distance | UAV (450mm) | 1.5km |
| Human (1.7m) | 2km | |
| Vehicle (4m) | 4km | |
| Ship (8m) | 8km | |
Perimeter Surveillance | Nature Reserve | Oil and Gas Pipelines | Coastal Infrastructure
