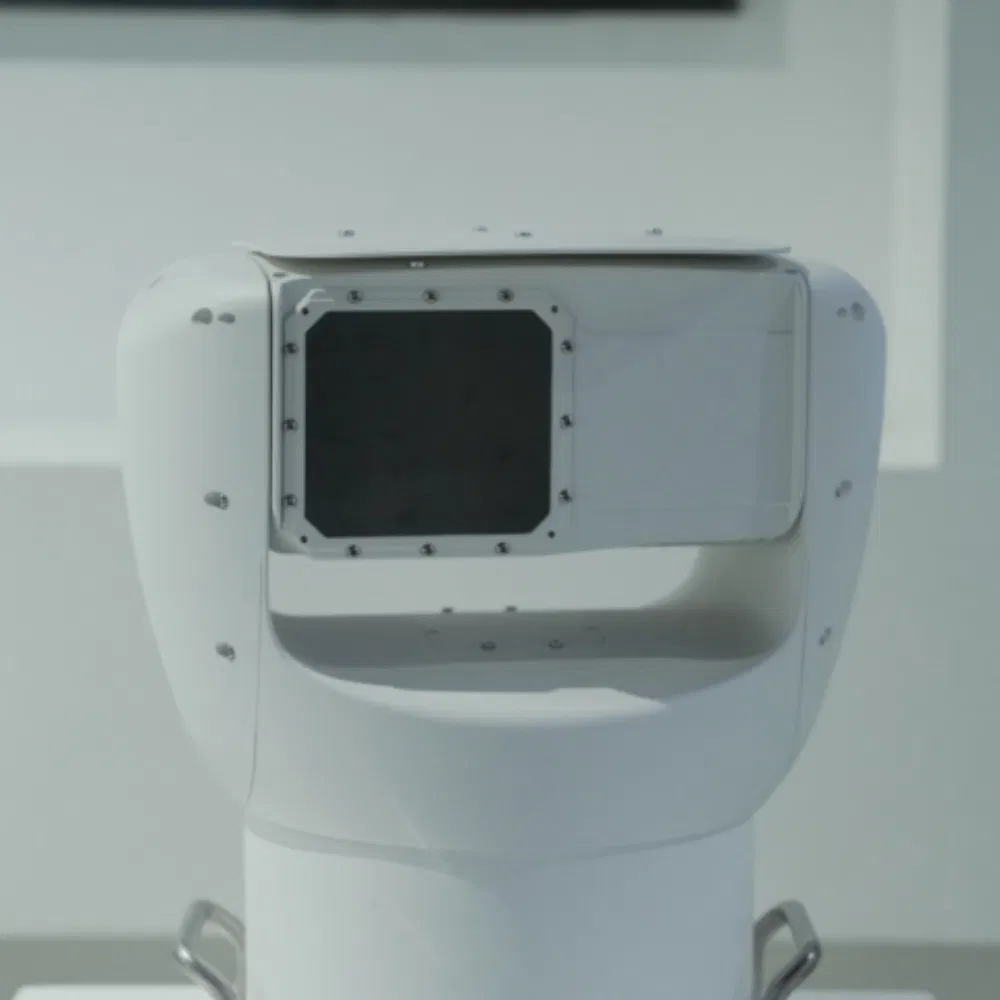

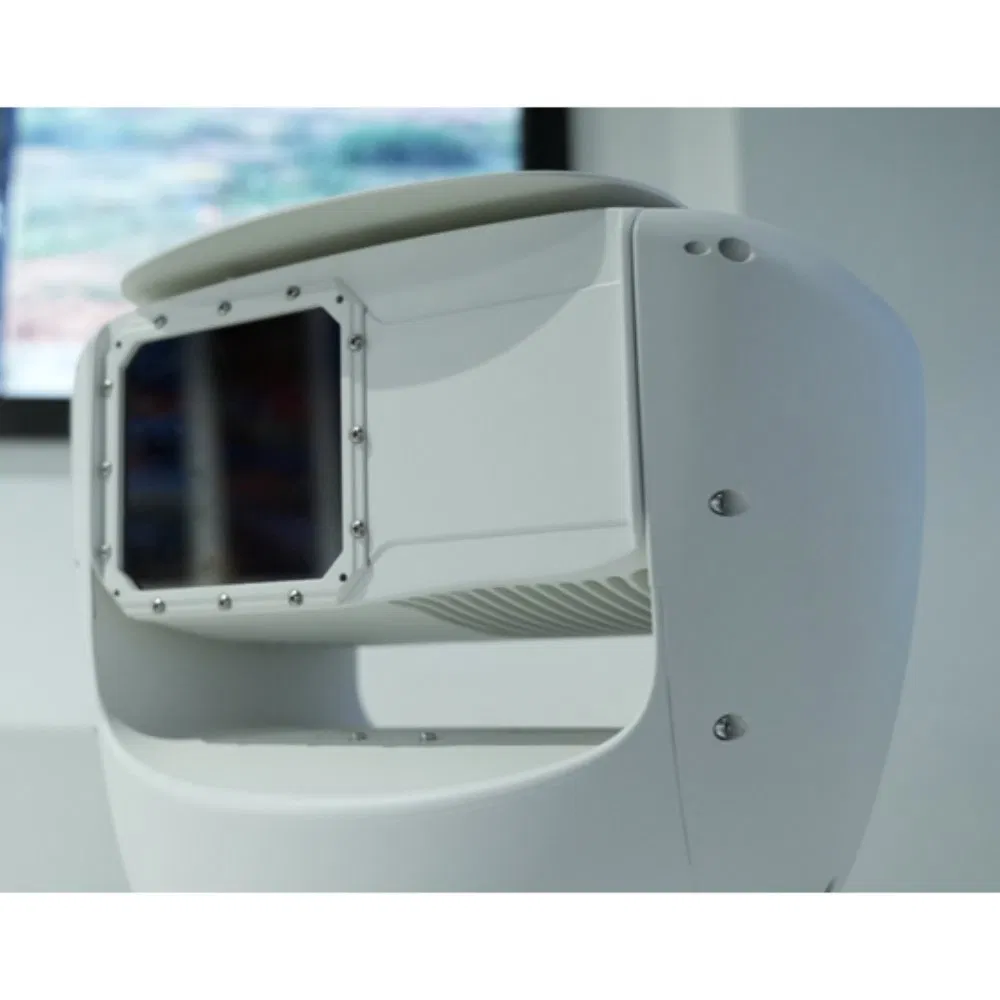

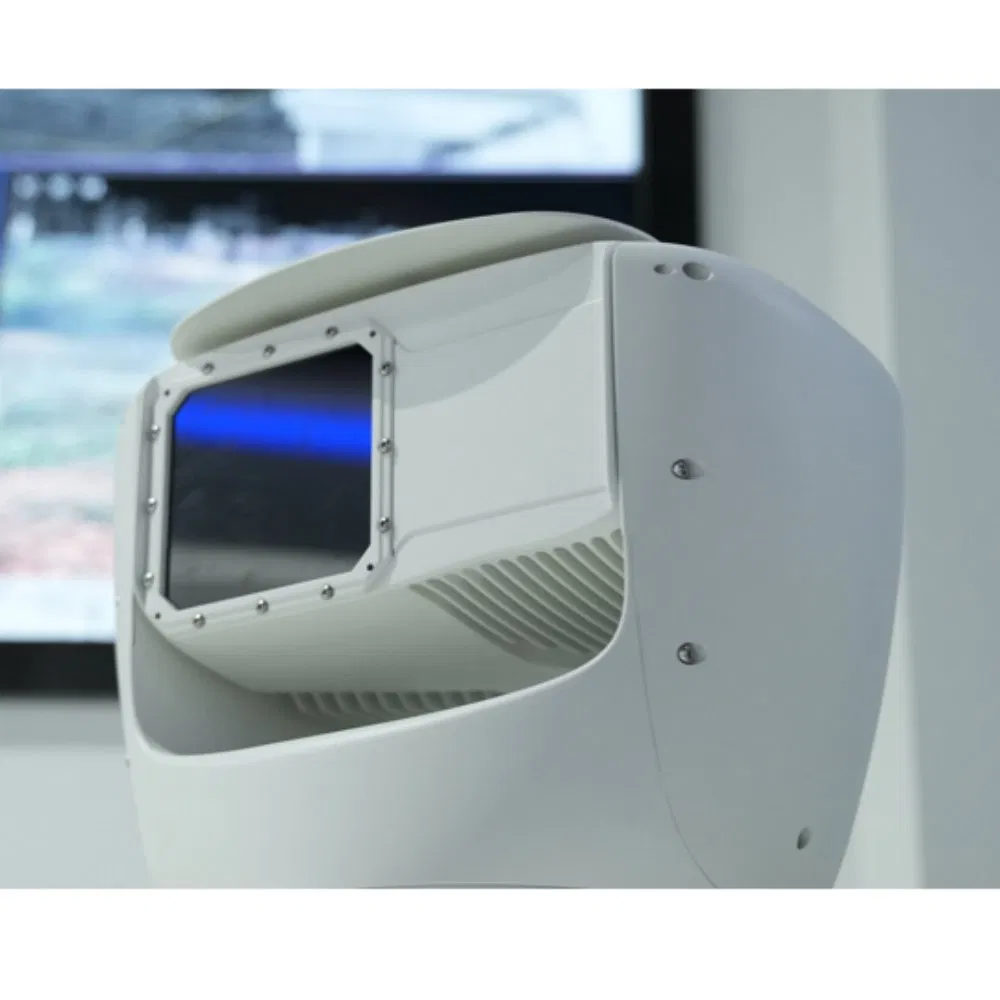

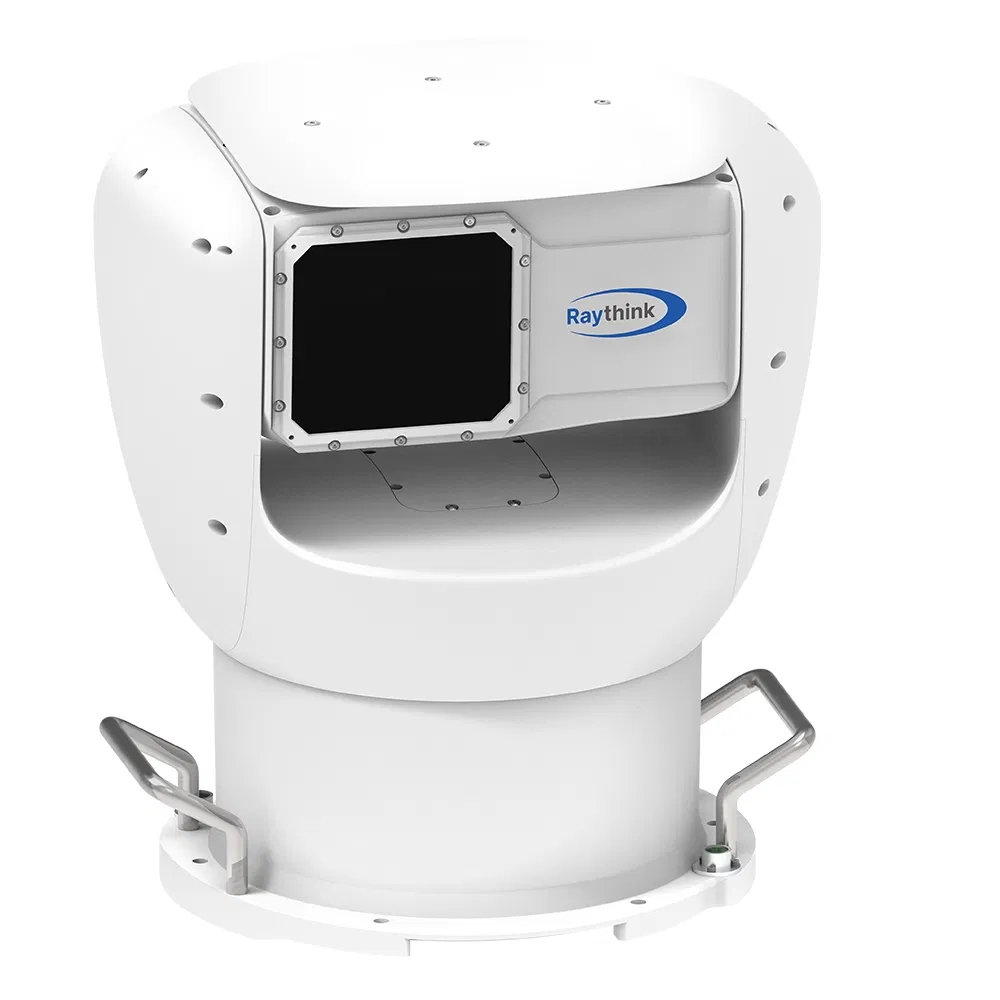

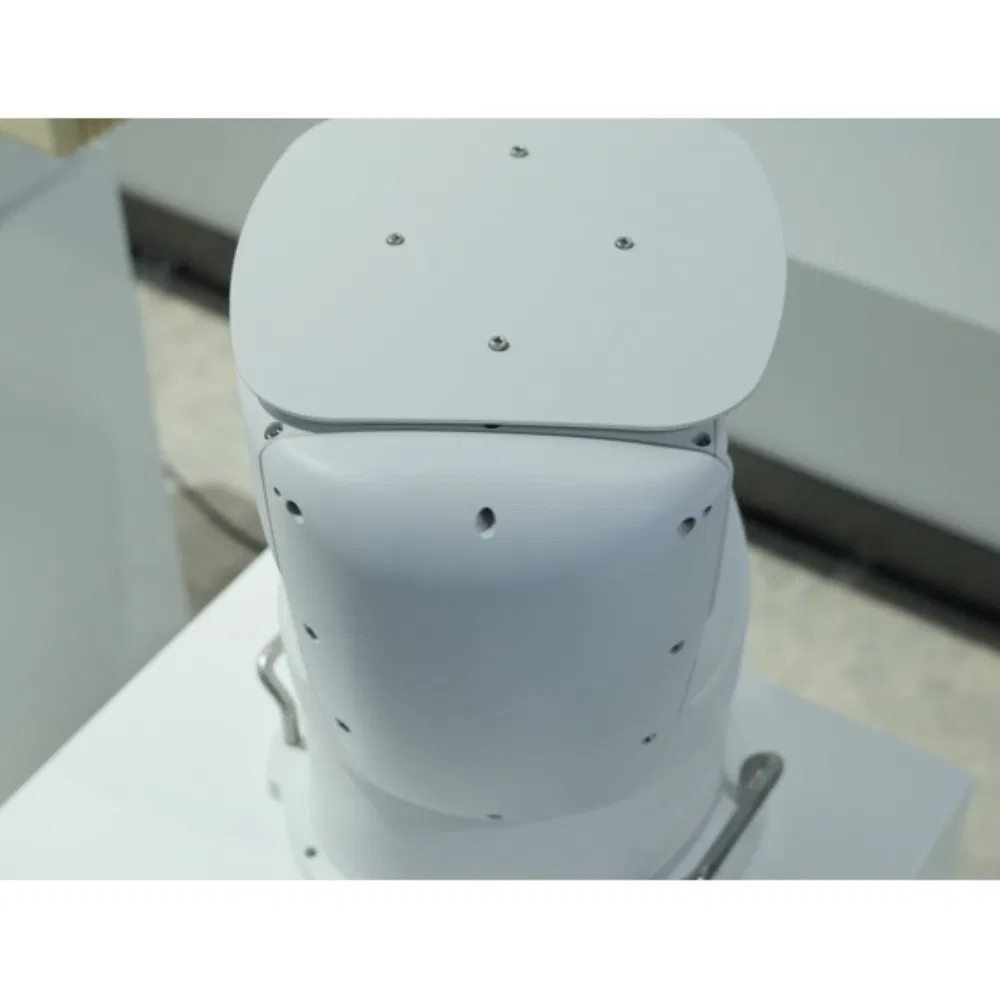

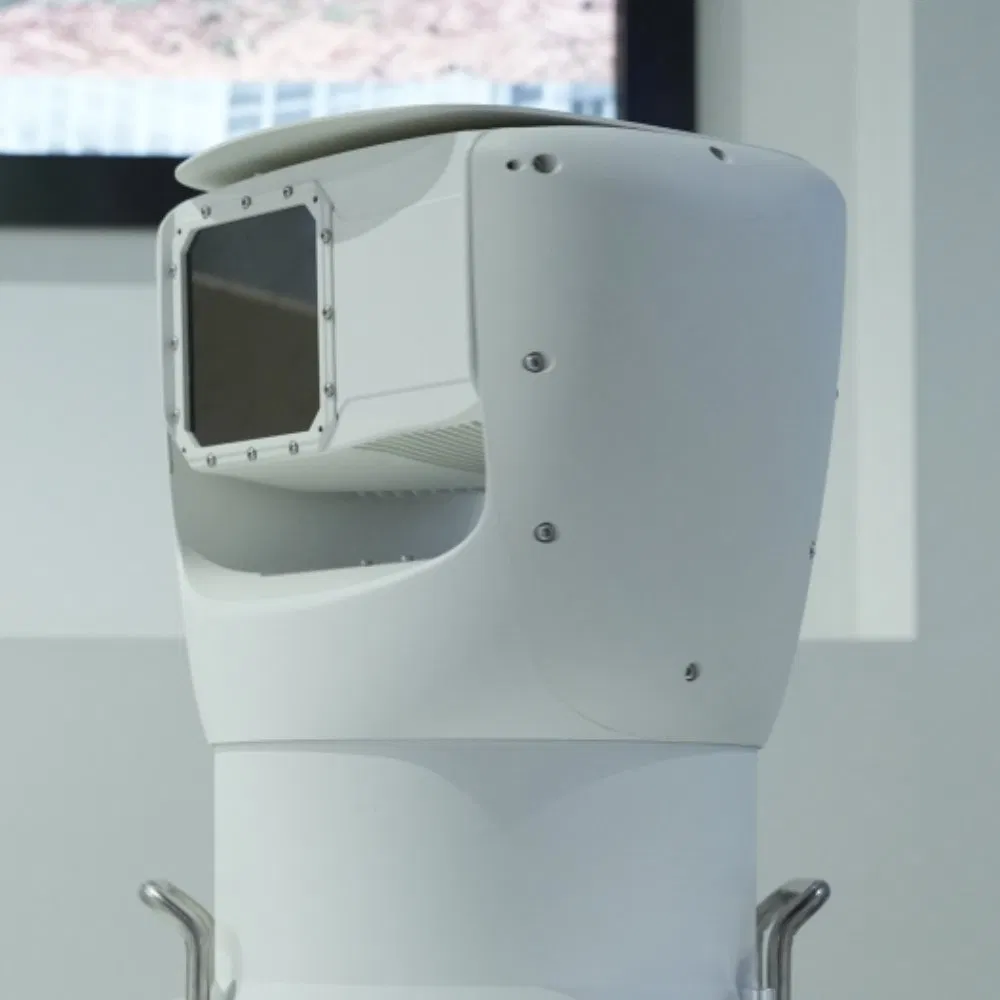

SilentW-U6 is a solution for large area monitoring by using a 12μm 640×512 thermal detector and capturing 360° panoramic image. SilentW is able to detect multiple objects at the same time and can be widely used in nature reserves, oil/gas fields, and mines.
Adopts the latest 12μm uncooled infrared detector or high-performance MWIR cooled detector, and advanced infrared image algorithms to ensure clear imaging at greater distances.
Detects a full circle in approximately 2 seconds and delivers real-time panoramic video images, enabling comprehensive visual monitoring without blind spots.
Capable of simultaneously detecting and tracking up to 128 targets, with a detection range up to 8km.
Easy calibration, link with dual-spectrum PTZ camera to track targets. Use zoom lens to view more details from long distances.
Deep learning AI algorithm to recognize human, vehicle, ship, and UAV targets.
Low power consumption, can be powered by solar, reducing the need for extensive infrastructure.
| Technical Specifications | SilentW-U675 | |
|---|---|---|
| Detector Type | Uncooled | |
| Detector Resolution | 640×512 | |
| Focal Length | 75mm | |
| Panoramic Image Resolution | 39200×512 | |
| Frame Rate | 133°/s | |
| Horizontal FOV Range | 360° | |
| Vertical FOV | 4.7° | |
| Protection Rating | IP66 | |
| Work Environment | -40ºC ~+ 70ºC | |
| Power Consumption | < 30W | |
| Detection Distance | UAV (450mm) | 1.5km |
| Human (1.7m) | 2km | |
| Vehicle (4m) | 4km | |
| Ship (8m) | 8km | |
Perimeter Surveillance
Nature Reserve

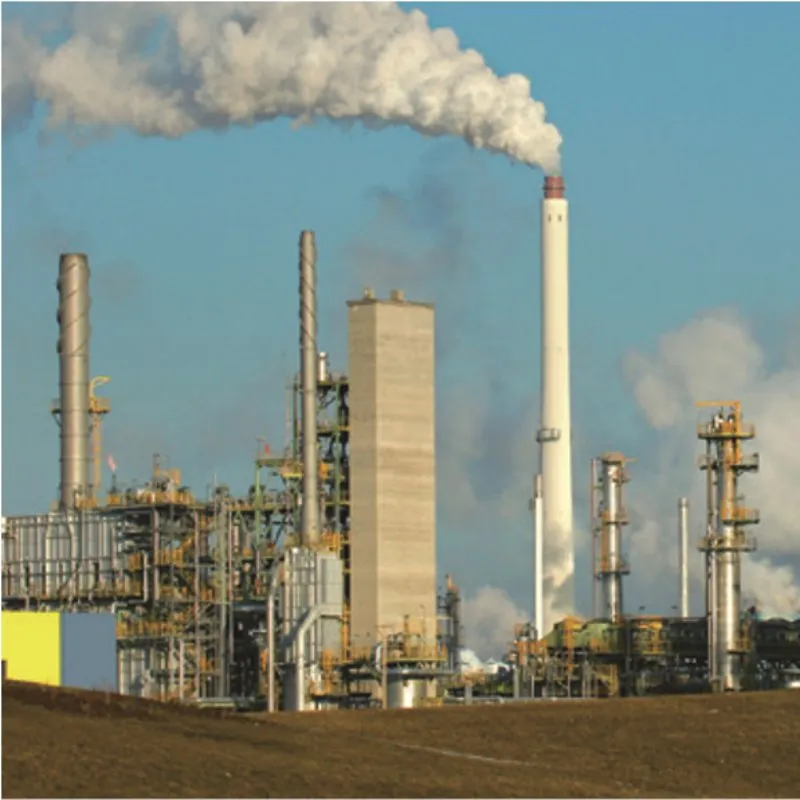

Oil and Gas Pipelines

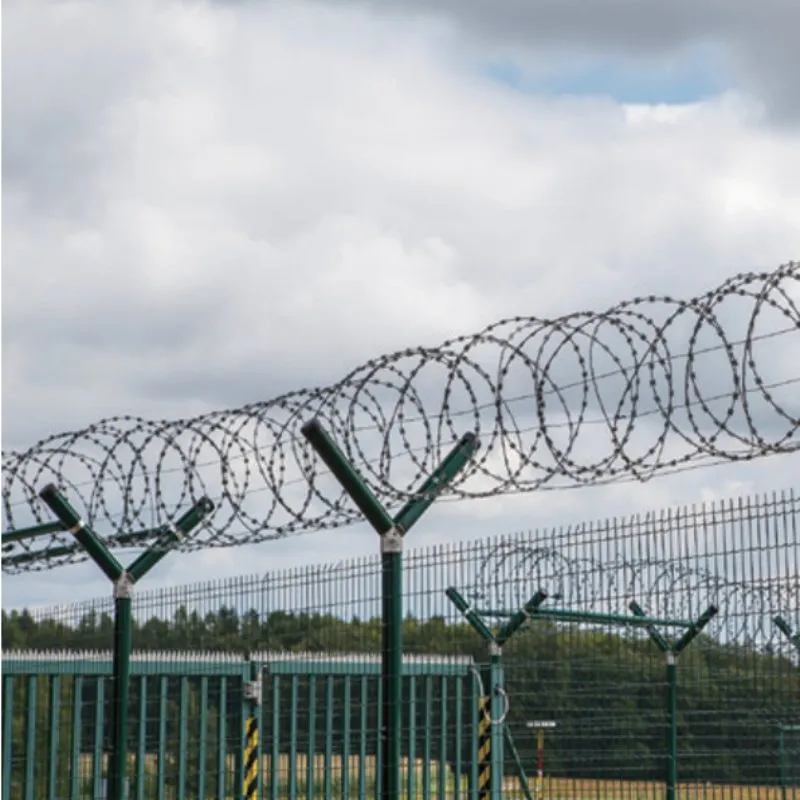

Critical Infrastructure Protection
