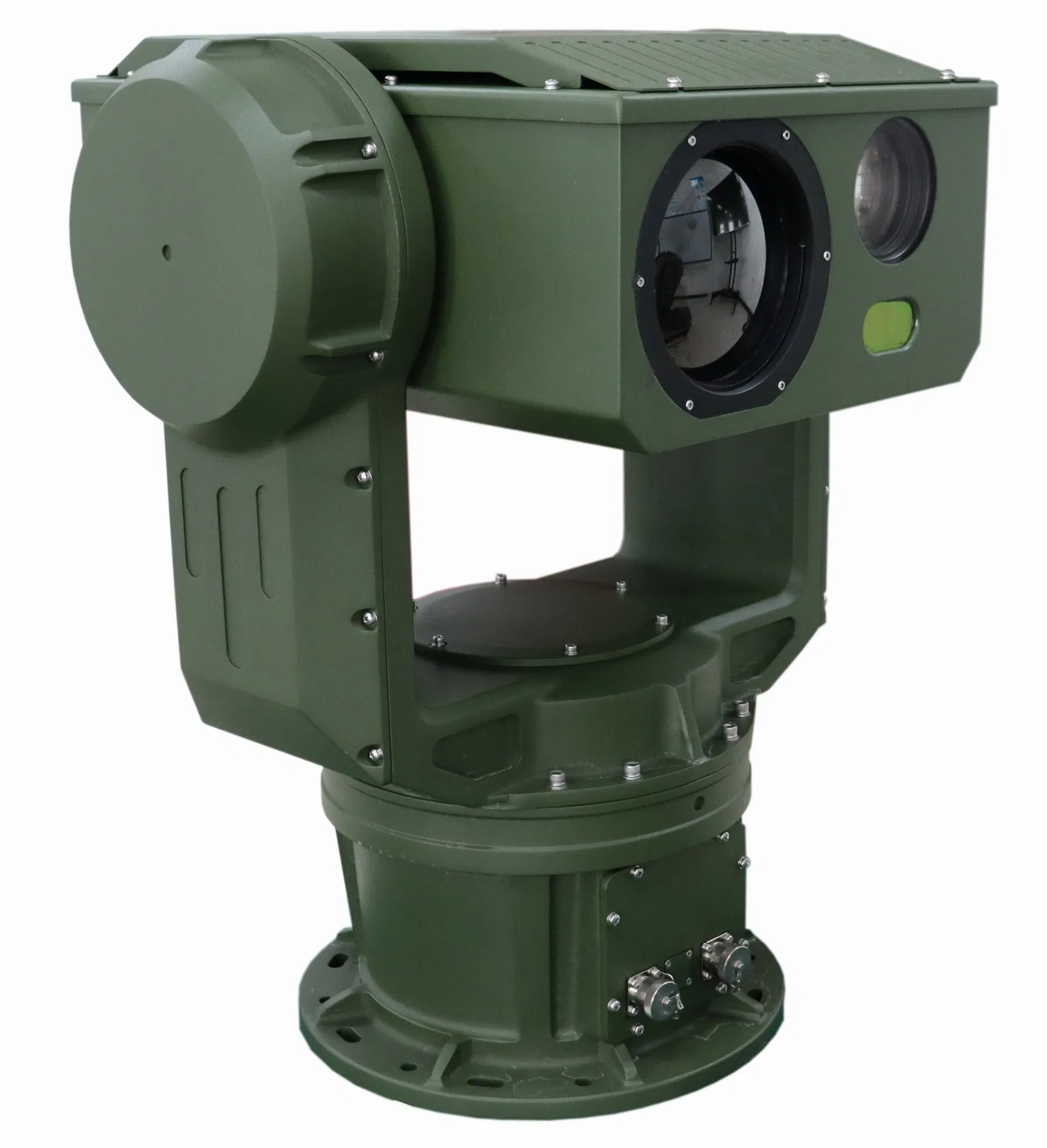

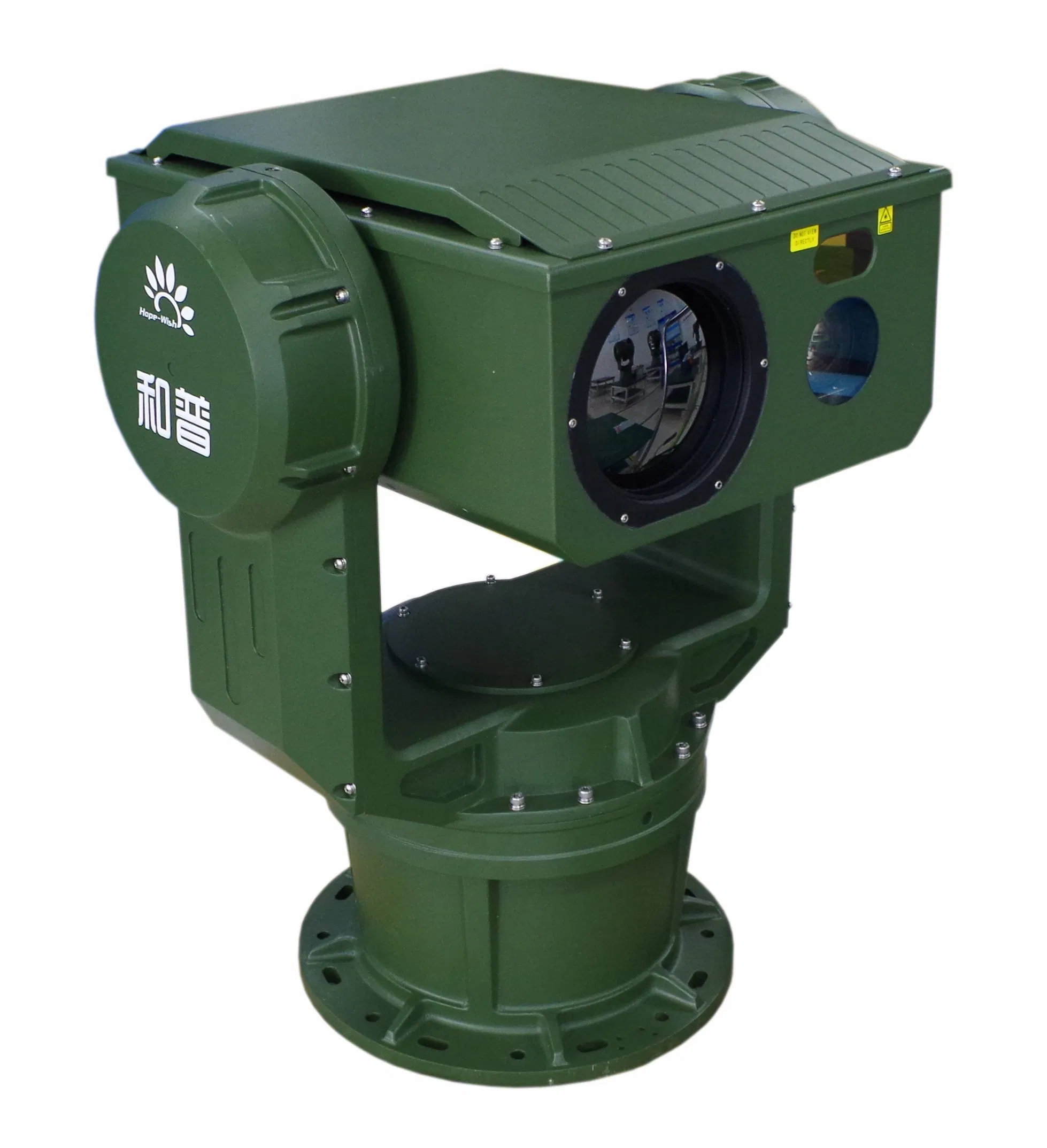

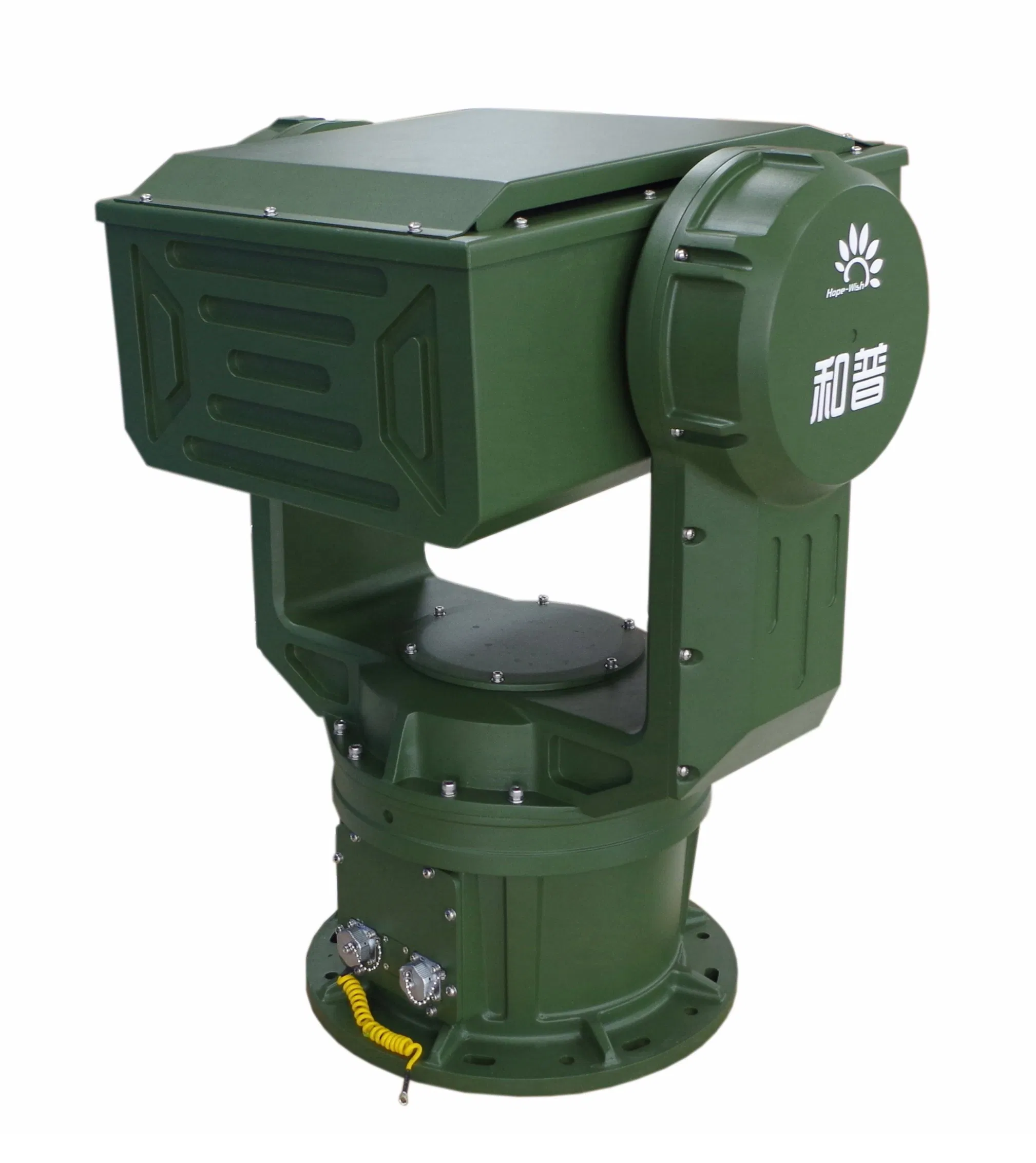

Waterproof / Weatherproof Long Range Surveillance PTZ Anti Drone System Linked Radar
Waterproof / Weatherproof Long Range Surveillance PTZ Anti Drone System Linked Radar
Waterproof / Weatherproof Long Range Surveillance PTZ Anti Drone System Linked Radar
Waterproof / Weatherproof Long Range Surveillance PTZ Anti Drone System Linked Radar
Waterproof / Weatherproof Long Range Surveillance PTZ Anti Drone System Linked Radar
1 / 5
Waterproof / Weatherproof Long Range Surveillance PTZ Anti Drone System Linked Radar
Waterproof / Weatherproof Long Range Surveillance PTZ Anti Drone System Linked Radar
Waterproof / Weatherproof Long Range Surveillance PTZ Anti Drone System Linked Radar
Waterproof / Weatherproof Long Range Surveillance PTZ Anti Drone System Linked Radar
Waterproof / Weatherproof Long Range Surveillance PTZ Anti Drone System Linked Radar

Waterproof / Weatherproof Long Range Surveillance PTZ Anti Drone System Linked Radar

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Product Overview

Model NO.HP-DMA360-TVC4516-2132-LRF
TypeCCTV Camera
SensorUfpa Vox Sensor / CCD
Resolution600tvl / 1080P
FeatureWaterproof, High Definition
Effective Distance≧30m
ProtectionIP66 Weatherproof
HS Code9031499090
Key Benefits
✓
Wider Detection Spectrum: Integration of high-definition visible light, thermal imaging, and near-infrared laser. Combination of active and passive detection ensures no hidden targets in day, night, or all-weather environments.
✓
Faster Response: Rotation speeds up to 80°/s and acceleration of 100°/s², allowing for quick capture and tracking of fast-moving targets.
Core Applications

This long-range surveillance PTZ system is ideal for Anti-UAV control, low-altitude air defense, base security monitoring, airport security, oil fields, and high-value asset protection.

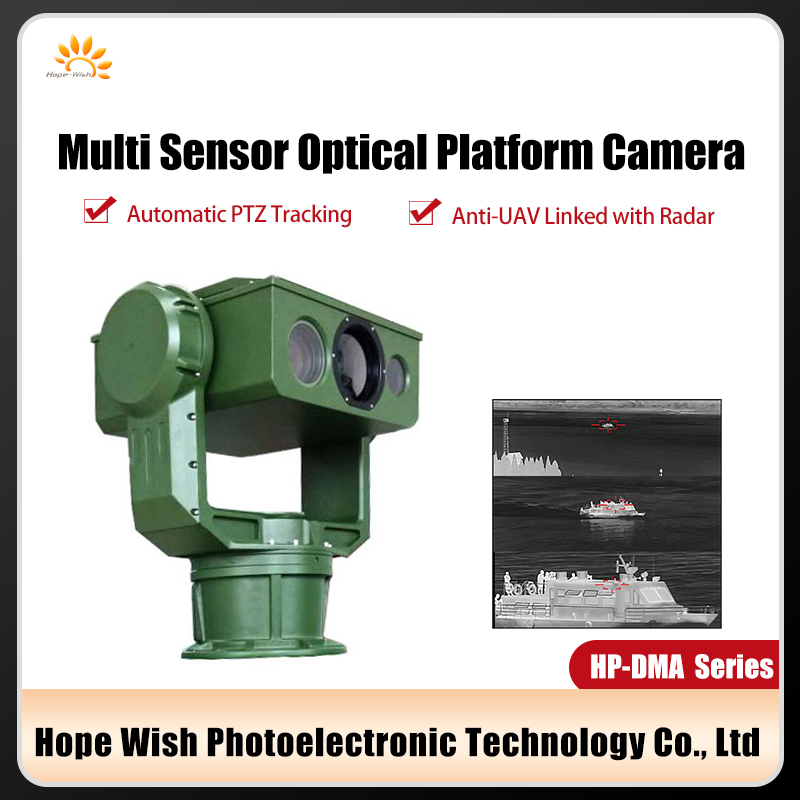

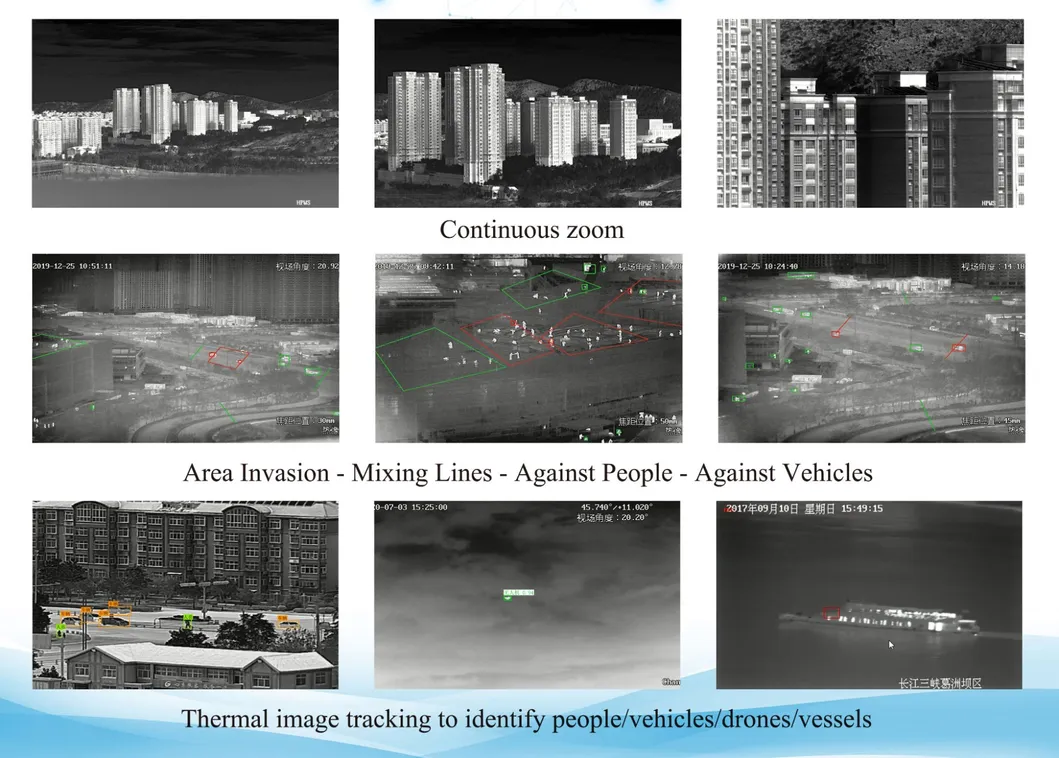

Long Range Surveillance PTZ System

Technical Parameters

Detection RangeVehicle: 13km, Human: 4.8km
Recognition RangeVehicle: 3.4km, Human: 1.3km

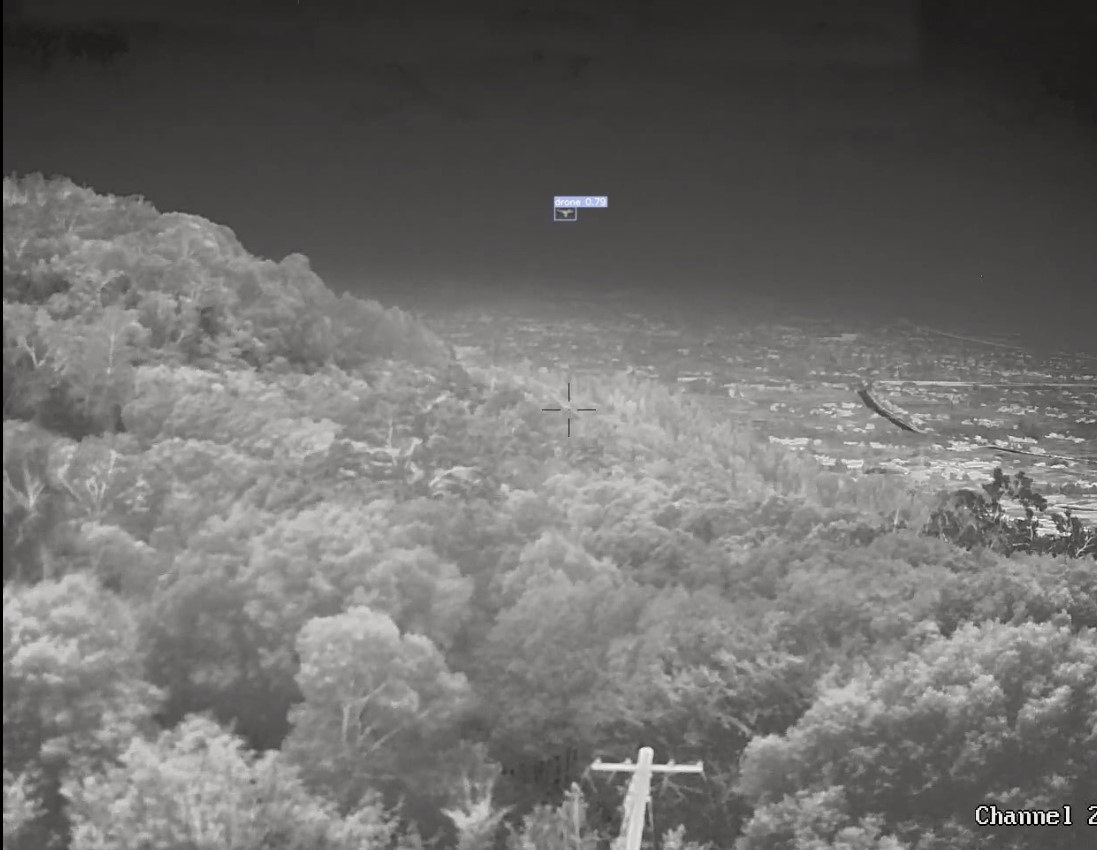

UAV Detection1.2km~1.5km (Thermal) / 3km (Daylight)
Thermal SensorUncooled Vox sensor, 640*512 resolution
Thermal Lens31~155mm, 5X continuous zoom
Visible Camera1/1.8'' CMOS, 2MP (1920X1080), 60X Zoom
LRF Range1km distance
PTZ RotationPan: 360° continuous, Tilt: +90° ~ -45°
Positioning Accuracy0.01° - 0.02°
Environment-40 ºC ~ + 60 ºC; IP66 Waterproof

Customer Feedback

Feedback 1

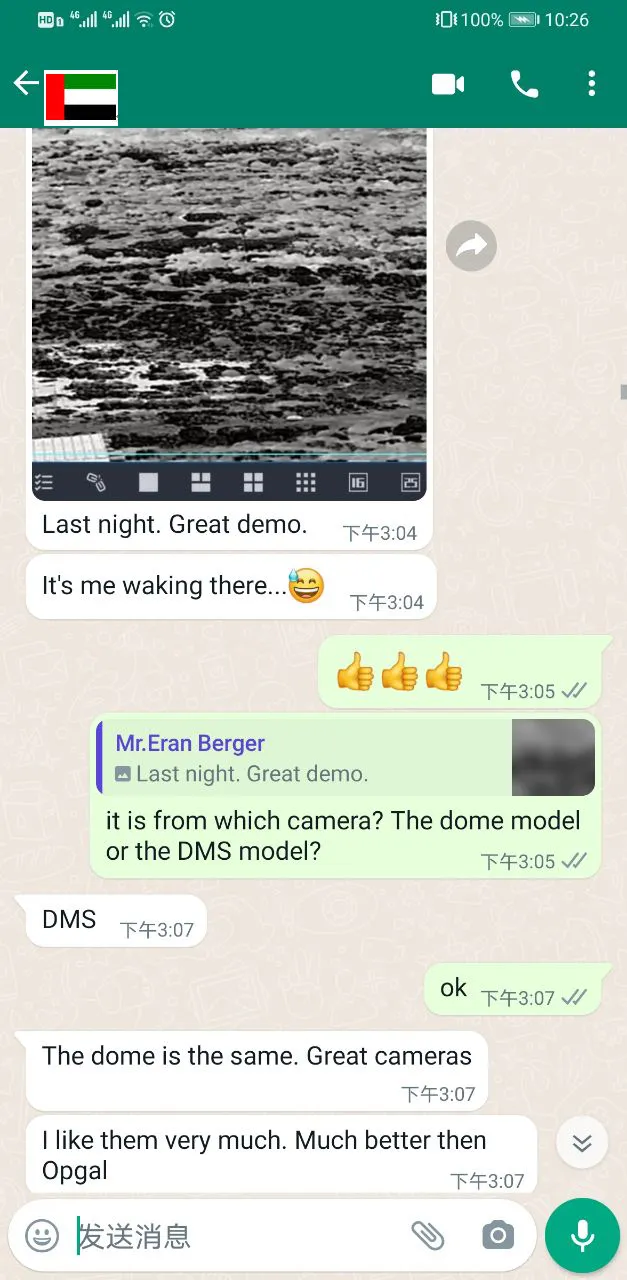

Feedback 2
Feedback 3

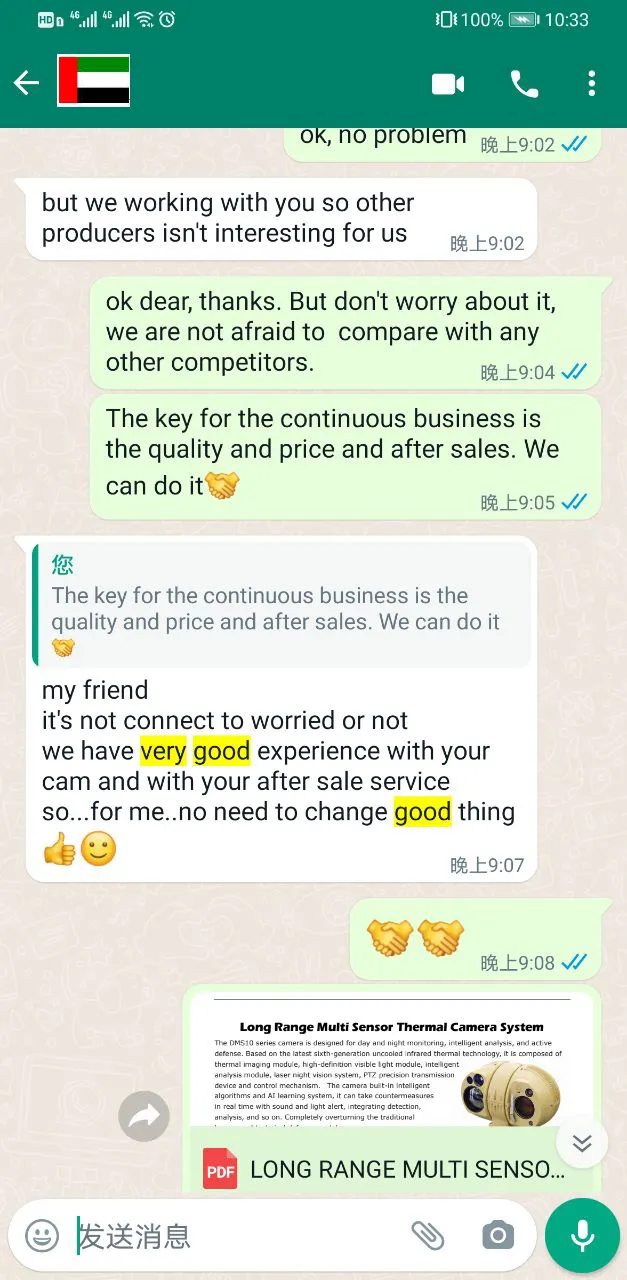

Feedback 4
Feedback 5

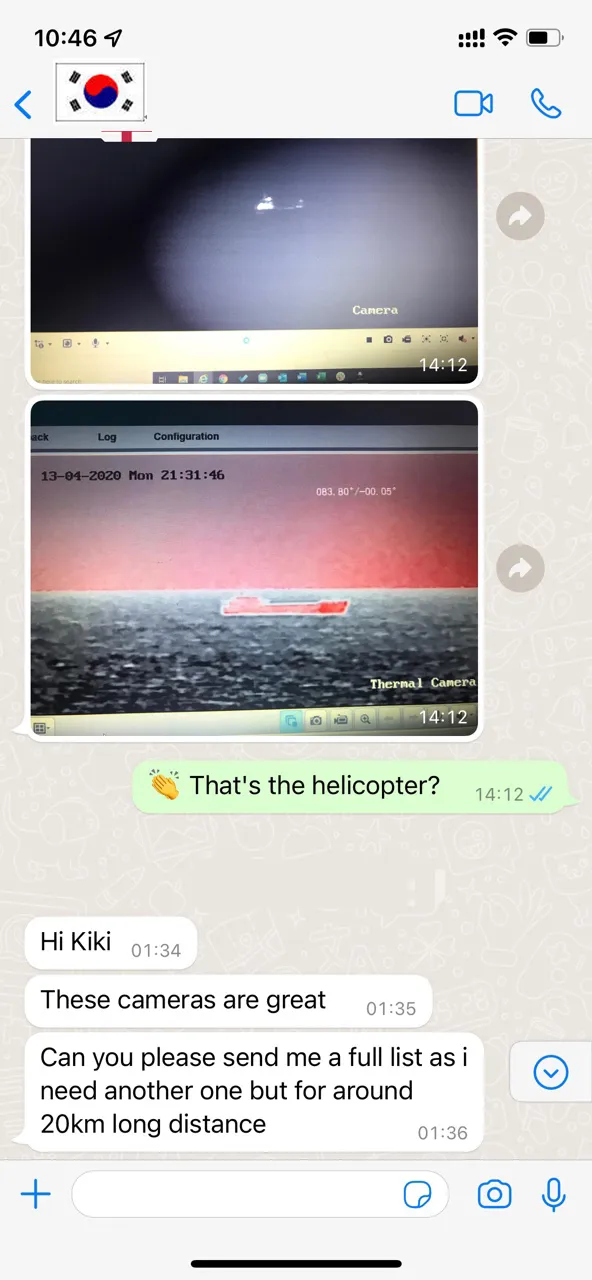

Feedback 6

Professional Display

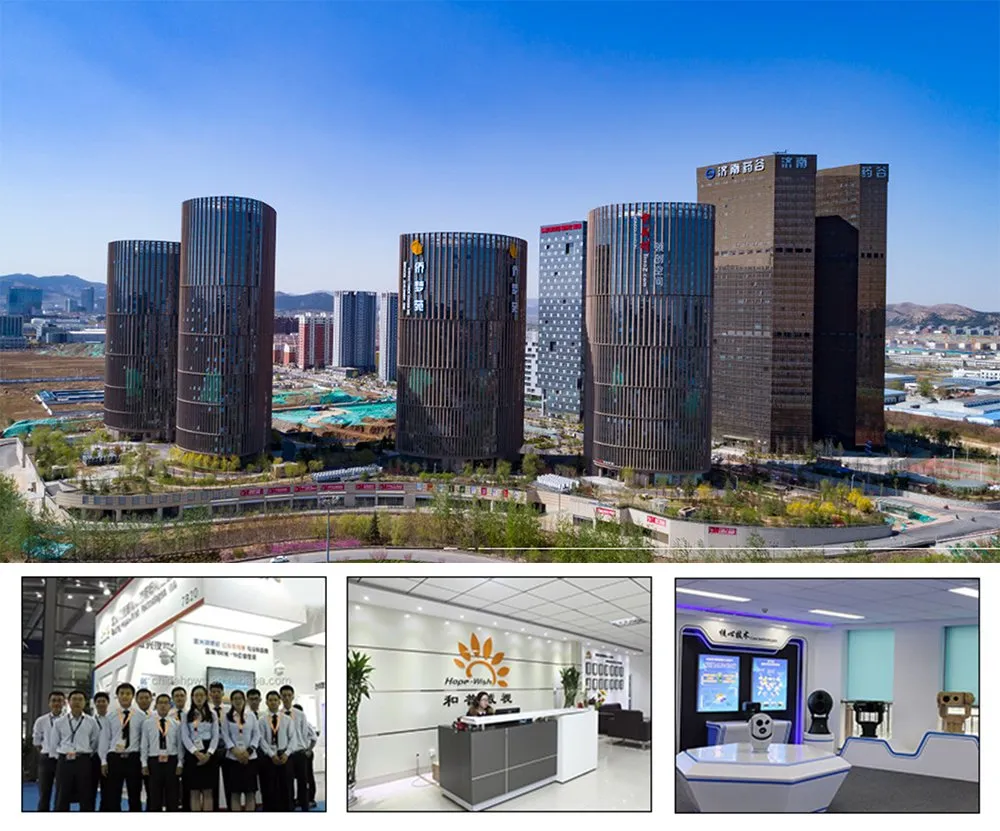

Production Display 1

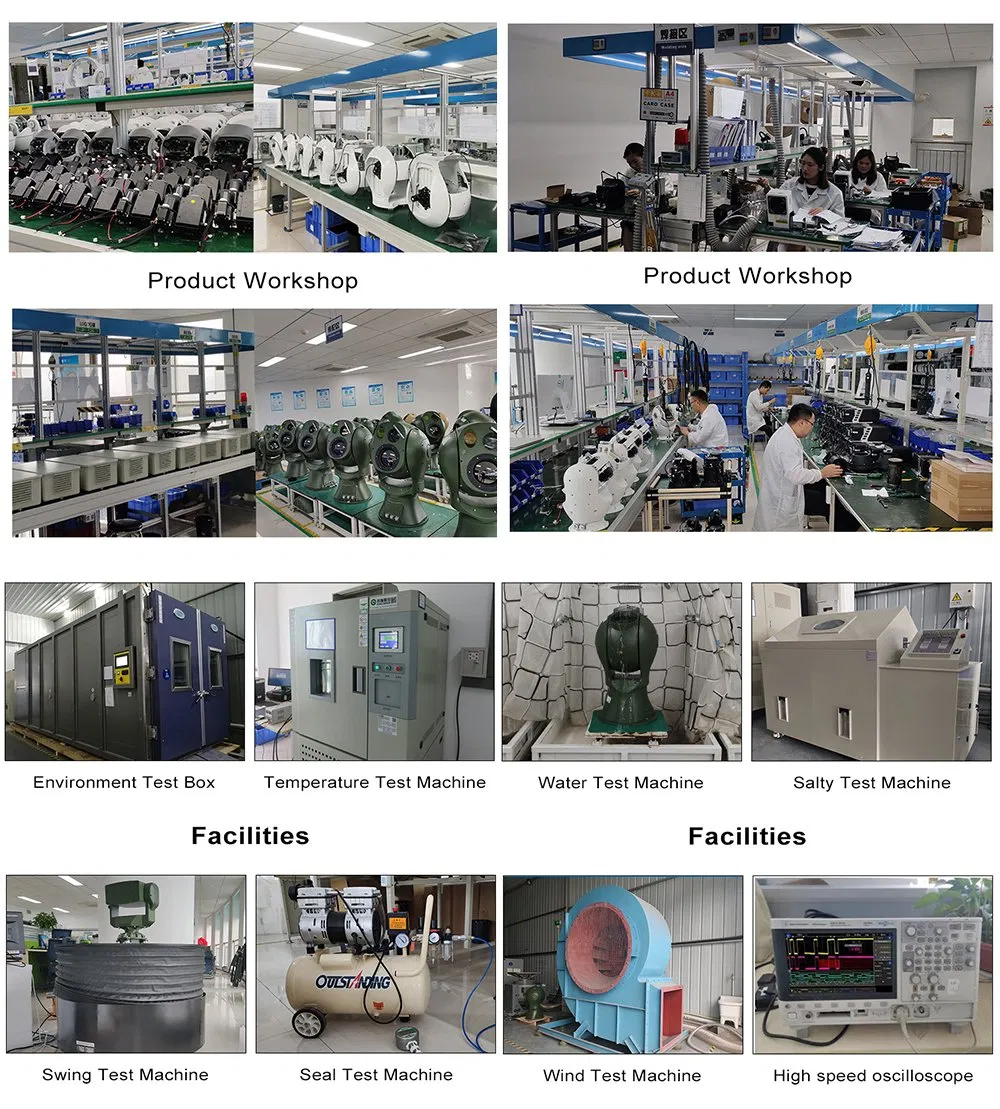

Production Display 2
Certification Display

Frequently Asked Questions

Q: What is the maximum detection range for vehicles and humans?
A: The system can detect vehicles at up to 13km and humans at up to 4.8km, depending on environmental conditions.
Q: Does the system support automatic target tracking?
A: Yes, it supports manual control tracking, radar linkage automatic tracking, and front-end/back-end software automatic tracking.
Q: Is this camera suitable for extreme weather?
A: Absolutely. It features an IP66 protection rating and operates in temperatures ranging from -40 ºC to +60 ºC, with an integrated heating defroster for cold environments.
Q: What sensors are integrated into this PTZ system?
A: It combines a high-definition visible camera (2MP), a thermal imaging camera (uncooled Vox sensor), and an optional NIR Laser Illuminator or Laser Range Finder (LRF).
Q: Can the system be used for Anti-UAV/Drone applications?
A: Yes, it is specifically designed for low-altitude air defense and Anti-UAV monitoring, with thermal detection of UAVs up to 1.5km and daylight detection up to 3km.
