| Model NO. | HP-RZ701LFZ |
| Type | Car Camera |
| Sensor | CCD |
| HDMI Format | 1080P |
| Horizontal Resolution | 650tvl |
| Certification | CE, FCC, CCC, ISO9001: 2000 |
| Feature | Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC |
| Effective Distance | ≧30m |
| Sensor Size | 1/3 inch |
| Rotation | N*360 ° |
| Origin | China |

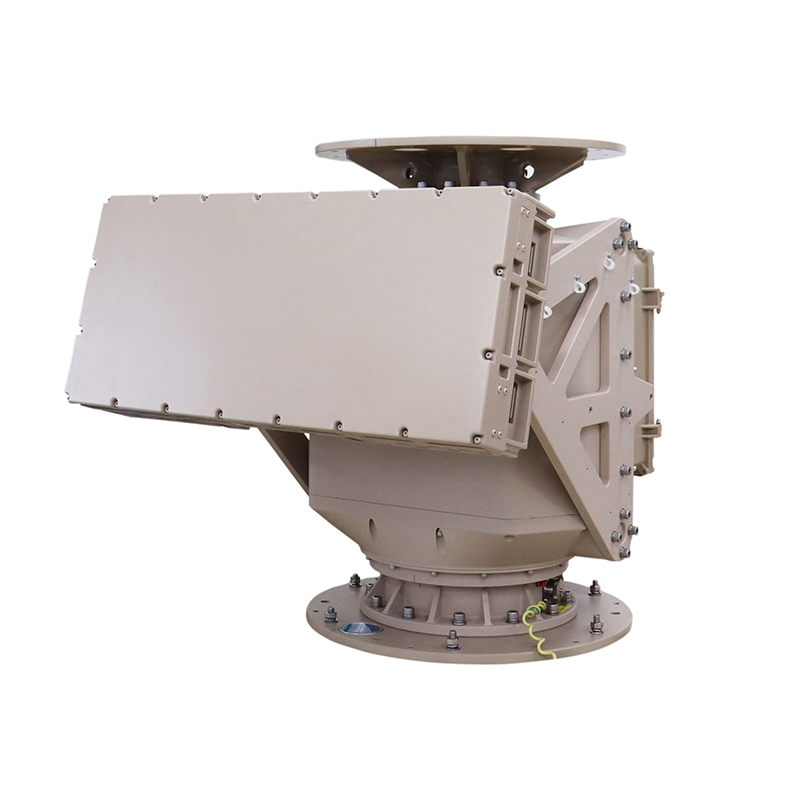

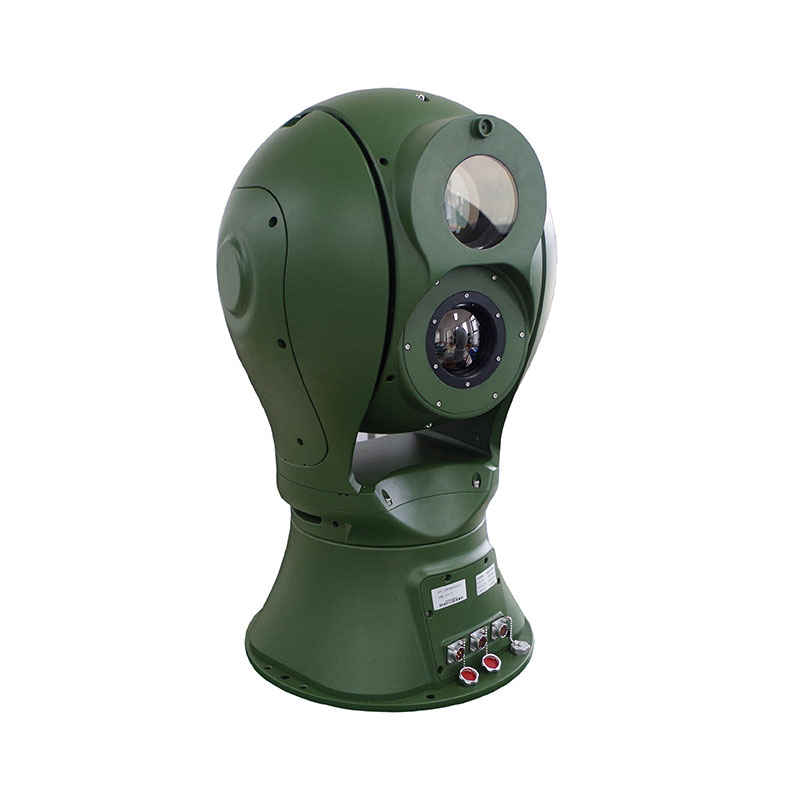

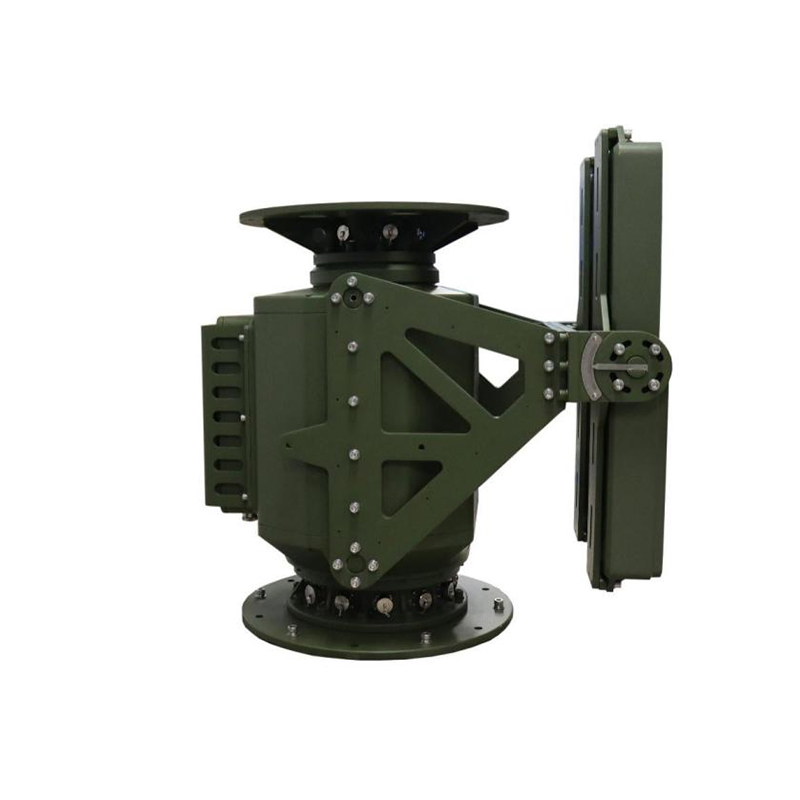

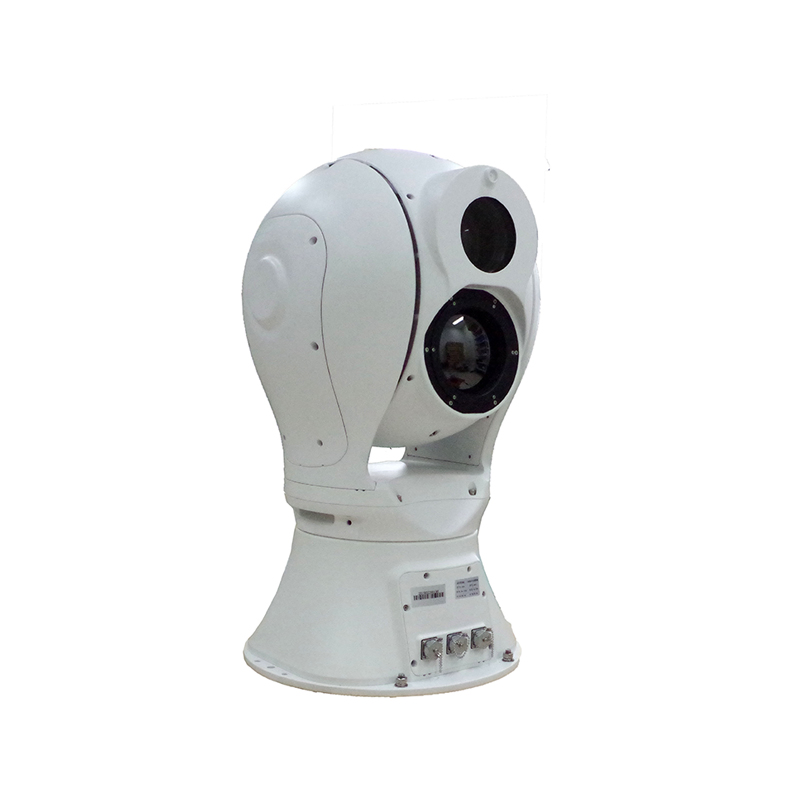

The radar turntable is a high-precision servo system. The optical platform consists of a load bracket, a vertical axis, a power assembly, a drive module, and a main control module. The single-axis platform adopts a hollow design, allowing for seamless integration. The photoelectric load is installed on the top through a connecting flange, with cabling routed directly through the hollow center part to the bottom of the turntable.
Designed for mission-critical applications, the radar load is positioned in the middle section, while the base is secured via a heavy-duty flange. This architecture allows the one-dimensional radar platform to achieve continuous, unrestricted 360° rotation in azimuth. The rotating assembly is equipped with specialized electrical interfaces, and the mechanical interface can be customized to suit specific loading requirements.
| Max Azimuth Speed | ≥180°/ S |
| Min Azimuth Speed | ≤0.1°/S |
| Max Azimuth Acceleration | ≥90°/s² |
| Pointing Accuracy | ≤ 0.1° |
| Response Time | ≤2s (Stable rotation 0° to 90°) |
| Pitch Adjustment Range | -25° to 10° |
| Communication Interface | RJ45 |
| Protocols | TCP/IP, UDP, IPv4 |
| Power Supply | AC220V±20% |
| Working Temperature | -45ºC to +65ºC |
| Weight | ≤100kg |

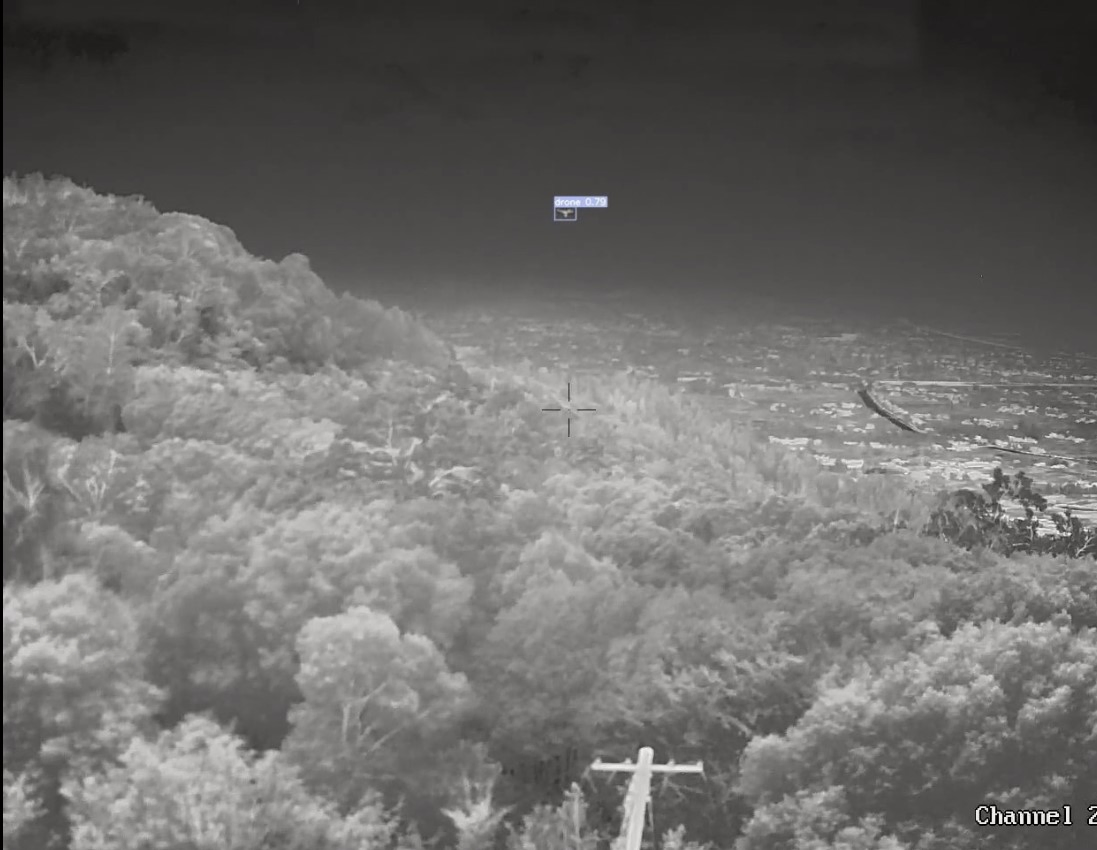

Our solutions focus on the research and development of night vision and multispectral imaging technology. By utilizing advanced image analysis and artificial intelligence, we provide comprehensive optoelectronic systems suitable for long-distance, high-definition, and all-weather surveillance in complex environments.
These specialized systems cover a wide range of industries including border and coastal defense, anti-UAV operations, intelligent transportation, forest fire prevention, and marine environmental protection. Every component is engineered for reliable quality and stable performance under extreme conditions.
