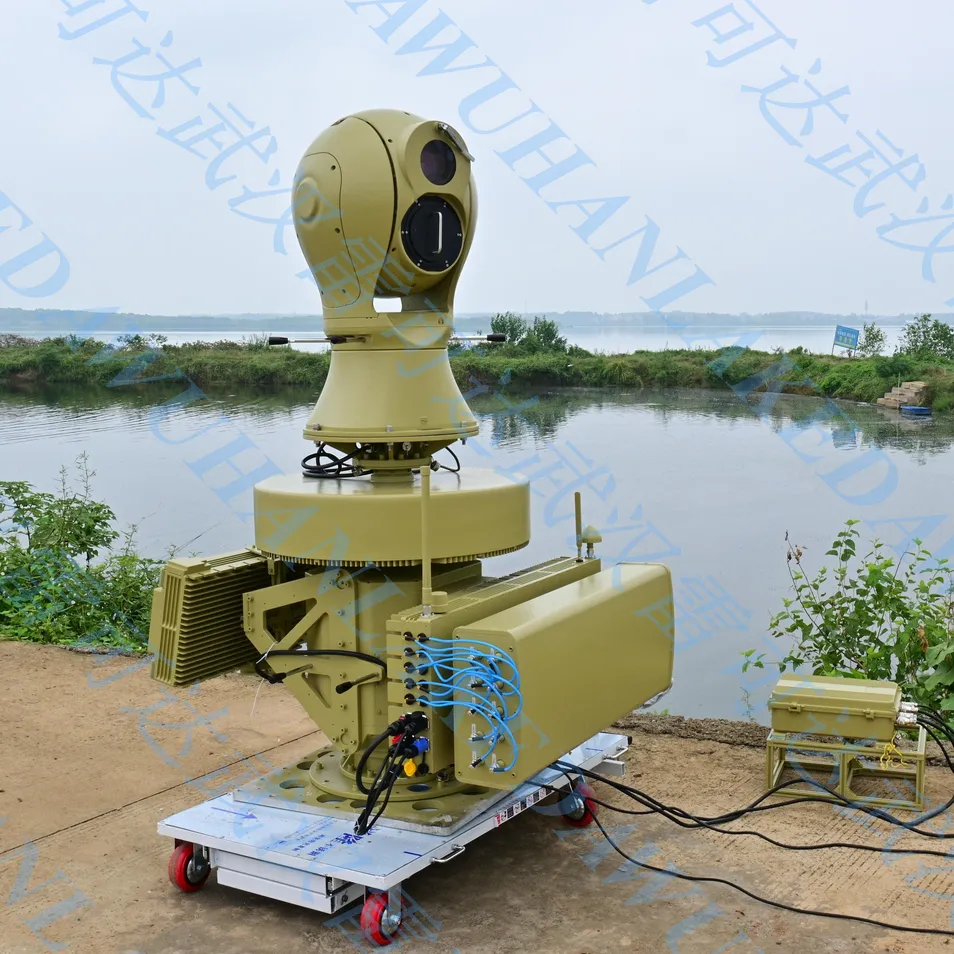

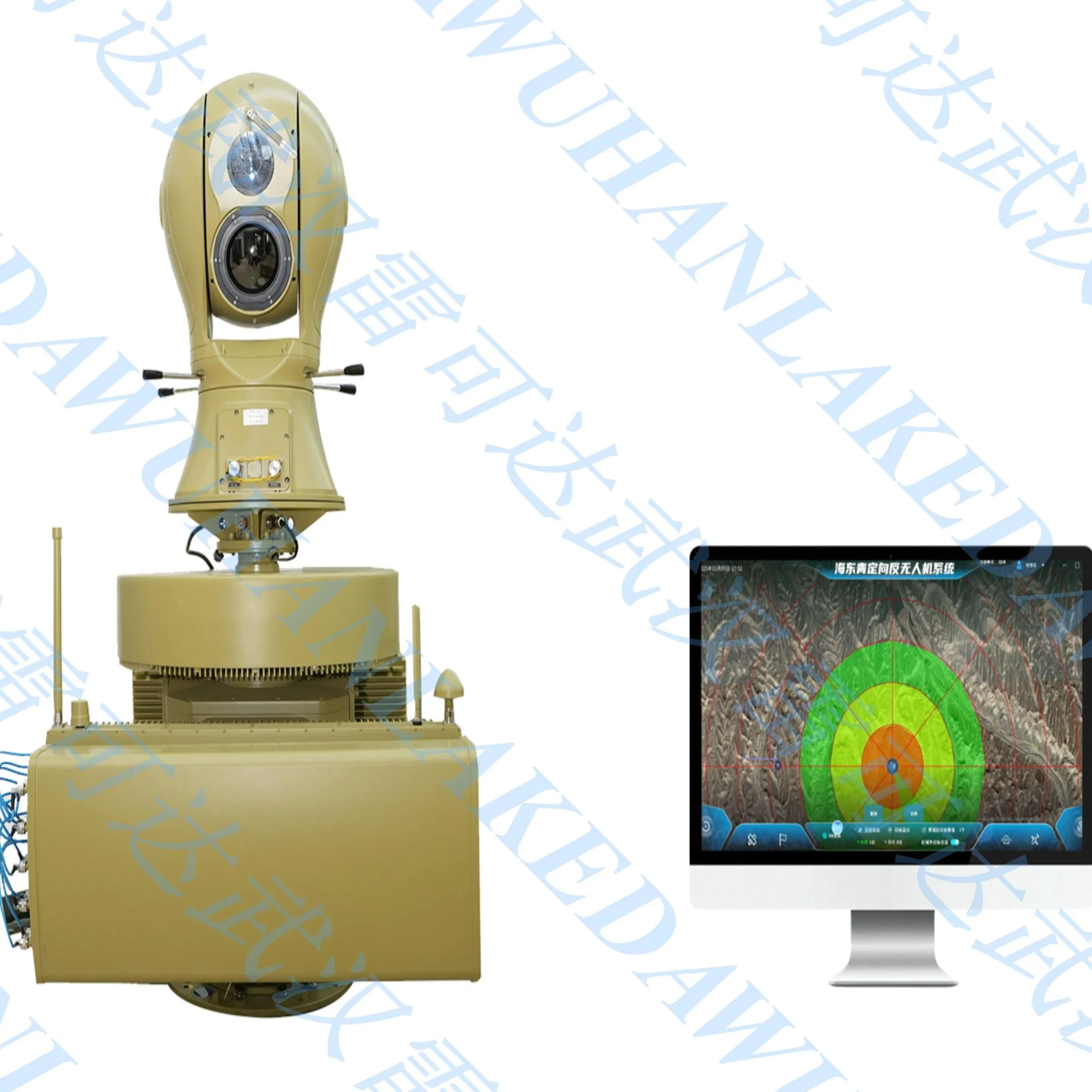

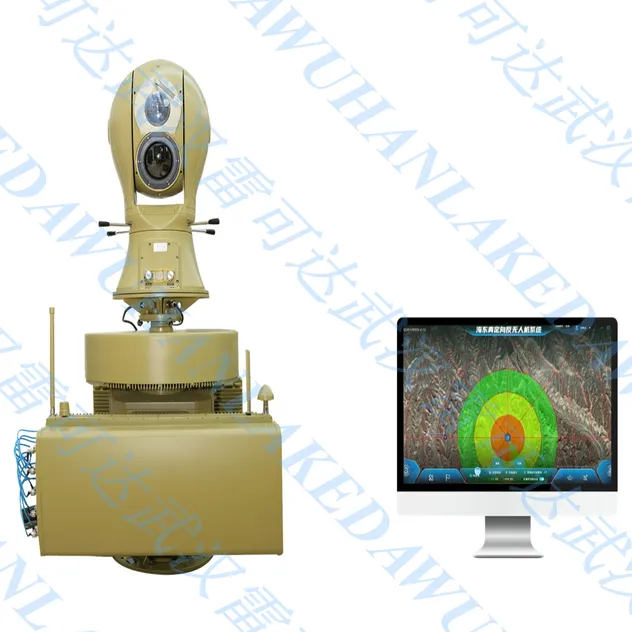

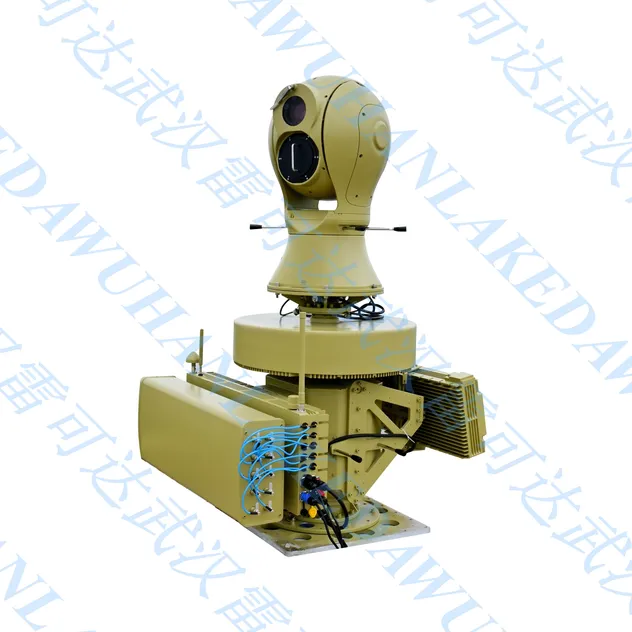

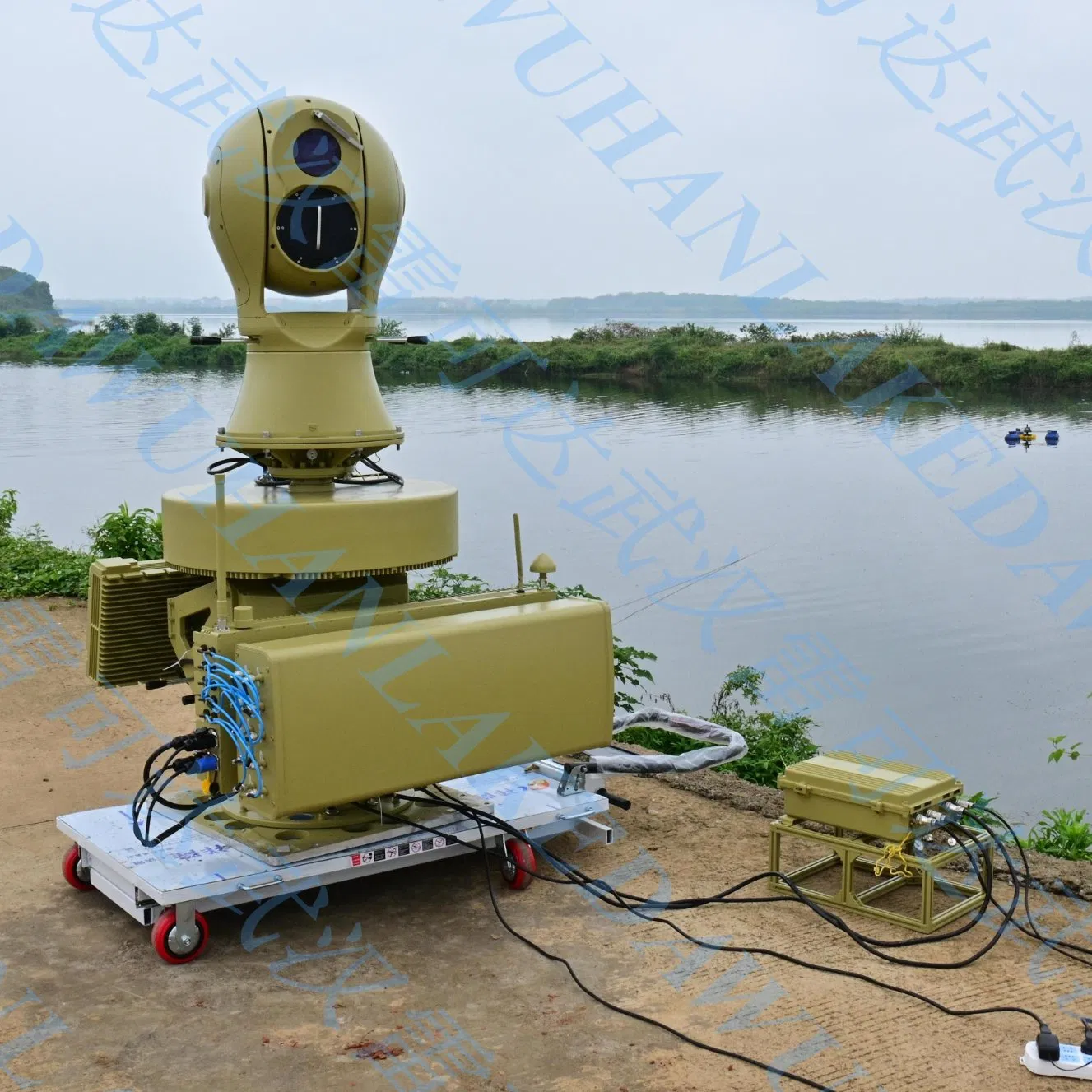

The FALCON Directional Anti-Drone System is an advanced security solution integrating a thermal imaging camera, visible light camera, and a high-precision spherical gimbal. Designed for unattended, continuous operation, this system utilizes cutting-edge thermal imaging technology for excellent concealment and fog penetration.
Seamless monitoring via motorized rotary table to eliminate blind spots.
Ensures stable operation in complex electromagnetic environments.
Reliable 24-hour operation in harsh terrains and extreme weather.
Easy to integrate and maintain for multi-purpose security operations.
| Parameter Category | Specific Parameters |
|---|---|
| Model | CS-RAD-A-5000XP |
| Operating Mode | Pulse Doppler |
| Operating Frequency | X-band |
| Transmit Peak Power | 320W |
| Coverage | Azimuth: 360° / Elevation: ≥40° |
| Detection Range (UAV) | 5 km (RCS=0.01m²) |
| Min Operating Distance | ≤100m |
| Accuracy | Distance: ≤10m | Azimuth: ≤0.5° |
| Simultaneous Targets | Up to 200 targets |
| Interface | RJ45 |
| Environment Standard | IP66 | -40℃ to +55℃ |
