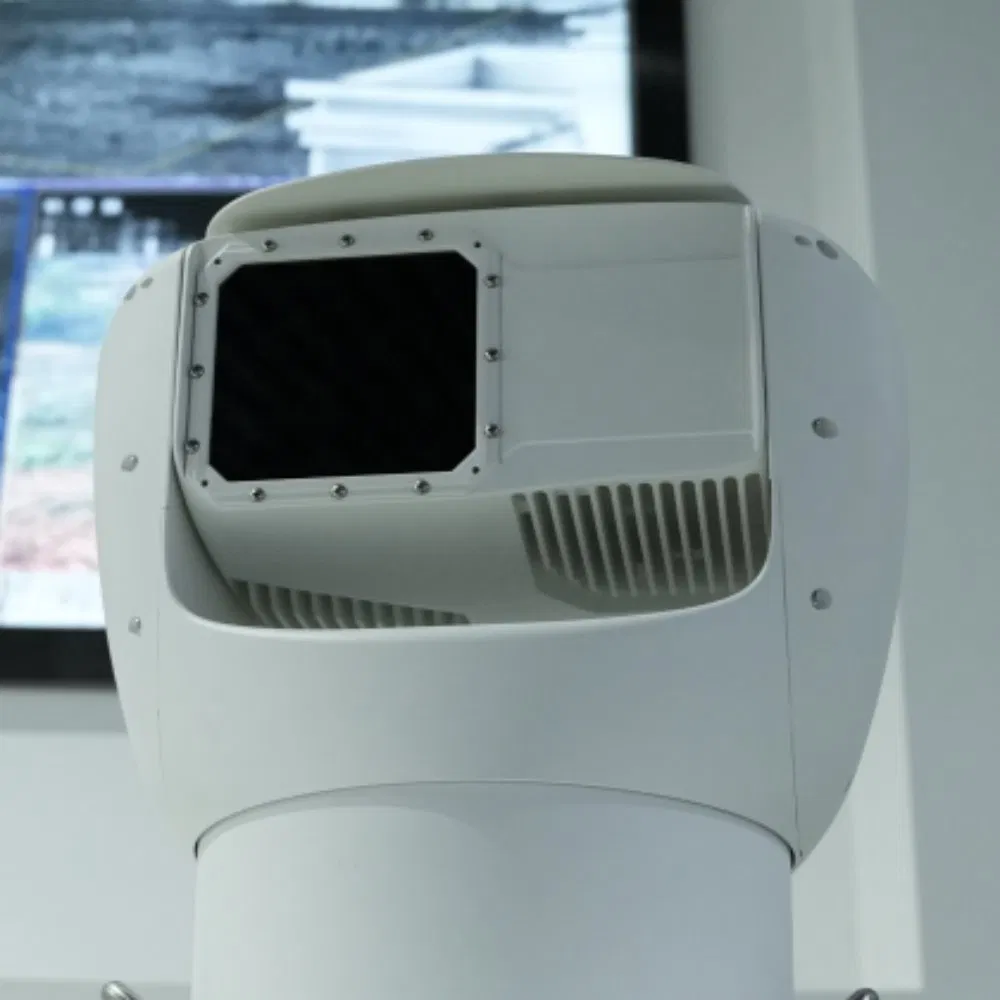

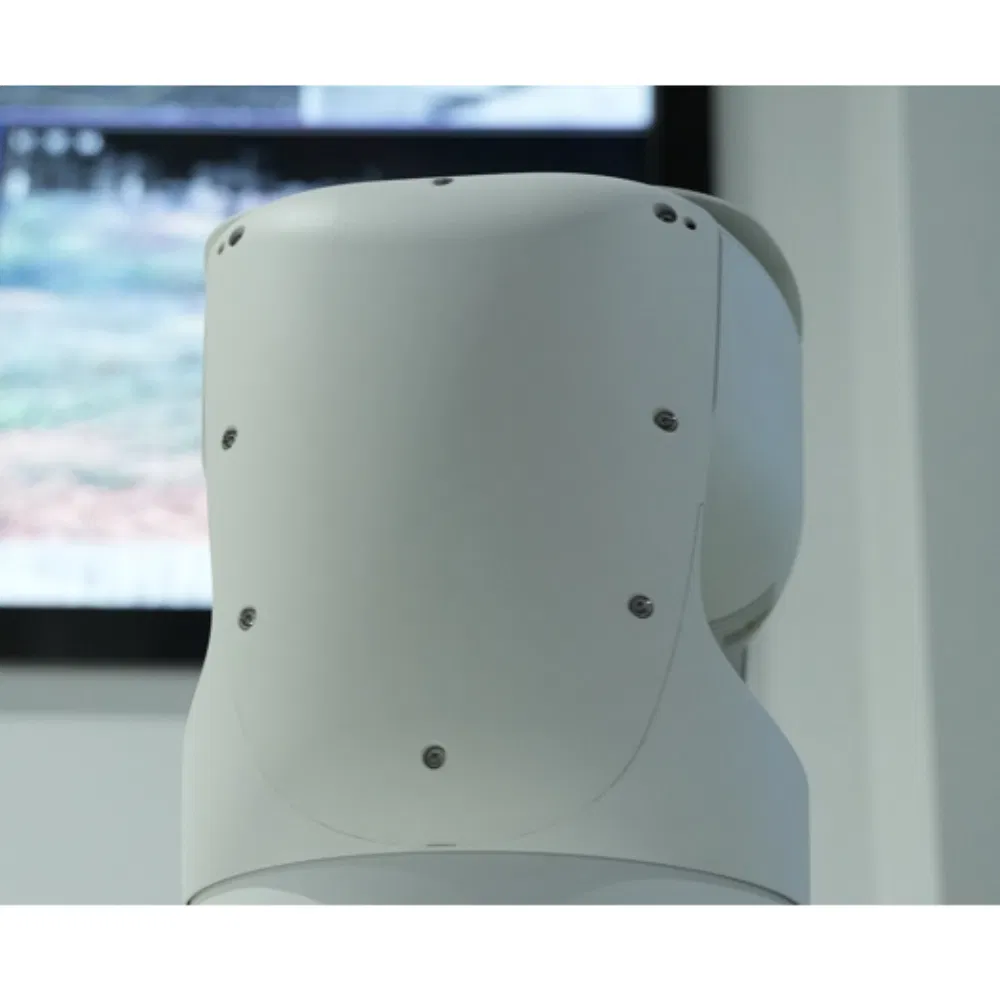

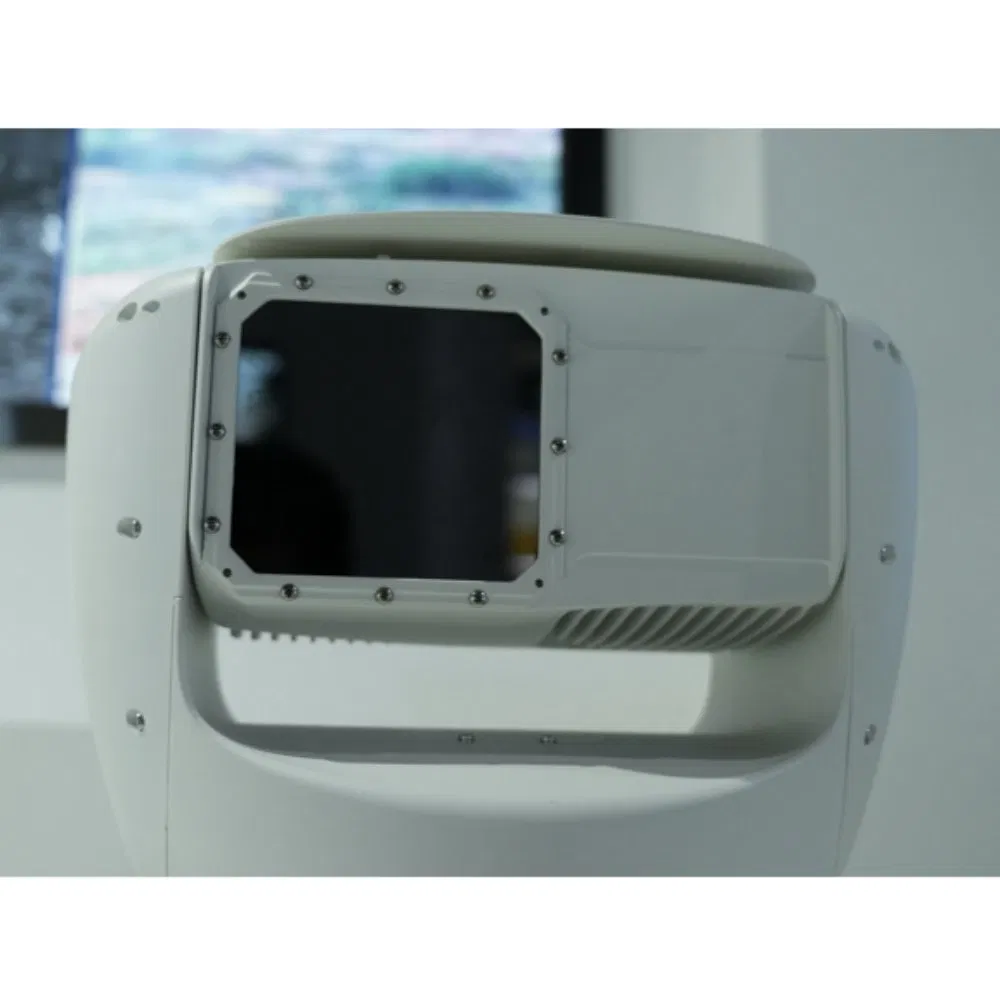

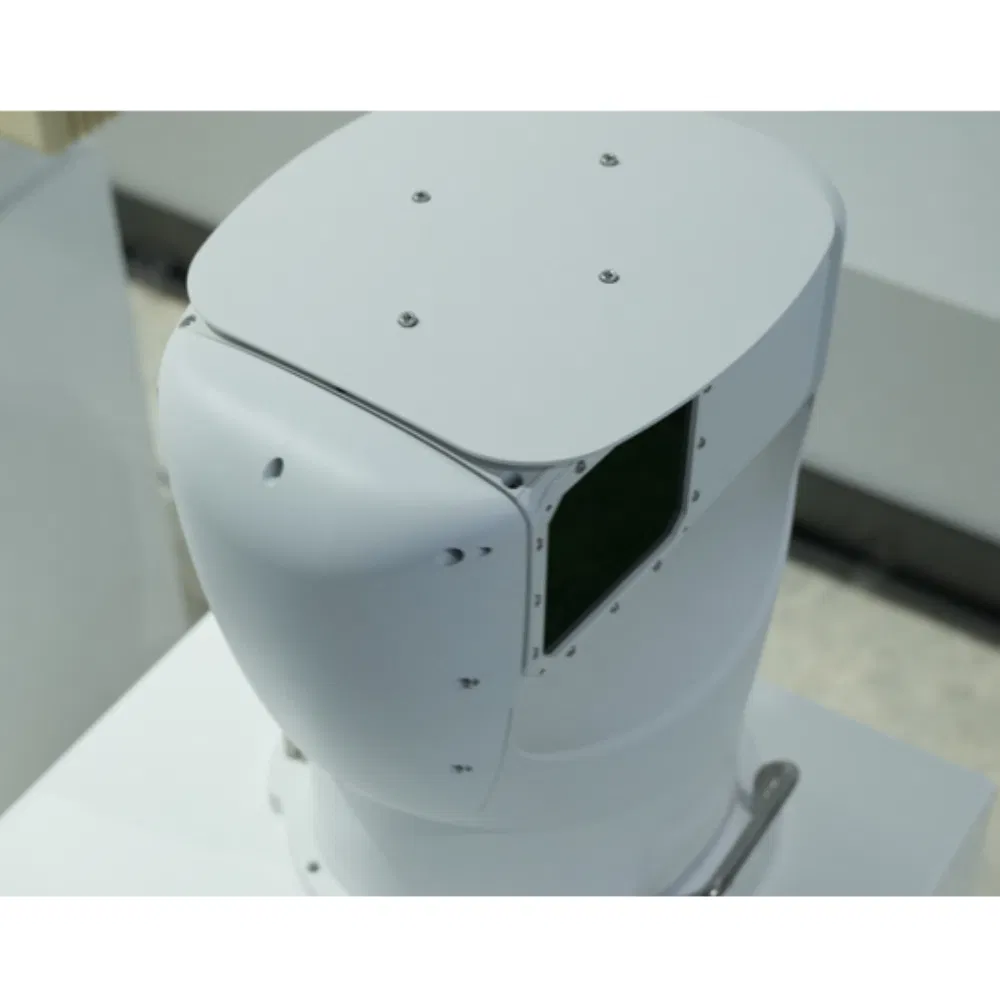

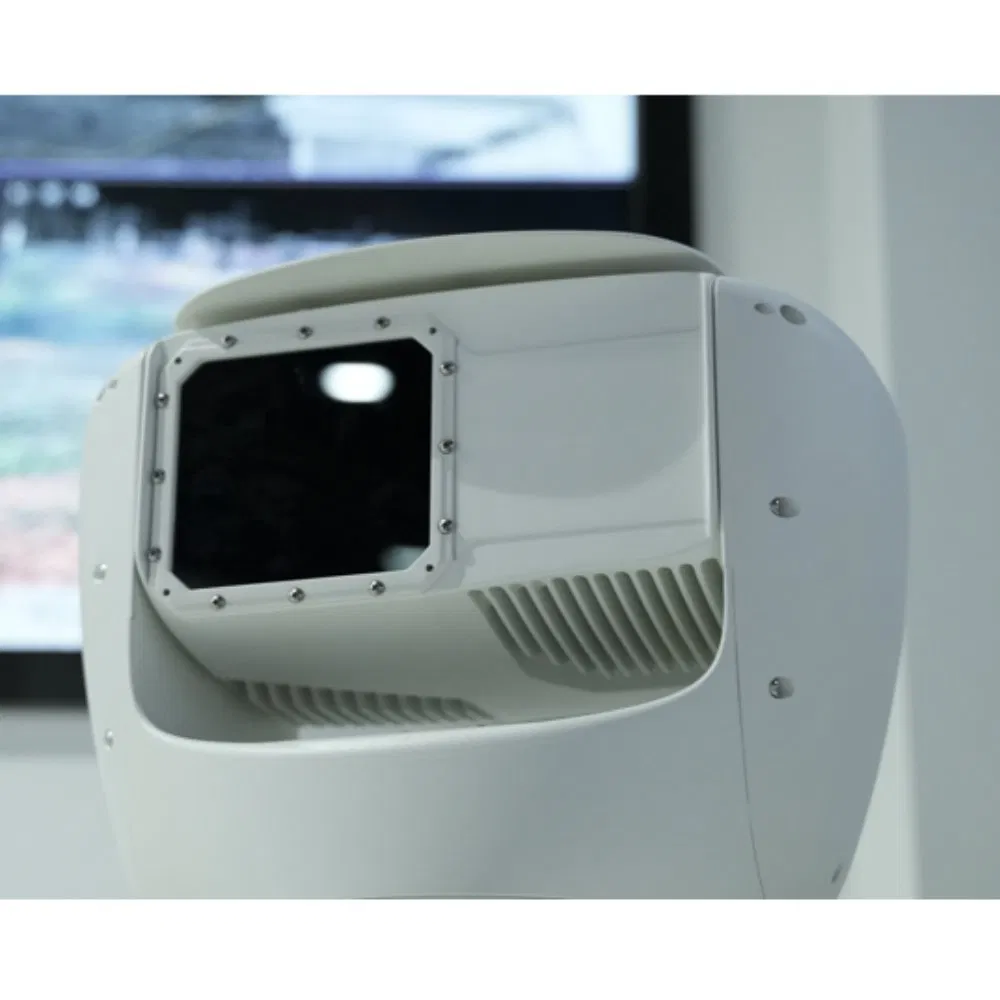

Advanced Mwir Cooled Detector System with 39200× 512 Panoramic Imaging for Coastal Security

Customization: Available
Technology: Infrared
Style: PTZ Camera

Product Description

📋 Overview
Model NO.SilentW-U675
TypeCCTV Camera
CertificationCE, FCC, RoHS, EMI/EMC
Detector Resolution640×512
Focal Length75mm
Effective Distance≧30m
ProtectionIP66
Horizontal Fov Range360°
Power Consumption< 30W
Weight20kg
🔍 Product Description

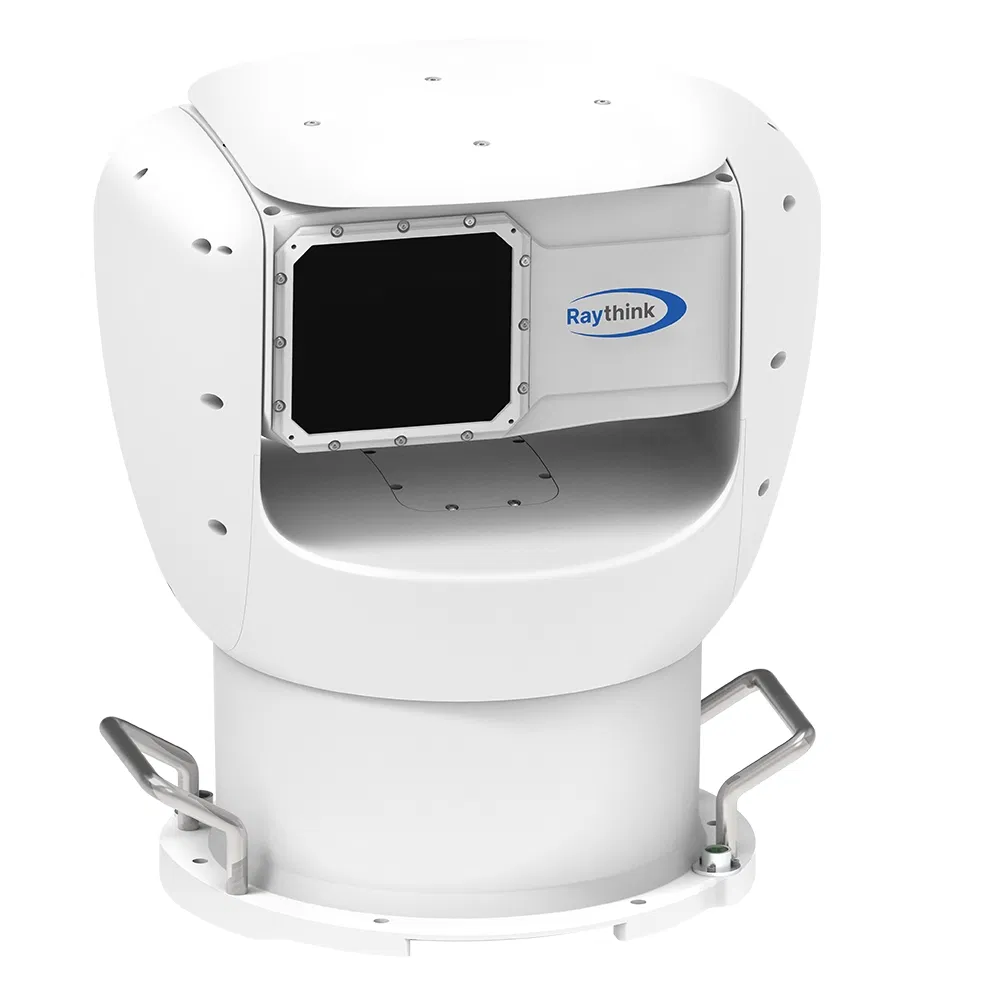

Thermal Imaging System

SilentW-U6 is a solution for large area monitoring by using a 12μm 640×512 thermal detector and capturing 360° panoramic image. SilentW is able to detect multiple objects at same time and can be widely used in nature reserve area, oil/gas fields and mines to make a comprehensive security solution.

Product Highlights
🎯
12μm Uncooled Infrared Detector Adopts the latest 12μm uncooled infrared detector or high-performance MWIR cooled detector, and advanced infrared image algorithms to ensure clear imaging at greater distances.
🔄
360° Panoramic Surveillance Detects a full circle in approximately 2 seconds and delivers real-time panoramic video images, enabling comprehensive visual monitoring without blind spots.
👥
Multi-Target Detection Capable of simultaneously detecting & tracking up to 128 targets, detection range up to 8km.
🔗
Link with PTZ Camera Easy calibration, link with dual-spectrum PTZ camera to track the target. Using zoom lens to view more details from long distance.
🧠
Intelligent Detection Algorithm Deep learning AI algorithm to recognize human, vehicle, ship, and UAV targets.
🔋
Low Power Consumption Low power consumption, can be powered by solar, reduce the needs of infrastructure.
📊 Technical Specifications
Feature SilentW-U675 Details
Detector TypeUncooled
Detector Resolution640×512
Focal Length75mm
Panoramic Image Resolution39200×512
Frame Rate133°/s
Tilt Range-20°~+35°
Dimension (mm)382×260×386
Work Environment-40ºC ~+ 70ºC
Detection Distance UAV (450mm) 1.5km
Human (1.7m)2km
Vehicle (4m)4km
Ship (8m)8km
🌍 Application Scenarios
Perimeter Surveillance & Nature Reserve
Perimeter Surveillance
Nature Reserve
Oil and Gas Pipelines & Critical Infrastructure

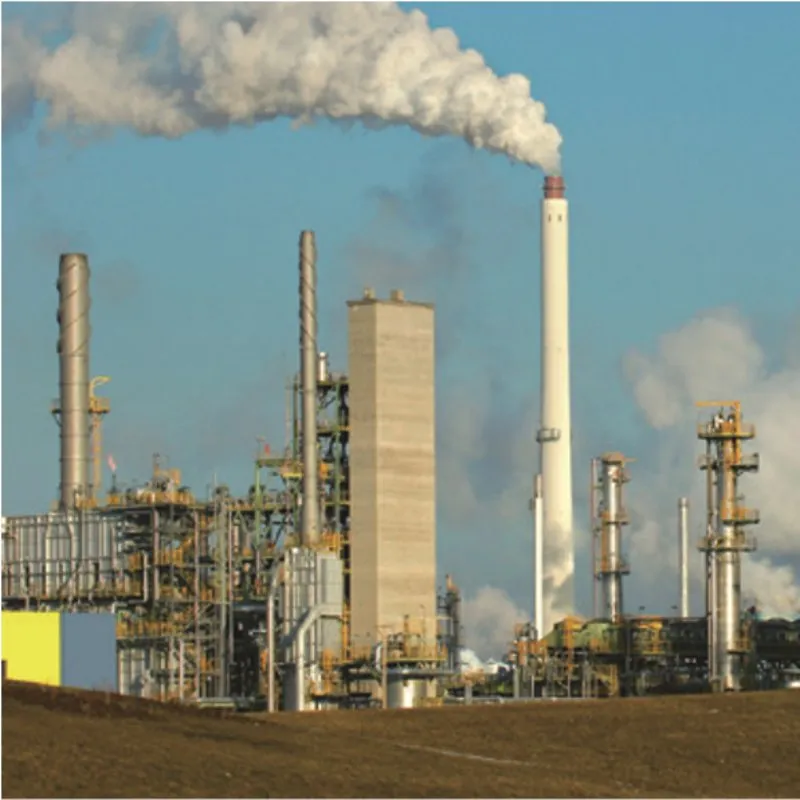

Oil Gas Pipelines
Infrastructure Protection
🏭 Production & Facilities
Facility 1
Facility 2
Facility 3
Facility 4

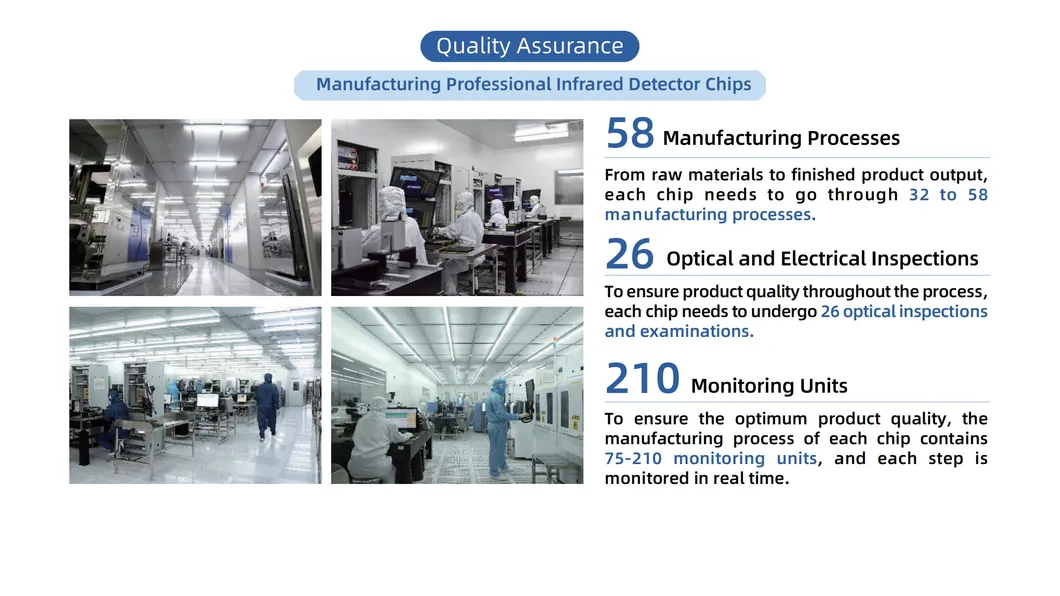

Facility 5

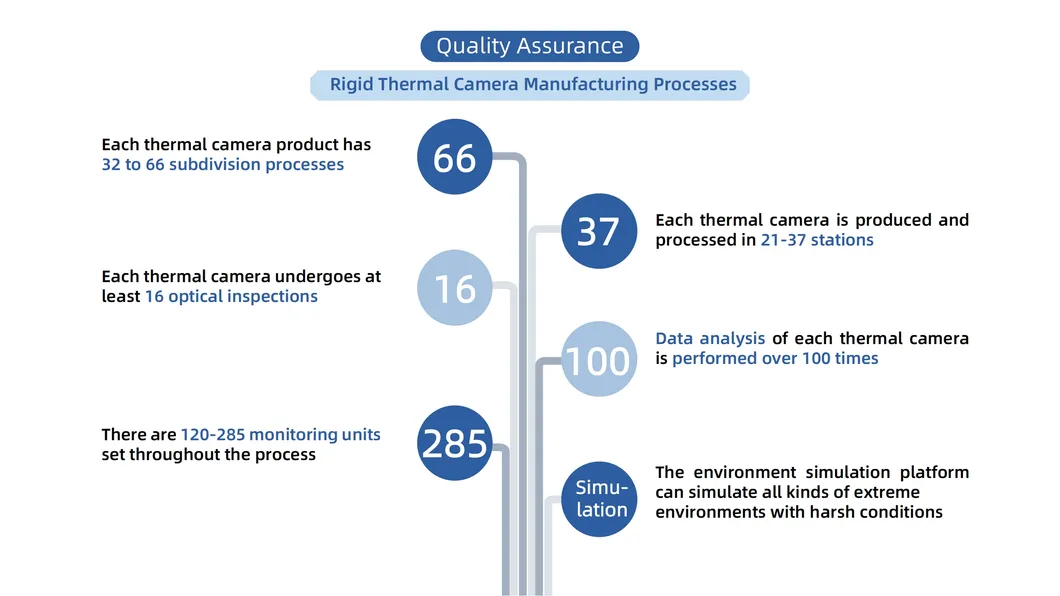

Facility 6
Facility 7
Facility 8
FAQ
How can we guarantee quality?
We have professional infrared detector chip manufacturing, rigid thermal camera manufacturing process, perfect quality management system, and CNAS certification reliability test platform.
How long is your delivery time?
For small orders, it usually takes 7 working days. For OEM orders, please check the shipping time with us.
What is the MOQ?
MOQ depends on the specific product.
What are your payment terms?
Our payment terms include L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
What is the product warranty policy?
Thermal vision products come with a 2-year warranty, while thermal modules are covered by a 1-year warranty.
How about after-sale support?
We provide lifetime technical support. Our engineers will respond to your technical requests within 24 hours.
