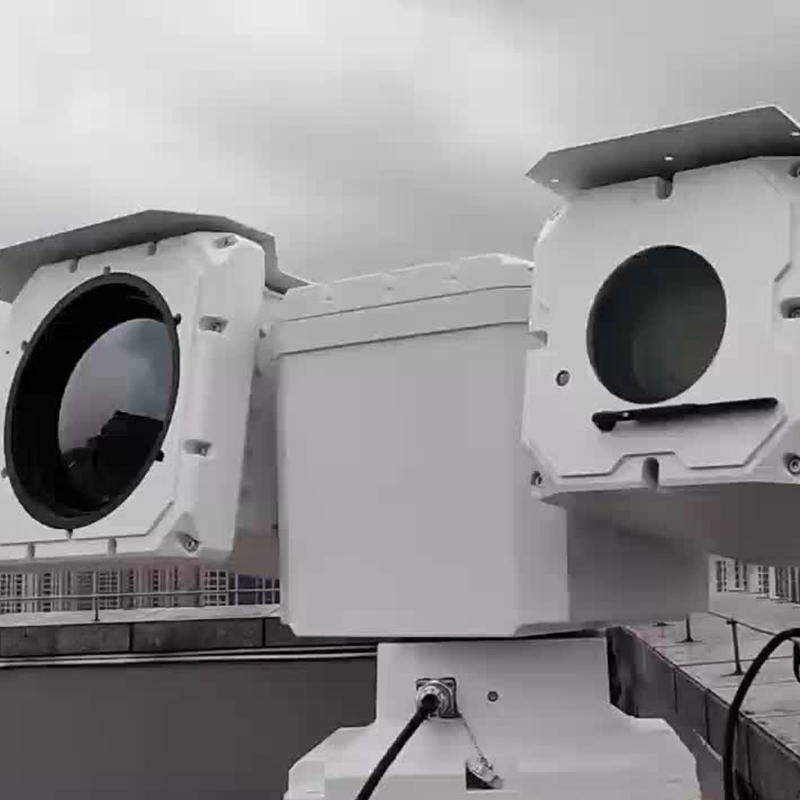

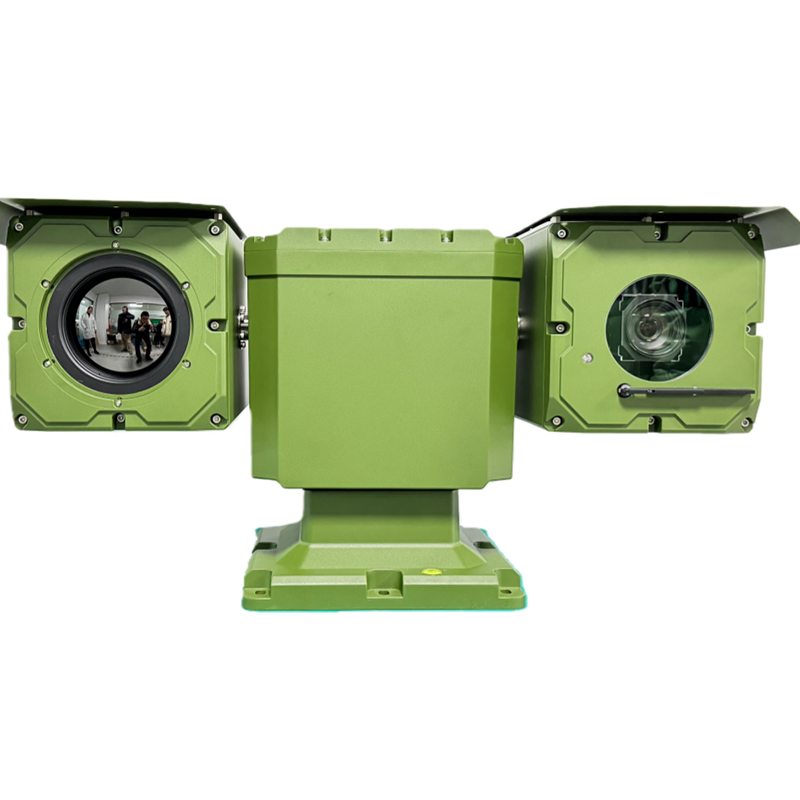

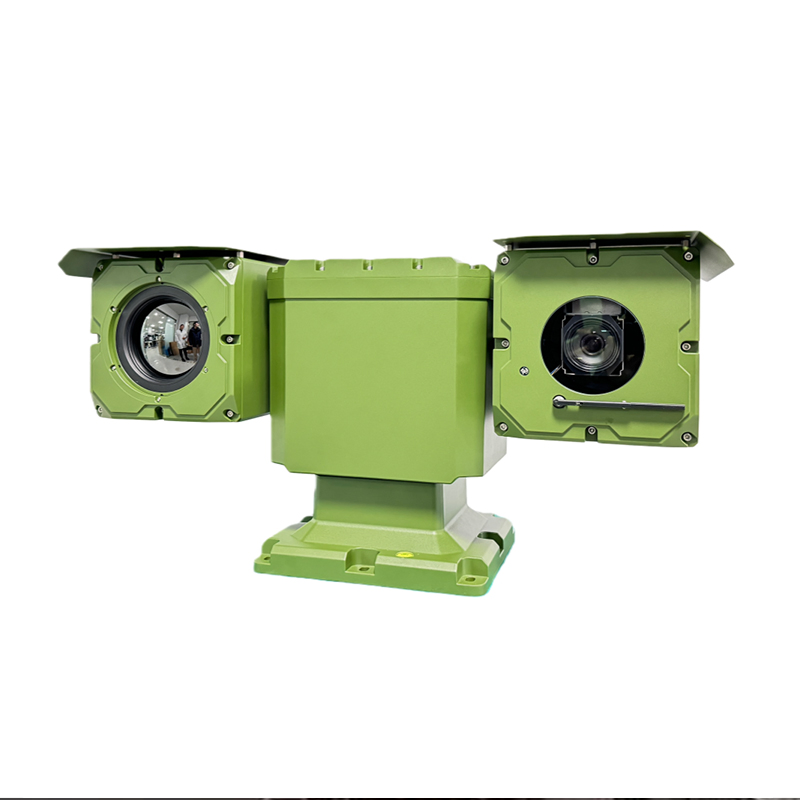

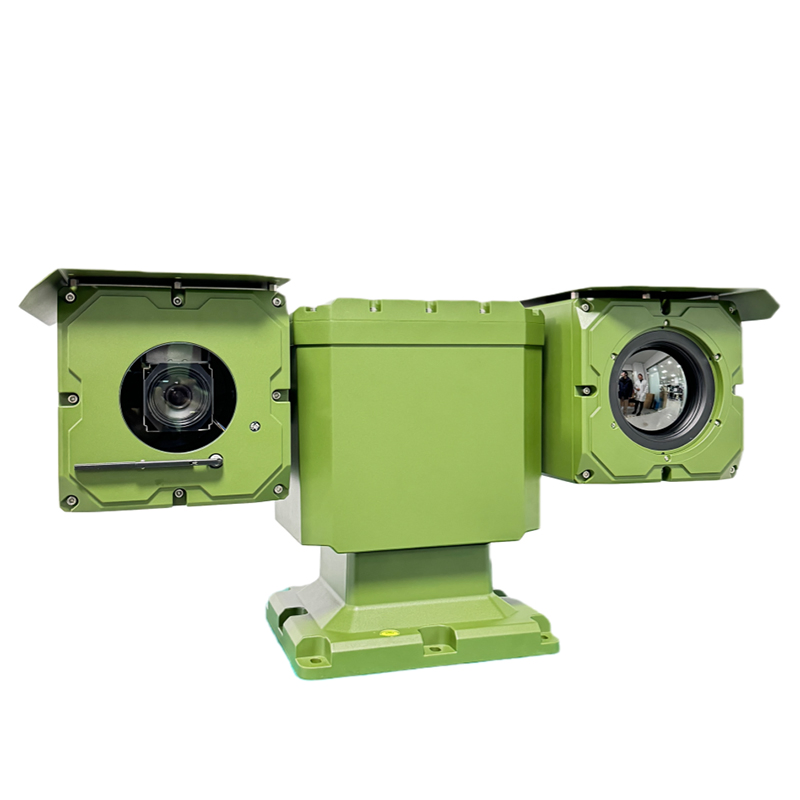

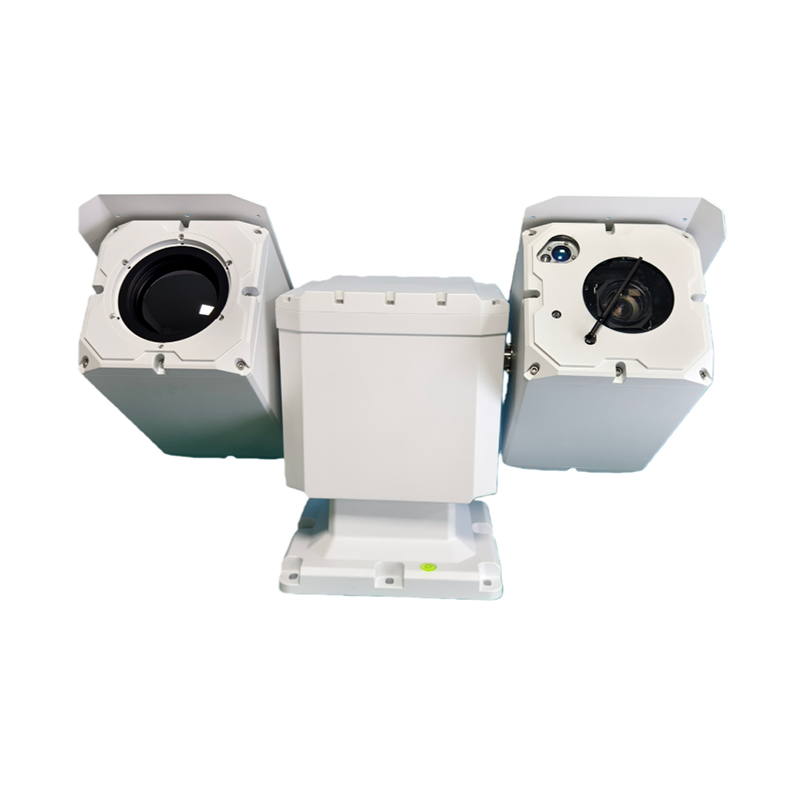

All-in-One Multispectral Long-Range PTZ Camera for Coast Defense
All-in-One Multispectral Long-Range PTZ Camera for Coast Defense
All-in-One Multispectral Long-Range PTZ Camera for Coast Defense
All-in-One Multispectral Long-Range PTZ Camera for Coast Defense
All-in-One Multispectral Long-Range PTZ Camera for Coast Defense
1 / 5
All-in-One Multispectral Long-Range PTZ Camera for Coast Defense
All-in-One Multispectral Long-Range PTZ Camera for Coast Defense
All-in-One Multispectral Long-Range PTZ Camera for Coast Defense
All-in-One Multispectral Long-Range PTZ Camera for Coast Defense
All-in-One Multispectral Long-Range PTZ Camera for Coast Defense

All-in-One Multispectral Long-Range PTZ Camera for Coast Defense

Customization: Available
Technology: Infrared
Style: Pan/Tilt
Send Inquiry

Product Description

Overview & Basic Info
Model
1050 Series
Type
CCTV Camera
Sensor
CMOS
HDMI Format
1080P
Resolution
4MP
Lens
Autofocus
Effective Distance
10km
Sensor Size
1/1.8 Inch
Multi Sensor
Thermal Imager & Visible Camera
Smart Detection
Human/Vehicle/Boat/UAV/Fire
Product Description

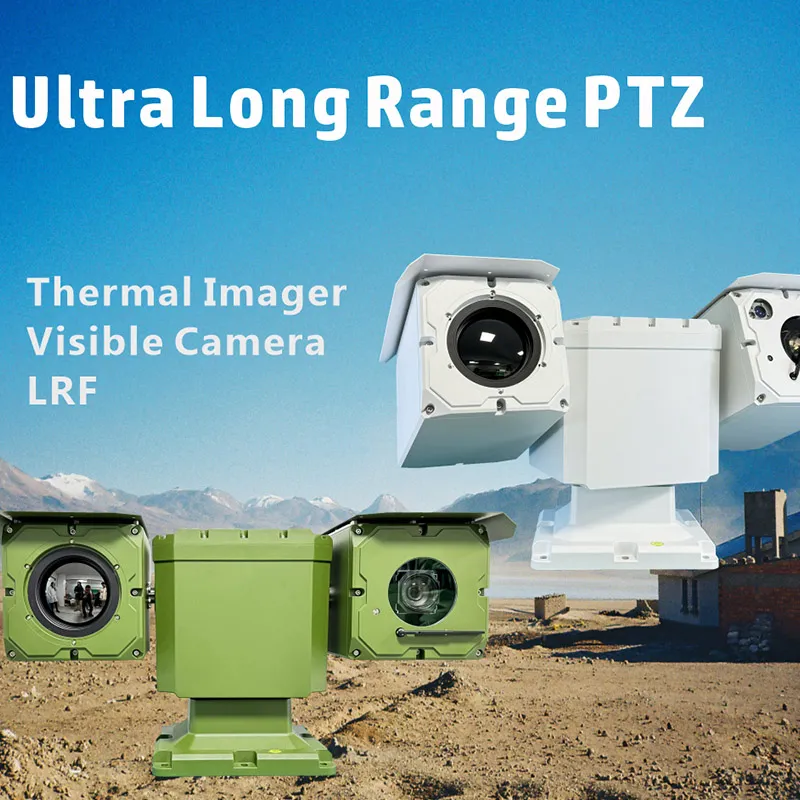

Ultra Long Range PTZ Camera
🛡️
Ultra Long Range PTZ Camera System
This series is a versatile, heavy-duty pan-tilt-zoom system designed for precise long-distance threat detection, recognition, and identification. It supports multi-sensor integration including long-range visible light, cooled/uncooled thermal imaging, and an optional 10 km laser rangefinder (LRF).
Equipped with a built-in 5T processor, the system runs intelligent algorithms for optimized field performance. Harmonic drive and closed-loop control technology enable high-speed (up to 150°/s) and high-precision (0.001°) positioning. Housed in rugged IP67 aluminum, it is built to withstand harsh environments.

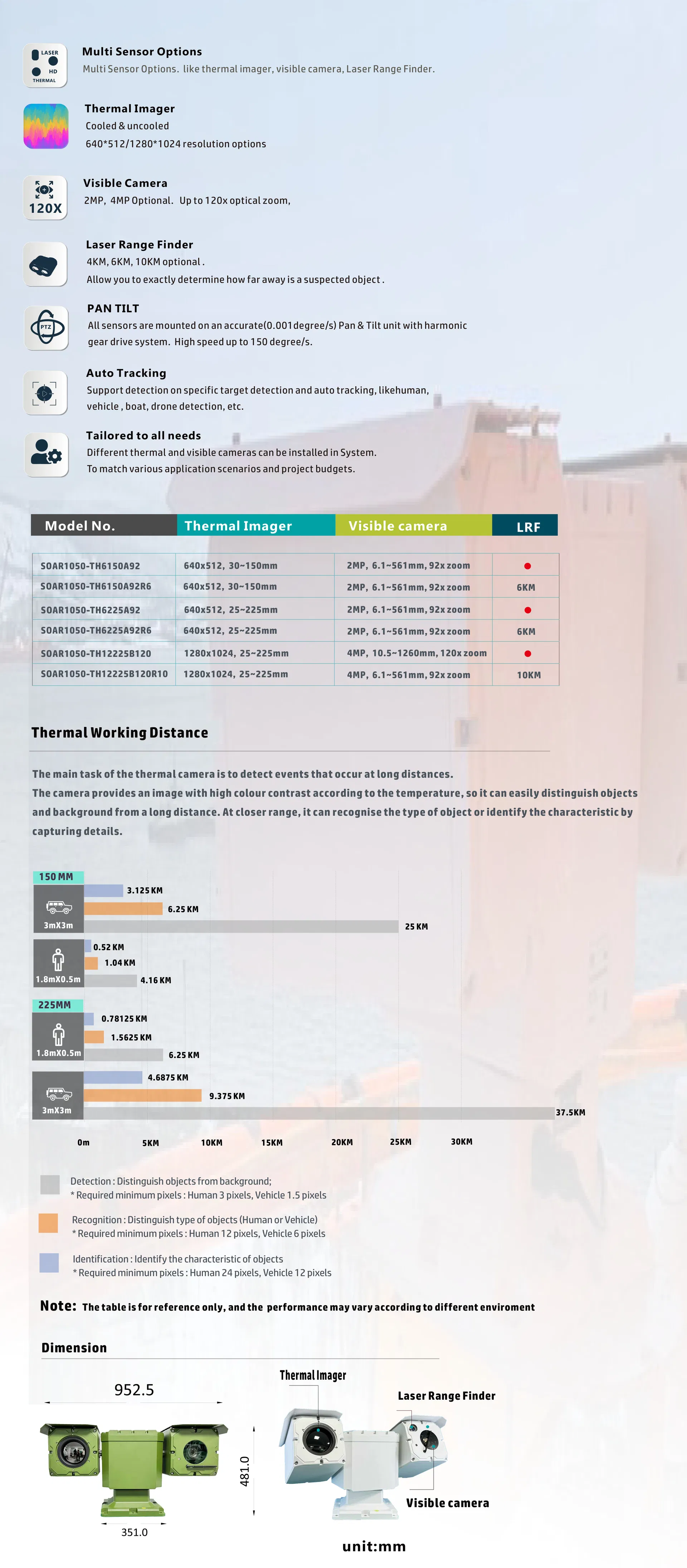

Product Highlights
Product Highlights
Technical Specification
Camera Module
Image Sensor1/1.8" Progressive Scan CMOS
Minimum IlluminationColor: 0.0005 Lux; B/W: 0.0001 Lux
Focal Length10.5-1260mm, 120x Optical Zoom
Aperture RangeF2.1-F11.2
Thermal Imager
Detector TypeVox Uncooled Infrared FPA
Pixel Resolution640*512
Continuous Zooming25~225mm
PTZ Performance
Movement RangePan: 360° Continuous; Tilt: -90° to 90°
Pan/Tilt SpeedConfigurable from 0.05° to 150°/s
Positioning AccuracyPan 0.003°, Tilt 0.001°
Smart Features
Smart DetectionArea Intrusion, Vehicle, Human, UAV, Boat, Smoke/Fire Detection
Auto TrackingSupported for multi-target types
General
ProtectionIP67 Standard, 6000V Lightning & Surge Protection
Operating Conditions-40°C to 70°C (-40°F to 158°F)
Application Scenarios
Forest Fire Prevention: Multispectral cameras detect 2m×2m anomalies from up to 8.8 km. AI smoke recognition reduces false alarms, creating 24/7 protection networks.
Border Security: Long-range systems detect humans from 4.2-6.3 km and vehicles up to 19.2 km. AI analysis identifies unauthorized crossings with 99.2% accuracy.
Maritime Surveillance: Provides 10 km vessel detection in darkness or severe weather. Tracks ships, recognizes IDs, and supports man-overboard detection.
Critical Infrastructure: Continuous thermal monitoring for power plants and nuclear facilities. Detects overheating and equipment failures from a distance.
Production & Quality Control

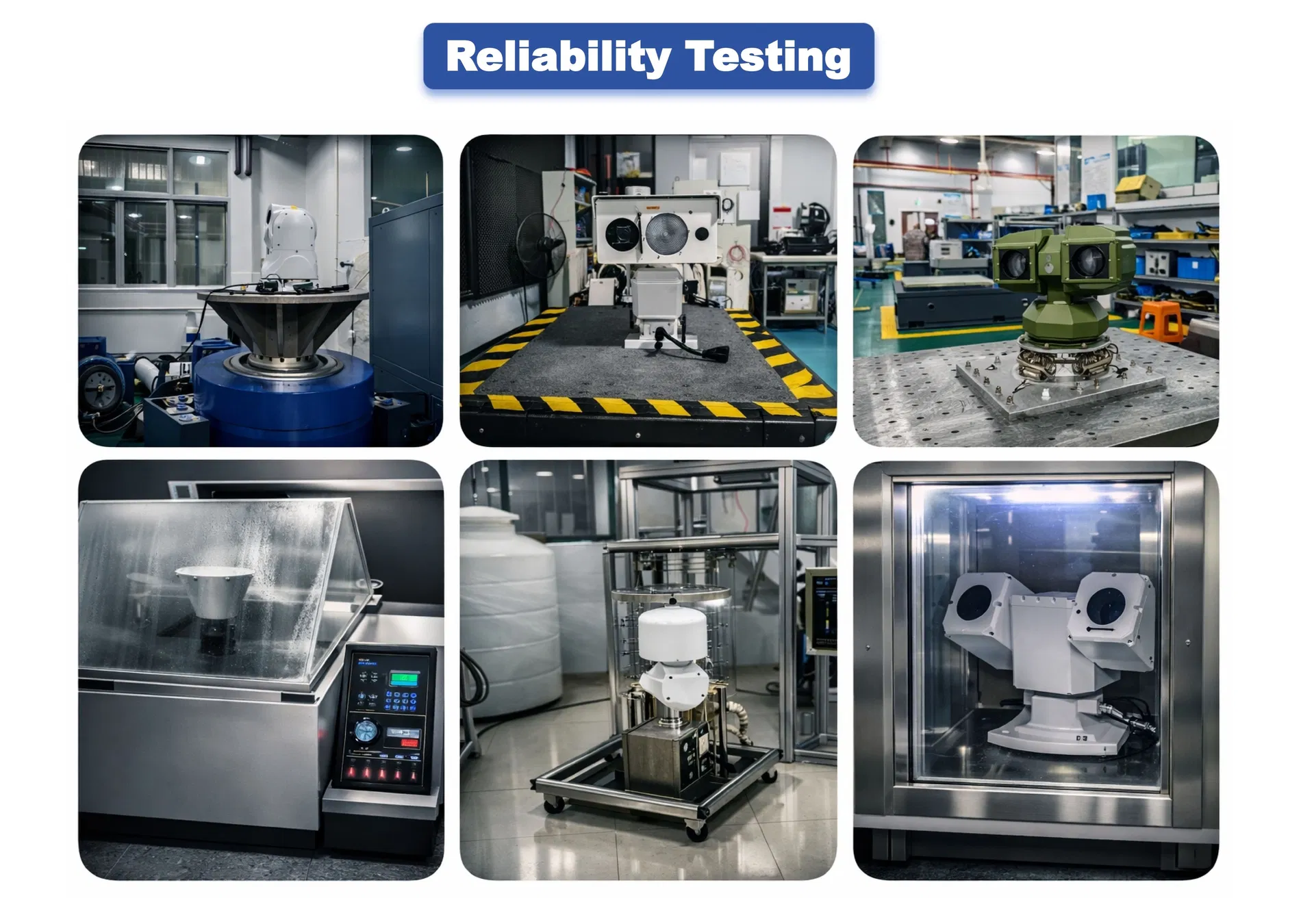

Production Image 1
Production Image 2
Production Image 3
Production Image 4

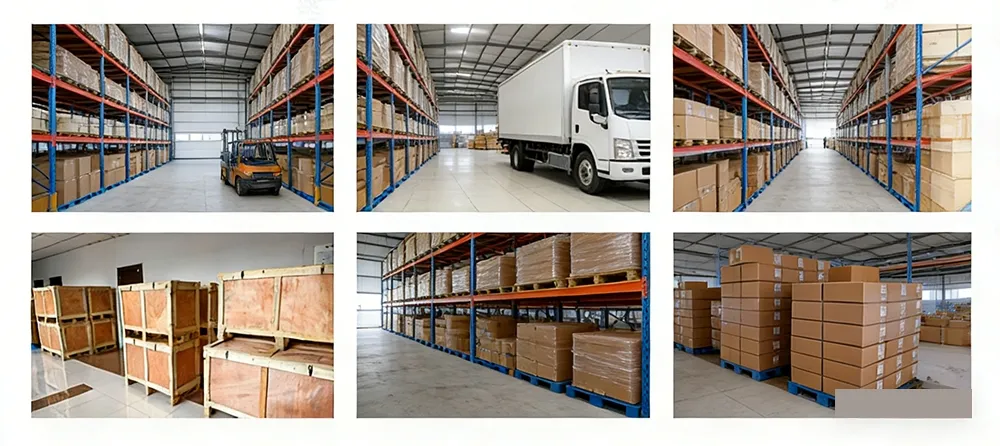

Production Image 5
Frequently Asked Questions
What is the estimated delivery timeline?
For small orders, delivery typically takes 7 working days. For OEM or bulk orders, please confirm the timeline with our sales team.
Is there a minimum order quantity (MOQ)?
The MOQ varies depending on the specific product model and customization requirements.
What payment methods are accepted?
We accept standard payment terms, including T/T (Telegraphic Transfer).
What is the warranty coverage for these products?
PTZ products and camera modules generally come with a 1-year warranty from the date of purchase.
Do you provide after-sales technical support?
Yes, we offer lifetime technical support. Our engineers typically respond to inquiries within 24 hours.
Are the cameras suitable for extreme weather?
Absolutely. With IP67 protection and an operating range of -40°C to 70°C, these systems are designed for the harshest environments.
