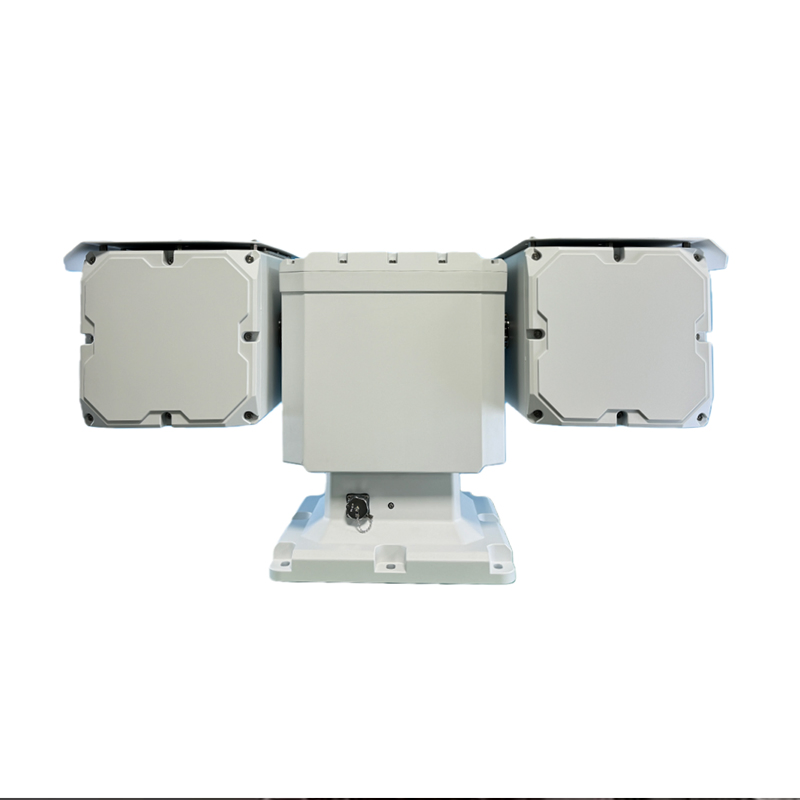

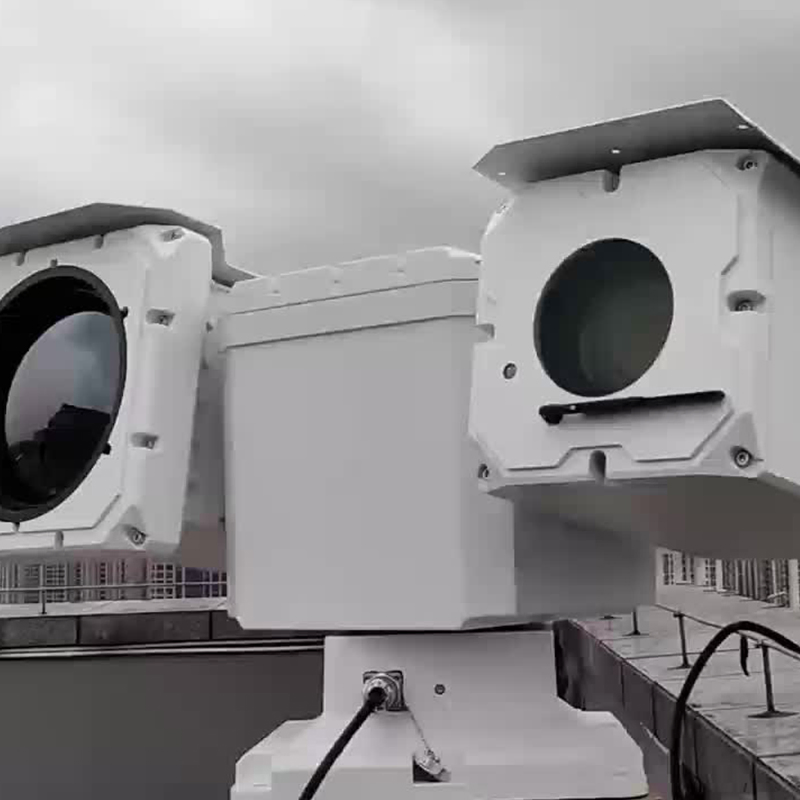

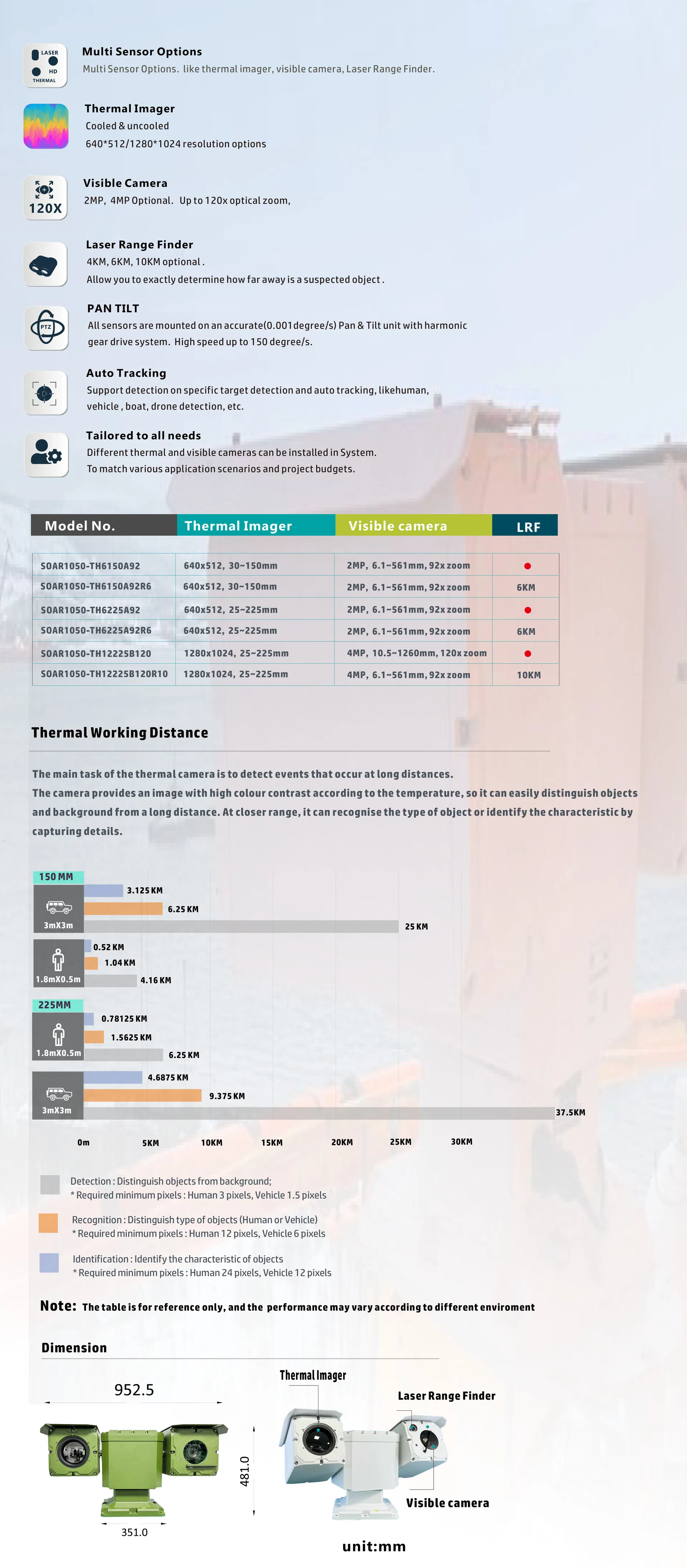

The SOAR1050 series PTZ is a versatile, heavy-duty system for long-distance threat detection. It supports various sensor setups, including long-range visible and thermal cameras, plus a 10 km laser rangefinder.
★High Performance: Built-in processor with 5 teraoperations per second.
★Precision Control: High-speed (up to 150°/s) and precise (0.001°) positioning.
★Rugged Design: Aluminum housing with IP67 rating for harsh conditions.
| Camera Module | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.0005 Lux; B/W: 0.0001Lux |
| Focal Length | 10.5-1260mm, 120x Optical Zoom |
| Aperture Range | F2.1-F11.2 |
| Thermal Imager | |
| Pixel Resolution | 640*512 |
| Pixel Pitch | 12μm |
| Continuous Zooming | 25~225mm |
| PTZ Performance | |
| Movement Range | Pan: 360° continuous; Tilt: -90° to 90° |
| Positioning Accuracy | Pan 0.003°, Tilt 0.001° |
| Presets | 256 |
| Intelligence & Network | |
| Smart Tracking | Vehicle/Human/UAV/Boat/Fire detection & auto tracking |
| Protocols | ONVIF 2.4.3 |
| Operating Temp | -40°C to 70°C |
| Weight | 65KG |
Detecting temperature anomalies from up to 8.8 km, enabling rapid response through AI-powered recognition.
Long-range systems offering human detection up to 6.3 km and vehicle detection up to 19.2 km.
Thermal monitoring and threat detection for hazardous environments with virtual thermal fences.
Monitoring ports and coasts, detecting vessels up to 10 km away even in complete darkness.
Enhancing safety in tunnels and highways by detecting accidents and debris in real-time.

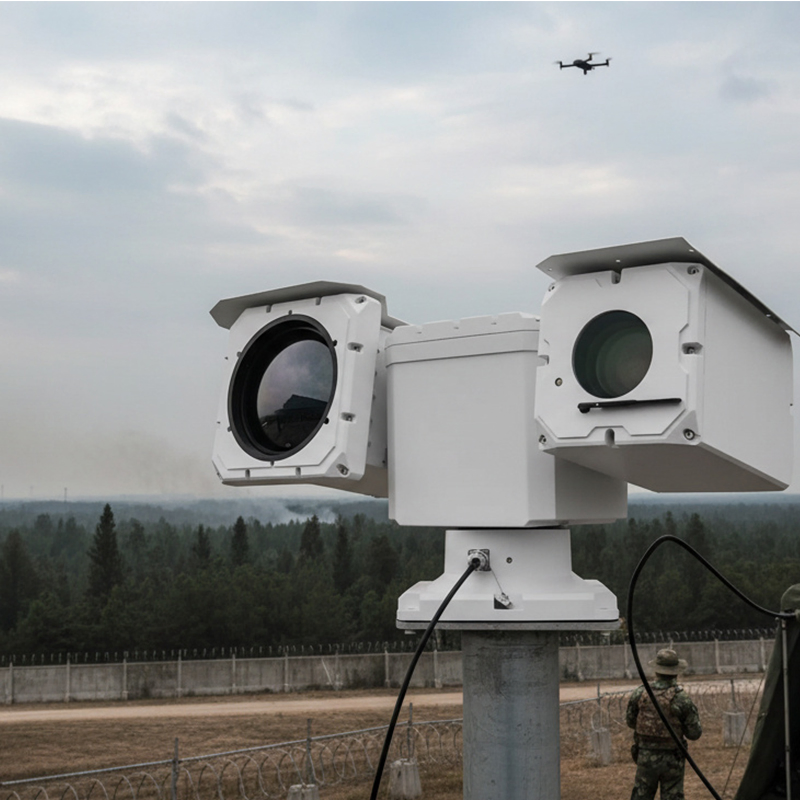

Counter-UAS, IED detection, and tactical forward observation with integrated drone tracking.
Specializing in PTZ camera systems and optical solutions since 2005, we serve maritime, surveillance, anti-drone, and defense sectors. Our focus includes mobile surveillance, power line inspection, forest fire prevention, and industrial machine vision. With an R&D team comprising 62 experts averaging 11 years of experience, we provide high-performance zoom and thermal cameras ranging from components to complete systems.
