HawkEye Camera
1 / 5
| Model | SOAR1050 Series |
| Type | CCTV Camera / Thermal Imager |
| Sensor Size | 1/1.8 Inch CMOS |
| Resolution | 4MP (Visible), 640*512 (Thermal) |
| Effective Distance | Up to 10km |
| Features | Waterproof, Auto Tracking, Smart Detection |
| Detection Targets | Human, Vehicle, Boat, UAV, Fire/Smoke |
| Positioning Accuracy | Pan 0.003°, Tilt 0.001° |

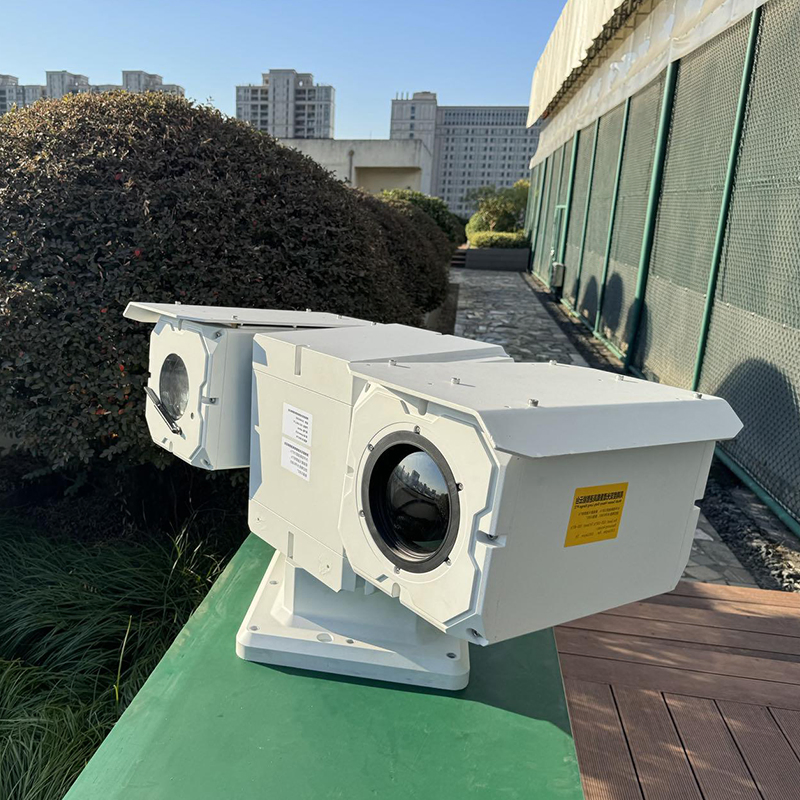

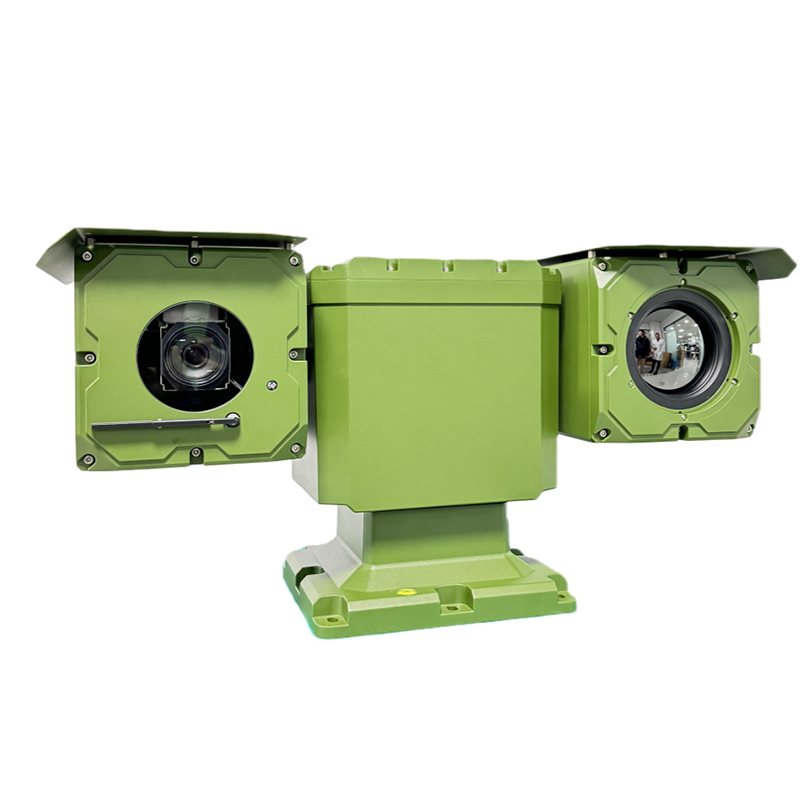

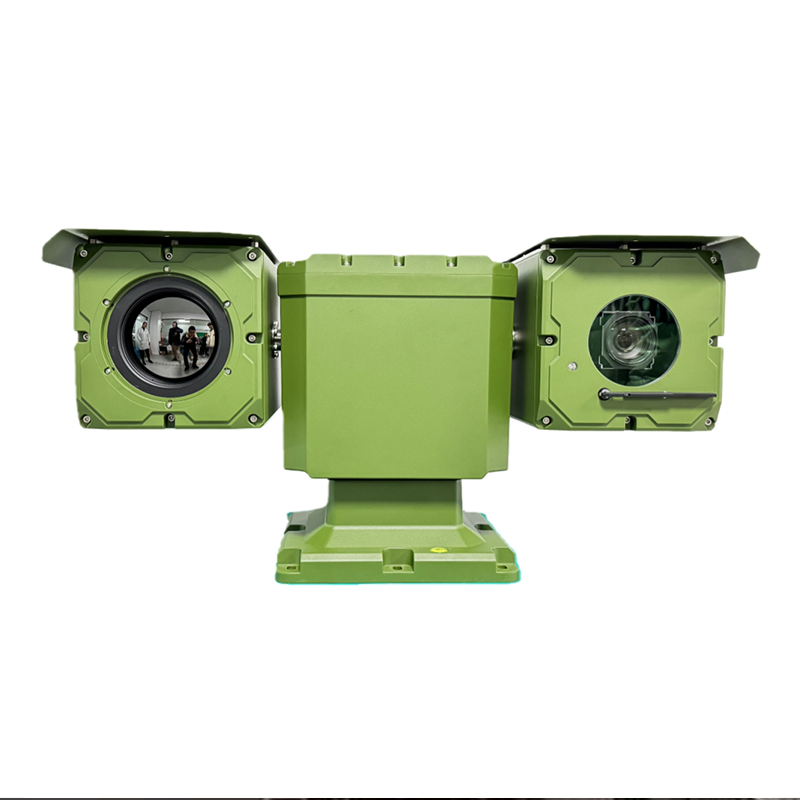

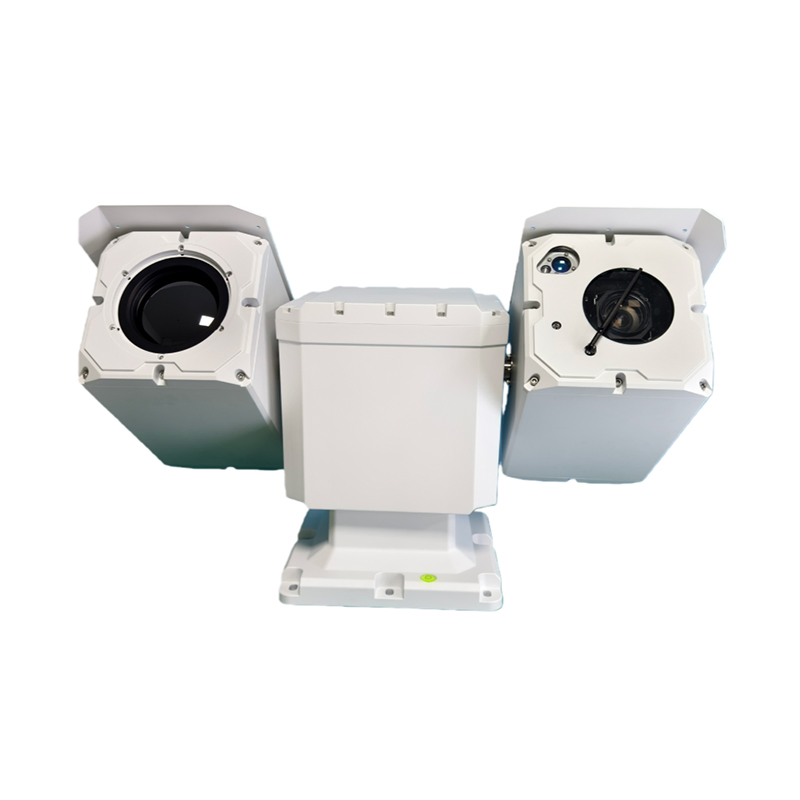

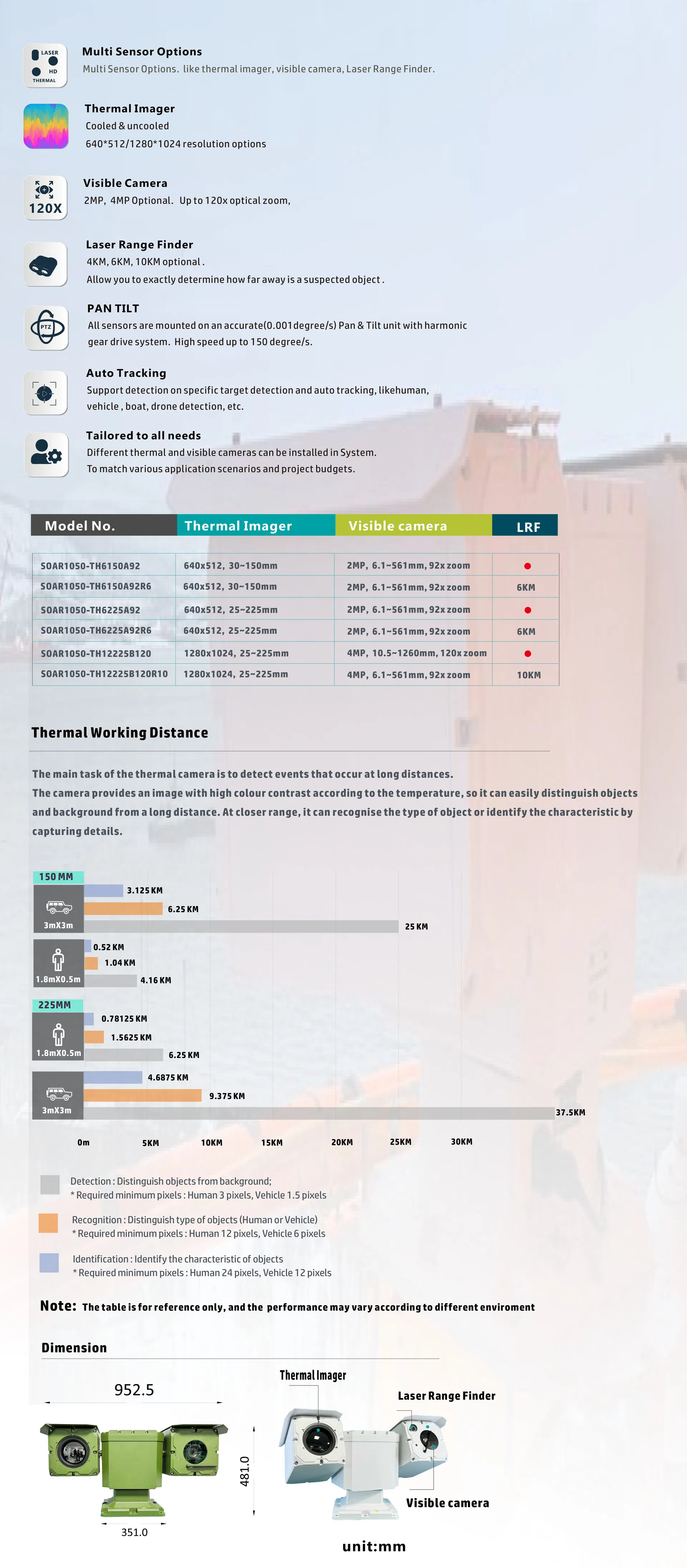

The SOAR1050 series is a heavy-duty pan-tilt-zoom system engineered for long-distance threat detection. It integrates high-performance visible sensors, thermal imaging, and an optional 10km laser rangefinder (LRF). Driven by 5T computing power, it utilizes advanced AI algorithms for high-precision monitoring in demanding environments.
| Camera Module | |
| Focal Length | 10.5-1260mm, 120x Optical Zoom |
| Min. Illumination | Color: 0.0005 Lux; B/W: 0.0001 Lux |
| Field of View | 38.4-0.34° (Wide-Tele) |
| Thermal Imager | |
| Detector Type | Vox Uncooled Infrared FPA |
| NETD | ≤50mK |
| Thermal Lens | 25~225mm Continuous Zooming |
| PTZ Performance | |
| Movement Range | 360° Pan, -90° to 90° Tilt |
| Pan/Tilt Speed | Pan: 0.05°~150°/s; Tilt: 0.05°~100°/s |
| Motor Type | Harmonic Gear Drive (High Precision) |
| Environment & Intelligence | |
| Protection Rating | IP67, 6000V Lightning Protection |
| Smart Functions | Auto Tracking, Perimeter Detection, Fire Recognition |
| Operating Temp | -40°C to 70°C |
Forest Fire Prevention
Early wildfire detection up to 8.8 km with AI smoke recognition and thermal anomaly alerts.
Border Security
Human detection at 6.3 km and vehicle detection at 19.2 km for unauthorized crossing prevention.

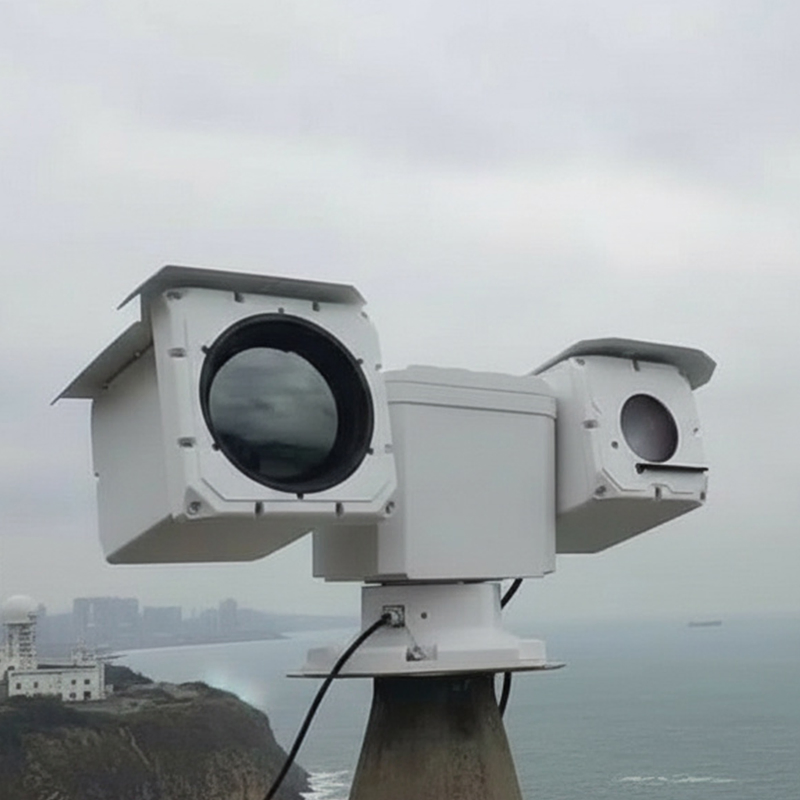

Maritime & Port
Continuous coastal surveillance with vessel tracking up to 10 km and AIS integration.
Our multispectral systems provide 24/7 protection for critical infrastructure, power plants, and defense applications, ensuring reliable operation in hazardous and extreme weather environments.
