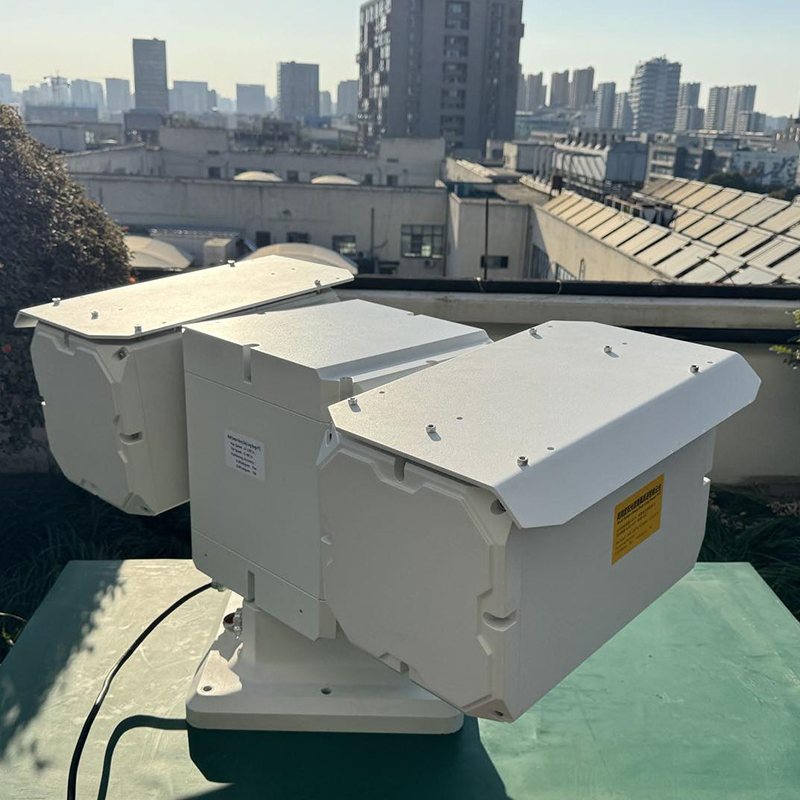

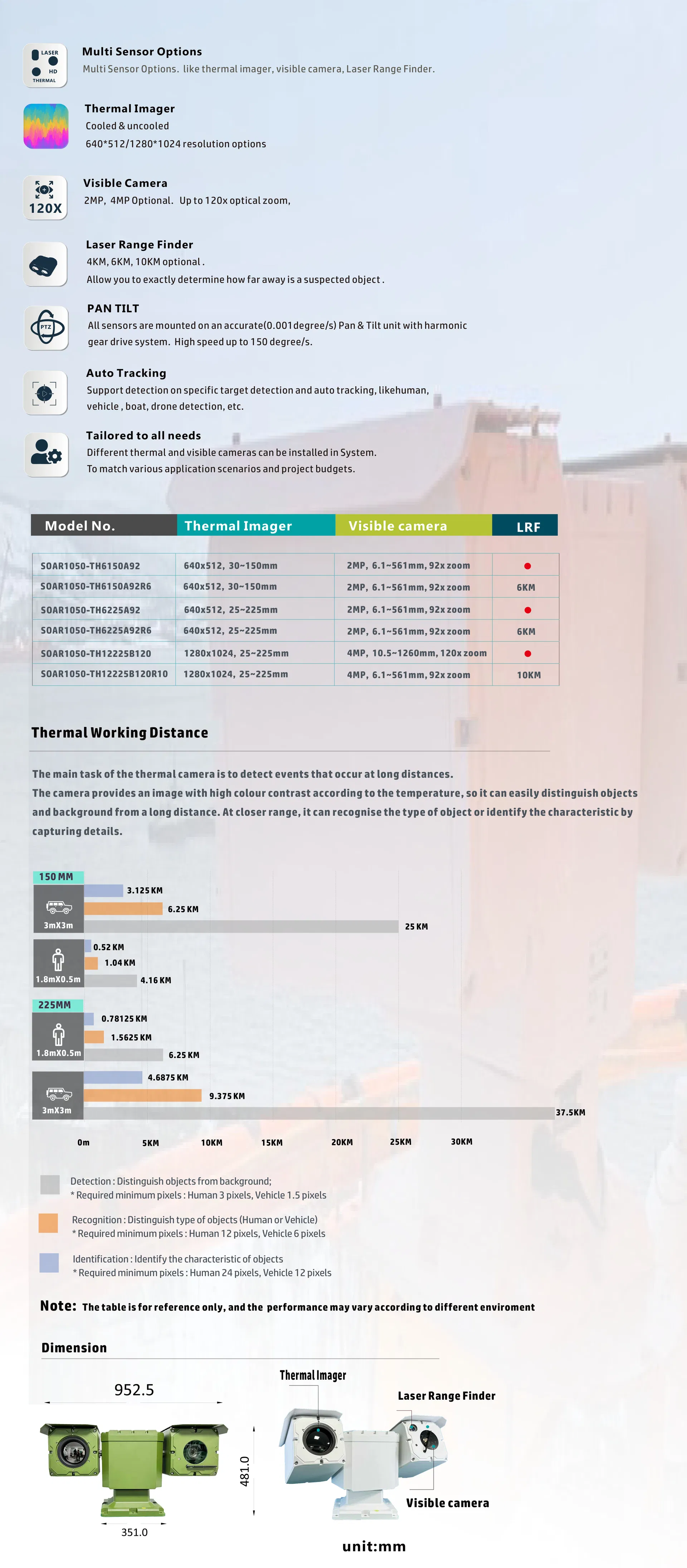

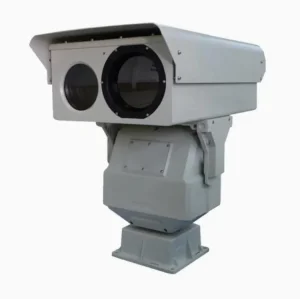

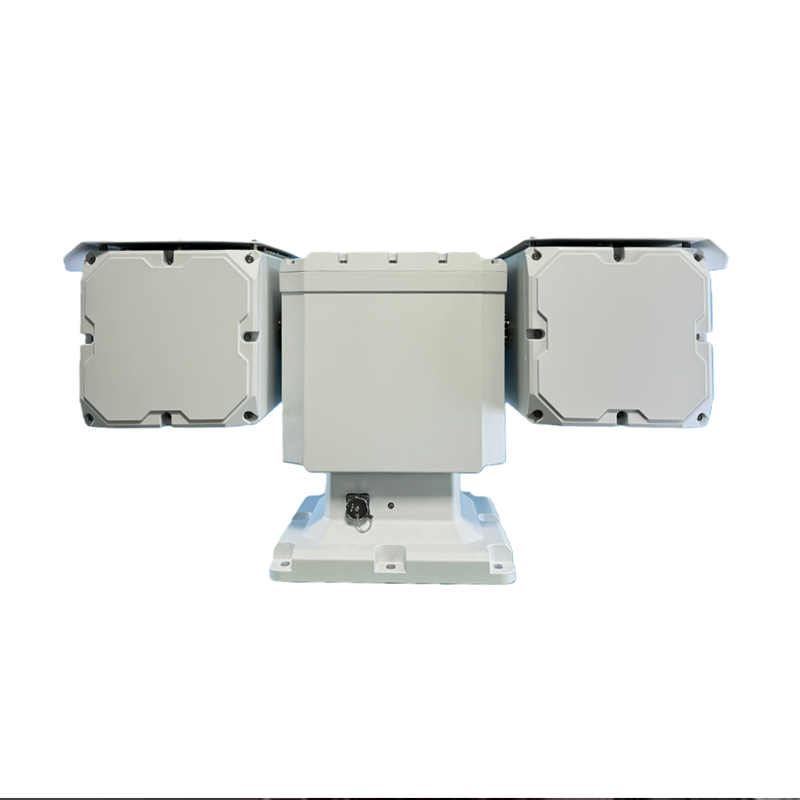

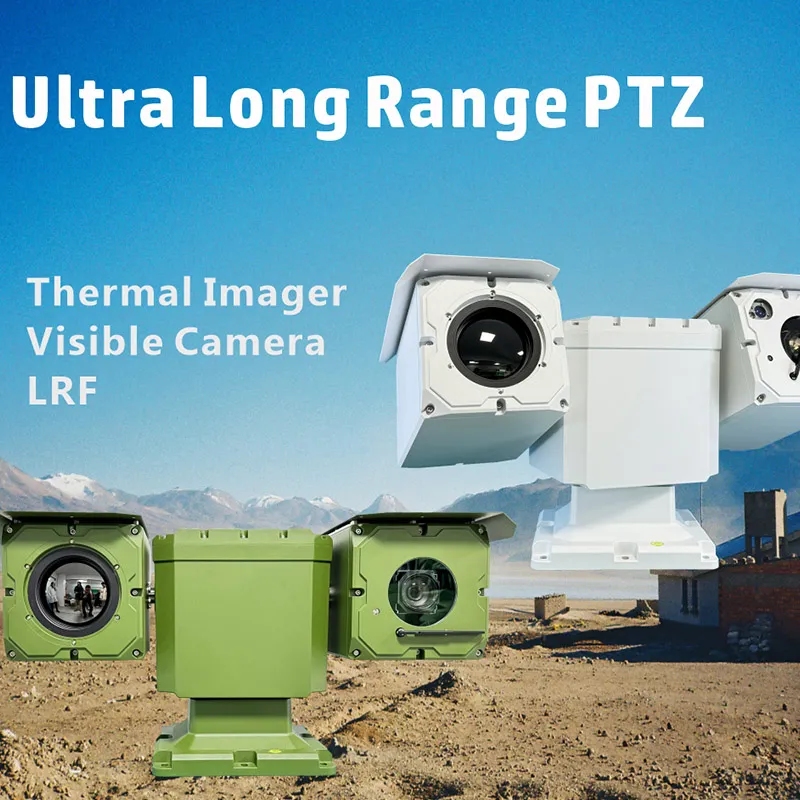

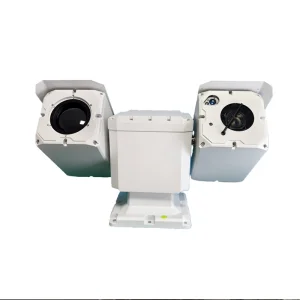

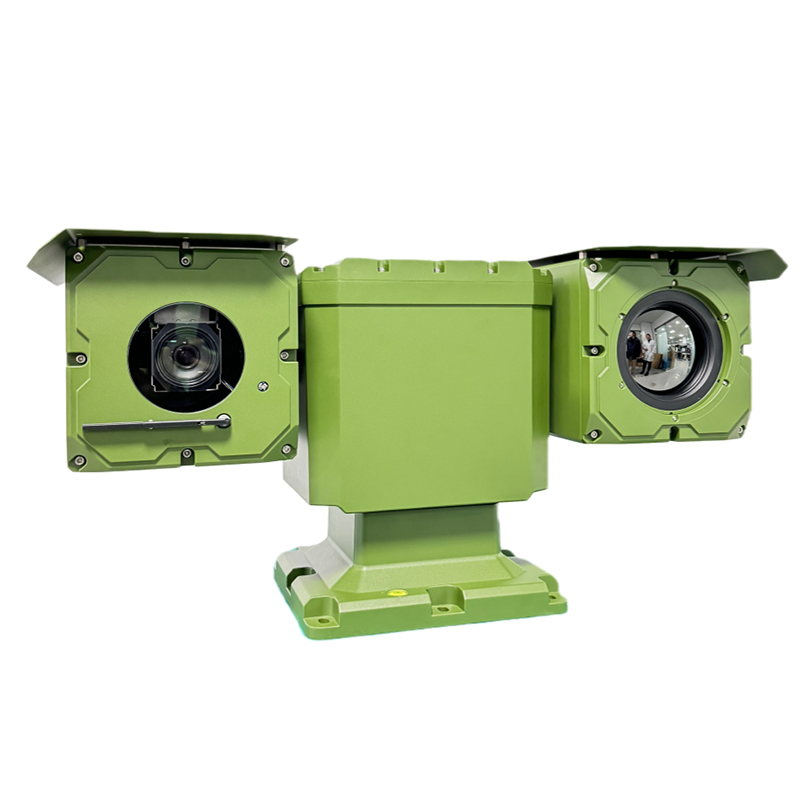

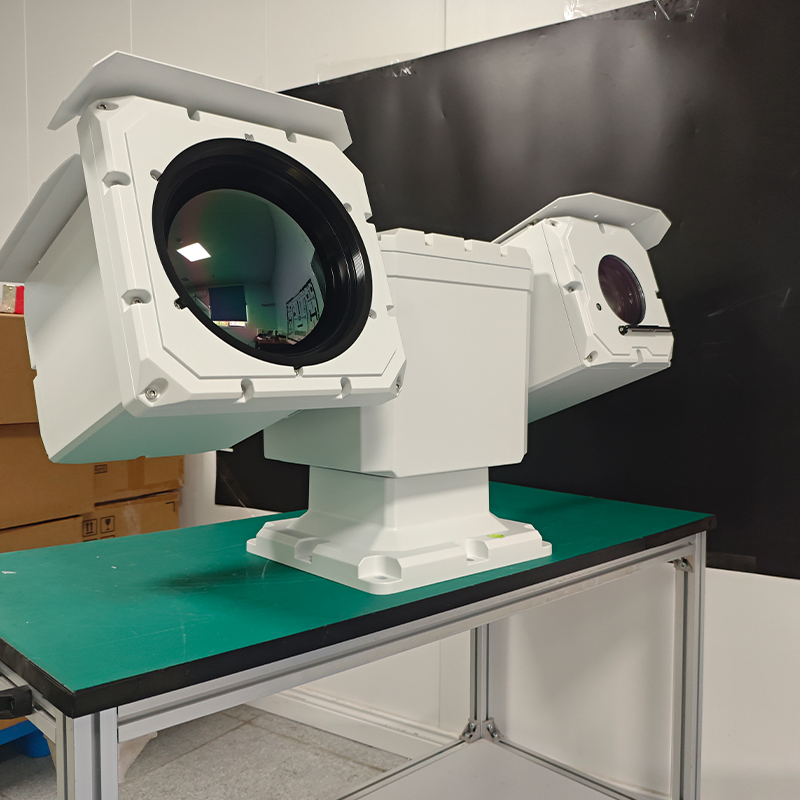

The SOAR1050 PTZ is a versatile, heavy-duty system for detecting threats over long distances. It supports various sensor configurations, including a long-range visible camera, thermal imaging, and a 10 km LRF.
With a built-in processor delivering 5 teraoperations per second, the system runs intelligent algorithms for optimized field performance. Innovative harmonic drive and closed-loop control enable high-speed (up to 150°/s) and precision (0.001°) positioning.
The system excels in tracking specialized targets like fire, smoke, vehicles, people, bikes, drones, and vessels. It is housed in rugged aluminum with an IP67 rating for harsh weather.
| Camera Module | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Focal Length | 10.5-1260mm, 120x Optical Zoom |
| Aperture Range | F2.1-F11.2 |
| Main Stream | 50Hz: 25fps (2560*1440) |
| Thermal Imager | |
| Detector Type | Vox Uncooled Infrared FPA |
| Pixel Resolution | 640*512 |
| Continuous Zooming | 25~225mm |
| PTZ Performance | |
| Movement Range | Pan: 360° / Tilt: -90° to 90° |
| Pan Speed | Configurable from 0.05°~150°/s |
| Positioning Accuracy | Pan 0.003°, Tilt 0.001° |
| Smart Detection | |
| Auto Tracking | Vehicle / human / UAV / Boat / Smoke / Fire detection |
| General | |
| Protection | IP67 Standard, 6000V Lightning Protection |
| Operating Conditions | -40°C to 70°C (-40°F to 158°F) |
Utilize thermal and visible sensors for early wildfire detection across vast forests. Detect temperature anomalies as small as 2m×2m from up to 8.8 km.
Provide critical protection with human detection at 4.2-6.3 km and vehicles up to 19.2 km. AI-driven analysis identifies unauthorized crossings.
Industrial-grade continuous thermal monitoring for virtual fences. Protect personnel and machinery from kilometers away.
Vessel detection up to 10 km. Monitor cargo and track ship movements in total darkness or harsh coastal weather.
Boost safety in tunnels and highways. Thermal imaging penetrates headlights to detect stalled vehicles or debris.

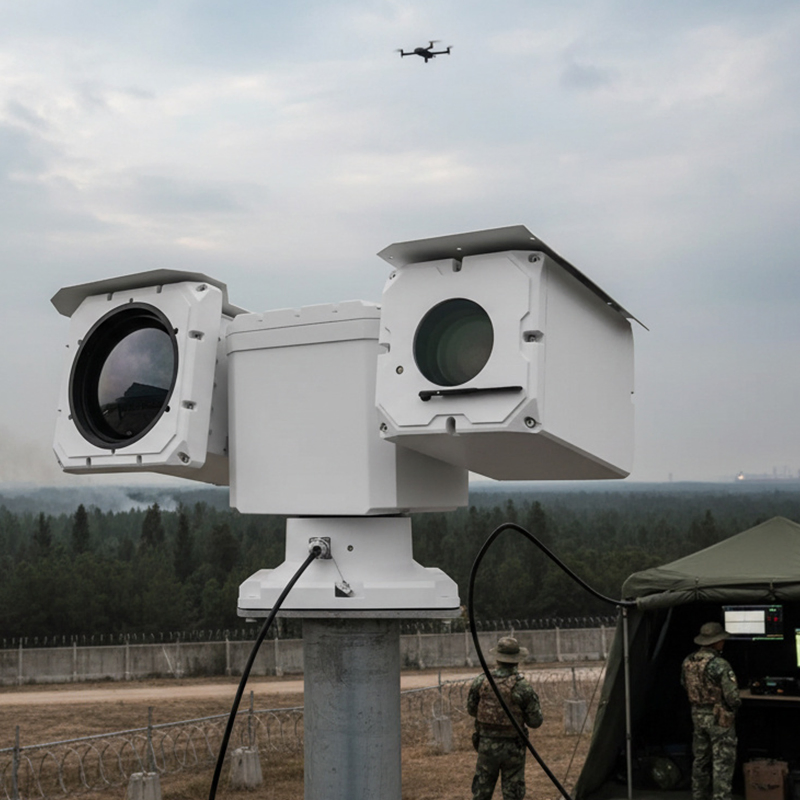

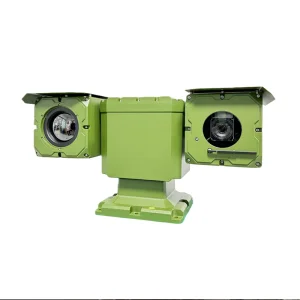

Tactical multispectral platforms for counter-UAS, IED detection, and forward observation with precise coordinate data.
Founded in 2005 and listed on NEEQ in 2016, we design PTZ cameras and optical imaging solutions serving maritime, long-range surveillance, anti-drone systems, and defense sectors. Our focus includes mobile surveillance, power line inspection, forest fire prevention, robotics cameras, and industrial machine vision. In 2019, we launched an Optical Camera Division for high-performance cameras. Our team of 160+ includes 62 R&D experts with 11 years of experience, dedicated to innovation and collaboration with clients.
