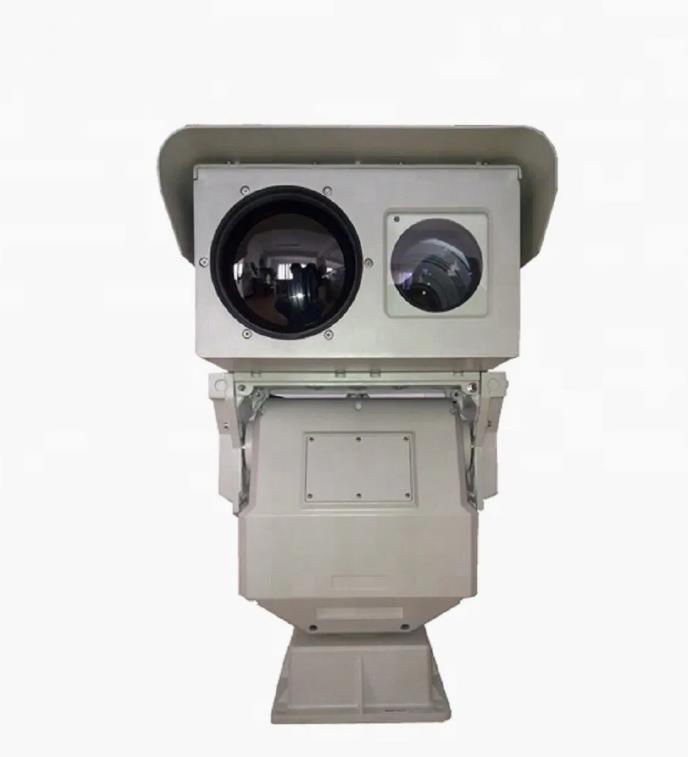

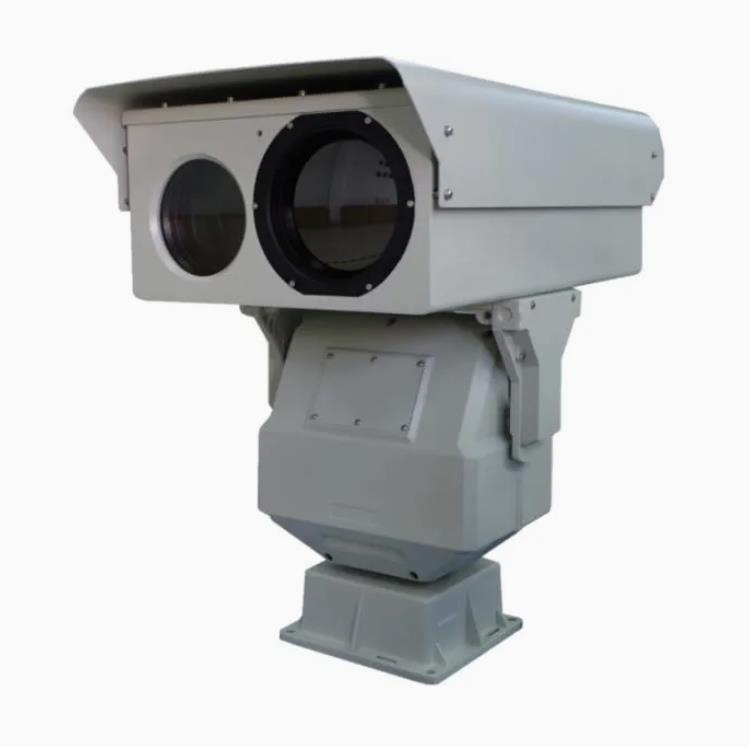

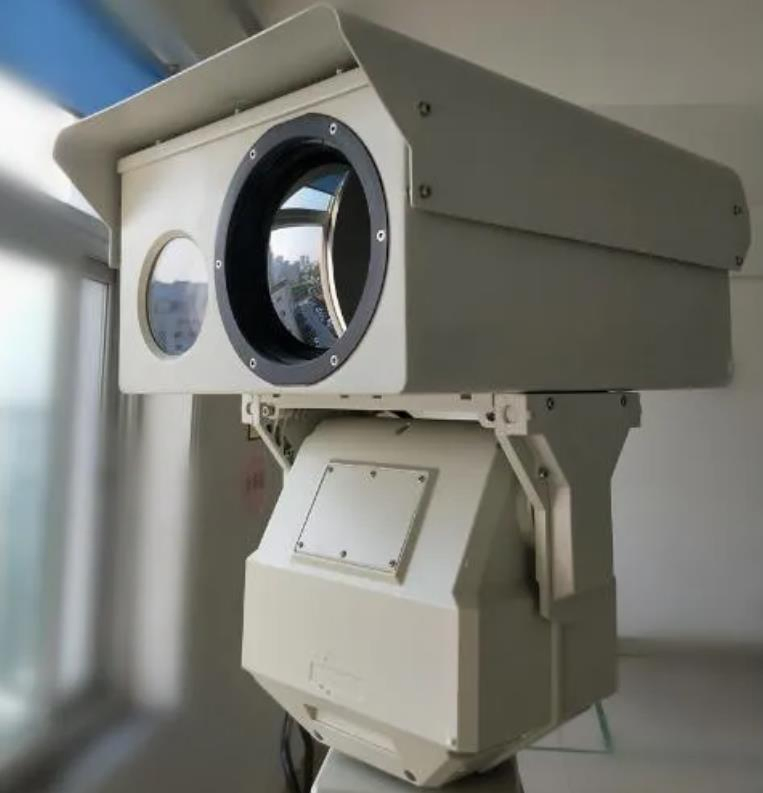

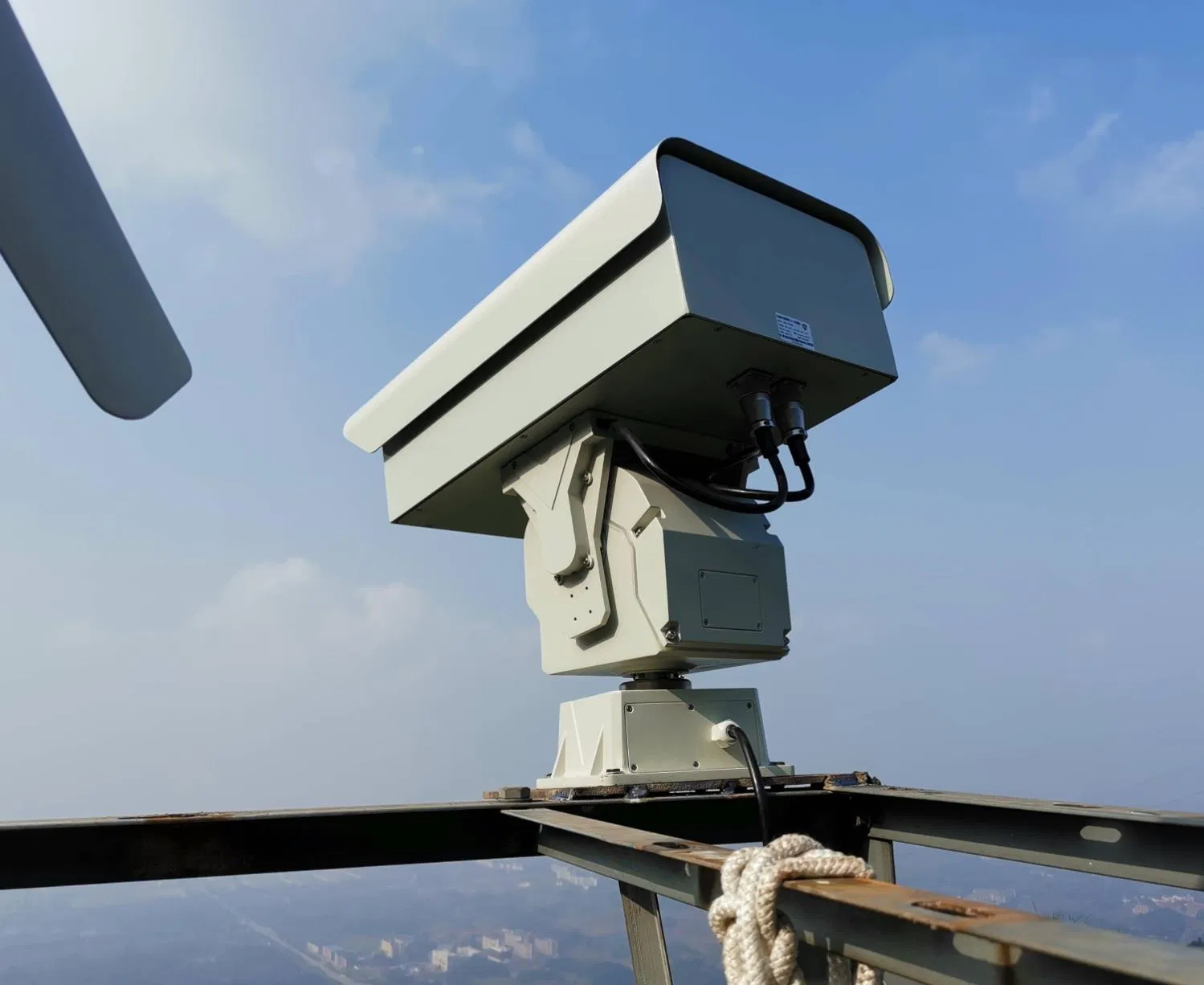

4MP 52X 1/1.8′ ′ CMOS Long Range Thermal Laser PTZ Bi-Spectrum CCTV Surveillance Camera
4MP 52X 1/1.8′ ′ CMOS Long Range Thermal Laser PTZ Bi-Spectrum CCTV Surveillance Camera
4MP 52X 1/1.8′ ′ CMOS Long Range Thermal Laser PTZ Bi-Spectrum CCTV Surveillance Camera
4MP 52X 1/1.8′ ′ CMOS Long Range Thermal Laser PTZ Bi-Spectrum CCTV Surveillance Camera
4MP 52X 1/1.8′ ′ CMOS Long Range Thermal Laser PTZ Bi-Spectrum CCTV Surveillance Camera
1 / 5
4MP 52X 1/1.8′ ′ CMOS Long Range Thermal Laser PTZ Bi-Spectrum CCTV Surveillance Camera
4MP 52X 1/1.8′ ′ CMOS Long Range Thermal Laser PTZ Bi-Spectrum CCTV Surveillance Camera
4MP 52X 1/1.8′ ′ CMOS Long Range Thermal Laser PTZ Bi-Spectrum CCTV Surveillance Camera
4MP 52X 1/1.8′ ′ CMOS Long Range Thermal Laser PTZ Bi-Spectrum CCTV Surveillance Camera
4MP 52X 1/1.8′ ′ CMOS Long Range Thermal Laser PTZ Bi-Spectrum CCTV Surveillance Camera

4MP 52X 1/1.8′ ′ CMOS Long Range Thermal Laser PTZ Bi-Spectrum CCTV Surveillance Camera

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
FV-TC61030-4252
Type
IP Camera
Sensor
CMOS
HDMI Format
4MP
Horizontal Res.
600tvl
IP Protection
IP67
Effective Distance
5km
Weight
45kg
Product Description
  • All-time and all-weather work: intelligent thermal image, high-definition visible light and laser night vision multi-mode detection.
  • Latest generation VOX detector based on MEMS technology for fine imagery in fog, rain, and snow.
  • Full HD color/black-and-white dual-mode low illumination CMOS sensor with compact long focus continuous zoom lens.
  • Heavy-duty CNC pan tilt, 360° continuous rotation observation with no dead angle and stable operation.
  • Highly intelligent: supports hot spot alarm, fireworks alarm, temperature detection, and regional intrusion detection.
  • Self-diagnosis and recovery: supports life-cycle management, fault self-inspection, and remote restart/upgrade.
  • IP full network design: single network line for video, alarm data, and positioning data interaction.
  • Super aluminum alloy shell with IP66 protection, suitable for harsh environments.
Thermal Laser PTZ Camera

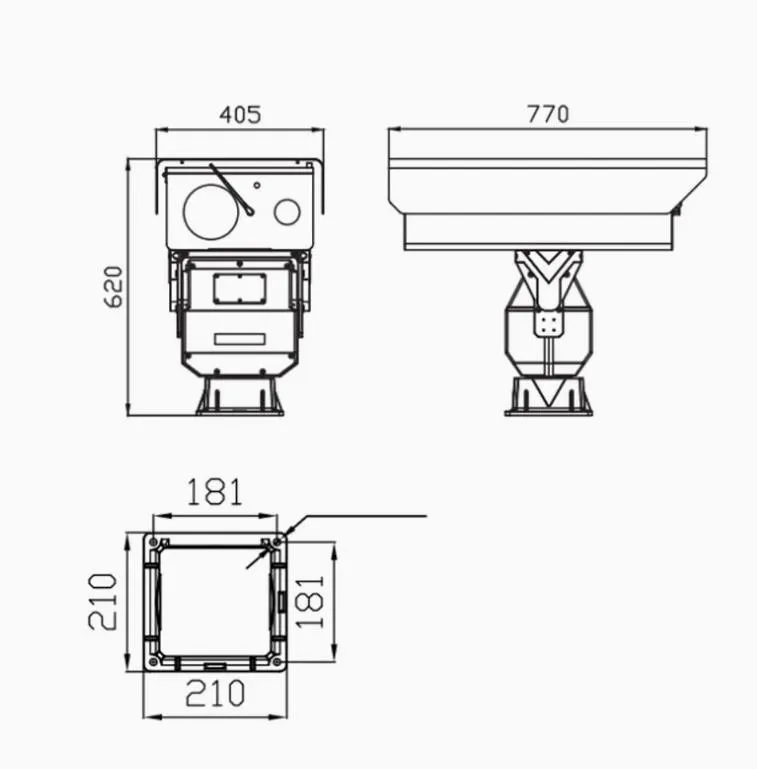

Dimension Reference
Camera Dimensions

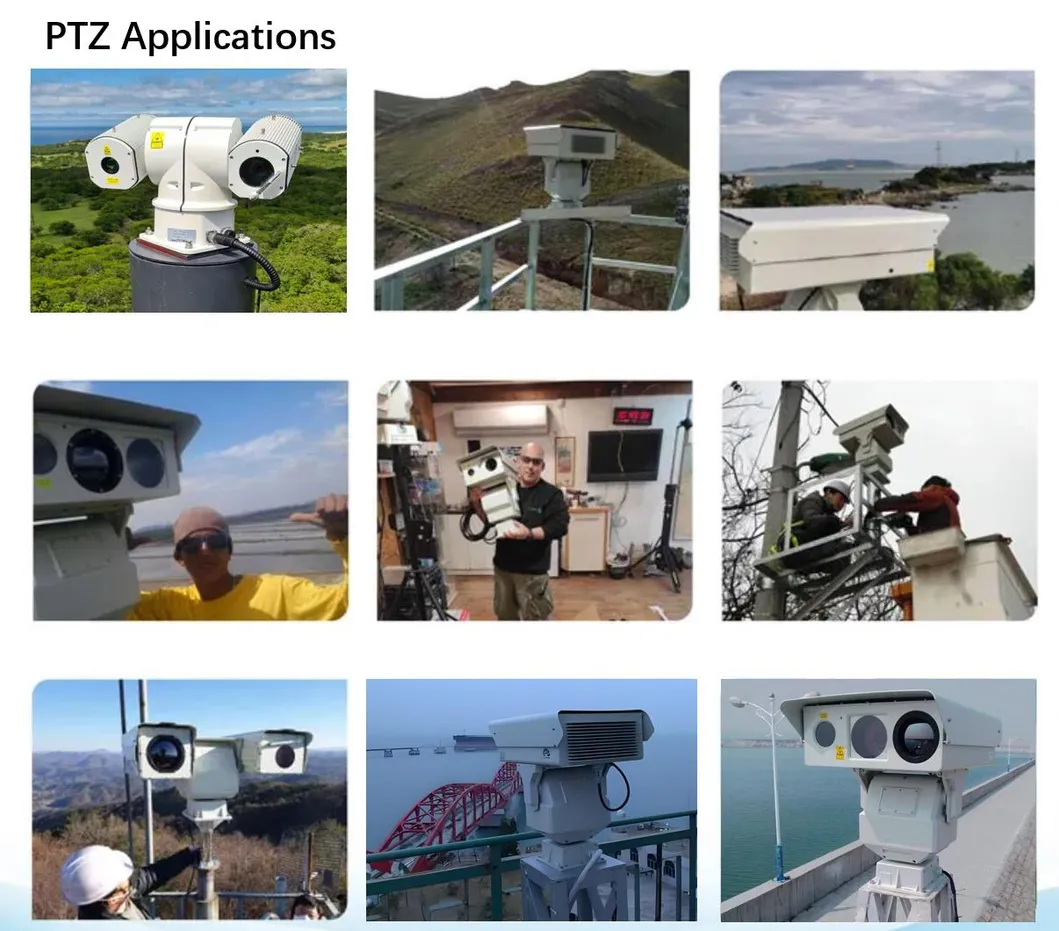

Applicable Environment

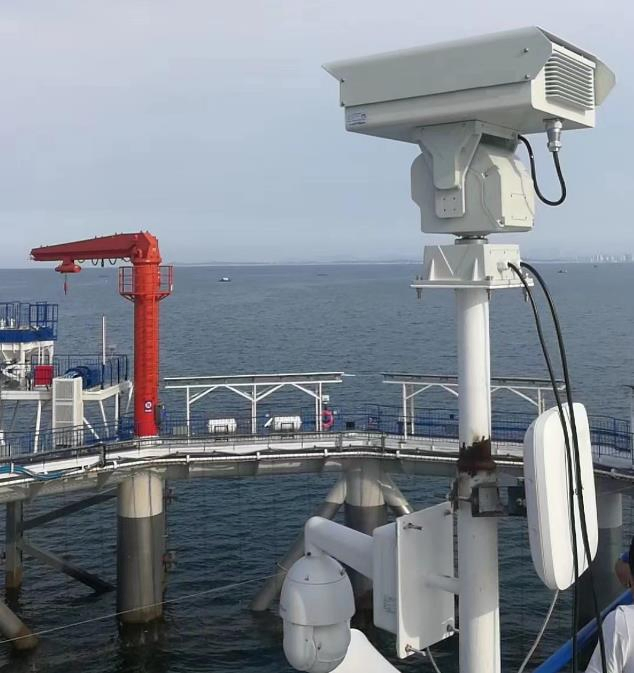

Ideal for applications in rivers, oil sites, railways, forests, airports, sea ports, and other locations requiring high video/picture quality in low or no light surroundings.

Technical Specifications
ModelFV-TC61030-4252
Detection RangeCar: 13000m, Human: 4800m. Fire source (2x2m): 10000m.
Thermal Imaging6th gen uncooled vox detector; 8~14μm; 31~155mm Lens; 640x520 Array; 40mK NETD.
Visible LightBack-illuminated ultra-low illumination star level CMOS; Color: 0.0005lux; 6.1~317mm HD zoom lens.
Intelligent FunctionsIntrusion detection, tracking, target identification (Human/Vehicle/Face), and 18 dual light fusion modes.
Pan TiltHorizontal 0~360° continuous; Pitch -45°~+45°; 3000 preset positions; 16 cruise routes.
EnvironmentWorking Temperature: -40ºC ~ +60ºC; IP66 Protection; 6000V Surge Protection.
Production & Factory

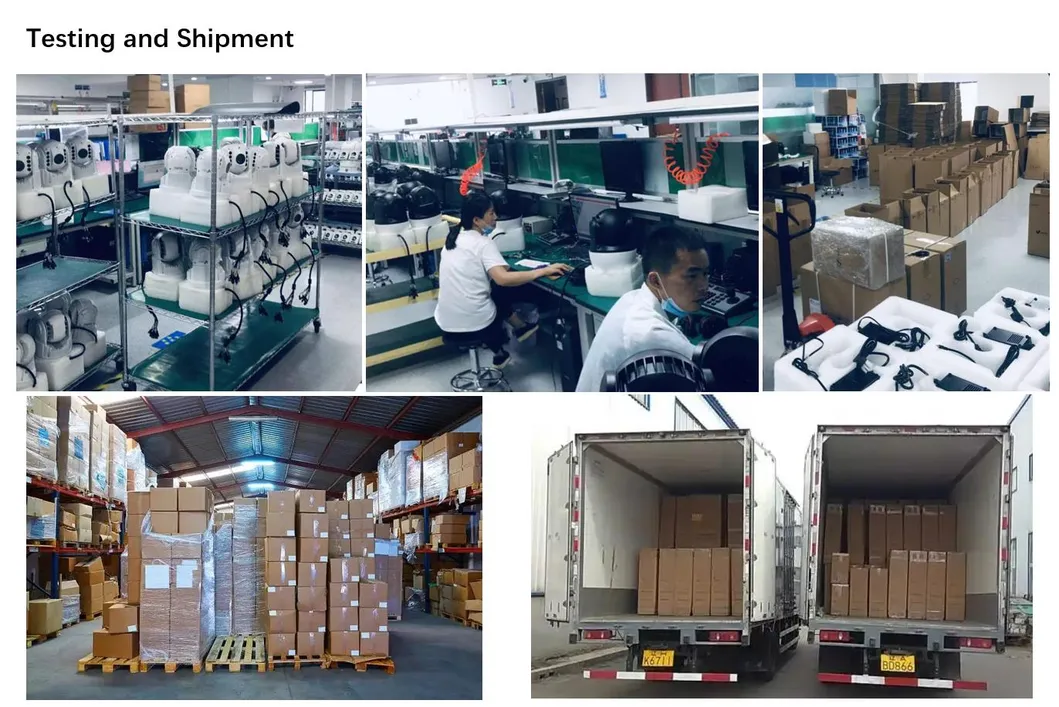

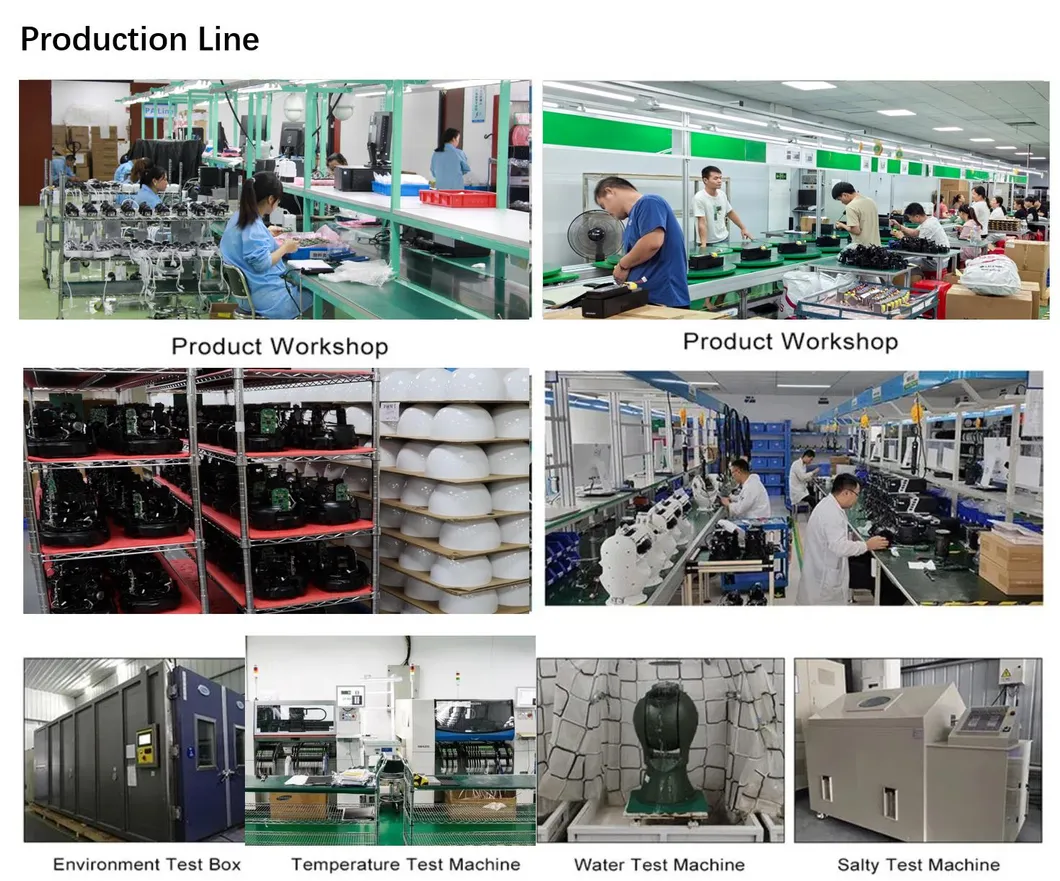

Production Process 1 Production Process 2 Testing Lab Final Assembly
Frequently Asked Questions
Do you support sample orders?
Yes, we support sample orders for testing. Customers are responsible for the basic sample cost and shipping fees.
What is the lead time for orders?
Sample orders typically take 3-5 days, while bulk orders range from 3-5 weeks depending on items and quantity.
Is there a Minimum Order Quantity (MOQ)?
There is no MOQ limit for sample orders. For customized bulk orders, MOQ may apply and can be discussed on a case-by-case basis.
How long is the warranty period?
Our standard warranty is 2 years. We also offer extended warranty periods at a reasonable additional cost.
What kind of after-sales service do you provide?
We offer free technical training, 24/7 online technical support, and product return services for repairs.
What are your payment terms?
Usually, we require T/T 30% as a deposit and 70% before delivery. We also accept PayPal and Western Union for sample orders.

Related Products

State-of-The-Art Long-Range PTZ Camera for Coast Defense Surveillance

State-of-The-Art Long-Range PTZ Camera for Coast Defense Surveillance
4MP 52X 1/1.8′ ′ CMOS Long Range Thermal Laser PTZ Bi-Spectrum CCTV Surveillance Camera

4MP 52X 1/1.8′ ′ CMOS Long Range Thermal Laser PTZ Bi-Spectrum CCTV Surveillance Camera
Comprehensive Long-Range Surveillance PTZ Camera with Smart Detection

Comprehensive Long-Range Surveillance PTZ Camera with Smart Detection
All-in-One Multispectral Long-Range PTZ Camera for Coast Defense

All-in-One Multispectral Long-Range PTZ Camera for Coast Defense
Comprehensive Long-Range PTZ Surveillance Camera with Multi-Sensor Capabilities

Comprehensive Long-Range PTZ Surveillance Camera with Multi-Sensor Capabilities
High-Tech Surveillance PTZ Camera with Smart Autotracking Features

High-Tech Surveillance PTZ Camera with Smart Autotracking Features
PC664c1 PTZ Camera Supports Thermal Imaging Resolution of 2 Megapixels (640*512) . Supports Visible Light Resolution of 4 Megapixels (2688*1520)

PC664c1 PTZ Camera Supports Thermal Imaging Resolution of 2 Megapixels (640*512) . Supports Visible Light Resolution of 4 Megapixels (2688*1520)

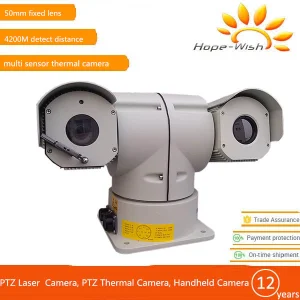

Thermal Infrared Camera for Patrol Car
