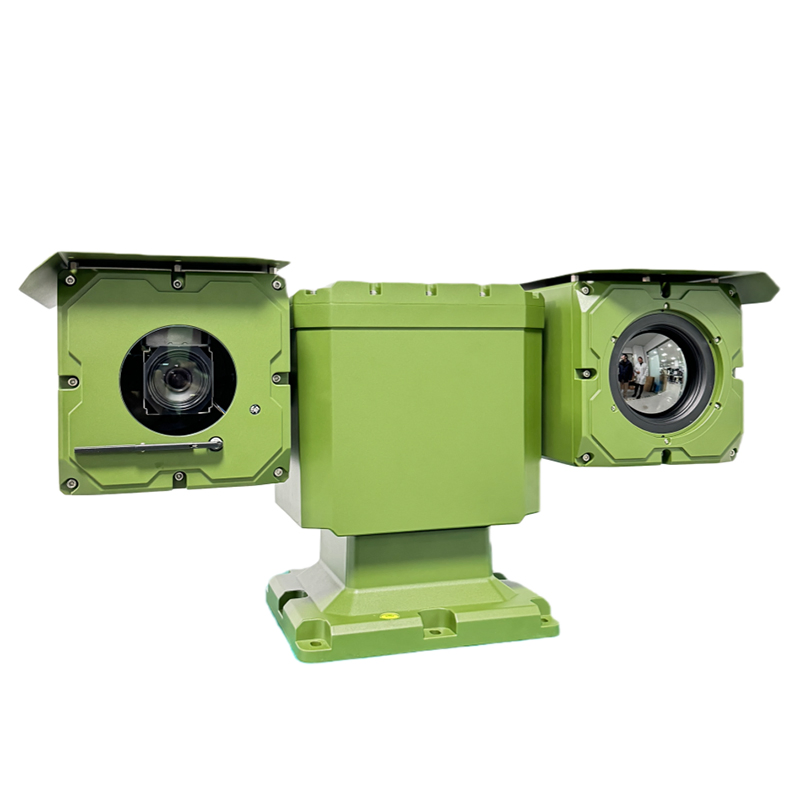

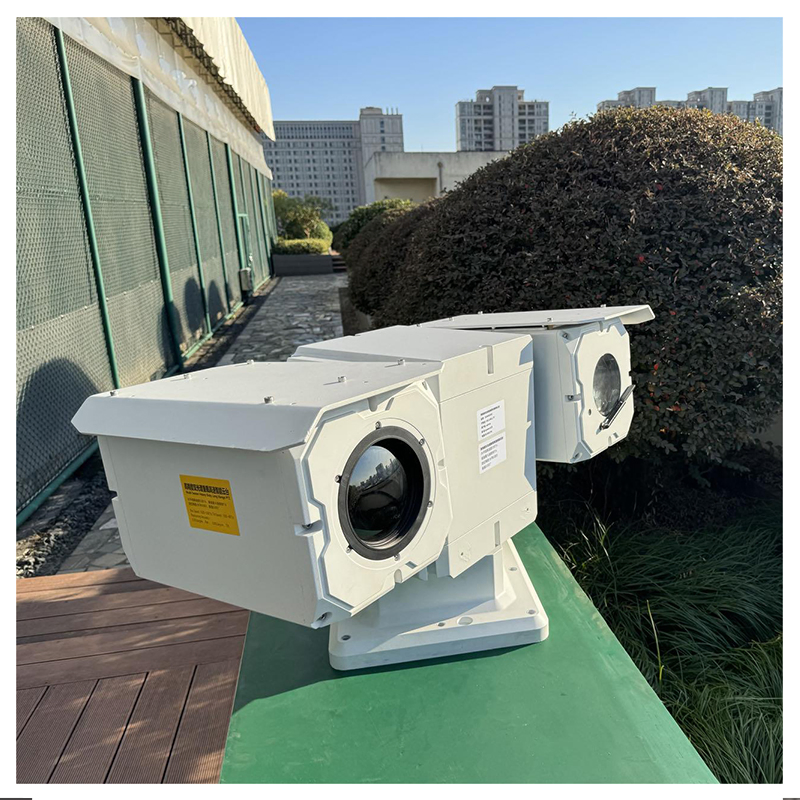

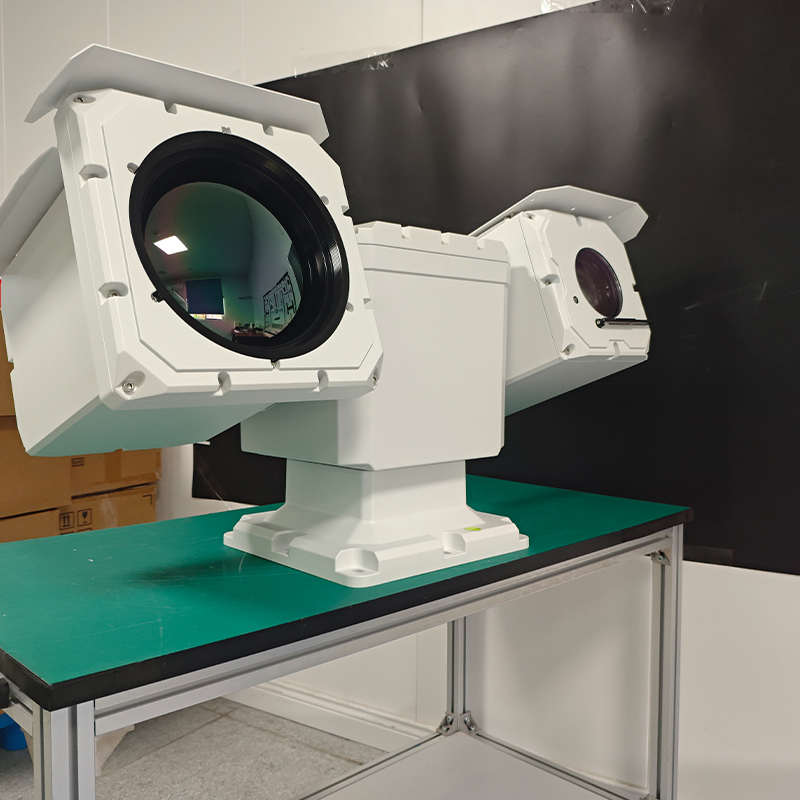

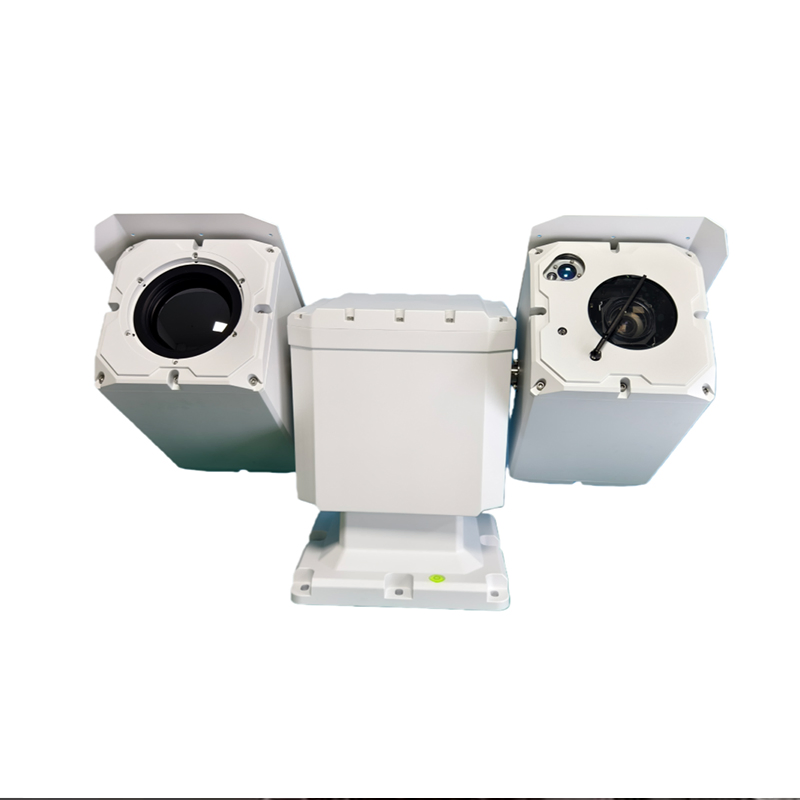

The SOAR1050 series PTZ is a versatile, heavy-duty pan-tilt-zoom system for precise threat detection over long distances. It supports various sensor configurations, including a long-range visible camera, cooled/uncooled thermal imaging cameras, and a 10 km laser rangefinder (LRF).
With a built-in hardware processor at 5 teraoperations per second, the system runs intelligent algorithms for optimized field performance. Innovative harmonic drive and closed-loop control tech enable high-speed (up to 150°/s) and precision (0.001°) positioning.
Housed in rugged aluminum with an IP67 rating, the system withstands harsh weather and tracks targets like fire, smoke, vehicles, people, bicycles, drones, and vessels.
| Camera Module | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Focal Length | 10.5-1260mm, 120x Optical Zoom |
| Minimum Illumination | Color: 0.0005 Lux; B/W: 0.0001 Lux |
| Thermal Imager | |
| Detector Type | Vox Uncooled Infrared FPA |
| Resolution / Pitch | 640*512 / 12μm |
| Continuous Zoom | 25~225mm |
| PTZ Performance | |
| Movement Range | Pan: 360° continuous; Tilt: -90° to 90° |
| Positioning Accuracy | Pan 0.003°, Tilt 0.001° |
| Motor Drive | Harmonic gear drive |
| Smart & Network | |
| Smart Detection | Vehicle/Human/UAV/Boat/Fire detection and auto tracking |
| Protection | IP67, 6000V Lightning & Surge Protection |
| Power | DC 48V/6A±25% |
Multispectral PTZ cameras combine thermal and visible sensors for early wildfire detection. Detects temperature anomalies as small as 2m×2m up to 8.8 km. AI smoke recognition reduces false alarms.
Offers human detection at 4.2-6.3 km and vehicle detection up to 19.2 km. AI-driven analysis identifies unauthorized crossings in real-time. Fog-penetration ensures clear imaging.
Secures power plants and nuclear facilities with continuous thermal monitoring. Detects overheating and anomalies before failures occur. Explosion-proof systems available.
24/7 surveillance with vessel detection up to 10 km. Tracks ship movements and monitors cargo in darkness or severe weather. Integrated radar and AIS support.
Monitors tunnels and runways to spot stalled vehicles or debris. AI traffic analysis catches accidents and wrong-way drivers in real-time.
