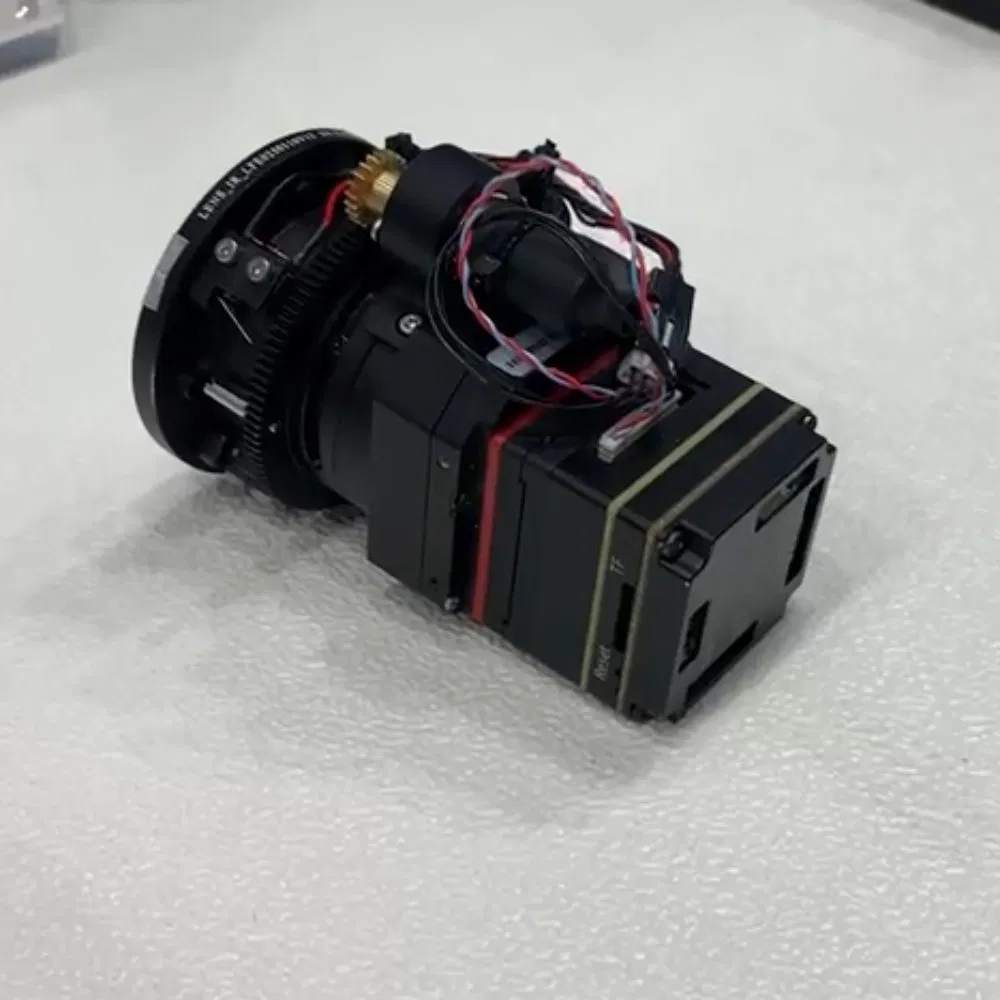

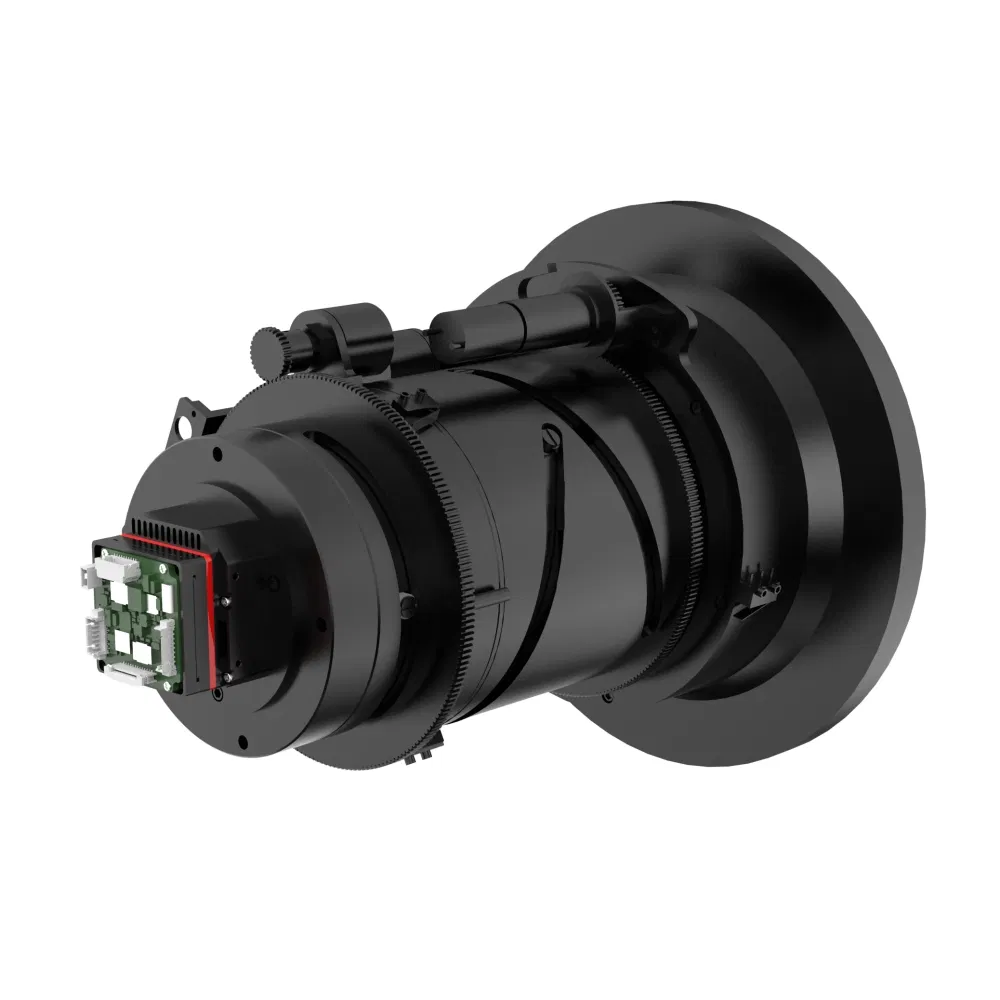

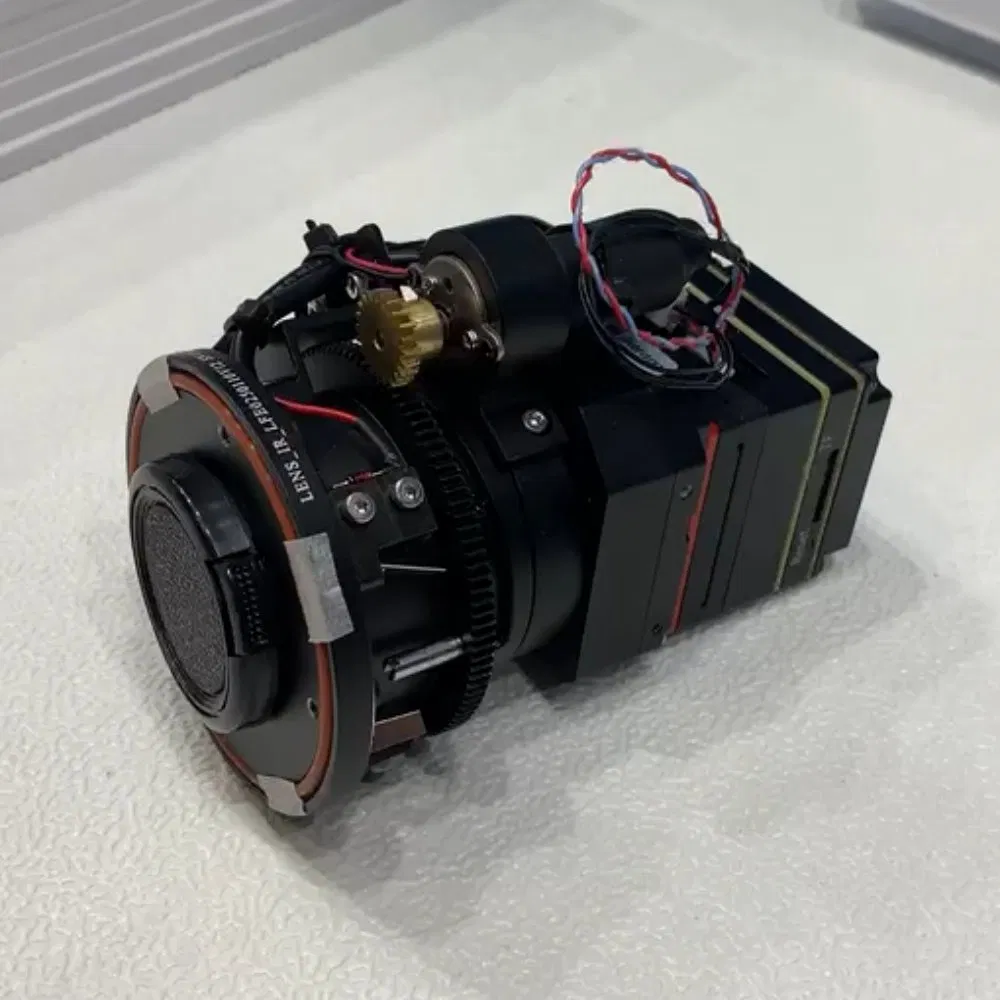

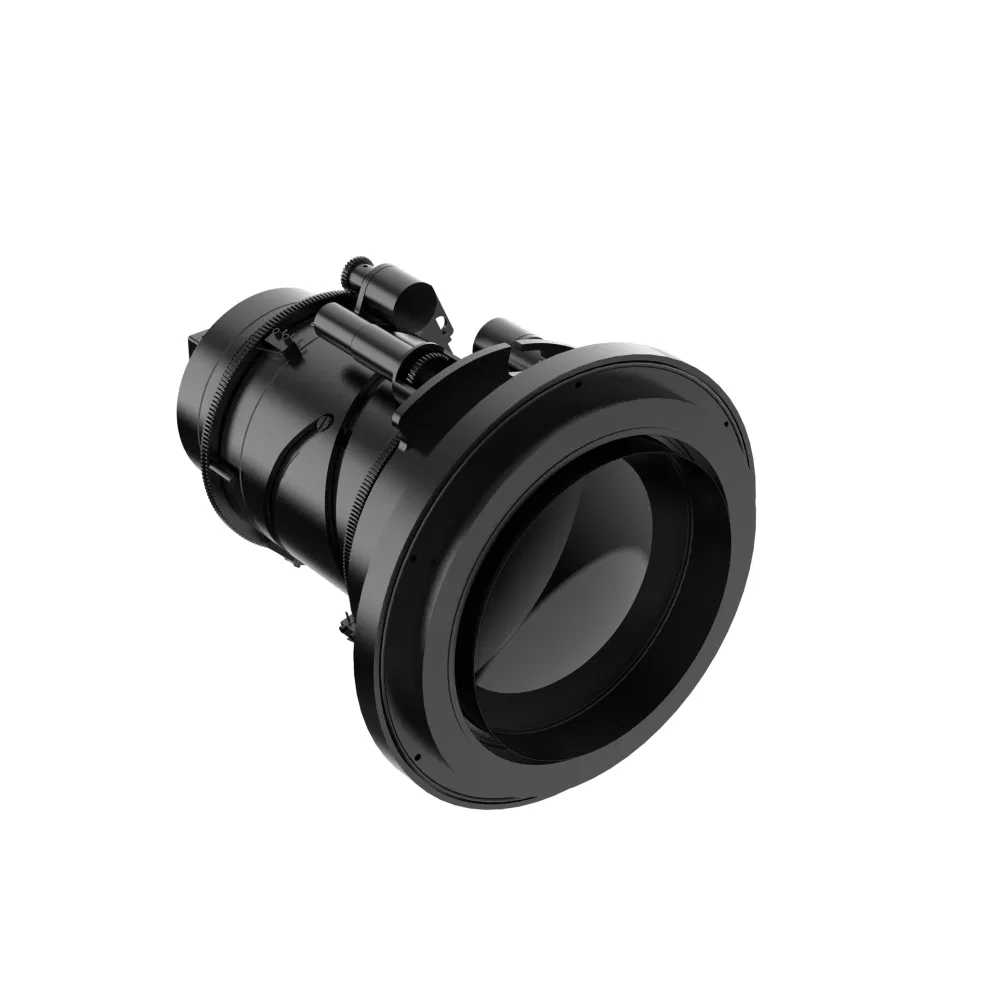

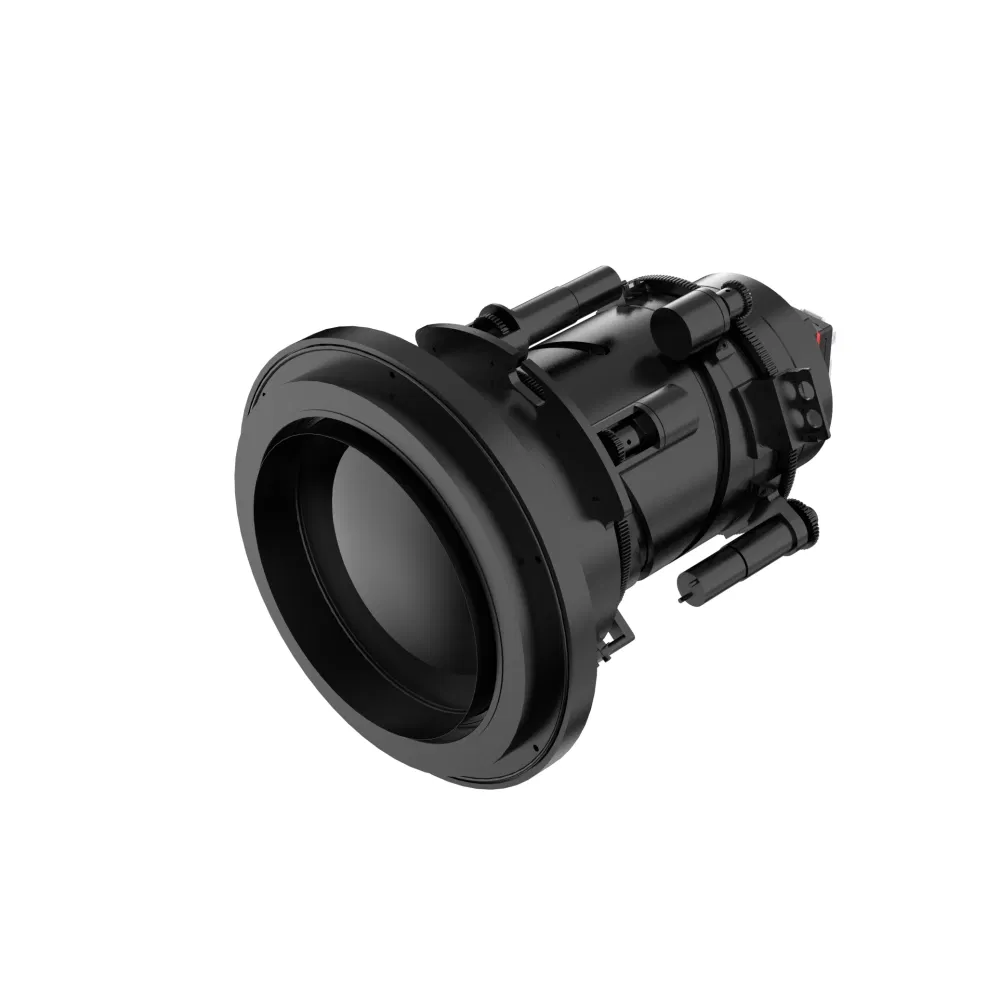

Athermalized Prime & Electric Focusing Lenses Supported Continuous Zoom Auto-Focus Infrared System
Athermalized Prime & Electric Focusing Lenses Supported Continuous Zoom Auto-Focus Infrared System
Athermalized Prime & Electric Focusing Lenses Supported Continuous Zoom Auto-Focus Infrared System
Athermalized Prime & Electric Focusing Lenses Supported Continuous Zoom Auto-Focus Infrared System
Athermalized Prime & Electric Focusing Lenses Supported Continuous Zoom Auto-Focus Infrared System
1 / 5
Athermalized Prime & Electric Focusing Lenses Supported Continuous Zoom Auto-Focus Infrared System
Athermalized Prime & Electric Focusing Lenses Supported Continuous Zoom Auto-Focus Infrared System
Athermalized Prime & Electric Focusing Lenses Supported Continuous Zoom Auto-Focus Infrared System
Athermalized Prime & Electric Focusing Lenses Supported Continuous Zoom Auto-Focus Infrared System
Athermalized Prime & Electric Focusing Lenses Supported Continuous Zoom Auto-Focus Infrared System

Athermalized Prime & Electric Focusing Lenses Supported Continuous Zoom Auto-Focus Infrared System

Customization: Available
Function Type: Thermal Imaging System
Detection Type: Infrared Detector
Send Inquiry

Product Description

Basic Info
Model NO.
Turing F640
Output Signal Type
Digital Type
Production Process
Vox
Certification
RoHS
Lens Type
Athermalized/Prime Electric Focus
Focus Mode
Manual/Automatic
Electric Focus
Support
Electric Zoom
Support
Communication Interface
RS-232/Uart
Fire Alarm
Support
Resolution
640×512
Pixel Pitch
12μm
Frame Rate
50Hz
Spectral Band
8~14μm
Product Description

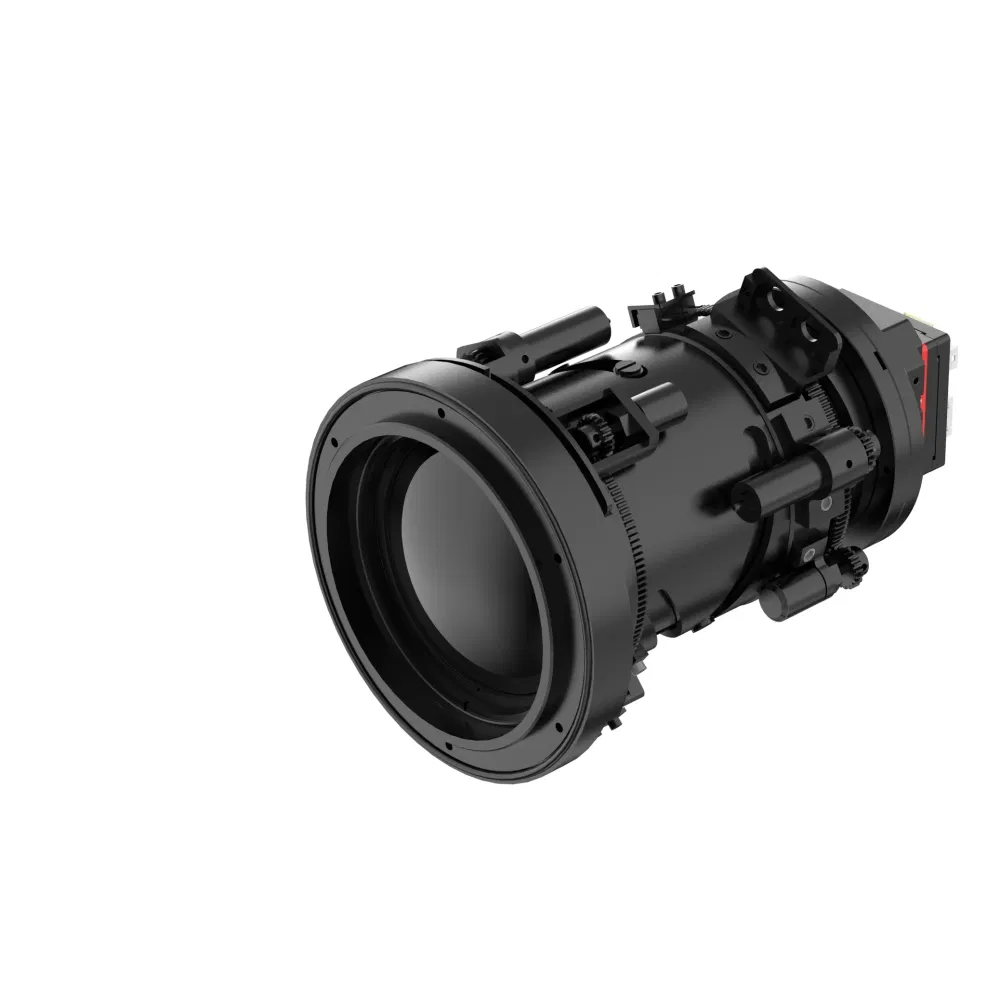

Turing F640 Infrared Module
Turing F640 uncooled infrared module has a built-in high-sensitivity VOx infrared detector, providing a consistently high-performance kernel, ultimate image algorithms, and technology of lens control, bringing a new experience for long-distance monitoring. The product can be widely used in application scenarios such as perimeter security, high-altitude observation, forest fire prevention, and water area monitoring.
Product Highlights
🚀
All-Weather, All-Scenario Ultra-Fast Focusing By optimizing the lens control technology and employing a series of continuous zoom lenses, this product achieves full focus in all temperature ranges. Automatic focusing algorithms are deeply optimized to achieve ultra-fast focusing in 1 second.
👁️
Providing Sharp Infrared Images The module upgrades the image algorithm to the new generation and optimizes the image for special scenarios such as forests, sea, sky, and rainy and foggy weather.
🔍
Providing Optimized Lens It supports athermalized prime lenses, prime electric focusing lenses, and continuous zoom lenses. It can realize electric focus, continuous zoom, automatic focus, and defocusing compensation functions.
💻
Multiple Video Interfaces, Easy for Secondary Development Support interfaces such as BT.601, BT.1120, SDI, USB, Cameralink, and HDMI. It provides multiple SDK, shortening the development cycle and reducing costs.
Specifications
ModelTuring F640 Imaging
Performance Characteristics
Detector TypeUncooled VOx infrared detector
Resolution640×512
Pixel Pitch12μm
Frame Rate50Hz
Spectral Band8~14μm
NETD≤40mK@25ºC,F#1.0
Image Adjustment
PaletteSupport (20)
Digital Zoom1.0~8.0× continuous zoom
Image ProcessingNon-uniformity correction/Noise reduction/Detail enhancement
Network & Intelligence
Fire AlarmSupport
Network ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, etc.
Platform AccessModbus TCP, MQTT, ONVIF, GB28181, SDK
Intelligent DetectionRegional intrusion, tripwire, vehicle recognition
Environment Adaptability
Operating Temp-45ºC~+70ºC
Storage Temp-45ºC~+85ºC
Humidity5-95%, non-condensing
Application Scenarios
Perimeter Surveillance
Perimeter Surveillance
Forest Fire Prevention
Forest Fire Prevention
Security Monitoring
Security Monitoring
Urban High-Altitude Observation
Urban High-Altitude Observation
Facility 1
Facility 2
Facility 3
Facility 4

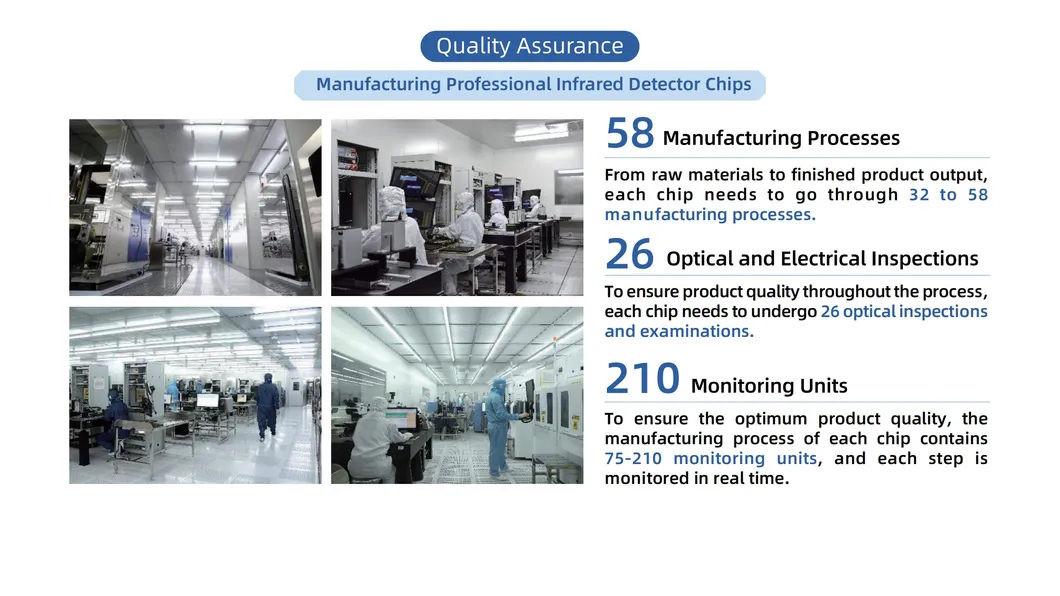

Facility 5

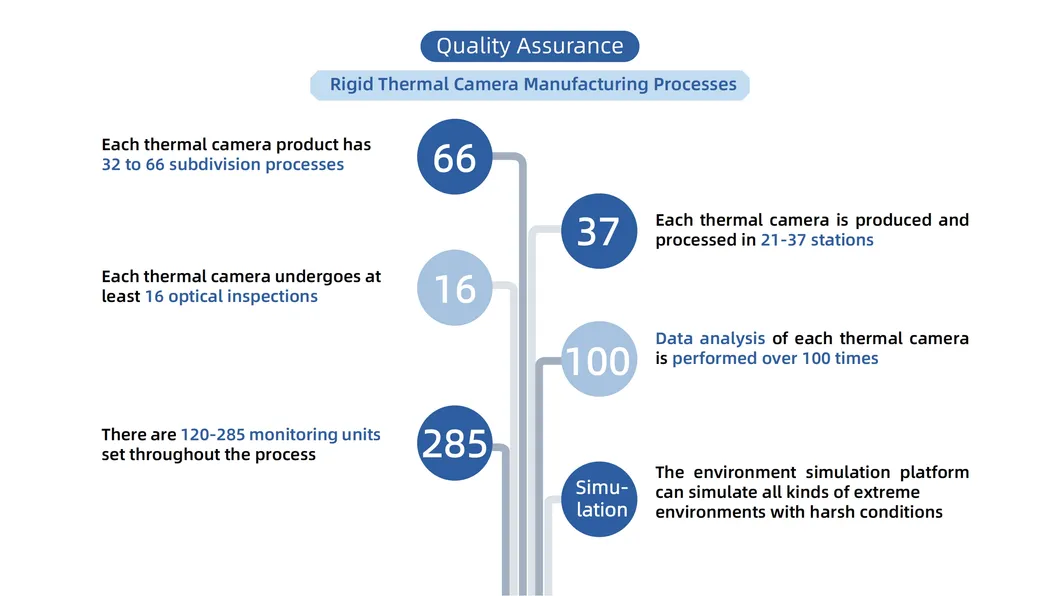

Facility 6
FAQ
Q1: How can we guarantee quality?
A: We have professional infrared detector chip manufacturing, rigid thermal camera manufacturing process, perfect quality management system, and CNAS certification reliability test platform.
Q2: How long is your delivery time?
A: For small order, it usually takes 7 working days. For OEM order, please check the shipping time with us.
Q3: What's the MOQ?
A: MOQ depends on the specific product.
Q4: What's your payment terms?
A: Our payment terms include L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
Q5: What's the product warranty policy?
A: Products come with a 1-year warranty. Refer to the instructions for more details.
Q6: How about after-sale support?
A: We provide lifetime Technical Support; our engineers respond to technical requests within 24 hours.
