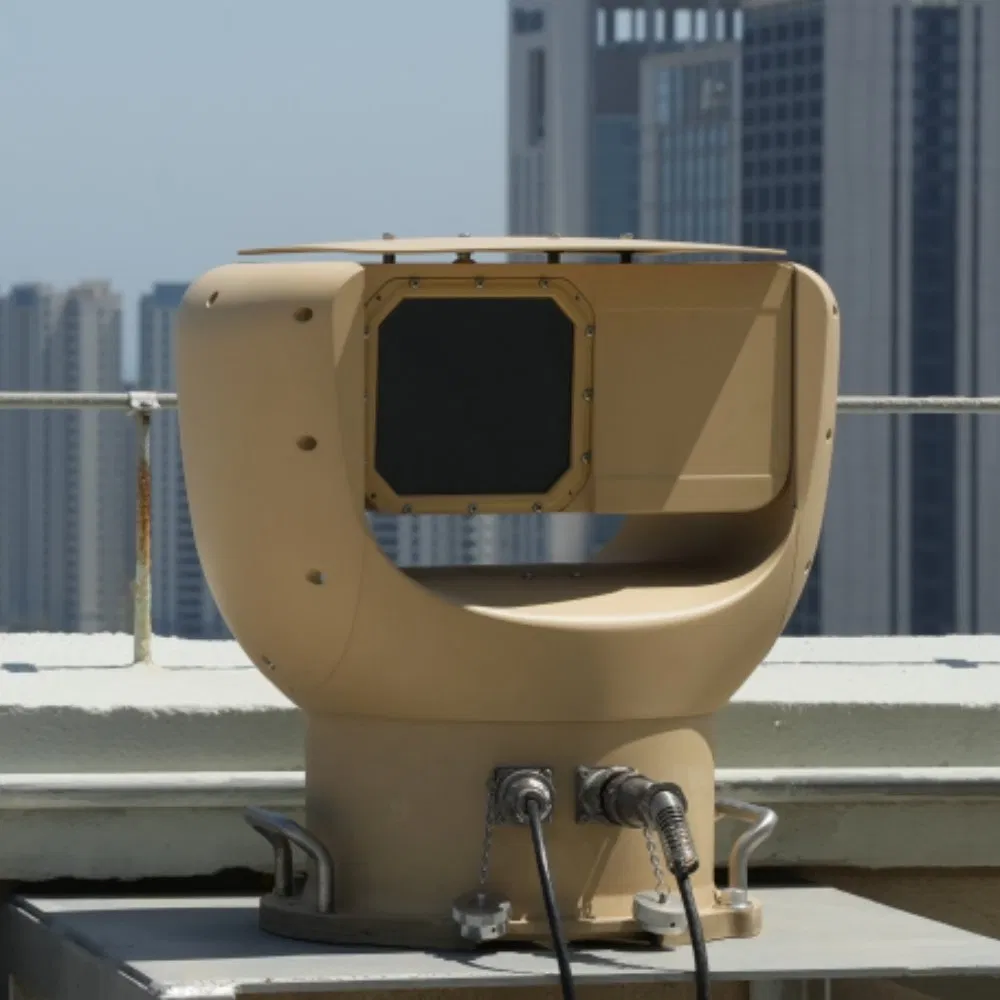

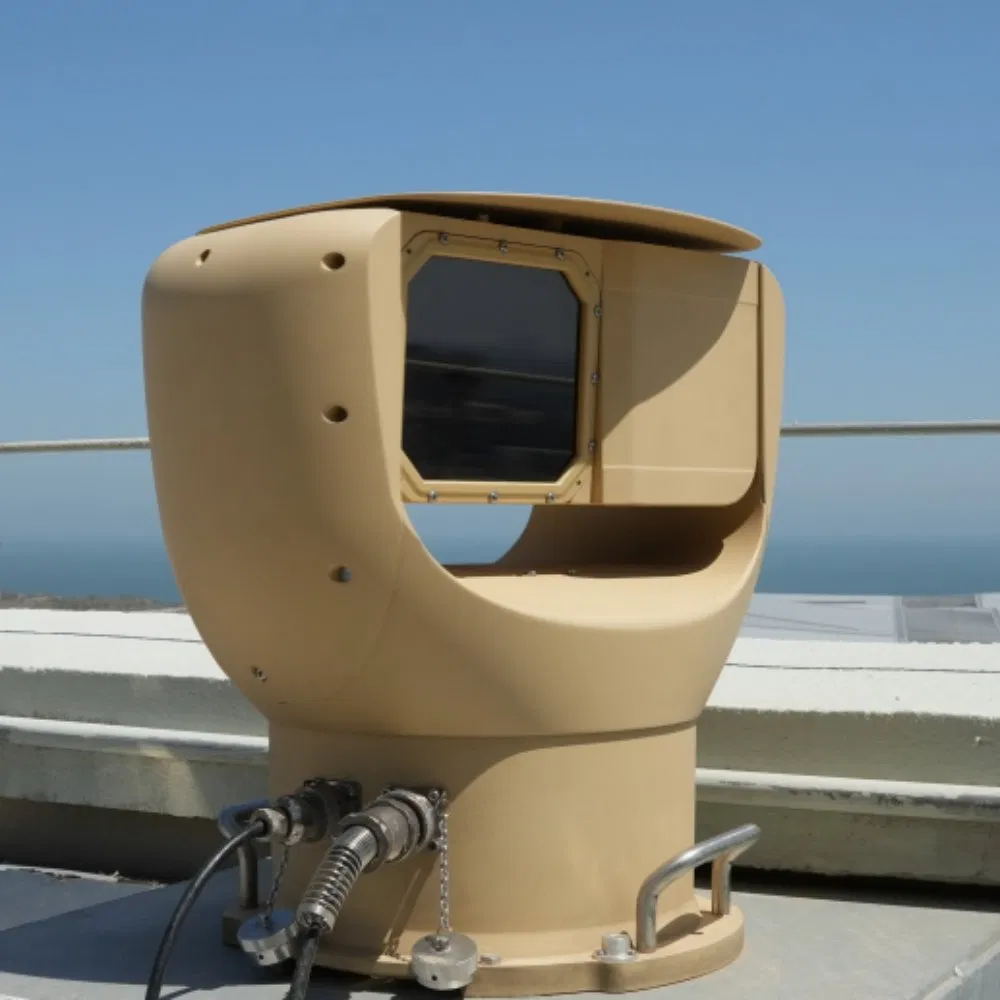

High-Capacity 360° Monitoring System with 8km Ship Detection and Solar Energy Compatibility
High-Capacity 360° Monitoring System with 8km Ship Detection and Solar Energy Compatibility
High-Capacity 360° Monitoring System with 8km Ship Detection and Solar Energy Compatibility
High-Capacity 360° Monitoring System with 8km Ship Detection and Solar Energy Compatibility
High-Capacity 360° Monitoring System with 8km Ship Detection and Solar Energy Compatibility
1 / 5
High-Capacity 360° Monitoring System with 8km Ship Detection and Solar Energy Compatibility
High-Capacity 360° Monitoring System with 8km Ship Detection and Solar Energy Compatibility
High-Capacity 360° Monitoring System with 8km Ship Detection and Solar Energy Compatibility
High-Capacity 360° Monitoring System with 8km Ship Detection and Solar Energy Compatibility
High-Capacity 360° Monitoring System with 8km Ship Detection and Solar Energy Compatibility

High-Capacity 360° Monitoring System with 8km Ship Detection and Solar Energy Compatibility

Customization: Available
Technology: Infrared
Style: Panoramic Camera
Send Inquiry

Product Description

i

Basic Information

Model NO.
SilentW-U1275
Type
Panoramic Camera
Certification
CE, FCC, RoHS, EMI/EMC
Feature
Waterproof / Weatherproof, High Definition, Auto BLC
Effective Distance
≧30m
Remote Control
With Remote Control
Detector Type
Uncooled
Detector Resolution
1280×1024
Focal Length
75mm
Panoramic Image Resolution
39200×512
Horizontal Fov Range
360°
Protection
IP66
Work Environment
-40℃ ~+ 70℃
Specification
382× 260× 386
📝

Product Description

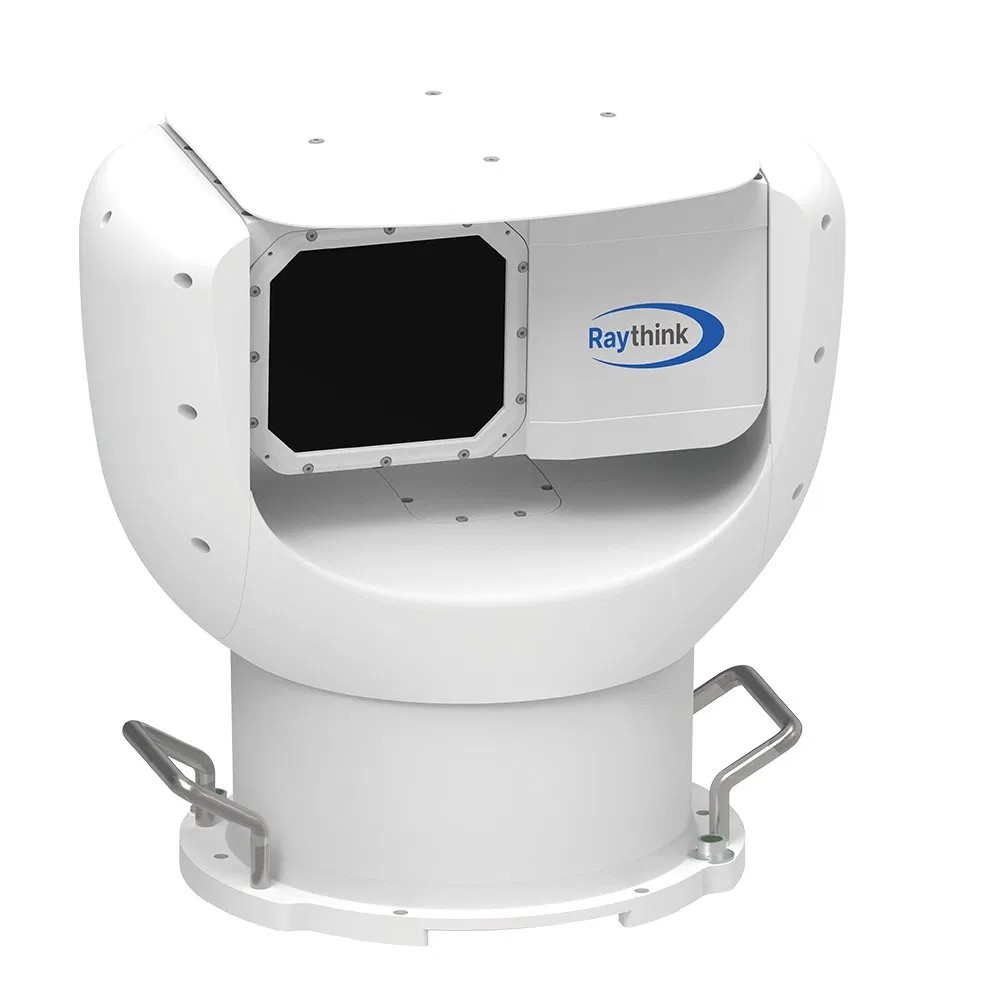

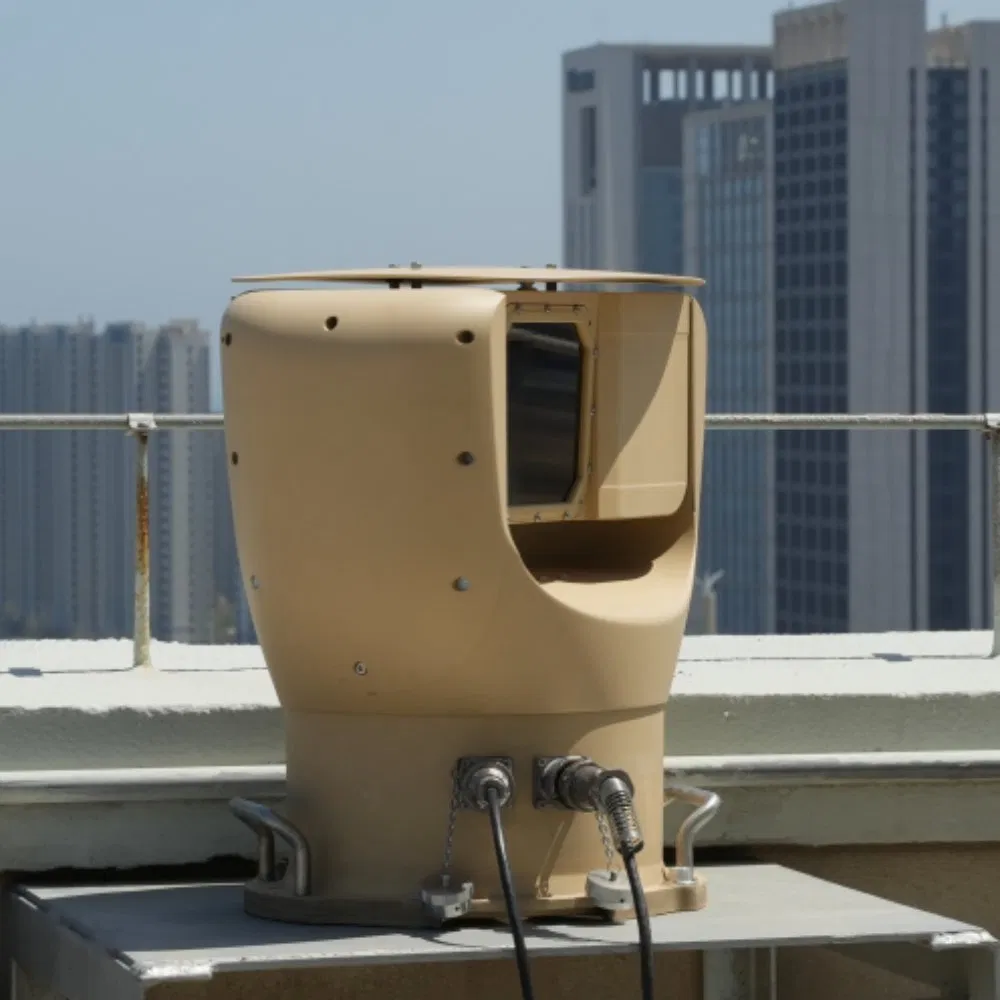

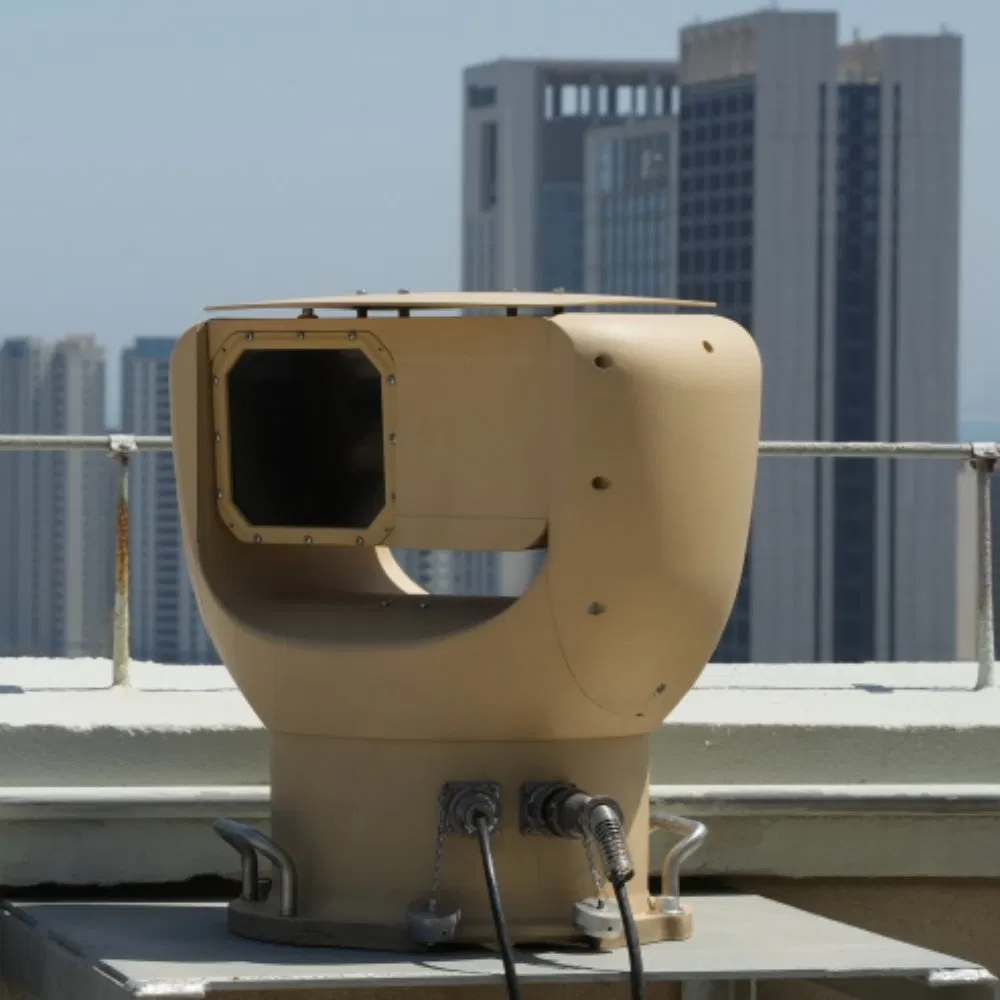

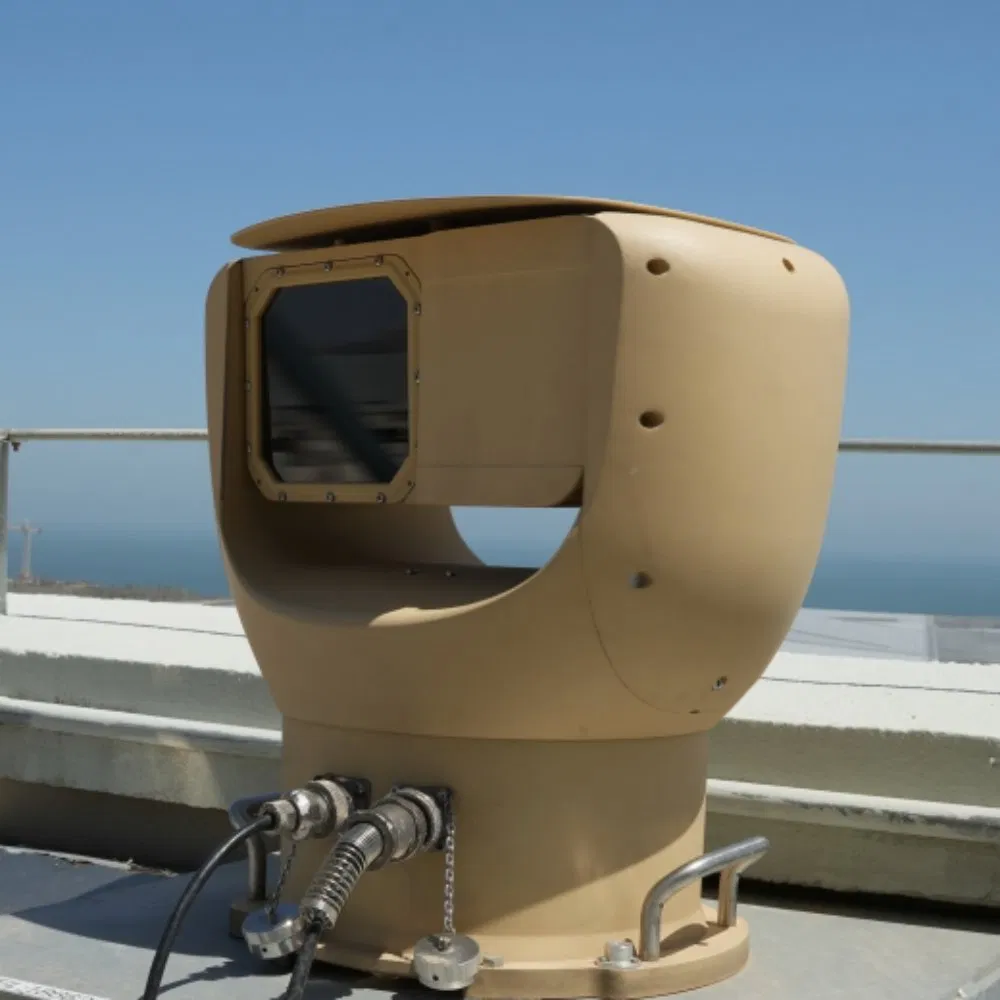

SilentW-U12 Panoramic System

SilentW-U12 is a solution for large area monitoring by using a 12μm 1280×1024 HD thermal detector and capturing 360° panoramic image. SilentW is able to detect multiple objects at same time and can be widely used in nature reserve area, oil/gas fields and mines to make a comprehensive security solution.

⭐

Product Highlights

⬥
12μm Uncooled Infrared Detector Adopts the latest 12μm uncooled infrared detector or high-performance MWIR cooled detector, and advanced infrared image algorithms to ensure clear imaging at greater distances.
⬥
360° Panoramic Surveillance Detects a full circle in approximately 2 seconds and delivers real-time panoramic video images, enabling comprehensive visual monitoring without blind spots.
⬥
Multi-Target Detection Capable of simultaneously detecting & tracking up to 128 targets, detection range up to 8km.
⬥
Link with PTZ Camera Easy calibration, link with dual-spectrum PTZ camera to track the target. Using zoom lens to view more details from long distance.
⬥
Intelligent Detection Algorithm Deep learning AI algorithm to recognize human, vehicle, ship, and UAV targets.
⬥
Low Power Consumption Low power consumption, can be powered by solar, reducing the needs for infrastructure.
📊

Technical Specifications

Parameter Value
Detector TypeUncooled
Detector Resolution1280×1024
Focal Length75mm
Panoramic Image Resolution39200×512
Frame Rate164°/s
Horizontal FOV Range360°
Vertical FOV9.4°
ProtectionIP66
Power Consumption< 35W
Detection DistanceUAV (450mm)1.5km
Human (1.7m)2km
Vehicle (4m)4km
Ship (8m)8km
🌐

Application Scenarios

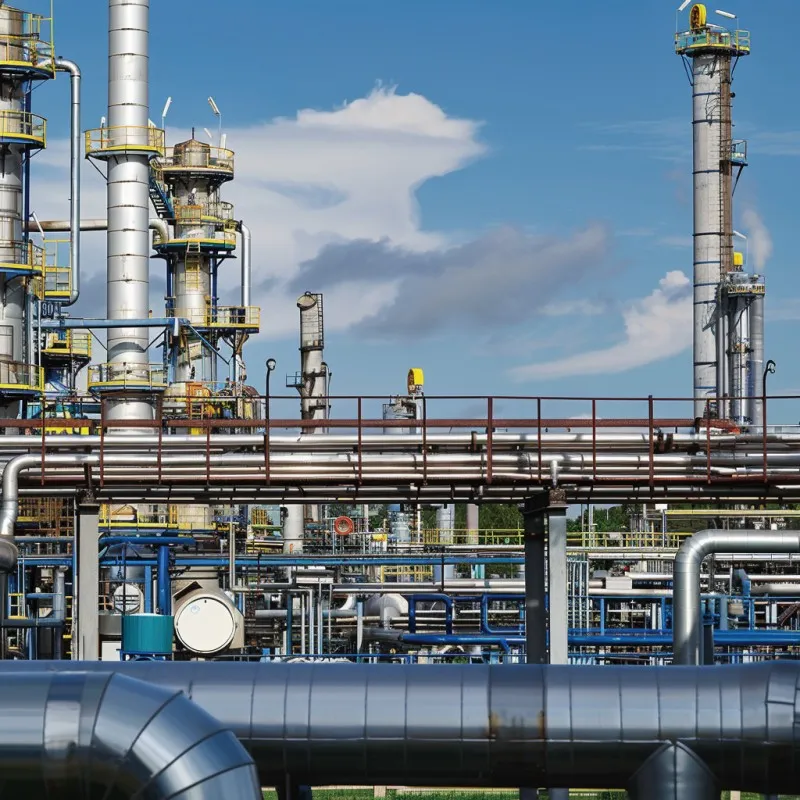

Perimeter Surveillance | Nature Reserve | Oil and Gas Pipelines | Coastal Infrastructure

Scenario 1 Scenario 2 Scenario 3 Scenario 4
📸

Factory & Quality Display

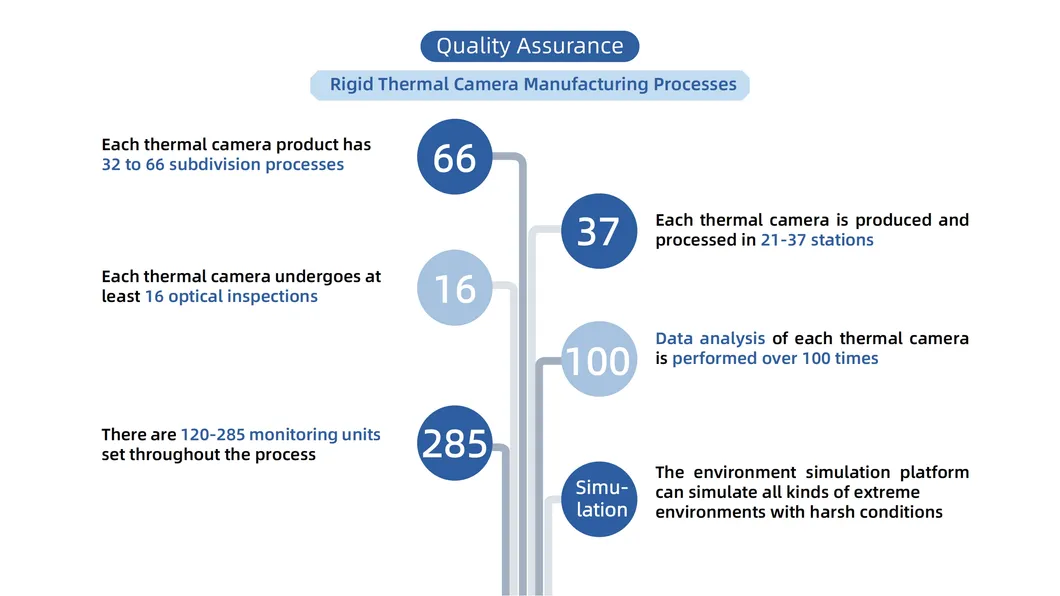

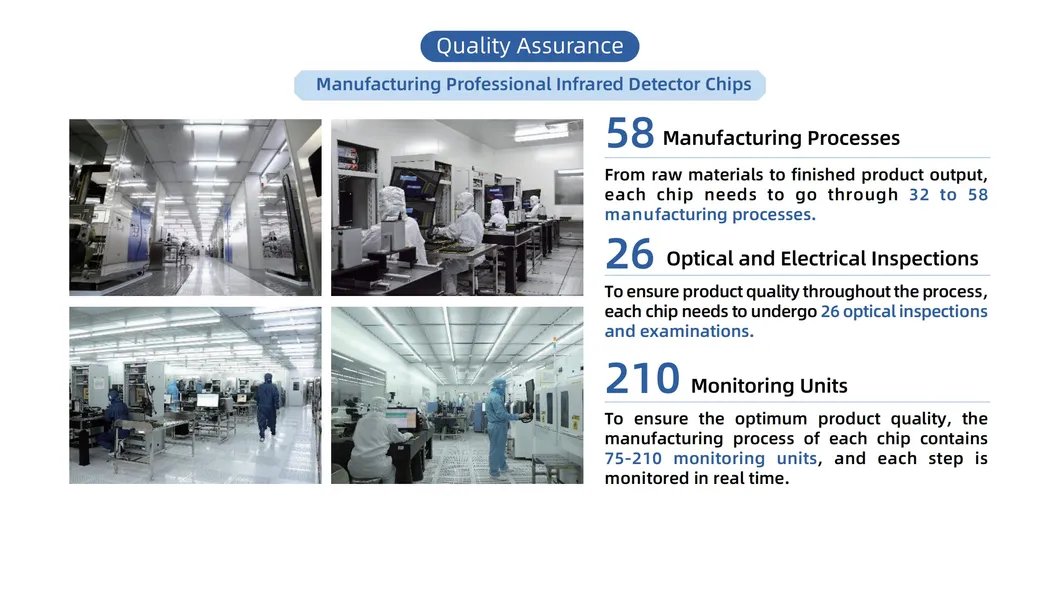

Facility 1 Facility 2 Facility 3 Facility 4 Facility 5 Facility 6 Facility 7 Facility 8
❓

Frequently Asked Questions

How can we guarantee quality?
We have professional infrared detector chip manufacturing, a rigid thermal camera manufacturing process, a perfect quality management system, and a CNAS certification reliability test platform.
How long is your delivery time?
For small orders, it usually takes 7 working days. For OEM orders, please check the shipping time with us.
What's the MOQ?
MOQ depends on the specific product requirements.
What are your payment terms?
Our payment terms include L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
What's the product warranty policy?
Thermal vision products purchased from our company come with a 2-year warranty, while our thermal modules are covered by a 1-year warranty.
How about after-sale support?
We provide lifetime technical support. Our engineers will respond to your technical requests within 24 hours.
