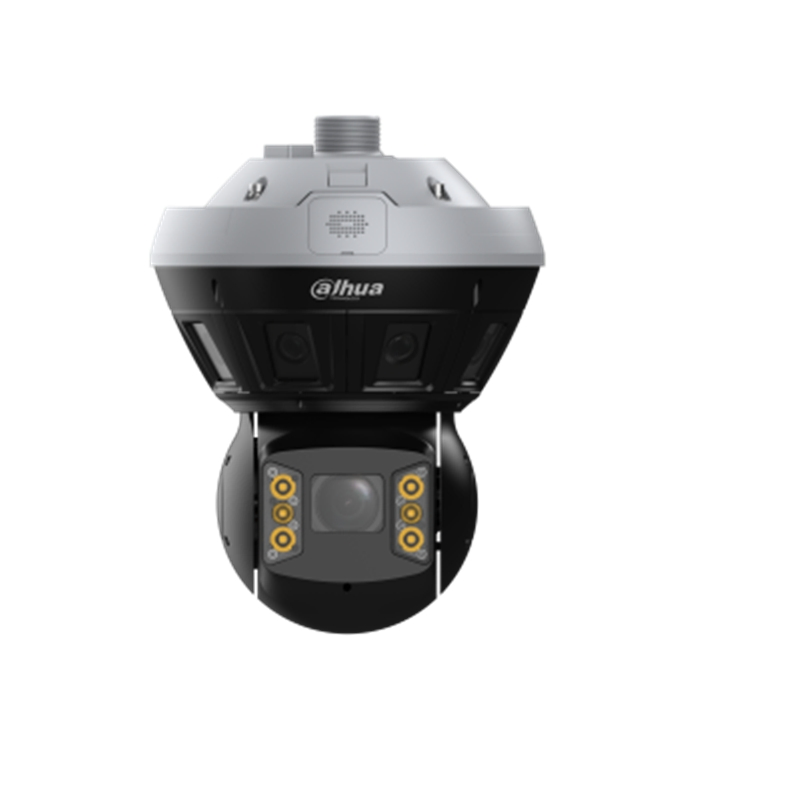

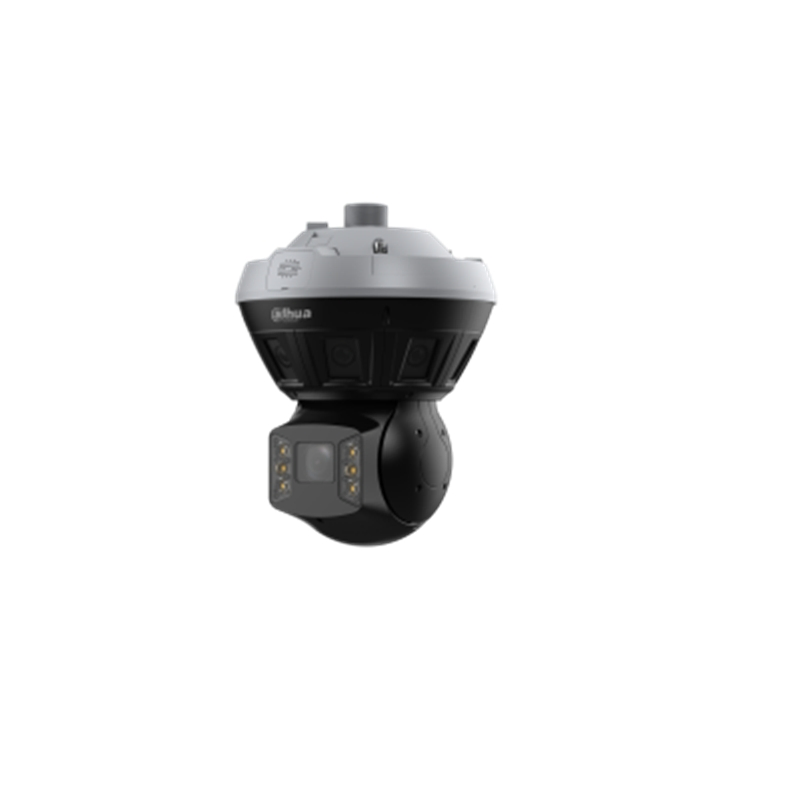

High-Security Perimeter Monitoring System with 360° Overview and Ai-Powered PTZ Tracking

Customization: Available
Type: IP Camera
Sensor: CMOS

Product Description

i

Basic Information

Model NO.PSDW81652S-A360-D440-ATC
SpeedHigh-speed Dome
TechnologyPan / Tilt / Zoom
Resolution16 MP (Panoramic)
Effective Distance≧30m
Scanning SystemProgressive
ProtectionIP67, IK10, Vandal-proof
FeatureMini Size, Waterproof, Auto BLC

Product Highlights

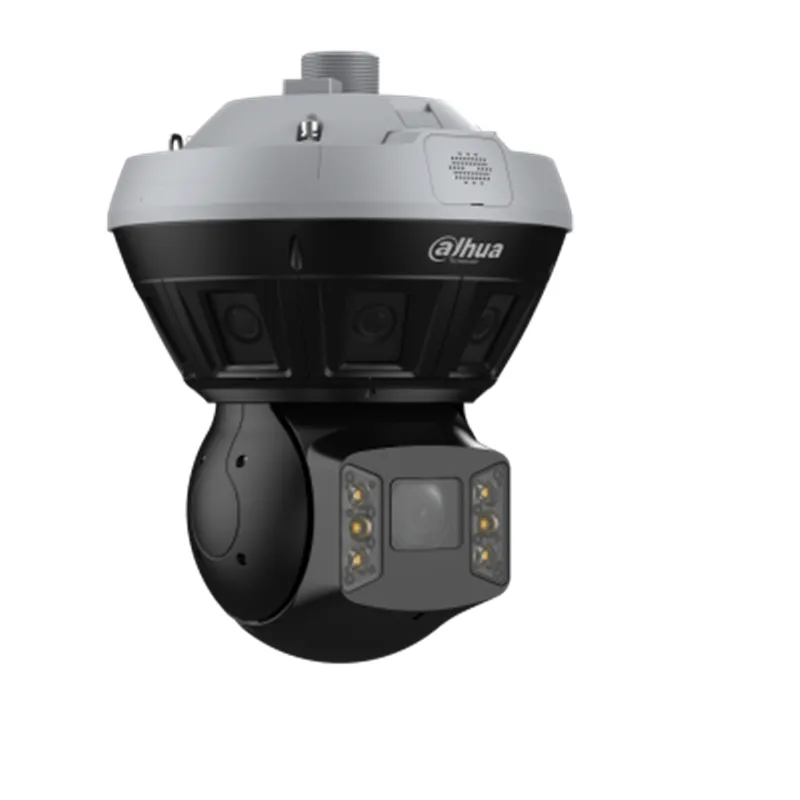

16 MP Multi-Sensor 360° Panoramic PTZ Network Camera

  • Channel 1 (Panoramic): 8 × 2 MP 1/1.8" CMOS image sensors for 360° coverage.
  • Channel 2 (PTZ): 1 × 4 MP 1/1.8" CMOS image sensors with 40× Optical Zoom.
  • Smart Illumination: Max. IR distance 150m and Warm light distance 100m.
  • AI Capabilities: Perimeter protection, Crowd map, Vehicle density, and Boat detection.
  • Advanced Optics: Gyroscope Image Stabilization (GIS) and Optical defog.
  • Build Quality: IP67 waterproof and IK10 vandal resistance with Anti-Corrosion coating.
📋

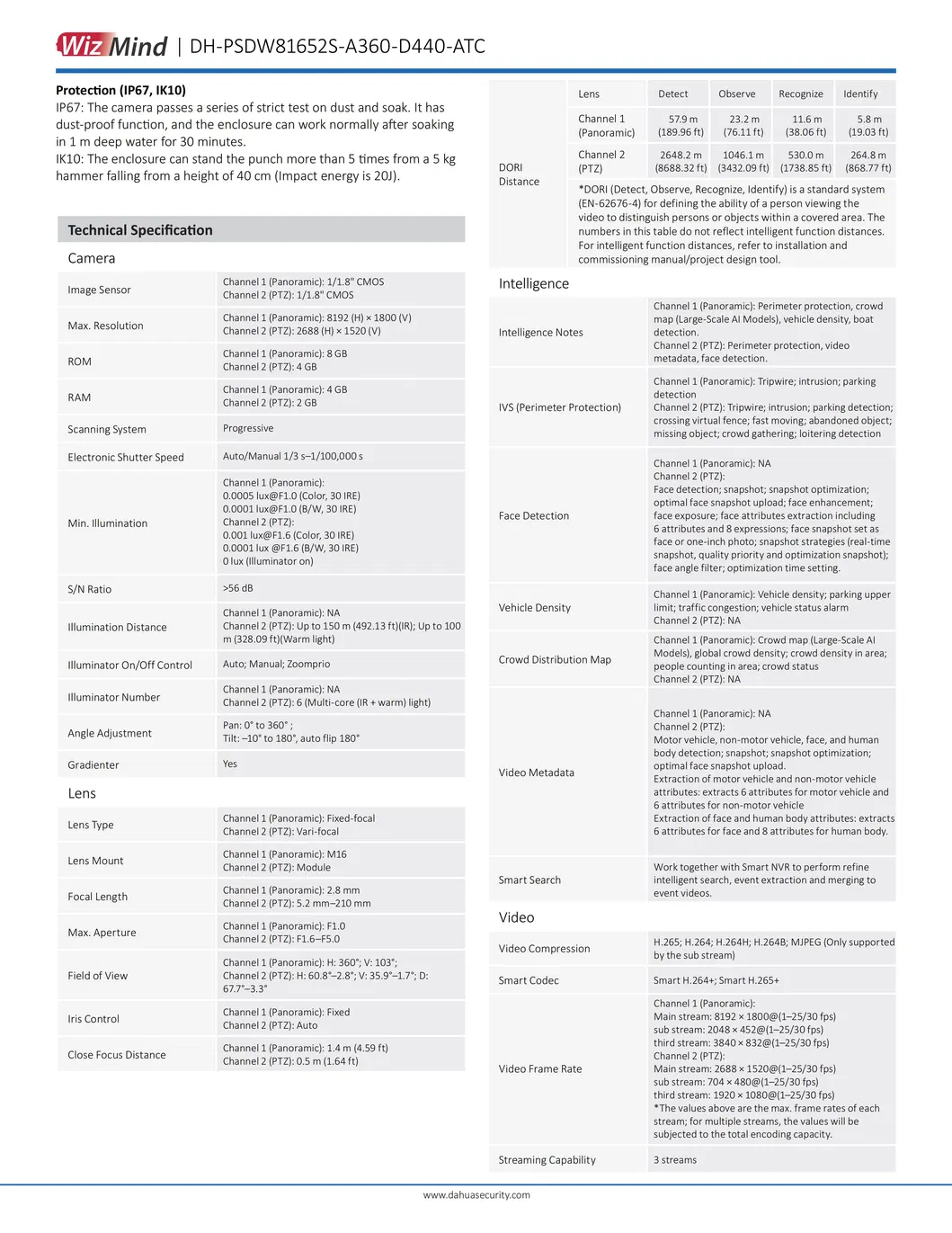

Technical Specifications

Camera & Lens Parameters
Image SensorPanoramic: 1/1.8" CMOS | PTZ: 1/1.8" CMOS
Max. ResolutionPanoramic: 8192 × 1800 | PTZ: 2688 × 1520
Focal LengthPanoramic: 2.8 mm | PTZ: 5.2 mm-210 mm (40x Optical)
Field of ViewPanoramic: H: 360°; V: 103°
Min. Illumination0.0001 lux (B/W) | 0 lux (Illuminator on)
Video CompressionH.265; H.264; H.264H; Smart H.265+
AudioBuilt-in dual Mic and dual speaker
StorageMicro SD card (support max. 1 TB)
Power Supply36 VDC (±50%); PoE++ (802.3bt)

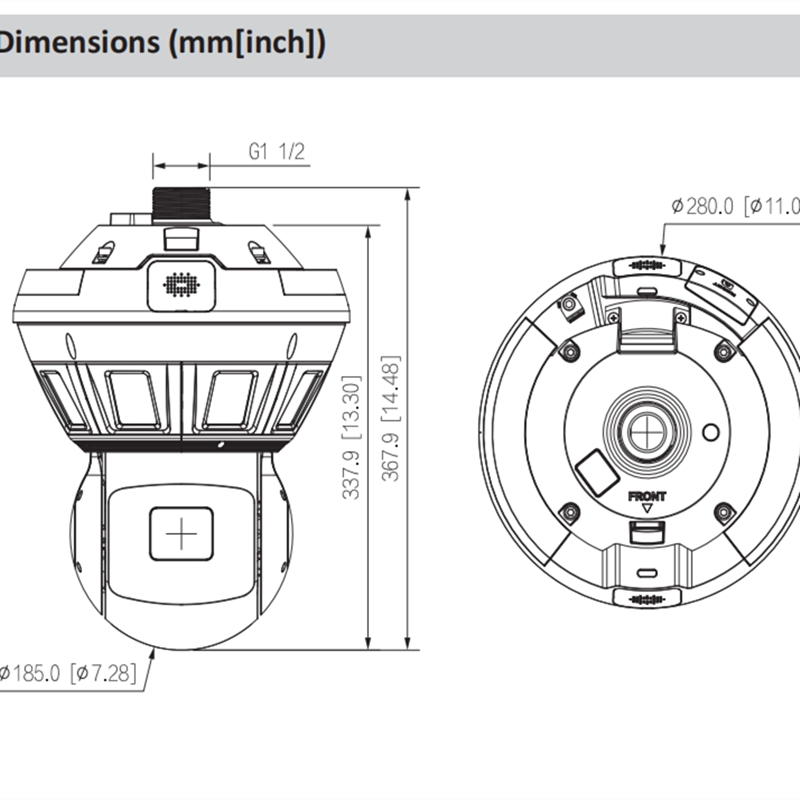

DimensionsΦ280.0 mm × 368.0 mm
📦

Packaging & Delivery

Package Size35.00cm * 45.00cm * 45.00cm
Gross Weight15.000kg
Lead Time60 days (1-1 Pieces) / Negotiable (>1)
?

Frequently Asked Questions

Are these products original English versions?
Yes, we provide genuine products that are fully compatible with official international software and firmware updates.
How long does shipping typically take?
Items in stock are processed within 1-5 working days. For bulk orders or out-of-stock items, the lead time is approximately one month.
Is technical support available for installation?
Yes, professional technical support is available within 24 hours for any setup or configuration queries. Detailed user manuals are included in the box.
What kind of warranty is provided?
The camera comes with a three-year warranty covering manufacturing defects and hardware malfunctions.
Which payment methods are accepted?
Standard professional payment methods include T/T, Western Union, MoneyGram, and Paypal.
Can I install this camera myself?
The system is designed for flexible installation. While advanced, the included manual provides step-by-step guidance for mounting and setup.
