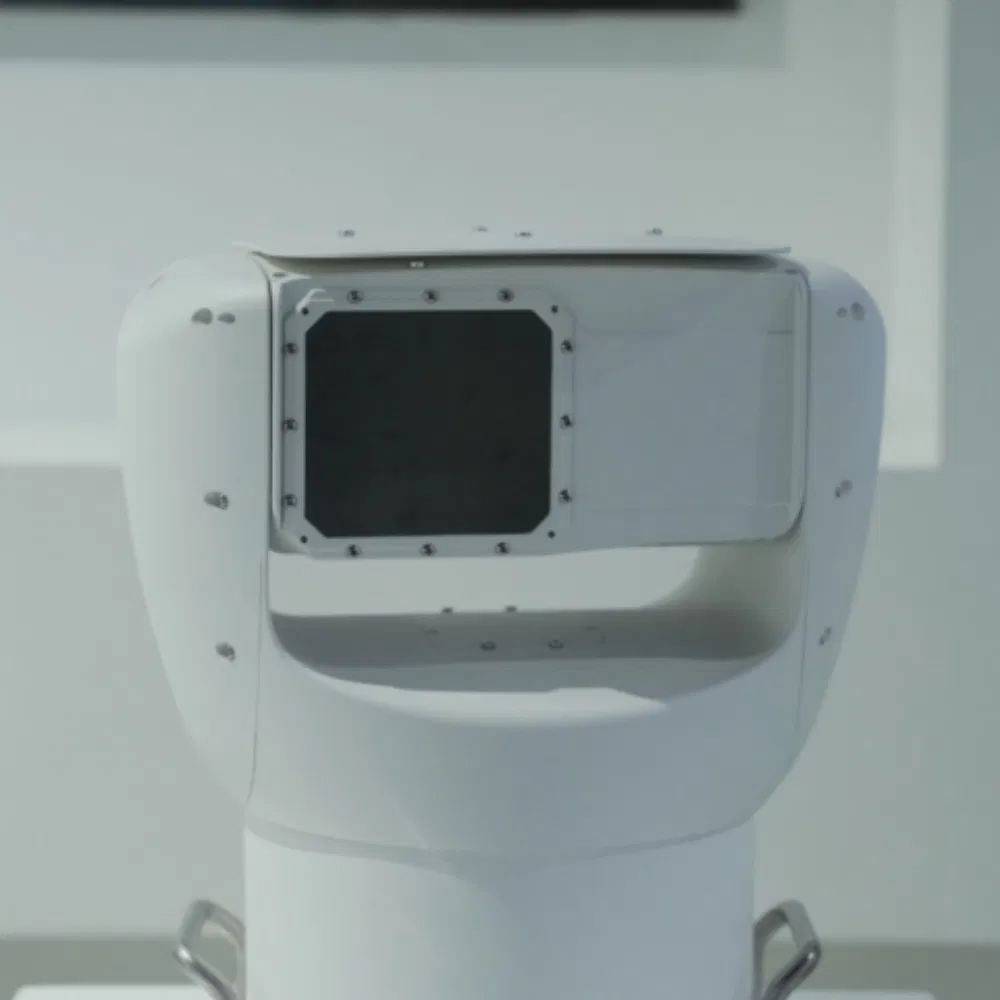

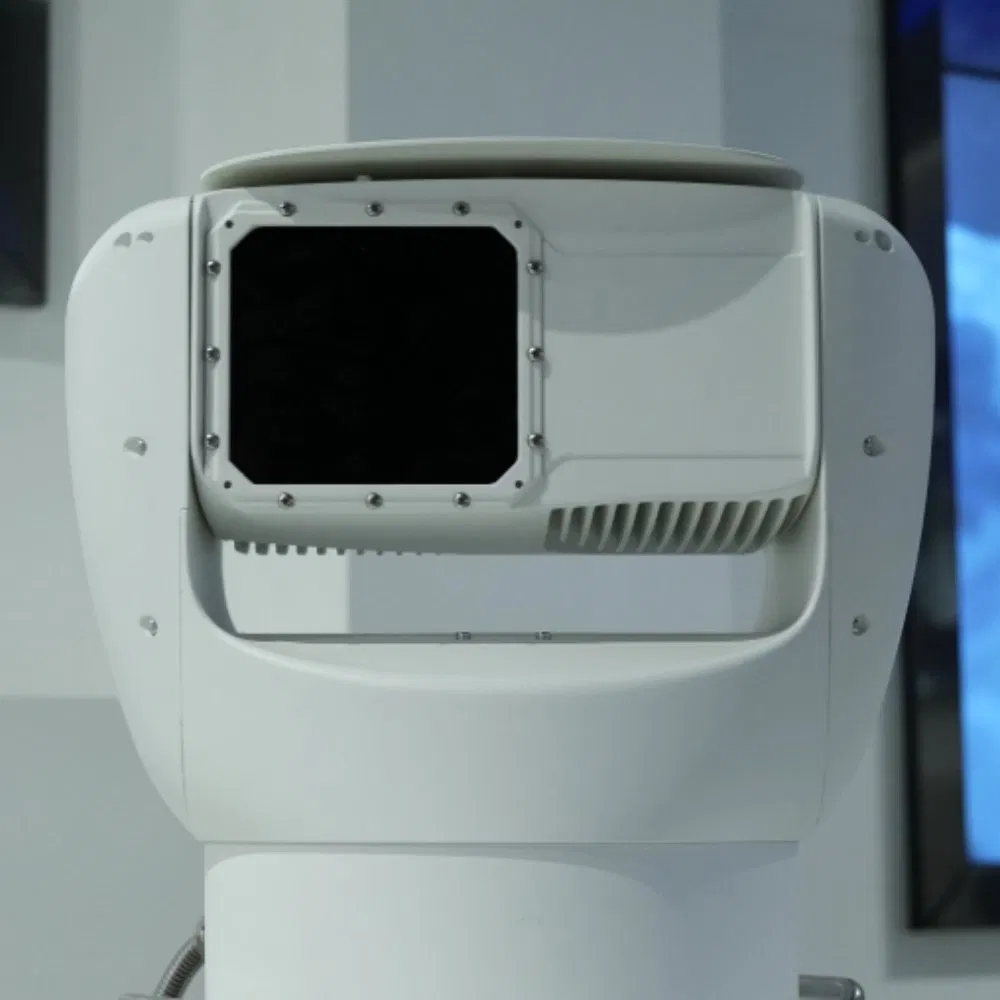

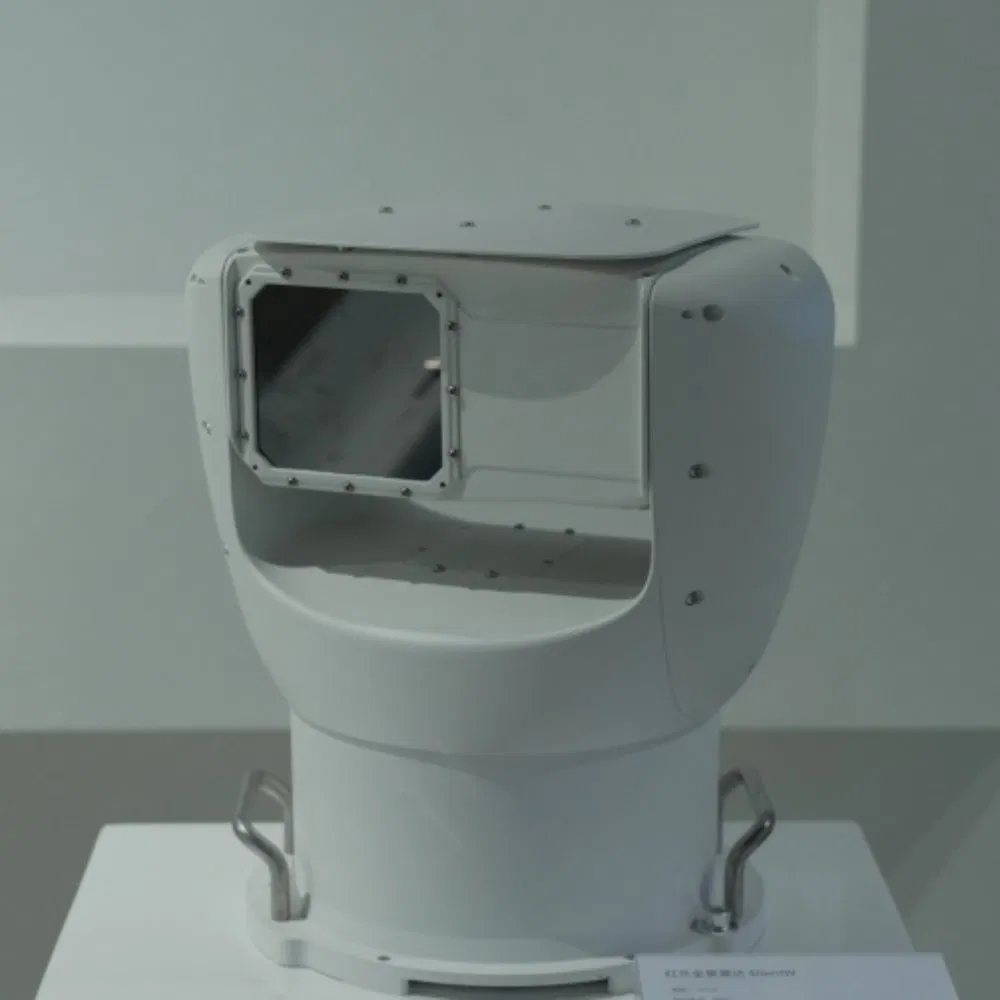

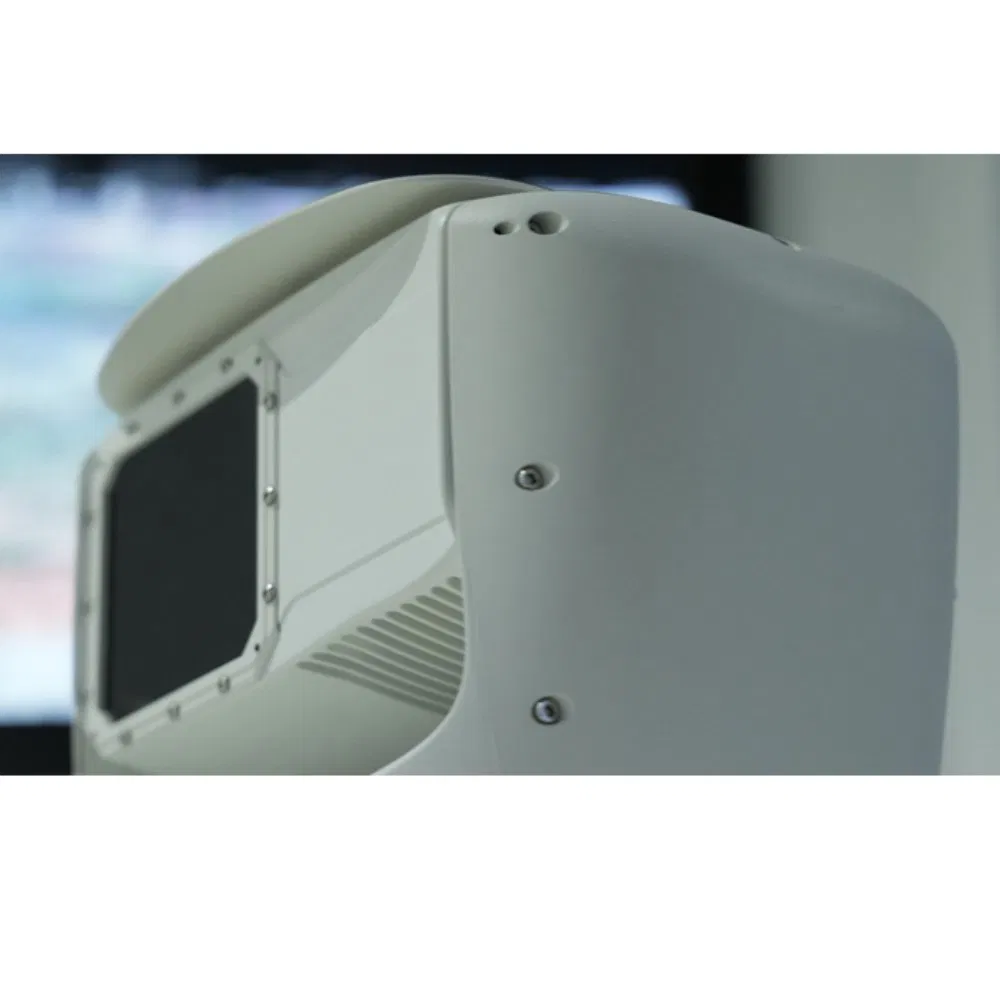

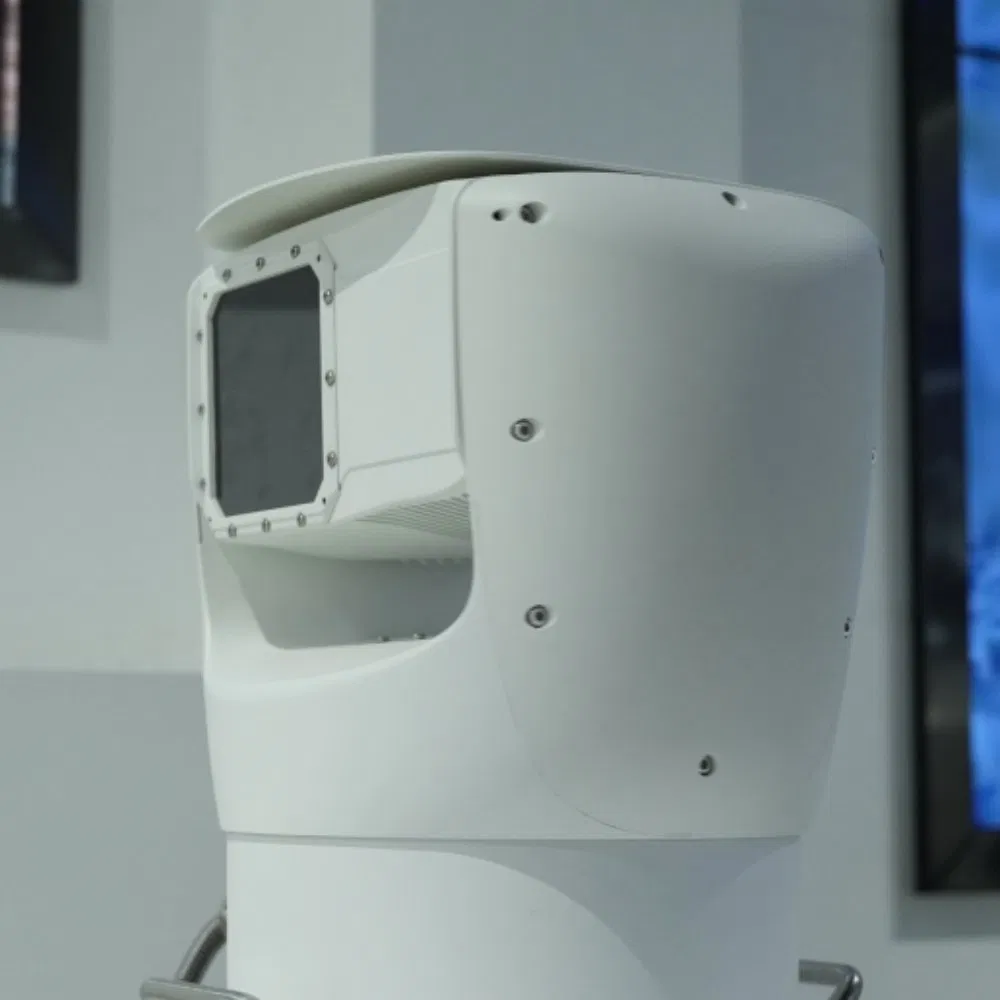

Intelligent 360° Security System with 8km Maximum Detection Range and Real-Time Video Streaming
Intelligent 360° Security System with 8km Maximum Detection Range and Real-Time Video Streaming
Intelligent 360° Security System with 8km Maximum Detection Range and Real-Time Video Streaming
Intelligent 360° Security System with 8km Maximum Detection Range and Real-Time Video Streaming
Intelligent 360° Security System with 8km Maximum Detection Range and Real-Time Video Streaming
1 / 5
Intelligent 360° Security System with 8km Maximum Detection Range and Real-Time Video Streaming
Intelligent 360° Security System with 8km Maximum Detection Range and Real-Time Video Streaming
Intelligent 360° Security System with 8km Maximum Detection Range and Real-Time Video Streaming
Intelligent 360° Security System with 8km Maximum Detection Range and Real-Time Video Streaming
Intelligent 360° Security System with 8km Maximum Detection Range and Real-Time Video Streaming

Intelligent 360° Security System with 8km Maximum Detection Range and Real-Time Video Streaming

Customization: Available
Technology: Infrared
Style: PTZ Camera
Send Inquiry

Product Description

Overview
Model NO.SilentW-U675
TypeCCTV Camera
CertificationCE, FCC, RoHS, EMI/EMC
FeatureWaterproof / Weatherproof, High Definition
Effective Distance≧30m
Detector Resolution640×512
Focal Length75mm
Horizontal FOV360°
ProtectionIP66
PowerDC 30V 5A
Product Description

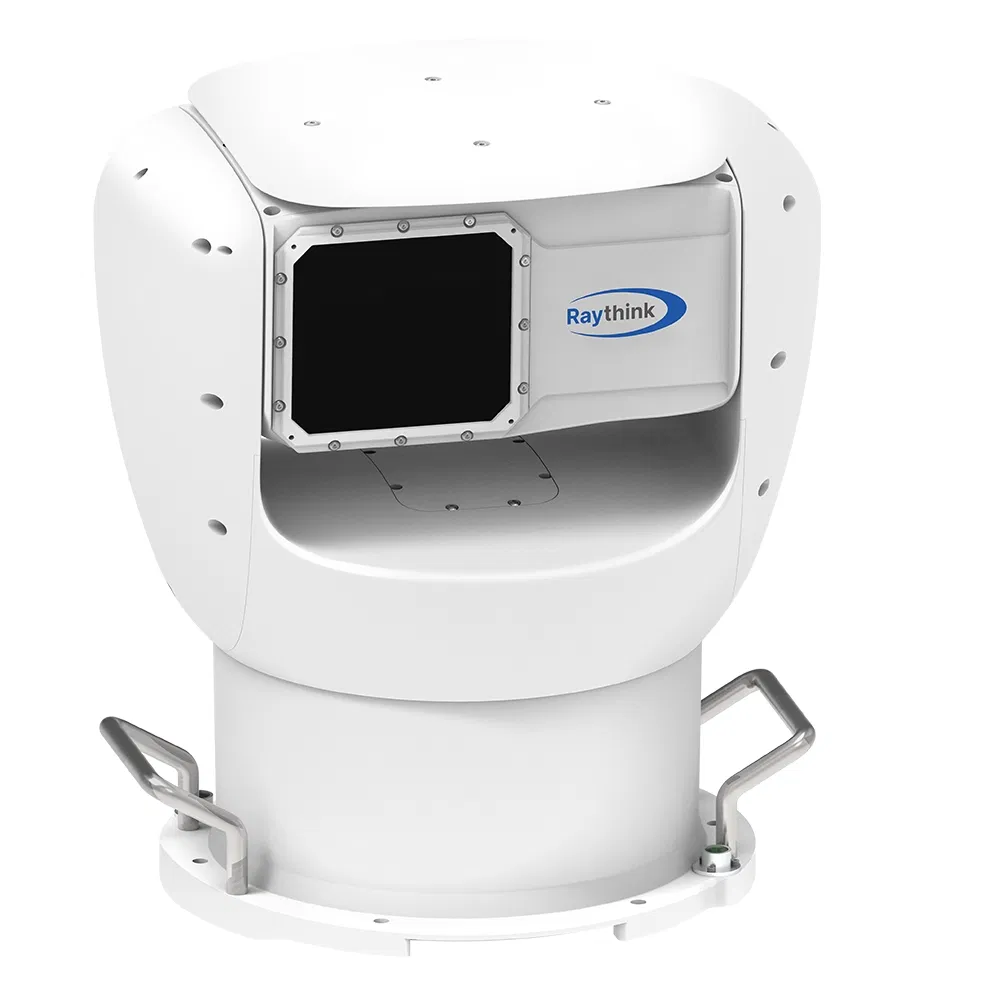

SilentW-U6 Security System

SilentW-U6 is a solution for large area monitoring by using a 12μm 640×512 thermal detector and capturing 360° panoramic image. SilentW is able to detect multiple objects at same time and can be widely used in nature reserve area, oil/gas fields and mines to make a comprehensive security solution.

Product Highlights
  • 12μm Uncooled Infrared Detector Adopts the latest 12μm uncooled infrared detector and advanced infrared image algorithms to ensure clear imaging at greater distances.
  • 360° Panoramic Surveillance Detects a full circle in approximately 2 seconds and delivers real-time panoramic video images without blind spots.
  • Multi-Target Detection Capable of simultaneously detecting & tracking up to 128 targets with a detection range up to 8km.
  • Link with PTZ Camera Easy calibration, link with dual-spectrum PTZ camera to track the target using zoom lens for long-distance details.
  • Intelligent AI Algorithm Deep learning AI algorithm to recognize human, vehicle, ship, and UAV targets.
Specifications
Technical Specifications SilentW-U675 Details
Detector Type / ResolutionUncooled / 640×512
Focal Length75mm
Panoramic Image Resolution39200×512
Frame Rate133°/s
Horizontal / Vertical FOV360° / 4.7°
Tilt Range-20°~+35°
Protection RatingIP66
Working Environment-40ºC ~ +70ºC
UAV Detection (450mm)1.5km
Human Detection (1.7m)2km
Vehicle Detection (4m)4km
Ship Detection (8m)8km
Application Scenarios
Perimeter Surveillance
Perimeter Surveillance
Nature Reserve
Nature Reserve

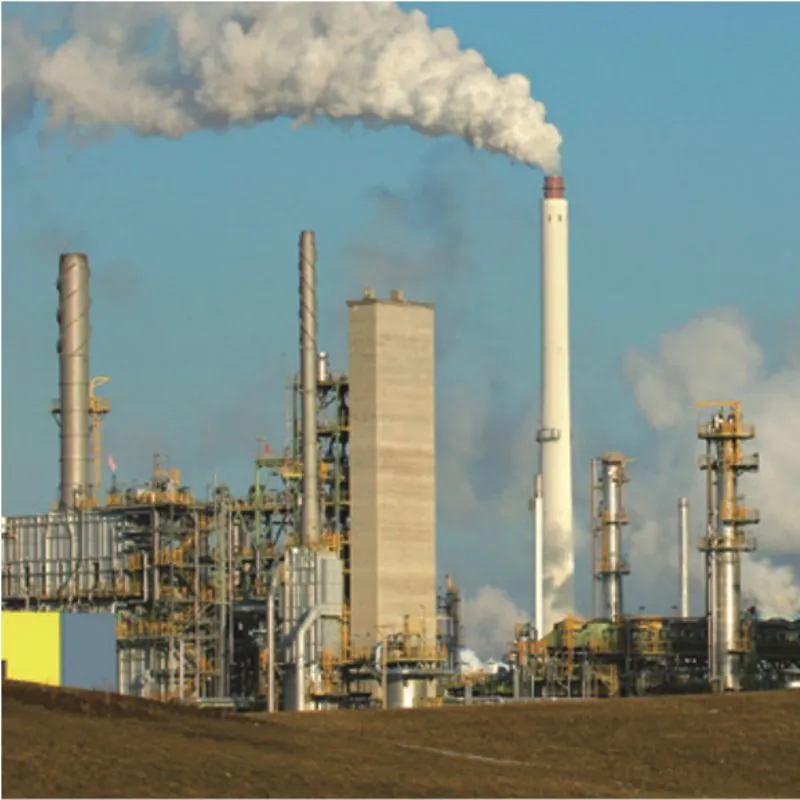

Oil and Gas Pipelines
Oil and Gas Pipelines
Critical Infrastructure
Critical Infrastructure
FAQ
Q1: How can we guarantee quality?
A: We utilize professional infrared detector chip manufacturing, a rigid thermal camera manufacturing process, and a perfect quality management system with CNAS certification reliability test platforms.
Q2: How long is your delivery time?
A: For small orders, it usually takes 7 working days. For custom OEM orders, please verify the specific shipping schedule with our team.
Q3: What's the MOQ?
A: The Minimum Order Quantity (MOQ) depends on the specific product model selected.
Q4: What's your payment terms?
A: We accept multiple payment terms including L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
Q5: What's the product warranty policy?
A: Thermal vision products come with a 2-year warranty, while thermal modules are covered by a 1-year warranty.
Q6: How about after-sale support?
A: We provide lifetime Technical Support. Our engineers typically respond to technical inquiries within 24 hours.
