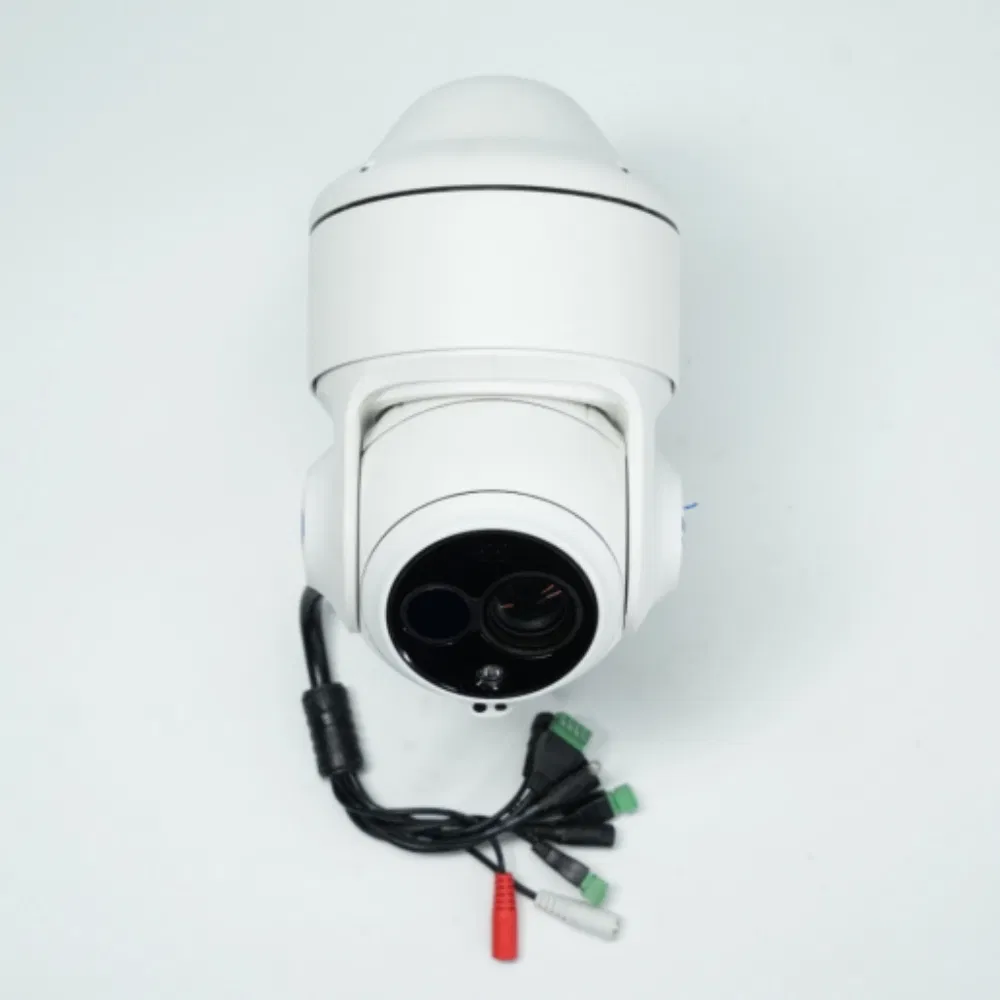

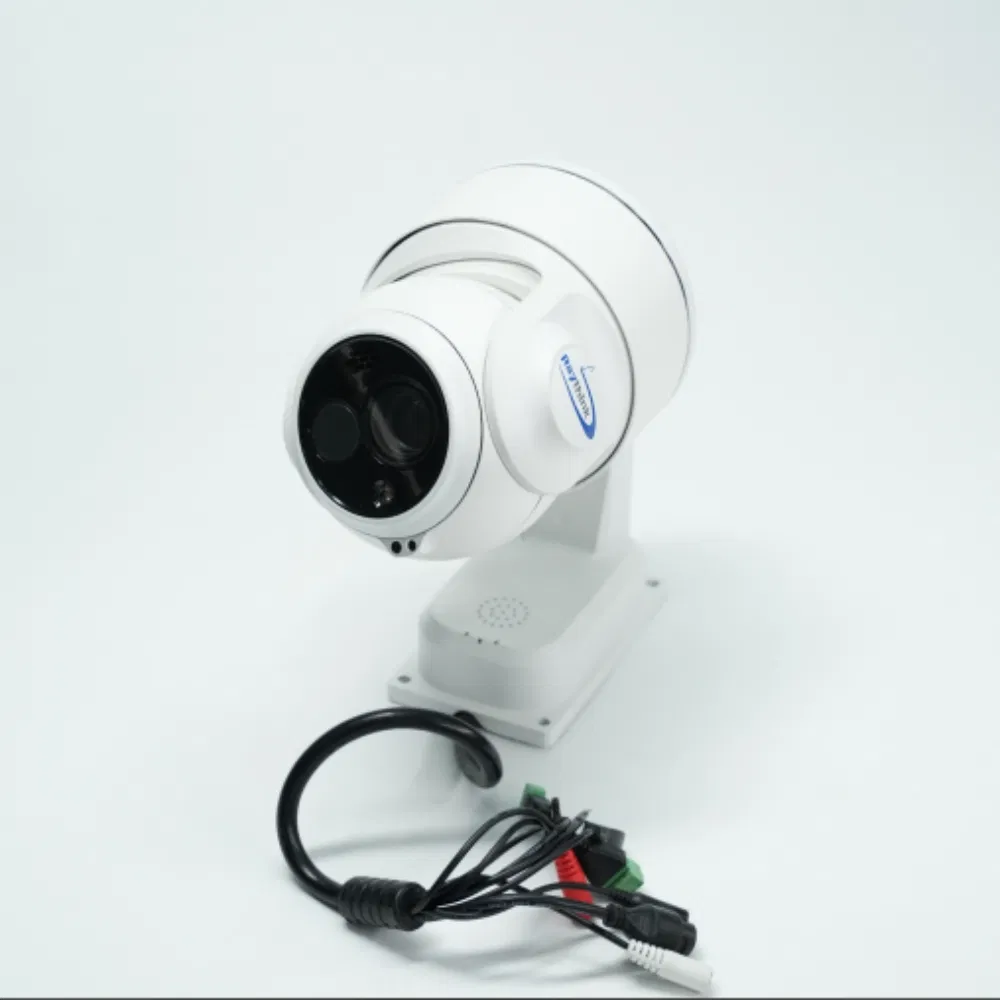

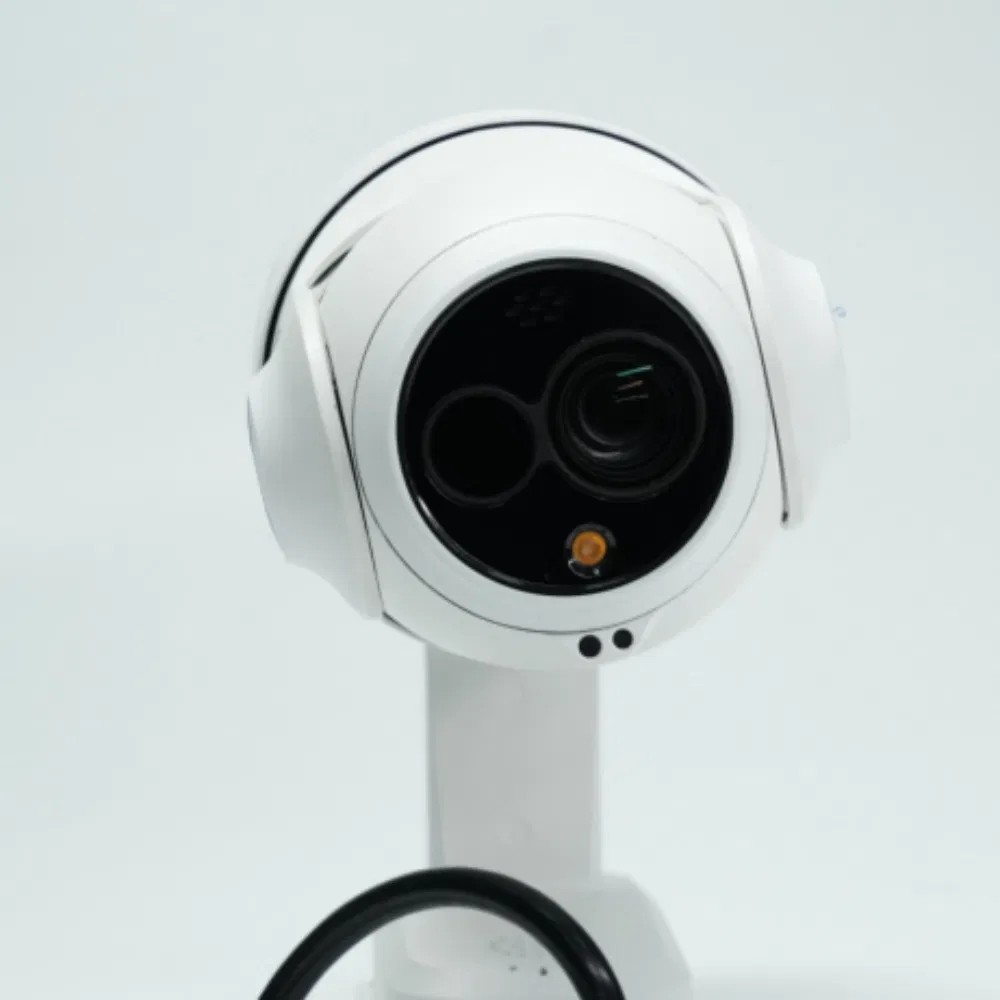

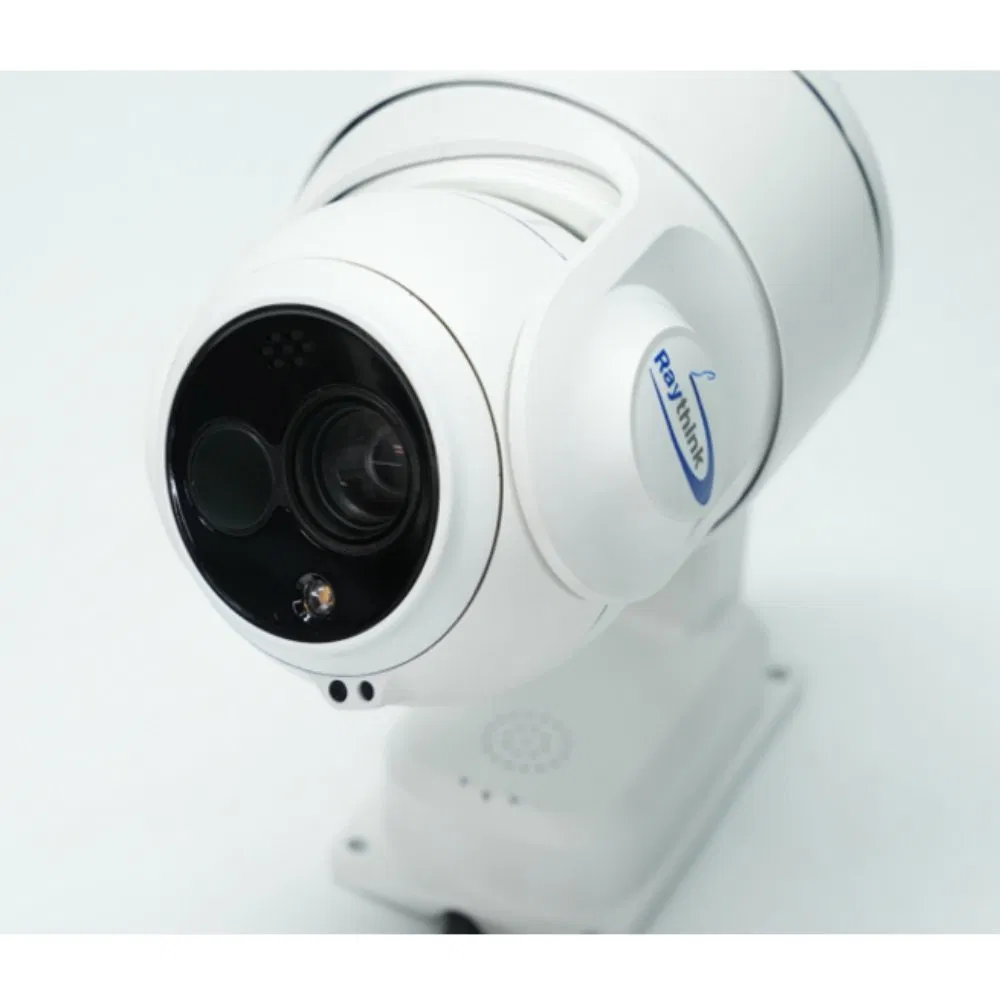

IP66 Protected -40º C~+70º C Environment 360° Panoramic Monitoring Speed Dome System
IP66 Protected -40º C~+70º C Environment 360° Panoramic Monitoring Speed Dome System
IP66 Protected -40º C~+70º C Environment 360° Panoramic Monitoring Speed Dome System
IP66 Protected -40º C~+70º C Environment 360° Panoramic Monitoring Speed Dome System
IP66 Protected -40º C~+70º C Environment 360° Panoramic Monitoring Speed Dome System
1 / 5
IP66 Protected -40º C~+70º C Environment 360° Panoramic Monitoring Speed Dome System
IP66 Protected -40º C~+70º C Environment 360° Panoramic Monitoring Speed Dome System
IP66 Protected -40º C~+70º C Environment 360° Panoramic Monitoring Speed Dome System
IP66 Protected -40º C~+70º C Environment 360° Panoramic Monitoring Speed Dome System
IP66 Protected -40º C~+70º C Environment 360° Panoramic Monitoring Speed Dome System

IP66 Protected -40º C~+70º C Environment 360° Panoramic Monitoring Speed Dome System

Customization: Available
Technology: Infrared
Style: Dome Camera
Send Inquiry

Product Description

Product Overview

Model: PD225T
Type: CCTV Camera
Certification: CE, FCC, RoHS, EMI/EMC
Feature: Waterproof, HD, Auto BLC
IR Distance: 50m
Pixel Pitch: 12μm
Protection: IP66
Weight: 2.48kg
Storage: Micro SD (up to 256G)
Power: ≤20W

Product Description

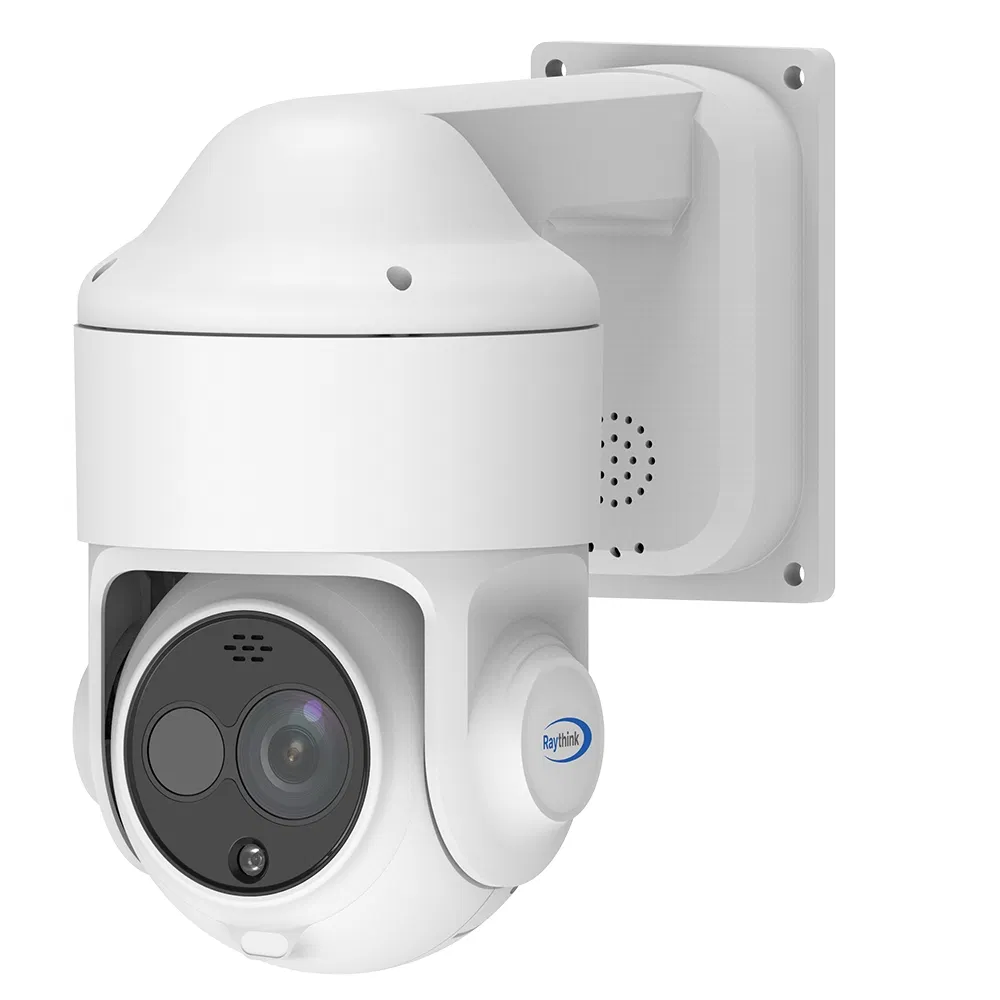

Dual-spectrum Speed Dome

PD2T dual-spectrum speed dome camera equipped with a 256×192 resolution, 12μm pixel pitch thermal detector and a 5MP visible light sensor with 20x optical zoom lens. It supports tripwire/intrusion detection with AI human/vehicle classification algorithm. The PT system offers more flexibility for surveillance, ideal for perimeter protection and fire prevention in residential and commercial facilities.

Product Highlights

✦
12μm Uncooled Detector
Adopting the latest 12μm infrared detectors with advanced imaging algorithms for superior image quality.
✦
Dual-Spectrum Imaging
All-weather, 24/7 security monitoring integrating both thermal and visible light imaging.
✦
Accurate Temperature Measurement
Measurement range from -20ºC to 550ºC with an accuracy of ±2ºC or 2%.
✦
AI Target Recognition
Smart video analysis for human/vehicle recognition and crossline/intrusion detection.
✦
Intelligent Alarm
360° panoramic monitoring with zooming, tracking, and audible/visual alarm linkage to reduce false alarms.
✦
Platform Integration
Supports ONVIF and provides SDK/demo for development, including NVR and VMS support.

Technical Specifications

Thermal Module
Detector TypeVOx, uncooled FPA detector
Spectral Range8~14μm
NETD≤40mK(@25°C, F#1.0)
Resolution640×512
Focal Length7mm / 10mm
Optical Module
Sensor5MP 1/2.8" CMOS
Resolution2560×1920
Zoom20× Optical Zoom (5.4mm~108mm)
IR Distance50m
PTZ & Functions
Pan/Tilt Range360° Continuous / 0°~+90°
Temp. Range-20ºC~+550ºC (±2ºC Accuracy)
Smart FunctionFire Detection, VCA (Human/Vehicle Recognition)
ProtectionIP66

Application Scenarios

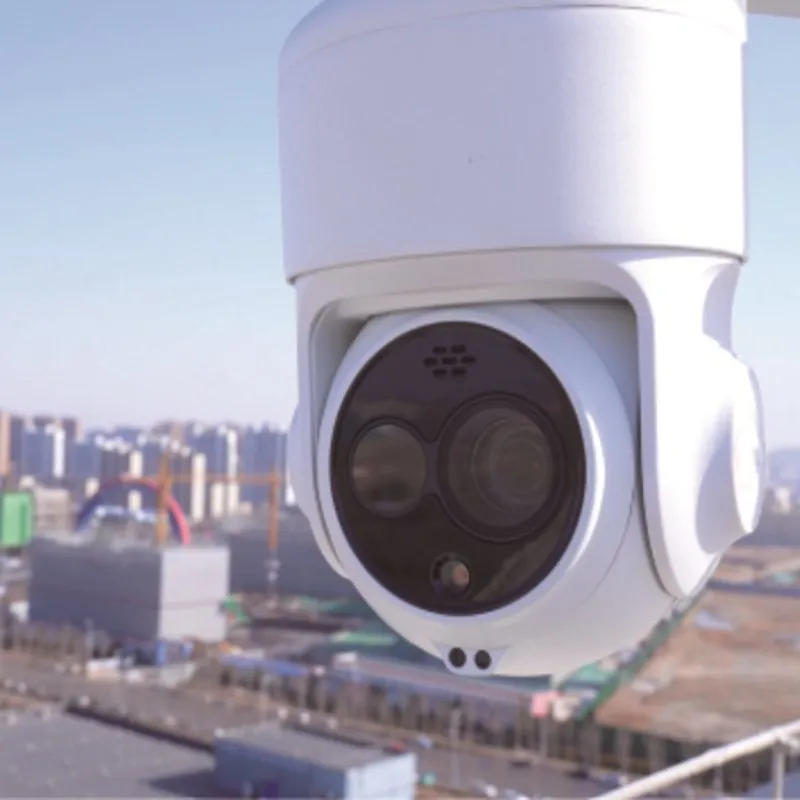

Park Perimeter

Park Perimeter

River Monitoring

River Monitoring

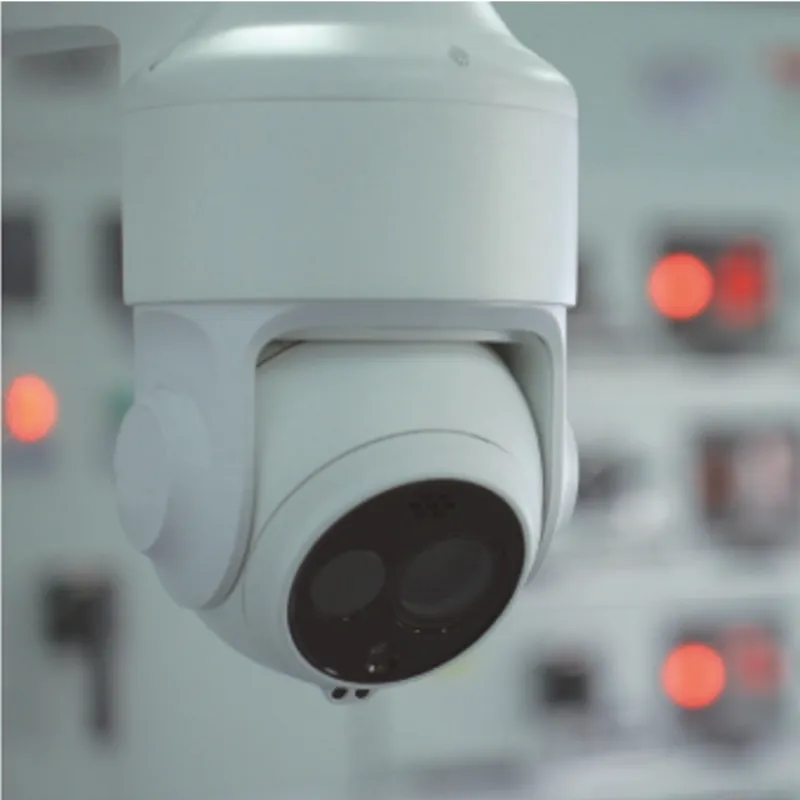

Electric Measurement

Electric Temperature Measurement

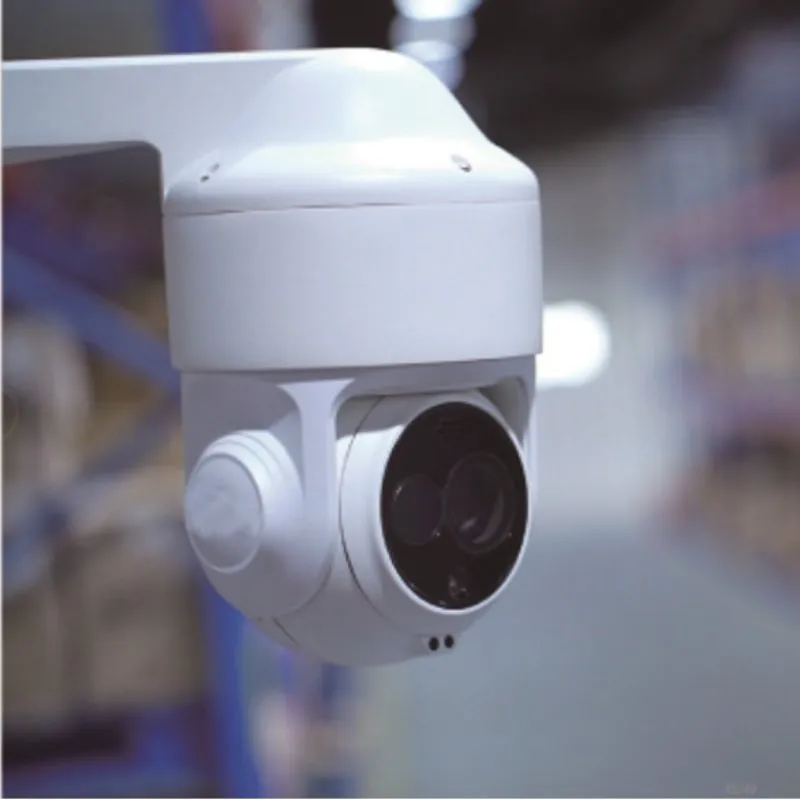

Warehouse Security

Warehouse Security

Production Facilities

Frequently Asked Questions

How can we guarantee quality?

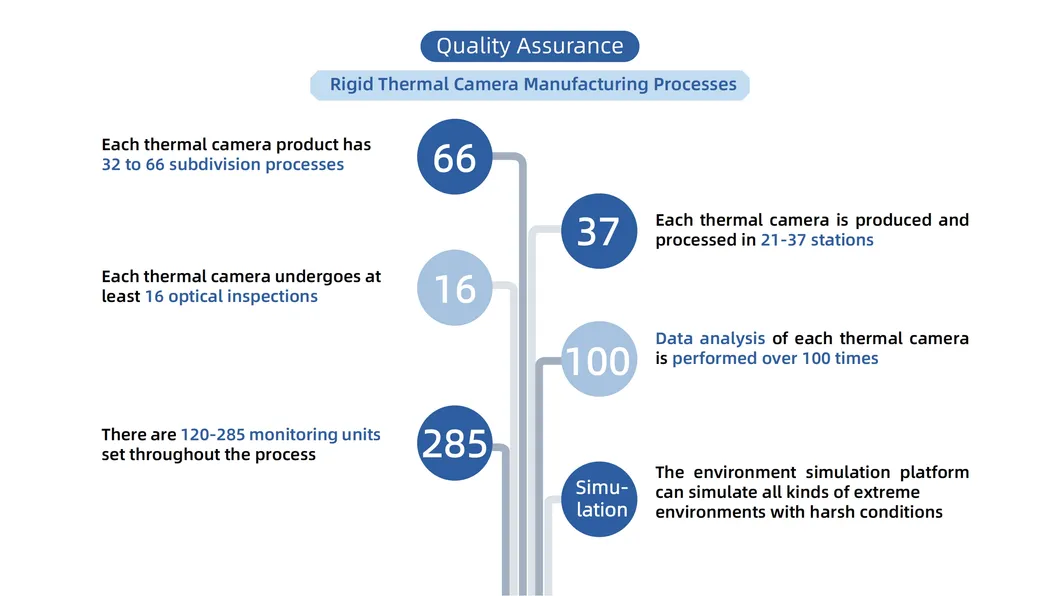

We have professional infrared detector chip manufacturing, a rigid thermal camera manufacturing process, a perfect quality management system, and a CNAS certification reliability test platform.
How long is your delivery time?
For small orders, it usually takes 7 working days. For OEM orders, please check the specific shipping time with us.
What is the MOQ?
The MOQ depends on the specific product requirements.
What are your payment terms?
Our payment terms include L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
What is the product warranty policy?
Thermal vision products come with a 2-year warranty, while thermal modules are covered by a 1-year warranty.
How about after-sale support?
We provide lifetime technical support. Our engineers will respond to your technical support requests within 24 hours.
