| Model NO. | SOAR970-TH Series |
| Type | Binocular |
| Sensor | CMOS |
| HDMI Format | 1080P |
| Horizontal Resolution | 4MP, 8MP |
| Certification | CE |
| Feature | Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC, Thermal Imager |
| Effective Distance | 3km |
| Sensor Size | 1/1.8inch |
| Application | Mobile Surveillance Application |
SOAR970 vehicle mounted PTZ Camera
SOAR970 series mobile PTZ is designed for mobile surveillance application. With its excellent waterproof ability up to Ip67, it is also widely applied in marine application. The PTZ can be optionally be ordered with HDIP(2MP, 4MP, 4K); Integrated IR LED or laser illumination allows it to see from 150m up to 800m in complete darkness; it can be with dual sensor options, with HD visible camera (2MP/4MP/8MP, up to 33x zoom) and thermal imager (640x512/1280x1024, up to 40mm focal length).
The SOAR970 is built to withstand the harshest conditions. Featuring an IP67-rated waterproof and dustproof housing, it provides complete protection against immersion, heavy rain, salt spray, and airborne particulates. This robust construction makes it the ideal choice for marine surveillance, coastal monitoring, and offshore platforms.
| Thermal Imaging | |
|---|---|
| Detector | VOx Uncooled Infrared FPA |
| Array Format | 640x512/12μm |
| Lens | 40mm |
| NETD | ≤50mk@25℃, F#1.0 |
| Visible Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Resolution | 1920(H) x 1080(V), 2 MP |
| Focal Length | 5.5mm~180mm (33x Optical Zoom) |
| Pan/Tilt | |
| Pan Range | 360° (endless) |
| Tilt Range | –20° ~ +90° (auto reverse) |
| General | |
| Power | DC 12V-24V, ≤24w |
| Protection | Ip66 / IP67 |
| Weight | 6.5 kg |

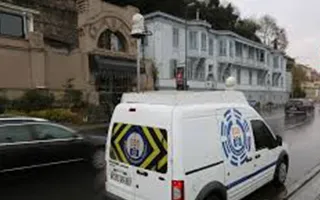

Real-time urban surveillance, crime hotspot monitoring, and rapid incident response from patrol cars. Perfect for border security and riot control.

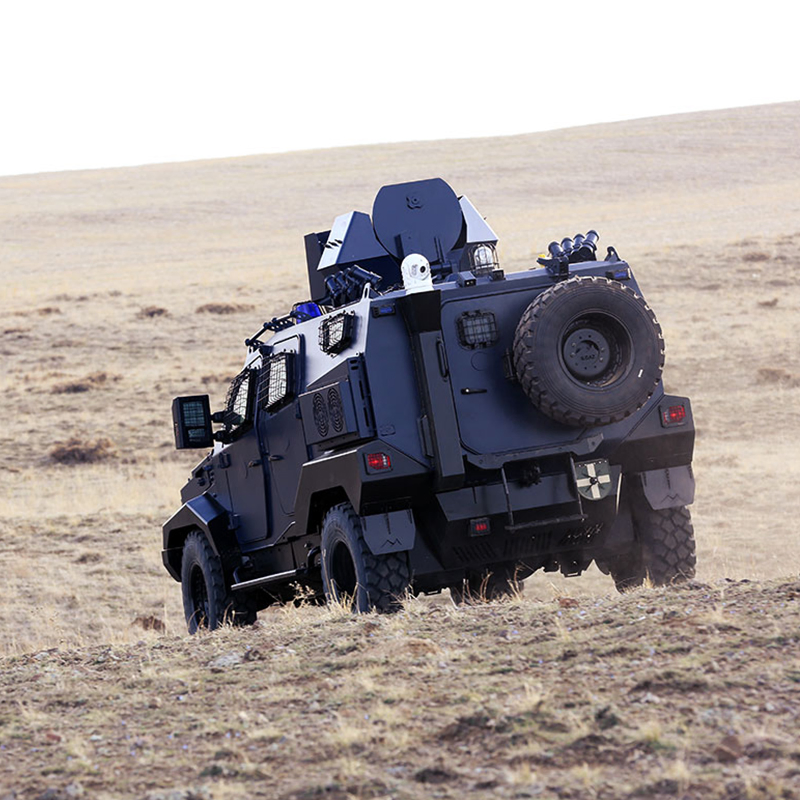

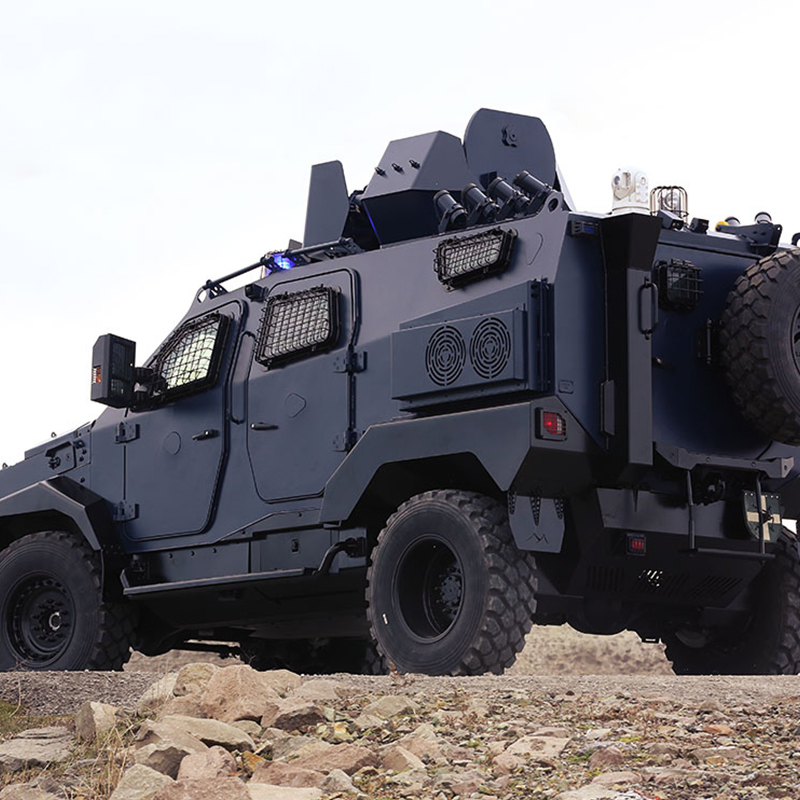

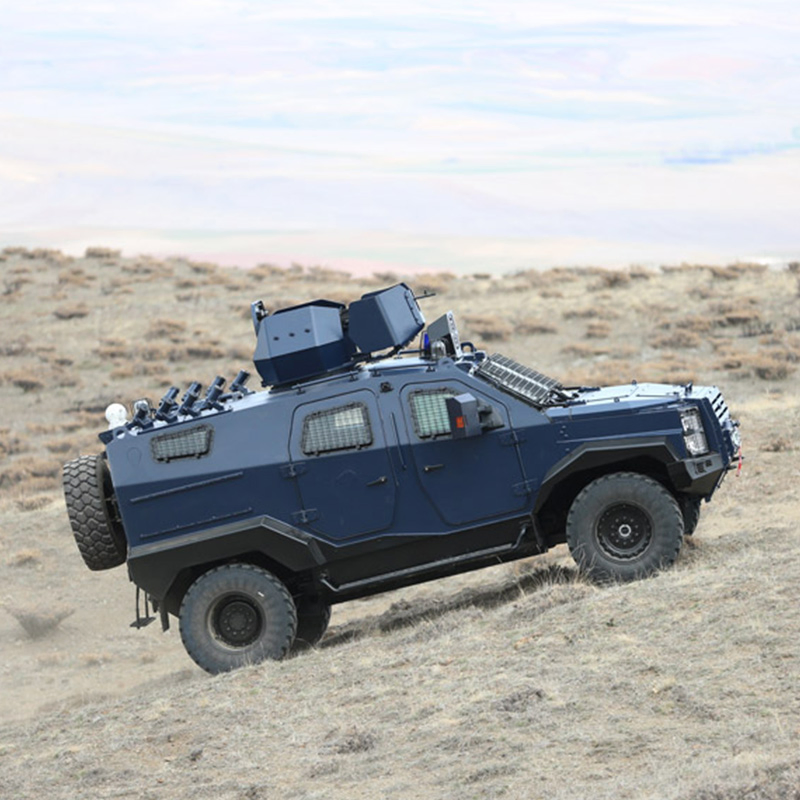

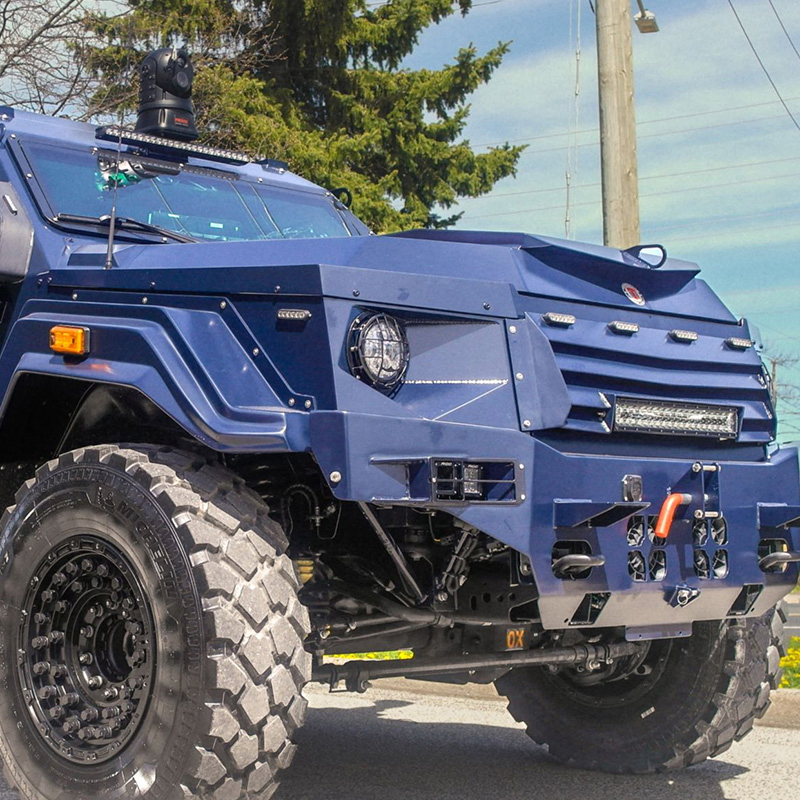

Tactical reconnaissance, battlefield surveillance, and intelligence gathering from armored vehicles. Convoy security and perimeter protection.
Power grid inspection, oil and gas pipeline surveillance, and railway security monitoring from utility vehicles in remote areas.

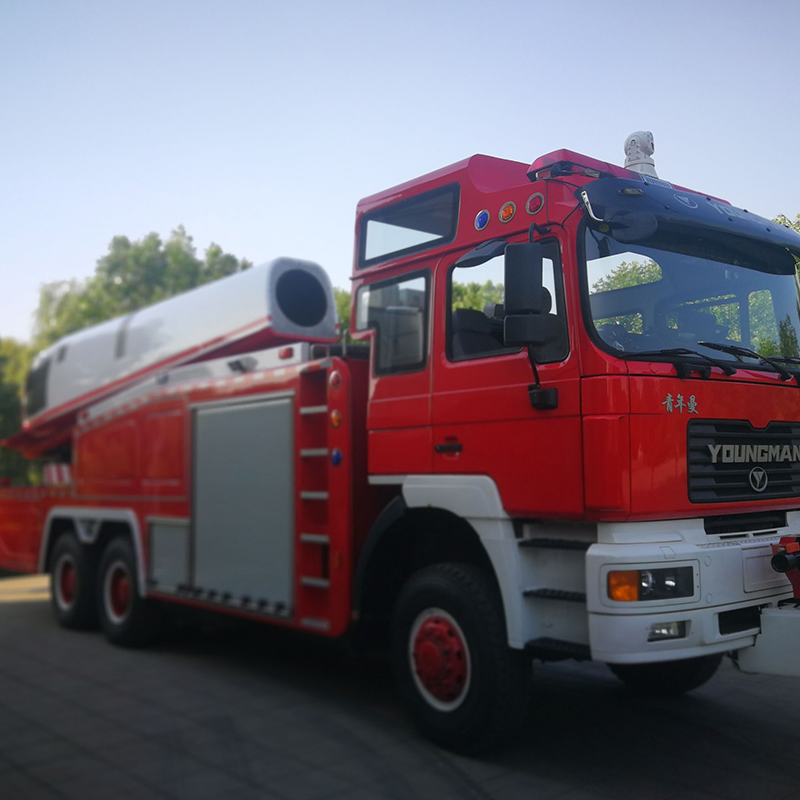

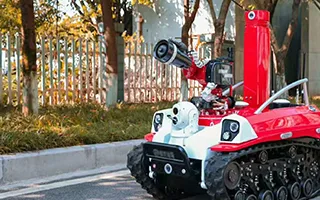

Fire front monitoring, flood assessment, and search & rescue operations using thermal imaging in challenging terrain.

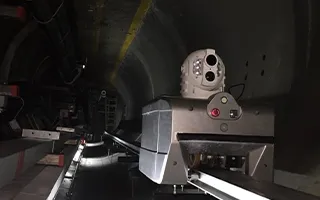

Highway patrol traffic flow monitoring, tunnel/bridge inspection, and airport ground security patrols.
Anti-poaching operations, wildlife tracking in protected reserves, and marine conservation coastal patrols.
