Customization: Available
Technology: Infrared
Style: Panoramic Camera
Send Inquiry

Product Description

Overview & Basic Info

Model NO.
SilentW-U1275
Type
Panoramic Camera
Certification
CE, FCC, RoHS, EMI/EMC
Feature
Waterproof / Weatherproof, High Definition, Auto BLC
Effective Distance
≧30m
Detector Type
Uncooled
Detector Resolution
1280×1024
Focal Length
75mm
Panoramic Image Resolution
39200×512
Horizontal Fov Range
360°
Protection
IP66
Work Environment
-40℃ ~+ 70℃

Product Description

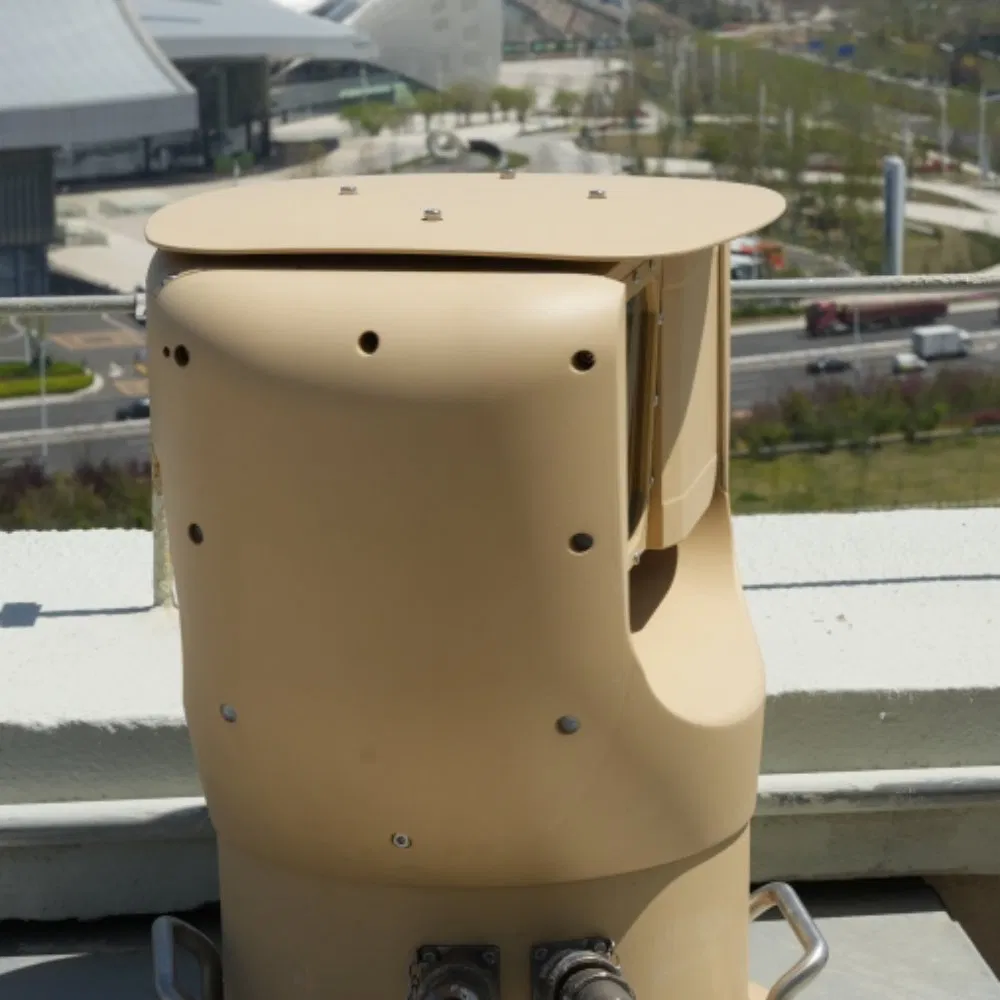

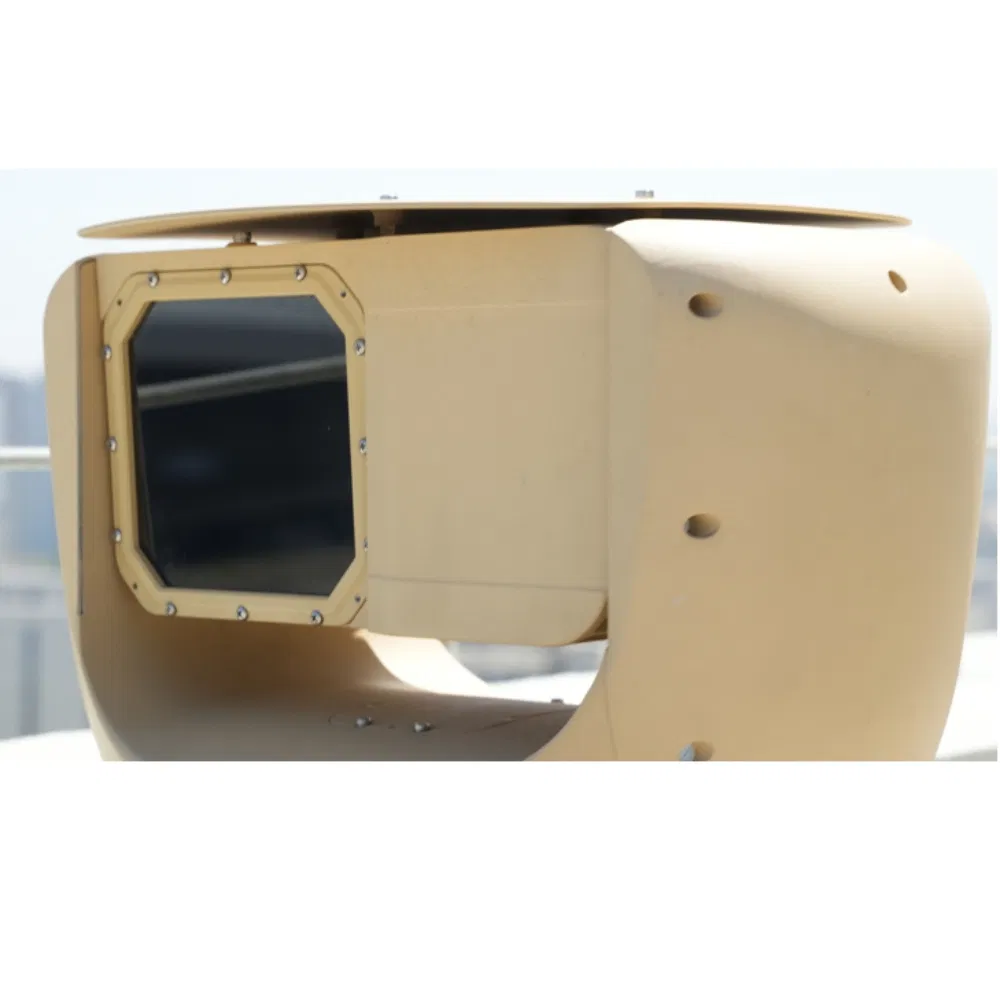

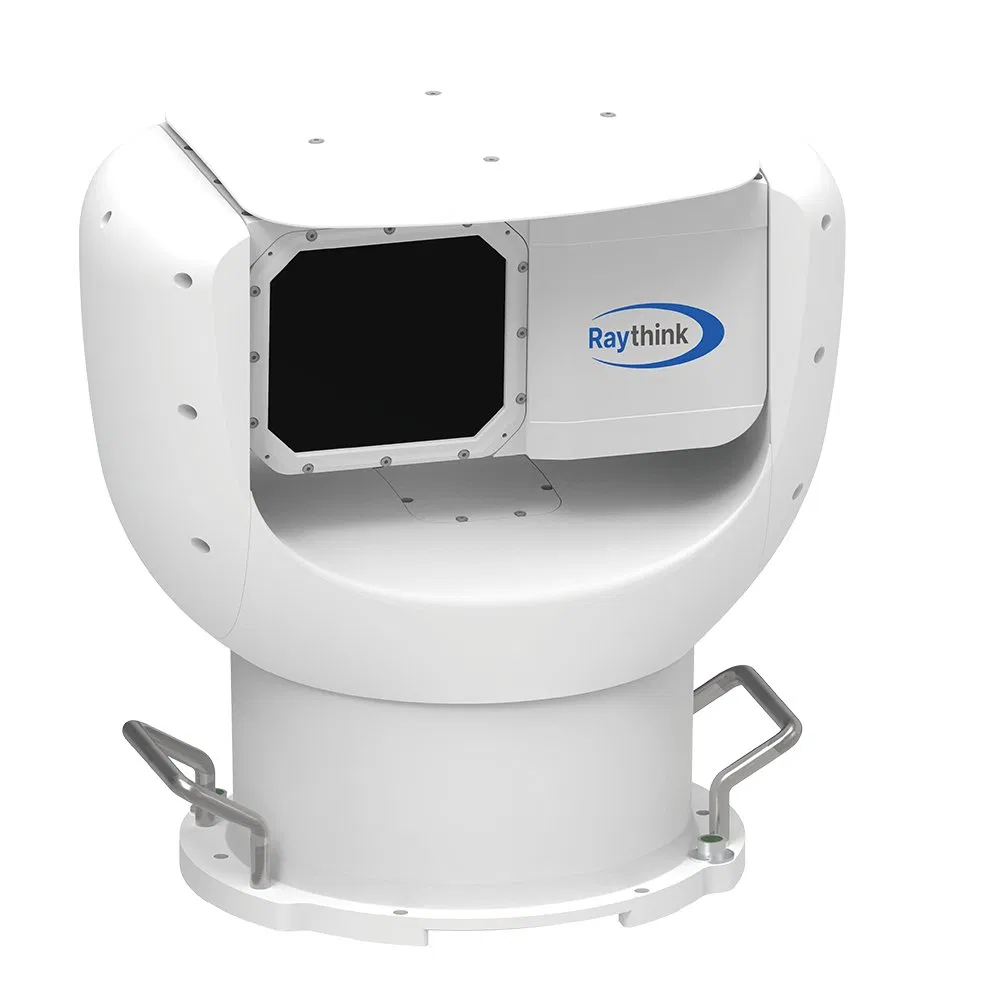

Panoramic Imaging System

SilentW-U12 is a solution for large area monitoring by using a 12μm 1280×1024 HD thermal detector and capturing 360° panoramic image. SilentW is able to detect multiple objects at same time and can be widely used in nature reserve area, oil/gas fields and mines to make a comprehensive security solution.

Product Highlights

12μm Uncooled Infrared Detector
Adopts the latest 12μm uncooled infrared detector or high-performance MWIR cooled detector, and advanced infrared image algorithms to ensure clear imaging at greater distances.
360° Panoramic Surveillance
Detects a full circle in approximately 2 seconds and delivers real-time panoramic video images, enabling comprehensive visual monitoring without blind spots.
Multi-Target Detection
Capable of simultaneously detecting & tracking up to 128 targets, detection range up to 8km.
Link with PTZ Camera
Easy calibration, link with dual-spectrum PTZ camera to track the target. Using zoom lens to view more details from long distance.
Intelligent Detection Algorithm
Deep learning AI algorithm to recognize human, vehicle, ship, and UAV targets.
Low Power Consumption
Low power consumption, can be powered by solar, reduce the needs of infrastructure.

Technical Specifications

Feature SilentW-U1275
Detector TypeUncooled
Detector Resolution1280×1024
Focal Length75mm
Panoramic Image Resolution39200×512
Frame Rate164°/s
Horizontal FOV Range360°
Vertical FOV9.4°
Tilt Range-20°~+35°
ProtectionIP66
Dimension (mm)382×260×386
Weight20kg
Work Environment-40ºC ~+ 70ºC
Power Consumption< 35W
Detection Distance UAV (450mm) 1.5km
Human (1.7m)2km
Vehicle (4m)4km
Ship (8m)8km

Application Scenarios

Perimeter Surveillance

Perimeter Surveillance

Nature Reserve

Nature Reserve

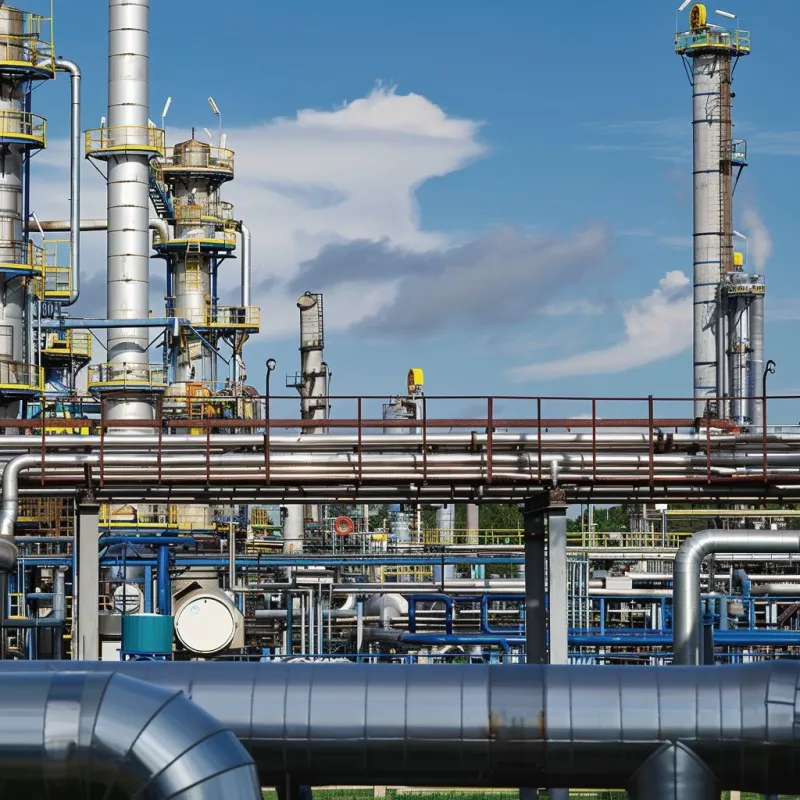

Oil and Gas Pipelines

Oil and Gas Pipelines

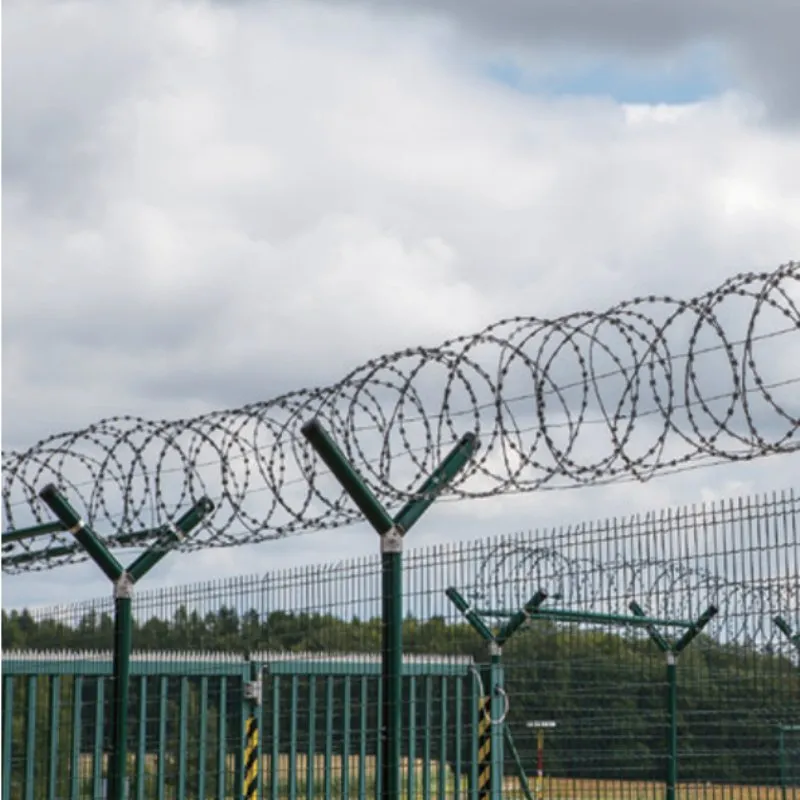

Coastal Infrastructure

Coastal Infrastructure

Manufacturing & Quality Control

Factory Facility 1
Factory Facility 2
Factory Facility 3
Factory Facility 4

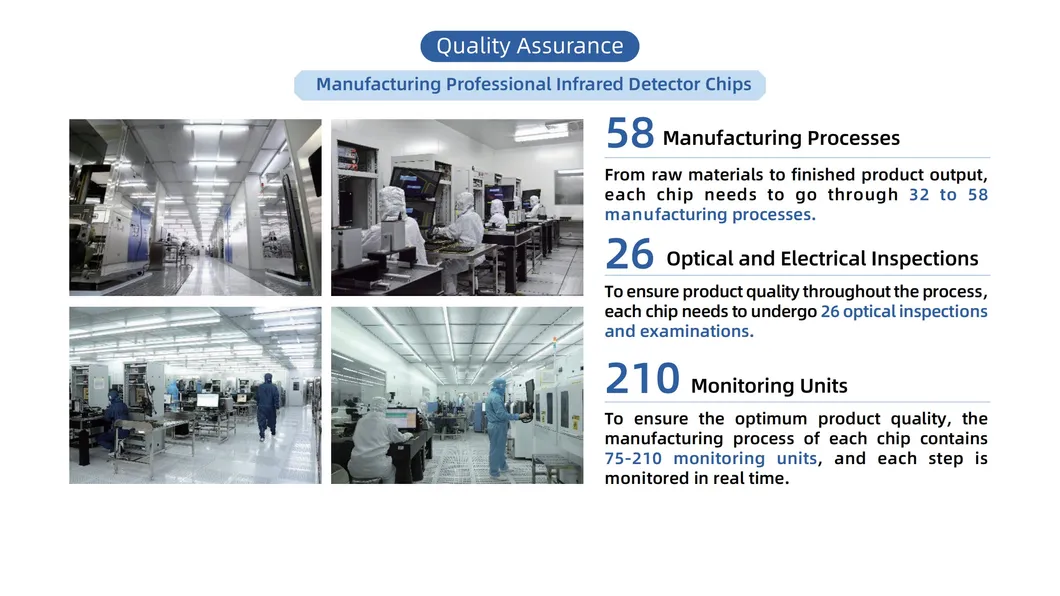

Factory Facility 5

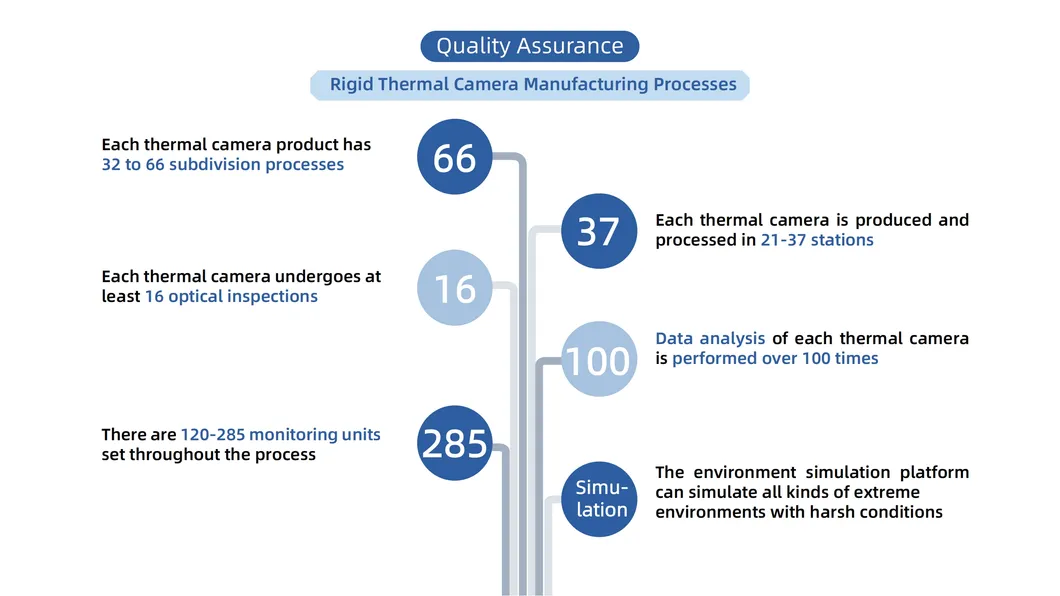

Factory Facility 6

Frequently Asked Questions

How can we guarantee quality?
We have professional infrared detector chip manufacturing, rigid thermal camera manufacturing process, perfect quality management system, and CNAS certification reliability test platform.
How long is your delivery time?
For small orders, it usually takes 7 working days. For OEM orders, please check the shipping time with our team.
What's the MOQ?
MOQ depends on the specific product requirements.
What are your payment terms?
Our payment terms include L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
What is the product warranty policy?
Thermal vision products come with a 2-year warranty, while our thermal modules are covered by a 1-year warranty.
How about after-sale support?
We provide lifetime Technical Support. Our engineers will respond to your technical requests within 24 hours.
