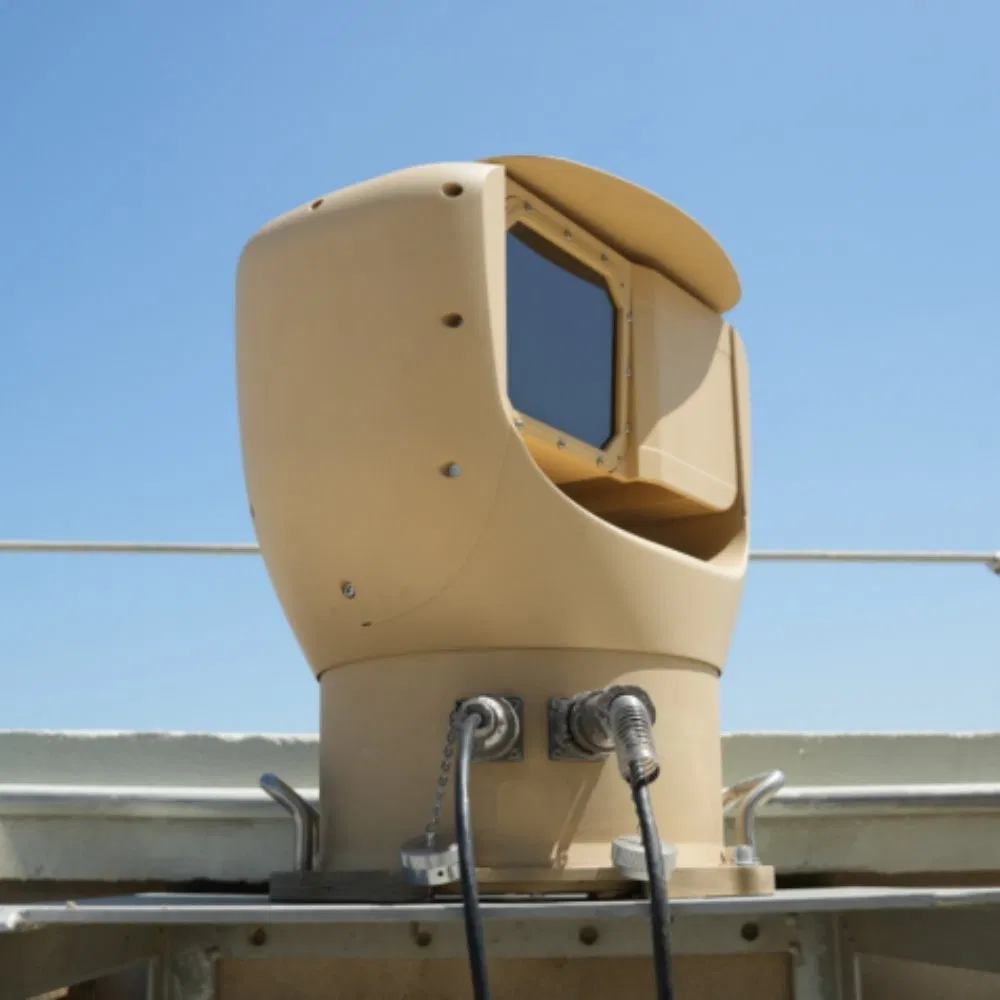

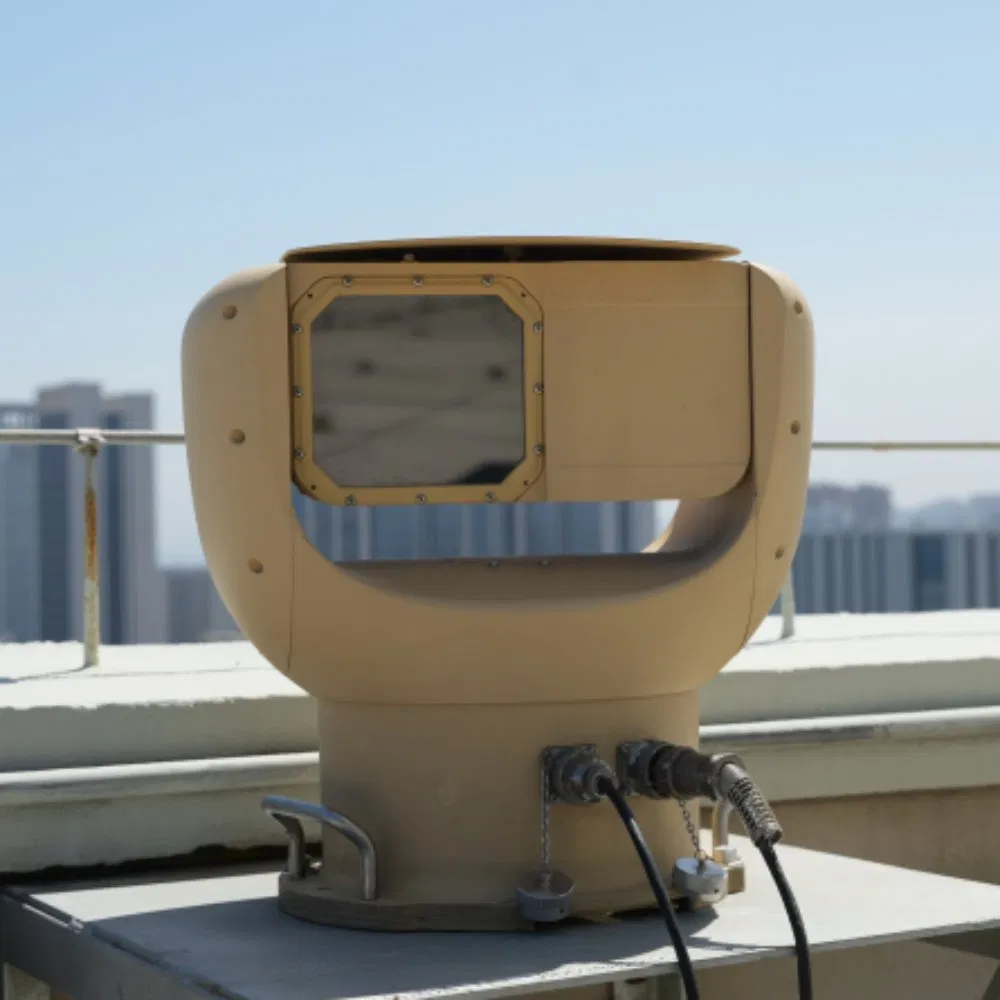

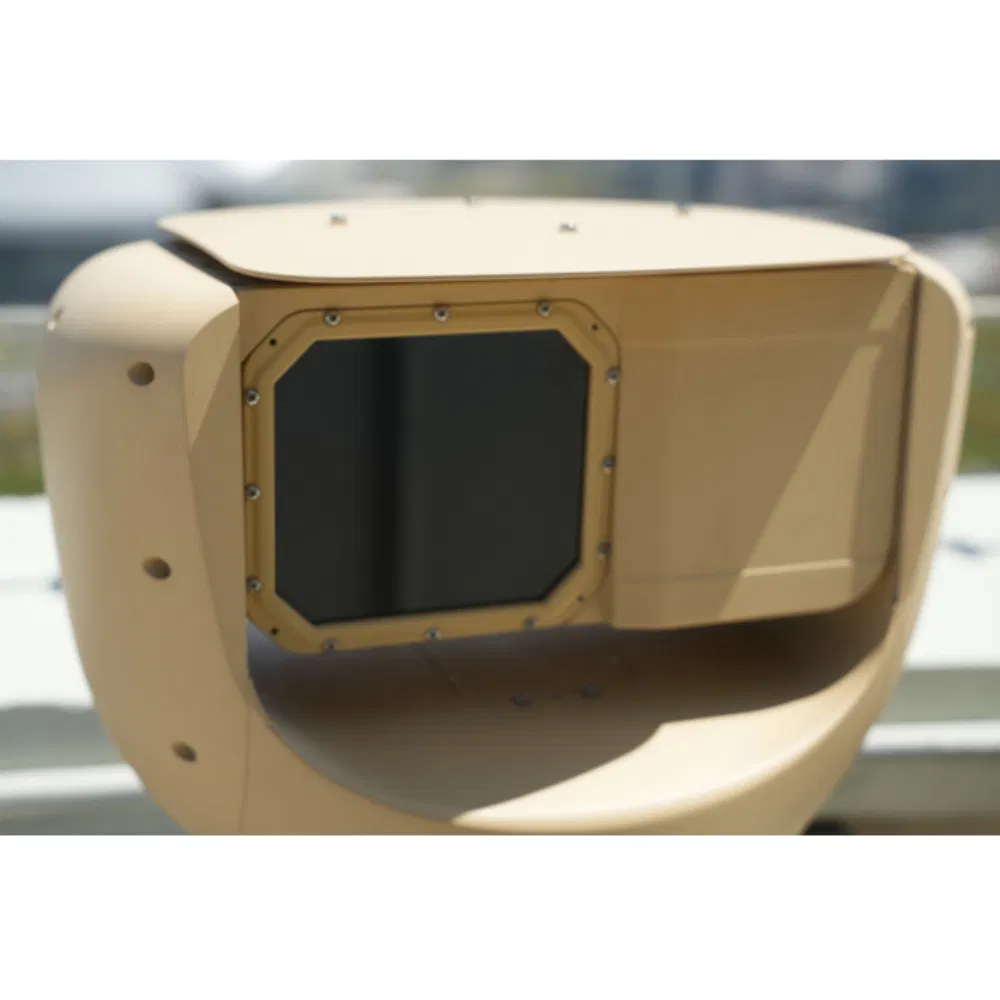

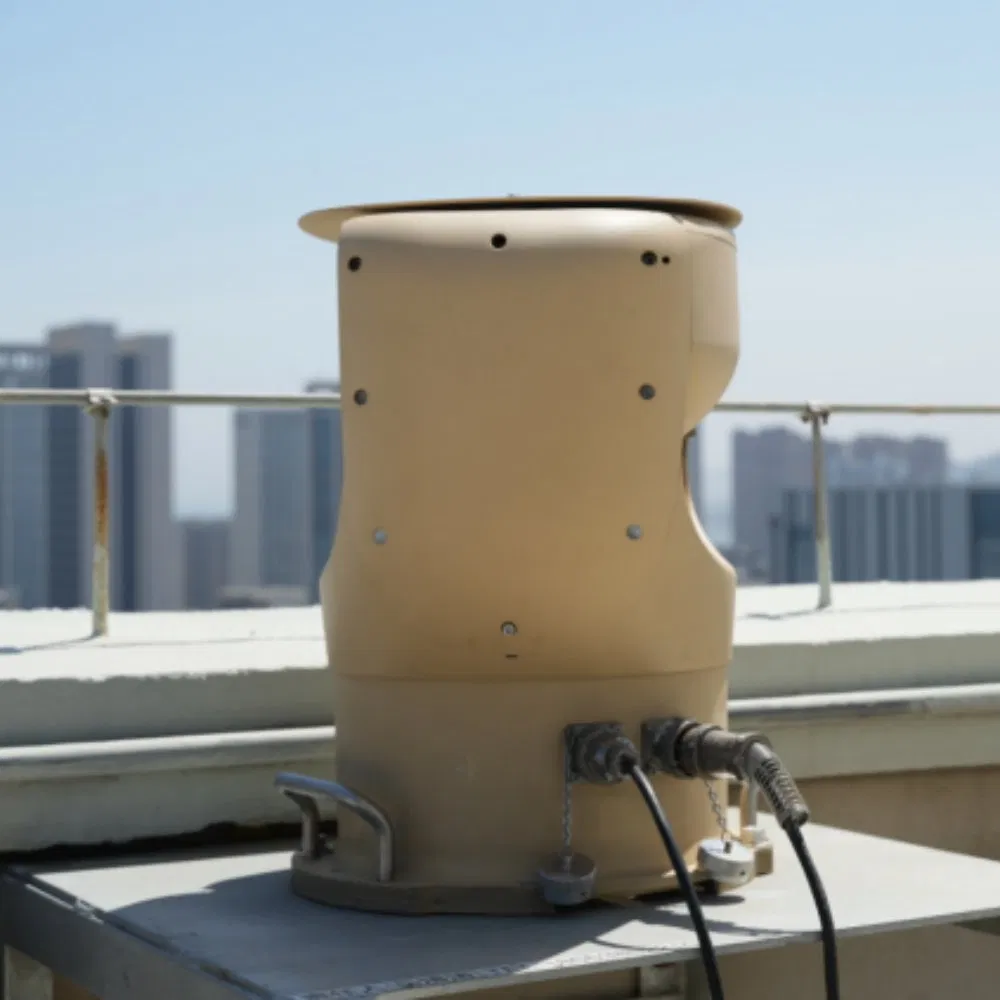

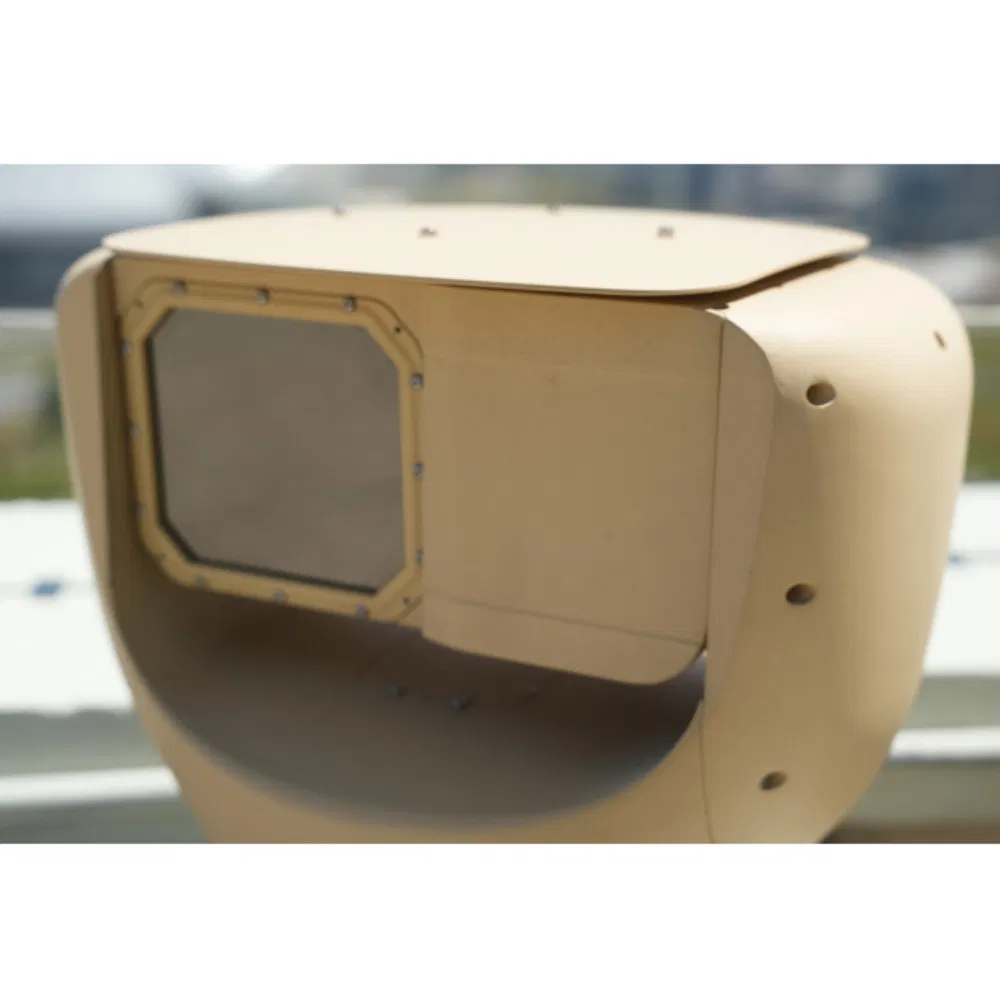

Ruggedized Uncooled Thermal Detector System with 55mm Lens and 28792× 1024 Resolution for Coastal Defense
Ruggedized Uncooled Thermal Detector System with 55mm Lens and 28792× 1024 Resolution for Coastal Defense
Ruggedized Uncooled Thermal Detector System with 55mm Lens and 28792× 1024 Resolution for Coastal Defense
Ruggedized Uncooled Thermal Detector System with 55mm Lens and 28792× 1024 Resolution for Coastal Defense
Ruggedized Uncooled Thermal Detector System with 55mm Lens and 28792× 1024 Resolution for Coastal Defense
1 / 5
Ruggedized Uncooled Thermal Detector System with 55mm Lens and 28792× 1024 Resolution for Coastal Defense
Ruggedized Uncooled Thermal Detector System with 55mm Lens and 28792× 1024 Resolution for Coastal Defense
Ruggedized Uncooled Thermal Detector System with 55mm Lens and 28792× 1024 Resolution for Coastal Defense
Ruggedized Uncooled Thermal Detector System with 55mm Lens and 28792× 1024 Resolution for Coastal Defense
Ruggedized Uncooled Thermal Detector System with 55mm Lens and 28792× 1024 Resolution for Coastal Defense

Ruggedized Uncooled Thermal Detector System with 55mm Lens and 28792× 1024 Resolution for Coastal Defense

Customization: Available
Technology: Infrared
Style: Panoramic Camera
Send Inquiry

Product Description

■Basic Information
Model NO.
SilentW-U1255
Type
Panoramic Camera
Certification
CE, FCC, RoHS, EMI/EMC
Effective Distance
≧30m
Detector Resolution
1280×1024
Focal Length
55mm
Horizontal Fov Range
360°
Protection
IP66
Work Environment
-40℃ ~+ 70℃
Weight
20kg
■Product Description

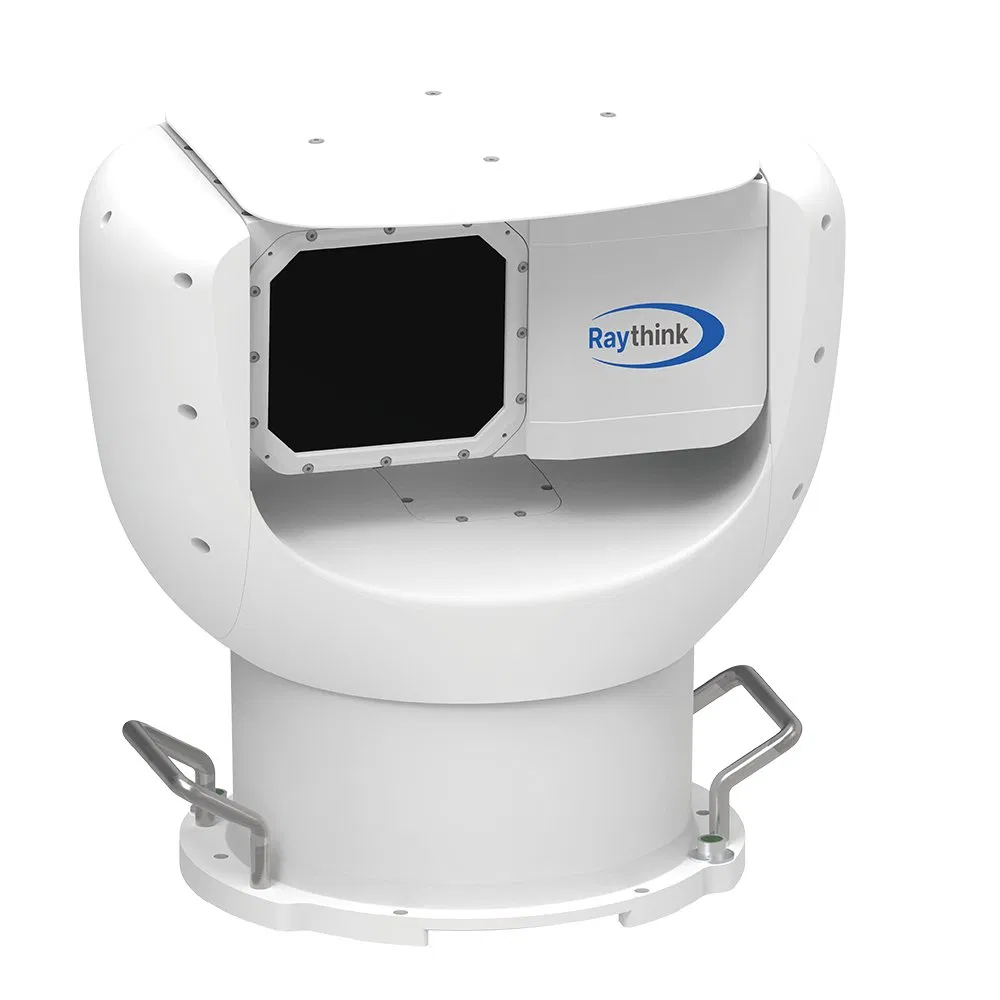

Thermal Detector System

SilentW-U12 is a solution for large area monitoring by using a 12μm 1280×1024 HD thermal detector and capturing 360° panoramic image. SilentW is able to detect multiple objects at same time and can be widely used in nature reserve area, oil/gas fields and mines to make a comprehensive security solution.

■Product Highlights
  • 12μm Uncooled Infrared Detector Adopts the latest 12μm uncooled infrared detector or high-performance MWIR cooled detector, and advanced infrared image algorithms to ensure clear imaging at greater distances.
  • 360° Panoramic Surveillance Detects a full circle in approximately 2 seconds and delivers real-time panoramic video images, enabling comprehensive visual monitoring without blind spots.
  • Multi-Target Detection Capable of simultaneously detecting & tracking up to 128 targets, detection range up to 8km.
  • Intelligent Detection Algorithm Deep learning AI algorithm to recognize human, vehicle, ship, and UAV targets.
  • Low Power Consumption Low power consumption, can be powered by solar, reduce the needs of infrastructure.
■Technical Specifications
Parameter SilentW-U1255
Detector TypeUncooled
Detector Resolution1280×1024
Focal Length55mm
Panoramic Image Resolution28792×512
Frame Rate180°/s
Horizontal FOV Range360°
Vertical FOV12.7°
ProtectionIP66
Power Consumption< 35W
Detection Distance UAV (450mm) 1km
Human (1.7m) 1.5km
Vehicle (4m) 3km
Ship (8m) 6km
■Application Scenarios
Perimeter Surveillance

Perimeter Surveillance

Nature Reserve

Nature Reserve

Oil and Gas Pipelines

Oil and Gas Pipelines

Coastal Infrastructure

Coastal Infrastructure

?Frequently Asked Questions
How can we guarantee quality?

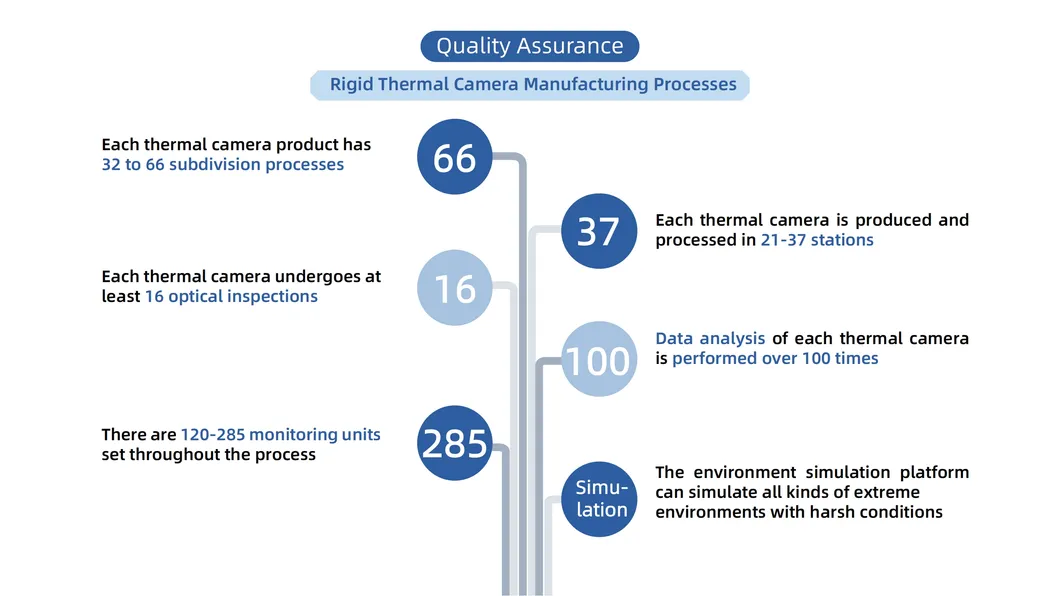

We have professional infrared detector chip manufacturing, a rigid thermal camera manufacturing process, a perfect quality management system, and a CNAS certification reliability test platform.
How long is your delivery time?
For small orders, it usually takes 7 working days. For OEM orders, please check the shipping time with our team.
What's the MOQ?
MOQ depends on the specific product requirements.
What are your payment terms?
Our payment terms include L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
What's the product warranty policy?
Thermal vision products come with a 2-year warranty, while thermal modules are covered by a 1-year warranty.
How about after-sale support?
We provide lifetime technical support. Our engineers typically respond to technical support inquiries within 24 hours.
