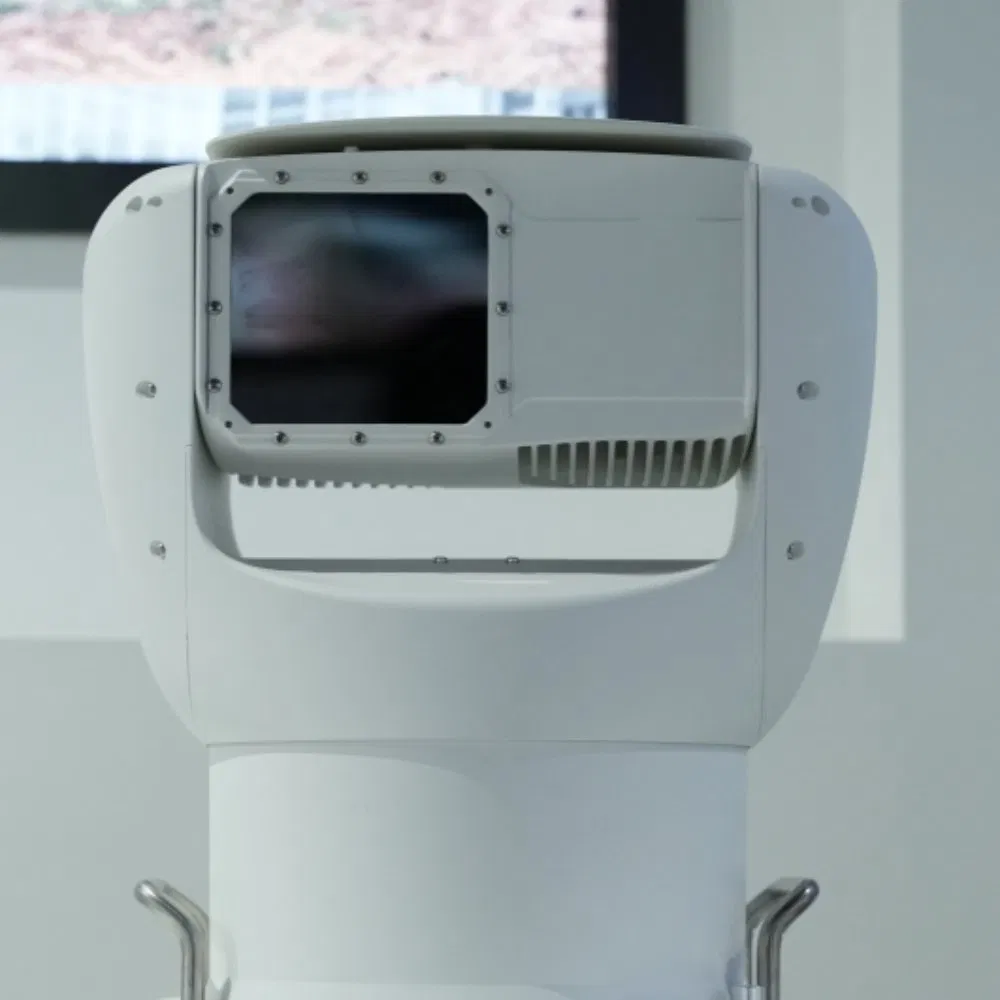

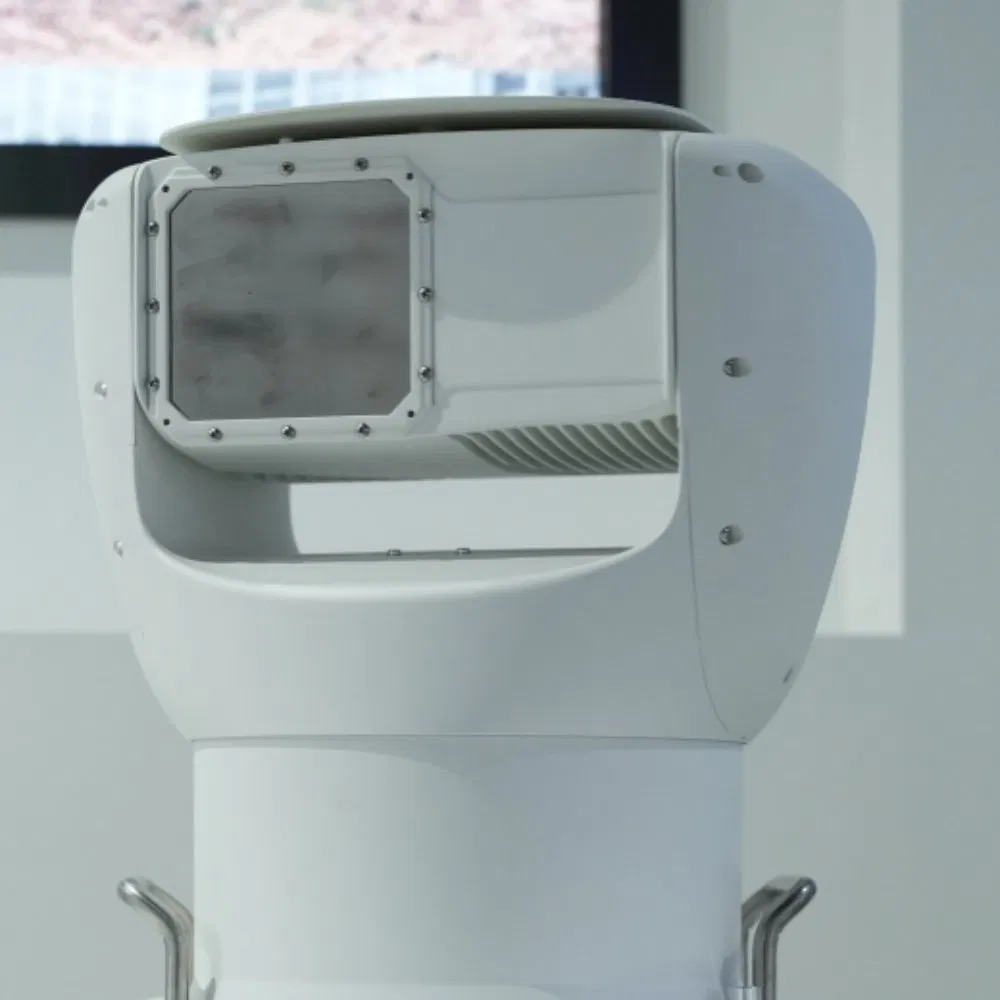

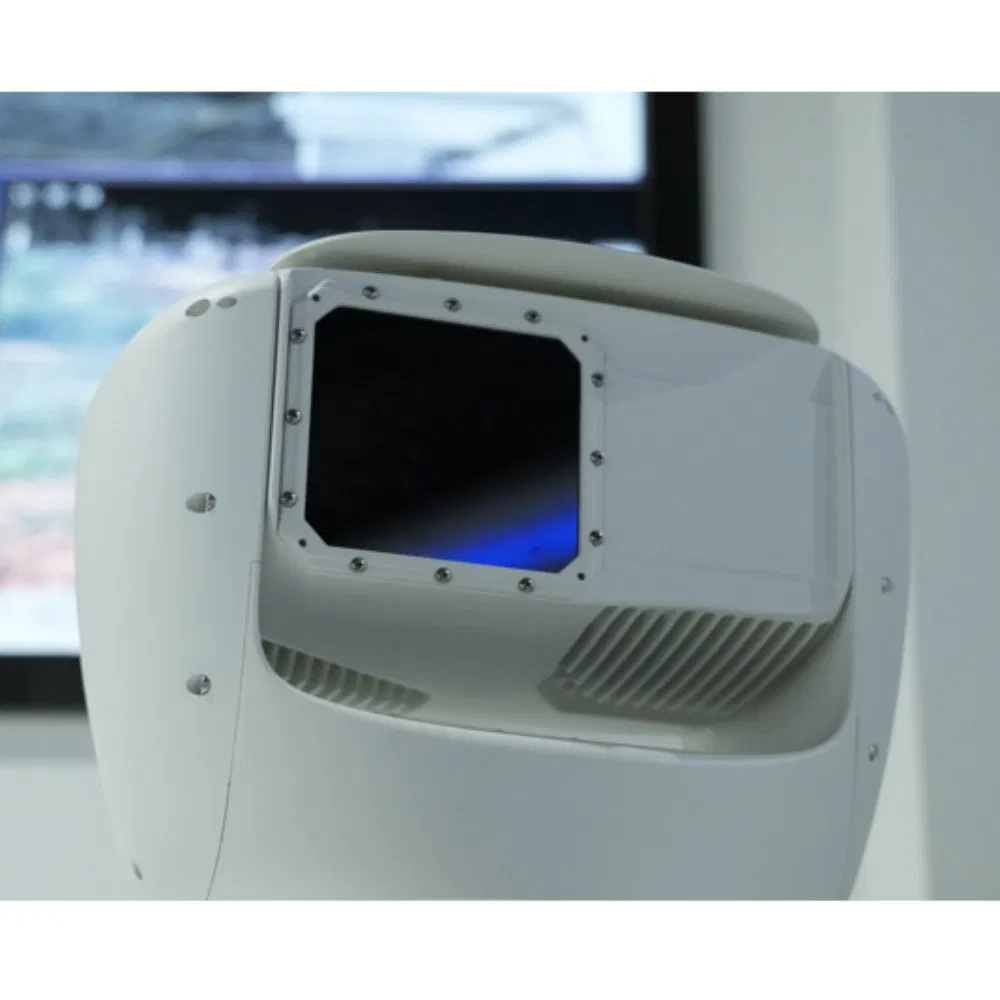

Solar-Powered 360° Surveillance System with 55mm Focal Length and 180° /S Frame Rate for Perimeter Protection
Solar-Powered 360° Surveillance System with 55mm Focal Length and 180° /S Frame Rate for Perimeter Protection
Solar-Powered 360° Surveillance System with 55mm Focal Length and 180° /S Frame Rate for Perimeter Protection
Solar-Powered 360° Surveillance System with 55mm Focal Length and 180° /S Frame Rate for Perimeter Protection
Solar-Powered 360° Surveillance System with 55mm Focal Length and 180° /S Frame Rate for Perimeter Protection
1 / 5
Solar-Powered 360° Surveillance System with 55mm Focal Length and 180° /S Frame Rate for Perimeter Protection
Solar-Powered 360° Surveillance System with 55mm Focal Length and 180° /S Frame Rate for Perimeter Protection
Solar-Powered 360° Surveillance System with 55mm Focal Length and 180° /S Frame Rate for Perimeter Protection
Solar-Powered 360° Surveillance System with 55mm Focal Length and 180° /S Frame Rate for Perimeter Protection
Solar-Powered 360° Surveillance System with 55mm Focal Length and 180° /S Frame Rate for Perimeter Protection

Solar-Powered 360° Surveillance System with 55mm Focal Length and 180° /S Frame Rate for Perimeter Protection

Customization: Available
Technology: Infrared
Style: PTZ Camera
Send Inquiry

Product Description

Overview & Basic Info

Model NO.
SilentW-U655
Type
CCTV Camera
Certification
CE, FCC, RoHS, EMI/EMC
Feature
Waterproof / Weatherproof, High Definition, Auto BLC
Effective Distance
≧30m
Weight
17kg
Detector Resolution
640×512
Focal Length
55mm
Horizontal Fov Range
360°
Protection
IP66
Work Environment
-40℃ ~+ 70℃
Power Consumption
< 30W

Product Description

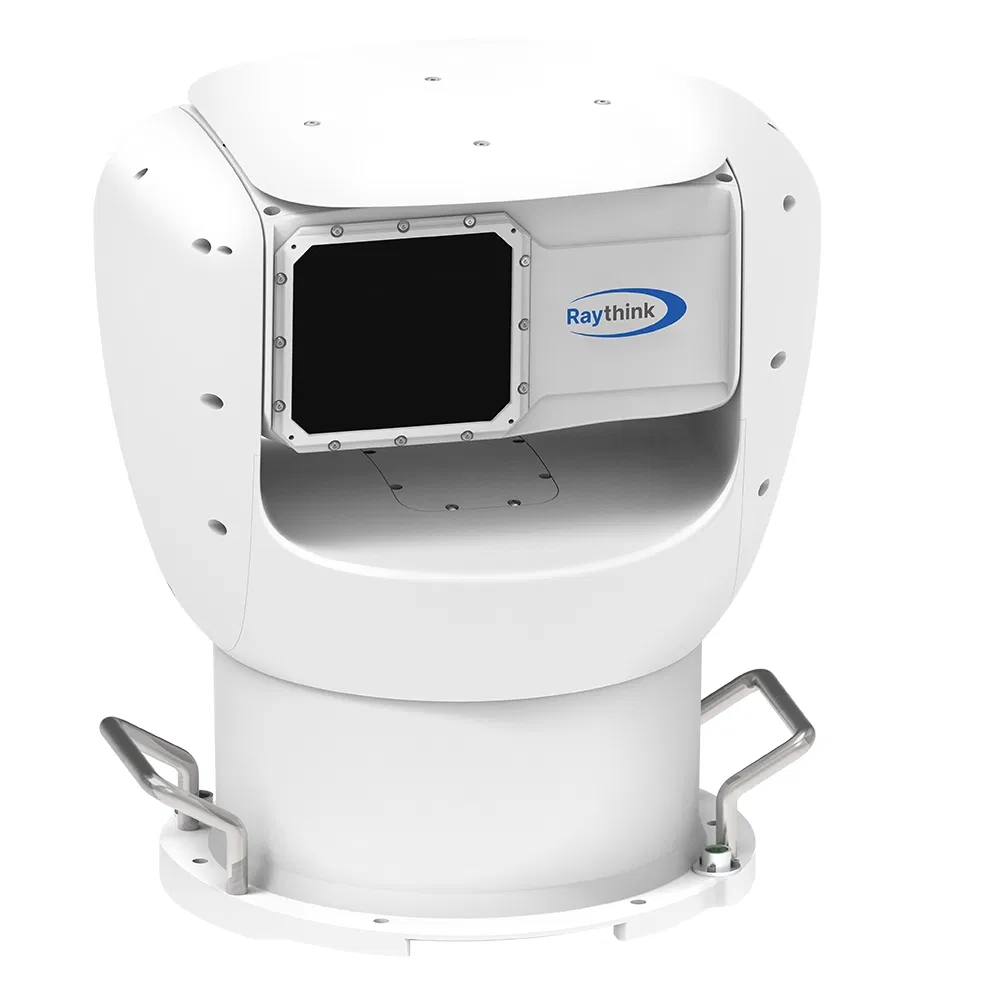

Solar-Powered 360 Surveillance System

SilentW-U6 is a solution for large area monitoring by using a 12μm 640×512 thermal detector and capturing 360° panoramic image. SilentW is able to detect multiple objects at same time and can be widely used in nature reserve area, oil/gas fields and mines to make a comprehensive security solution.

Product Highlights

🎯
12μm Uncooled Infrared Detector Adopts the latest 12μm uncooled infrared detector or high-performance MWIR cooled detector, and advanced infrared image algorithms to ensure clear imaging at greater distances.
🌐
360° Panoramic Surveillance Detects a full circle in approximately 2 seconds and delivers real-time panoramic video images, enabling comprehensive visual monitoring without blind spots.
👥
Multi-Target Detection Capable of simultaneously detecting & tracking up to 128 targets, detection range up to 8km.
🔗
Link with PTZ Camera Easy calibration, link with dual-spectrum PTZ camera to track the target. Using zoom lens to view more details from long distance.
🤖
Intelligent Detection Algorithm Deep learning AI algorithm to recognize human, vehicle, ship, and UAV targets.
☀️
Low Power Consumption Low power consumption, can be powered by solar, reduce the needs of infrastructure.

Technical Specifications

Parameter SilentW-U655
Detector TypeUncooled
Detector Resolution640×512
Focal Length55mm
Panoramic Image Resolution28792×512
Frame Rate180°/s
Horizontal FOV Range360°
Vertical FOV6.4°
Tilt Range-20°~+35°
ProtectionIP66
Dimension (mm)327×260×377
Weight17kg
PowerDC 30V 5A
Detection Distance UAV (450mm) 1km
Human (1.7m)1.5km
Vehicle (4m)3km
Ship (8m)6km

Application Scenarios

Perimeter Surveillance | Nature Reserve

Perimeter Surveillance
Nature Reserve

Oil and Gas Pipelines | Critical Infrastructure Protection

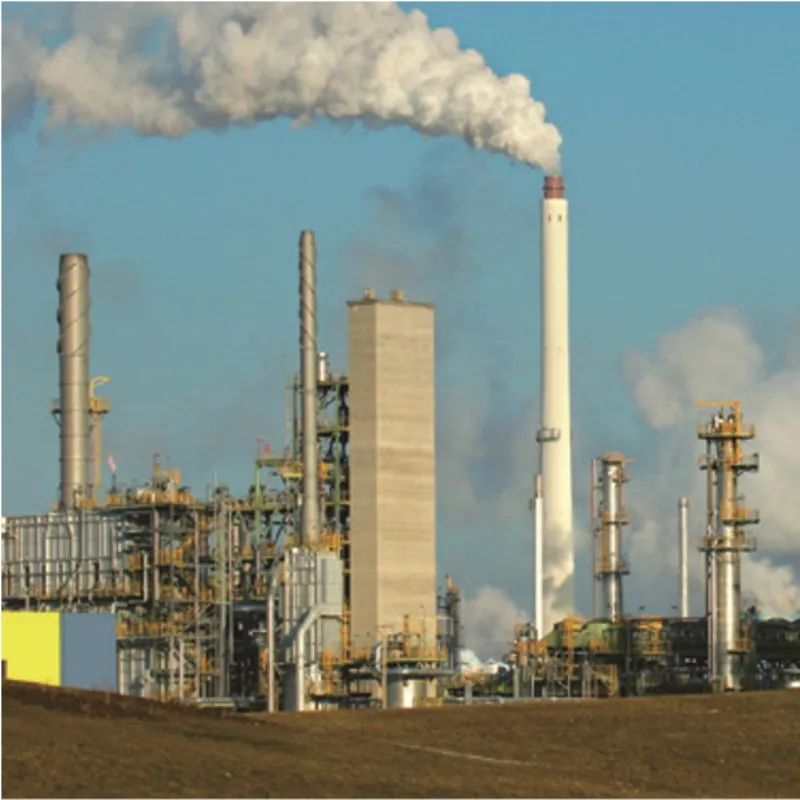

Oil and Gas Pipelines

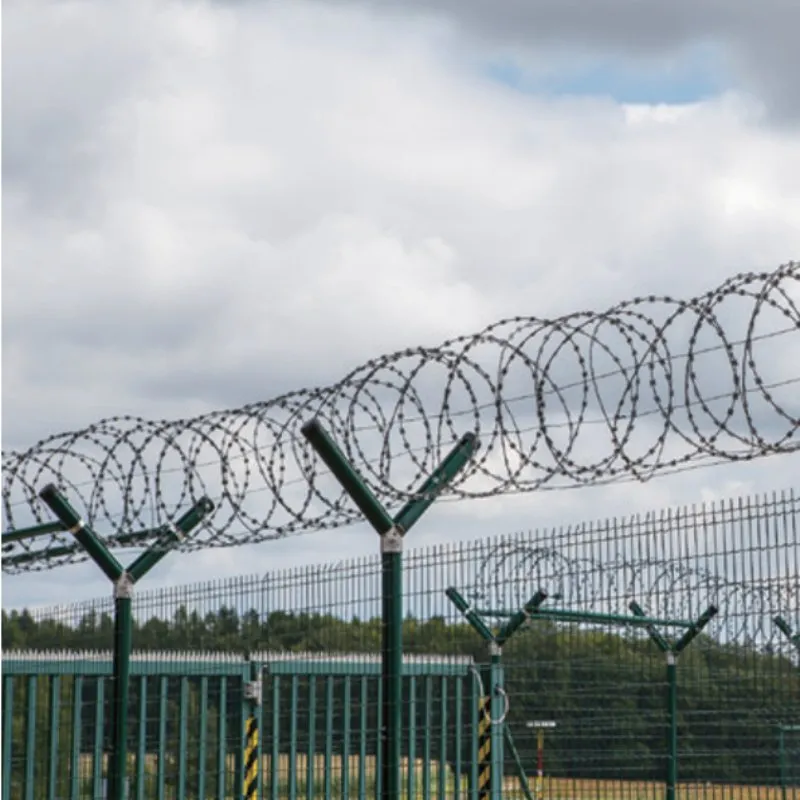

Critical Infrastructure
Production View 1
Production View 2
Production View 3
Production View 4
Production View 5
Production View 6

FAQ

Q1: How can we guarantee quality?
A: We have professional infrared detector chip manufacturing, rigid thermal camera manufacturing process, perfect quality management system, CNAS certification reliability test platform.
Q2: How long is your delivery time?
A: For small order, it usually takes 7 working days. For OEM order, please check the shipping time with us.
Q3: What's the MOQ?
A: MOQ is depend on the product.
Q4: What's your payment terms?
A: Our payment terms is L/C, T/T, D/P, Western Union, Paypal and Money Gram.
Q5: What's the product warranty policy?
A: Thermal vision products purchased come with a 2-year warranty, while our thermal modules are covered by a 1-year warranty.
Q6: How about aftersale support?
A: We provide lifetime Technical Support, our engineer will respond your technical support within 24 hours.
