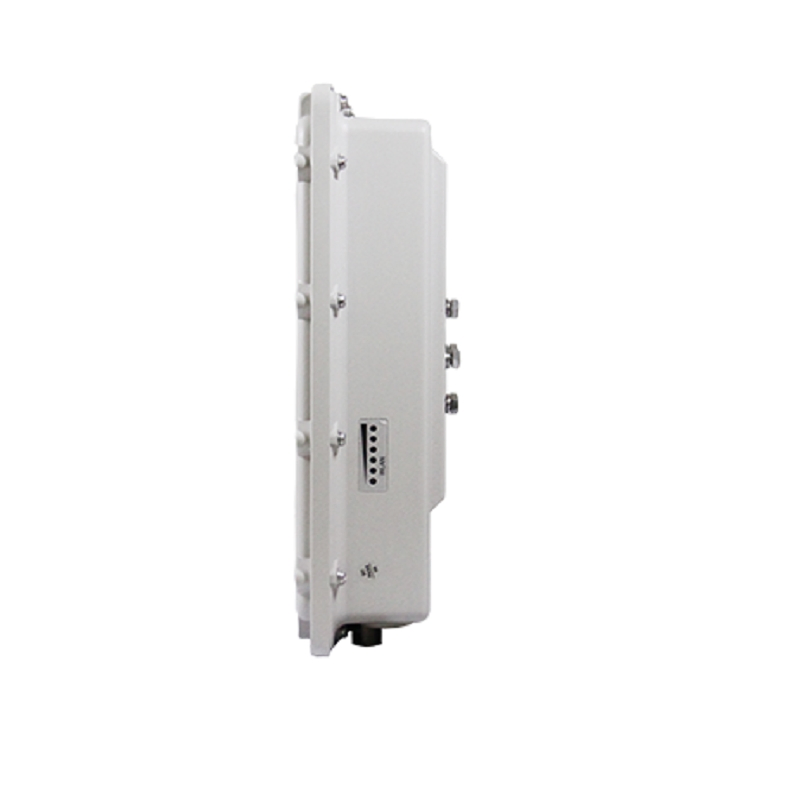

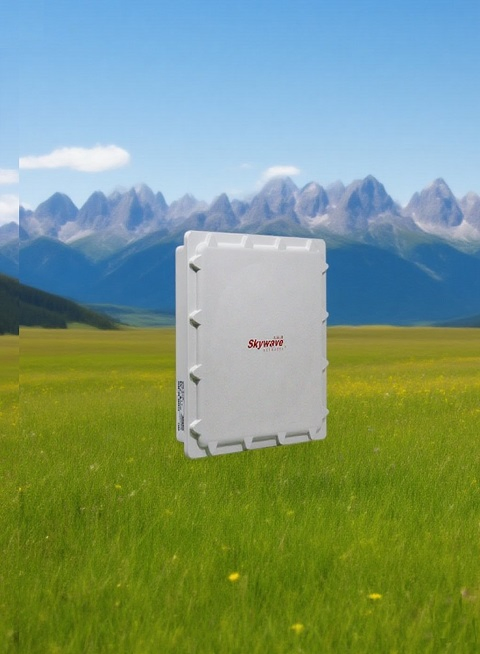

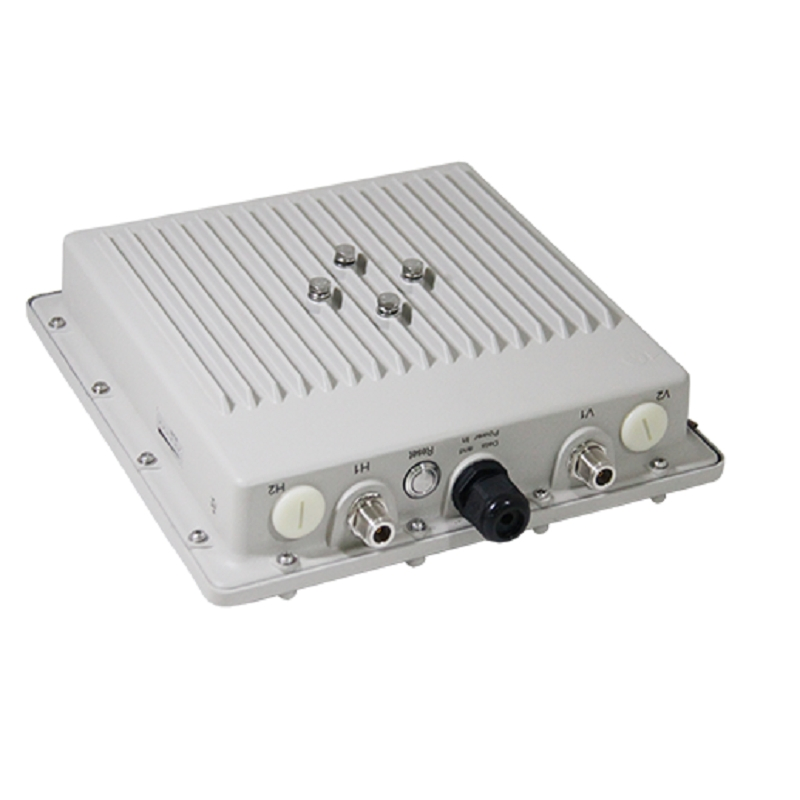

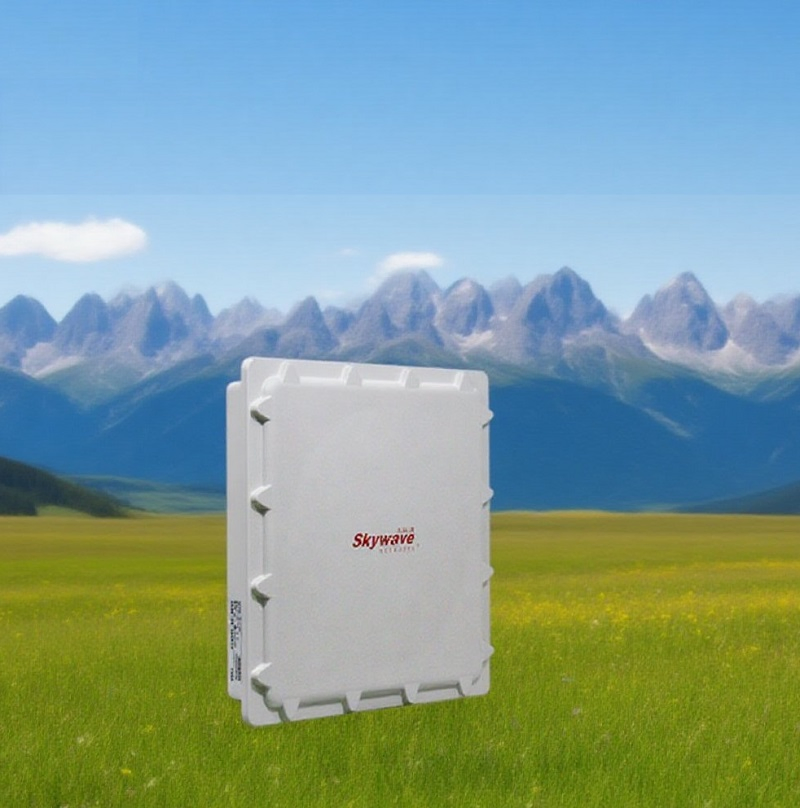

SW8000CBE is an outdoor carrier-grade split-type wireless base station operating in the 5GHz unlicensed frequency band. It is a wireless network device compliant with the IEEE802.11ac standard. The product adopts a high-performance Qualcomm Atheros high-speed network processor and is based on the MIMO (Multiple-Input Multiple-Output) technology of IEEE802.11ac, featuring a 2T2R architecture that supports a wireless transmission rate of up to 867Mbps.

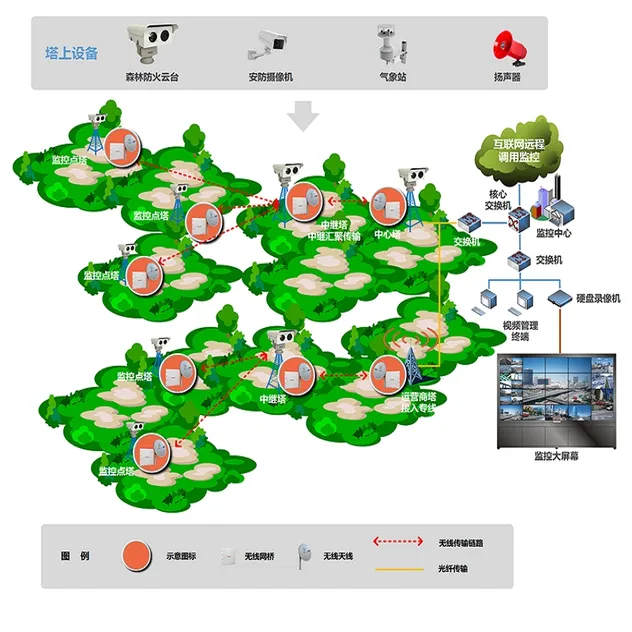

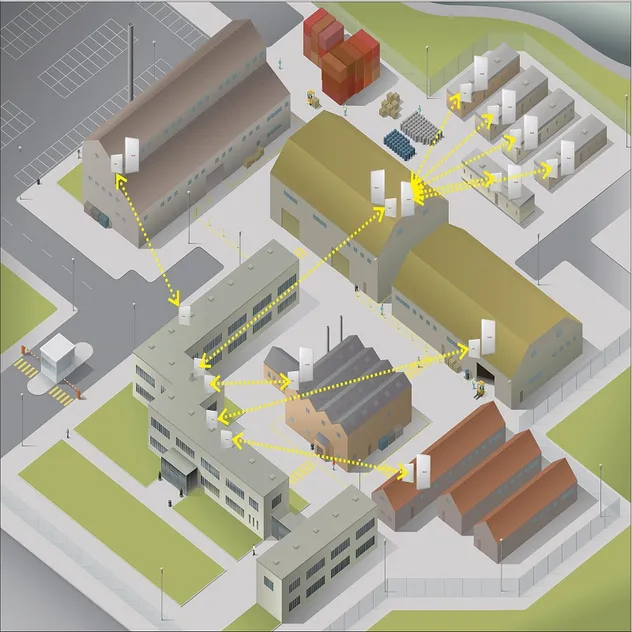

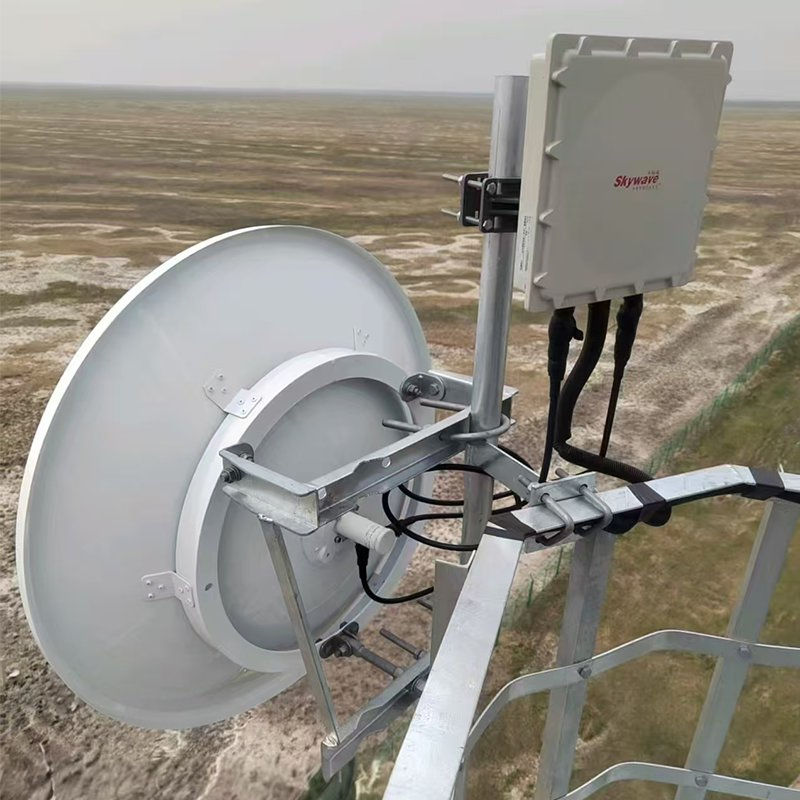

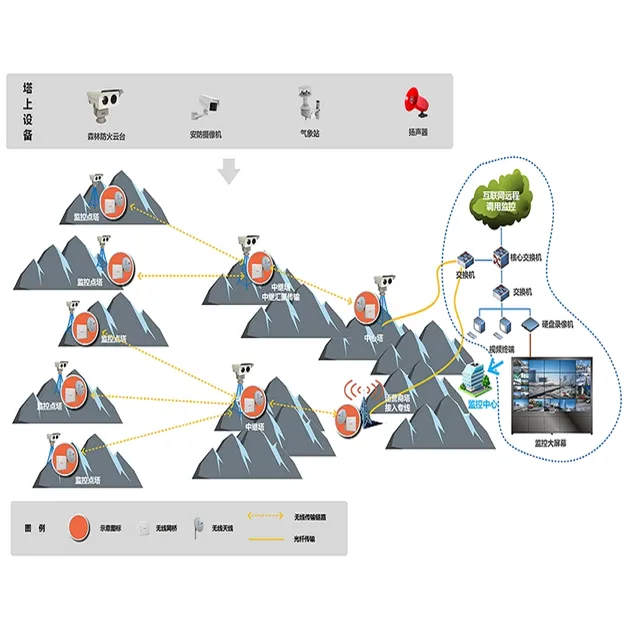

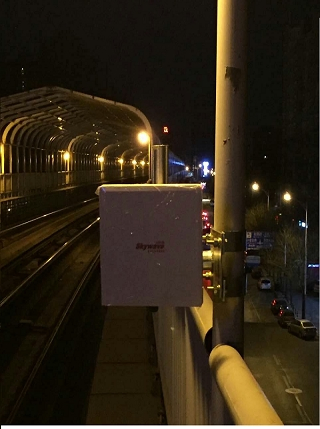

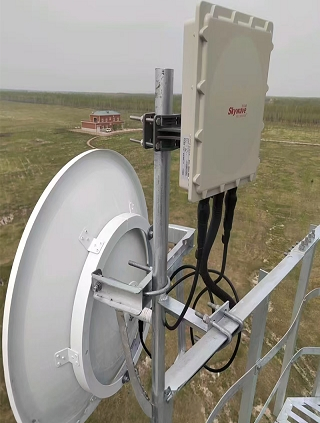

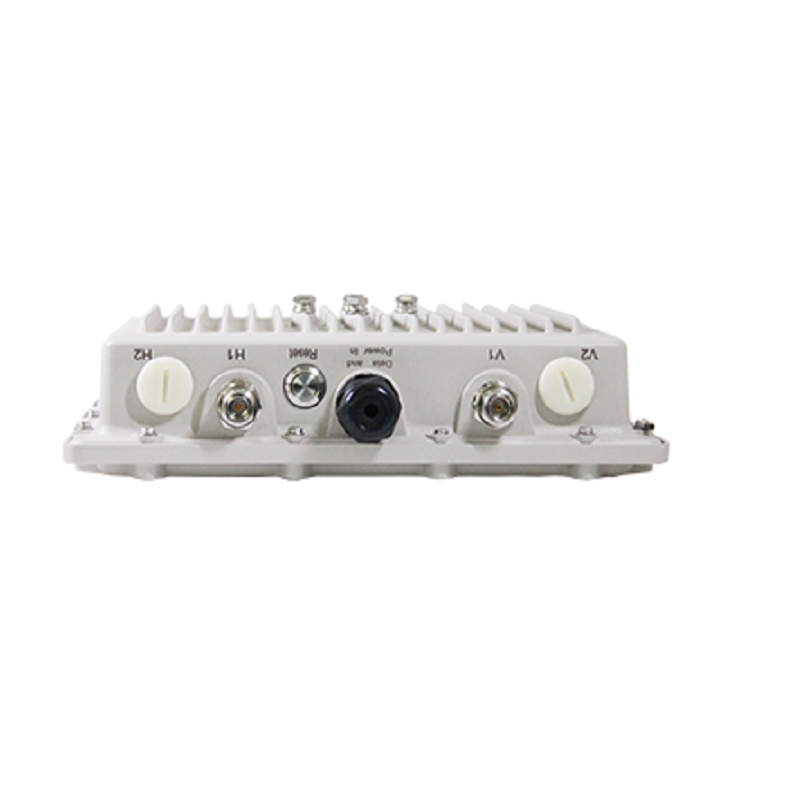

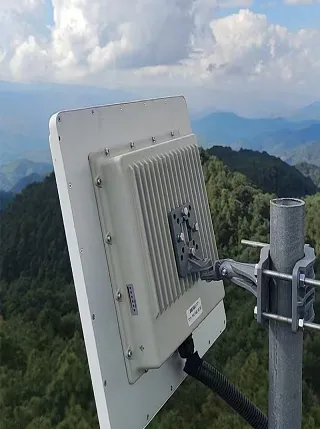

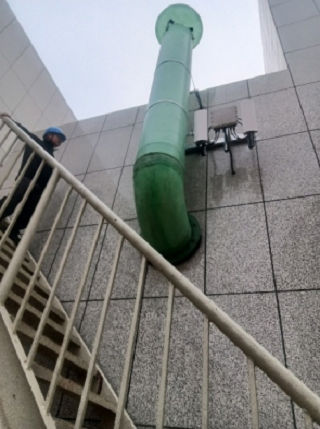

The device is equipped with 2N-type radio frequency interfaces, allowing it to connect to external antennas of different models according to on-site conditions. It is particularly suitable for long-distance backbone network transmission projects and real-time services with large data flows, such as high-definition video surveillance in industrial, energy, and transportation sectors.
| Radio Frequency | |
| Frequency band | IEEE802.11a/n/ac: 4920~ 6100MHz |
| Channel | 5/10/20/40/80MHz |
| RF power output | 2*500mW |
| Sensitivity | 802.11ac: -96 dBm@MCS0, -72dBm@MCS9 |
| Data and Working Parameters | |
| Maximum working rate | 867Mbps |
| Standard | IEEE 802.11a/n/ac/h/d; IEEE802.3u/d/ab |
| Working mode | Point-to-point, Point-to-multipoint |
| Security | WEP/WPA/WPA2/AES/TKIP/EAP |
| Hardware Specifications | |
| CPU / RAM | 720MHz / 128MB DDR2 |
| Size / Weight | 270×270×65mm / 2.2Kg |
| Protection | IP68 Waterproof, 6KV Surge protection |
| Temperature | Operation: -50℃ ~+ 80℃ |
