Product Description

🌐 Product Overview

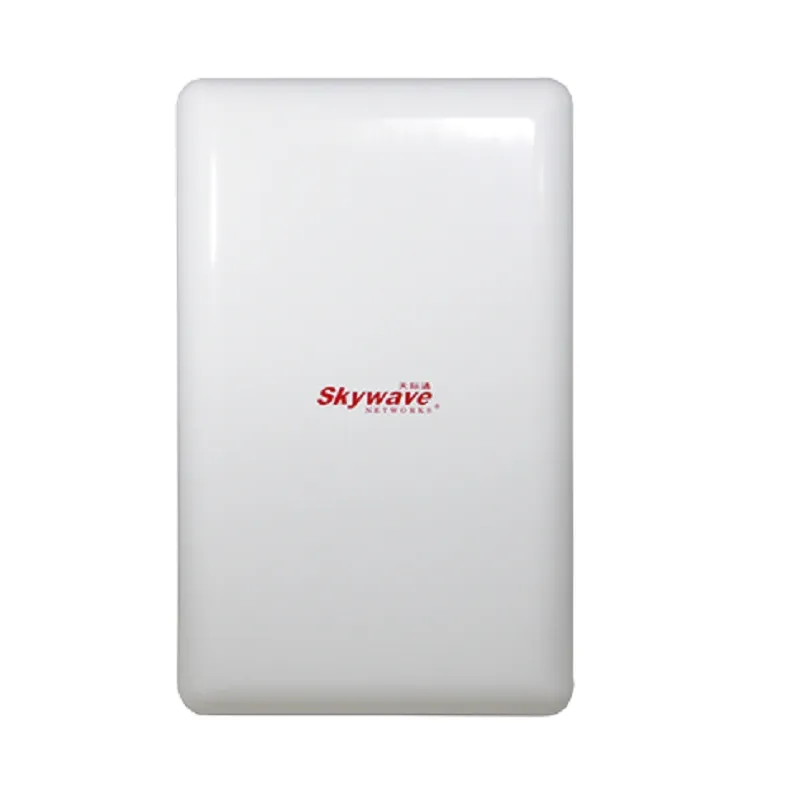

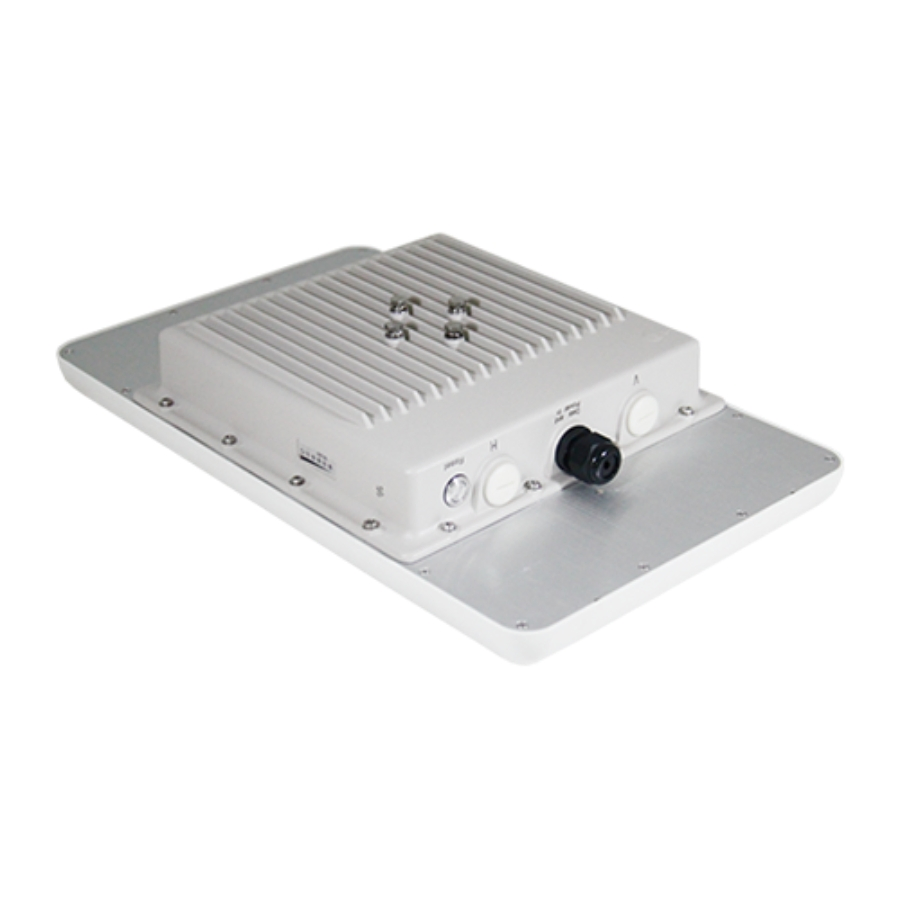

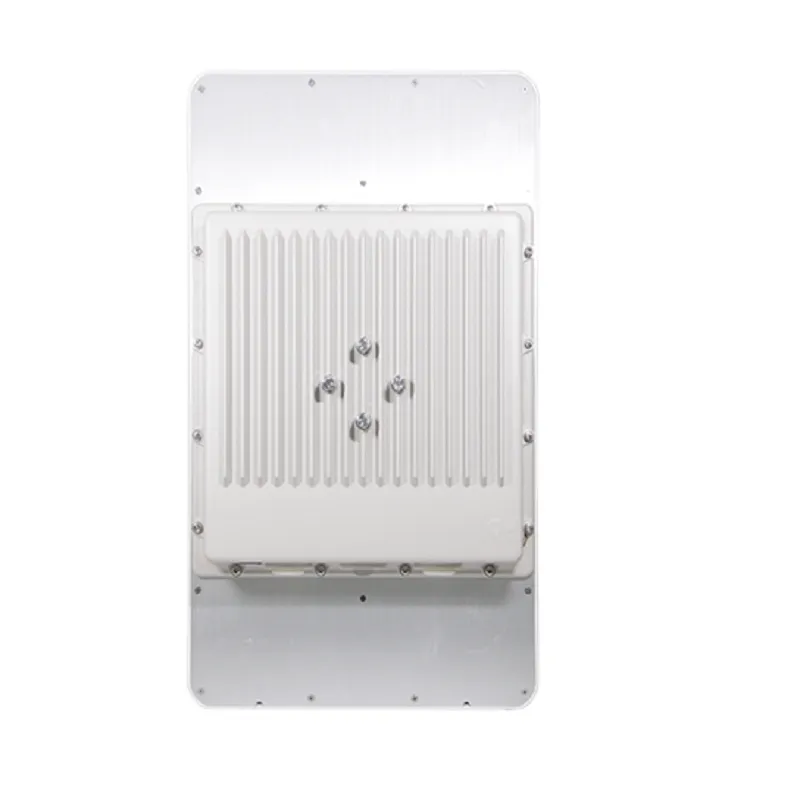

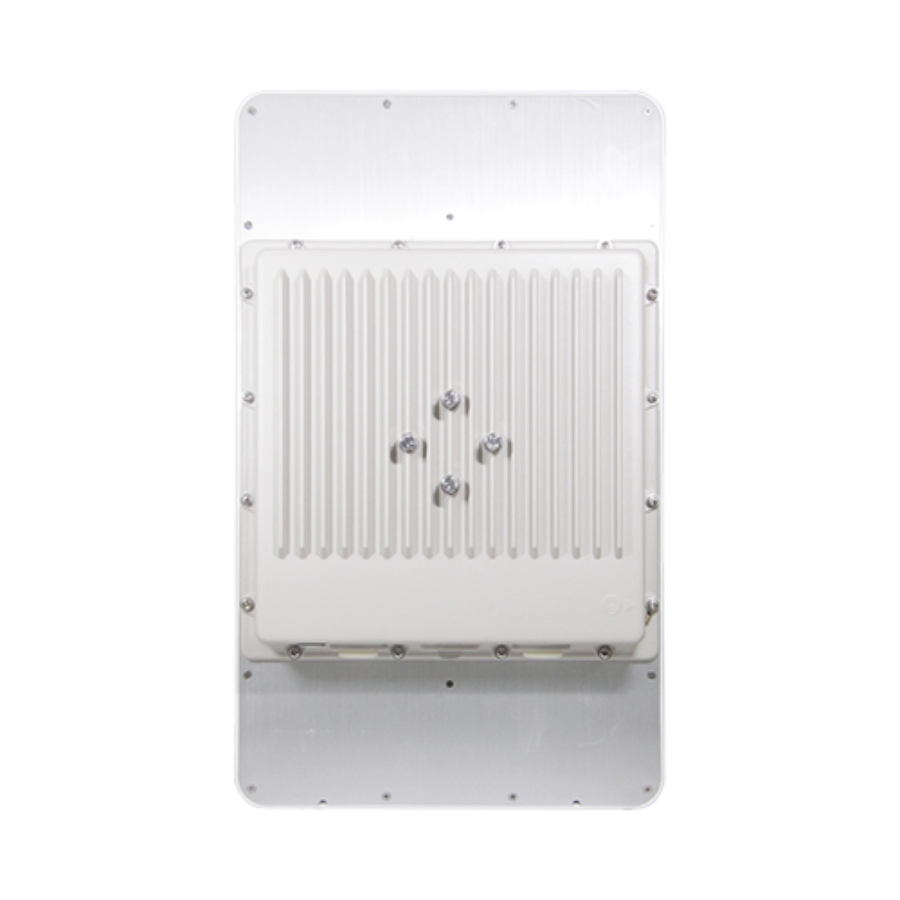

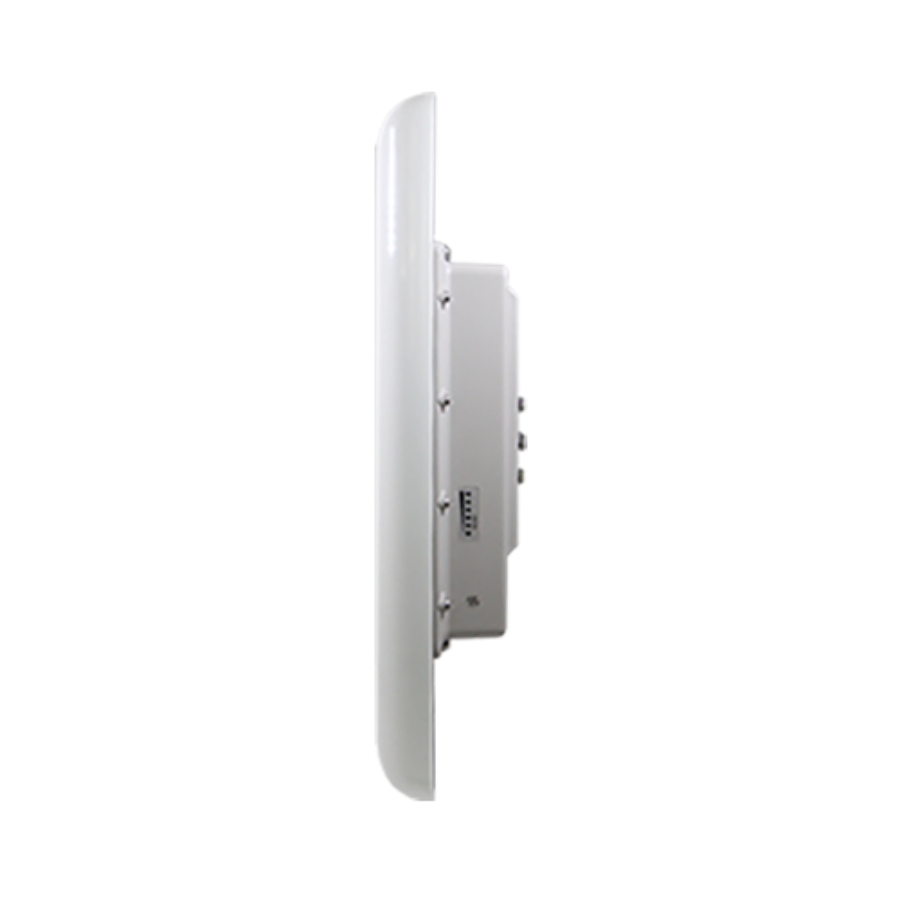

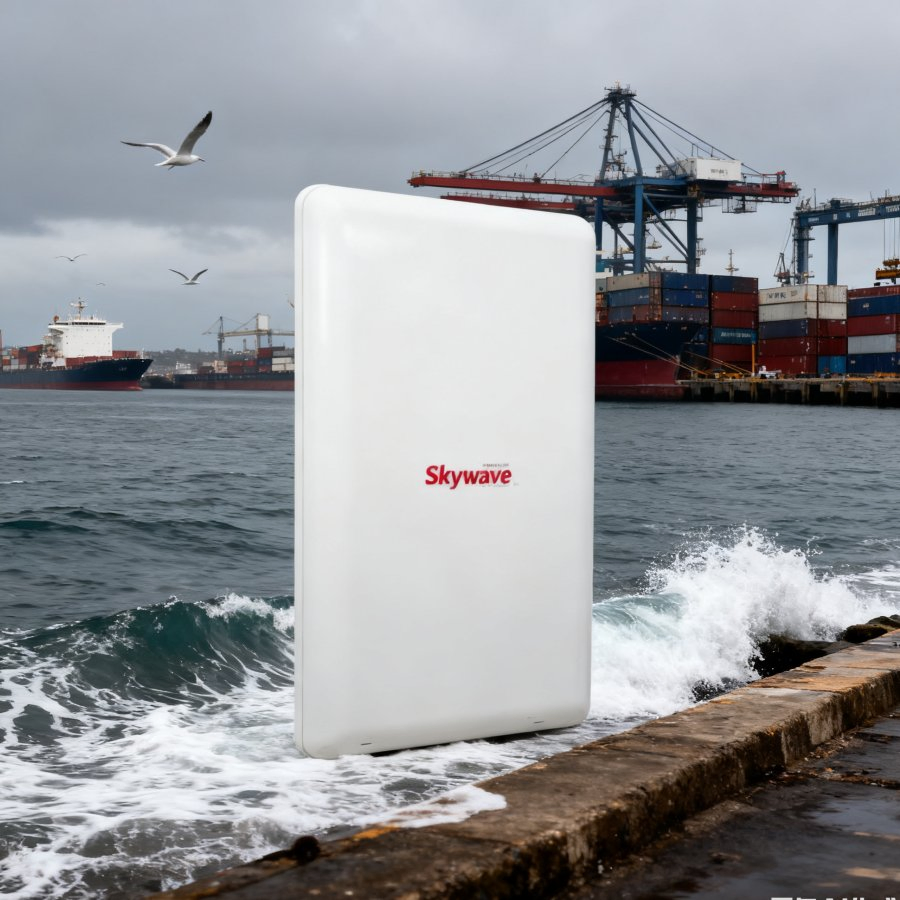

SW8000CBU is an outdoor carrier-grade antenna-integrated wireless base station that operates in the 5GHz unlicensed frequency band. Compliant with the IEEE802.11ac standard, it features a high-performance Qualcomm Atheros processor and MIMO technology with a 2T2R architecture, supporting a transmission rate of up to 867Mbps.

The device integrates a 22 MIMO panel directional antenna, making it ideal for long-distance backbone network transmission in sectors like oil fields, electric power, water conservancy, and intelligent transportation. Its metal cast aluminum shell ensures durability against wind, rain, lightning, and extreme temperatures.

📋 Basic Specifications

Model NO.	SW8000CBU
WiFi Antenna Type	Built-in 16dBi 90-Degree Dual-Polarized
Transmission Rate	>200Mbps (Physical Max 867Mbps)
Voltage	AC:100-240V
Ingress Protection	IP68
Operating Temp.	-50 °C to +80 °C
Frequency Band	4920 ~ 6100MHz
RF Power Output	2*500MW
Package Size	52.00cm * 32.50cm * 14.00cm
Package Gross Weight	3.000kg

⚙️ Technical Parameters

Radio Frequency
Modulation Method	OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; DSSS: DBPSK, DQPSK, CCK
Sensitivity	802.11ac: -96 dBm @ MCS0, -72dBm @ MCS9
Channel Bandwidth	5/10/20/40/80MHz
Software & Management
Working Mode	AP Bridge, Bridge, Station, Station Bridge, Station WDS, Mesh
Security	WEP/WPA/WPA2/AES/TKIP/EAP, Private protocol encryption
Features	DFS, Spectrum scanning, Seamless roaming, Asymmetric bandwidth allocation, Dual Watchdog
Hardware Specifications
CPU / RAM	QCA9557 (720MHz) / 128MB DDR2
Network Interface	1*Gigabit PoE Ethernet port
Power Consumption	Max 17W
Protection	Surge: 6KV, Static: 20KV (Air)

🚀 Key Advantages

Standard Compatibility Compliant with IEEE 802.11a/n/ac standards using advanced MIMO and OFDM technologies.

Extreme Distance High transmission power and sensitivity allow for integrated antenna range exceeding 15 kilometers.

TDMA Protocol Supports proprietary TDMA to enhance point-to-multipoint efficiency and reduce interference.

Industrial Design IP68 encapsulation with integrated 304 stainless steel pressure relief valve to prevent condensation.

Smart Management 5-level LED signal indicator for easy alignment and deployment without professional tools.

Robust Security Supports multiple encryption methods including AES, TKIP, EAP, and 802.1X.

🏢 Production & Quality

Frequently Asked Questions

What is the maximum transmission distance of this base station?

With its high-gain integrated antenna and 500mW RF output, the SW8000CBU can achieve a maximum transmission distance of over 15 kilometers in line-of-sight conditions.

Is the device fully waterproof for harsh environments?

Yes, the device features an IP68 integrated fully enclosed cast aluminum housing. It also includes a stainless steel pressure relief valve to balance air pressure and prevent internal condensation.

What kind of power supply does it use?

It supports standard Gigabit PoE (Power over Ethernet), allowing for easy installation as data and power are transmitted through a single cable.

Does it support point-to-multipoint (PTMP) connections?

Yes, it supports both Point-to-Point (PTP) and Point-to-Multipoint (PTMP) applications, and utilizes TDMA protocol to optimize multipoint transmission efficiency.

Can I customize the logo or color for my project?

We support on-demand customization, including LOGO branding, color adjustments, and appearance size modifications based on project requirements.

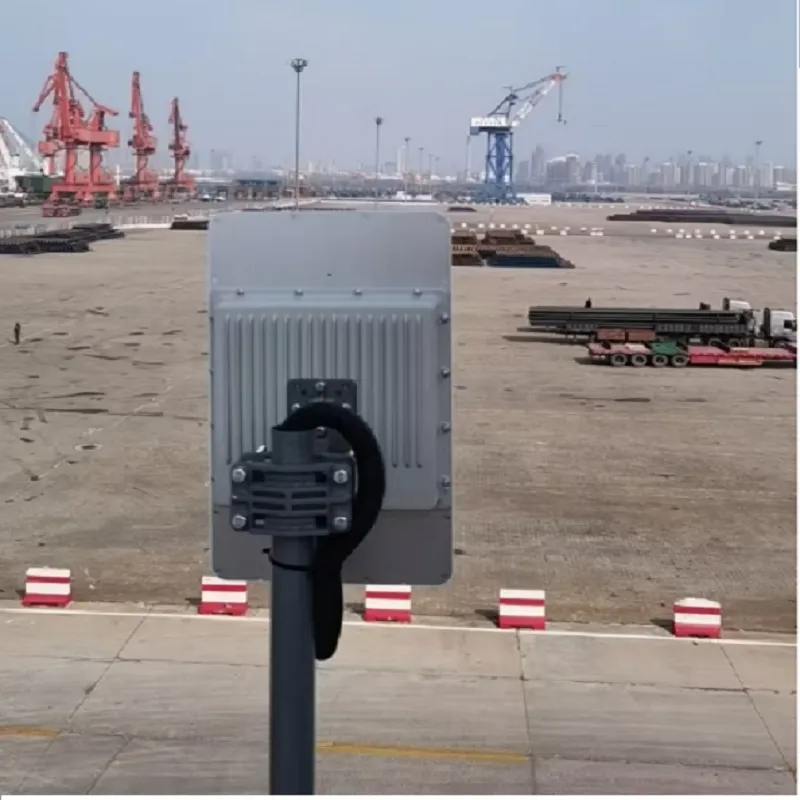

How do I align the antenna during installation?

The hardware includes a 5-level LED signal strength indicator that provides real-time feedback on the received signal, allowing for precise alignment without complex software tools.
