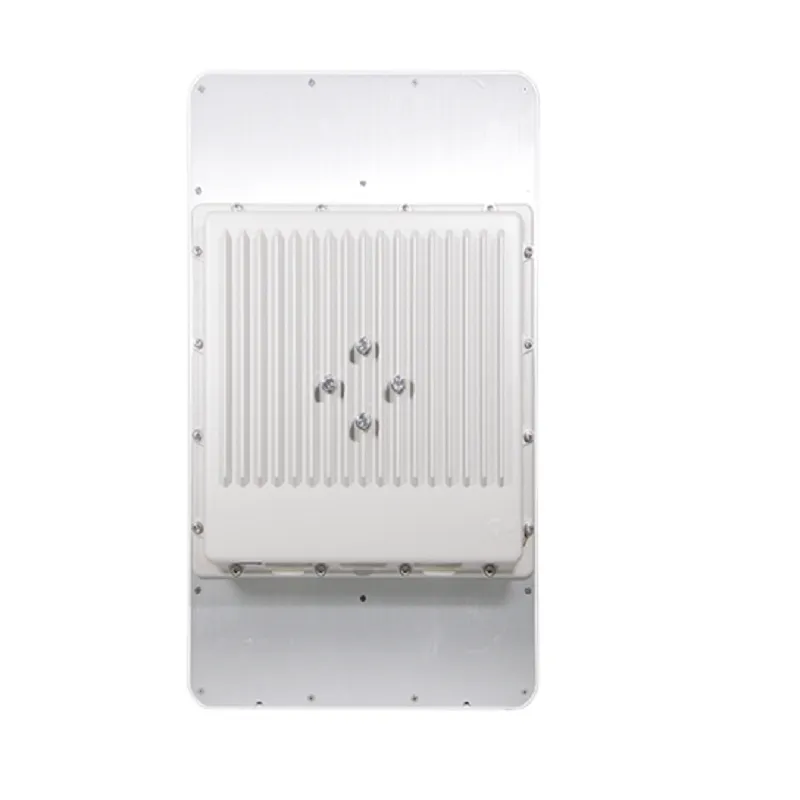

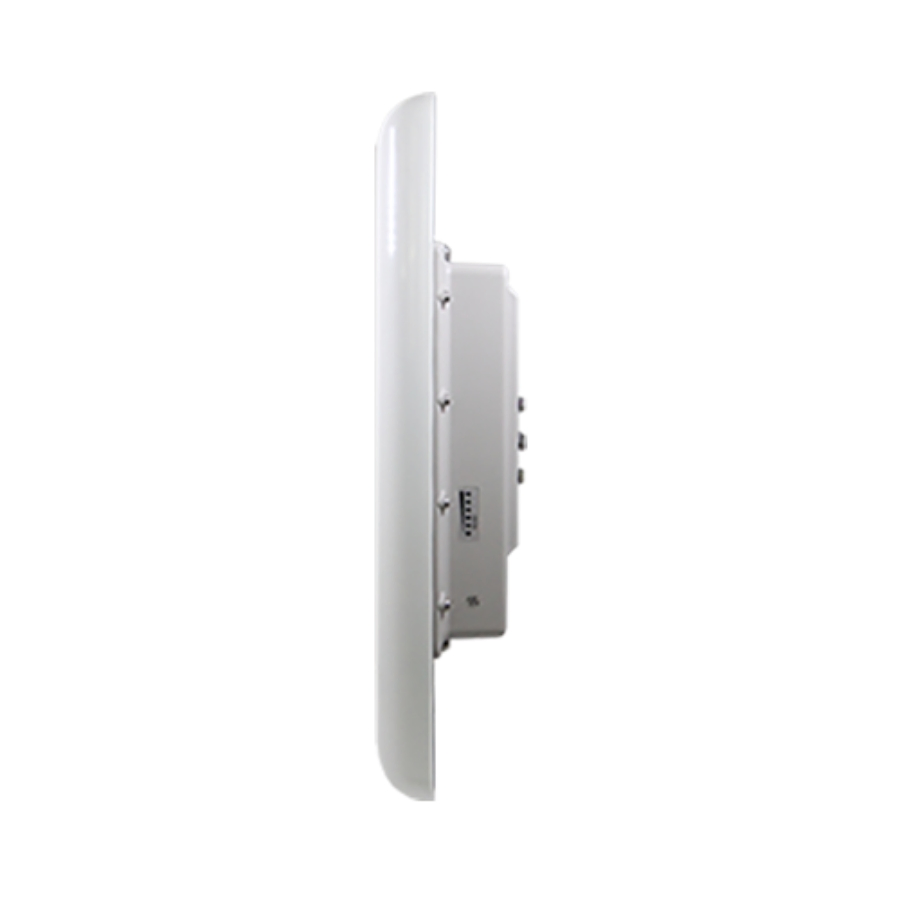

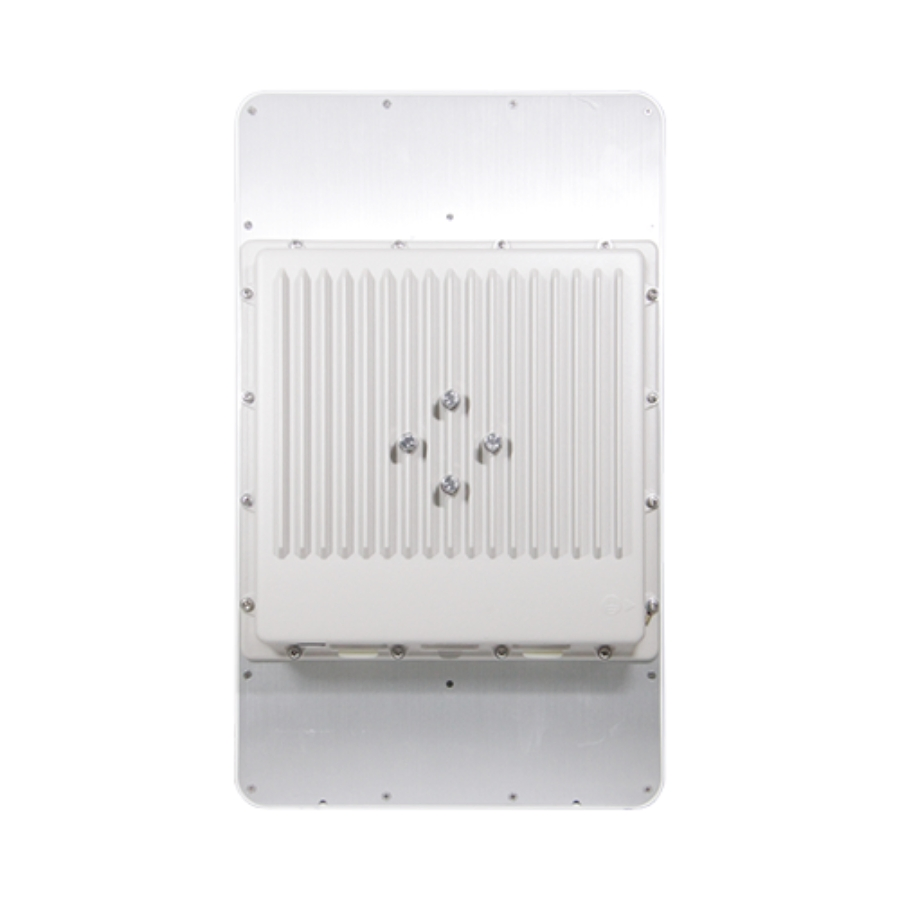

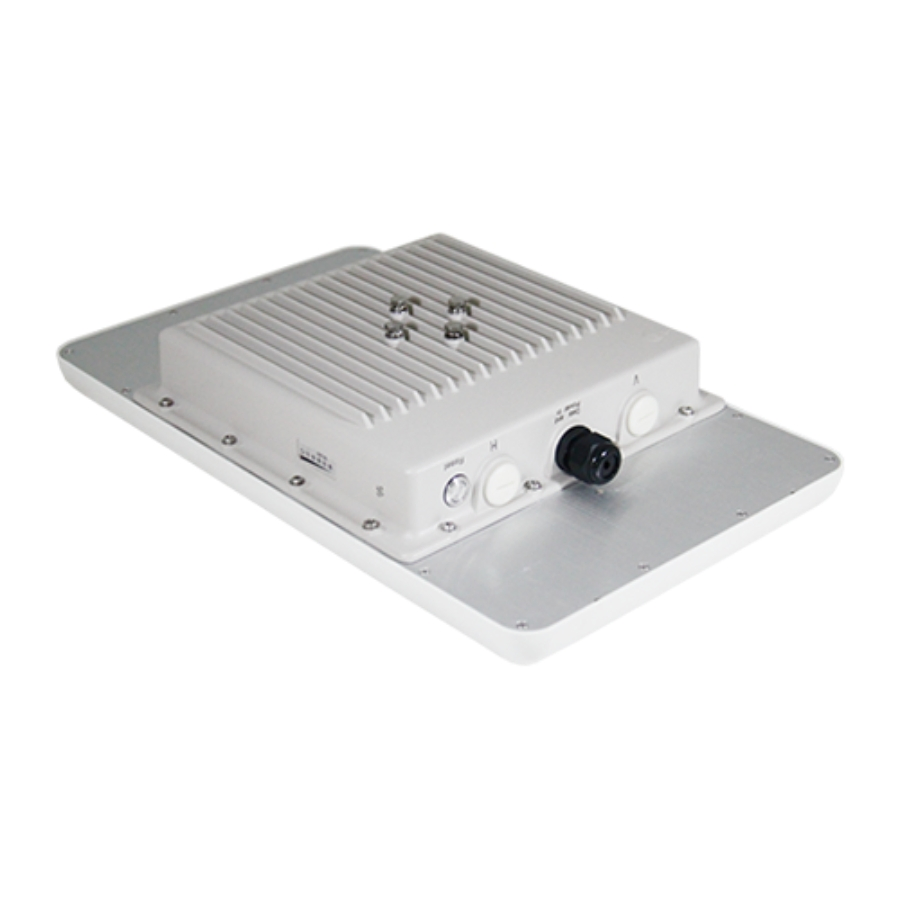

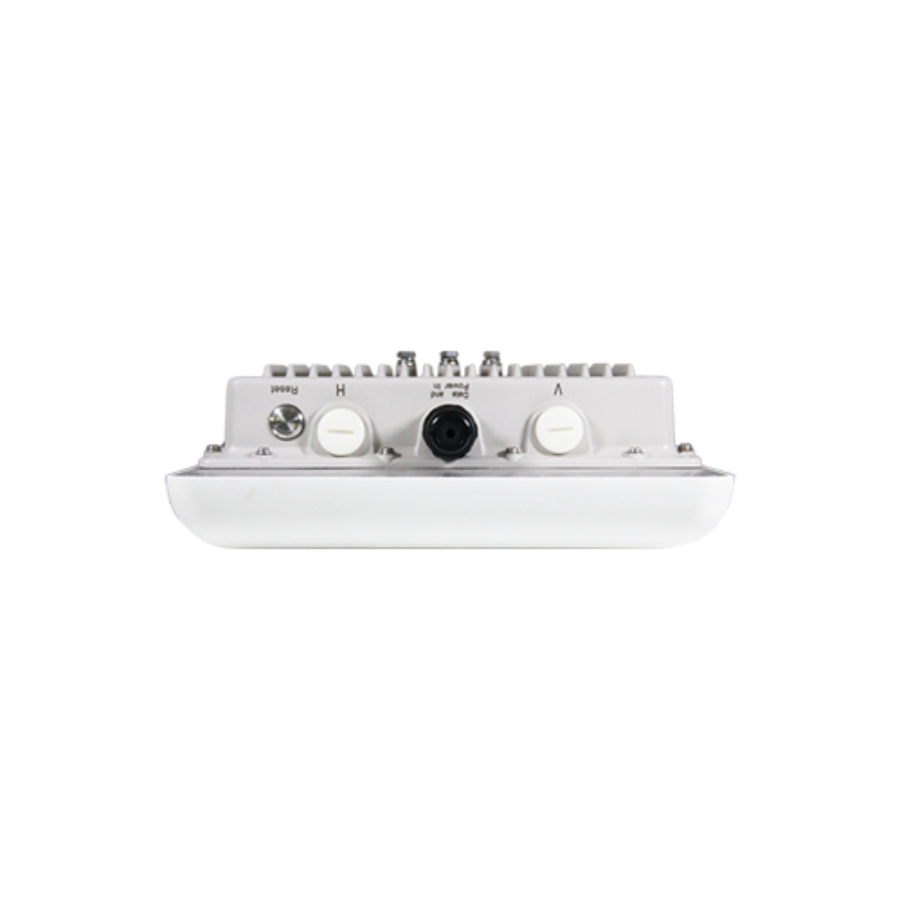

Poe Outdoor Carrier-Grade Antenna-Mobile Integrated Base Station

Customization:	Available
Type:	Base Station
Work Mode:	Ap Bridge,Bridge,Station,Station Bridge,Station Wd

Basic Information

Model NO.

SW8000CBU

WiFi Antenna Type

Built-in

Transmission Rate

>200Mbps

Voltage

AC:100-240V

Antenna Gain

Built-in 16dBi 90-Degree Angle Dual-Polarized Sect

Color

White

Certification

ISO9001, RoHS, FCC, CE

Maximum Working Rate

867Mbps

Frequency Band

IEEE802.11A/N/AC: 4920 ~ 6100MHz

Ingress Protection

IP68

Product Description

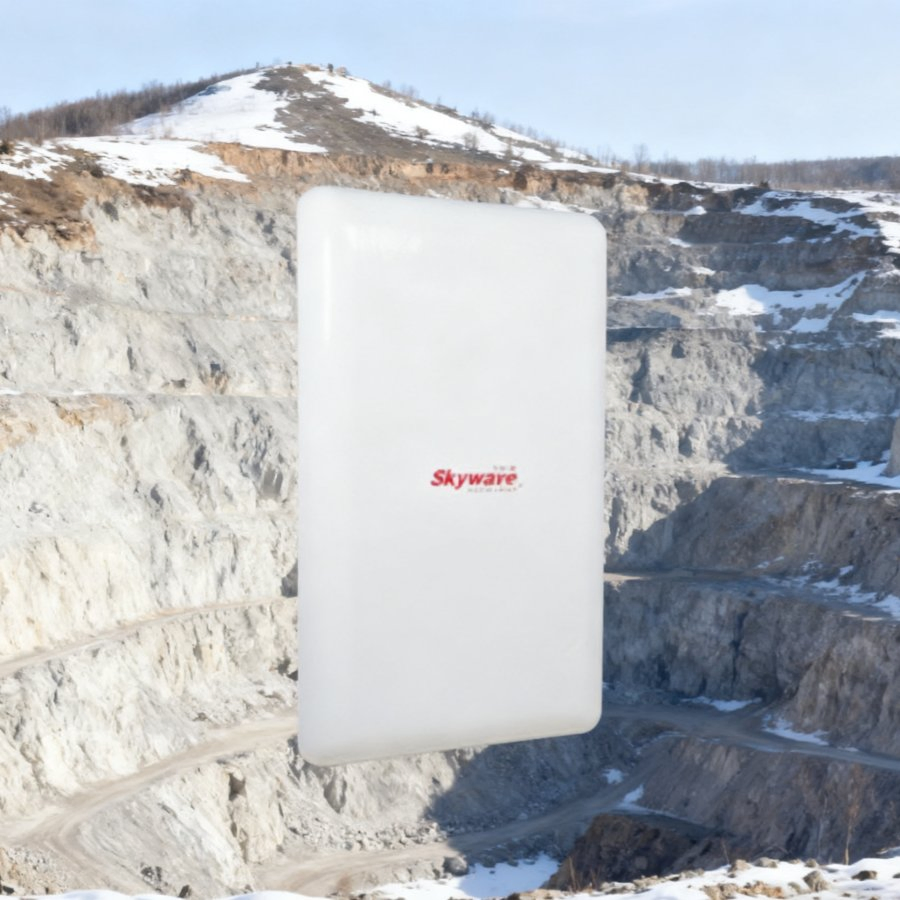

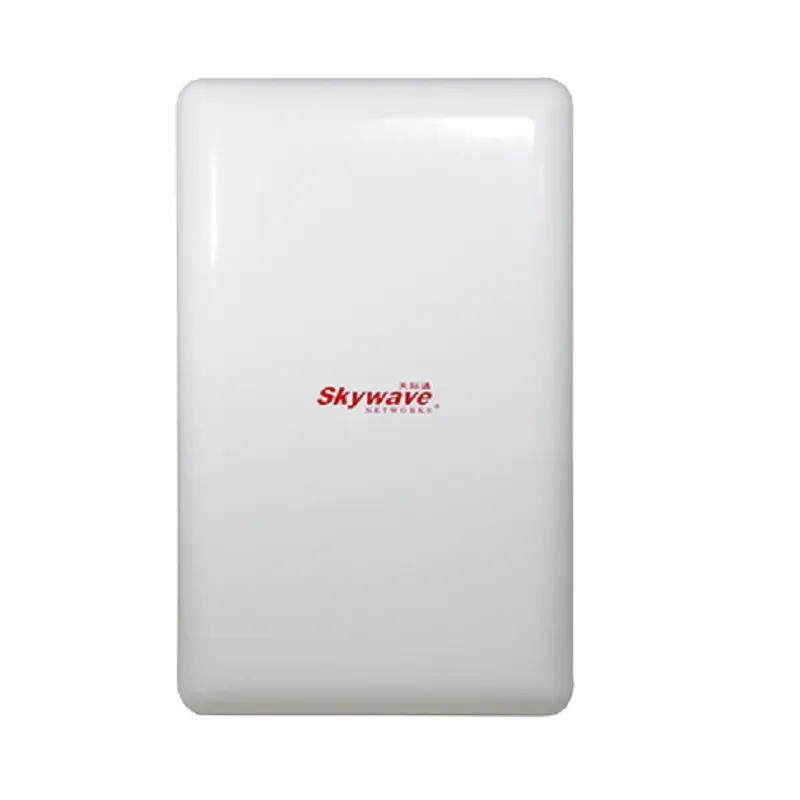

SW8000CBU is an outdoor carrier-grade antenna-integrated wireless base station that operates in the 5GHz unlicensed frequency band and is a wireless network device compliant with the IEEE802.11ac standard. The product adopts a high-performance Qualcomm Atheros high-speed network processor and is based on the MIMO (Multiple-Input Multiple-Output) technology, with a 2T2R architecture, supporting a wireless transmission rate of up to 867Mbps.

The device integrates a 22 MIMO panel directional antenna, making it particularly suitable for long-distance backbone network transmission projects and real-time services with large data flows, such as high-definition video surveillance applications in oil fields, electric power, water conservancy, and intelligent transportation.

Based on Power over Ethernet (PoE) technology, it is easy to install and use outdoors. Since there is no need to lay special feeder cables, it can reduce transmission loss, shorten the construction period, and lower the construction cost, providing a reliable and cost-effective solution for wireless network applications. It adopts a metal cast aluminum shell with all-weather designs for wind resistance, rain resistance, and lightning protection.

Technical Specification

RADIO FREQUENCY
Frequency Band	IEEE802.11a/n/ac: 4920~ 6100MHz
Channel	5/10/20/40/80MHz
RF Power Output	2*500mW
Sensitivity	802.11ac: -96 dBm@MCS0, -72dBm@MCS9
HARDWARE SPECIFICATIONS
CPU	QCA9557-AT4A-R / QCA9882-BR4A-R (720MHz)
RAM	128MB DDR2
Network Interface	1*Gigabit PoE Ethernet port
Protection	IP68, Surge 6KV, ESD 20KV
Operating Temp	-50℃ to +80℃

Product Advantages

●
Stable and Reliable: MTBF over 200,000 hours, eliminating crashes and offline situations.
●
Long Distance: High transmission power combined with 16dBi antenna reaches over 15 kilometers.
●
High Bandwidth: Supports 80MHz bandwidth providing up to 867Mbps transmission rate.
●
Industrial Grade: IP68 metal cast aluminum housing with integrated pressure relief ventilation valve.
●
Anti-interference: Adopts BeamForming and TDMA protocols to suppress interference effectively.

Professional Production

Frequently Asked Questions

Can I add my LOGO to the product?

Yes, we support on-demand customization, including LOGO customization, color customization, and appearance size customization to meet your branding needs.

What payment methods do you support?

We support multiple payment methods including T/T, Western Union, Paypal, and cash. Specific details can be negotiated based on your order.

What are your modes of transportation?

We typically choose sea, air, or land transportation based on the volume of goods and your specific urgency requirements.

How can I get an accurate quotation?

Please provide your specific requirements and application scenarios. Our team will customize a technical solution and provide a formal price quote.

Does the device support PoE power supply?

Yes, it supports Gigabit PoE (Power over Ethernet), which simplifies outdoor installation by using a single cable for both data and power.

Is the device suitable for extreme weather?

Absolutely. With an IP68 ingress protection rating and an operating temperature range of -50°C to +80°C, it is designed for the harshest environments.
