Antenna Integrated Wireless Base Station Powered by Poe Is Easy to Install

Customization:	Available
Certification:	CCC, RoHS, ISO, CE
Condition:	New

Basic Info

Model NO.	SW8000NBU
Work Mode	Point-to-Point, Point-to-Multipoint
Usage	Radio, Television, Observatory, Satellite, Plane, Ship, Car
Information Content	Text, Picture, Video, Audio
Type	Wireless Base Station
Frequency Band	IEEE802.11A/N: 4920 ~ 6100MHz
Channel	5/10/20/40MHz
RF Power Output	2*500MW
Maximum Operating Rate	300Mbps
Operating Temperature	-50°C to +80°C

Product Description

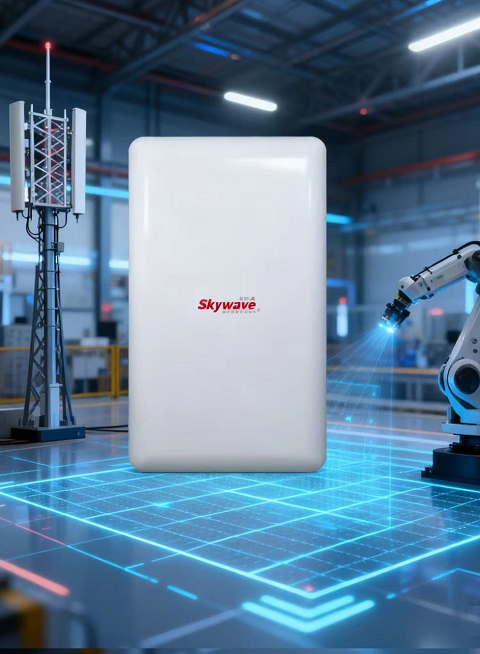

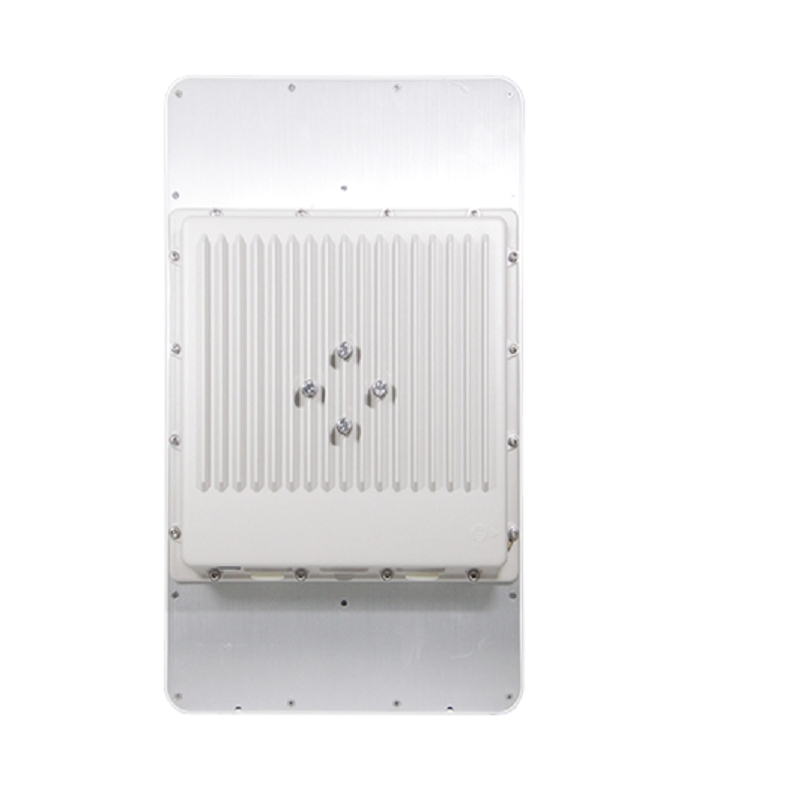

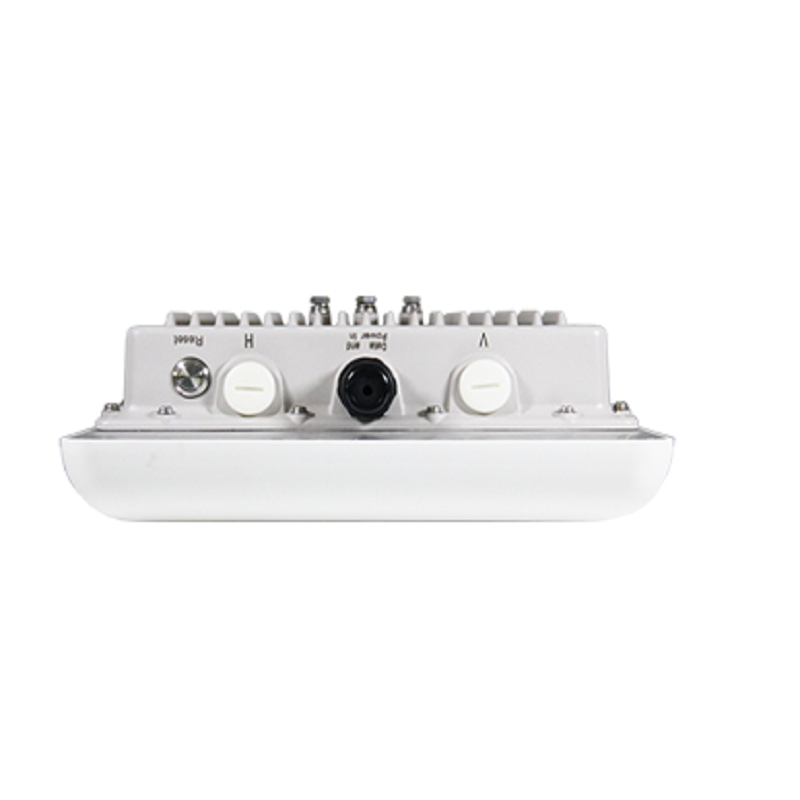

SW8000NBU is an outdoor, carrier-grade wireless base station with an integrated antenna. It operates in the 5GHz unlicensed frequency band and is compliant with the IEEE802.11n standard. It utilizes a high-performance Qualcomm Atheros high-speed network processor and IEEE802.11a/n MIMO (Multiple Input Multiple Output) technology. It employs a 2T2R architecture and supports wireless transmission rates up to 300Mbps.

With a combined RF power output of up to 2x500mW and a sensitivity of -96dBm, the device integrates 2x2 MIMO directional antennas. It is ideally suited for long-distance backbone network transmission projects and high-definition video surveillance applications for large data streams, such as those in oilfields, power generation, water conservancy, forestry, industrial and mining enterprises, safe cities, intelligent transportation, and digital energy.

The SW8000NBU supports point-to-point (PTP) and point-to-multipoint (PTMP) wireless applications, and features wireless roaming (WDS), virtual AP, and mobile Wi-Fi access management. It also supports routing, firewall, VLAN, NAT, VPN, DHCP, ACL, WatchDog, and NTP.

Its cast aluminum housing is weatherproof, windproof, rainproof, lightning-proof, sun-proof, dustproof, shockproof, and heat-dissipating. Powered by Ethernet (PoE), it is easy to install and operate outdoors.

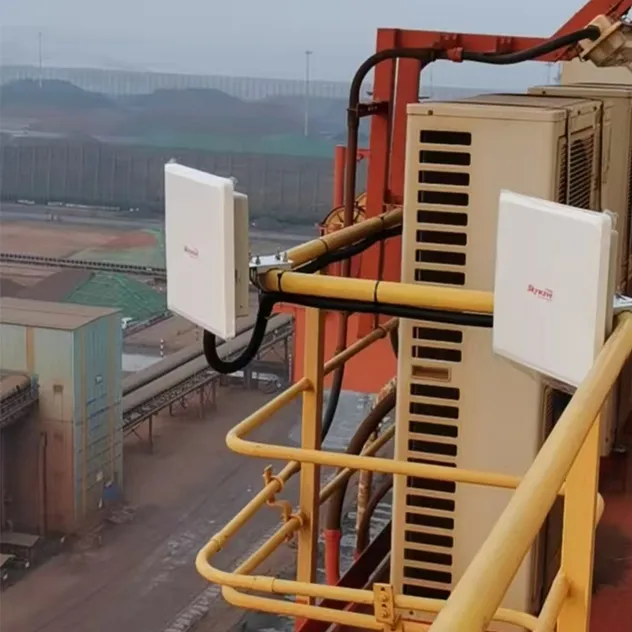

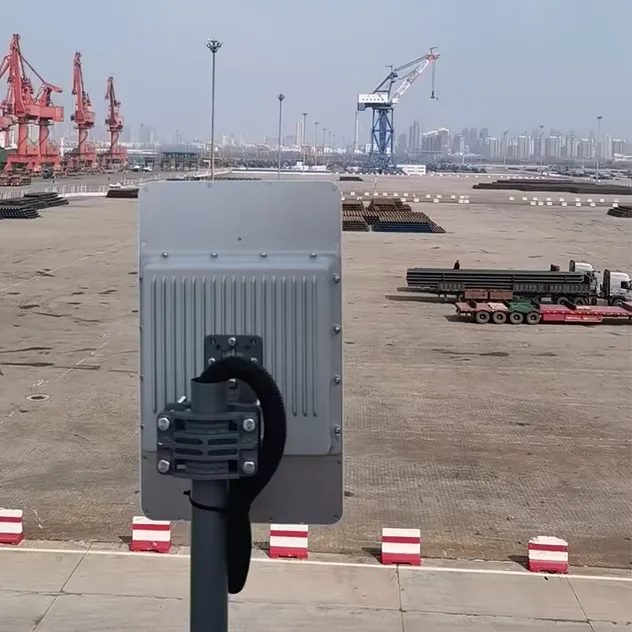

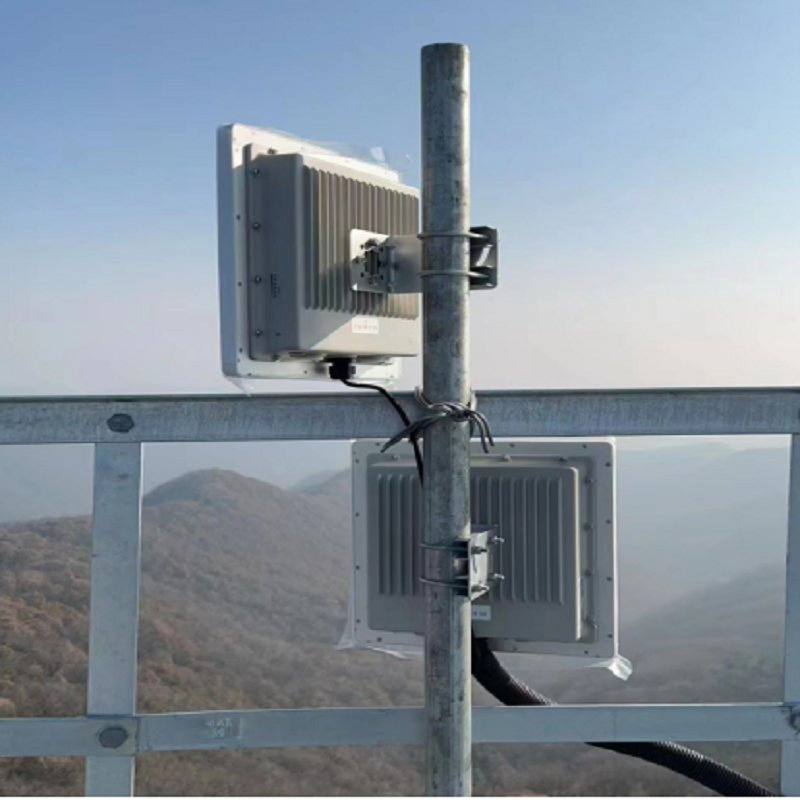

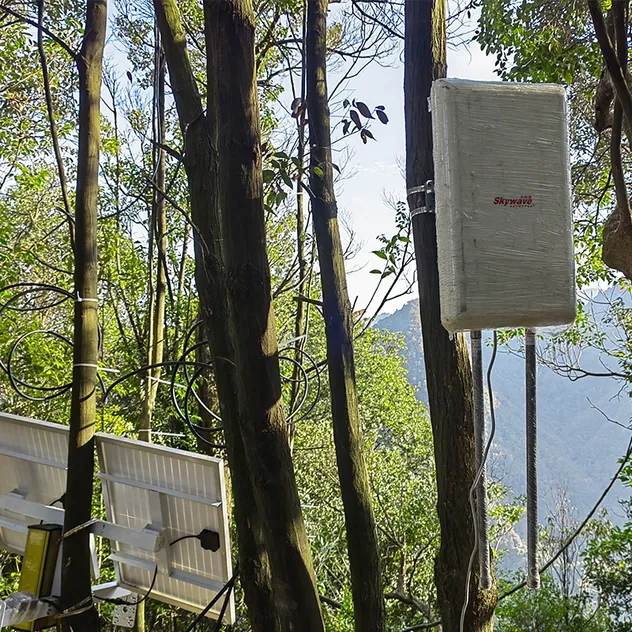

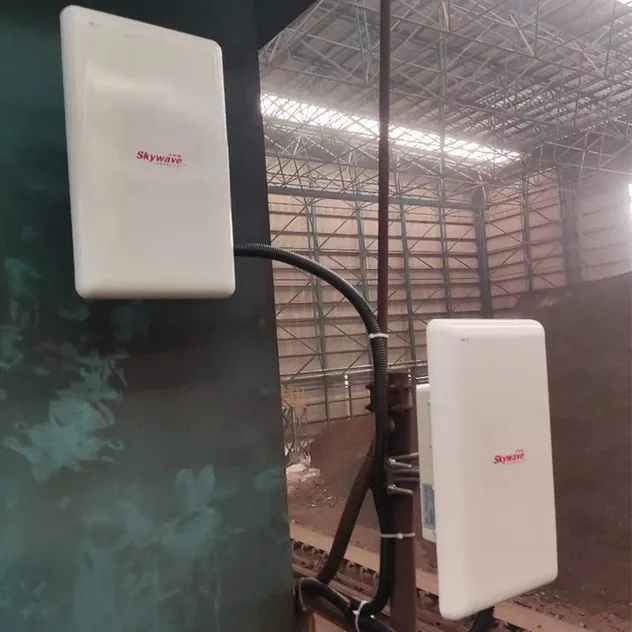

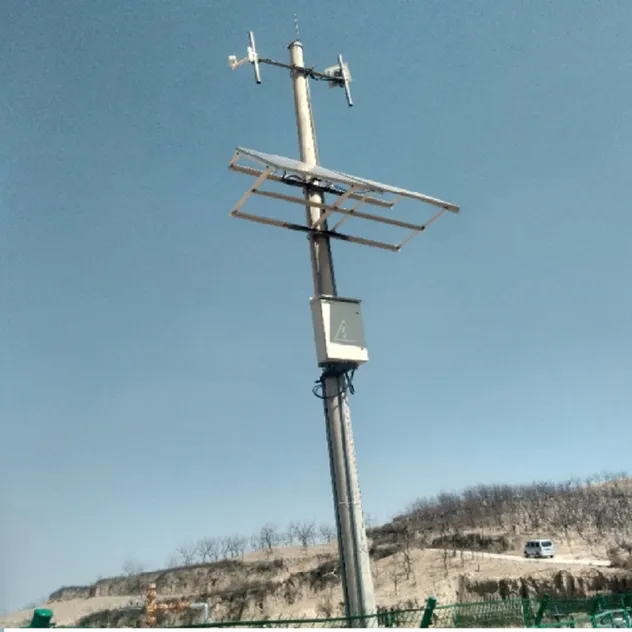

Application Scenarios

Technical Parameters

RF Specifications
Frequency Band	IEEE802.11a/n: 4920~ 6100MHz
Channel	5/10/20/40MHz
RF Power Output	2*500mW
Modulation	OFDM:BPSK QPSK16-QAM 64-QAM; DSSS:DBPSKDQPSK CCK
Hardware & Security
CPU Chipset	AR9342/AR9283 (600MHz)
Memory	64MB DDR2
Data Encryption	WEP/WPA/WPA2/AES/TKIP/EAP
Network Port	1 Gigabit PoE Ethernet port
Protection	IP68 Fully Enclosed Design
Surge Protection	Common mode: 6kV, Differential mode: 4kV

Product Advantages

Stable and Reliable: MBTF exceeds 200,000 hours, eliminating crashes and disconnections.
Long Distance: High transmit power allows the integrated antenna to reach distances exceeding 10km.
TDMA Protocol: Supports proprietary TDMA for improved point-to-multipoint efficiency.
Bandwidth Management: Supports WMM (QoS) for voice and video service priority.
Industrial Appearance: Metal cast aluminum housing with IP68 sealing (Dust/Water/Wind/Sun proof).
Interference Immunity: Beamforming technology effectively suppresses interference.

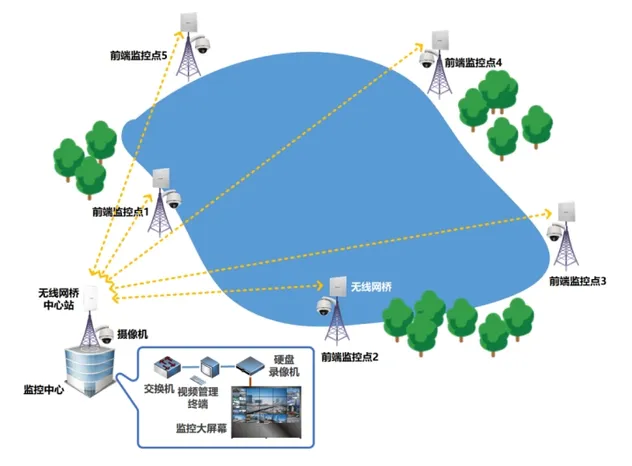

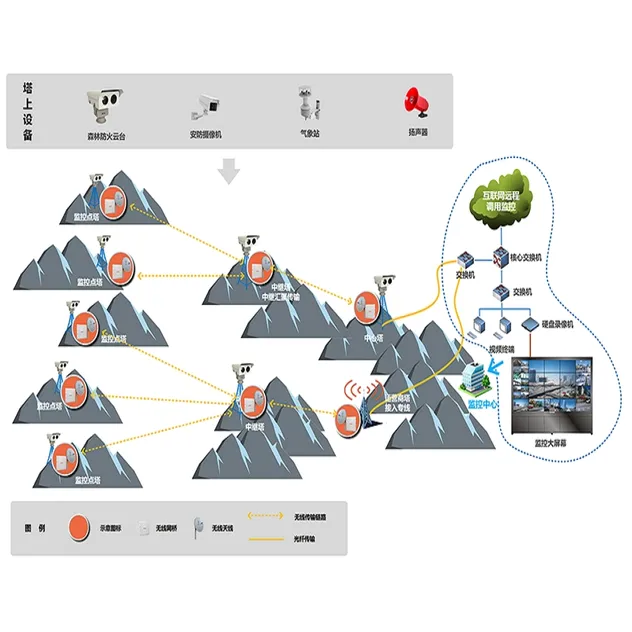

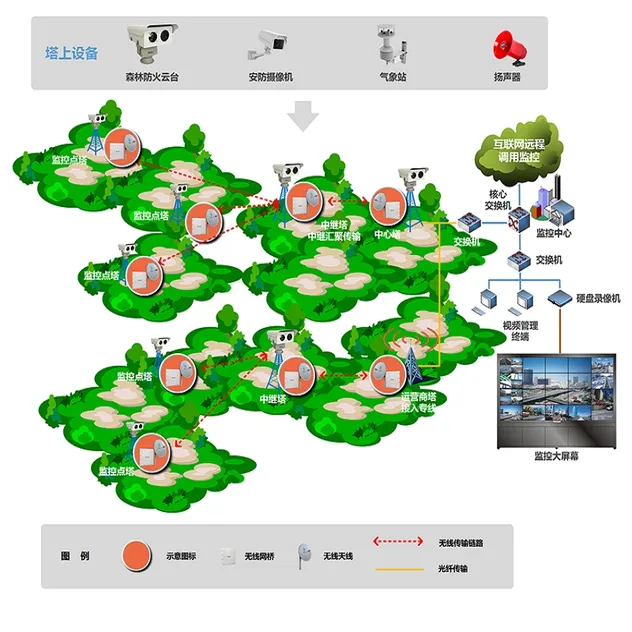

Success Cases

Packing & Delivery

Package Size	354.00cm * 345.00cm * 10.00cm
Gross Weight	3.000kg

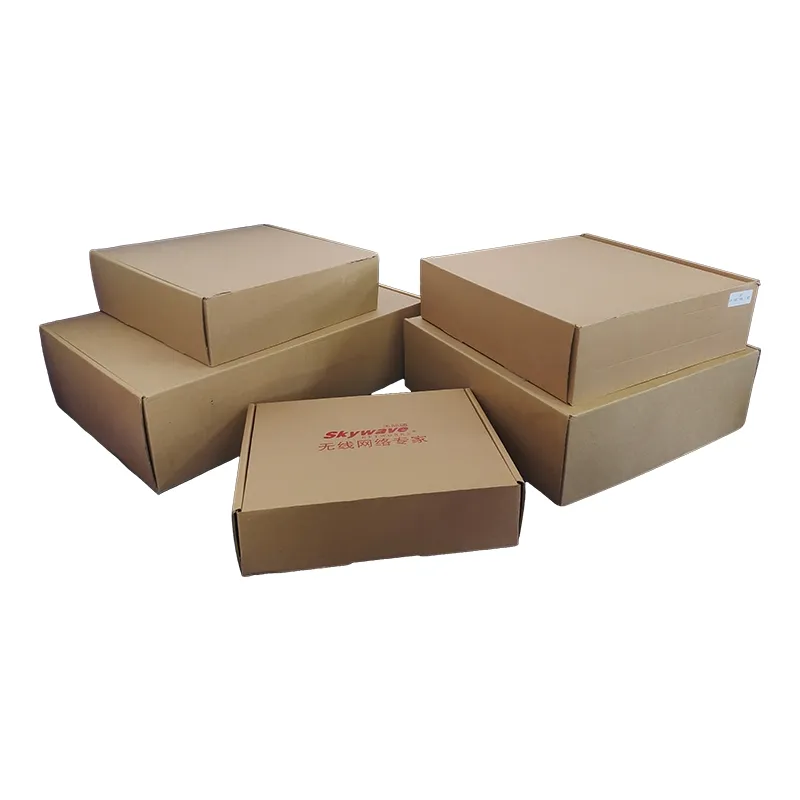

Transport Package	Paper Box

Frequently Asked Questions

What is the maximum transmission rate of the SW8000NBU?

The device supports a maximum wireless transmission rate of up to 300Mbps using 2x2 MIMO technology.

Does this wireless base station support outdoor use?

Yes, it features a cast aluminum housing with an IP68 rating, making it weatherproof, dustproof, and suitable for temperatures ranging from -50°C to +80°C.

What is the typical transmission distance for this device?

Due to its high RF power output (2x500mW) and integrated high-gain antenna, it can achieve transmission distances exceeding 10km.

How is the device powered?

The SW8000NBU is powered via Gigabit PoE (Power over Ethernet), which simplifies outdoor installation by using a single cable for data and power.

Can I customize the logo or appearance of the product?

Yes, on-demand customization is supported, including logo, color, and appearance size adjustments to meet specific project requirements.

What applications is this base station best suited for?

It is ideal for high-definition video surveillance and long-distance network transmission in sectors like oilfields, power plants, smart cities, and mining.
