High-Performance Outdoor Telecom Antenna for Wireless Base Stations

Customization:	Available
Type:	Wireless Base Station
Work Mode:	Point-to-Point, Point-to-Multipoint

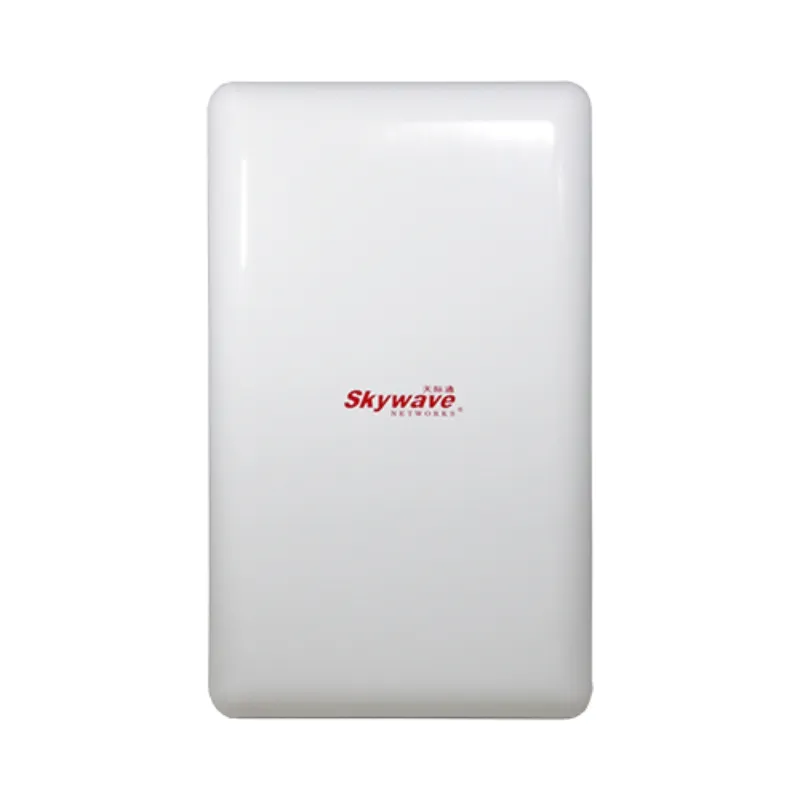

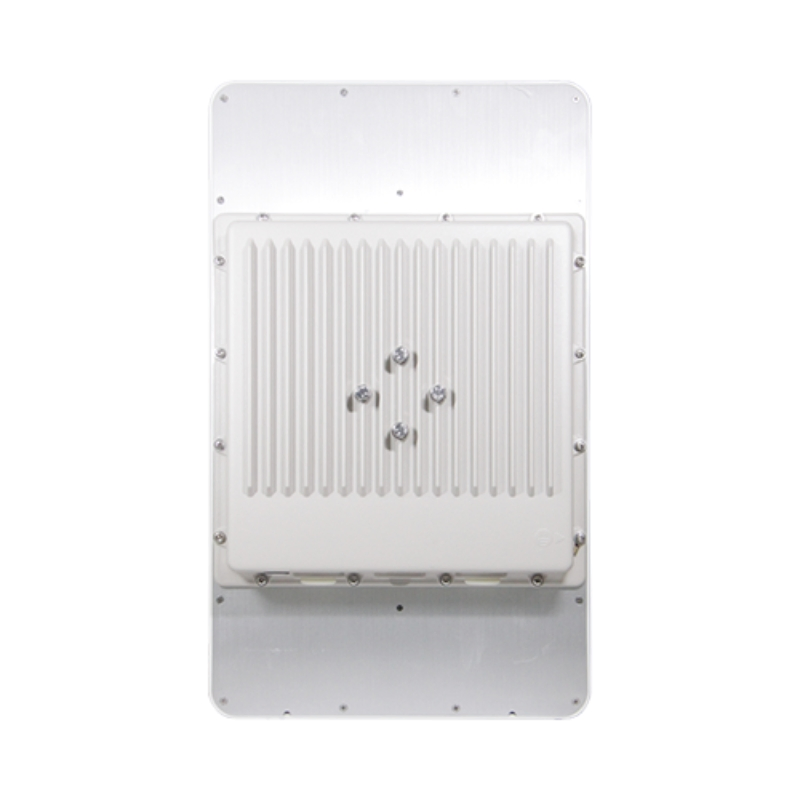

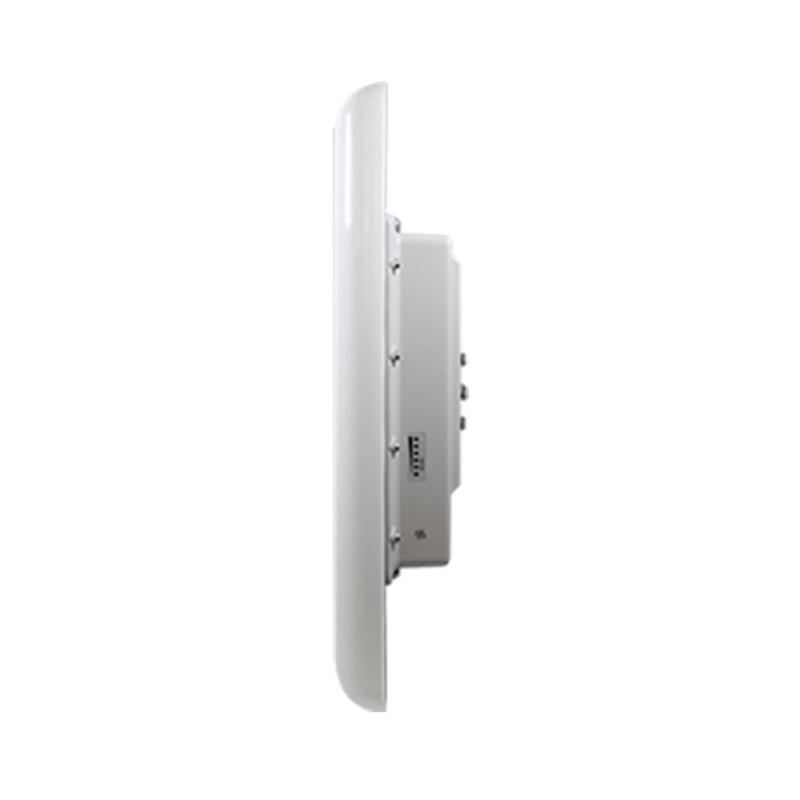

The wireless base station is an outdoor, carrier-grade device with an integrated antenna. Operating in the 5GHz unlicensed frequency band and compliant with IEEE802.11n standards, it utilizes a high-performance network processor and MIMO (Multiple Input Multiple Output) technology. With a 2T2R architecture, it supports transmission rates up to 300Mbps and features a high RF power output of up to 2x500mW. Encased in a durable cast aluminum housing, it is designed for extreme environmental adaptability in sectors such as energy, industrial mining, and smart city transportation.

Basic Info & Technical Specifications

Model NO.	SW8000NBU
WiFi Antenna Type	Built-in 16dBi 90-degree dual-polarization
Transmission Rate	Up to 300Mbps
Frequency Band	IEEE802.11A/N: 4920 ~ 6100MHz
RF Power Output	2 * 500mW
Operating Temp	-50 °C to +80 °C
Protection Level	IP68 Waterproof and Dustproof
Voltage	AC: 100-240V / DC: 8-30V

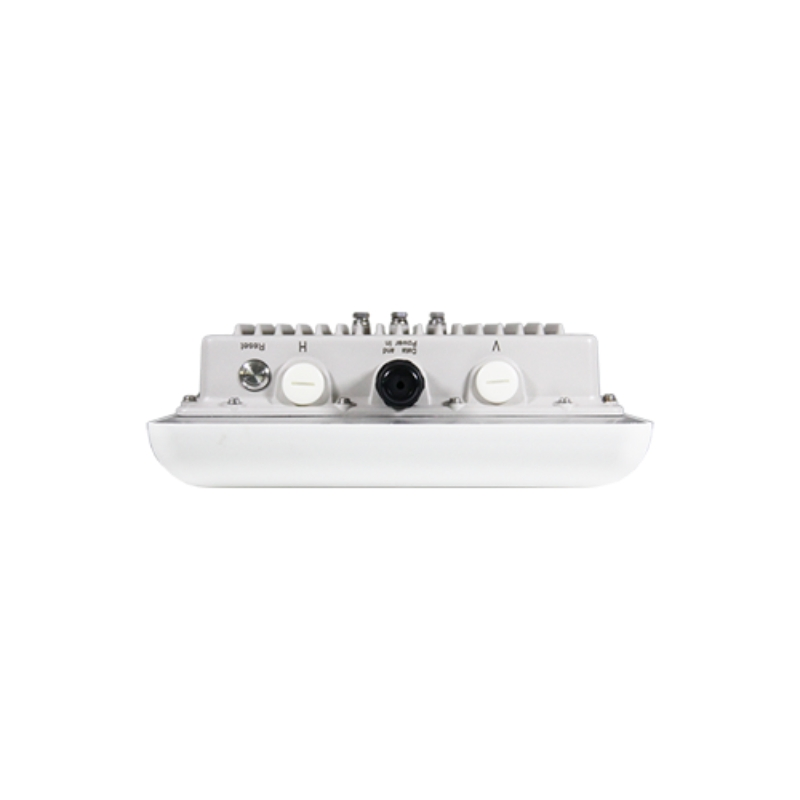

Network Port	1 Gigabit PoE Ethernet port
Certification	ISO9001, RoHS, FCC, CE

Product Advantages

Long-Distance Transmission: High receive sensitivity allows integrated antenna coverage exceeding 10km.
Industrial Durability: IP68 fully enclosed metal housing protects against wind, rain, lightning, and extreme temperatures.
Advanced Protocols: Supports proprietary TDMA for improved point-to-multipoint efficiency and WMM (QoS) for video priority.
Security & Encryption: Comprehensive support for WEP, WPA, WPA2, AES, TKIP, and Private protocol encryption.
Stable Performance: Dual watchdog timers for network and radio frequency prevent system crashes.

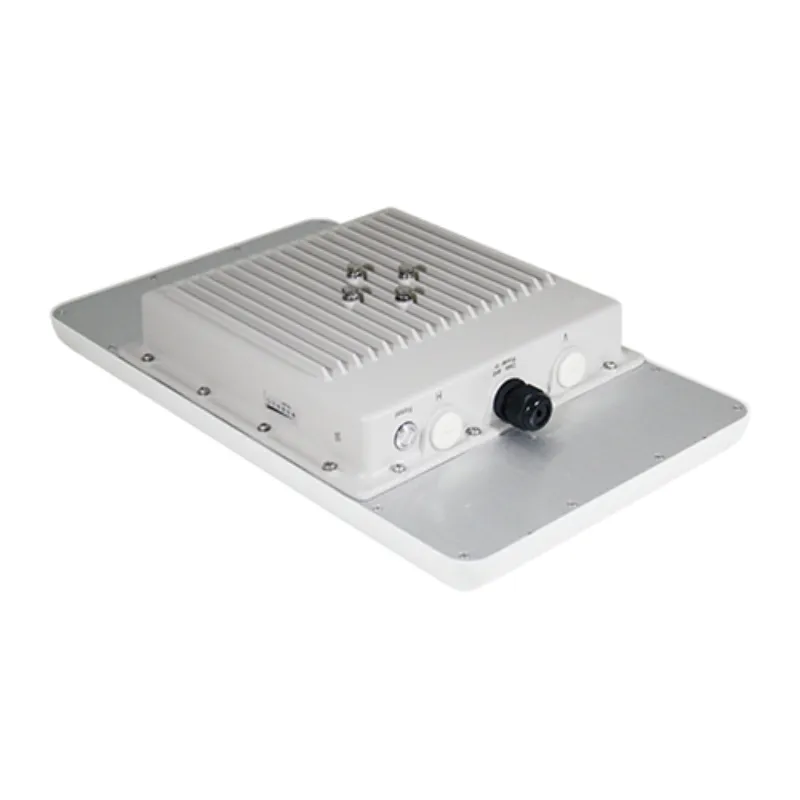

Easy Deployment: Integrated stainless steel decompression vent reduces condensation and balances pressure.

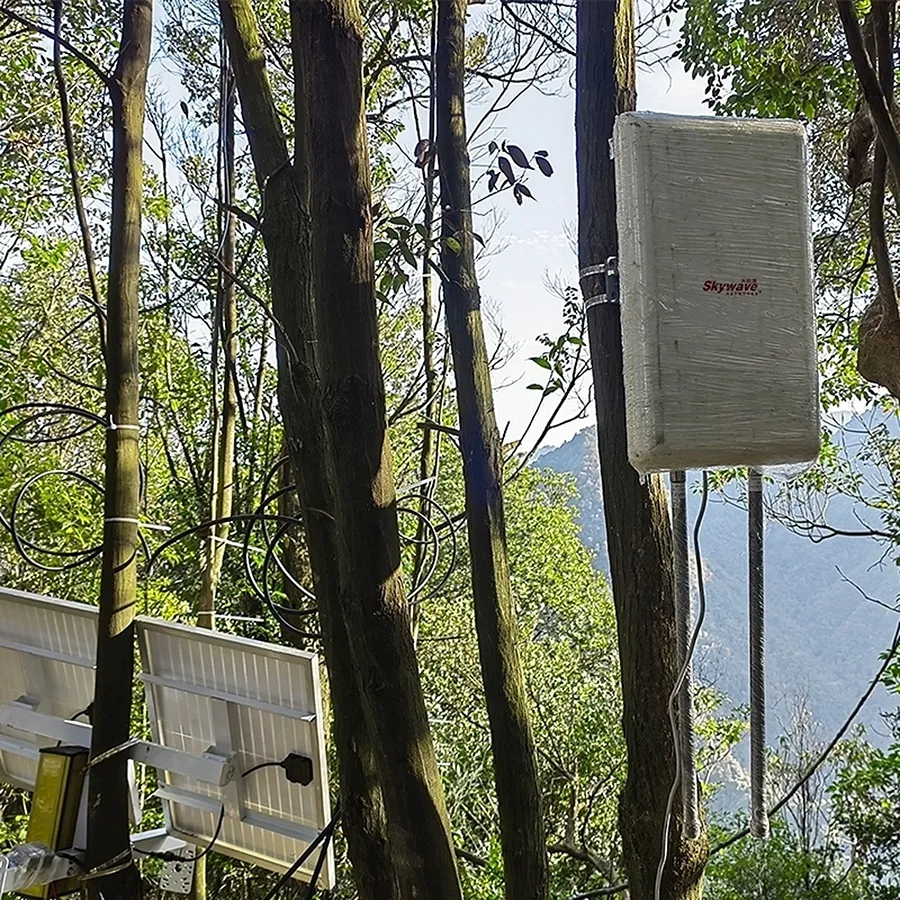

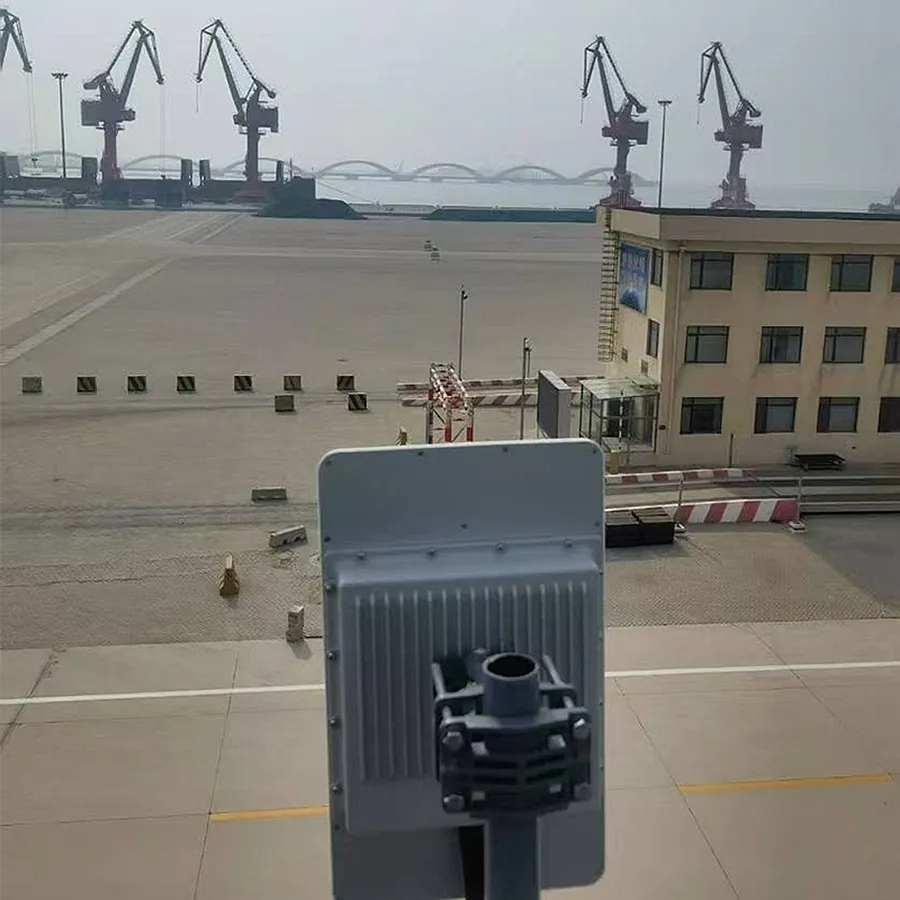

Professional Application & Display

Frequently Asked Questions

Q1: What is the maximum transmission range of this base station?

A: Thanks to its high transmit power (2x500mW) and 16dBi integrated antenna, the device can reach transmission distances exceeding 10km in clear line-of-sight conditions.

Q2: How does the device handle extreme outdoor weather?

A: The device features an IP68-rated cast aluminum housing and a stainless steel decompression vent. It operates reliably in temperatures ranging from -50°C to +80°C and is fully resistant to dust and water.

Q3: Does the device support Power over Ethernet (PoE)?

A: Yes, it features a Gigabit PoE Ethernet port, which simplifies installation by allowing power and data to be transmitted over a single cable.

Q4: Can the transmission bandwidth be adjusted?

A: Yes, the system supports 5/10/20/40MHz bandwidth selection. It also supports asymmetric bandwidth allocation for adjustable uplink and downlink speeds.

Q5: What security features are integrated into the system?

A: It supports a wide range of encryption standards including WEP, WPA, WPA2, AES, and TKIP, as well as private protocol encryption and SSID hiding for enhanced network security.

Q6: Are customization services available for this product?

A: We support various on-demand customization options, including logo placement, color adjustments, and specific hardware dimension modifications to suit your project requirements.
