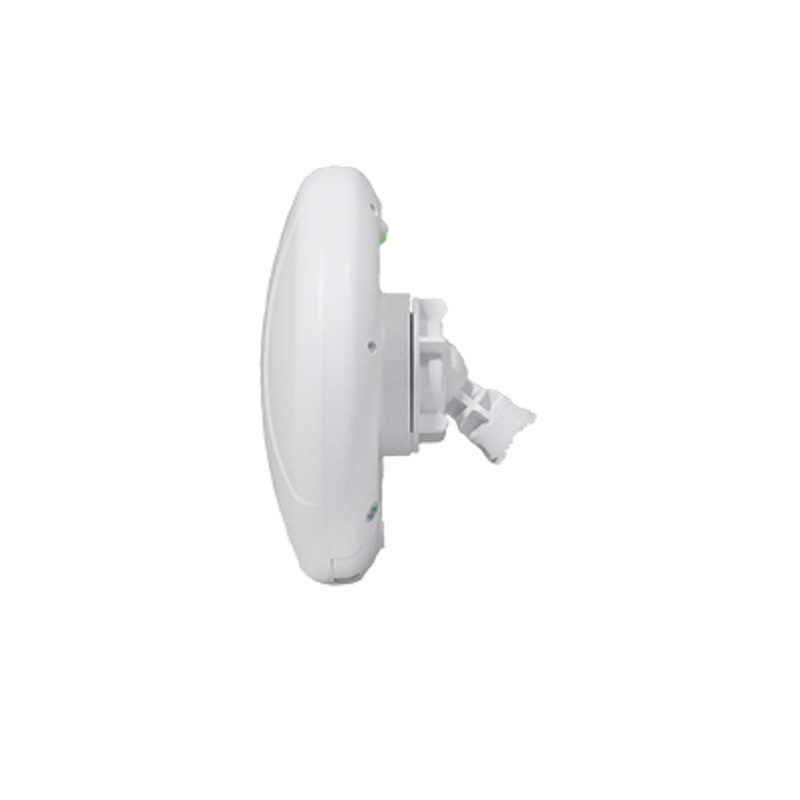

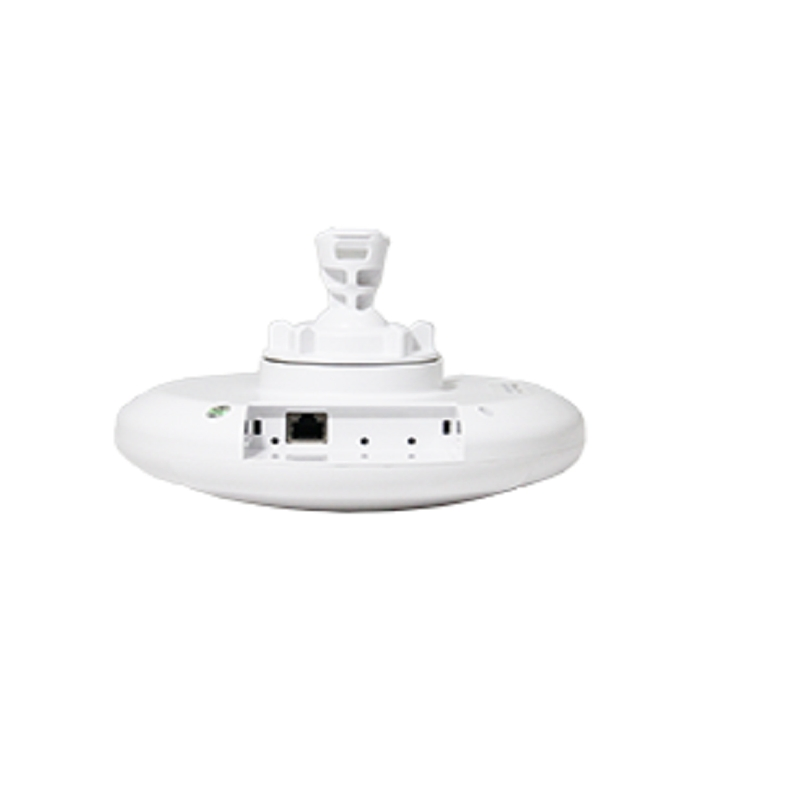

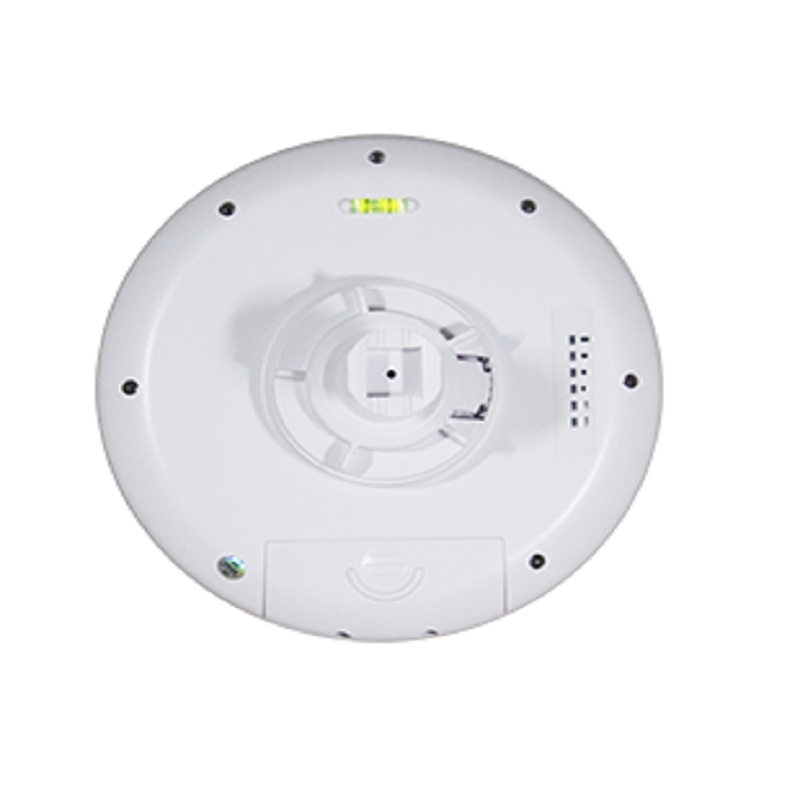

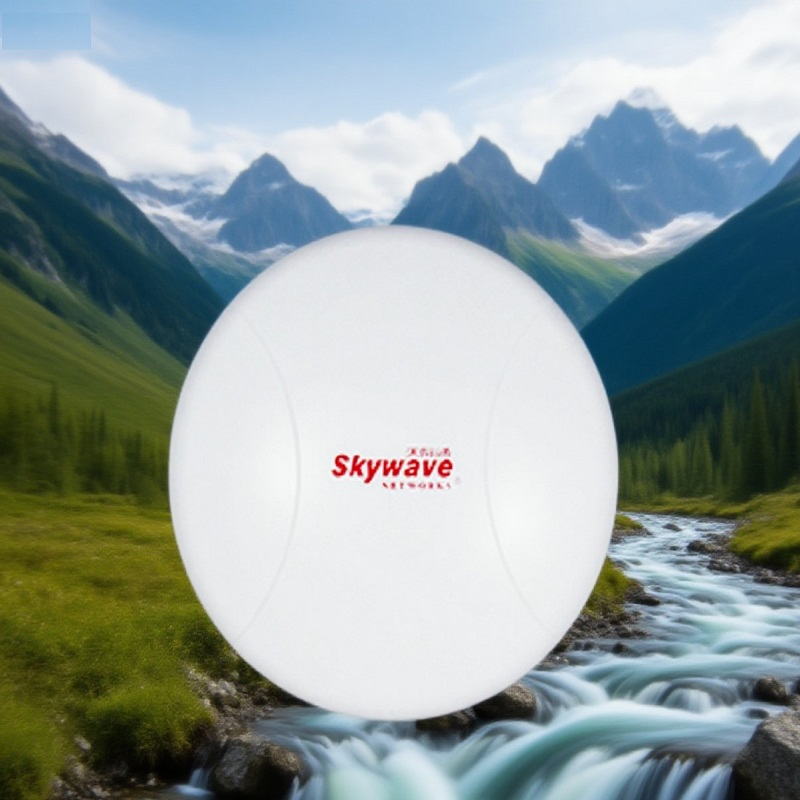

5.8GHz 300Mbps Outdoori Ndustrial-Grade Sector Antenna Integrated Wireless Base Station

Customization: Available
Type: Wireless Base Station
Work Mode: Point-to-Point (Ptp) and Point-to-Multipoint (Ptmp

Product Description

Outdoor Industrial-Grade Sector Antenna Base Station
i

Basic Information

Model NO.
SW8000NBI
WiFi Antenna Type
Built-in
Transmission Rate
300Mbps
Voltage
8-30VDC, Supports Poe
Antenna Gain
16dBi
Color
White
Certification
ISO9001, RoHS, CE
Origin
China
D

Product Description

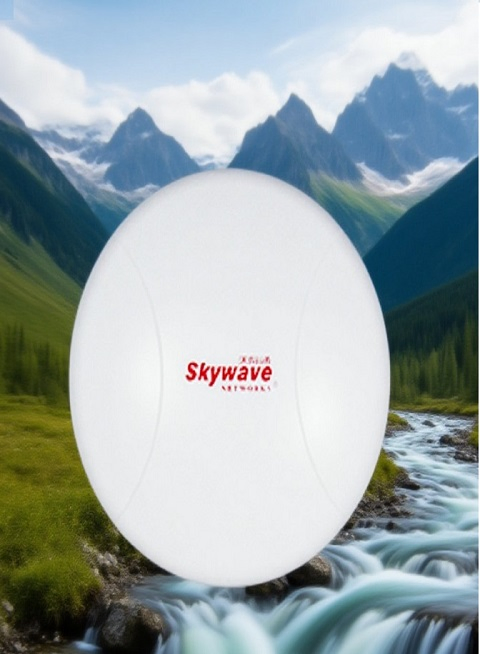

SW8000NBI Outdoor Base Station

SW8000NBI is an outdoor industrial-grade sector antenna integrated wireless base station, which works in the 5GHz unlicensed frequency band and complies with the IEEE802.11a/n standard. The product uses a high-performance Qualcomm Atheros high-speed network processor based on MIMO technology.

Supporting wireless transmission rates up to 300Mbps, the device integrates a 2*2 plate-shaped sector antenna. It is particularly suitable for long-distance backbone network transmission projects and large data flow real-time services such as construction sites, elevators, communities, oil fields, electricity, and smart city video surveillance.

It features strong anti-interference ability, high bandwidth, and a UV-proof ABS shell. The all-weather design ensures it is windproof, rainproof, lightning-proof, and dustproof, supporting a "one-key restore" function for easy maintenance.

S

Application Scenarios

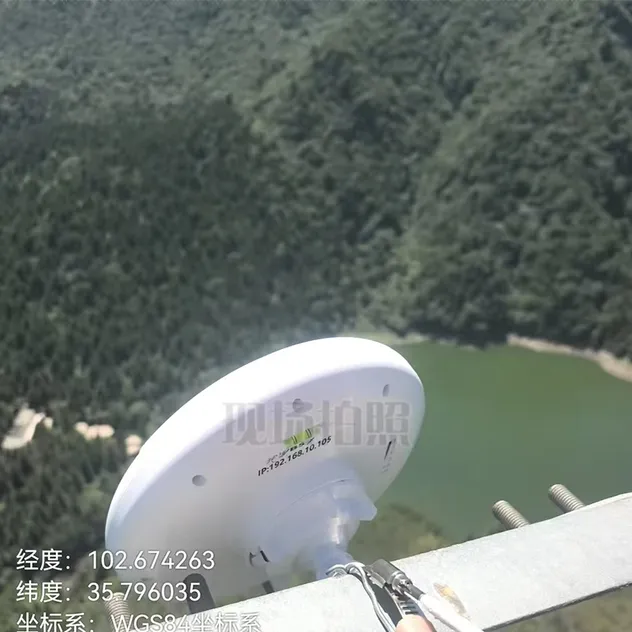

Scenario 1

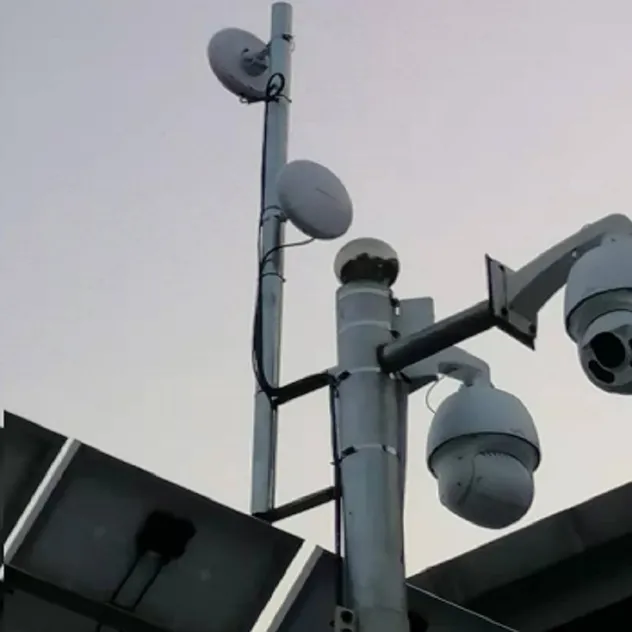

Scenario 2

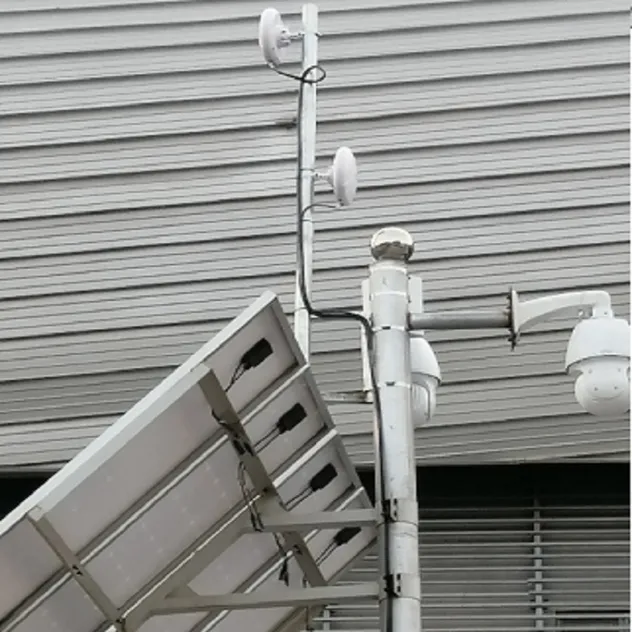

Scenario 3

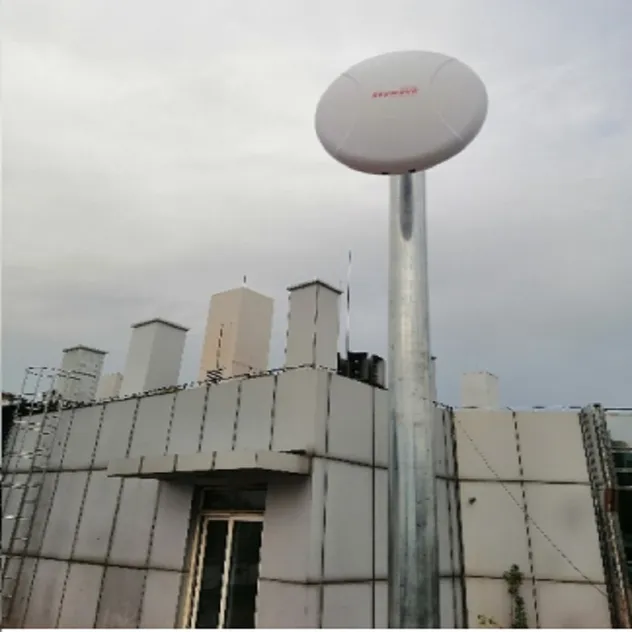

Scenario 4

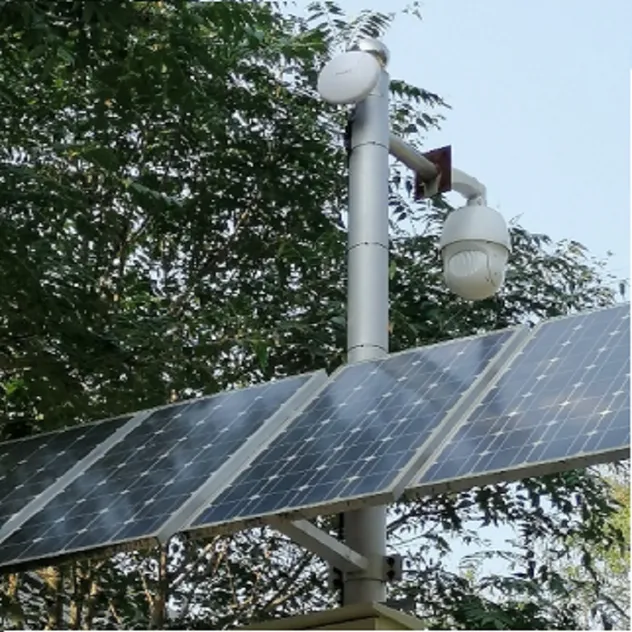

Scenario 5

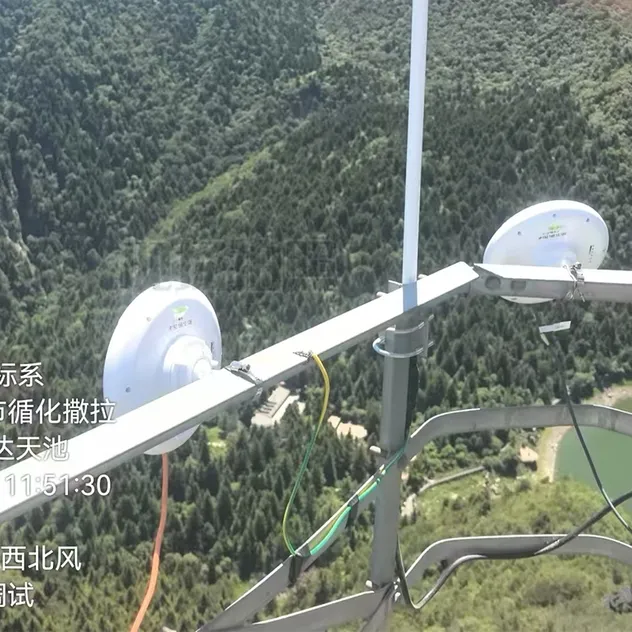

Scenario 6
P

Product Parameters

Specification Details
Product ModelSW8000NBI
Radio Frequency
Frequency bandIEEE802.11a/n: 4920~ 6100MHz
Channel5/10/20/40MHz
RF Power Output2*500mW
Sensitivity-96dBm @ MCS0, -75dBm @ MCS7
Data and Operating Parameters
Maximum working rate300Mbps
Working ModePoint-to-point, point-to-multipoint
Mobile phone WiFi accessSupport
WatchdogSupport
Hardware Specifications
CPUAR9342/AR9283 (600MHz)
RAM64MB DDR2
Supply voltage8-30VDC, supports PoE
Antenna interfaceBuilt-in 16dBi 60-degree sector antenna
Environmental ProtectionIP66 waterproof and dustproof
Working temperature-50℃ ~ +80℃
A

Product Advantages

  • Standard compatibility: Complies with IEEE 802.11a/n and MIMO technologies.
  • Stable and reliable: MTBF greater than 200,000 hours, eliminating crashes.
  • Long transmission distance: Maximum distance can reach 5 kilometers.
  • Gigabit interface: Provides adaptive Ethernet port with PoE support.
  • TDMA protocol: Effectively improves point-to-multipoint efficiency.
  • Bandwidth management: Supports WMM (QoS) for priority video/voice services.
  • Anti-interference: BeamForming technology suppresses environmental noise.
  • Advanced Security: Supports WEP, WPA, WAP2, AES, and 802.1X encryption.
  • Industrial appearance: IP66 packaging with UV-proof ABS shell for extreme temperatures.
Industrial Grade Design Details
L

Packing & Delivery

Package Size
354.00cm * 345.00cm * 10.00cm
Gross Weight
3.000kg
Transport Package
Paper Box
Packaging Detail 1

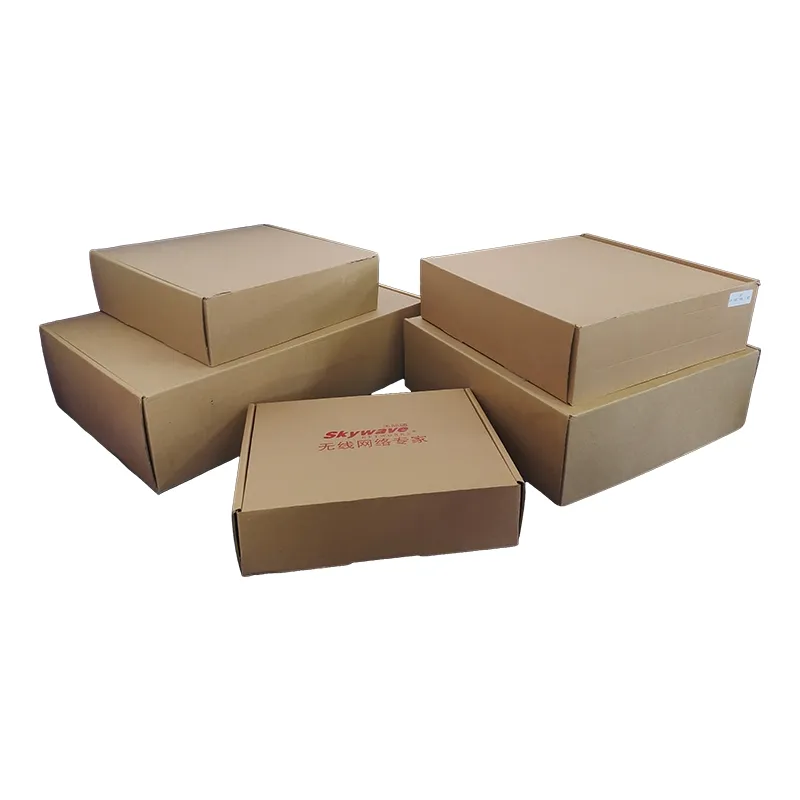

Packaging Detail 2
?

Frequently Asked Questions

Are you a factory or a trader?
We are a manufacturer integrating industry and trade.
Can I add my LOGO to the product?
Yes, we support on-demand customization, including LOGO customization, color customization, and appearance size customization.
What payment methods do you support?
We support T/T, Western Union, Paypal, cash, etc. Specific details can be negotiated during order placement.
What are your modes of transportation?
We choose the appropriate mode (sea, air, or land) based on the goods' condition or your specific requirements.
How can I get an accurate quotation?
Please provide your specific demand information and product requirements, and we will customize a solution and price for you.
What is the environmental rating of the device?
The device features an IP66 integrated fully enclosed design, making it completely dustproof and waterproof for outdoor use.
