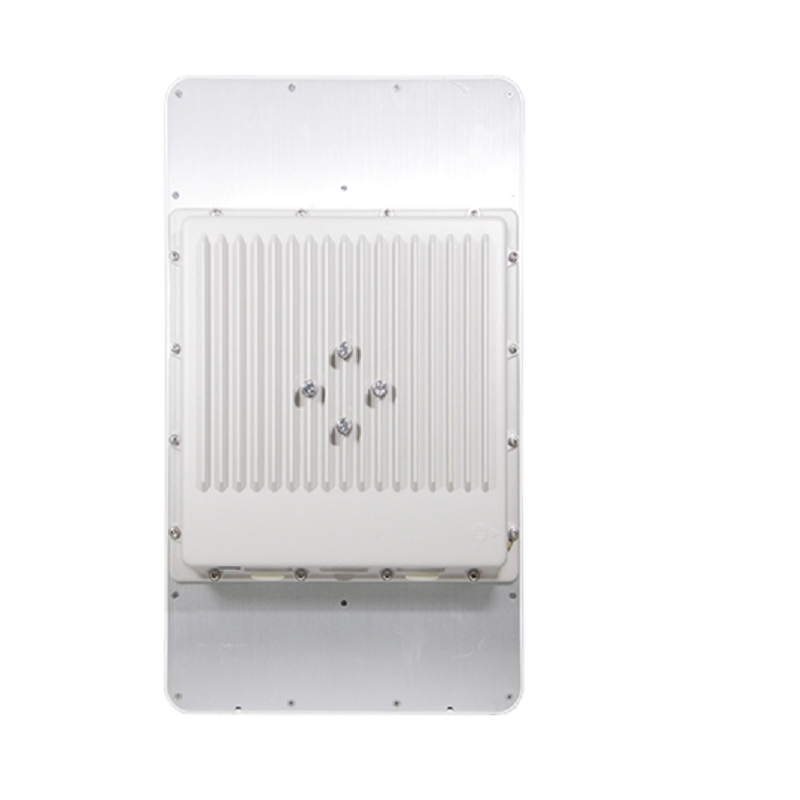

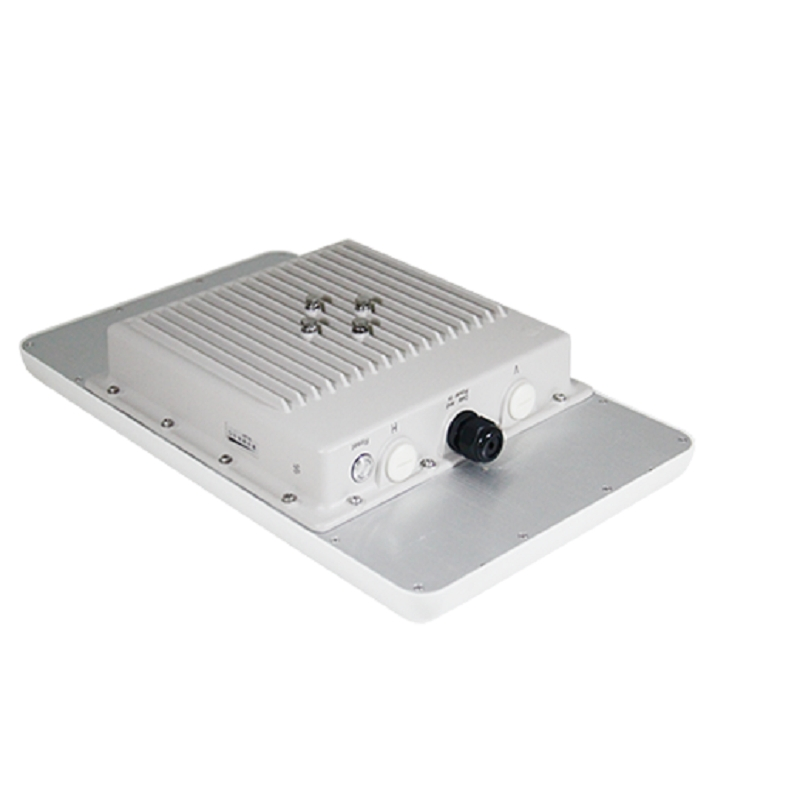

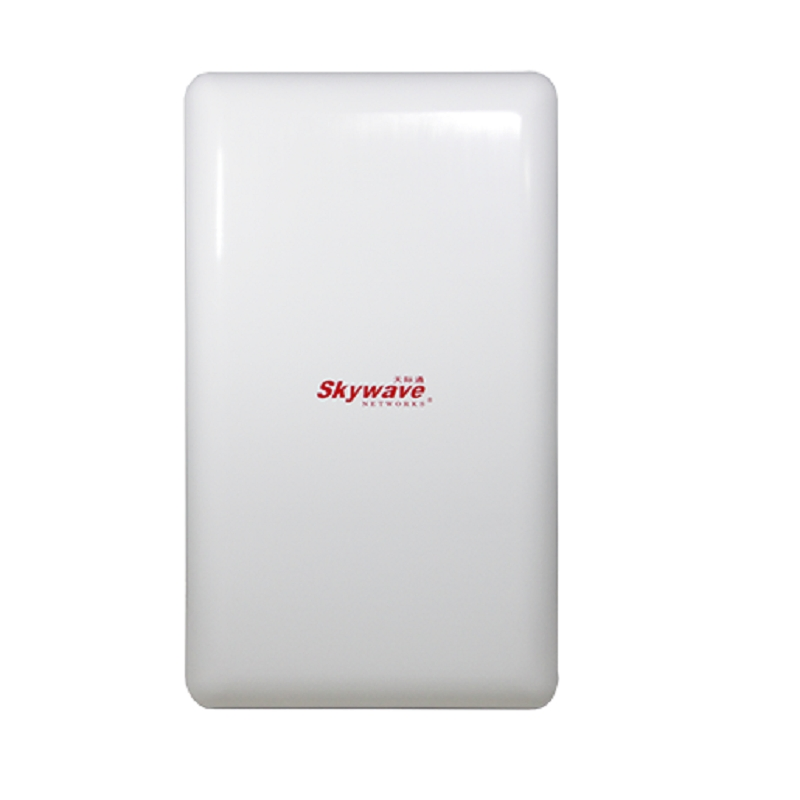

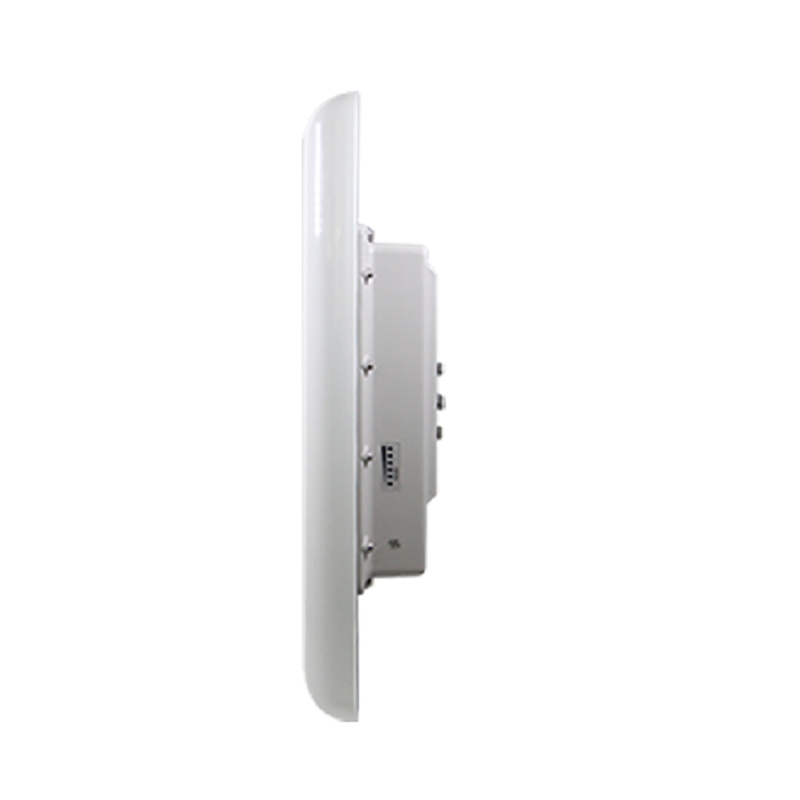

SW8000NBU is an outdoor, carrier-grade wireless base station with an integrated antenna. It operates in the 5GHz unlicensed frequency band and is compliant with the IEEE802.11n standard. It utilizes a high-performance Qualcomm Atheros high-speed network processor and IEEE802.11a/n MIMO (Multiple Input Multiple Output) technology.

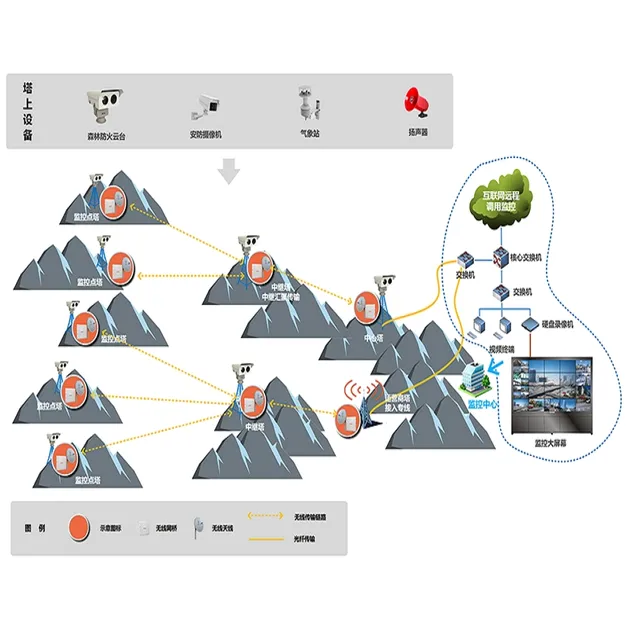

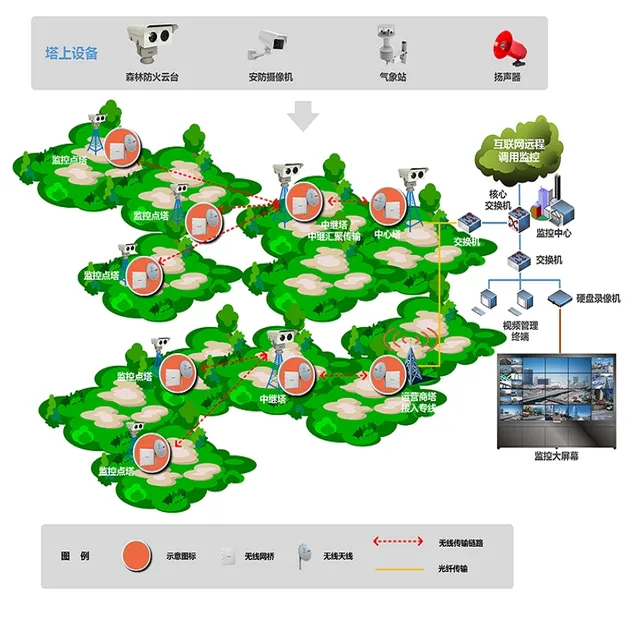

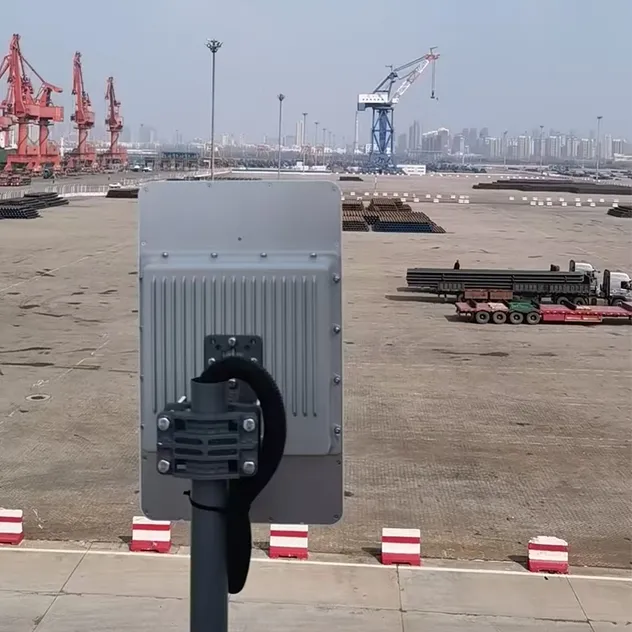

It employs a 2T2R architecture and supports wireless transmission rates up to 300Mbps. With a combined RF power output of up to 2x500mW and a sensitivity of -96dBm, the device integrates 2x2 MIMO directional antennas. It is ideally suited for long-distance backbone network transmission projects and high-definition video surveillance applications for large data streams.

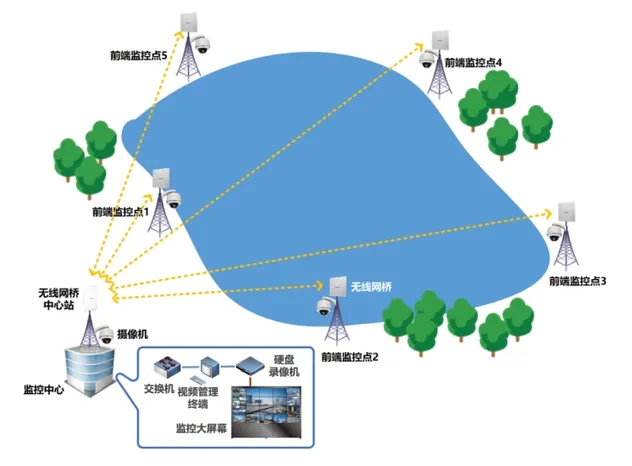

The SW8000NBU supports point-to-point (PTP) and point-to-multipoint (PTMP) wireless applications, and features wireless roaming (WDS), virtual AP, and mobile Wi-Fi access management. Its cast aluminum housing is weatherproof, windproof, rainproof, lightning-proof, and heat-dissipating.
| RF Specifications | |
| Frequency Band | IEEE802.11a/n: 4920~ 6100MHz |
| Channel | 5/10/20/40MHz |
| RF Power Output | 2*500mW |
| Sensitivity | 802.11a:-96dBm@6Mbps; 802.11n:-96dBm@MCS0 |
| Data and Operating Parameters | |
| Maximum Rate | 300Mbps |
| Standards | IEEE 802.11a/n/h/d; IEEE802.3u/d/ab |
| Operating Mode | Point-to-point and point-to-multipoint |
| Features | DHCP, Spectrum Scanning, Seamless Roaming, DFS, Watchdog |
| Hardware Specifications | |
| CPU Chipset | AR9342/AR9283 (600MHz) |
| Memory | 64MB DDR2 |
| Dimensions | 450×270×90 mm / Weight: 2.8Kg |
| Power Supply | PoE (Default), AC: 100-240V, DC: 8-30V |
| Protection | IP68 Waterproof, 6kV Surge protection |
