Compact Outdoor Carrier-Grade Antenna-Integrated Wireless Base Stations for Urban Deployment

Customization:	Available
Certification:	CCC, RoHS, ISO, CE
Condition:	New

Send Inquiry

Product Description

Basic Info

Model NO.	SW8000CBU
Work Mode	Point-to-Point (Ptp) and Point-to-Multipoint (Ptmp)
Usage	Radio, Television, Observatory, Satellite, Plane, Ship, Car, Telecommunications Transmission
Information Content	Text, Picture, Video, Audio, Wave
Type	Wireless Base Station
Transport Package	Paper Box
Specification	520325140mm
Production Capacity	50000/Piece/Month

★

Product Description

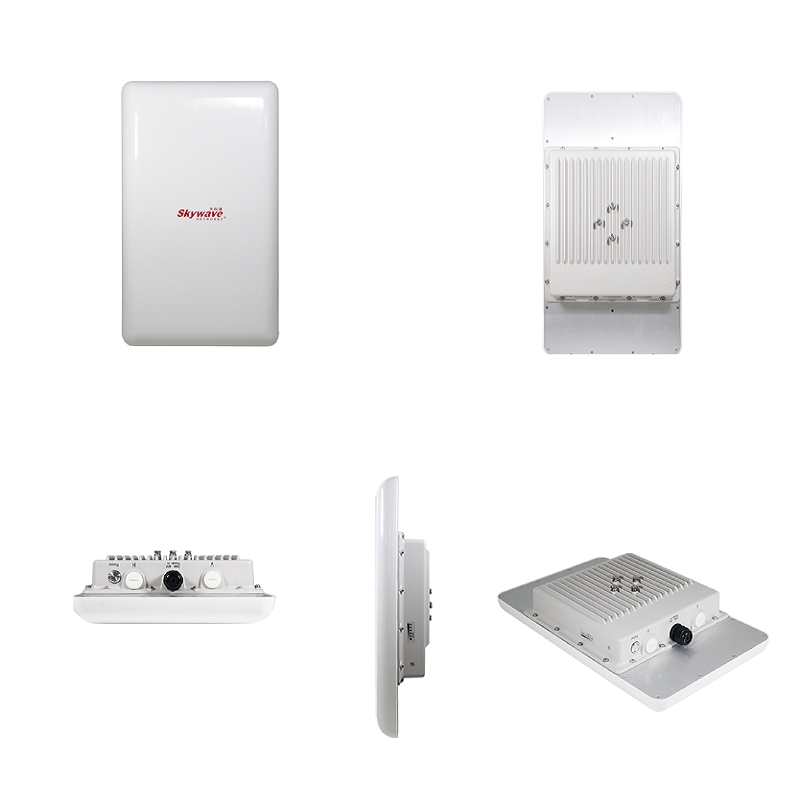

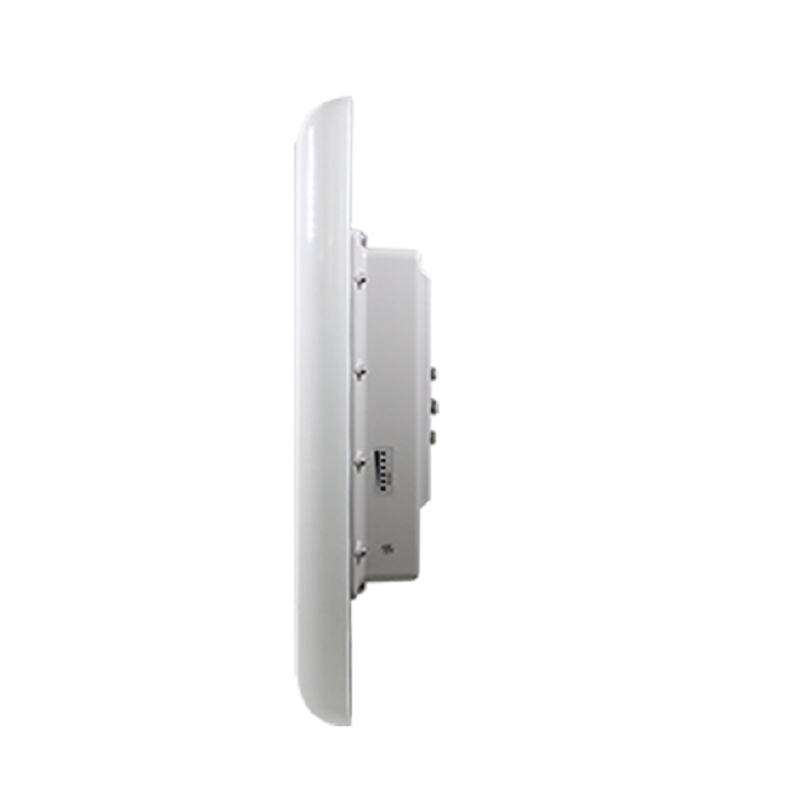

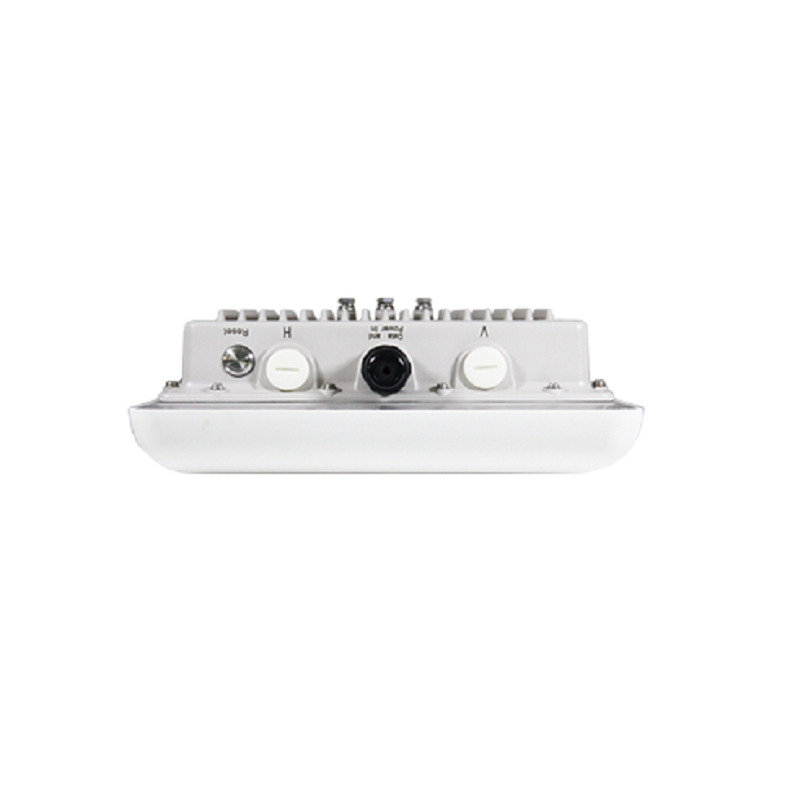

SW8000CBU is an outdoor carrier-grade antenna-integrated wireless base station that operates in the 5GHz unlicensed frequency band and is a wireless network device compliant with the IEEE802.11ac standard. The product adopts a high-performance Qualcomm Atheros high-speed network processor and is based on the MIMO (Multiple-Input Multiple-Output) technology of IEEE802.11ac, with a 2T2R architecture, supporting a wireless transmission rate of up to 867Mbps.

The combined RF power output can reach up to 2500mW, and the sensitivity is as high as -96dBm. The device integrates a 22 MIMO panel directional antenna, making it particularly suitable for long-distance backbone network transmission projects and real-time services with large data flows, such as high-definition video surveillance applications in oil fields, electric power, water conservancy, forestry, industrial and mining enterprises, safe cities, and intelligent transportation.

▲

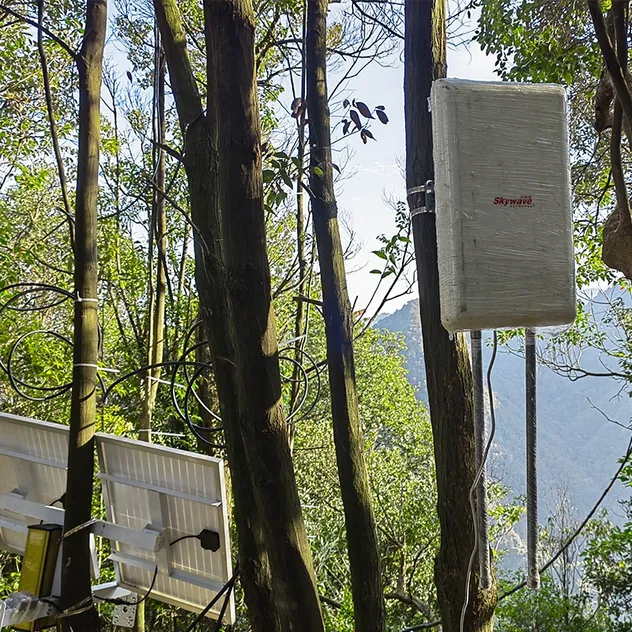

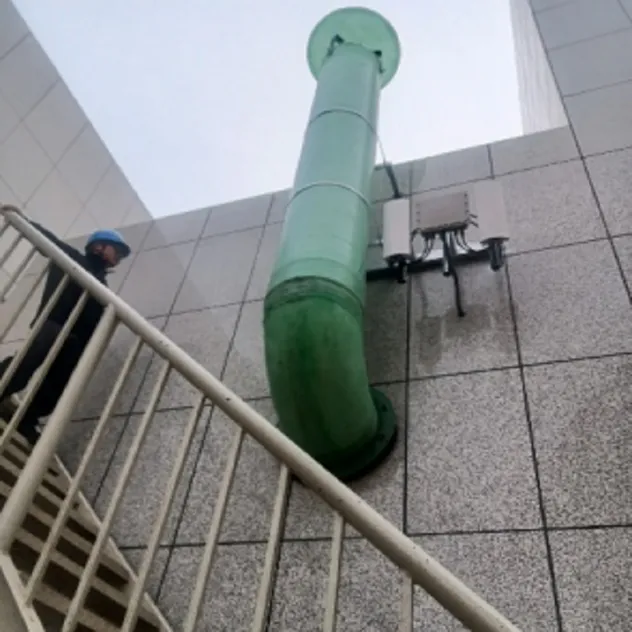

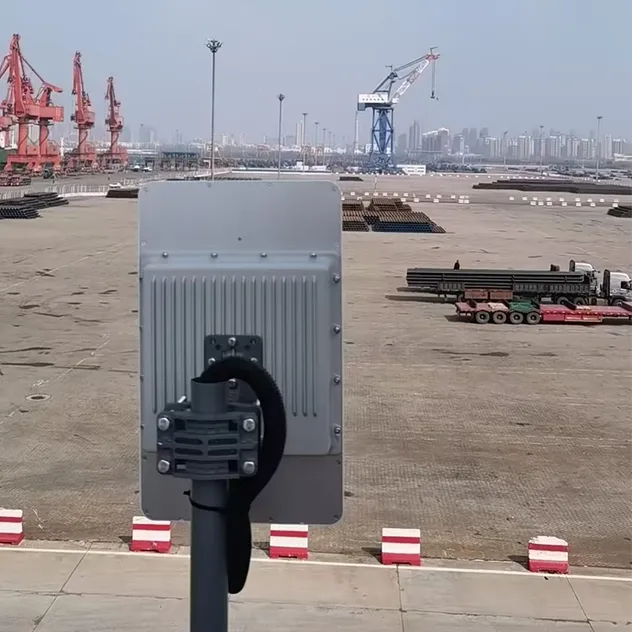

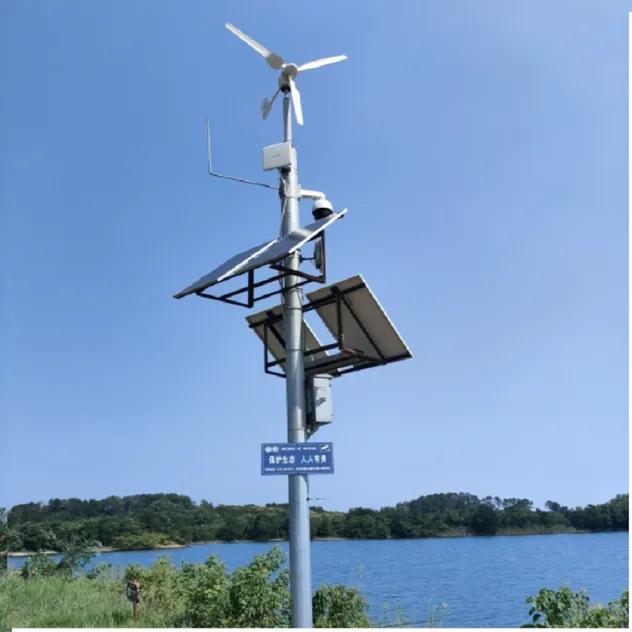

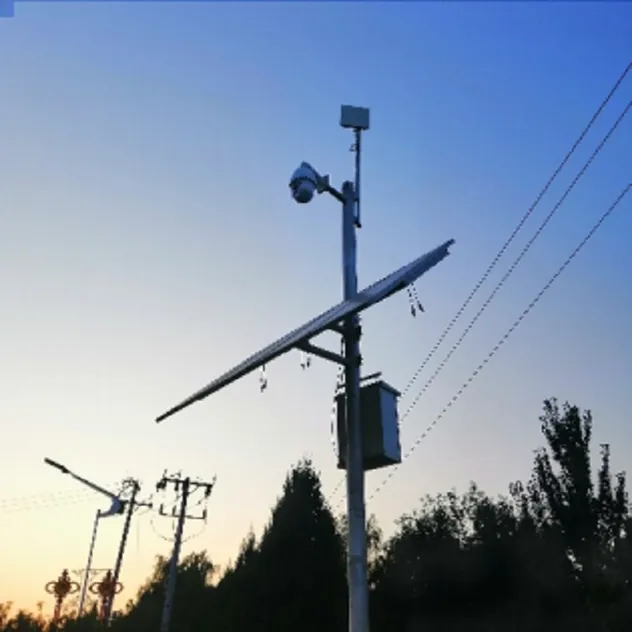

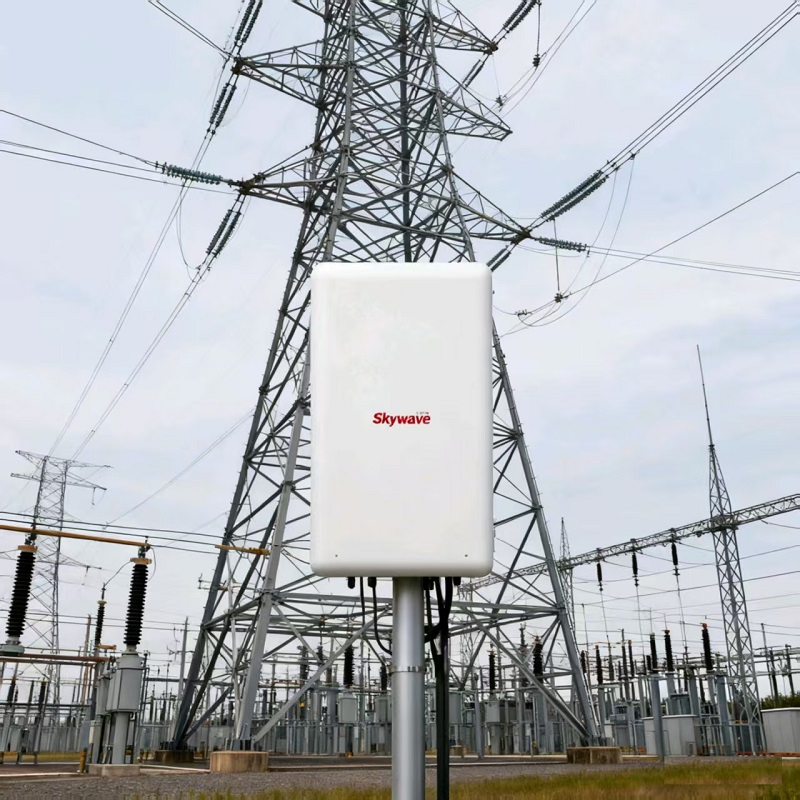

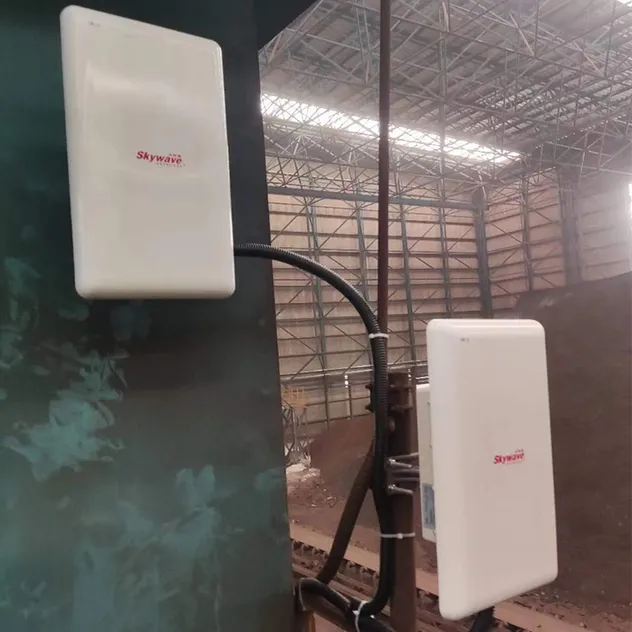

Application Scenarios

⚙

Product Parameters

Radio Frequency
Frequency band	IEEE802.11a/n/ac: 4920~ 6100MHz
Channel	5/10/20/40/80MHz
RF power output	2*500mW
Sensitivity	802.11ac :-96 dBm@MCS0, -72dBm@MCS9
Data and Working Parameters
Maximum working rate	867Mbps
Standard	IEEE 802.11a/n/ac/h/d; IEEE802.3u/d/ab
Working mode	AP Bridge, Bridge, Station, Station Bridge, Station WDS, Mesh
Roaming	Seamless roaming support
Hardware Specifications
CPU / RAM	QCA9557 720MHz / 128MB DDR2
Size / Weight	450×270×90mm / 2.8Kg
Power Supply	Gigabit PoE Ethernet port (AC: 100-240V)
Environment	IP68 fully enclosed, -50℃ ~ +80℃ operating temp

✔

Product Advantages

Standard compatibility: Compliant with IEEE 802.11a/n/ac standards using MIMO and OFDM.
Stable and reliable: MTBF of over 200,000 hours ensures zero crash stability.
High Transfer Rate: Maximum speed of 2x2 MIMO up to 867Mbps.
Long Transmission: Integrated antenna achieves a maximum distance of over 15 kilometers.
Anti-interference: Adopts BeamForming technology to suppress interference effectively.
Weatherproof Design: IP68 integrated fully enclosed design for extreme outdoor environments.
Bandwidth Management: Supports WMM (QoS) for voice and video service priority.

◈

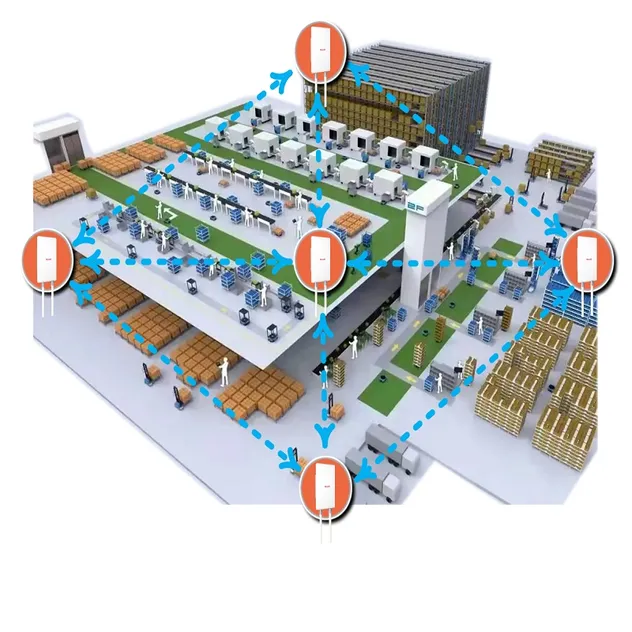

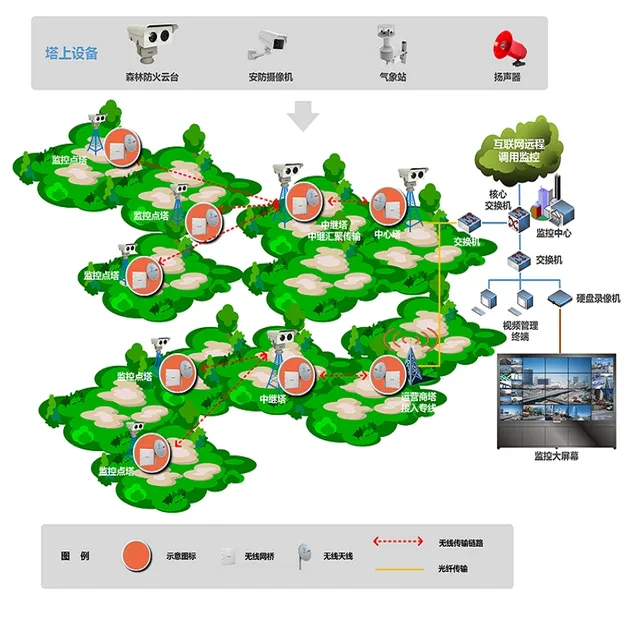

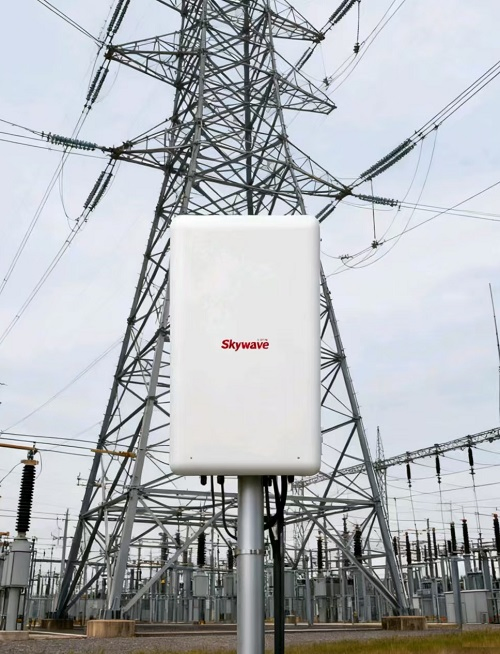

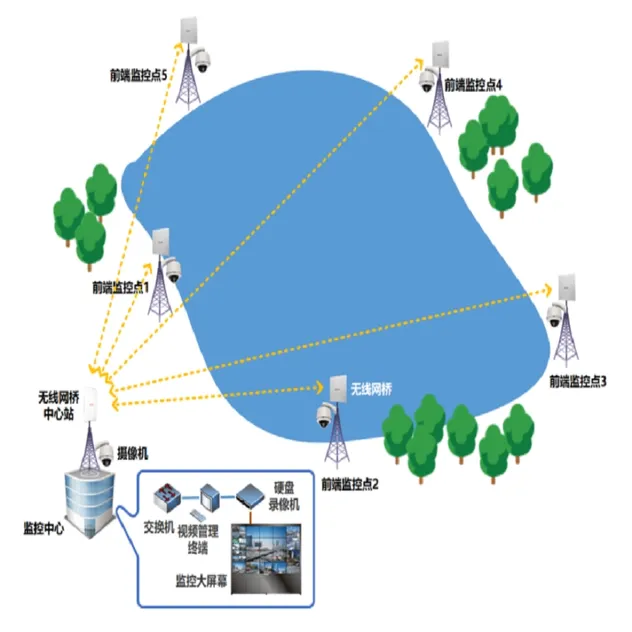

Success Cases

✈

Packing & Delivery

Frequently Asked Questions

Q1: What is the maximum transmission speed of the SW8000CBU? A: The SW8000CBU supports the IEEE802.11ac standard with a 2T2R architecture, providing a wireless transmission rate of up to 867Mbps.

Q2: How far can this wireless base station transmit data? A: With its high transmission power and integrated 22 MIMO panel directional antenna, it can achieve a maximum distance of over 15 kilometers in optimal conditions.

Q3: Is the device suitable for extreme outdoor weather? A: Yes, it features an IP68 integrated fully enclosed design, which is dustproof and waterproof, and can operate in temperatures ranging from -50℃ to +80℃.

Q4: Does the base station support Power over Ethernet (PoE)? A: Yes, it includes a Gigabit adaptive Ethernet port that supports Gigabit PoE power supply for easier construction and maintenance.

Q5: Can I customize the logo and color of the product? A: We support on-demand customization, including LOGO customization, color customization, and appearance size customization.

Q6: What frequency bands does this device operate on? A: It operates in the 5GHz unlicensed frequency band, specifically covering 4920MHz to 6100MHz.
