| Model | SW8000CBE |
|---|---|
| Antenna Type | External WiFi Antenna |
| Transmission Rate | 867Mbps |
| Voltage | AC: 100-240V |
| Antenna Gain | 34dBi |
| Certifications | ISO9001, RoHS, CE |
| Capacity | 50,000 Pieces/Month |

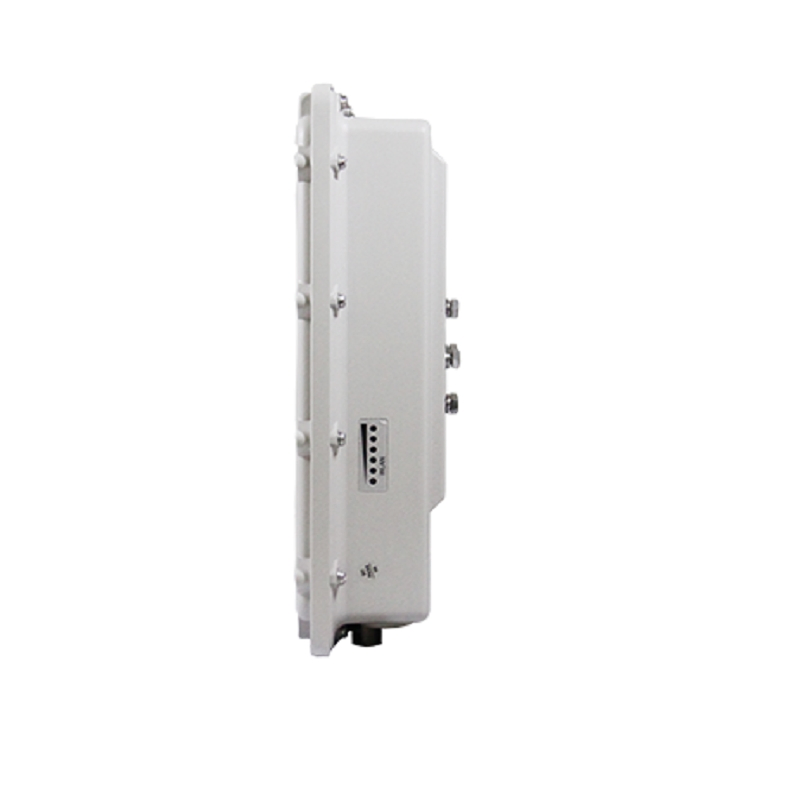

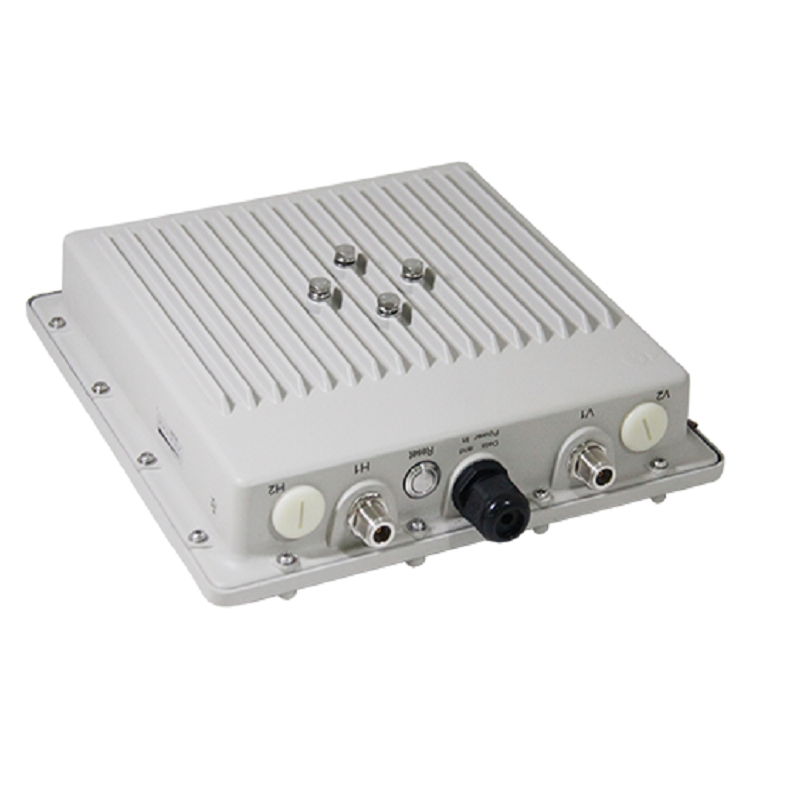

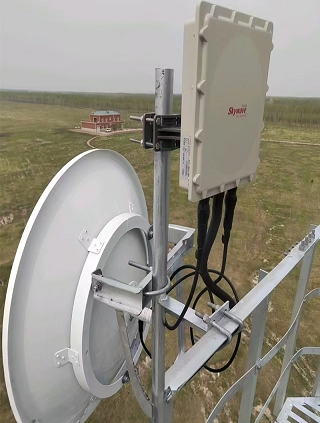

The SW8000CBE is an outdoor carrier-grade split-type wireless base station operating in the 5GHz unlicensed frequency band. Compliant with the IEEE802.11ac standard, it features a high-performance Qualcomm Atheros processor and 2T2R MIMO technology.

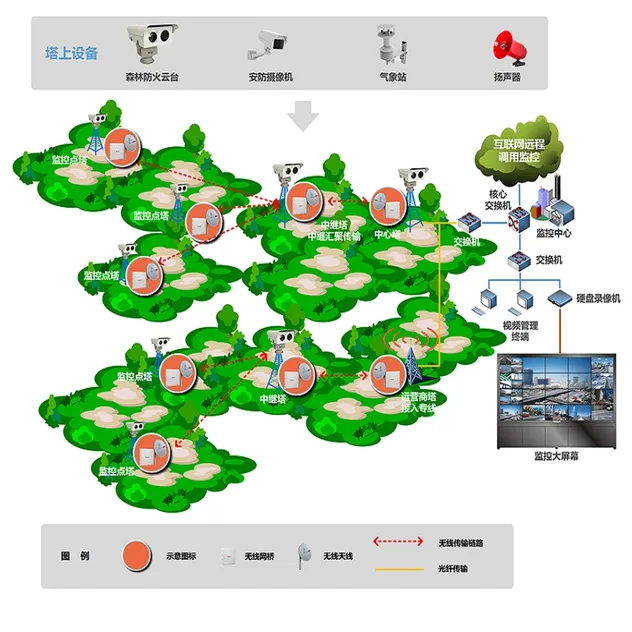

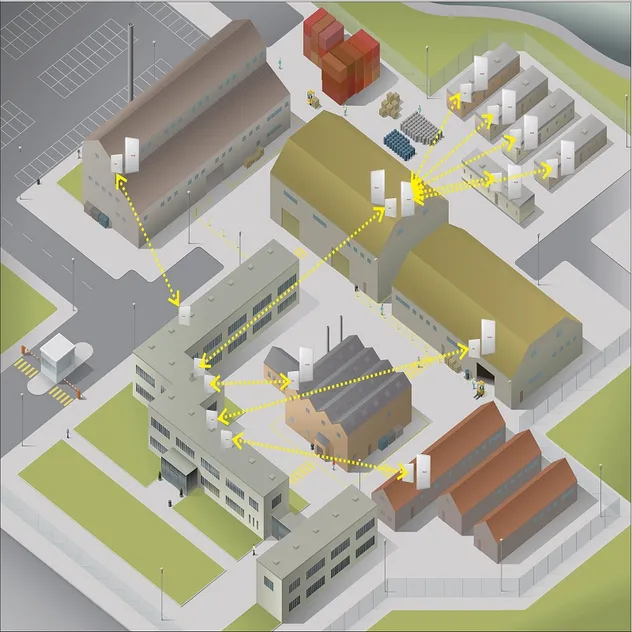

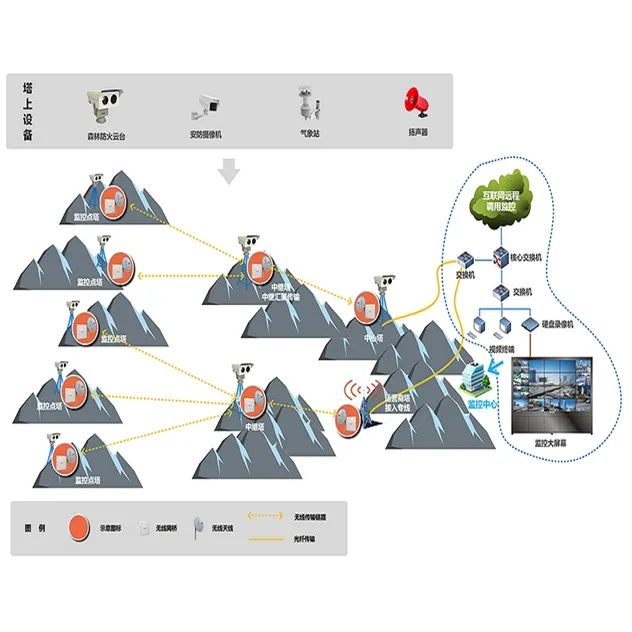

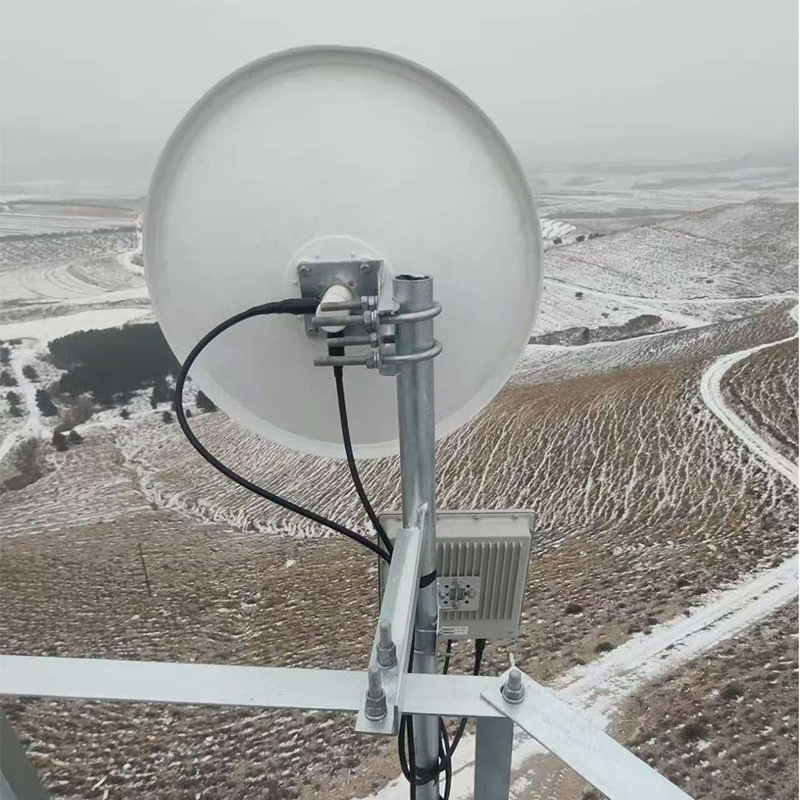

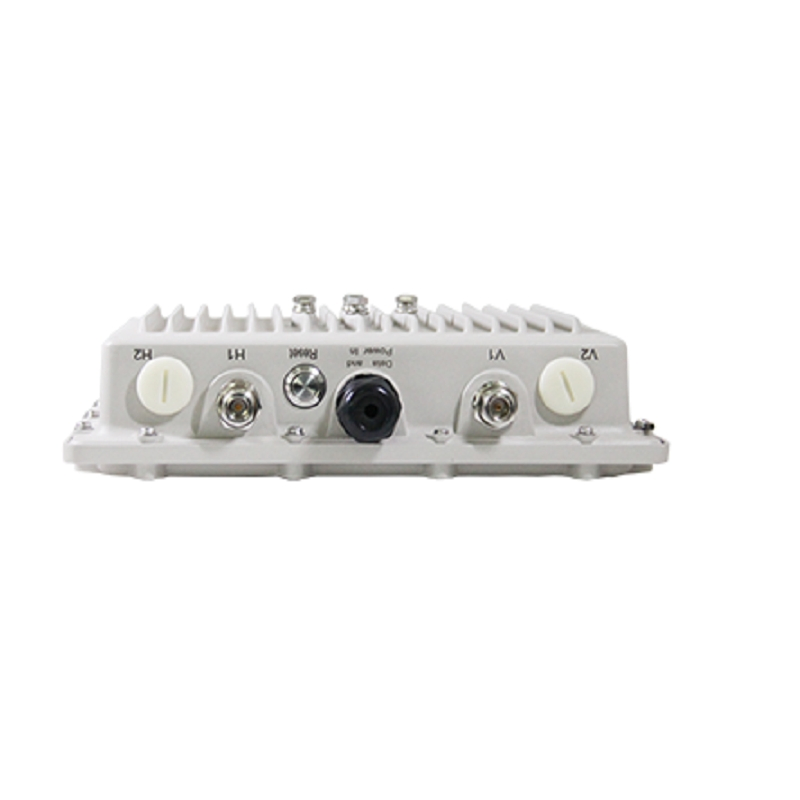

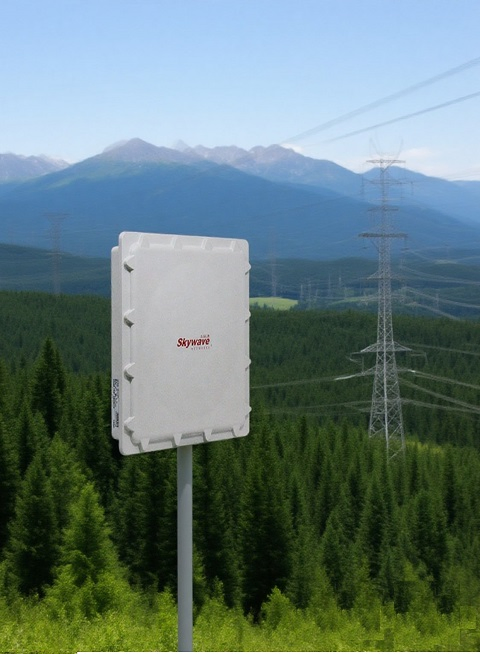

With a wireless transmission rate up to 867Mbps, it supports 2 N-type RF interfaces for external antennas. It is ideal for long-distance backbone networks and high-definition video surveillance in sectors like oil fields, electric power, water conservancy, and smart cities.
| RF & Data Settings | |
|---|---|
| Frequency Band | IEEE802.11a/n/ac: 4920~ 6100MHz |
| RF Power Output | 2*500mW |
| Modulation | OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| Working Mode | Point-to-point (PTP), Point-to-multipoint (PTMP) |
| CPU | QCA9557 / QCA9882 (720MHz) |
| RAM | 128MB DDR2 |
| Protection | IP68 Waterproof, 6KV Surge Protection |
| Temp Range | -50℃ to +80℃ (Operating) |
