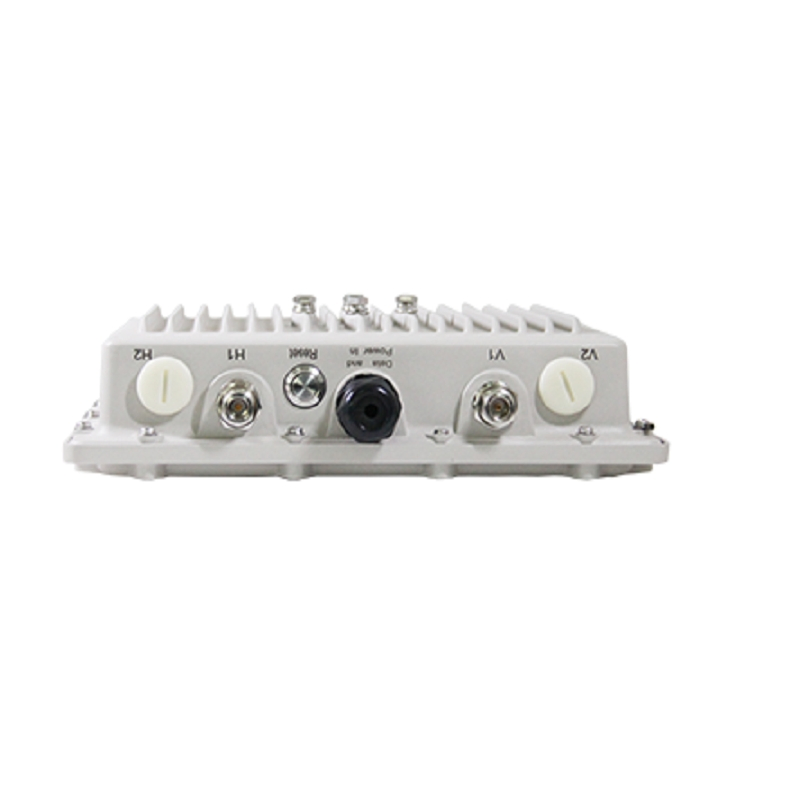

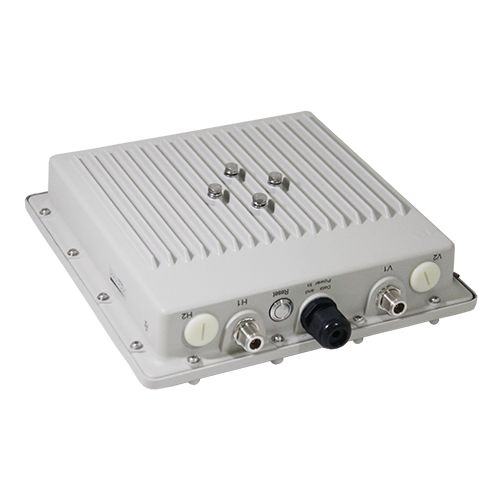

Advanced 5GHz Outdoor High Transmission Rate Carrier-Grade Wireless Base Station
Advanced 5GHz Outdoor High Transmission Rate Carrier-Grade Wireless Base Station
Advanced 5GHz Outdoor High Transmission Rate Carrier-Grade Wireless Base Station
Advanced 5GHz Outdoor High Transmission Rate Carrier-Grade Wireless Base Station
Advanced 5GHz Outdoor High Transmission Rate Carrier-Grade Wireless Base Station
1 / 5
Advanced 5GHz Outdoor High Transmission Rate Carrier-Grade Wireless Base Station
Advanced 5GHz Outdoor High Transmission Rate Carrier-Grade Wireless Base Station
Advanced 5GHz Outdoor High Transmission Rate Carrier-Grade Wireless Base Station
Advanced 5GHz Outdoor High Transmission Rate Carrier-Grade Wireless Base Station
Advanced 5GHz Outdoor High Transmission Rate Carrier-Grade Wireless Base Station

Advanced 5GHz Outdoor High Transmission Rate Carrier-Grade Wireless Base Station

Customization: Available
Type: Wireless Base Station
Work Mode: Point-to-Point, Point-to-Multipoint
Send Inquiry

Product Description

ℹ

Basic Information

Model:SW8000CBE
WiFi Antenna:External
Rate:867Mbps
Voltage:AC: 100-240V
Antenna Gain:34dBi
Color:White
Certification:ISO9001, RoHS, CE
Frequency:4920 ~ 6100MHz
RF Output:2*500mW
Capacity:100,000 Pcs/Month
📋

Product Description

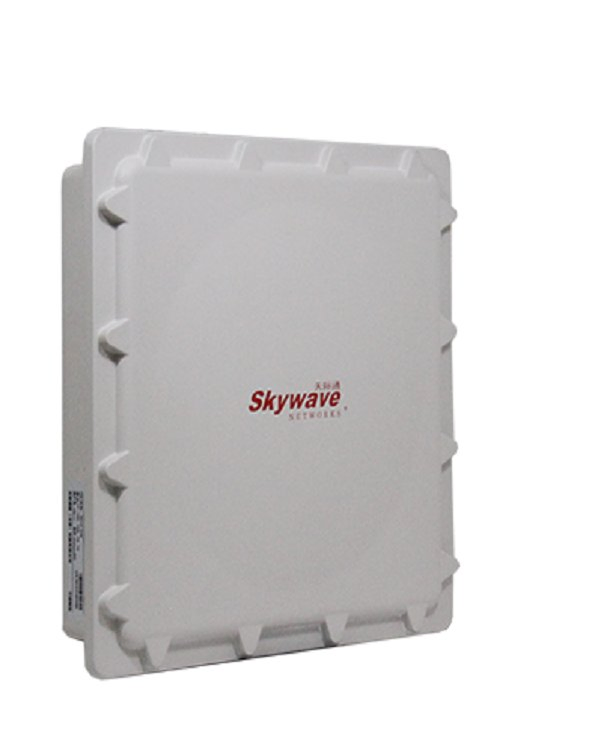

Wireless Base Station

SW8000CBE is an outdoor carrier-grade split-type wireless base station operating in the 5GHz unlicensed frequency band. Compliant with IEEE802.11ac standards, it utilizes high-performance Qualcomm Atheros processors and MIMO technology with a 2T2R architecture.

Supporting transmission rates up to 867Mbps and backward compatible with 802.11a/n, this device features a combined RF power output of up to 2500mW and high sensitivity of -96dBm. Equipped with 2N-type radio frequency interfaces, it connects to various external antennas, making it perfect for long-distance backbone network transmission and high-definition video surveillance.

🌐

Application Scenarios

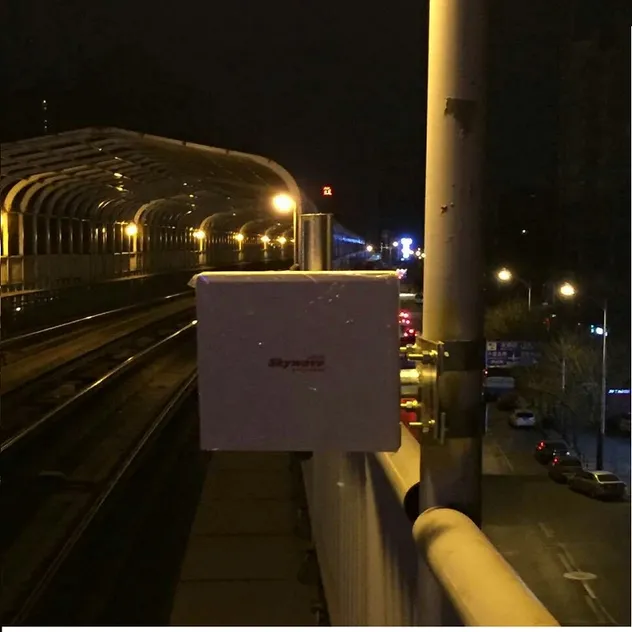

Scenario 1

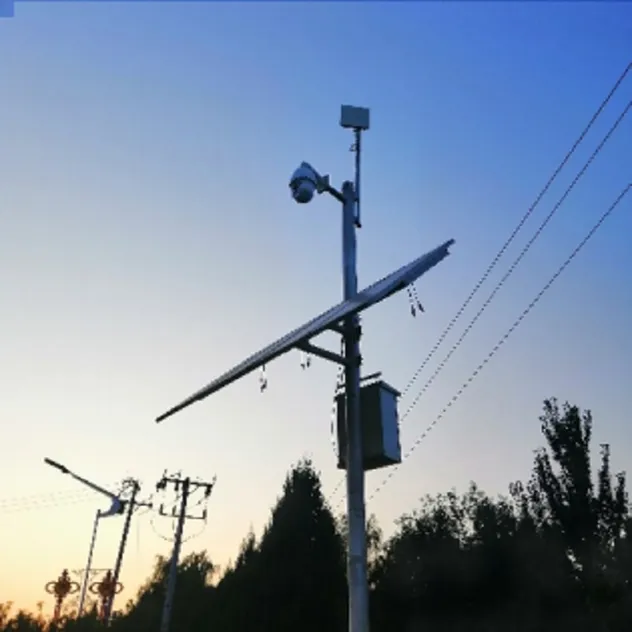

Scenario 2

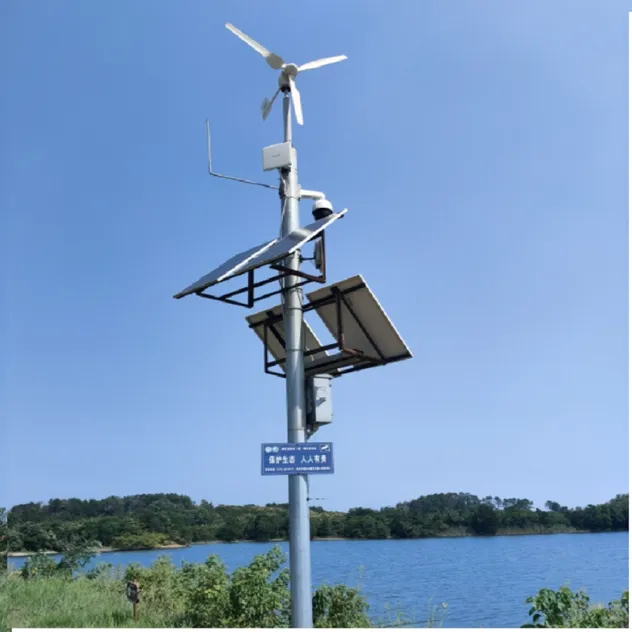

Scenario 3

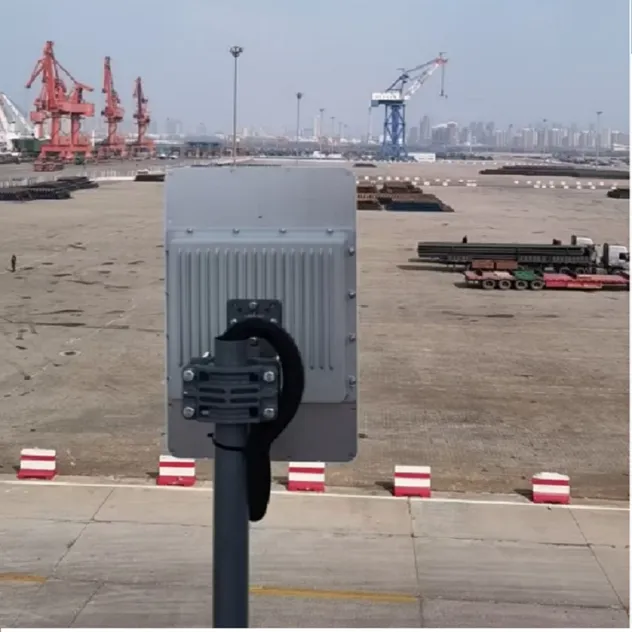

Scenario 4

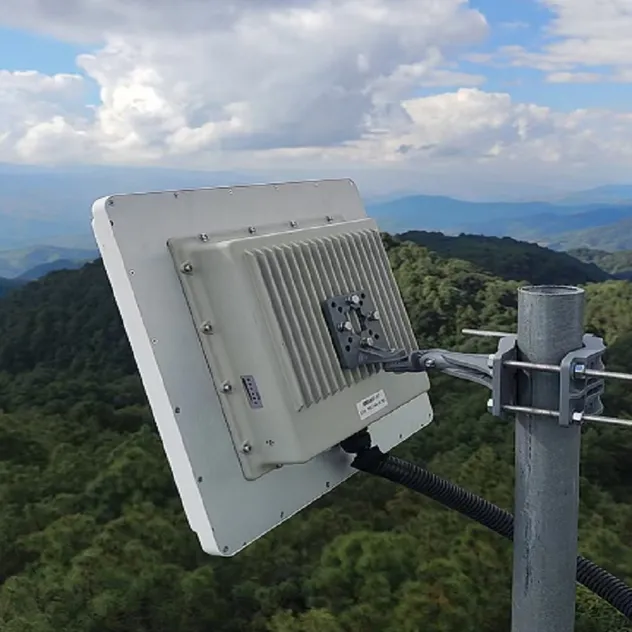

Scenario 5

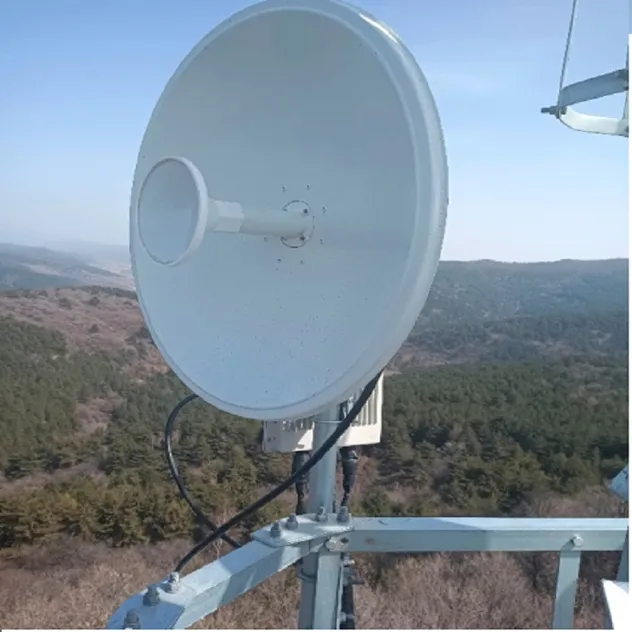

Scenario 6
⚙

Technical Parameters

Radio Frequency Parameters
Frequency BandIEEE802.11a/n/ac: 4920~ 6100MHz
Channel Bandwidth5/10/20/40/80MHz
RF Output Power2*500mW
Sensitivity802.11ac: -96 dBm@MCS0, -72dBm@MCS9
Hardware Specifications
CPUQCA9557 / QCA9882 (720MHz)
RAM128MB DDR2
Network Interface1*Gigabit PoE Ethernet Port
ProtectionIP68 Waterproof, 6KV Surge Protection
Working Temperature-50℃ ~ +80℃
🚀

Core Advantages

  • Standard compatibility: MIMO and OFDM technology integration.
  • High Reliability: MTBF of over 200,000 hours for stable 24/7 operation.
  • Gigabit Speed: 867Mbps wireless rate with Gigabit Ethernet ports.
  • Long Distance: Maximum distance can reach over 200 kilometers with proper antennas.
  • Proprietary TDMA: Enhances point-to-multipoint efficiency significantly.
  • IP68 Design: Fully enclosed dustproof and waterproof for harsh environments.
  • Smart Management: Supports SNMP, bandwidth testing, and spectrum scanning.
  • Advanced Encryption: Supports WPA2, AES, and 802.1X security.
🏆

Success Cases

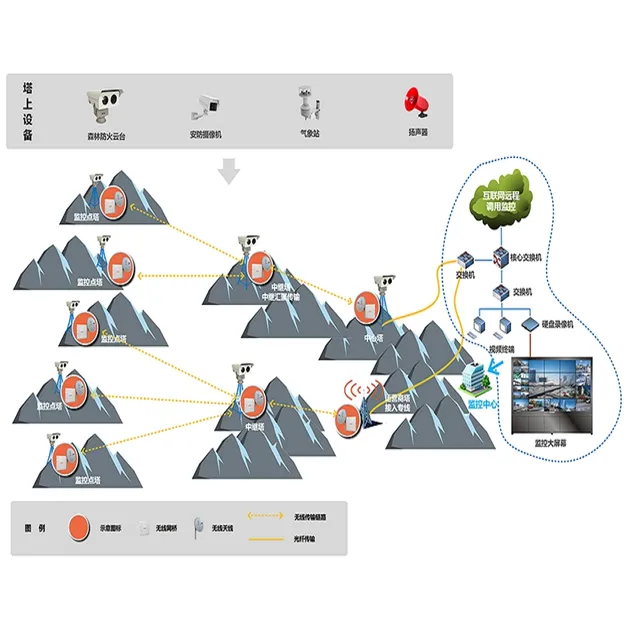

Project 1

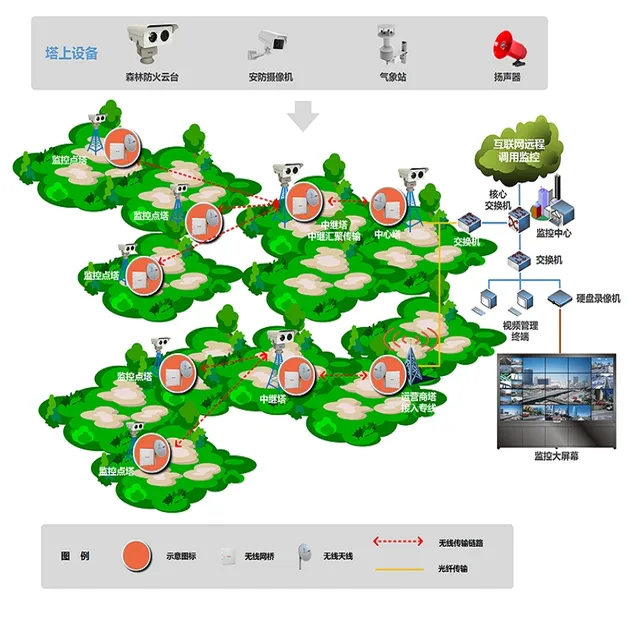

Project 2

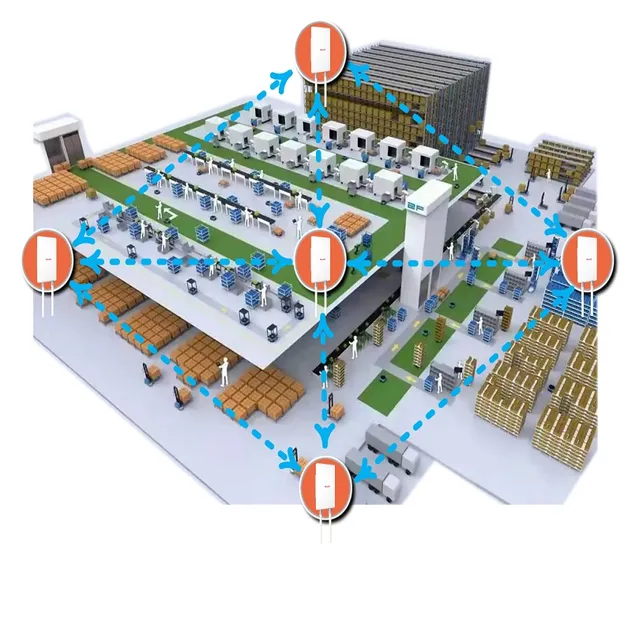

Project 3
Detailed Installation
📦

Packing & Delivery

Packaging Box
Delivery Setup
❓

Frequently Asked Questions

What is the maximum transmission distance of this base station?
When combined with high-gain external antennas and clear line-of-sight conditions, the transmission distance can exceed 200 kilometers.
Does the device support Power over Ethernet (PoE)?
Yes, it features a Gigabit adaptive Ethernet port that supports Gigabit PoE power supply for easy installation.
Is the SW8000CBE suitable for extreme weather conditions?
Absolutely. It has an IP68 integrated fully enclosed design and operates in temperatures ranging from -50℃ to +80℃.
Can I customize the logo and color for bulk orders?
Yes, we support on-demand customization including LOGO, colors, and specific hardware dimensions.
What wireless standards is it compatible with?
It is fully compliant with IEEE 802.11a/n/ac standards and supports both 802.11 and private protocols.
Does it support Point-to-Multipoint (PtMP) connections?
Yes, it supports both Point-to-Point (PtP) and Point-to-Multipoint (PtMP) working modes with TDMA protocol for enhanced efficiency.
