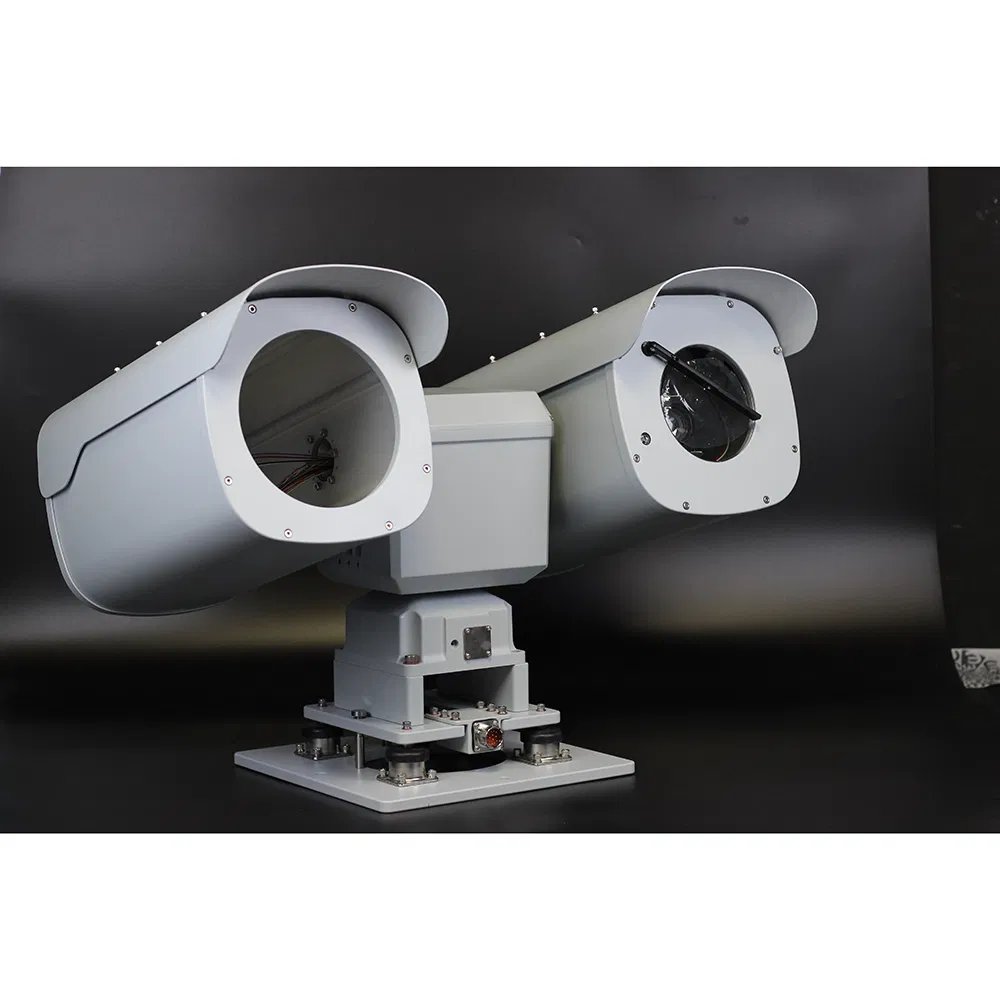

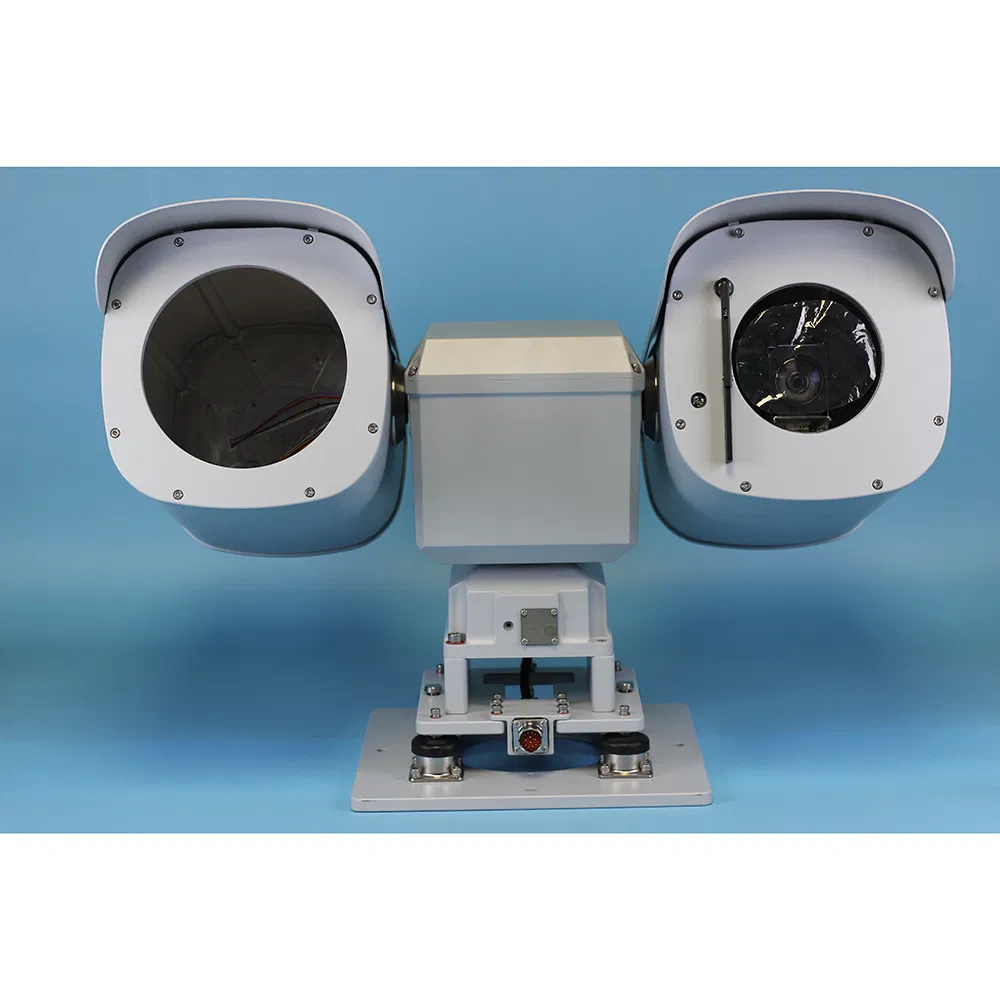

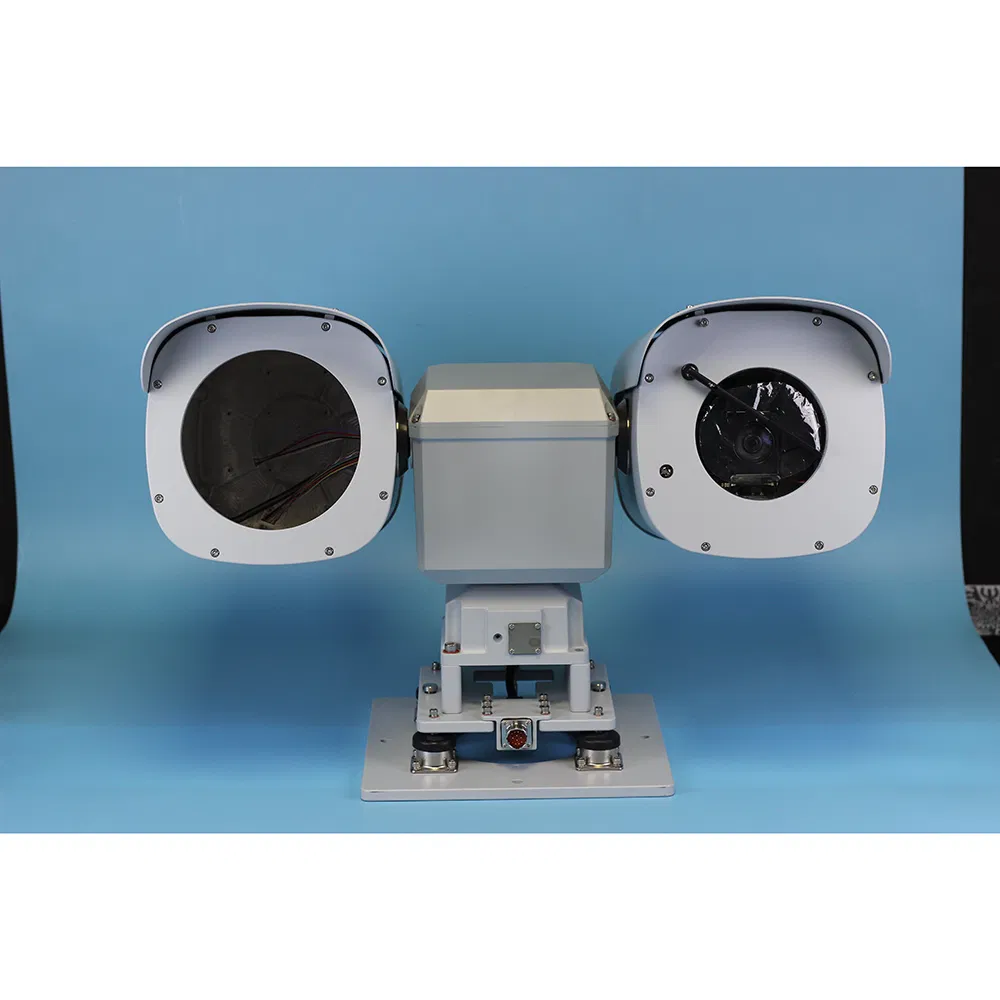

Advanced Heavy Duty MID-Load Pan Tilt Positioner for Outdoor Use

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Basic Information

Model NO.

SOAR1040

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Kind

Autofocus Lens

Feature

Waterproof / Weatherproof, High Definition, Vandal-proof

Effective Distance

≧30m

Sensor Size

1/3 inch

Remote Control

With Remote Control

Product Description

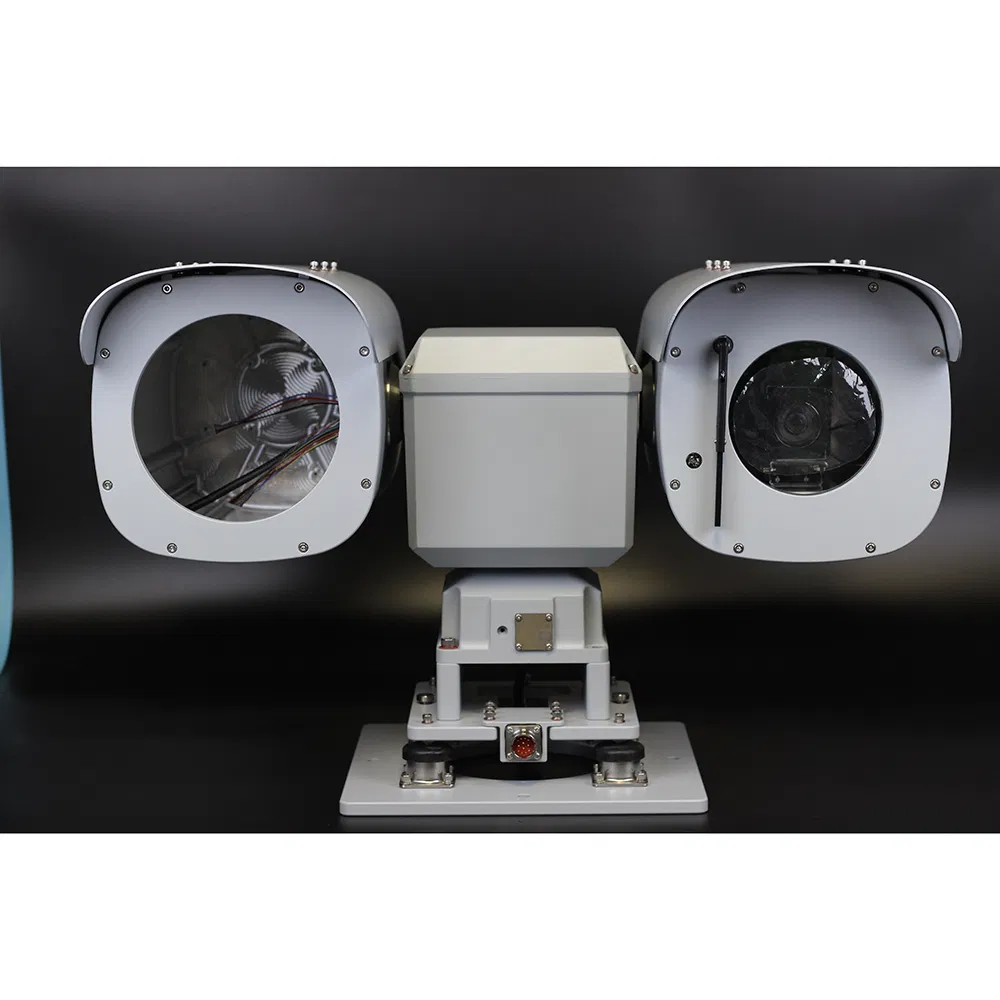

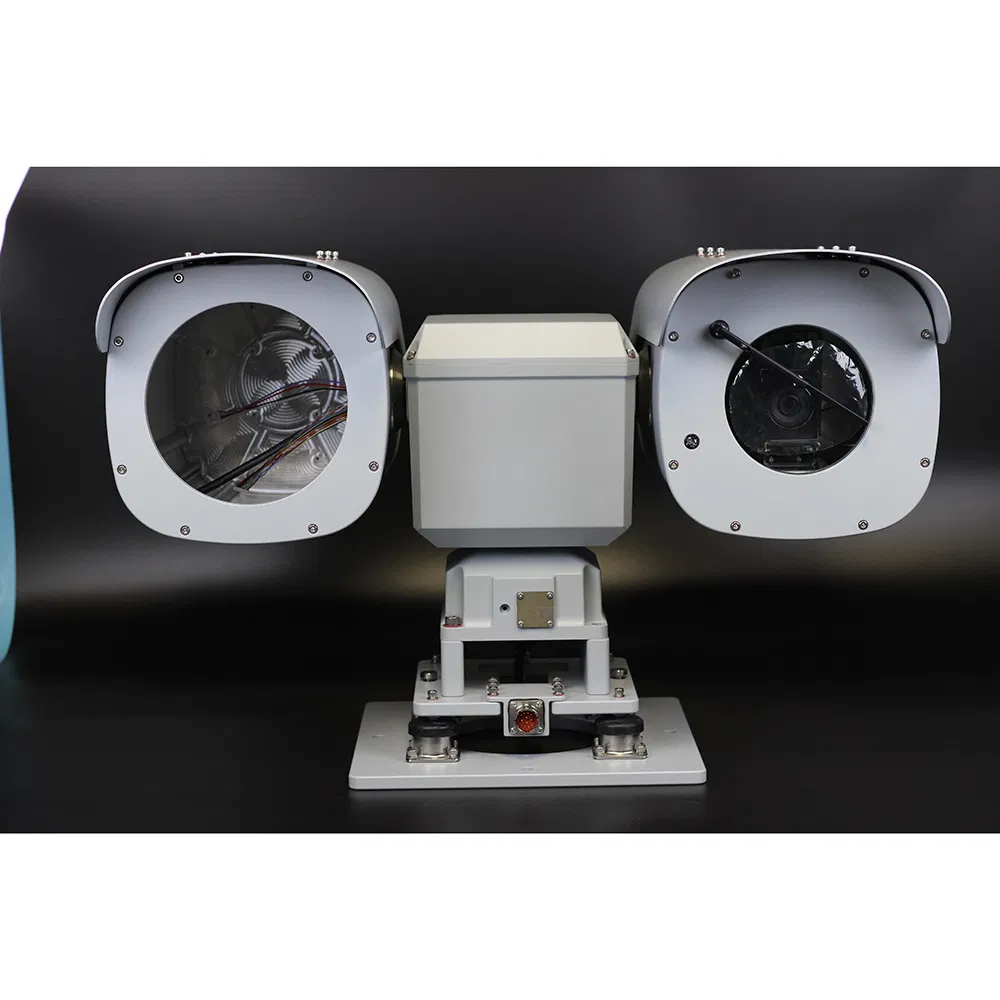

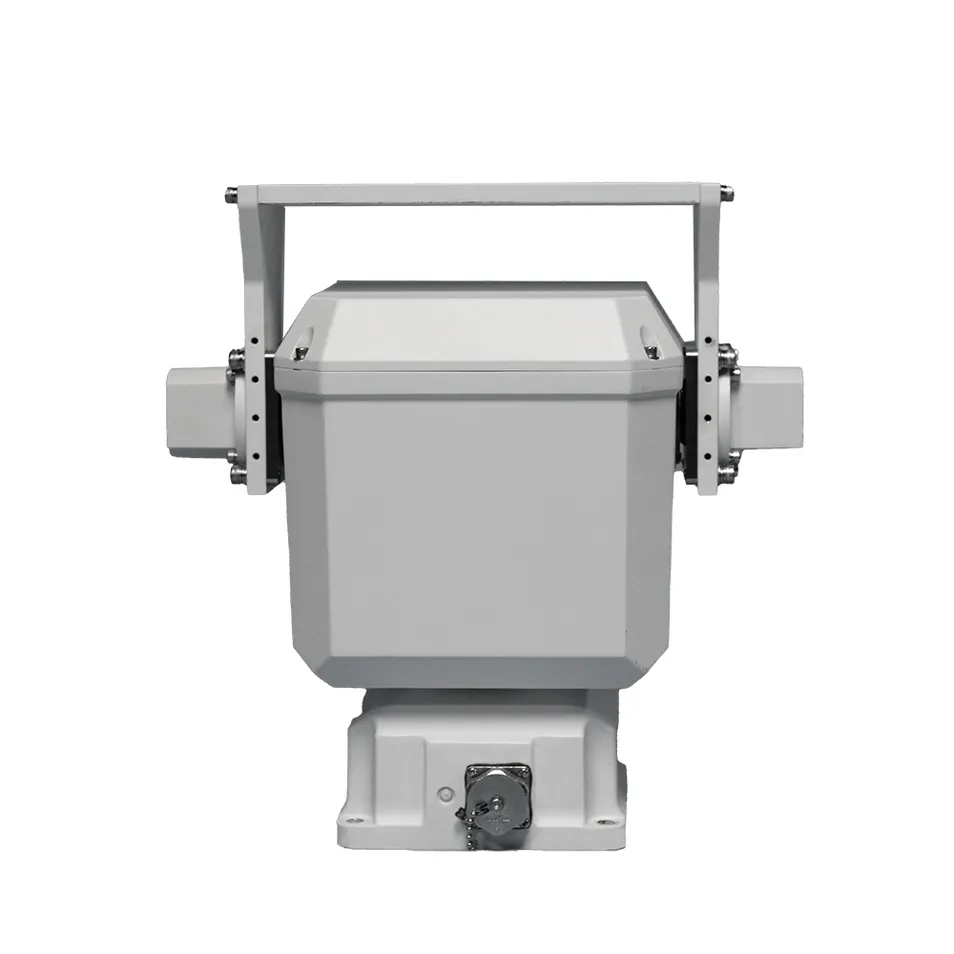

Mid-load Heavy Duty Pan Tilt Positioner

The system accommodates various single payload using a versatile bracketing system for top mounting. It is designed for easy integration, serving as an open platform that offers the necessary flexibility while reducing development and integration efforts.

This unit has demonstrated its reliability in numerous mission-critical applications for positioning cameras, lasers, antennas, and other instruments in both stationary and mobile settings. Features a harmonic gear drive, ensuring high precision and long life. Additionally, it can be delivered as a complete system with all required sensors if needed.

Product Highlights

Supports up to 30kg payload for heavy-duty multi-sensor integration
Features high-precision harmonic drive with zero-backlash performance and 0.005° positioning accuracy.
Provides 360° continuous pan and ±90° tilt with ultra-smooth low-speed control.
Enables long-range surveillance with thermal imaging, 120× optical zoom, and optional 10km laser range finder.
Optional built-in AI supports human, vehicle, vessel, and drone detection with auto tracking.
IP67-rated rugged design ensures reliable operation from –40°C to +70°C in harsh environments.
Pelco-D protocol compatibility and easy integration

Specification

Payload
Top Payload	Up to 30kg
Side Payload	Up to 30kg
Pan Tilt
Pan/Tilt Range	Pan: 0° to 360° endless \| Tilt: –90° to +90°
Pan/Tilt Speed	10kg: 0.05-60°/s \| 20kg: 0.05-50°/s \| 30kg: 0.05-40°/s
Positioning Accuracy	Pan: 0.005°; Tilt : 0.01°
Communication protocol	Pelco-D / RS-422 / RS-485 / RJ45
General
Power Consumption	Max 60W (DC24V / DC48V)
Working Temp	-40°C to +70°C
Protection Level	IP67 Standard; TVS 6000V lightning protection
Dimension / Weight	335 mm × 192 mm × 337.5 mm / Approx. 9kg

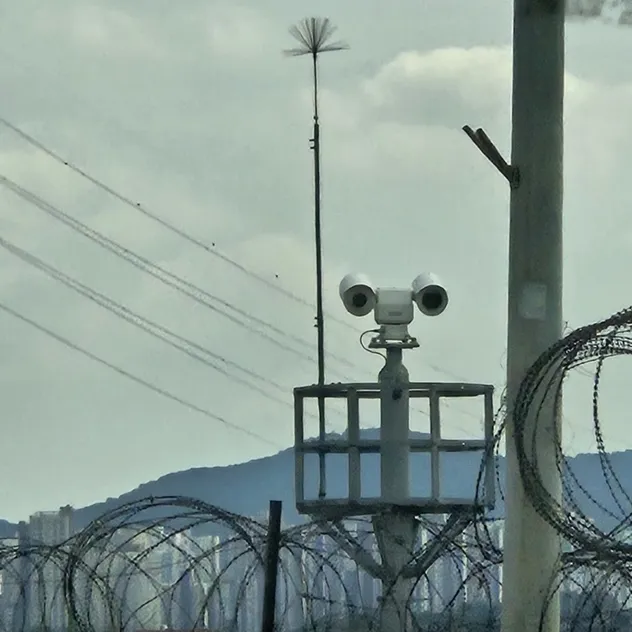

Application Scenarios

Profile

Founded in 2005 and listed on the NEEQ in 2016, the team specializes in designing and developing PTZ camera systems and advanced optical imaging solutions. Serving demanding sectors including maritime monitoring, long-range surveillance, anti-drone systems, and defense. The expertise also focuses on mobile surveillance, power line inspection, forest fire prevention, robotics cameras, and industrial machine vision. With a dedicated Optical Camera Division, we offer high-performance zoom and thermal imaging cameras, ranging from core components to complete, customized system solutions.
