HawkEye Camera
1 / 5
| Model NO. | SOAR1040 |
| Type | CCTV Camera |
| Sensor | CMOS |
| HDMI Format | 1080P |
| Kind | Autofocus Lens |
| Feature | Waterproof / Weatherproof, High Definition, Vandal-proof |
| Effective Distance | ≧30m |
| Sensor Size | 1/3 inch |
| Remote Control | With Remote Control |

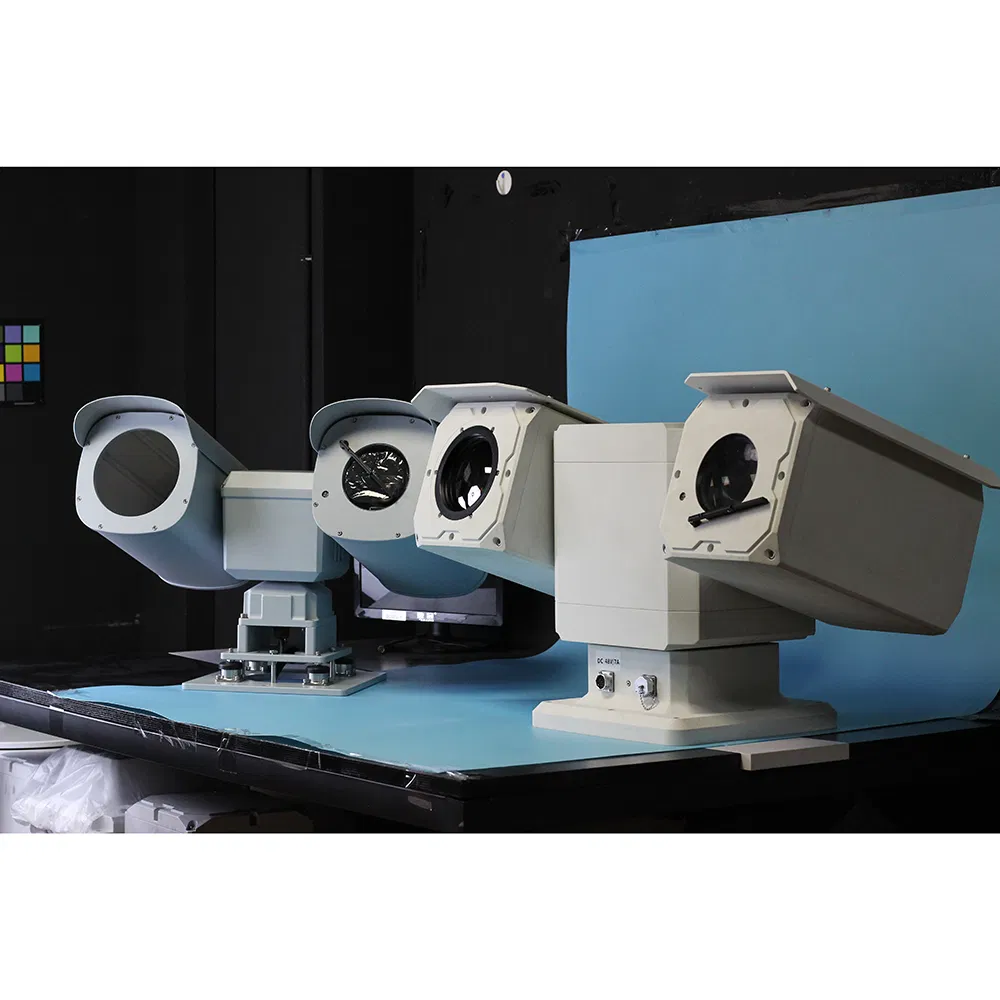

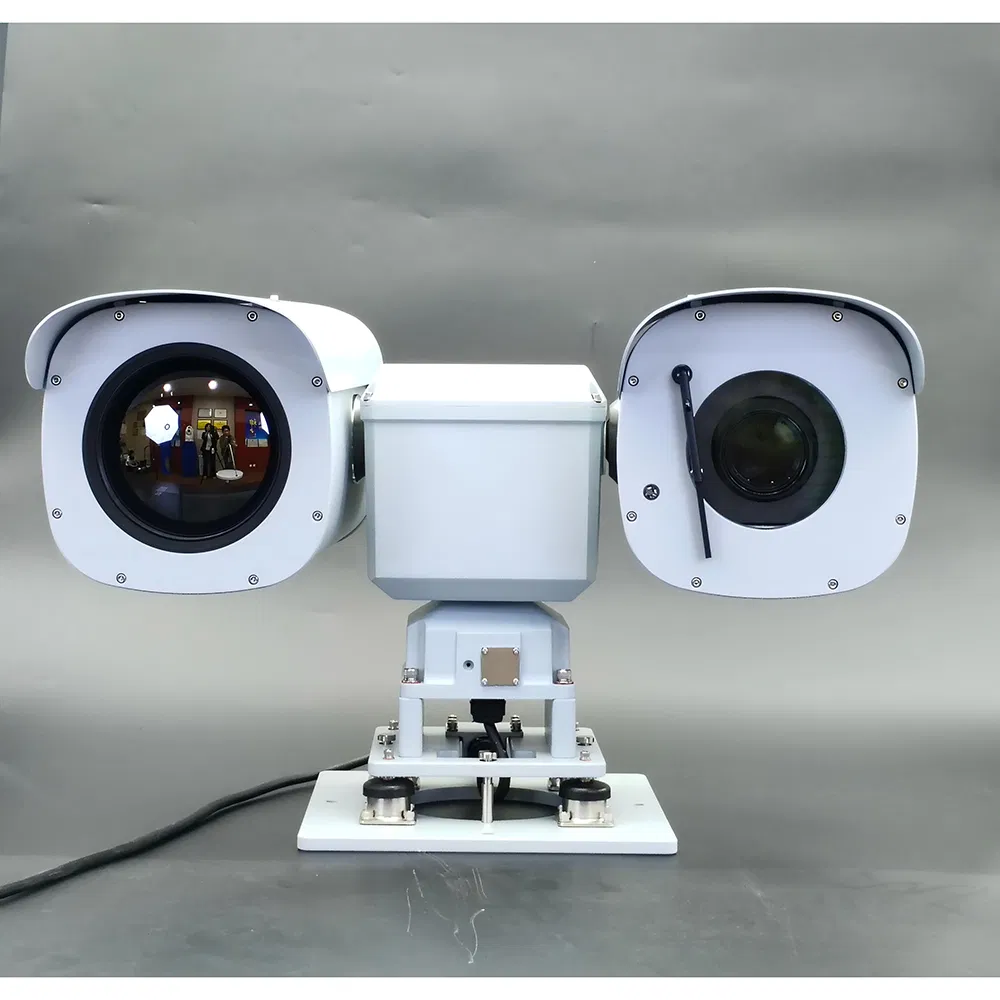

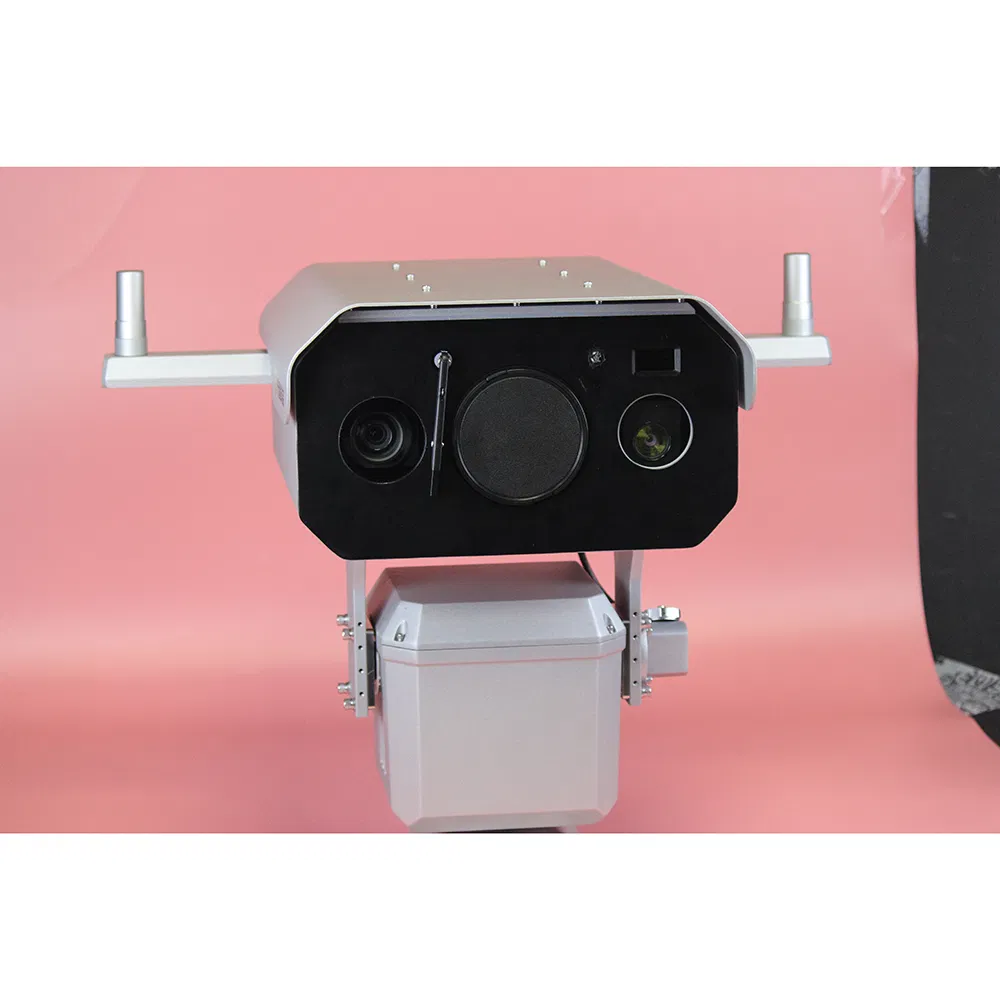

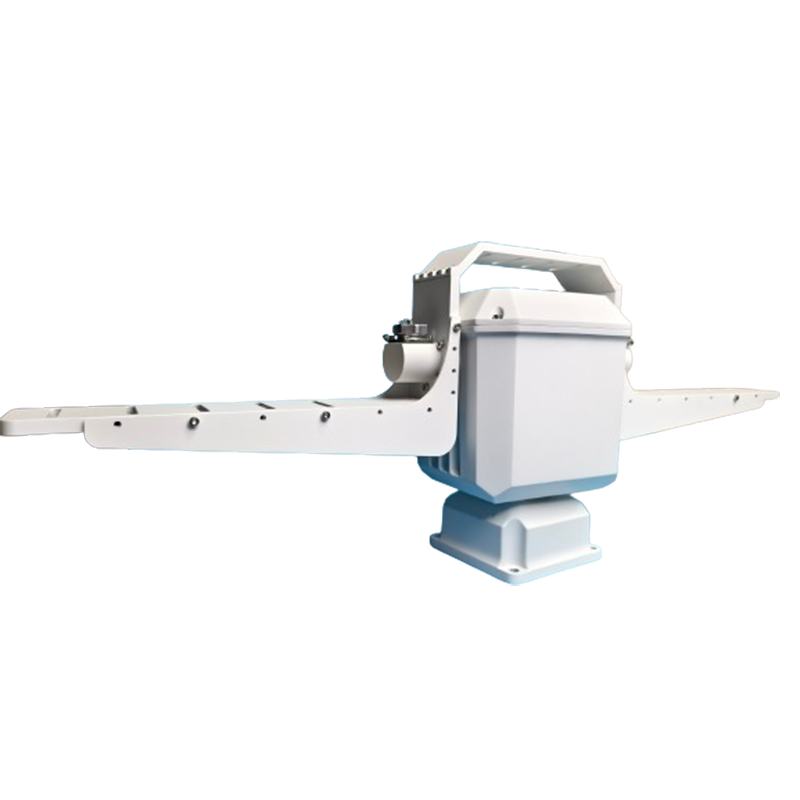

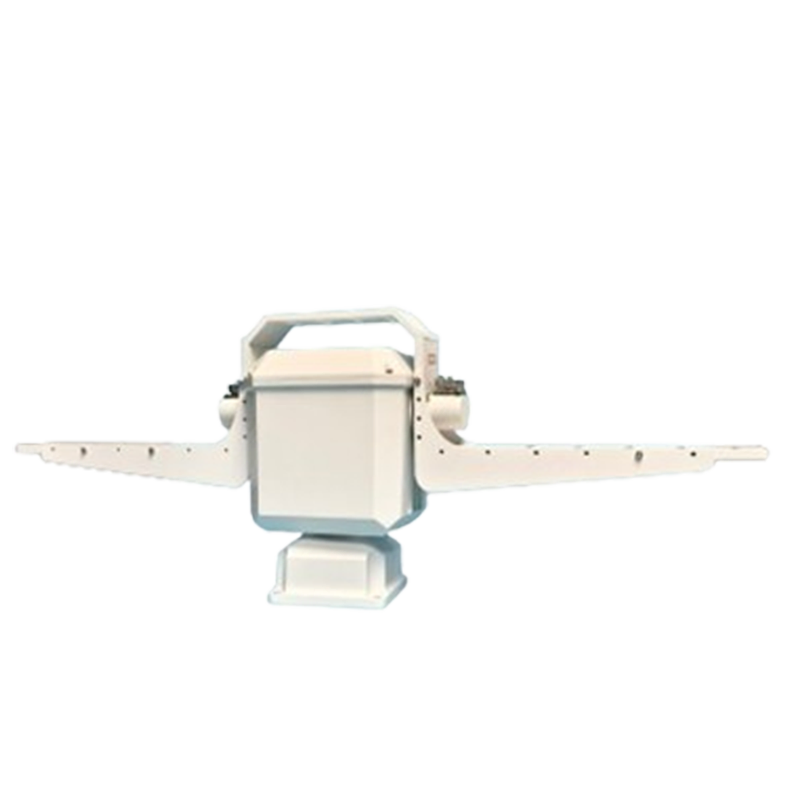

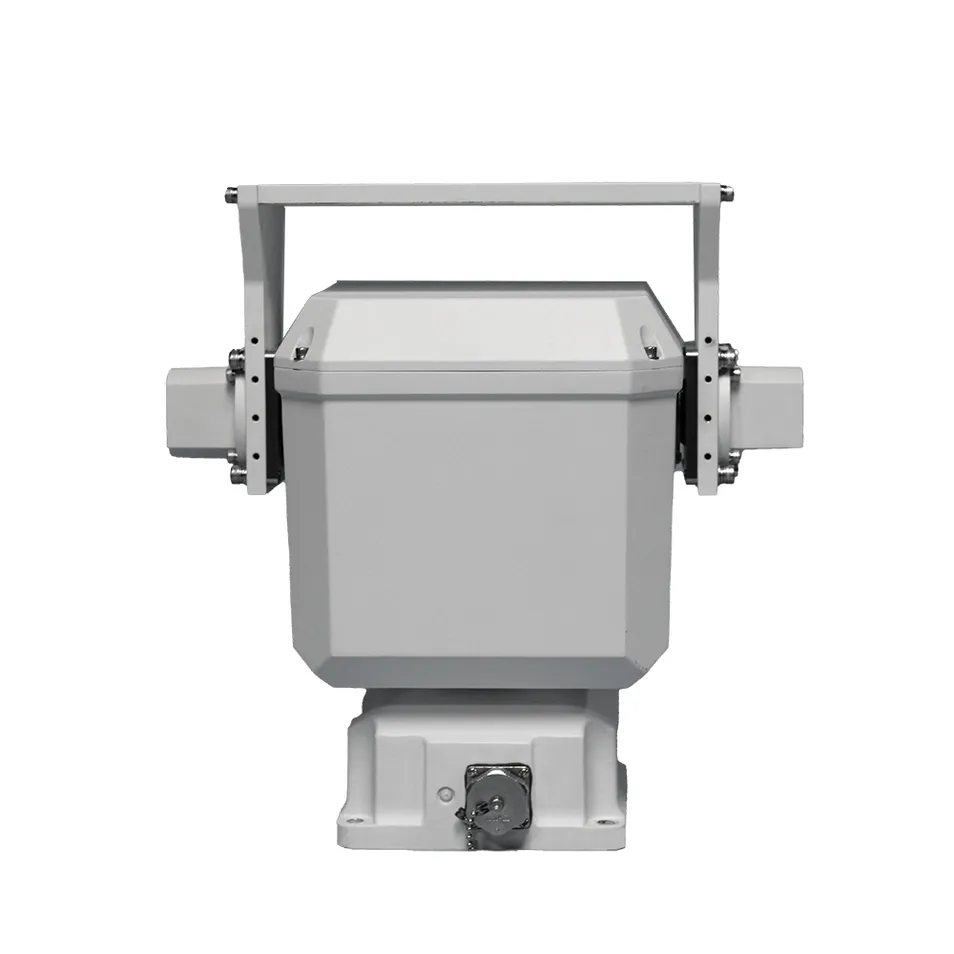

The system accommodates various single payload using a versatile bracketing system for top mounting. It is designed for easy integration, serving as an open platform that offers the necessary flexibility while reducing development and integration efforts.
This unit has demonstrated its reliability in numerous mission-critical applications for positioning cameras, lasers, antennas, and other instruments in both stationary and mobile settings. Features a harmonic gear drive, ensuring high precision and long life. Additionally, it can be delivered as a complete system with all required sensors if needed.
| Payload | |
|---|---|
| Top Payload | Up to 30kg |
| Side Payload | Up to 30kg |
| Pan Tilt Performance | |

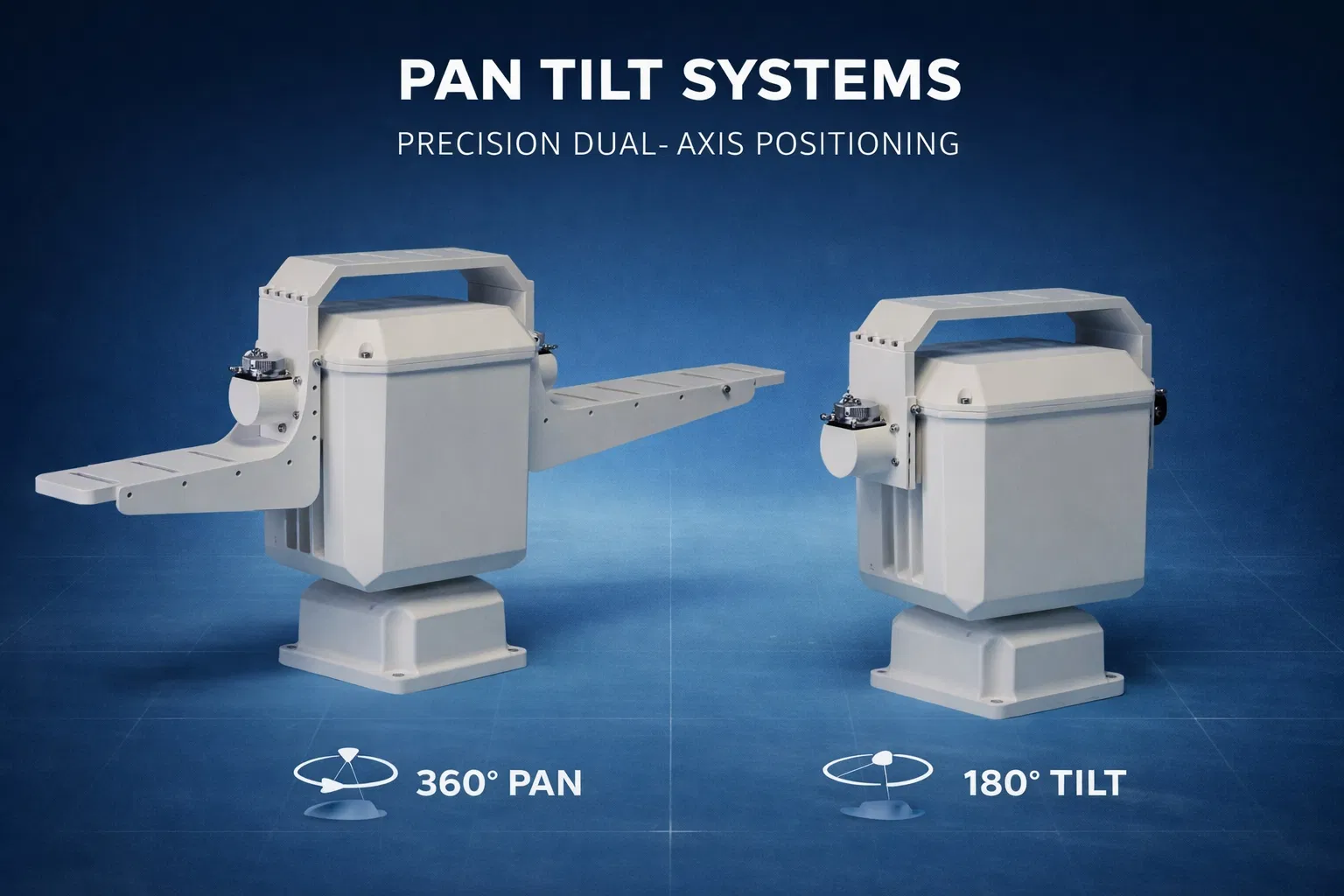

| Pan/Tilt Range | Pan: 360° endless; Tilt: –90° to +90° |
| Pan/Tilt Speed | Up to 60°/s (depends on load) |
| Positioning Accuracy | Pan: 0.005°; Tilt: 0.01° |
| Protocol | Pelco-D |
| Interface & Ports | |
| Communication | RS-422/RS-485/RJ45 |
| Power Input | DC24V / DC48V |
| Network Port | 1 × RJ-45 (10/100 Base-T) |
| Alarm I/O | 1 Input / 1 Output |
| General Info | |
| Power Consumption | Max 60W |
| Environment | -40°C to +70°C; Humidity 95% or less |
| Protection | IP67; TVS 6000V Lightning/Surge protection |
| Dimension/Weight | 335mm x 192mm x 337.5mm / Approx. 9kg |
Founded in 2005, the team specializes in designing and developing PTZ camera systems and advanced optical imaging solutions. Serving demanding sectors including maritime monitoring, long-range surveillance, anti-drone systems, and defense. The business focuses on mobile surveillance, power line inspection, forest fire prevention, robotics cameras, and industrial machine vision.
With a dedicated Optical Camera Division established in 2019, the focus is on high-performance zoom and thermal imaging cameras. The team consists of over 160 professionals, including 62 R&D experts with significant industry experience. Guided by a philosophy of long-term partnership, the organization is committed to continuous innovation and collaboration.
