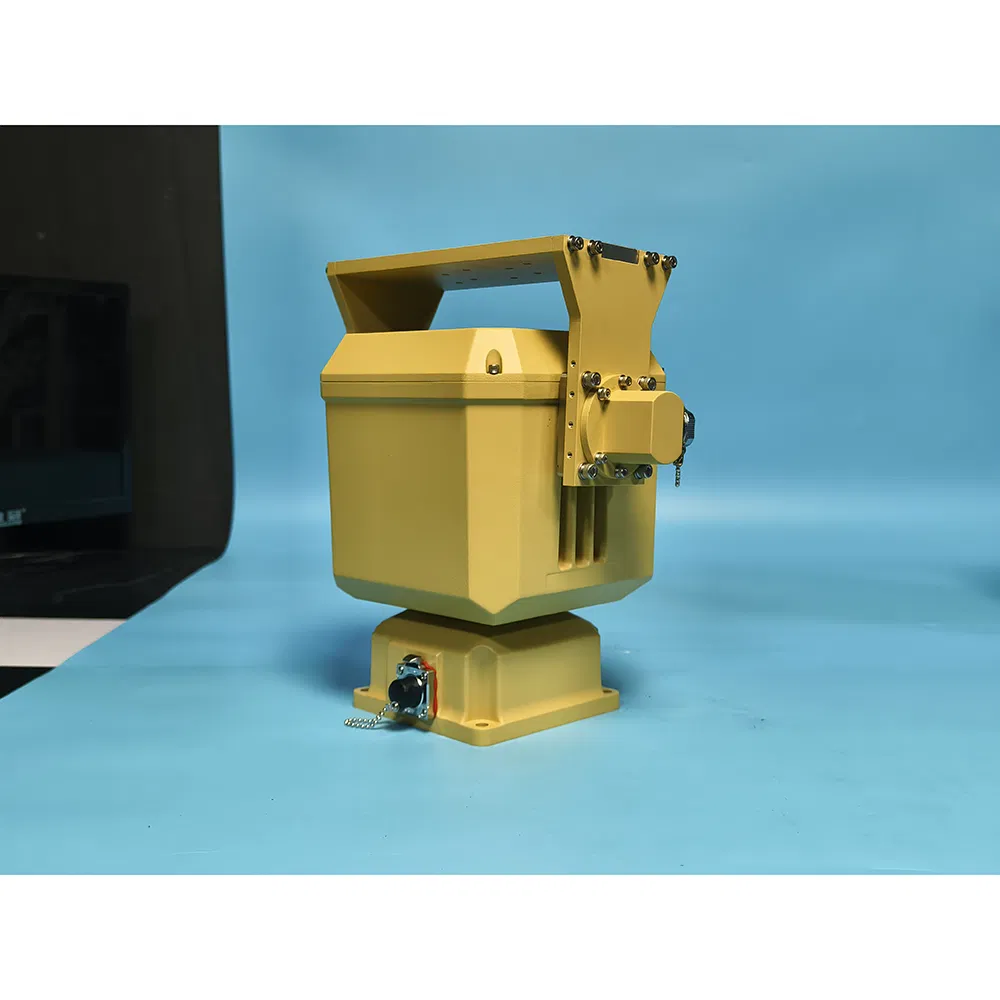

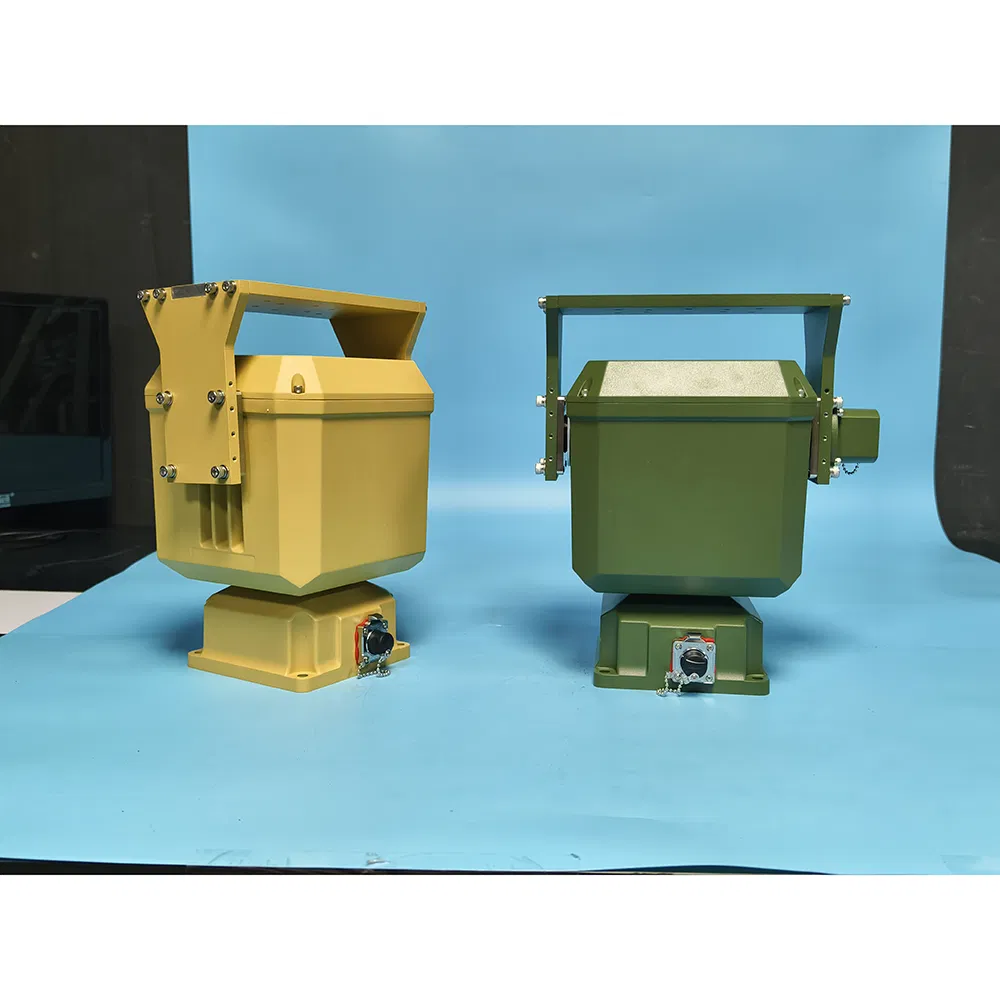

MID-Load Heavy Duty Pan Tilt System for Outdoor Applications

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

Basic Information

Model NO.

SOAR1040

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Kind

Autofocus Lens

Feature

Waterproof, High Definition, Vandal-proof

Effective Distance

≧30m

Sensor Size

1/3 inch

Product Description

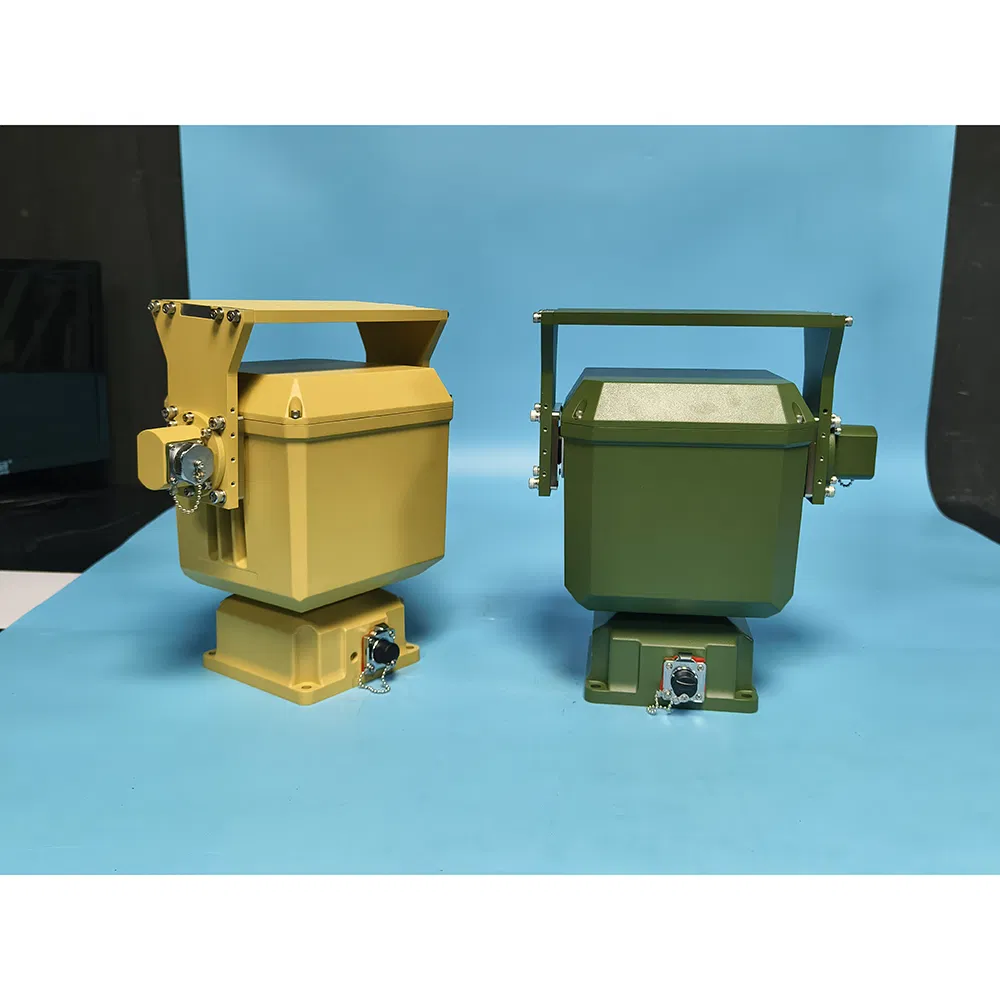

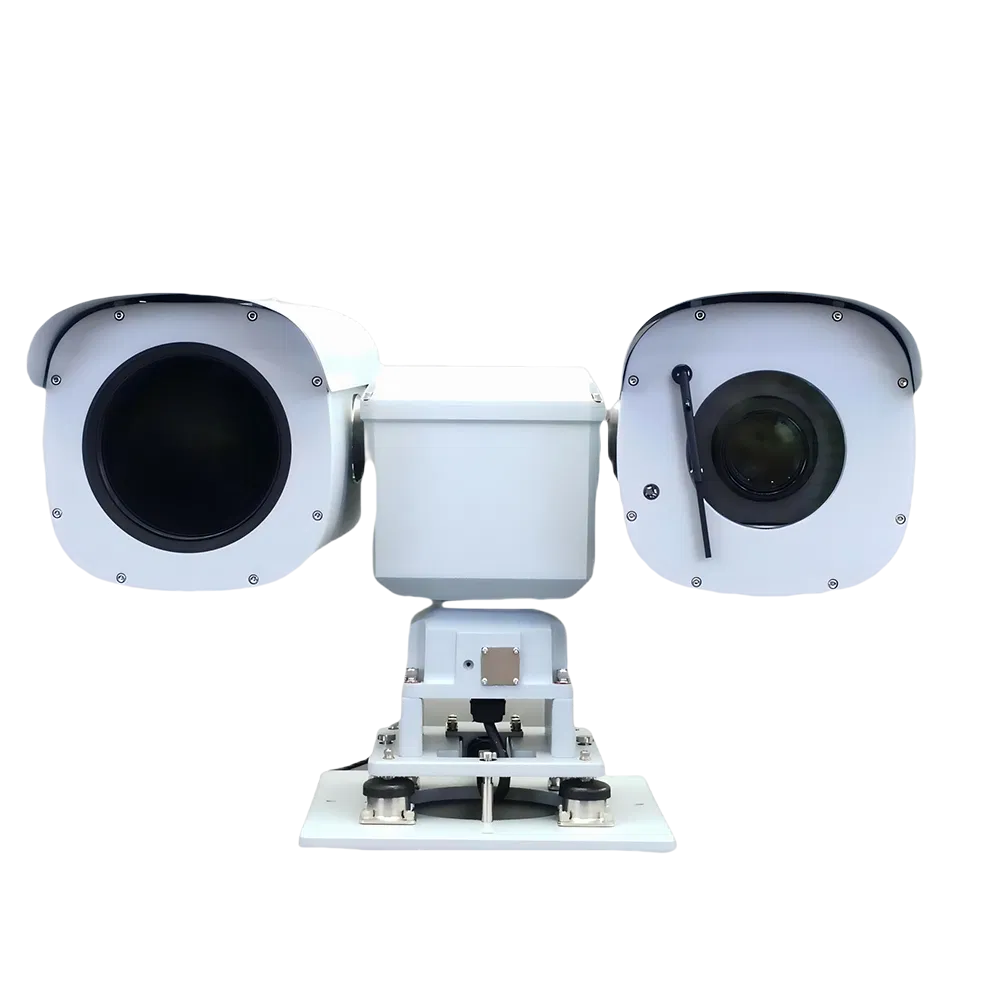

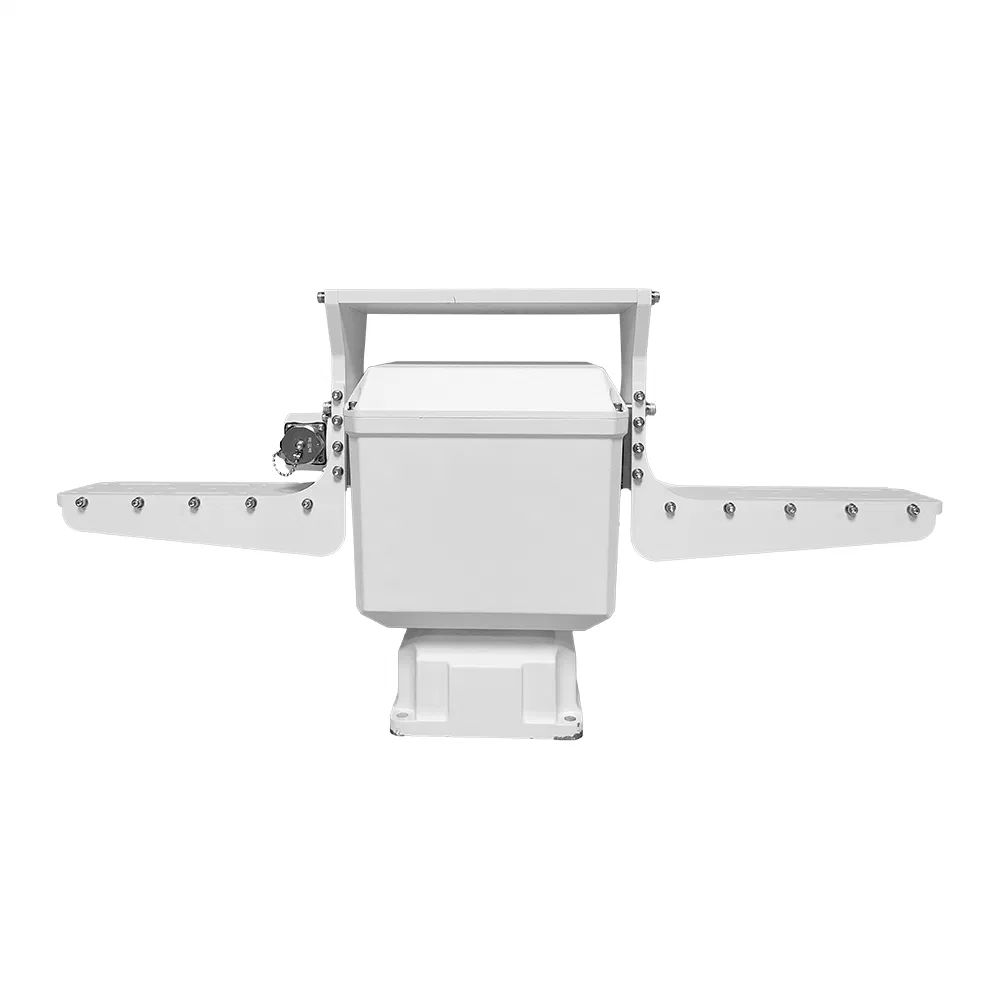

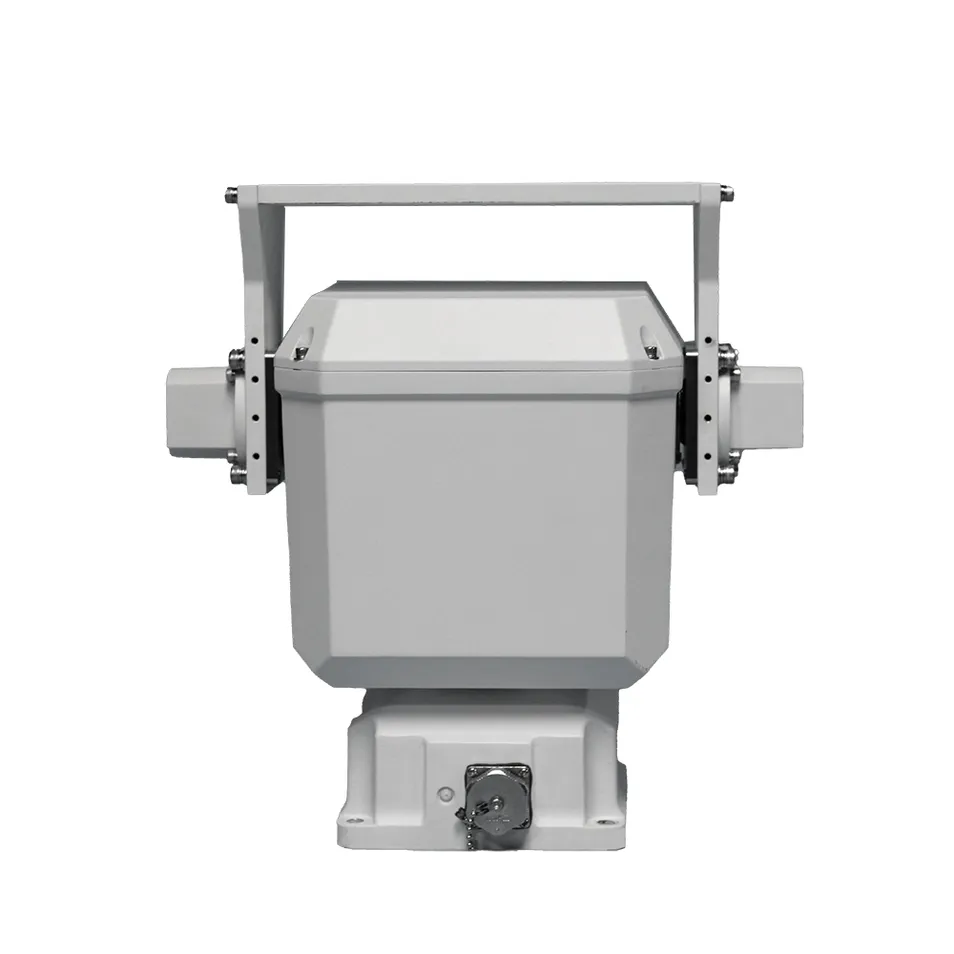

Mid-load Heavy Duty Pan Tilt Positioner

The series Pan/Tilt system accommodates various single payload using a versatile bracketing system for top mounting. It is designed for easy integration, serving as an open platform that offers the necessary flexibility while reducing development and integration efforts.

This unit has demonstrated its reliability in numerous mission-critical applications for positioning cameras, lasers, antennas, and other instruments in both stationary and mobile settings. Features a harmonic gear drive, ensuring high precision and long life.

Product Highlights

Supports up to 30kg payload for heavy-duty multi-sensor integration
Features high-precision harmonic drive with zero-backlash performance and 0.005° positioning accuracy.

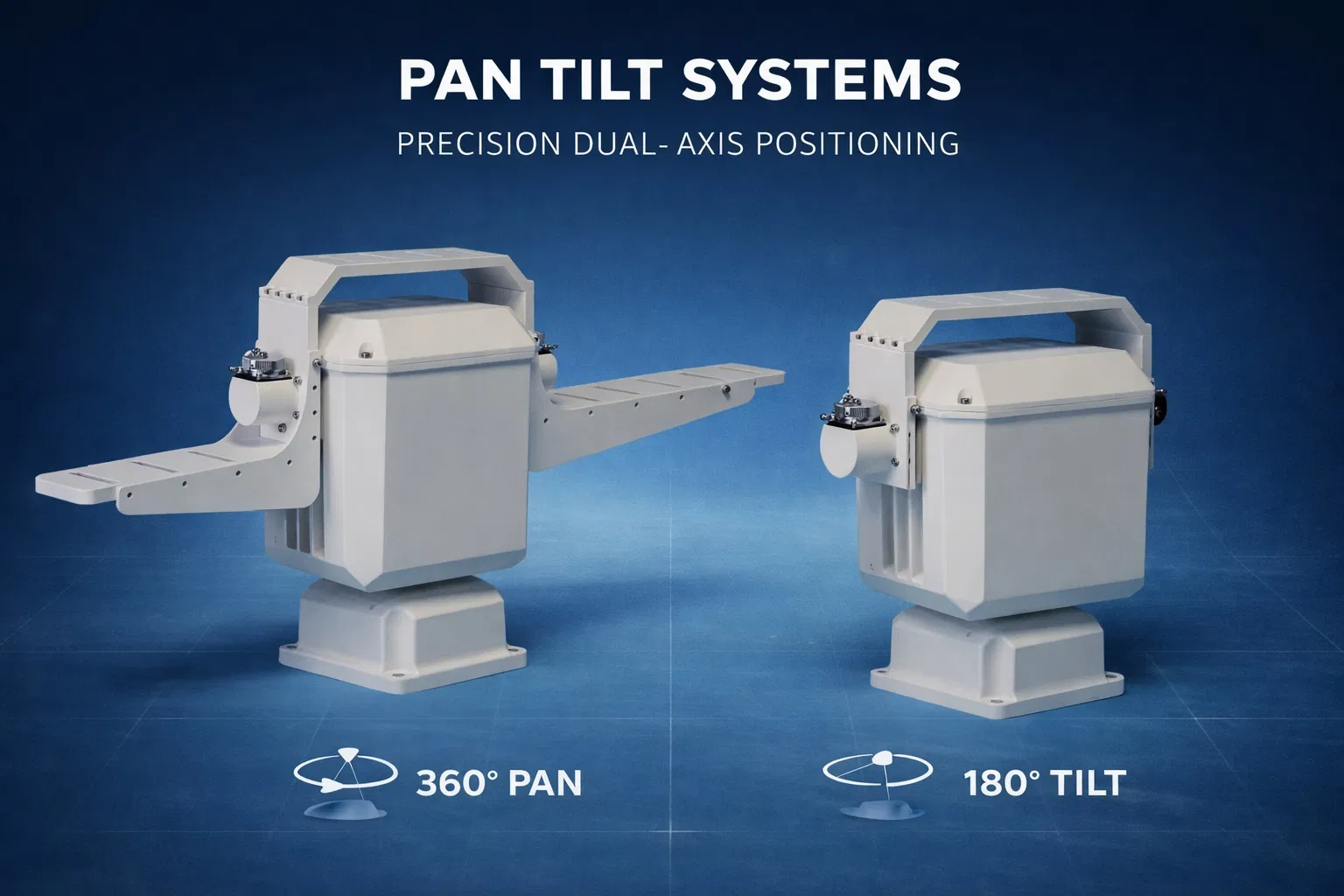

Provides 360° continuous pan and ±90° tilt with ultra-smooth low-speed control.
Optional Enables long-range surveillance with thermal imaging, 120× optical zoom, and optional 10km laser range finder.
Optional built-in AI supports human, vehicle, vessel, and drone detection with auto tracking.
IP67-rated rugged design ensures reliable operation from –40°C to +70°C in harsh environments.
Pelco-D protocol compatibility and easy integration

Technical Specification

Payload
Top Payload	Up to 30kg
Side Payload	Up to 30kg
Pan & Tilt Performance
Pan/Tilt Range	Pan: 360° endless; Tilt: –90° to +90°
Positioning Accuracy	Pan: 0.005°; Tilt : 0.01°
Communication	RS-422/RS-485/RJ45; Protocol: Pelco-D
General Parameters
Power Input	DC24V / DC48V; Max 60W
Working Temperature	-40°C to +70°C
Protection Level	IP67; TVS 6000V Lightning Protection
Dimension & Weight	335mm×192mm×337.5mm; Approx. 9kg

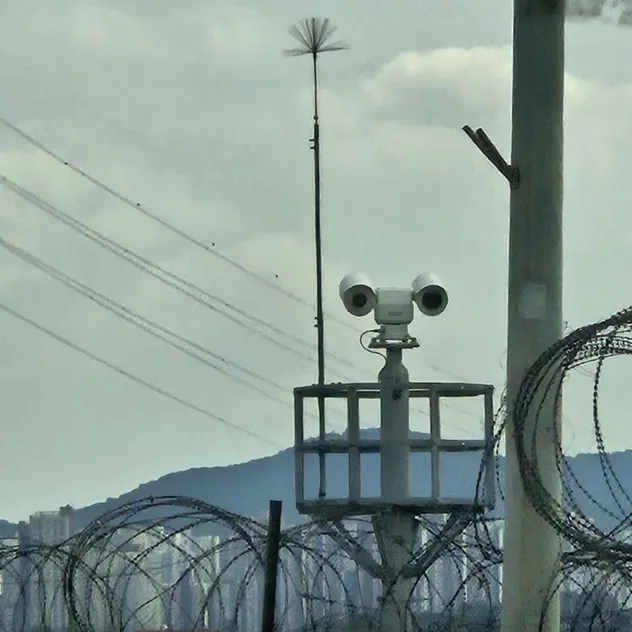

Application Scenarios

Manufacturing Excellence

Founded in 2005, our facility specializes in designing and developing PTZ camera systems and advanced optical imaging solutions. We serve demanding sectors including maritime monitoring, long-range surveillance, anti-drone systems, and defense. Our business also focuses on mobile surveillance, power line inspection, forest fire prevention, robotics cameras, and industrial machine vision.

With a dedicated Optical Camera Division and a team of over 160 professionals, including 62 R&D experts, we provide high-performance zoom and thermal imaging cameras. We are committed to continuous innovation and providing core components to complete, customized system solutions.
