Pan Tilt Positioner Outdoor Motorized MID-Load Heavy Duty High-Performance

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

📊Basic Information

Model NO.	SOAR1040
Type	CCTV Camera
Sensor	CMOS
HDMI Format	1080P
Kind	Autofocus Lens
Feature	Waterproof / Weatherproof, High Definition, Vandal-proof
Effective Distance	≧30m
Sensor Size	1/3 inch
Remote Control	With Remote Control

📝Product Description

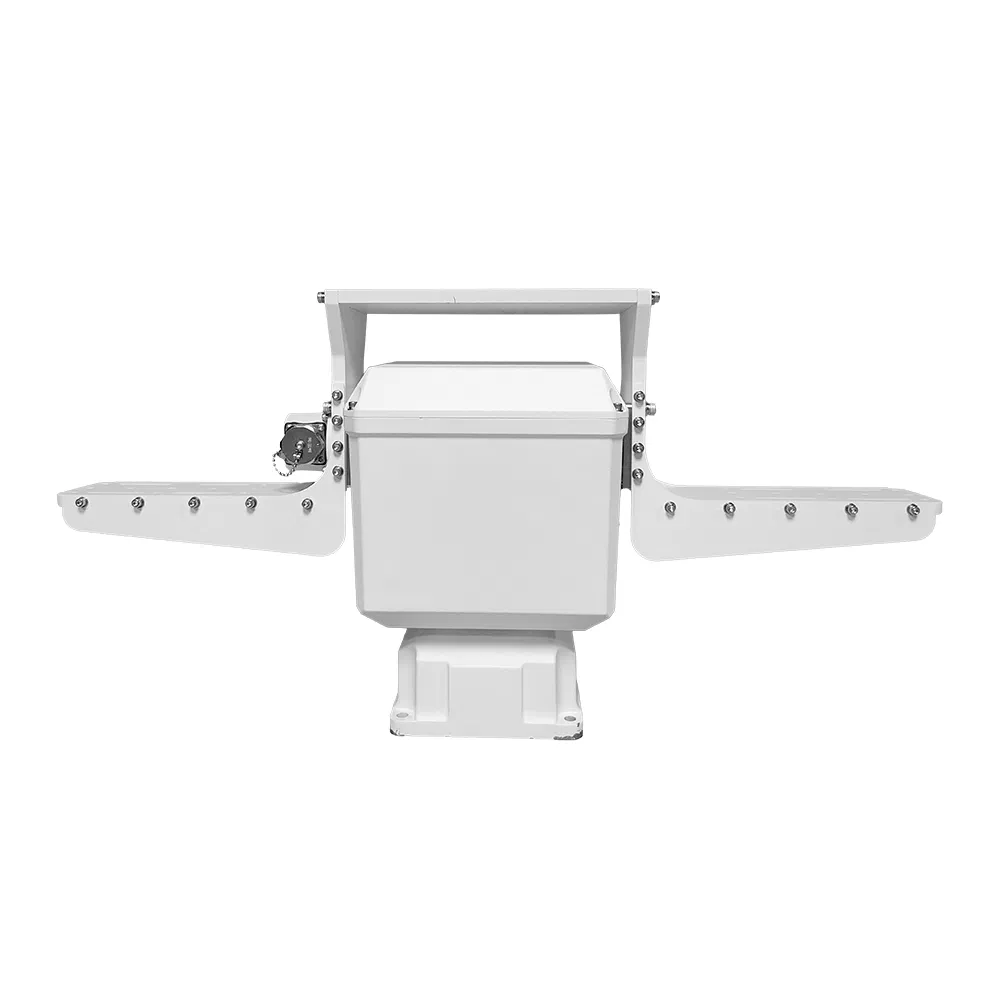

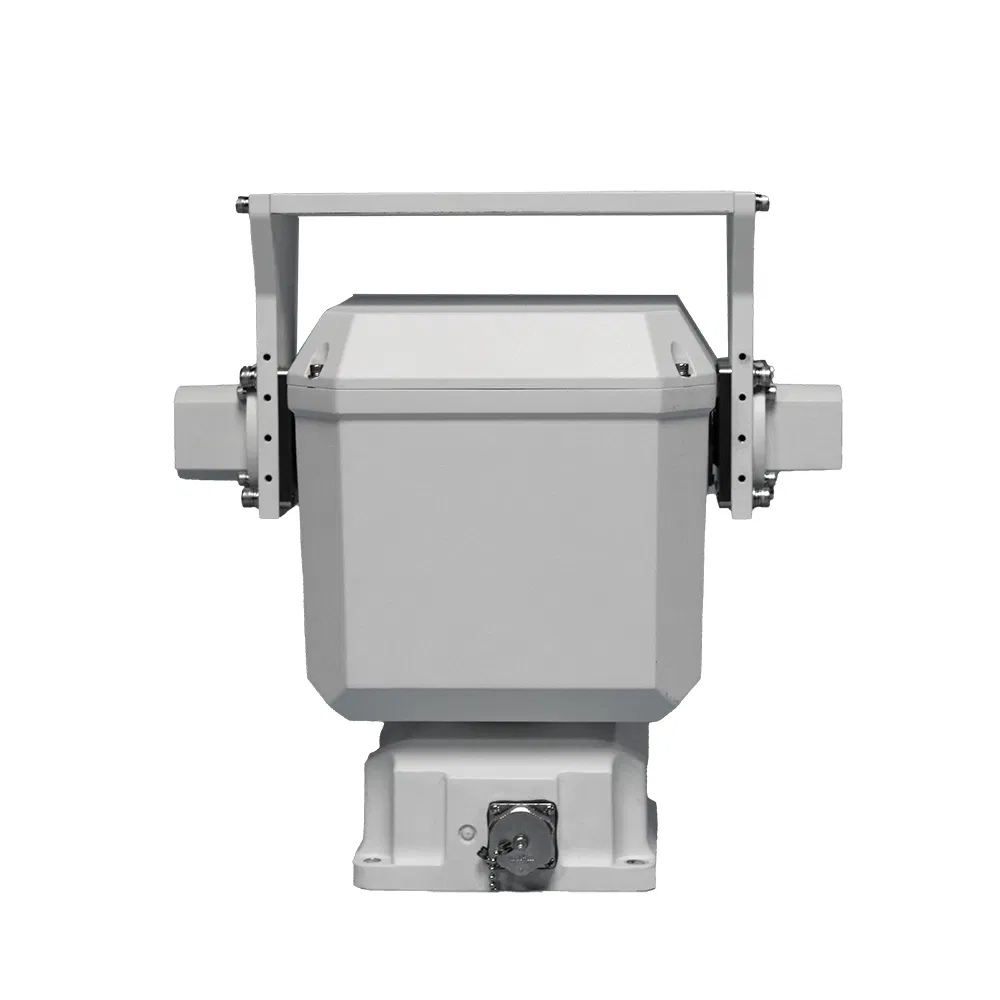

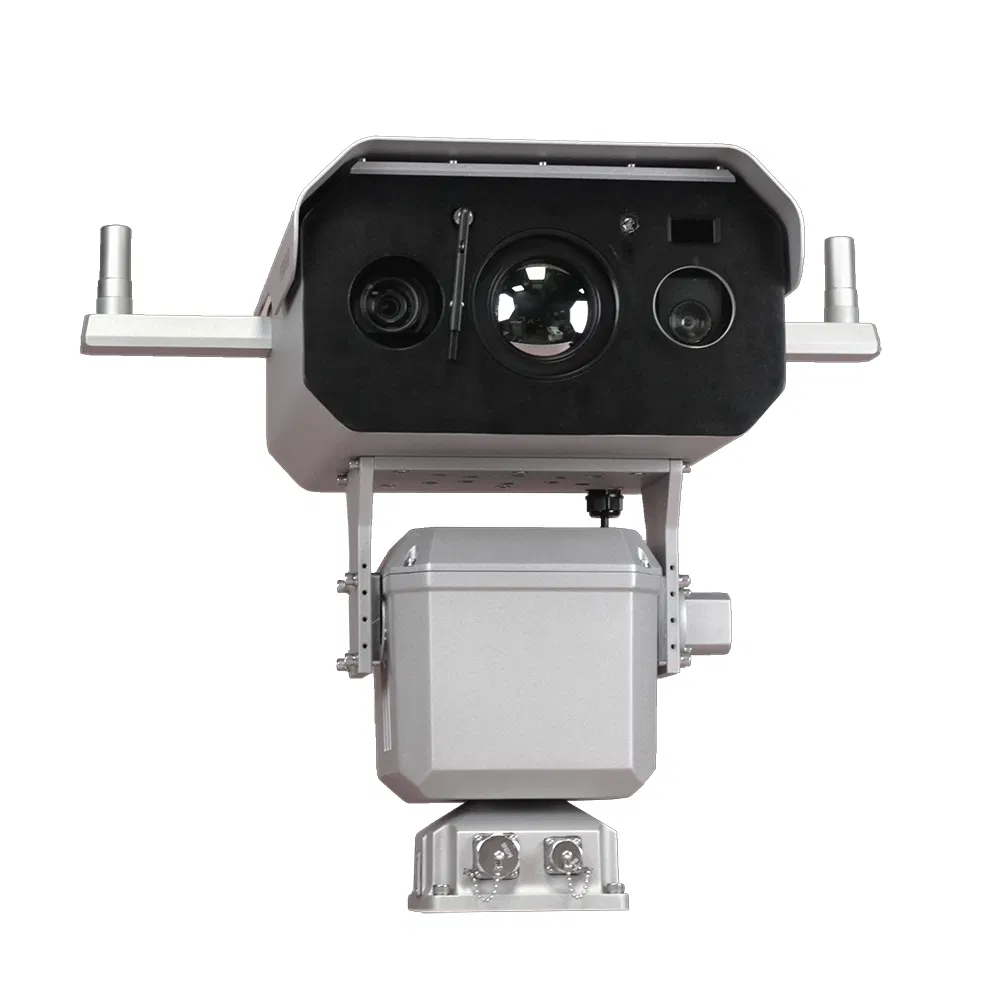

Mid-load Heavy Duty Pan Tilt Positioner

The SO1040 Series Pan/Tilt system accommodates various single payload using a versatile bracketing system for top mounting. It is designed for easy integration, serving as an open platform that offers the necessary flexibility while reducing development and integration efforts.

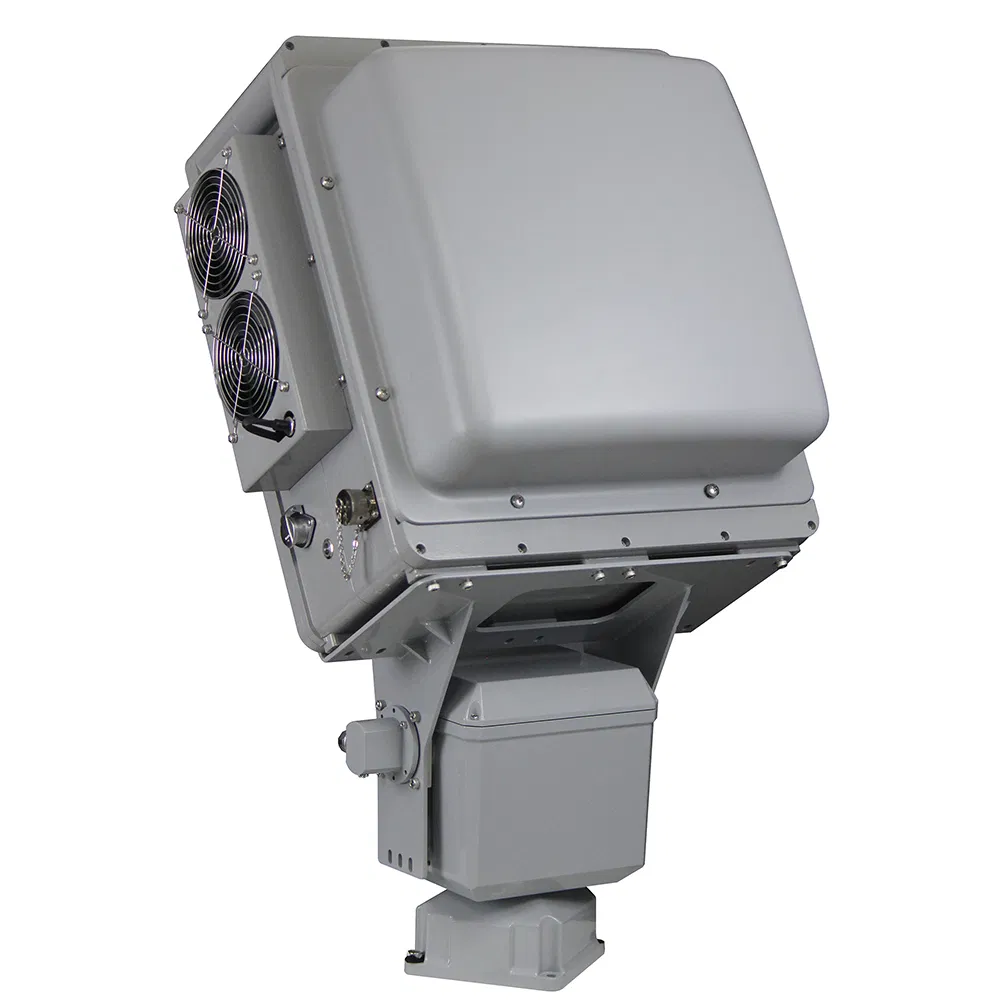

This unit has demonstrated its reliability in numerous mission-critical applications for positioning cameras, lasers, antennas, and other instruments in both stationary and mobile settings. Features a harmonic gear drive, ensuring high precision and long life. Additionally, it can be delivered as a complete system with all required sensors if needed.

✨Product Highlights

Supports up to 30kg payload for heavy-duty multi-sensor integration
Features high-precision harmonic drive with zero-backlash performance and 0.005° positioning accuracy.

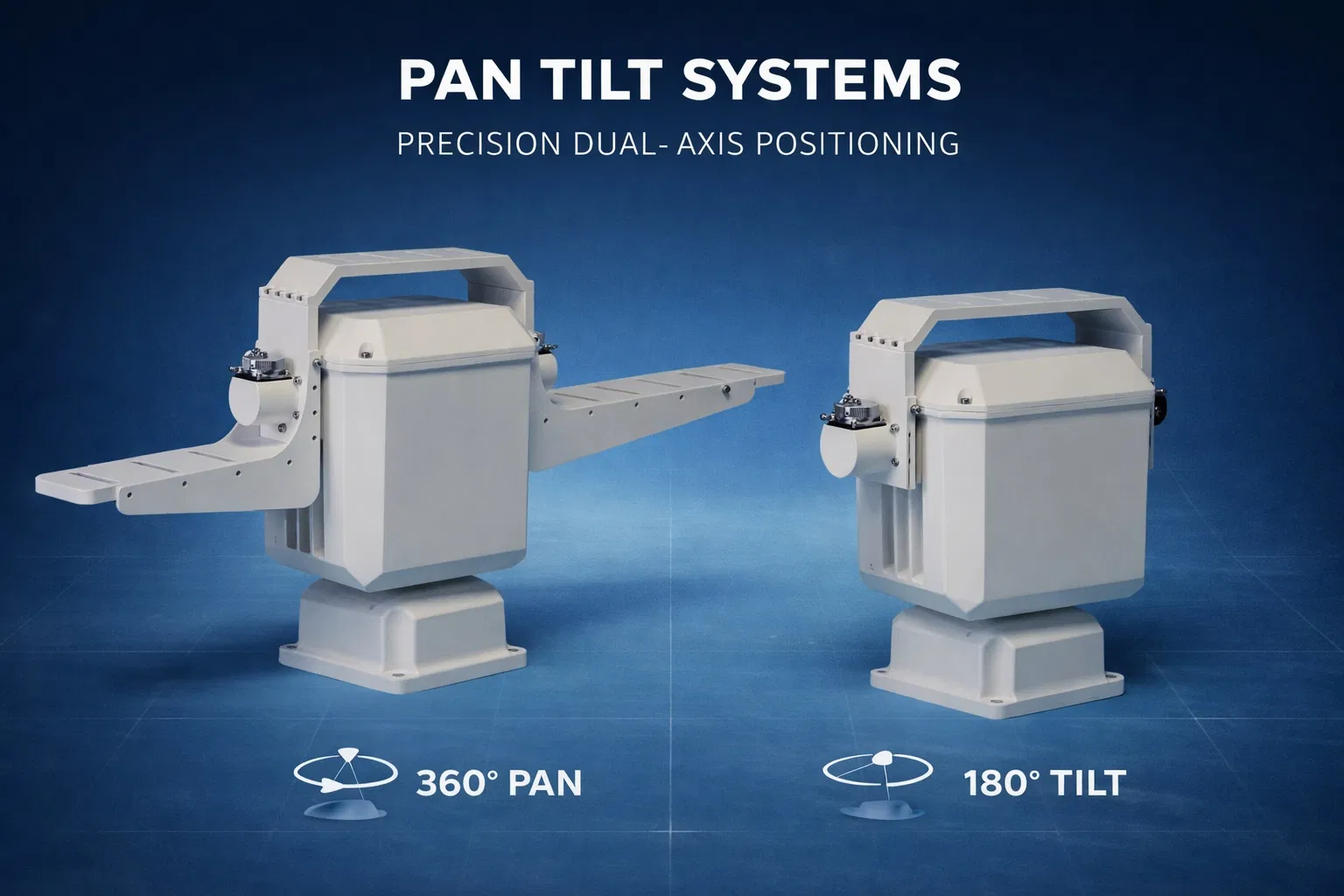

Provides 360° continuous pan and ±90° tilt with ultra-smooth low-speed control.

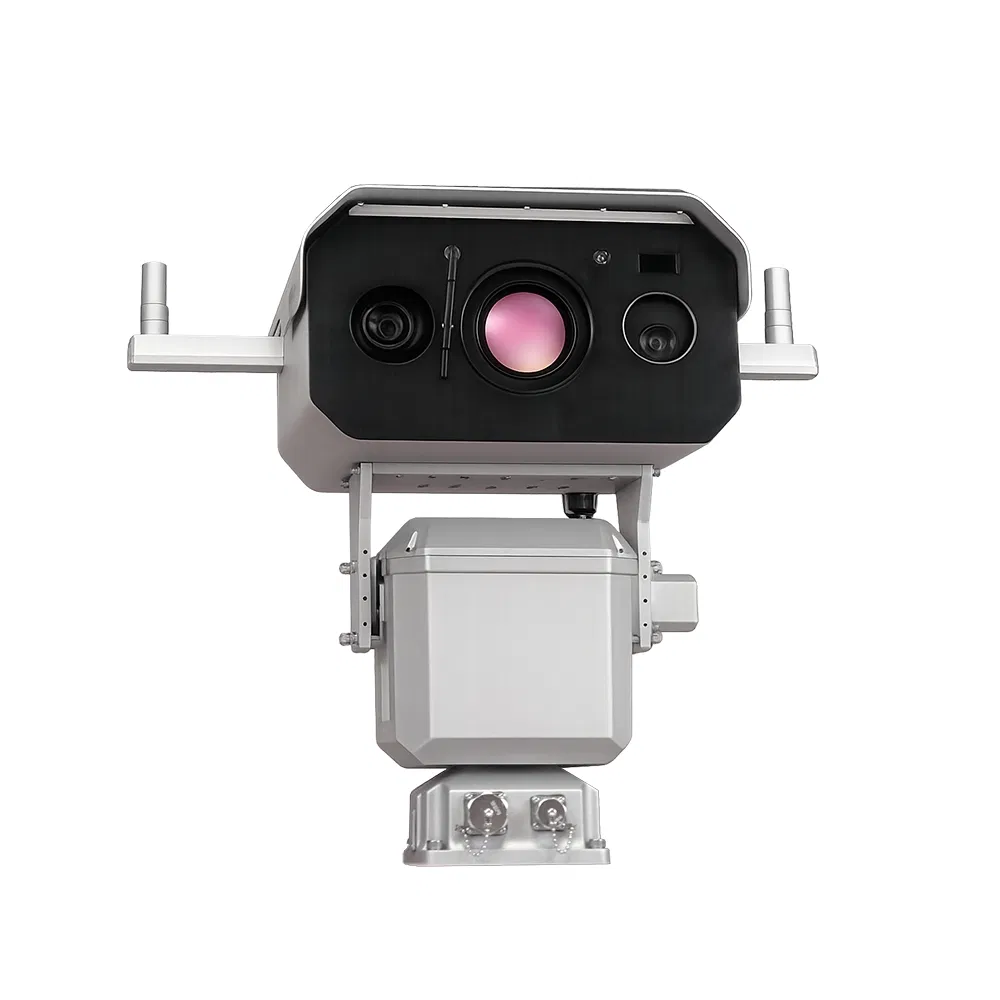

Optional enables long-range surveillance with thermal imaging, 120× optical zoom, and optional 10km laser range finder.
Optional built-in AI supports human, vehicle, vessel, and drone detection with auto tracking.
IP67-rated rugged design ensures reliable operation from –40°C to +70°C in harsh environments.
Pelco-D protocol compatibility and easy integration

📋Technical Specifications

Payload
Top Payload	Up to 30kg
Side Payload	Up to 30kg
Pan Tilt Performance
Pan/Tilt Range	Pan: 0° to 360° endless; Tilt: –90° to +90°
Pan/Tilt Speed	10kg: 0.05-60°/s; 20kg: 0.05-50°/s; 30kg: 0.05-40°/s
Preset / Accuracy	255 Presets; Pan: 0.005°; Tilt : 0.01°
Protocol	Pelco-D via RS-422/RS-485/RJ45
Input Ports
Power & Network	DC24V/DC48V; 1 × RJ-45 (10/100 Base-T)
Audio/Alarm/Video	1 Alarm In/Out, 1 Audio In/Out, CVBS Analog
Environmental & Physical
Working Temp	-40°C to +70°C; Humidity 95% or less
Protection	IP67; TVS 6000V Lightning/Surge protection
Size / Weight	335mm × 192mm × 337.5mm; Approx. 9kg

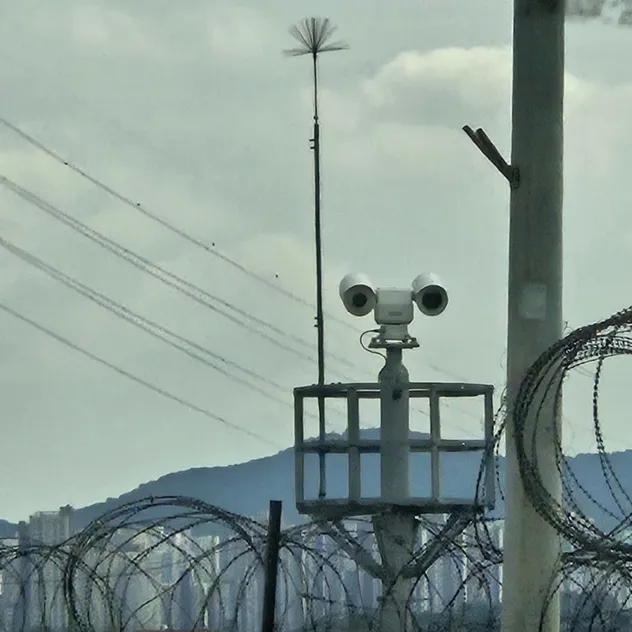

🌐Application Scenarios

🏢About Our Solutions

Specializing in designing and developing PTZ camera systems and advanced optical imaging solutions, we serve demanding sectors including maritime monitoring, long-range surveillance, anti-drone systems, and defense. Our expertise also covers mobile surveillance, power line inspection, forest fire prevention, robotics cameras, and industrial machine vision.

With a dedicated Optical Camera Division, we focus on high-performance zoom and thermal imaging cameras. Our team of over 160 professionals includes 62 R&D experts with deep industry experience. We are committed to continuous innovation and collaboration to deliver customized system solutions.
