Advanced Outdoor High-Performance Pan Tilt Positioner with Durable Features

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

i

Basic Information

Model NO.SOAR1040

TypeCCTV Camera

SensorCMOS

HDMI Format1080P

KindAutofocus Lens

FeatureWaterproof, High Definition, Vandal-proof

Effective Distance≥30m

Sensor Size1/3 inch

P

Product Description

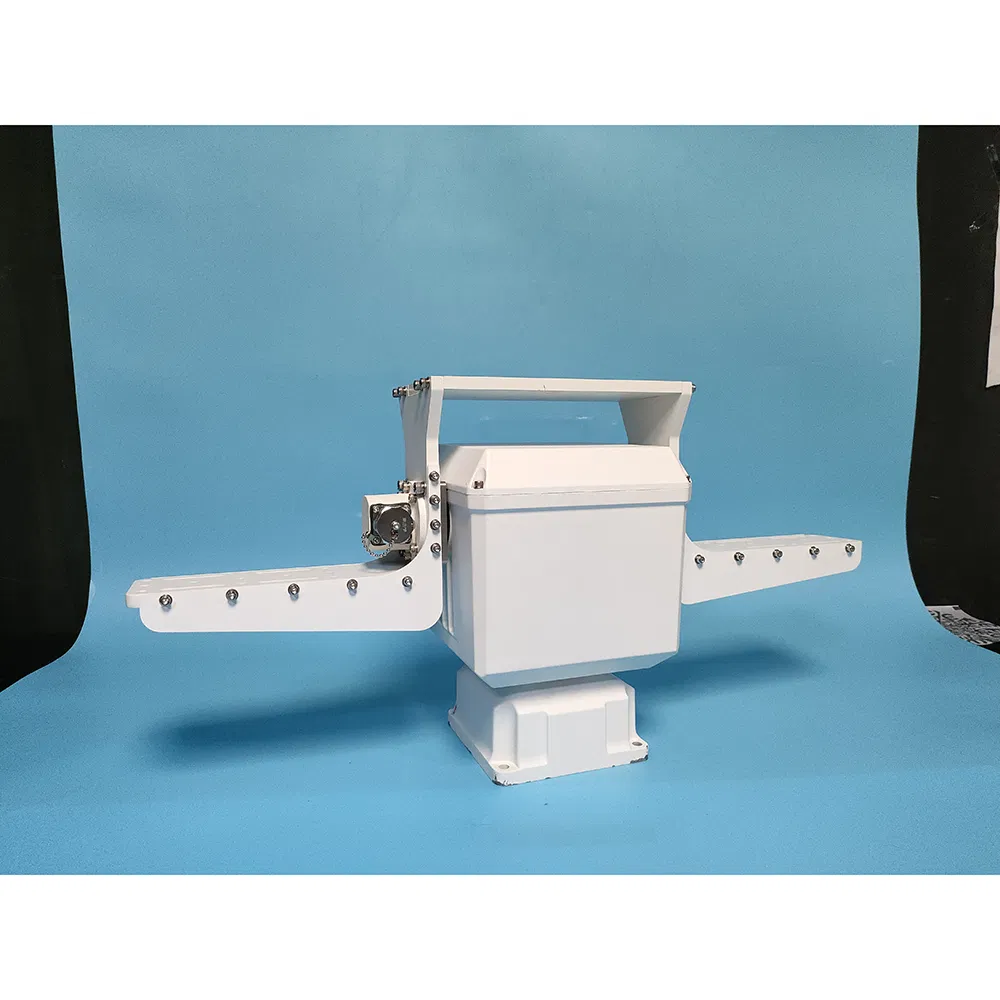

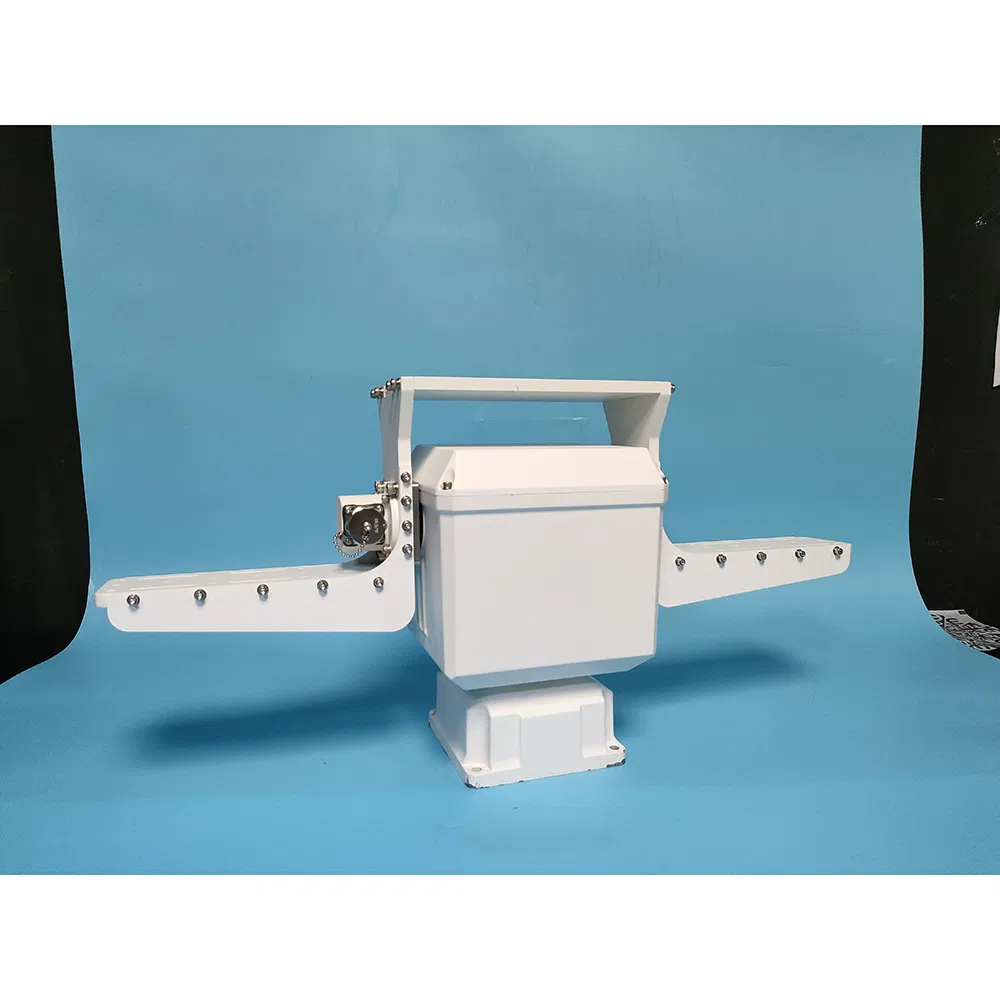

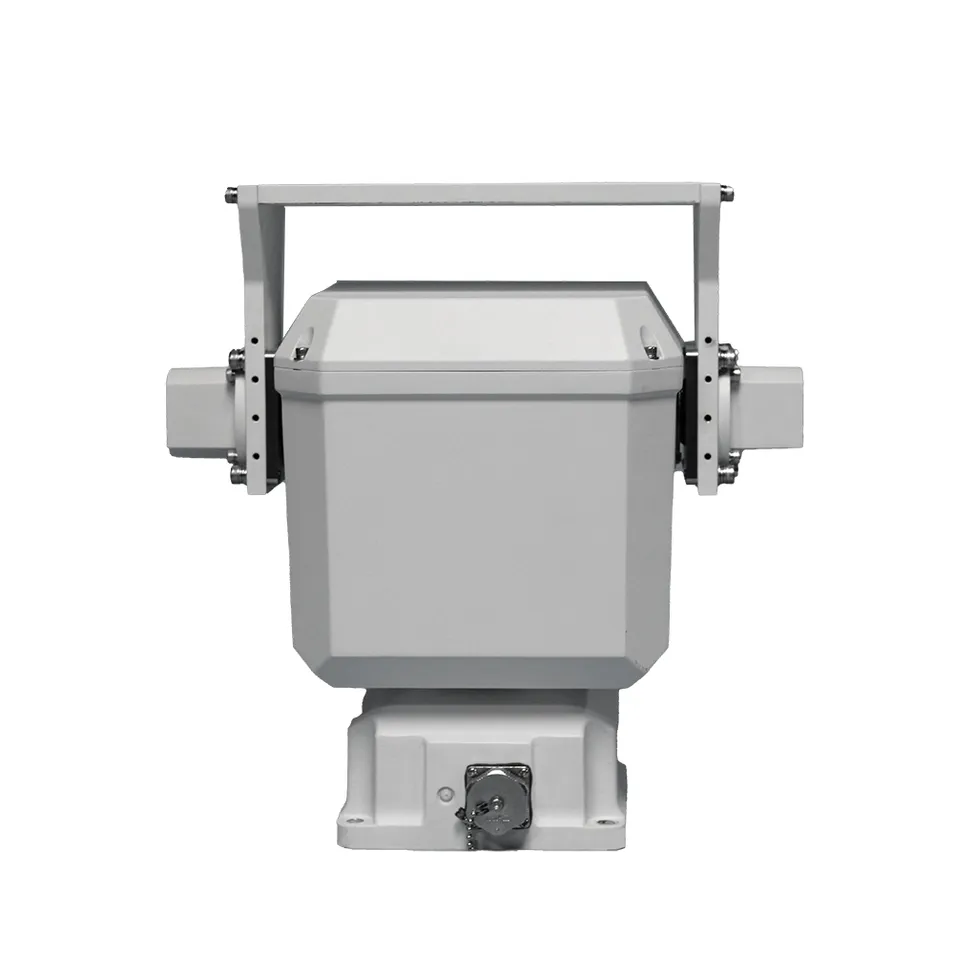

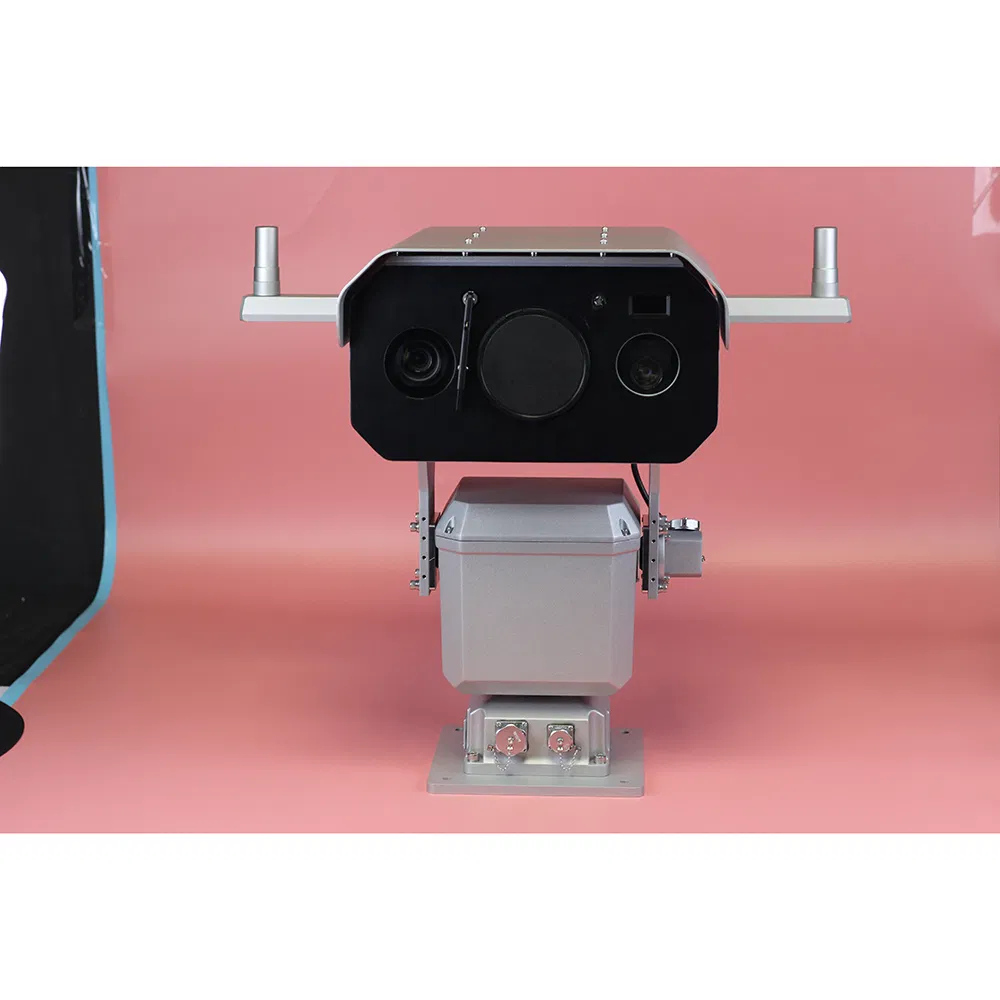

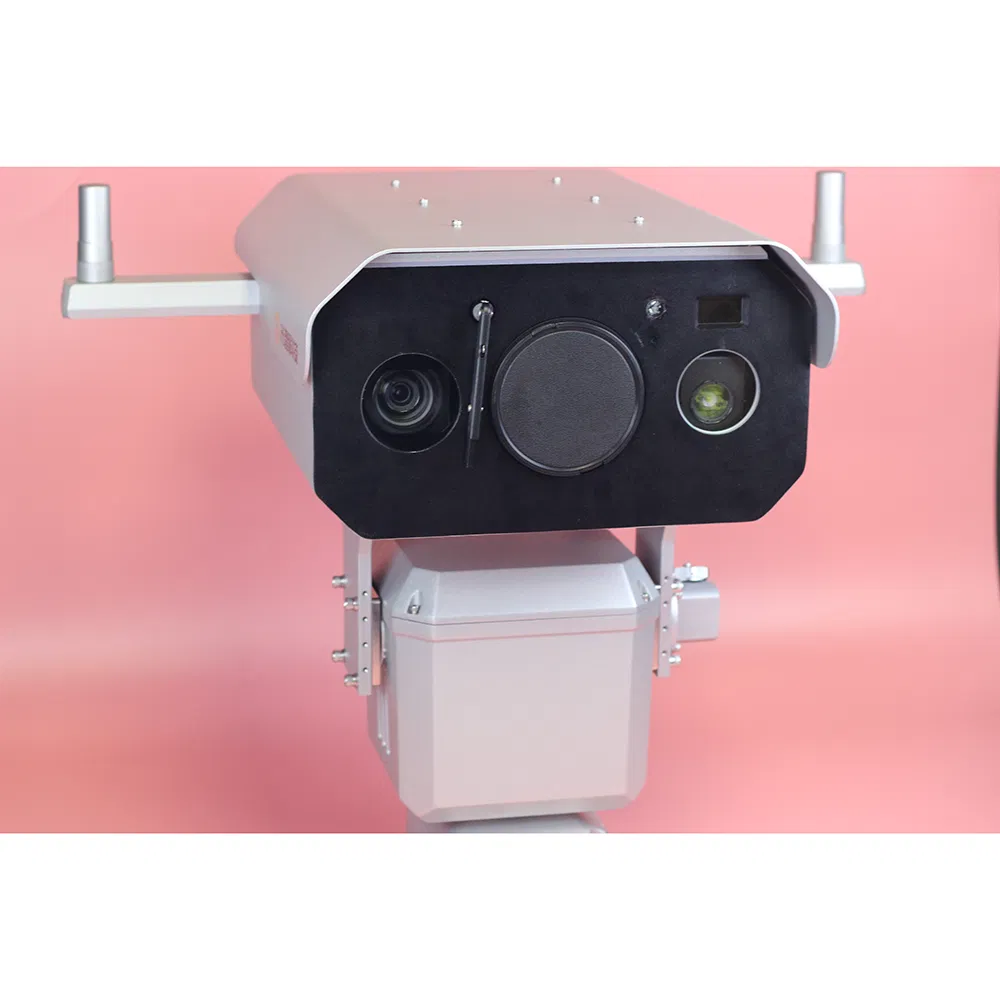

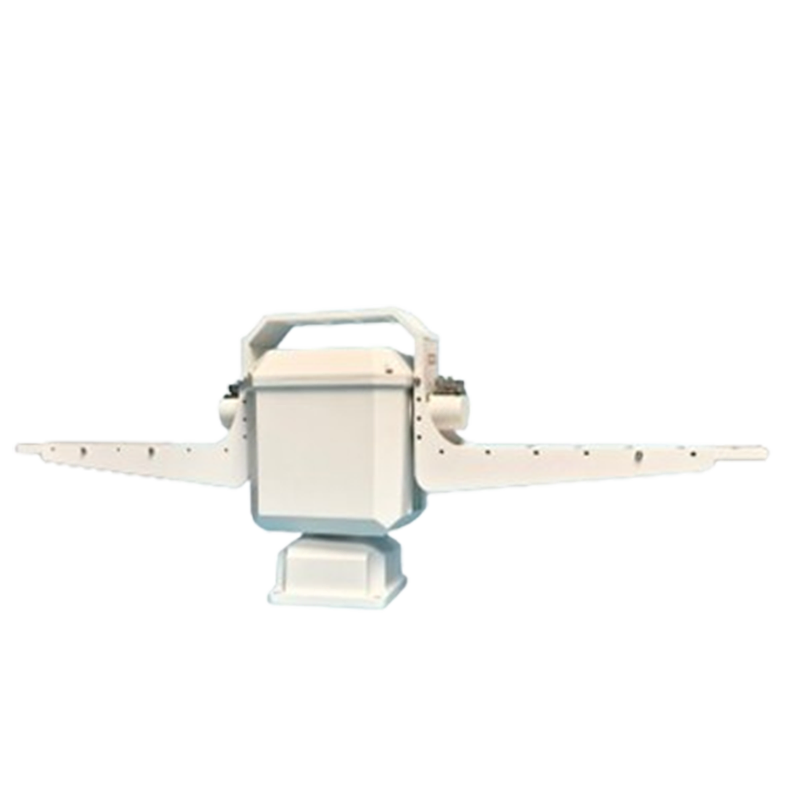

Mid-load Heavy Duty Pan Tilt Positioner

The system accommodates various single payload using a versatile bracketing system for top mounting. It is designed for easy integration, serving as an open platform that offers the necessary flexibility while reducing development and integration efforts.

This unit has demonstrated its reliability in numerous mission-critical applications for positioning cameras, lasers, antennas, and other instruments in both stationary and mobile settings. Features a harmonic gear drive, ensuring high precision and long life.

★

Product Highlights

Supports up to 30kg payload for heavy-duty multi-sensor integration
High-precision harmonic drive with zero-backlash and 0.005° positioning accuracy

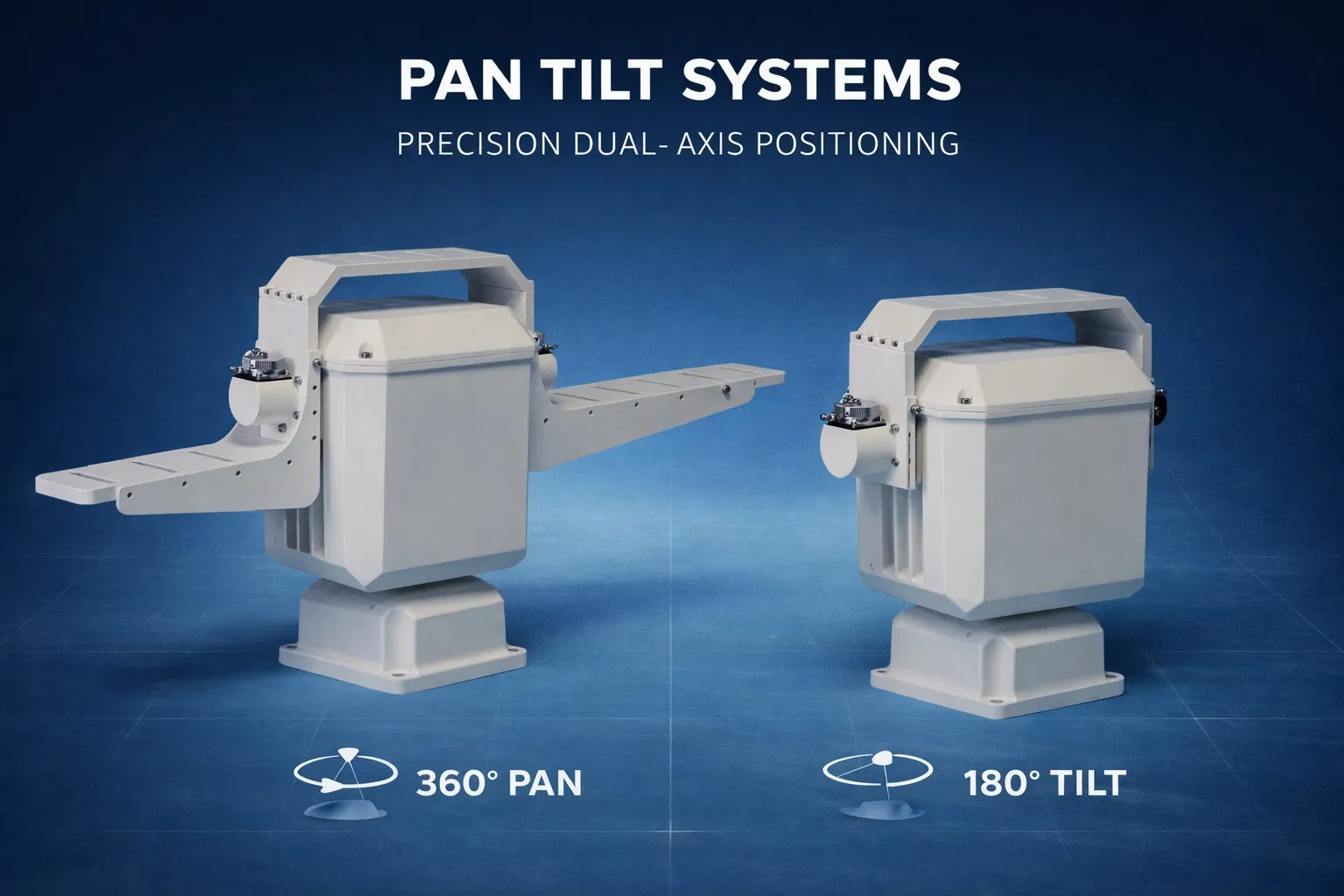

360° continuous pan and ±90° tilt with ultra-smooth low-speed control
Enables long-range surveillance with thermal imaging and 120× optical zoom
Built-in AI supports human, vehicle, vessel, and drone detection with auto tracking
IP67-rated rugged design operates from –40°C to +70°C in harsh environments
Pelco-D protocol compatibility for easy system integration

S

Specifications

Technical Parameters
Payload
Top/Side Payload	Up to 30kg
Pan Tilt Performance
Range	Pan: 360° endless; Tilt: –90° to +90°
Speed (10kg-30kg)	Pan: 0.05 to 60°/s; Tilt: 0.05 to 40°/s (varies by load)
Accuracy	Pan: 0.005°; Tilt : 0.01°
Presets	255
Connectivity
Interface	RS-422 / RS-485 / RJ45
Protocol	Pelco-D
General
Power	DC24V / DC48V, Max 60W
Environment	-40°C to +70°C; IP67 Standard
Protection	TVS 6000V Lightning & Surge Protection
Dimension / Weight	335mm × 192mm × 337.5mm / Approx. 9kg

A

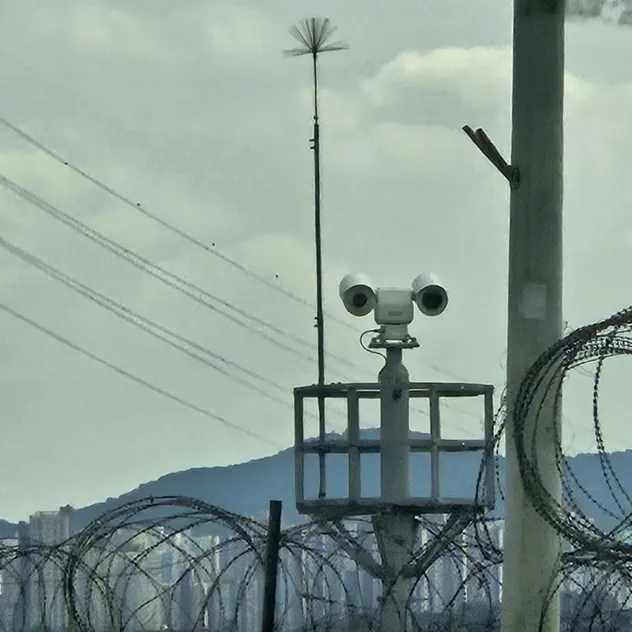

Application Scenarios

C

About the Manufacturer

Specializing in designing and developing PTZ camera systems and advanced optical imaging solutions since 2005. We serve demanding sectors including maritime monitoring, long-range surveillance, anti-drone systems, and defense. Our business also focuses on mobile surveillance, power line inspection, forest fire prevention, robotics cameras, and industrial machine vision. With a dedicated Optical Camera Division, we offer high-performance zoom and thermal imaging cameras ranging from core components to complete, customized system solutions.
