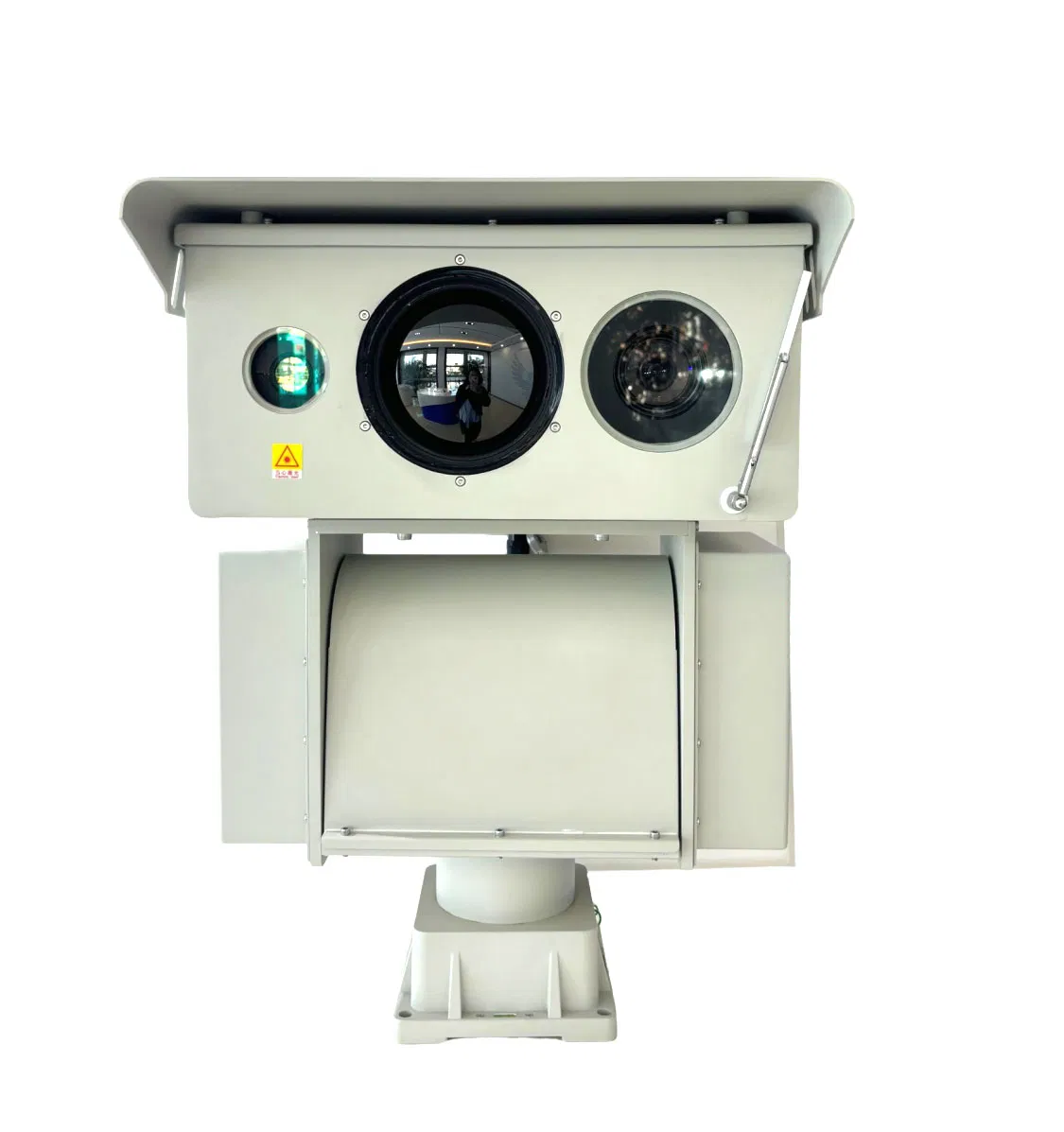

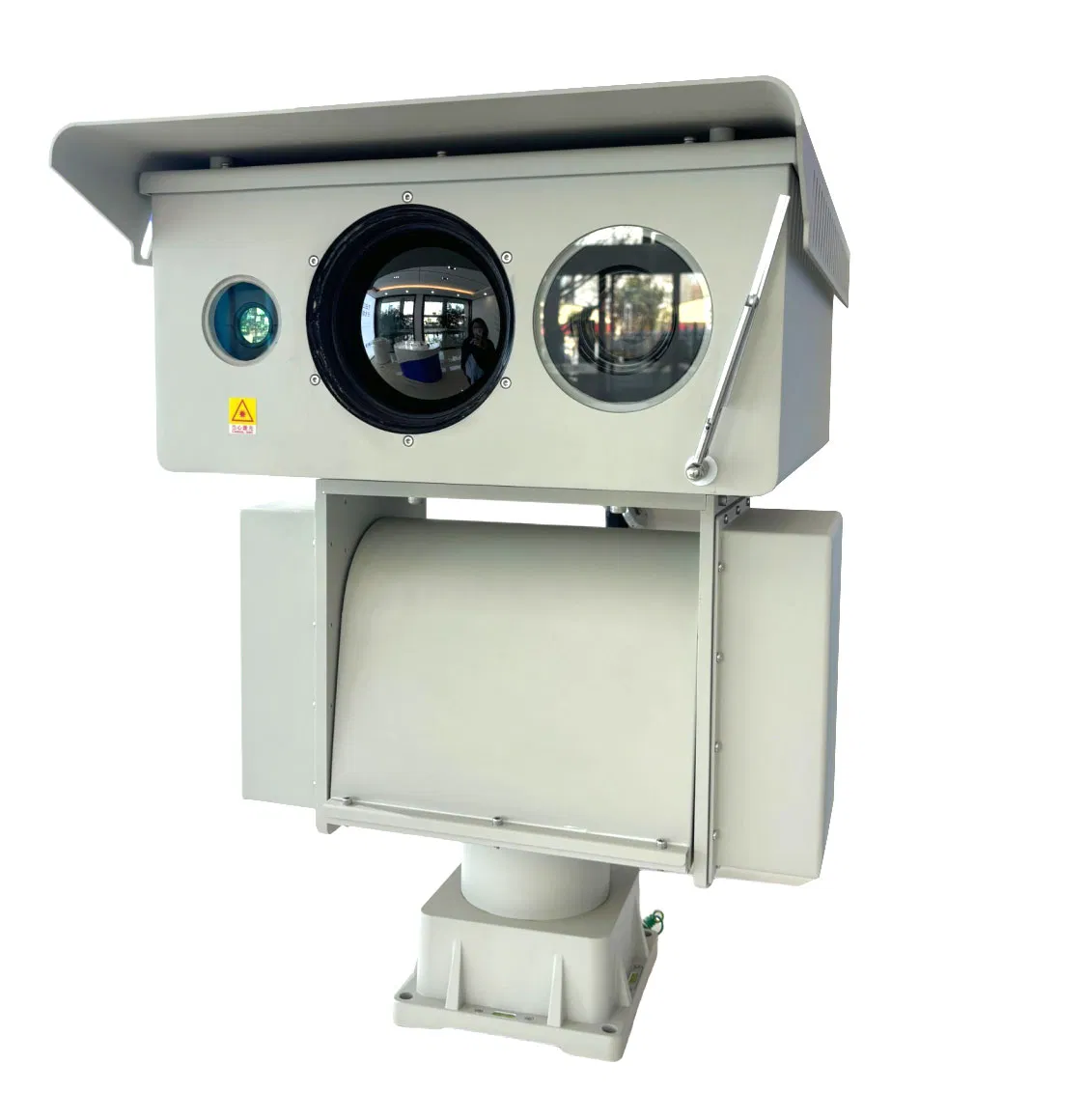

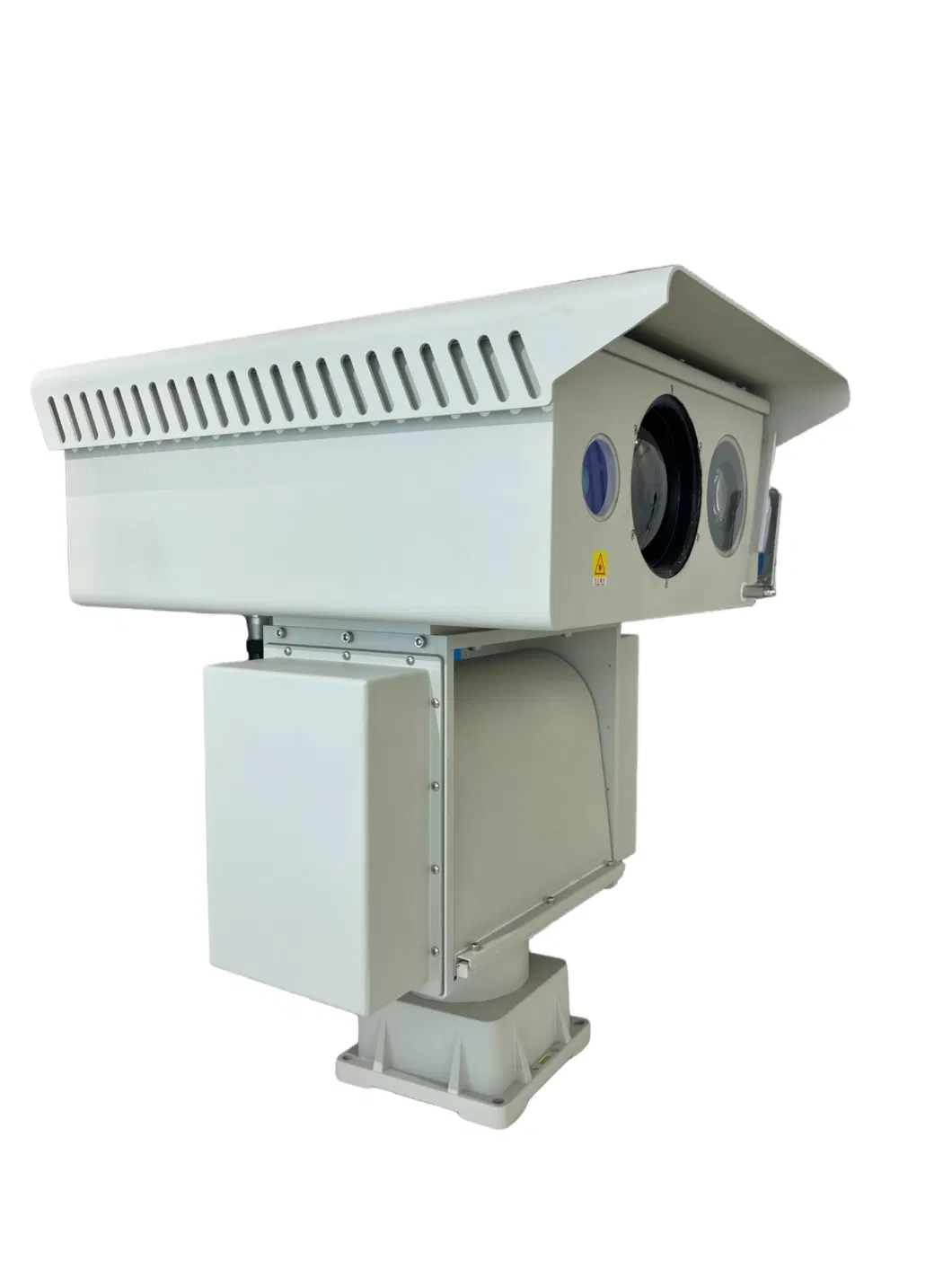

Introducing an unparalleled advancement in fire detection technology: our Heavy-Duty Pan Tilt Camera with Dual Spectral Imaging Technology. This groundbreaking device seamlessly combines visible light fireworks recognition with infrared thermal imaging for unparalleled fire detection and recognition capabilities.
Precision Positioning: Dynamically adjusting azimuth and elevation angles using a robust digital gimbal to precisely pinpoint forest fire locations.
The system employs cutting-edge wireless bridges and Beidou satellite technology to create seamless transmission links, ensuring real-time video images and critical warning control signals reach the command center with utmost efficiency.
Application Scenarios
This versatile camera system is expertly designed for a diverse range of critical environments:
Forest Fire Monitoring & Early Warning
Oil Field Safety & Petrochemical Industry
Port, Terminal & Airport Runway Oversight
Border & Coastal Defense
Substation & Nuclear Power Plant Security
Urban High-altitude Lookouts
Technical Parameters
Model Type
FLYIR-SLFH-12KM
Farthest smoke alarm distance
13500M (5 m x 5 m)
Fire point farthest alarm distance
11000M (2 m x 2 m)
Protection Level
IP66
Thermal Imaging System
Detector type
Uncooled infrared focal plane array sensor
Pixel
384x288
Infrared lens focal length
25-225mm
Visible Light System
Camera Resolution
HD 1920x1080 (2 Million Pixels)
Lens focal length
25~800mm
PTZ Characteristics
Rotation Range
Horizontal 360° continuous, Vertical ±45°
Control Mode
RS485/422, Pelco-P, Pelco-D
Detailed Photos
Frequently Asked Questions
What is the maximum detection range for fire points?
The system can detect fire points (2m x 2m) at a distance of up to 11,000 meters and smoke (5m x 5m) up to 13,500 meters.
Does this camera support night vision?
Yes, it features dual spectral imaging, combining thermal imaging with a high-sensitivity visible light sensor (0.002Lux) for superior performance in low-light and night conditions.

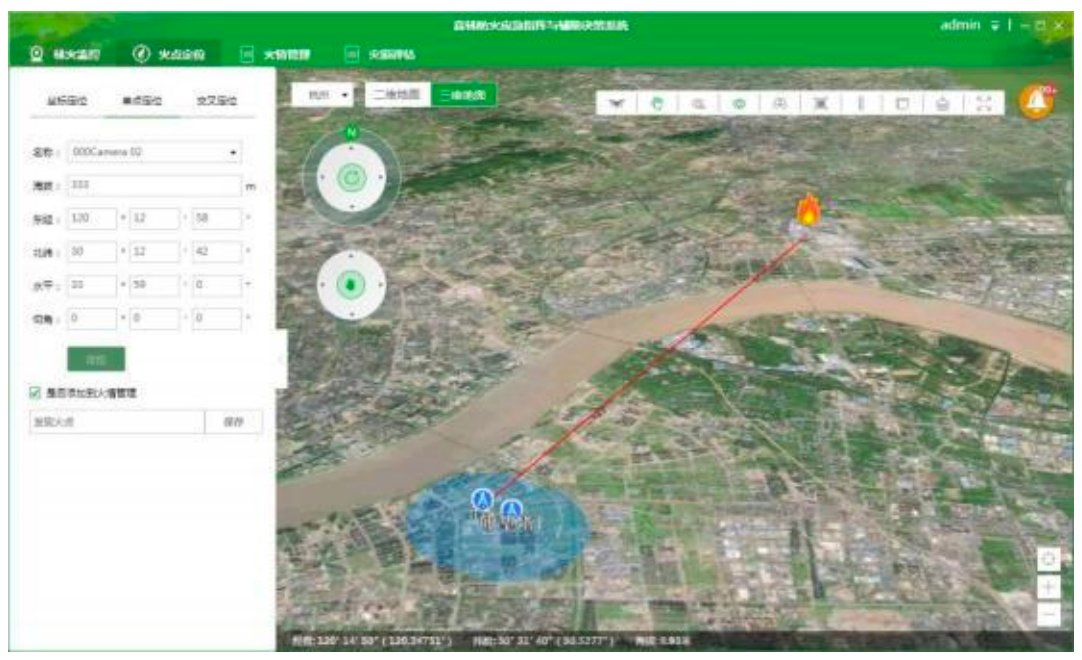

How does the camera pinpoint the fire location?
It uses a high-precision digital gimbal to dynamically adjust azimuth and elevation angles, combined with advanced recognition software to provide precise coordinates.
Is the device suitable for coastal or harsh environments?
Absolutely. The camera has an IP66 protection rating and is salt-spray resistant (continuous 48 hours), making it ideal for coastal and industrial use.
What kind of rotation does the PTZ offer?
The PTZ supports 360° continuous horizontal rotation and a vertical range of ±45° with variable speed control for comprehensive area coverage.
What video compression formats are supported?
The system supports advanced encoding formats including H.265, H.264, and MJPEG for efficient data transmission and storage.
